SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.1ton
Wheelbase:: 2000+2800+1400mm
Tire Size:: 11.00R20 18PR
SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) exterior
View more photos (12)
Rated payload: 16.77ton
Drive 8X4 (12 wheels)
Horsepower 390
Cargo box type: Dump type

Overview

The SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) is a Heavy truck featuring 16.77t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanF2CCE611G*M engine, 390 hp, China VI emissions and Fast Gear transmission.

China VI 390 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CQ3317SV09286
Drive type: 8X4
Wheelbase: 2000+2800+1400mm
engine: SAIC Fiat Powertrain HongyanF2CCE611G*M
transmission: Fast Gear12JSD160T
Cab length: 9.11m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2020/2020mm
rear track: 1858/1858mm
Curb Weight: 14.1ton
Rated payload: 16.77ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 24°
Remarks: Cab configuration: air seat (damping adjustable), spring hydraulic damping, with curtains, standard lower bunk, 220V power supply; other configurations: Henglong steering gear, intercooler guard, 180Ah battery, metal front bumper, electronic fuel pump, urea heating system, gearbox with power assist; options: high-roof long/flat-roof short cab, front stabilizer bar, HY300(H)/HY300(S)/HY320/HDZ300 drive axle (only for wheelbase 3300mm and below), HY300(H)/HY300(M)/HDZ300 drive axle (only for wheelbase 3600mm and above), BOSCH steering gear, driver air seat (damping adjustable, ventilated & heated), premium power mirrors with heating, plastic bumper, oil-bath air filter, 400L fuel tank (for wheelbase 4000mm and above), 10-inch center console (internet, Bluetooth, entertainment, phone mirroring)/12-inch center console (internet, Bluetooth, entertainment, phone mirroring, navigation), coastal version wiring harness.
Version: composite reinforced version
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611G*M
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China VI
Max output power: 287kW
Max hp: 390Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Flat roof long
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 980_865/305×8+4mm
rear axle description: HY300(M)
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 8/8/12
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
lighting configuration
LED taillight:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

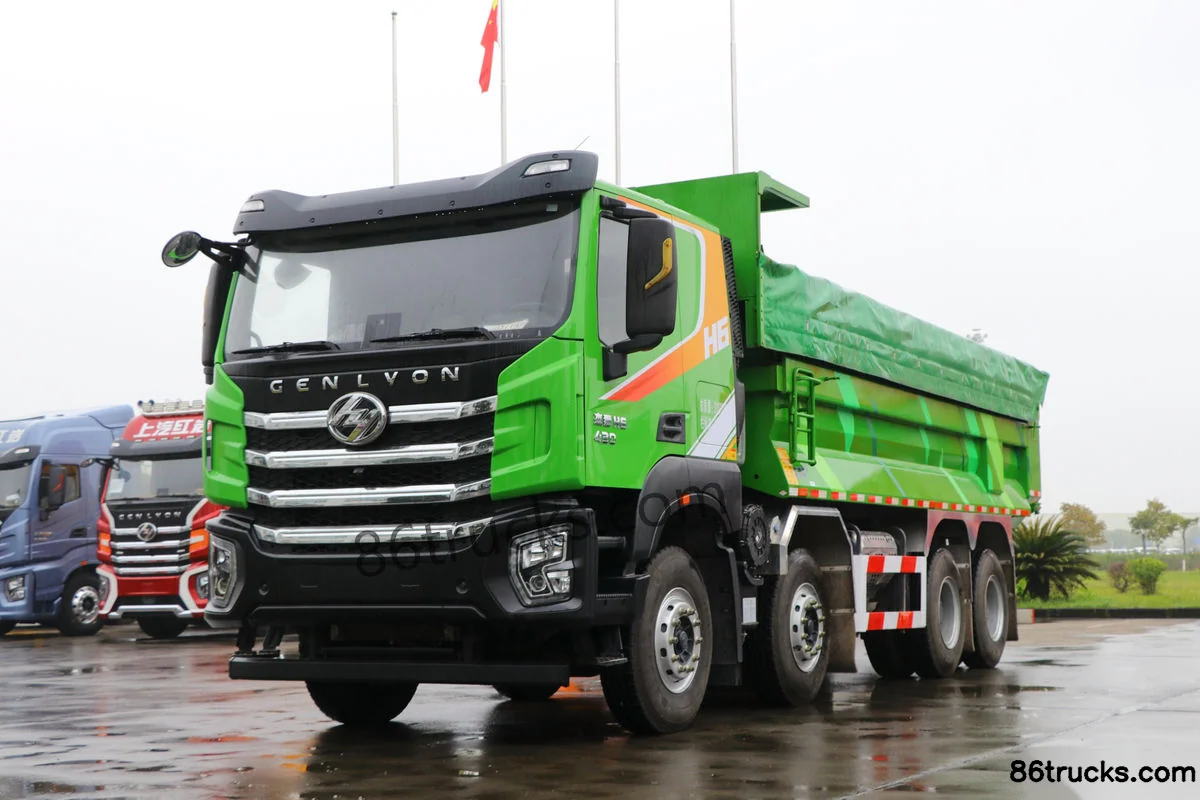

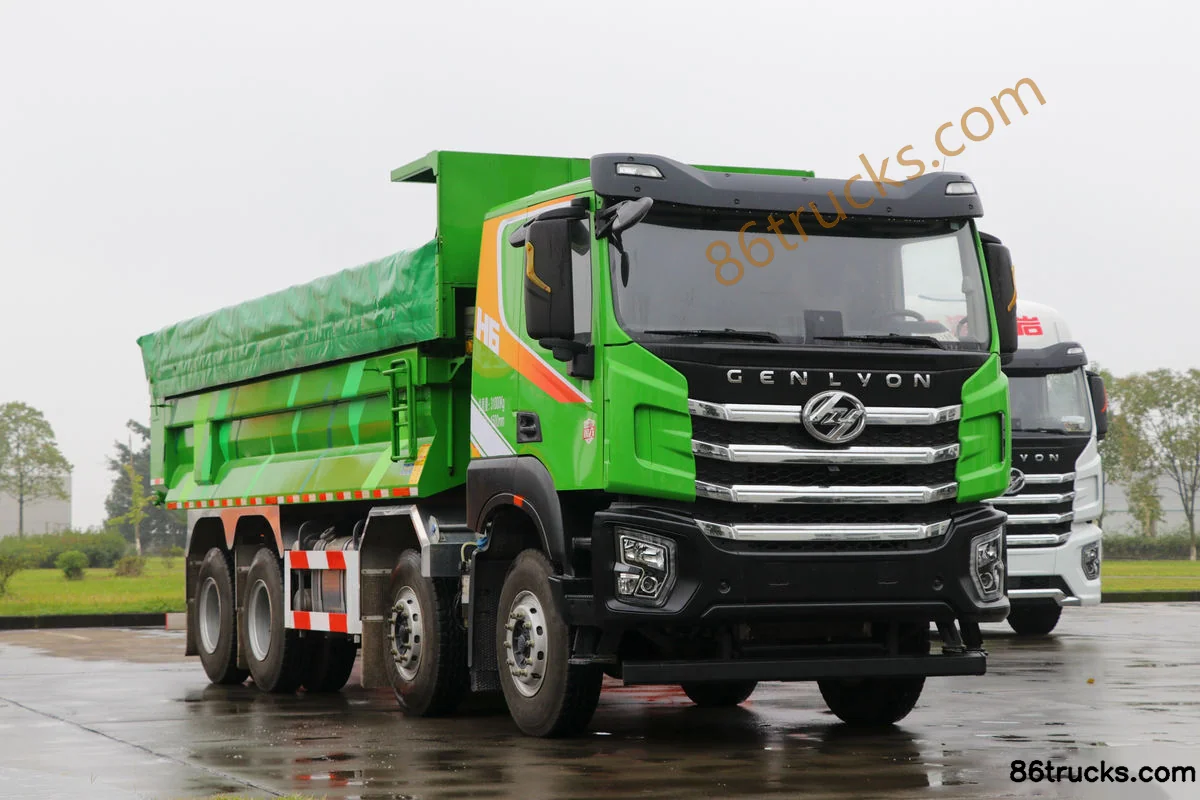

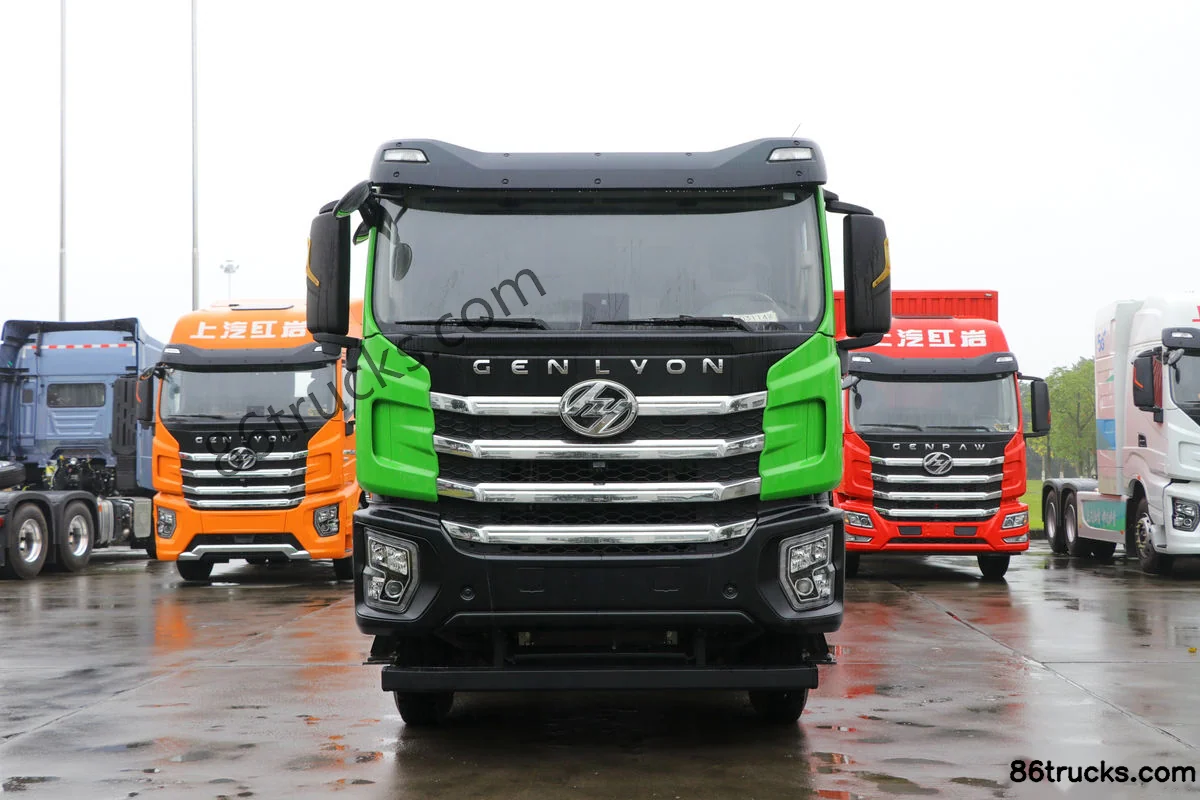

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Exterior (1) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Exterior (2) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Exterior (3) | 86Trucks

Cab3

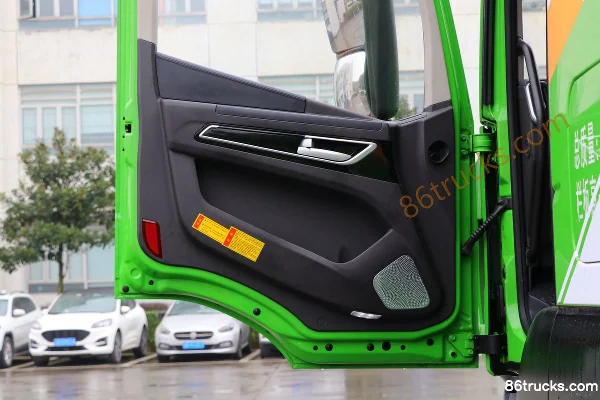

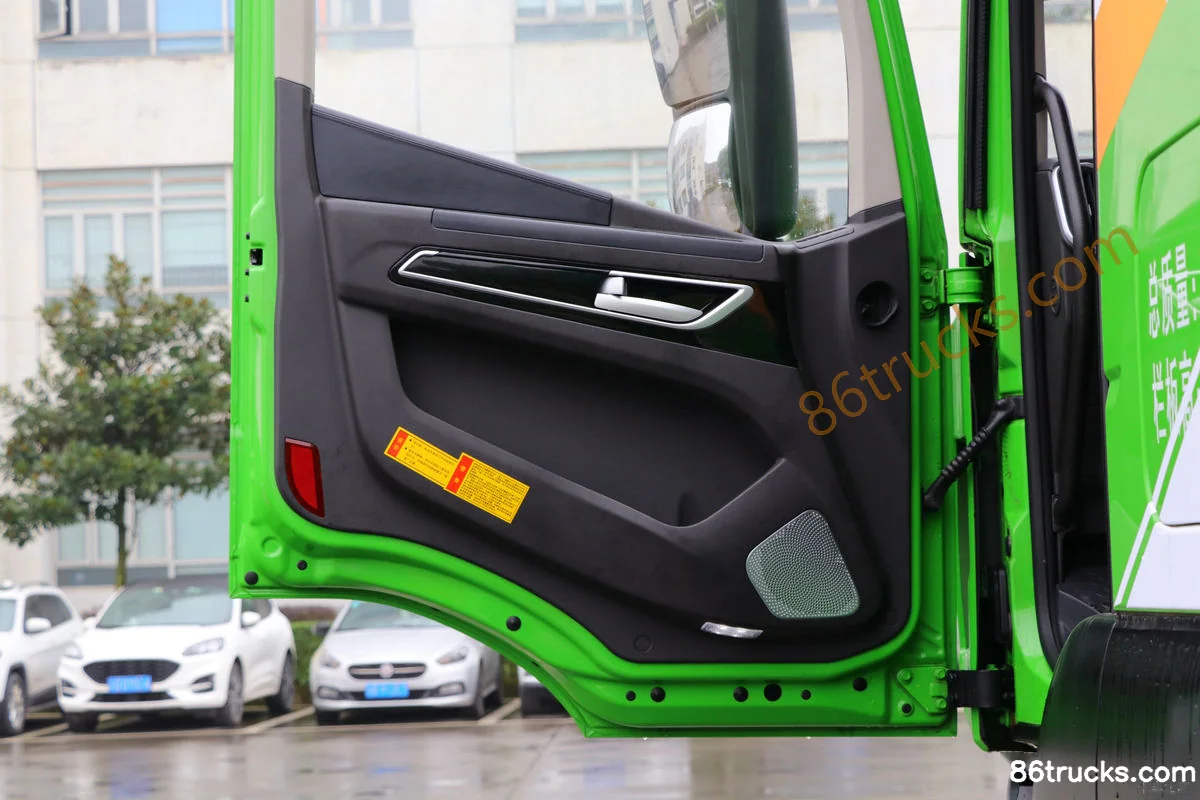

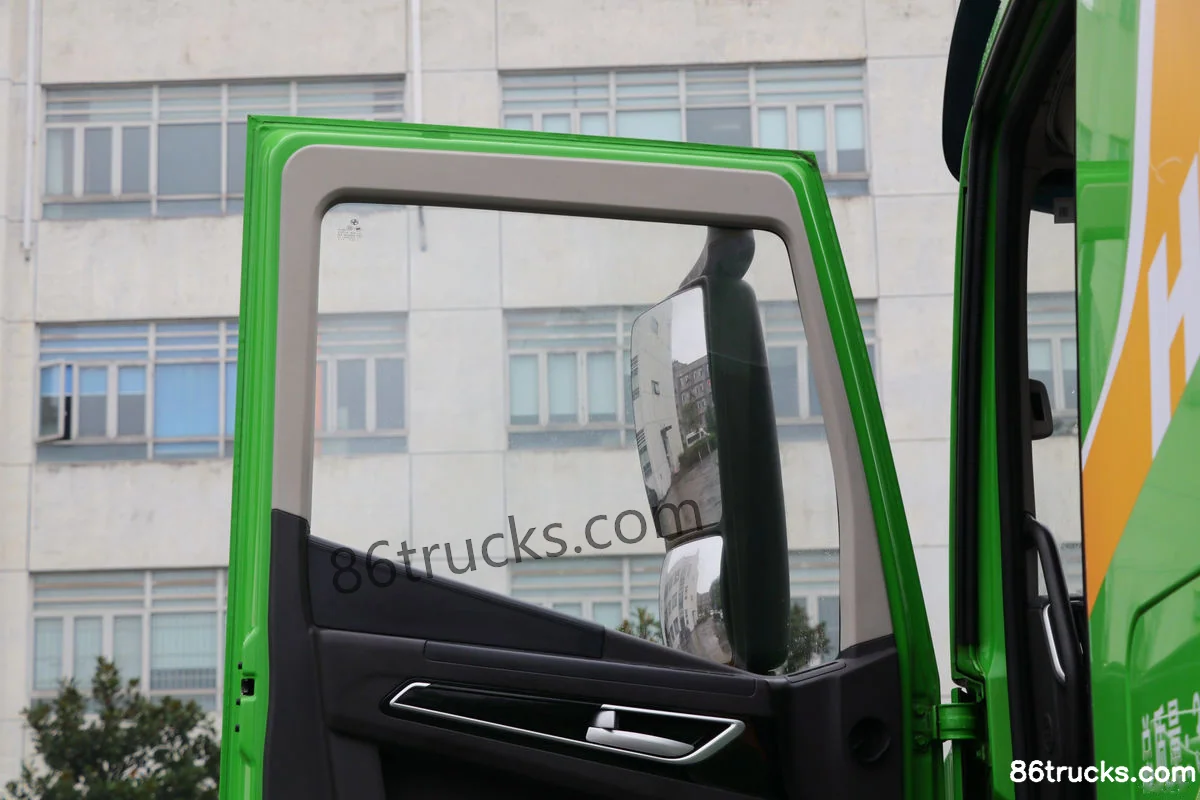

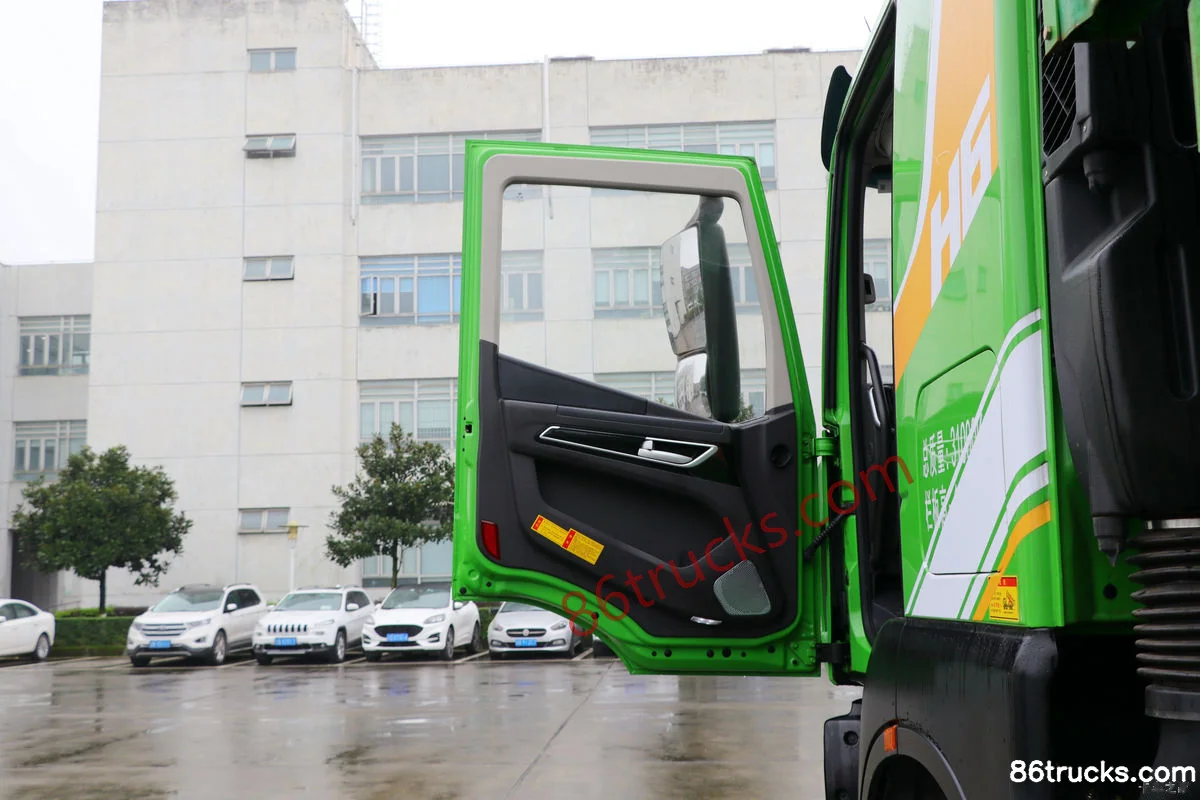

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Cab (1) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Cab (2) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Cab (3) | 86Trucks

Chassis3

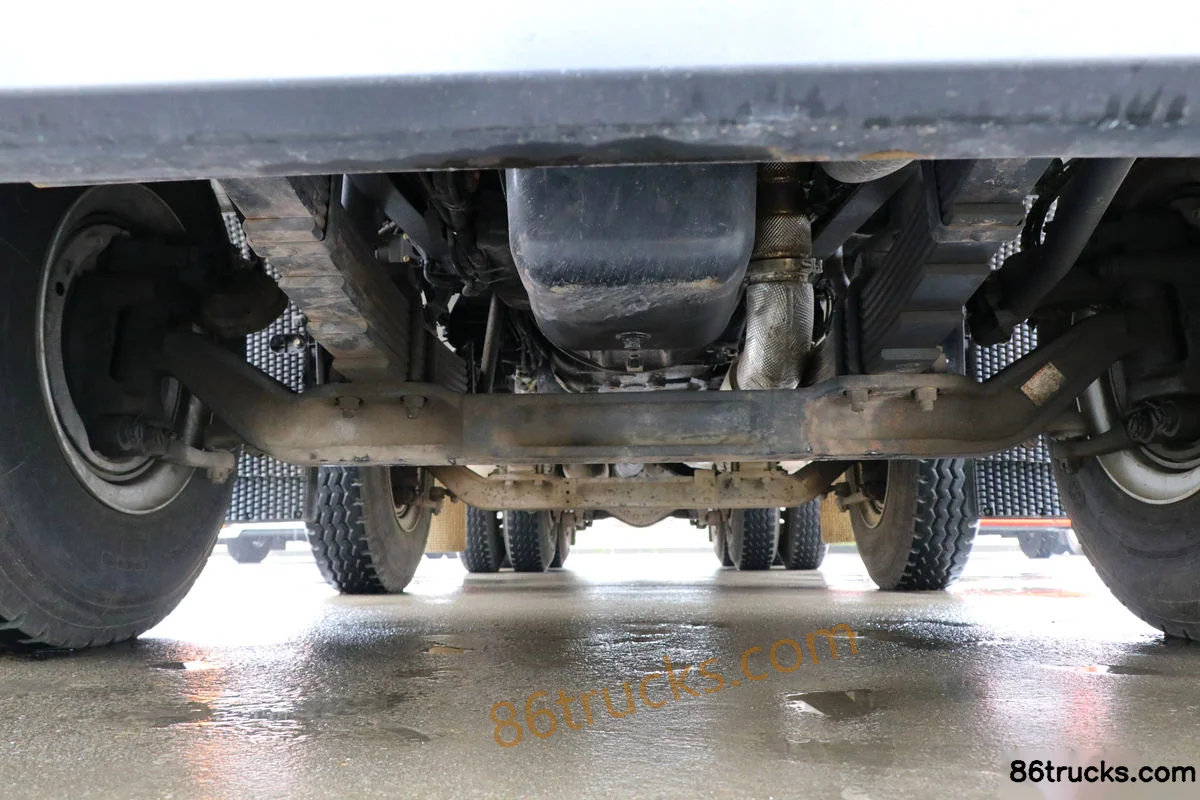

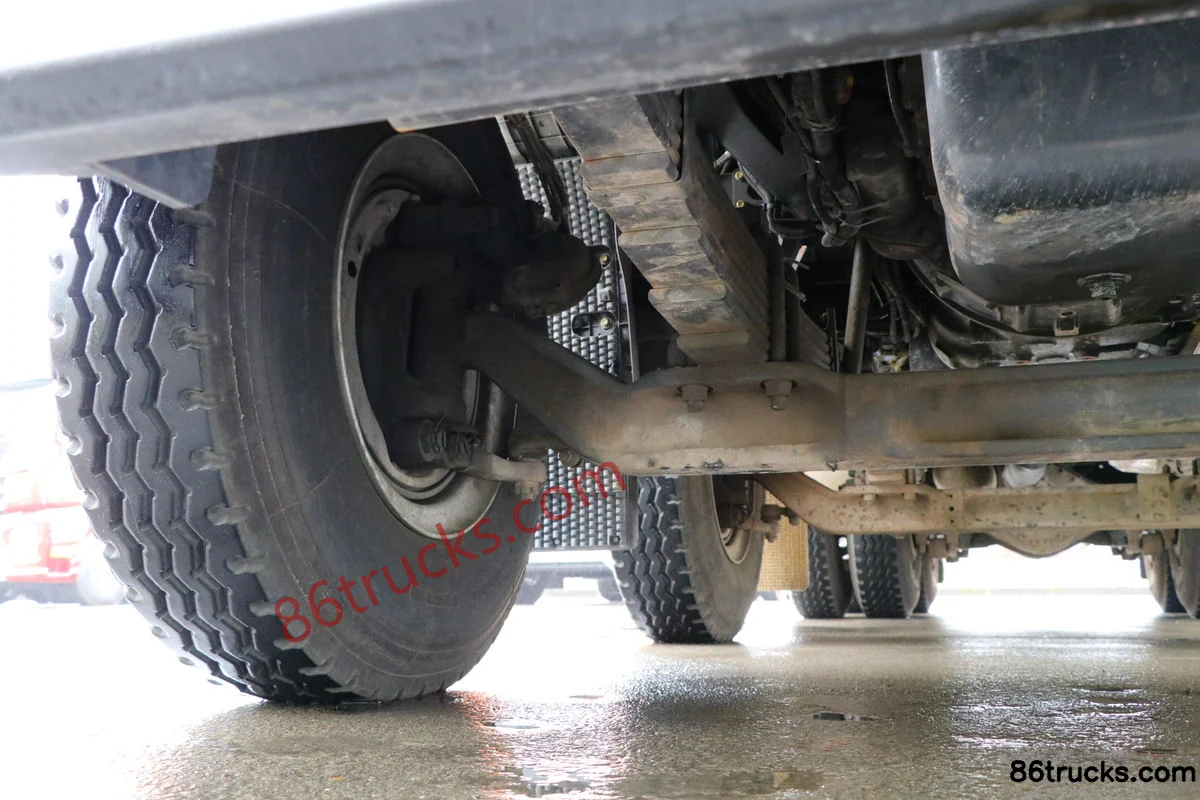

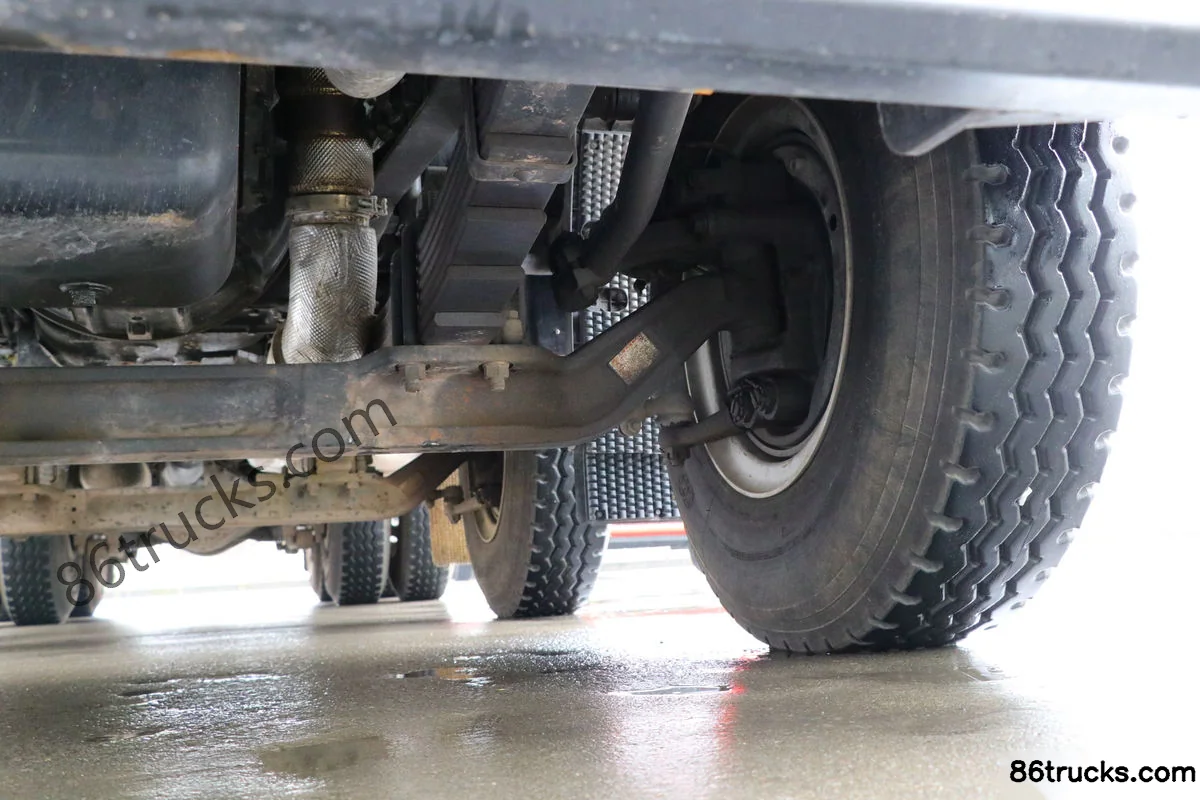

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Chassis (1) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Chassis (2) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Chassis (3) | 86Trucks

Body3

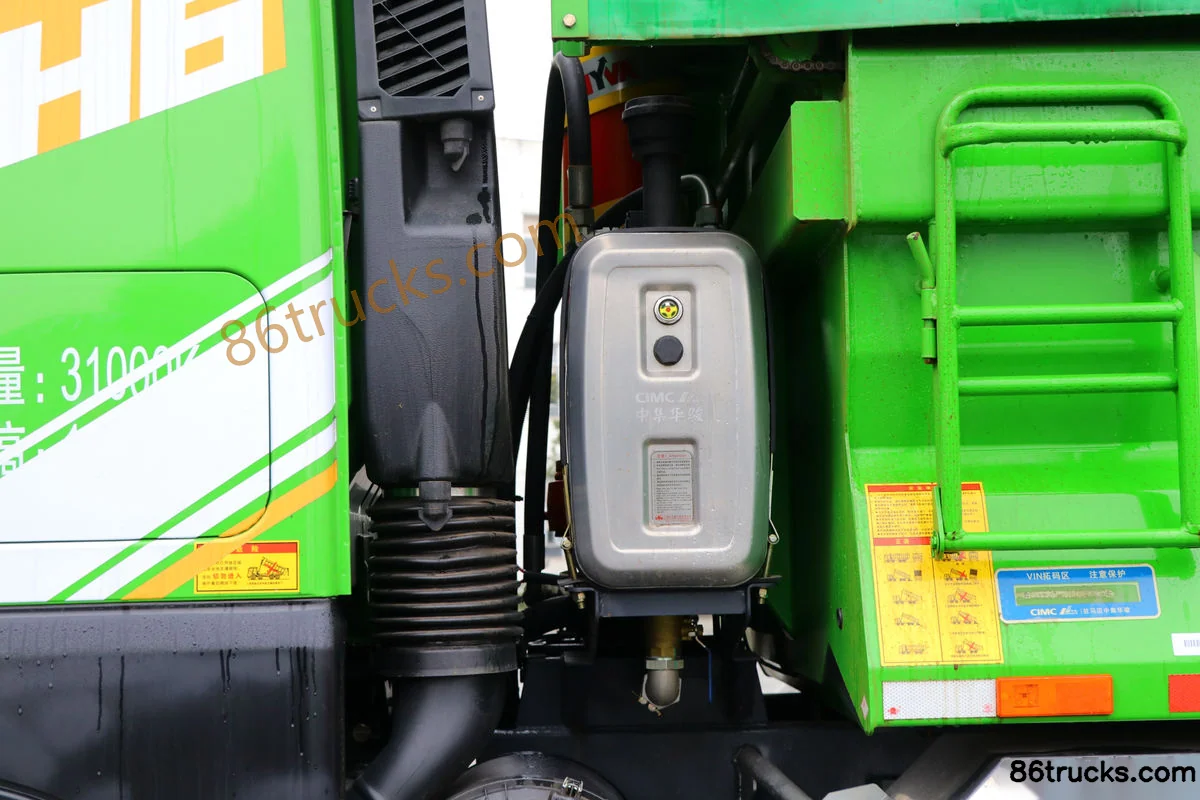

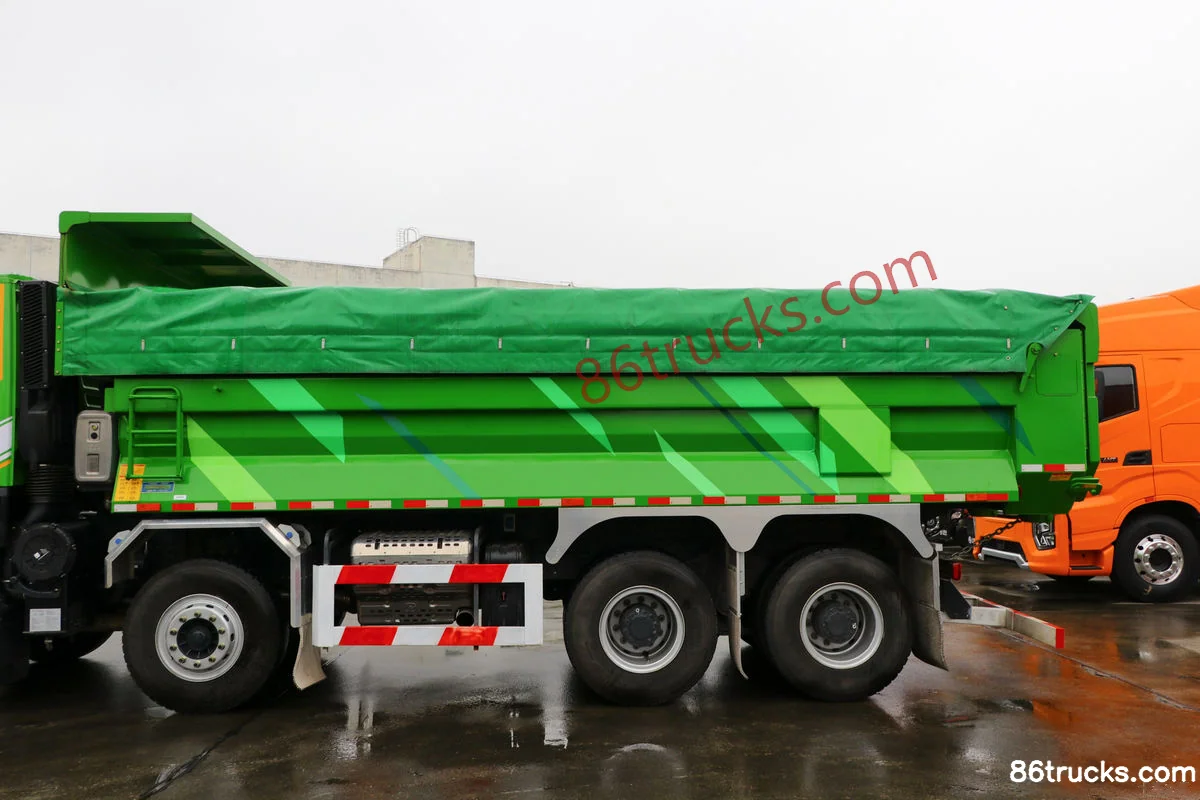

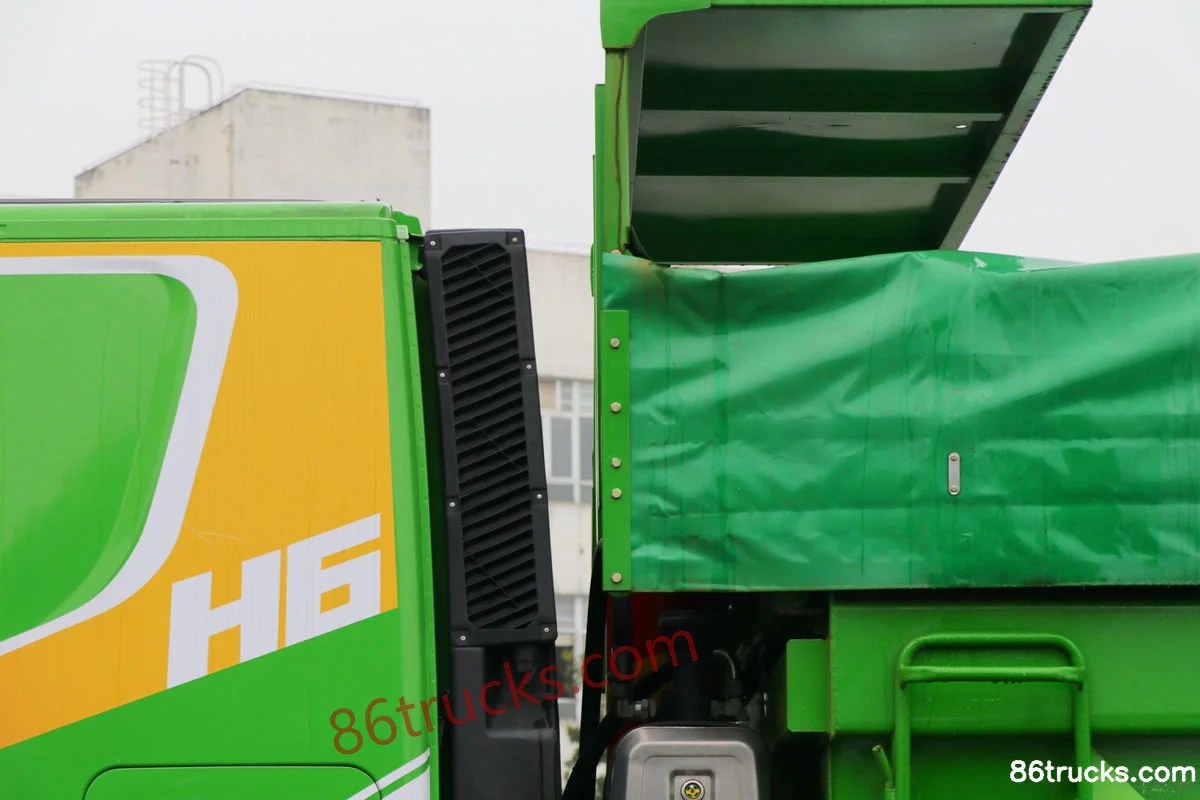

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Body (1) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Body (2) | 86Trucks SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI)?

Key specs of SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI): Drive: 8x4; Horsepower: 390 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) suited for?

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) differ from other variants in the same series?

SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI) belongs to SAIC Hongyan Genlyon H6 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon H6 Reinforced Edition 390 hp 8X4(12 wheels) 6m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
