Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand)

Export reference
From $26,361
MSRP ¥18.98M CNY
Emission: China VI
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 7.13×2.5×3.58m
Type:: truck-mounted crane
Front track width:: 1815mm
Lifting capacity: 3.2ton
Drive 4X2 (6 wheels)
Horsepower 160
Rated mass: 5.83ton

Overview

The Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) is a truck-mounted crane featuring 3.2ton tank capacity, 14.06t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 160 hp, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.13×2.5×3.58m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3800mm
Rated mass: 5.83ton
Front track width: 1815mm
rear track: 1795mm
GVWR: 14.06ton
Remarks: Lightweight front underrun guard, China VI emission monitoring terminal, heat shield + folding bunk, anti-splash device
Front/rear suspension: 1.24/2.09m
Energy Type: Diesel
Body Parameters
Lifting capacity: 3.2ton
crane self-weight: 1.439ton
Vehicle certification code: ABC5148JSQZZ6
Body Brand: Shenbai Heavy Industry
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E61
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan
Chassis Model: ZZ1147H4515F1Z
rear axle description: 5T
Leaf spring count: 11/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: SinotrukHW95506STC
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.4m
Cargo box height: 0.55m
Cab parameters
Cab: 2019 Hanjiang
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Control configuration
ABS:
Traction Control (ASR/TCS/TRC etc.):
Power steering:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Exhaust brake:
smart configuration
Cruise control (CCS):

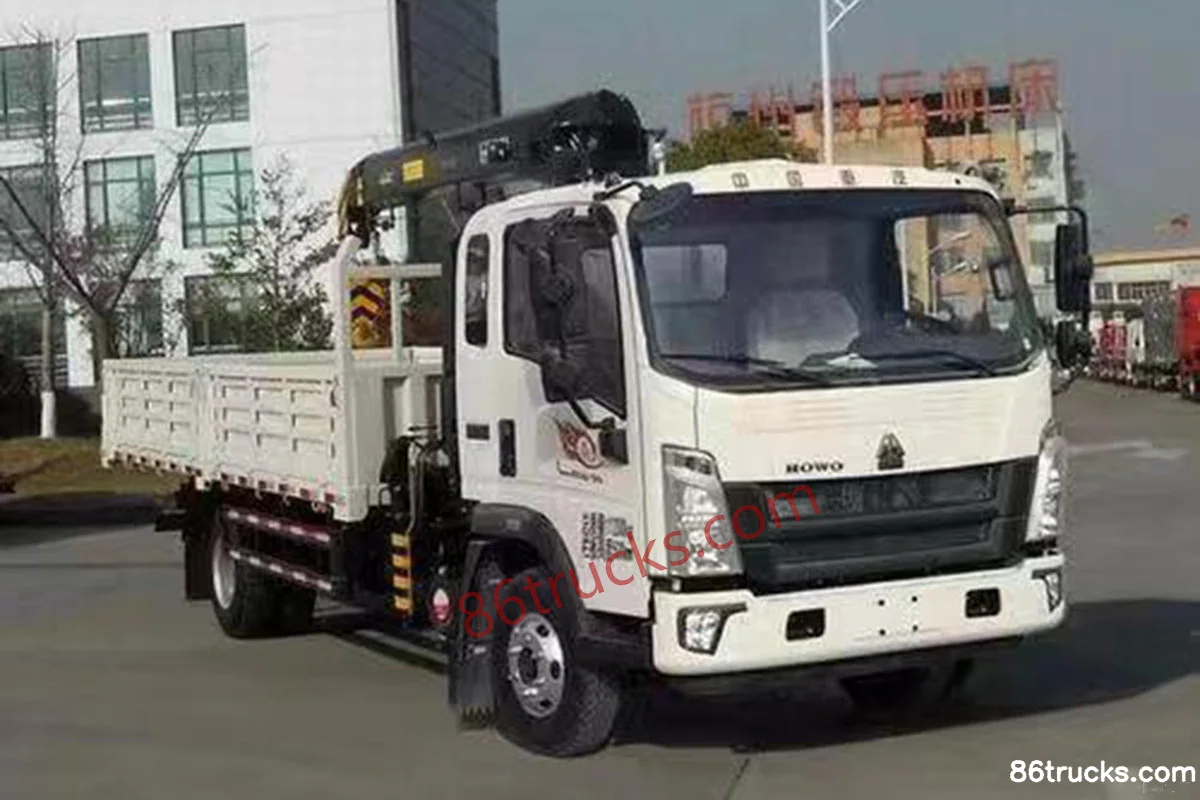

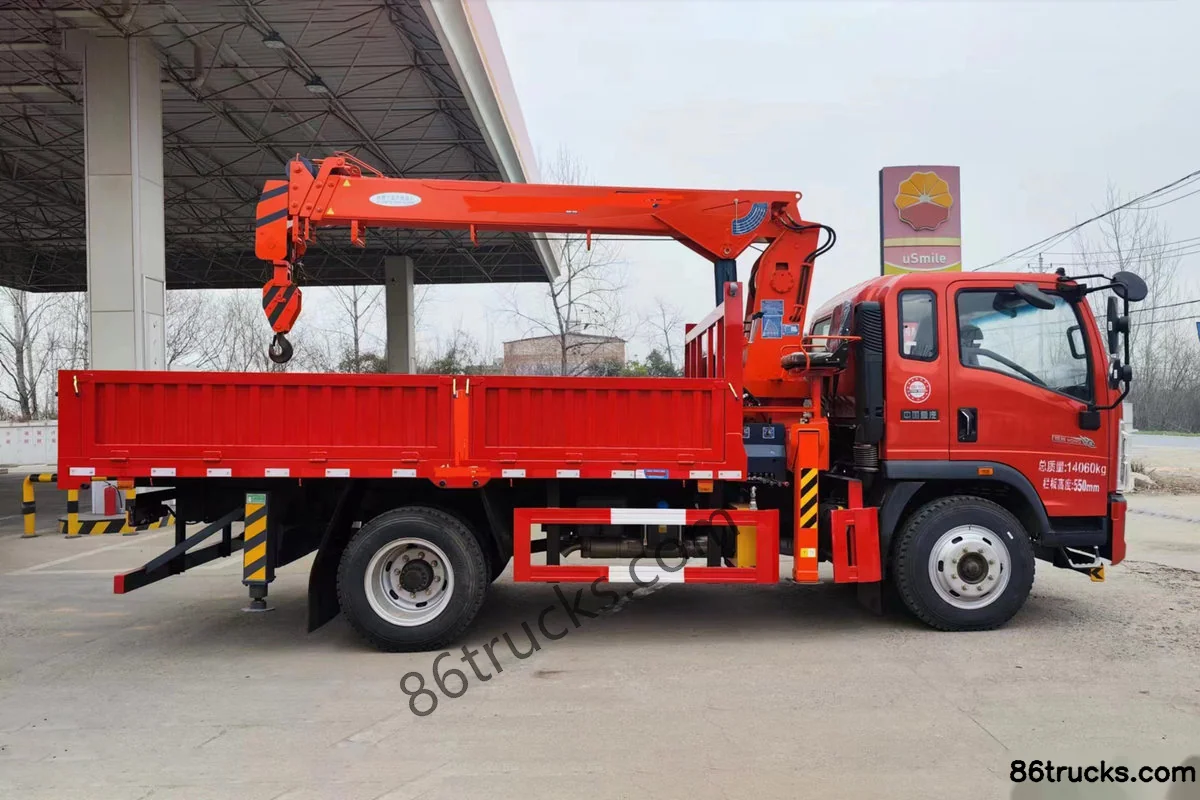

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand), and what does it include?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) export reference is about From $26,361; MSRP is ¥18.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand)?

Key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) suited for?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand) belongs to Sinotruk Hanjiang Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.2m Truck Mounted Crane (Shenbai Heavy Industry Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
