DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh

Export reference
MSRP N/A
Rated payload:: 9.17ton
Wheelbase:: 2050+2950+1350mm
Cargo box length:: 5.8m
Model code (announced):: LZ3310H5FZBEV111
Cab length:: 9.675m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Langao
Curb Weight: 21.7ton

Overview

The DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh is a Heavy truck featuring CATL battery/range, Langao motor, 8X4 (12 wheels) drive and 9.17t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3310H5FZBEV111
Drive type: 8X4
Wheelbase: 2050+2950+1350mm
Cab length: 9.675m
Cab width: 2.5m
Cab height: 3.45m
Curb Weight: 21.7ton
Rated payload: 9.17ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ388XSLGE02
Motor Type: Permanent magnet synchronous motor
total rated power: 250kW
Peak power: 360kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 282kWh
Transmission Parameters
Number of gears: 6Gear
shift type: AT automatic
Transmission Model: Fast Gear 6-speed AMT
Cargo box parameters
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 2*300 cast steel
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:

Photos

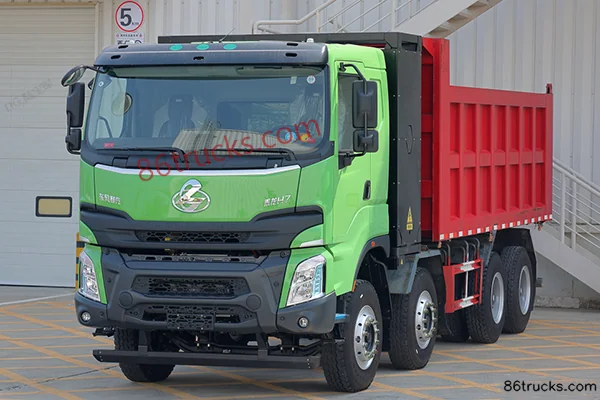

Exterior1

1 photos

FAQ

What are the key specs of DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh?

Key specs of DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh suited for?

DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh differ from other variants in the same series?

DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh belongs to Dongfeng H5 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export DongfengLiuqi Chenglong H5 Heavy Truck All-Round Version 8X4(12 wheels) 5.8m Battery Swap Electric Dump Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
