Meritor MS13176 disc single reduction drive axle

Export reference

MSRP N/A

Application Scope:: Suitable for trucks up to 55 tons total weight and buses, tourist, and passenger vehicles over 10 meters

Front/rear track width:: 1800 - 1860mm

Transmission Ratio:: 2.64, 2.85, 3.08, 3.36, 3.70, 4.11, 4.63, 5.29, 5.63, 6.14

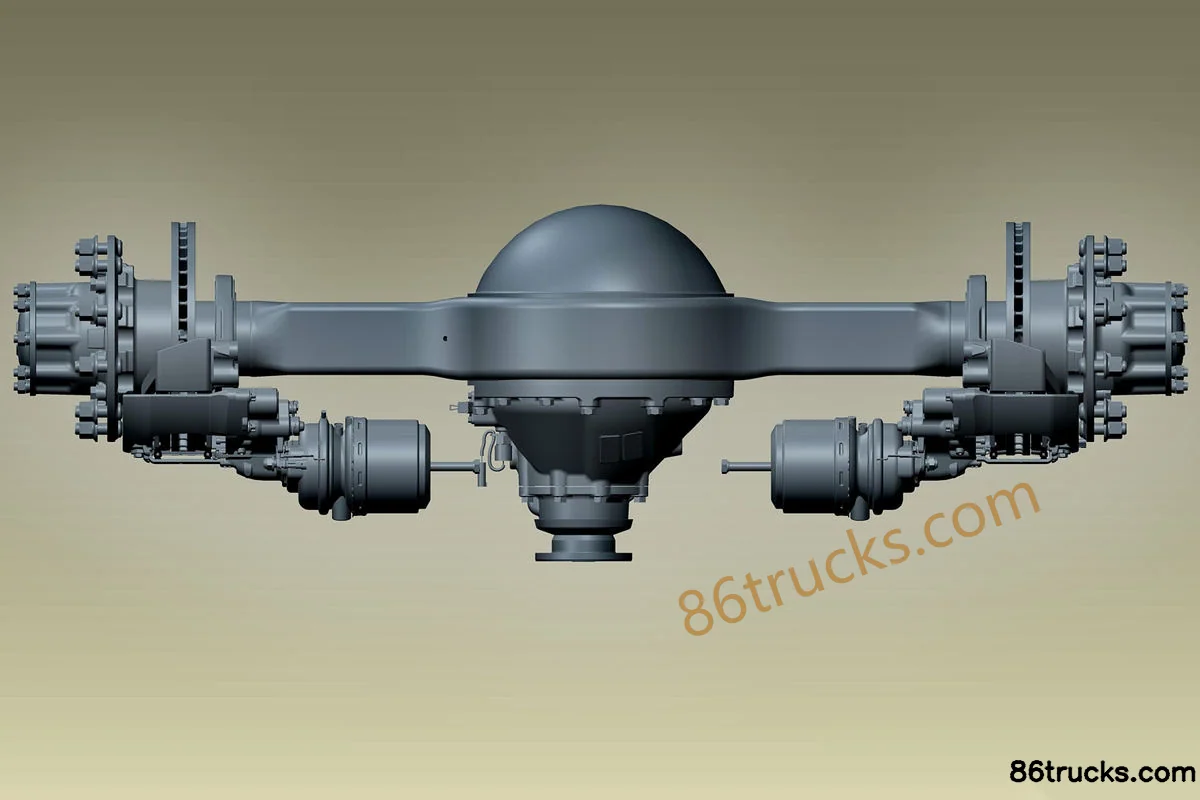

Meritor MS13176 disc single reduction drive axle exterior

View more photos (2)

Axle Model: MS13176

Brake size: 22.5

Axle Type: Drive axle

Overview

The Meritor MS13176 disc single reduction drive axle is a parts product with spec MS13176 and 22.5 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Axle Model: MS13176

Axle Type: Drive axle

Application Scope: Suitable for trucks up to 55 tons total weight and buses, tourist, and passenger vehicles over 10 meters

Applicable Tire: 22.5

Front/rear track width: 1800 - 1860mm

Rated axle load: 13000ton

Transmission Ratio: 2.64, 2.85, 3.08, 3.36, 3.70, 4.11, 4.63, 5.29, 5.63, 6.14

Brake: Disc brake

Brake size: 22.5

curb weight: 700kg

Max output torque: 10000-12000N·m

Rim Used: 9.00x22.5; 8.25x22.5inch

Wheel Bolts: 20xM22x1.5mm

Remarks: Single reduction drive axle; max power up to 560 hp; 50-80 kg lighter than domestic axles of same class; transmission efficiency 1.5%-2.2% higher than domestic axles of same class; noise approx. 12 dB lower than domestic axles of same class. Meritor original brakes for greater braking torque; imported friction linings for longer life. Reinforced stamped-welded axle housing, friction-welded spindle ends to meet overloading needs in emerging markets; imported hub combination oil seals for better sealing and longer life; ABS sensors standard.

Photos

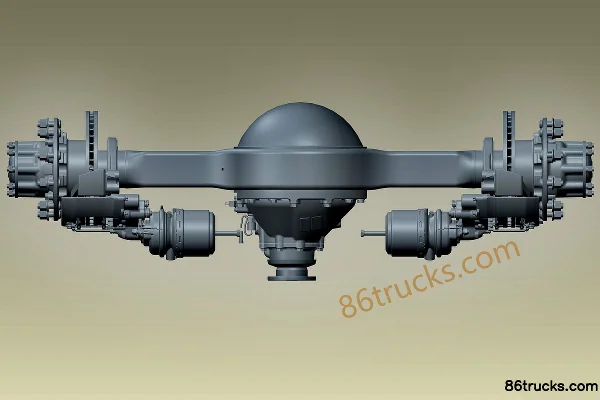

Exterior2

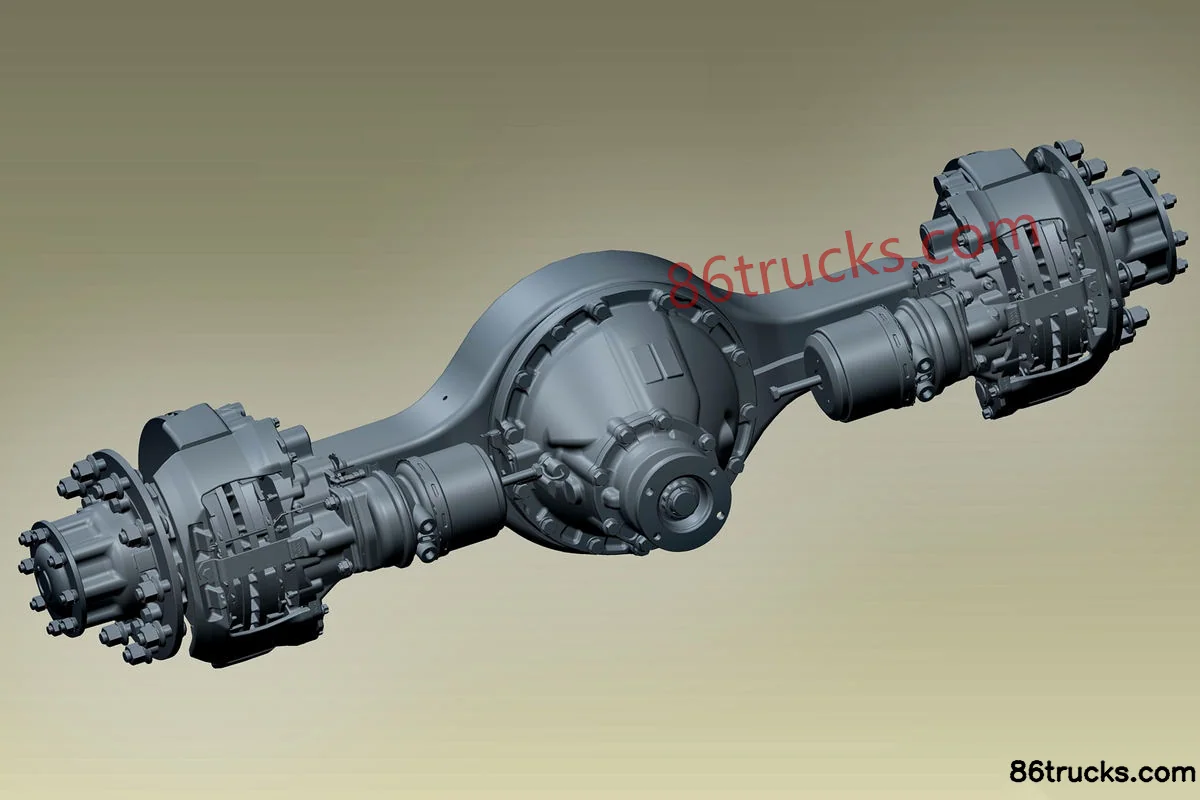

Meritor MS13176 disc single reduction drive axle Exterior (1) | 86Trucks

2 photos

FAQ

What transport jobs is Meritor MS13176 disc single reduction drive axle suited for?

Match Meritor MS13176 disc single reduction drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Meritor MS13176 disc single reduction drive axle differ from other variants in the same series?

Meritor MS13176 disc single reduction drive axle belongs to Meritor drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Meritor MS13176 disc single reduction drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Meritor MS13176 disc single reduction drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
