Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI)

Export reference
From $34,319
MSRP ¥24.71M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.45ton
seating capacity: 3Personnel
Rated payload: 16.855ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Foton Forland Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 16.855t payload. Its segment focus covers LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 240 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5244CCYNPFB-01
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+3600mm
Box length class: 6.8m
engine: YuchaiYCK05240-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 4.875
Cab length: 9.055m
Cab width: 2.4m
Cab height: 3.985m
Front track width: 1760/1760mm
rear track: 1740mm
Curb Weight: 7.45ton
Rated payload: 16.855ton
GVWR: 24.5ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
market segment: LTL transport
Remarks: Ratio optional 5.143
Front/rear suspension: 1.26/2.395m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05240-60
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45/2.3m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 250×65×7+4-800mm
rear axle description: 1153Z
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 10/10/12+9
Tire
Tire Size: 11R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

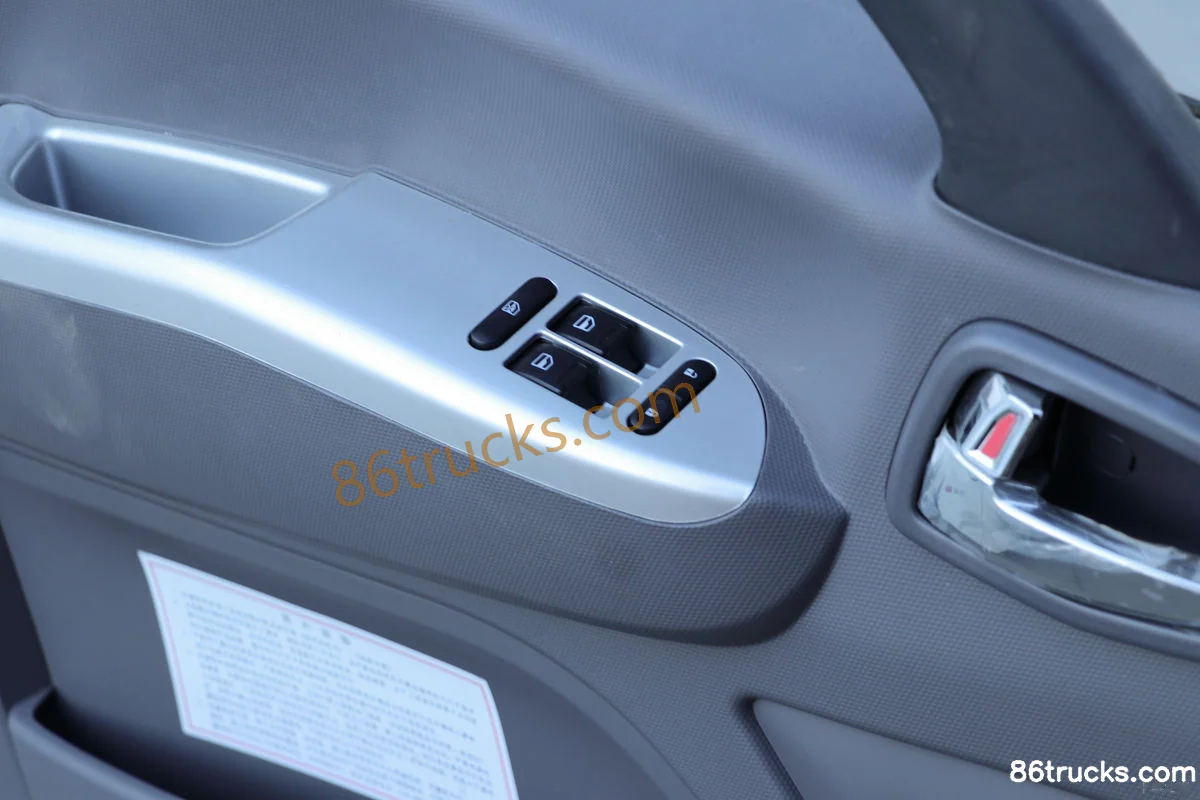

Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
daytime running lights:

Photos

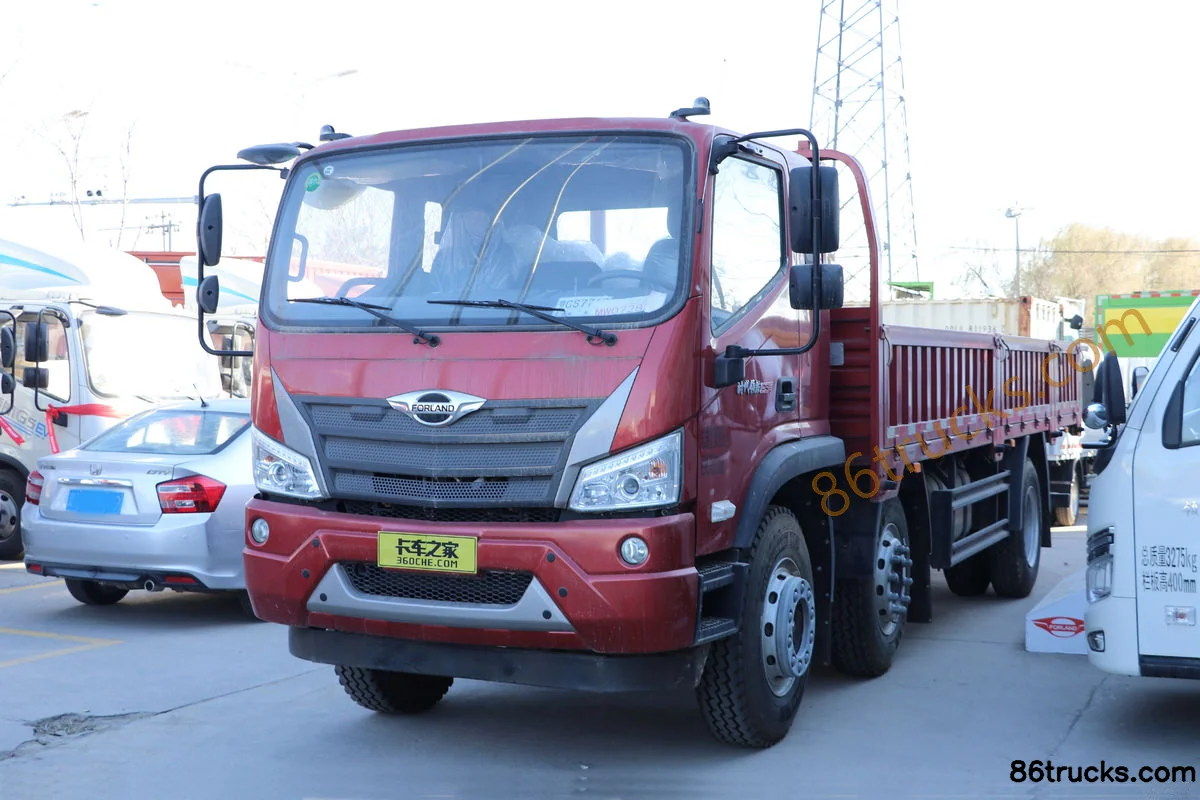

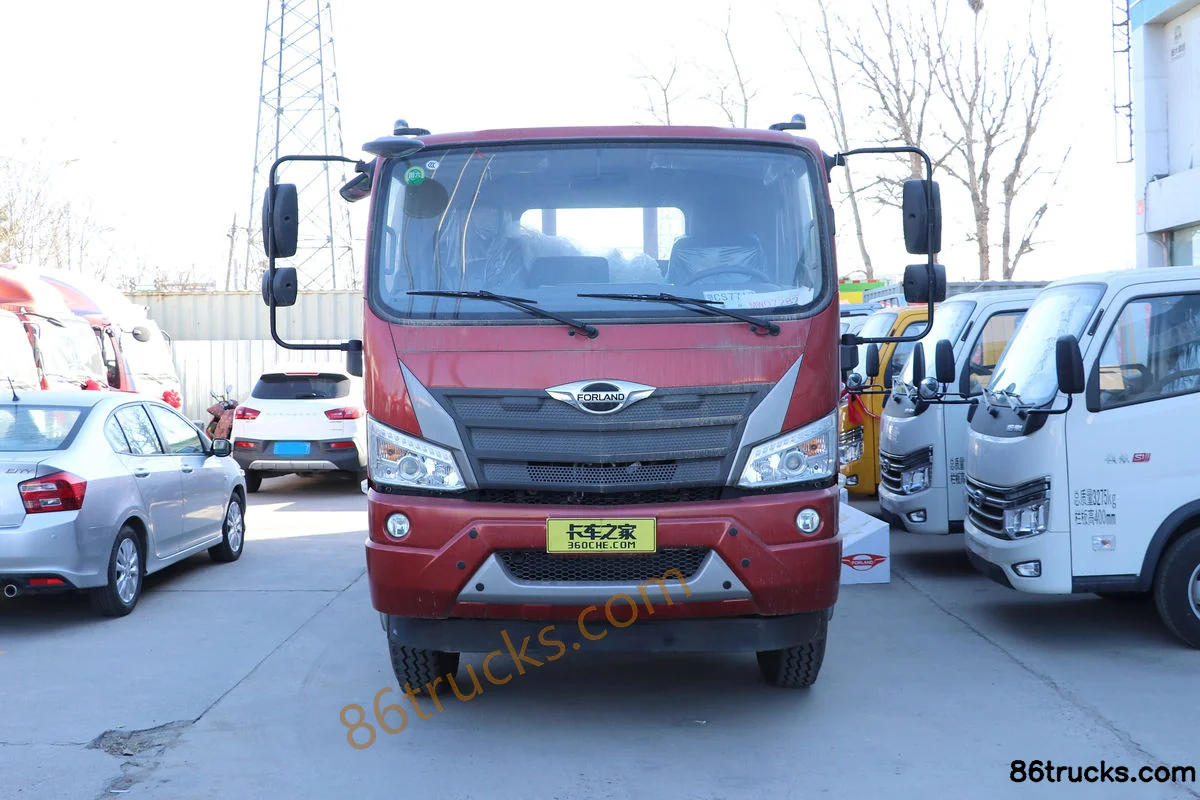

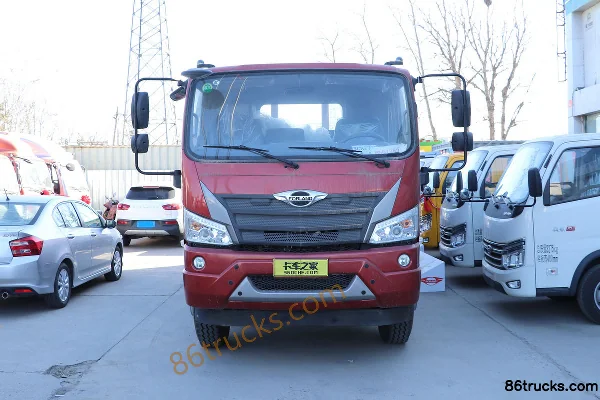

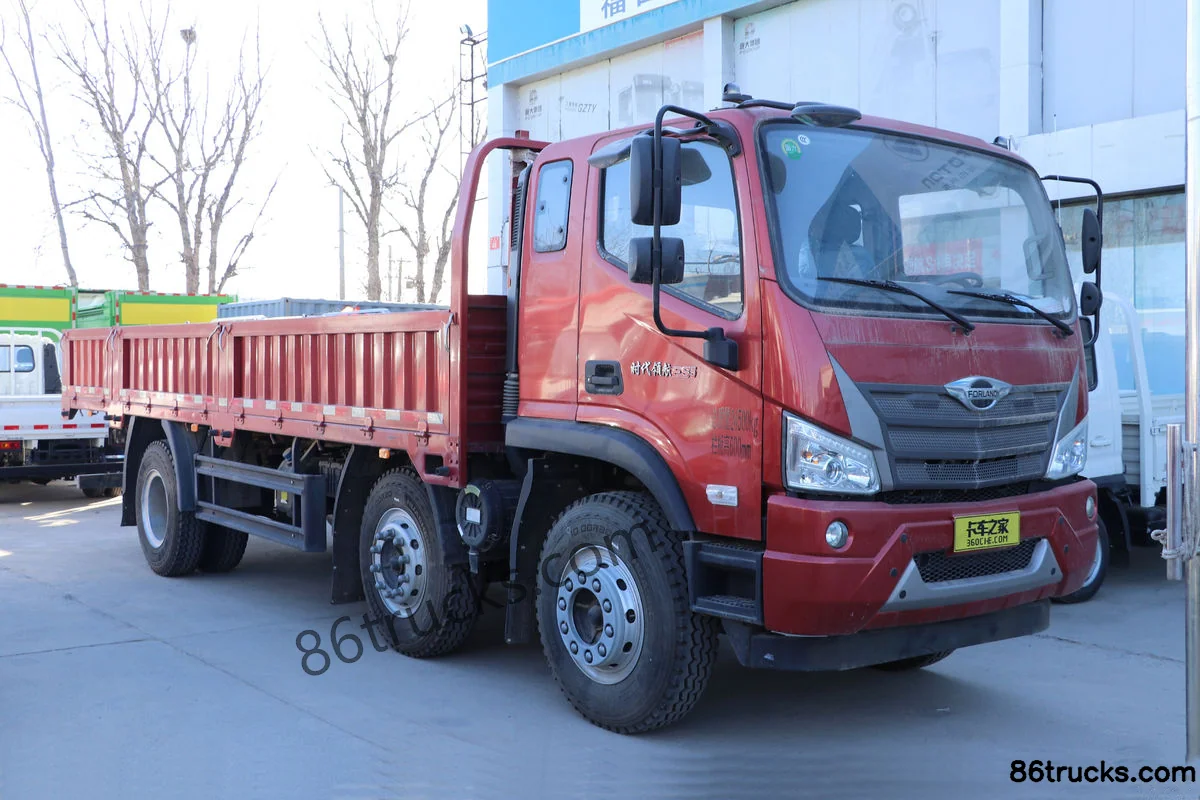

Exterior3

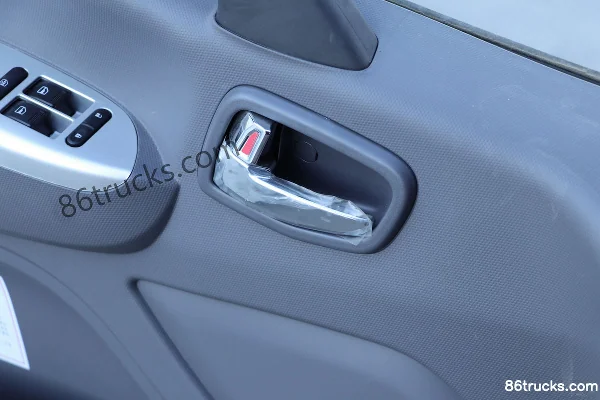

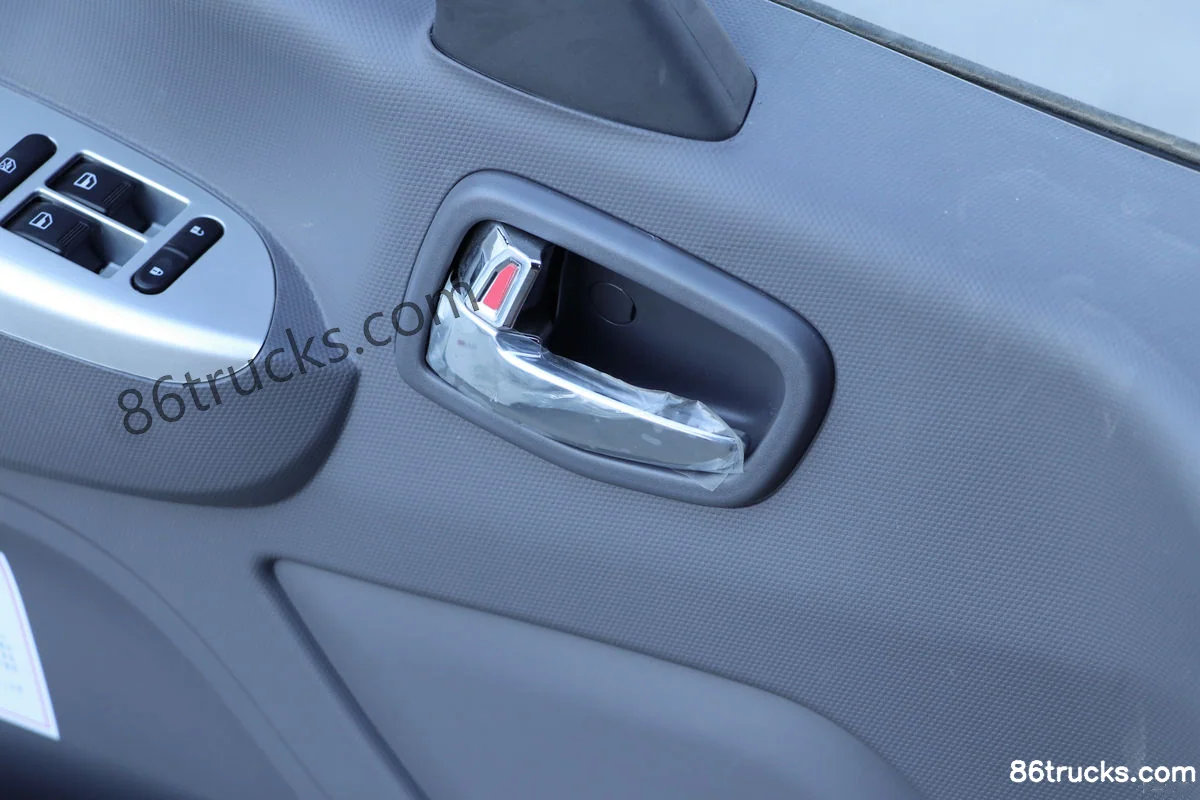

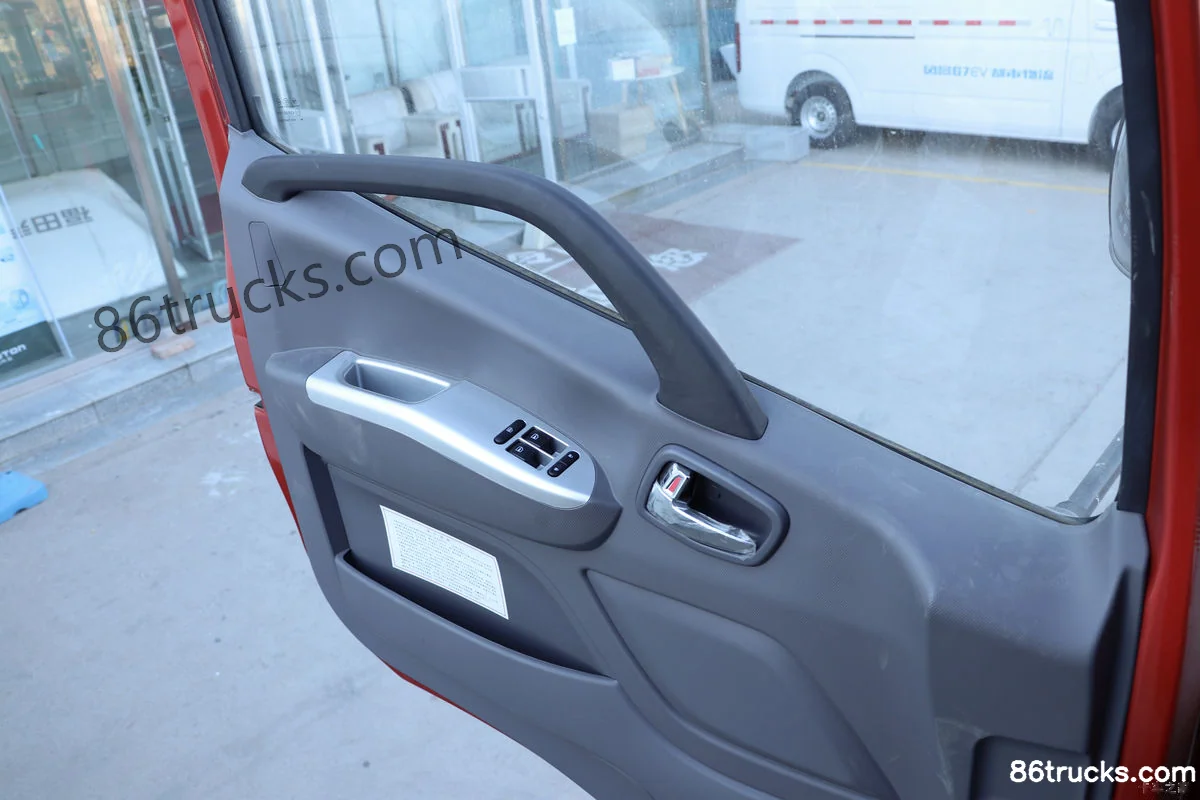

Cab3

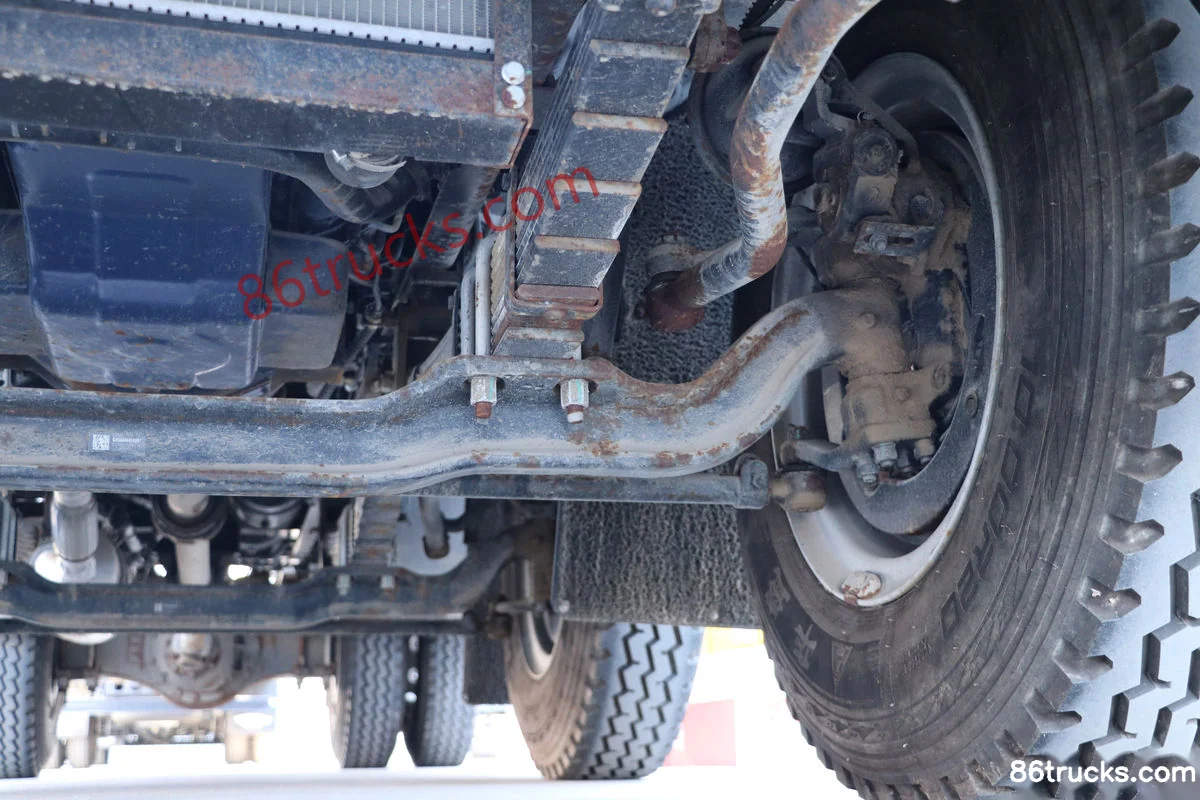

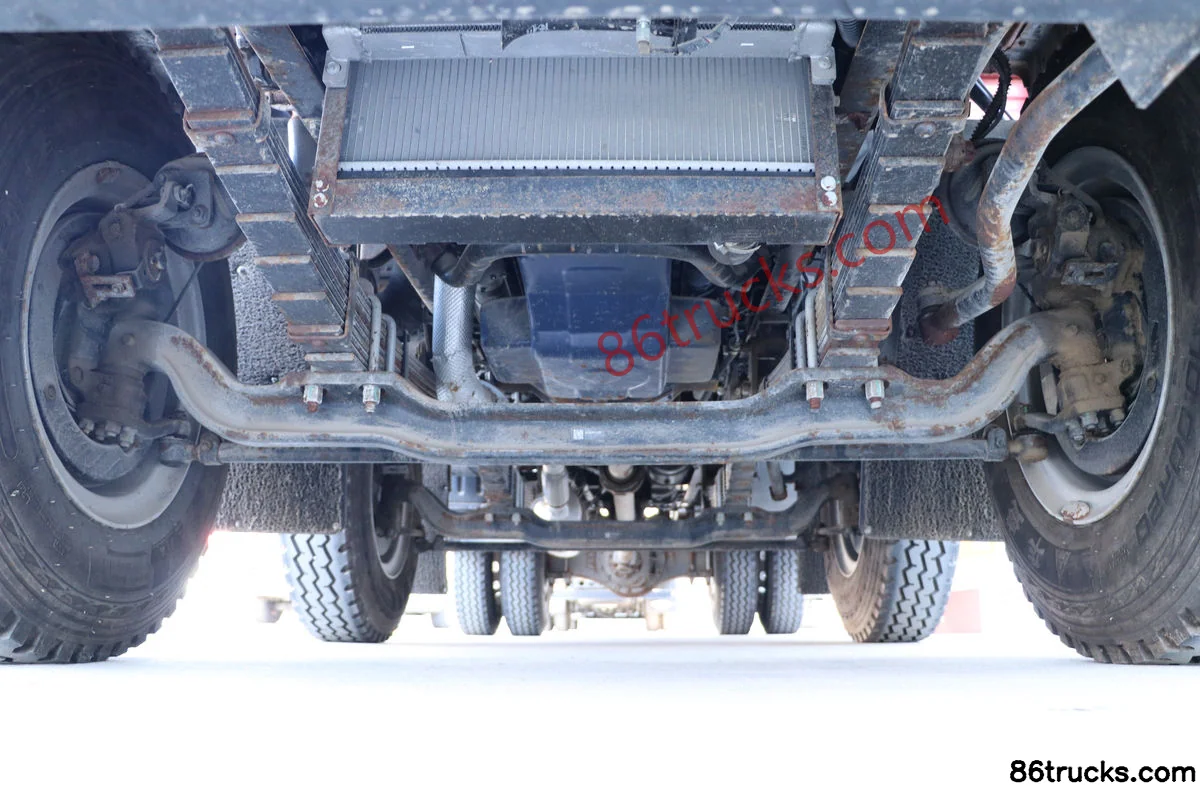

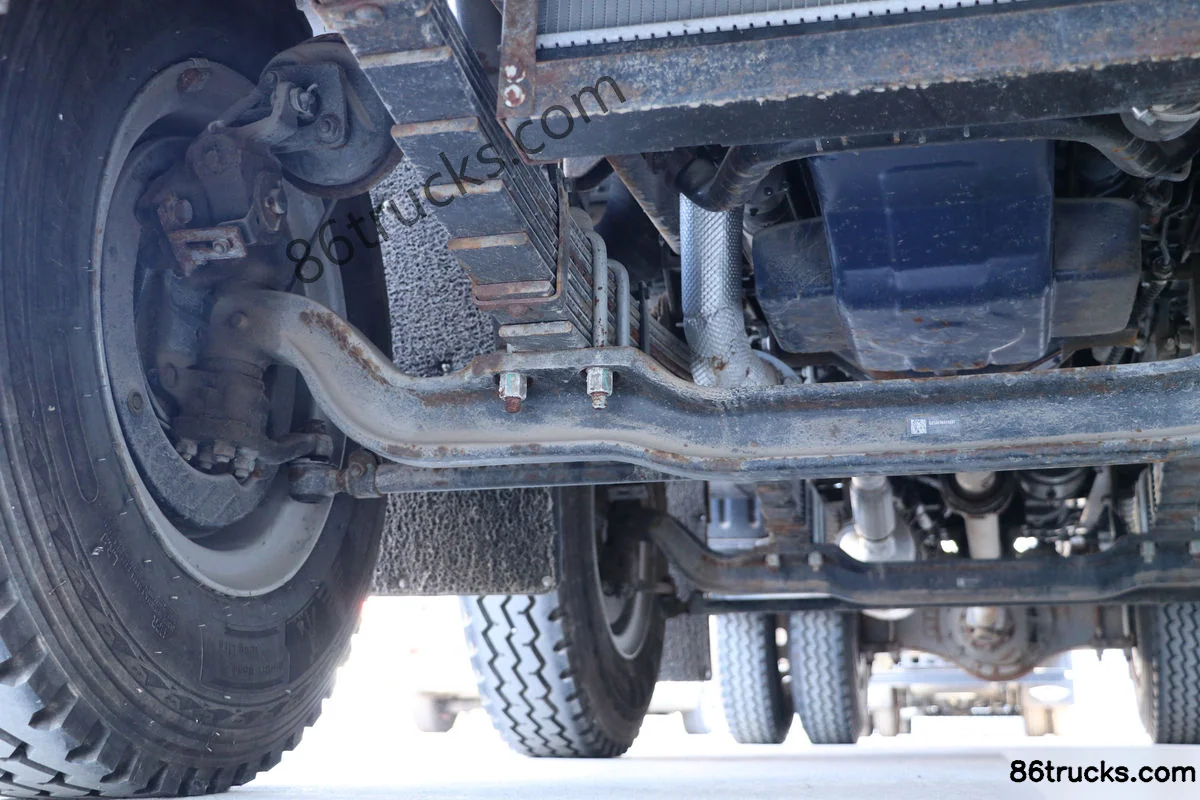

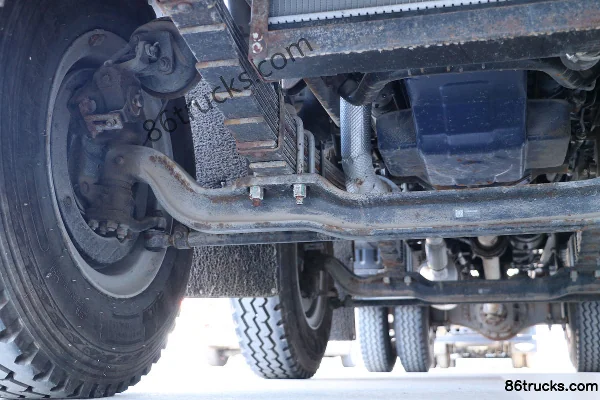

Chassis3

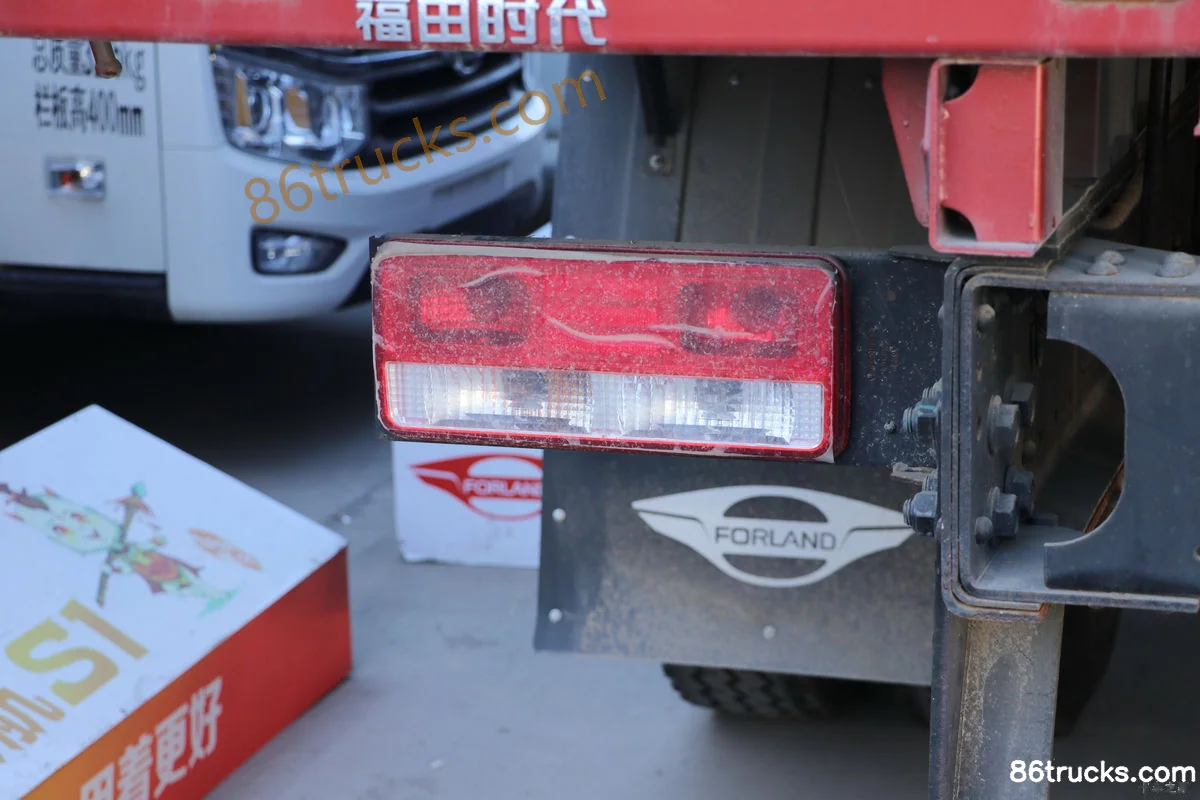

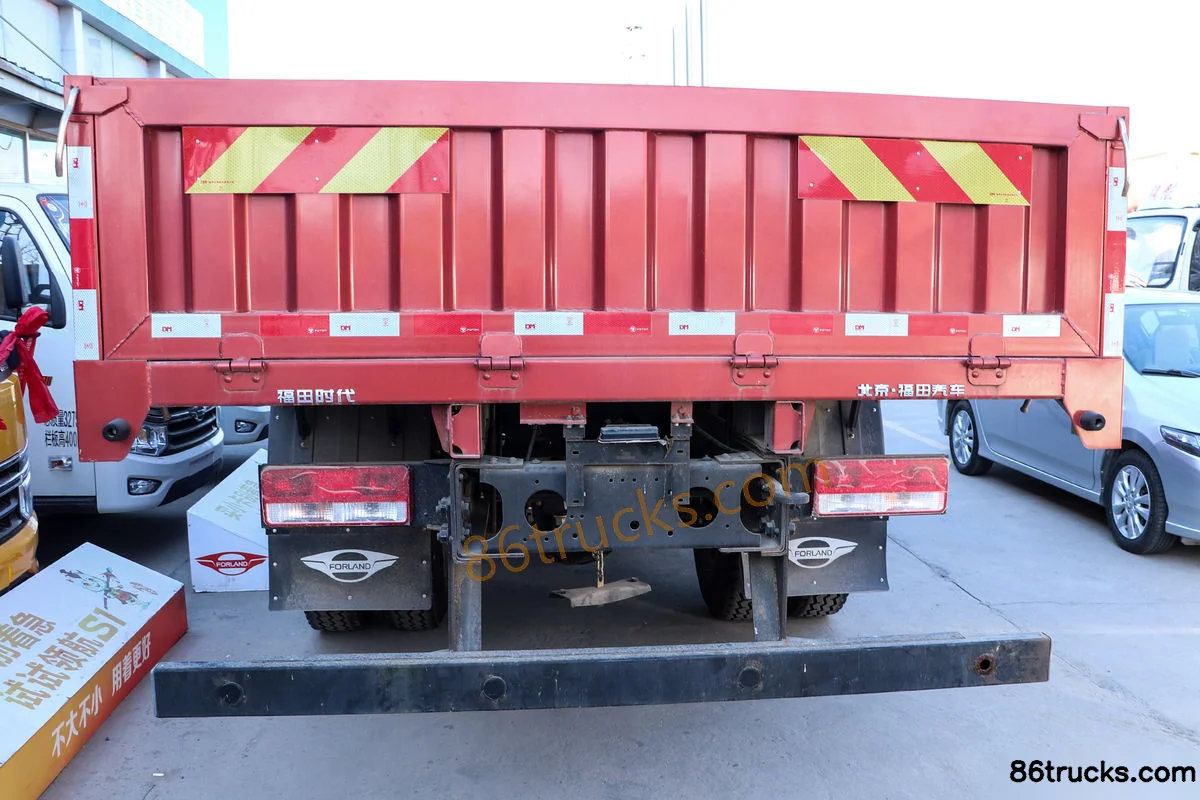

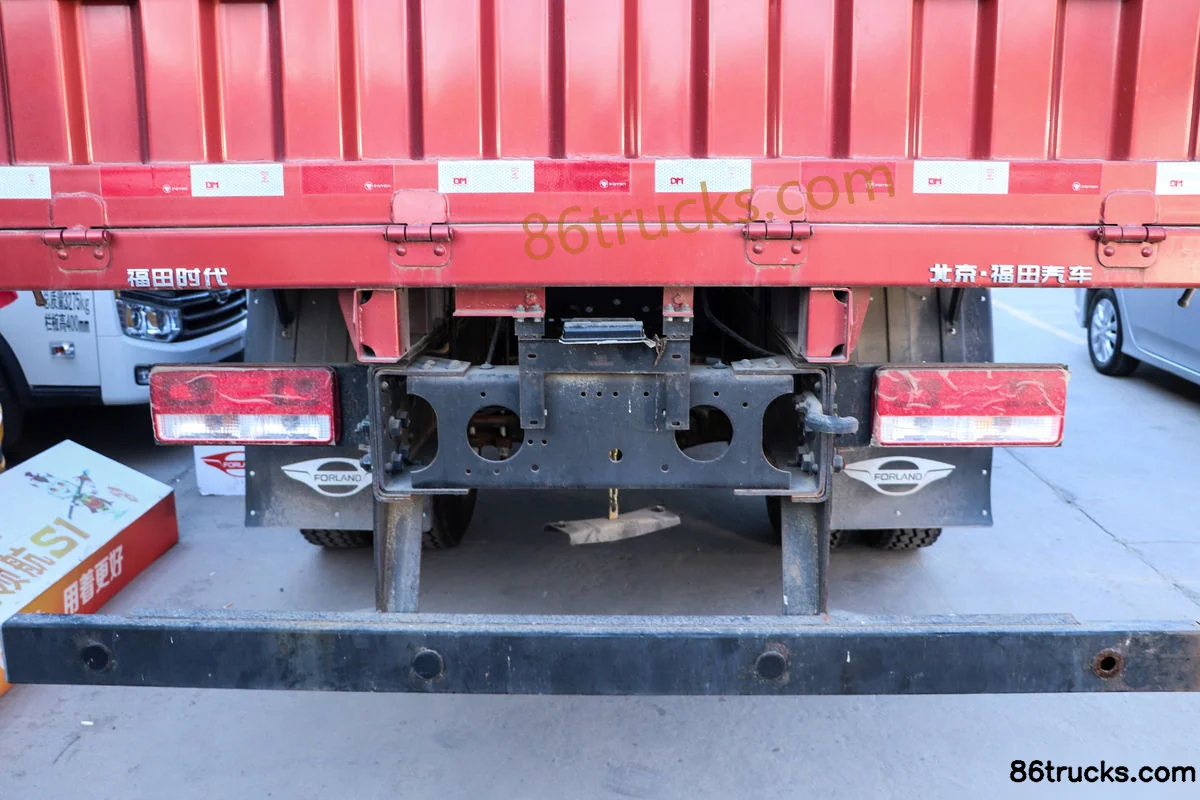

Body3

12 photos

FAQ

What is the export price of Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI), and what does it include?

Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) export reference is about From $34,319; MSRP is ¥24.71M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI)?

Key specs of Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI): Drive: 6x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) suited for?

Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) differ from other variants in the same series?

Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI) belongs to Foton Forland Linghang ES5 Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times Linghang ES5 240hp 6X2(8 wheels) 6.8m Half-row Stake-side Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
