SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane

Export reference
From $70,833
MSRP ¥51M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 2100+4575+1400mm
Cab dimensions:: 12×2.55×3.98m
Type:: truck-mounted crane
GVWR:: 31ton
Lifting capacity: 14ton
Drive 8X4 (12 wheels)
Horsepower 340
Rated mass: 10.07ton

Overview

The SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane is a truck-mounted crane featuring 14ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.55×3.98m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 2100+4575+1400mm
Rated mass: 10.07ton
GVWR: 31ton
Front/rear suspension: 1.525/2.4m
Energy Type: Diesel
Body Parameters
Crane model: SQS400
Lifting capacity: 14ton
crane self-weight: 6ton
Vehicle certification code: SX5310JSQHB466
Body Brand: SHACMAN
Engine parameters
Injection System: Common Rail
Engine Brand: Weichai
Engine Model: WeichaiWP7.340E53
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1700rpm
Rated speed: 2100rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New M3000
Chassis Model: SX1310MB6
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9-speed
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs

Photos

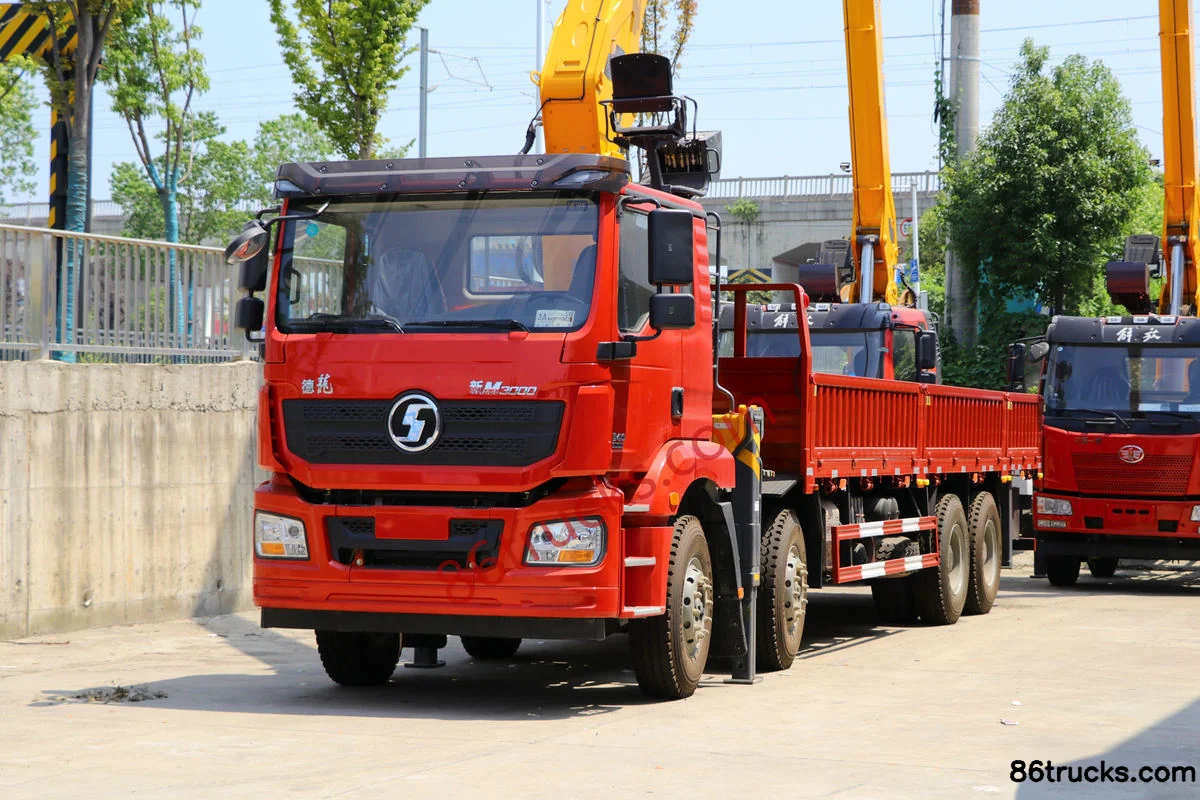

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane, and what does it include?

SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane export reference is about From $70,833; MSRP is ¥51M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane?

Key specs of SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane suited for?

SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane differ from other variants in the same series?

SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane belongs to SHACMAN Delong New M3000 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 340hp 8X4(12 wheels) 8.2m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
