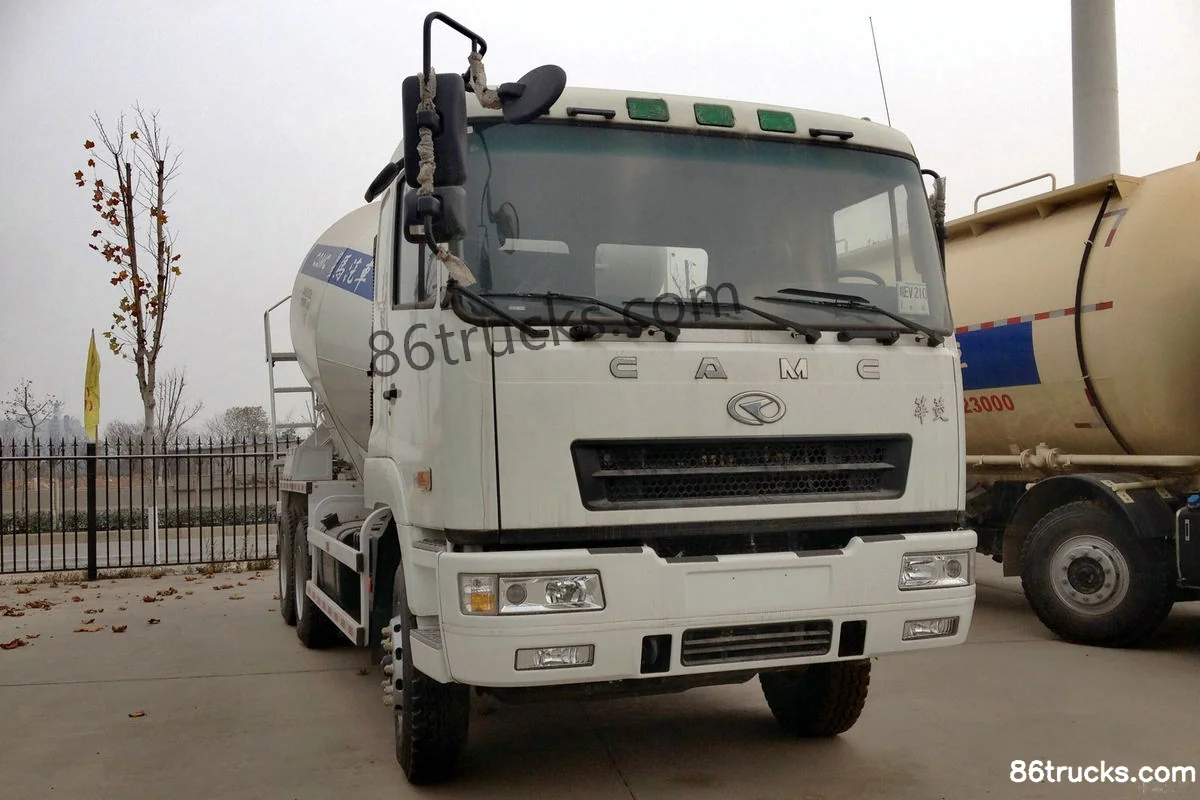

Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck

Export reference
From $66,667
MSRP ¥48M CNY
Fuel: Diesel
Curb Weight:: 15ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00R20 16PR
Cab dimensions:: 9.8x2.495x3.98m
Truck Type:: concrete mixer truck
Rated payload: 9.805ton
Drive 6X4 (10 wheels)
Horsepower 336
Emission China IV

Overview

The Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck featuring 9.805t payload, 15ton GVW, 6X4 (10 wheels) drive and 9.8x2.495x3.98m cab. On the powertrain side, it comes with 336 hp, China IV emissions and Diesel fuel.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.8x2.495x3.98m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4100+1350mm
Front/rear track width: Front track: 2065; Rear track: 1860/1860mm
Curb Weight: 15ton
Rated payload: 9.805ton
Max. speed: 78km/h
Front/rear suspension: 1.37/2.98m
Body Parameters
Drum geometric volume: 4.4m³
Drum rotation speed: 0-15r/min
Feed rate: 3.2m³/min
Discharge speed: 2m³/min
Discharge residue rate: ≤1%
Filling Rate: 23.3%
Vehicle certification code: AH5259GJB3
Body Brand: Hualing
Engine parameters
Engine Model: WeichaiWP10.336E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Chassis Specs
Chassis Series: CAMC Hanma
Chassis Model: HN3250B34D1M4J
rear axle description: HL300A Rear Axle Ratio 5.263
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: 9SDB1981
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck, and what does it include?

Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck export reference is about From $66,667; MSRP is ¥48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck?

Key specs of Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck suited for?

Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck differ from other variants in the same series?

Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck belongs to Hualing M5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing heavy truck 336hp 6X4(10 wheels) concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
