KOMATSU PC400-8 Crawler Excavator

Export reference
MSRP N/A
Model:: PC400-8
Engine Model:: crawler excavator
Tonnage:: 40ton
Bucket capacity:: 1.9cubic meter
boom length:: 7060mm
Arm Length:: 3380mm
KOMATSU PC400-8 Crawler Excavator exterior
View more photos (3)
Operating weight: 42.1ton
Bucket type: backhoe
Fuel Tank Capacity: 650L
Product power: Conventional Power

Overview

The KOMATSU PC400-8 Crawler Excavator is a excavator featuring 42.1ton GVW, backhoe bucket capacity, 650L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: PC400-8
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 40ton
Bucket capacity: 1.9cubic meter
Operating weight: 42.1ton
boom length: 7060mm
Arm Length: 3380mm
Machine dimensions: 11.94×3.34×3.66mm
Track shoe width: 600mm
Track gauge: 2740mm
Counterweight ground clearance: 1320mm
Min ground clearance: 567cm
Rear Overhang Radius: 3605mm
hydraulic system
Max flow of main pump: 690L/min
travel hydraulic circuit: 37.3Mpa
Swing Hydraulic Circuit: 27.9Mpa
Oil capacity
Fuel Tank Capacity: 650L
coolant: 36L
hydraulic oil tank: 248L
Engine Oil Capacity: 37L
performance specs
Travel speed: 3.0/4.0/5.5km/h
Bucket digging force: 278kN
Arm Digging Force: 233kN
Operating Range
Max digging radius: 12005mm
Max digging depth: 7790mm
Max digging height: 10925mm
Max unloading height: 7625mm
Max vertical digging depth: 6600mm
Engine parameters
Engine Model: KOMATSU SAA6D1125E-5
Max output power: 257kW

Photos

Exterior3

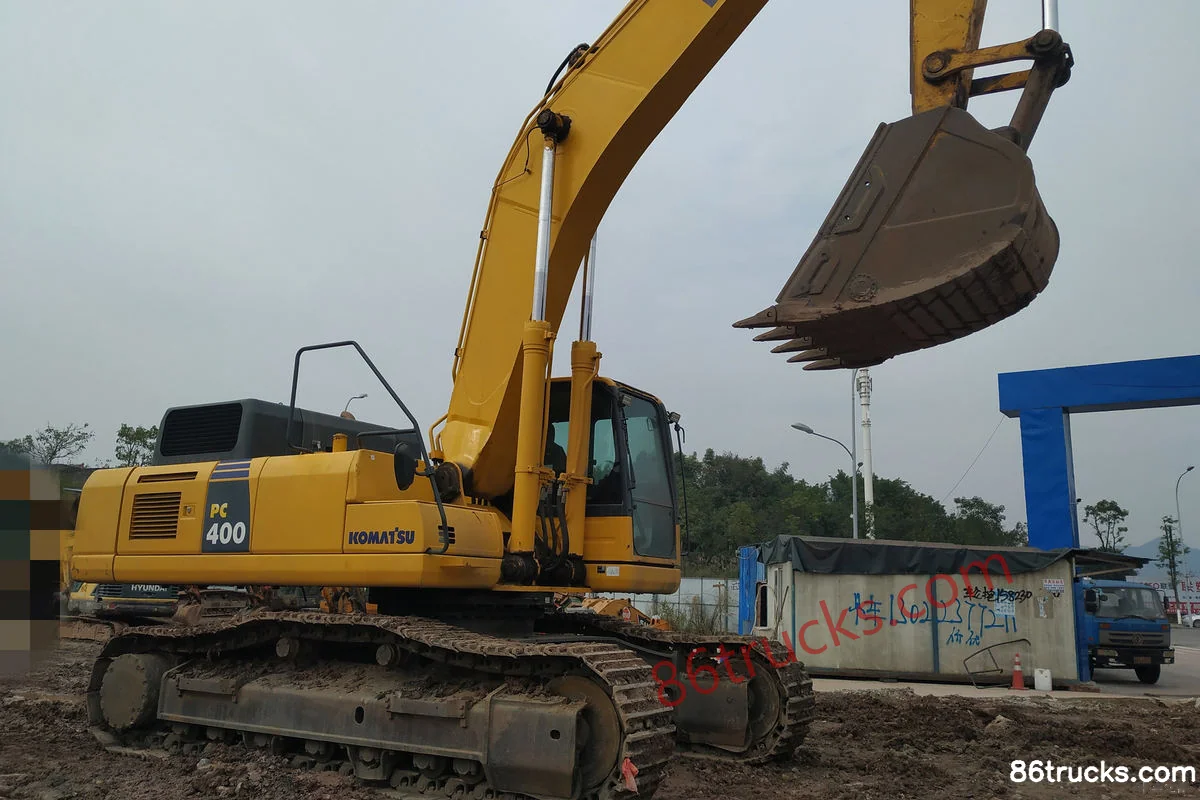

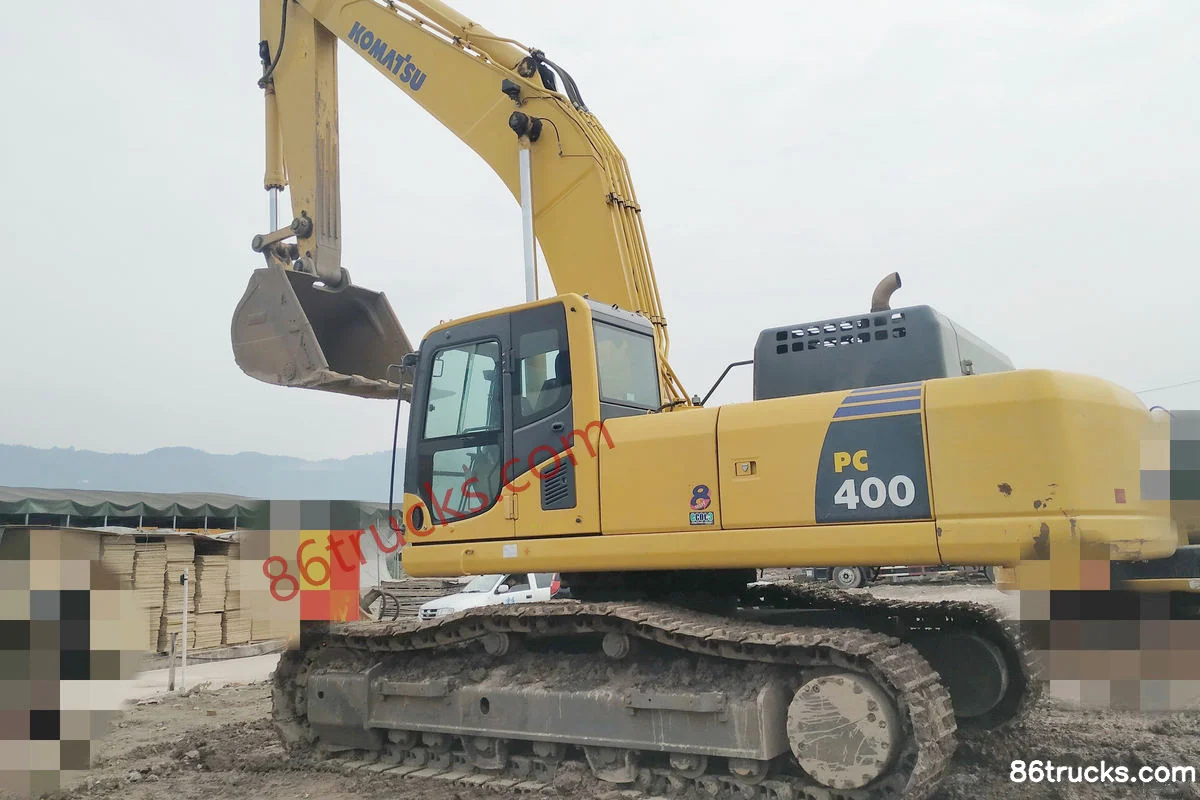

KOMATSU PC400-8 Crawler Excavator Exterior (1) | 86Trucks KOMATSU PC400-8 Crawler Excavator Exterior (2) | 86Trucks KOMATSU PC400-8 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is KOMATSU PC400-8 Crawler Excavator suited for?

KOMATSU PC400-8 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does KOMATSU PC400-8 Crawler Excavator differ from other variants in the same series?

KOMATSU PC400-8 Crawler Excavator belongs to KOMATSU KOMATSU Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for KOMATSU PC400-8 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export KOMATSU PC400-8 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
