SANY 56m concrete pump truck (Isuzu chassis)

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Model code (announced):: SY5418THB 56E
Pumping displacement:: 170m³/h
Max pumping height:: 56m
Overall Dimensions: L×W×H:: 13.760×2.5×4m
Curb Weight: 41.46ton
Water tank capacity: 600L
Horsepower 390
Max output power: 287kW

Overview

The SANY 56m concrete pump truck (Isuzu chassis) is a concrete pump truck featuring 41.46ton GVW, 600L tank capacity, 390 hp and 287kW power. On the powertrain side, it comes with China III / Euro III emissions and Diesel fuel.

China III / Euro III 390 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info

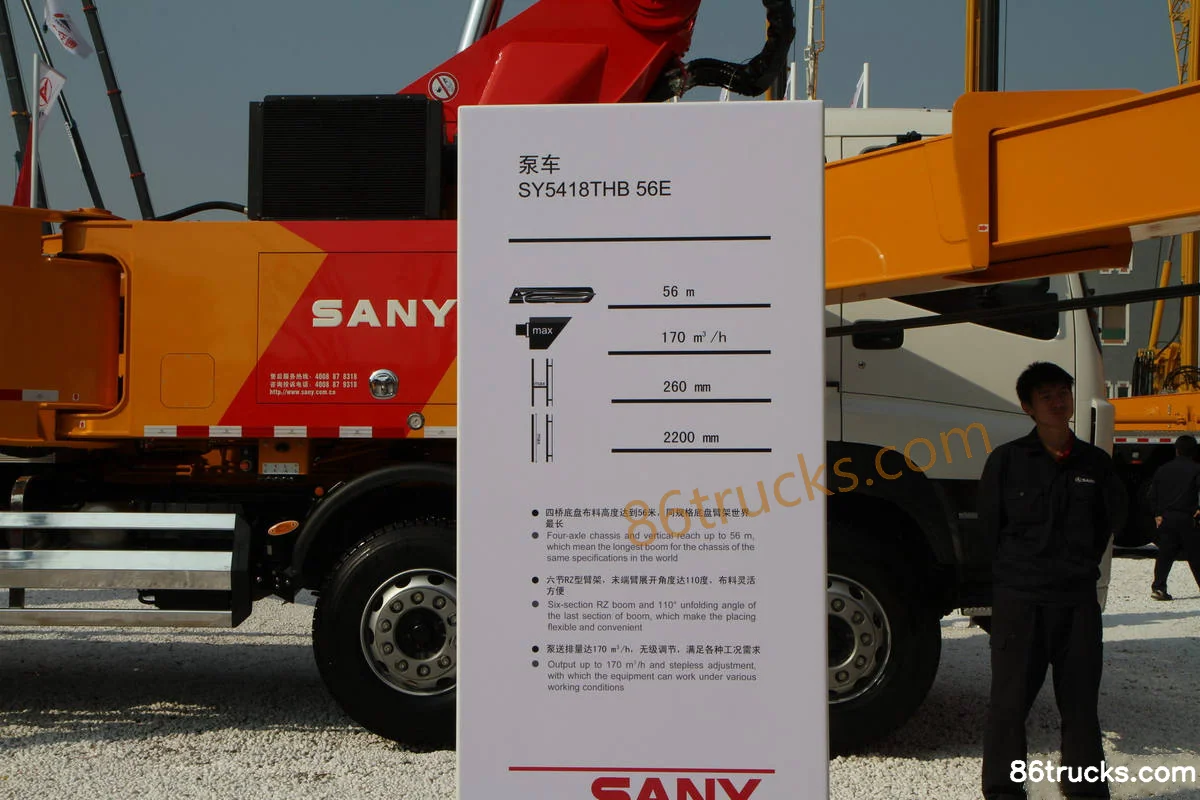

Model code (announced): SY5418THB 56E
Pumping displacement: 170m³/h
Max pumping height: 56m
Overall Dimensions: L×W×H: 13.760×2.5×4m
Max. travel speed: 80km/h
Curb Weight: 41.46ton
Body Parameters
Water tank capacity: 600L
Chassis Specs

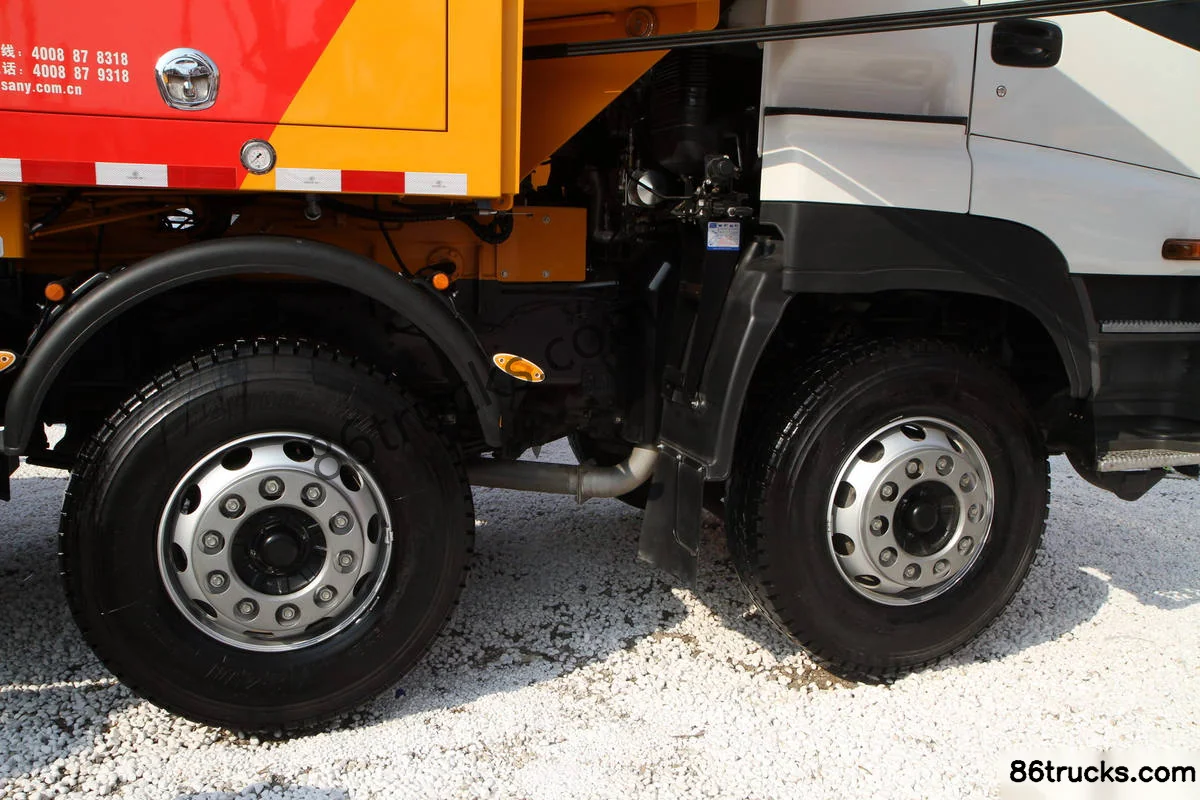

Axle Count: 5
Chassis Series: Isuzu CYZ51Y

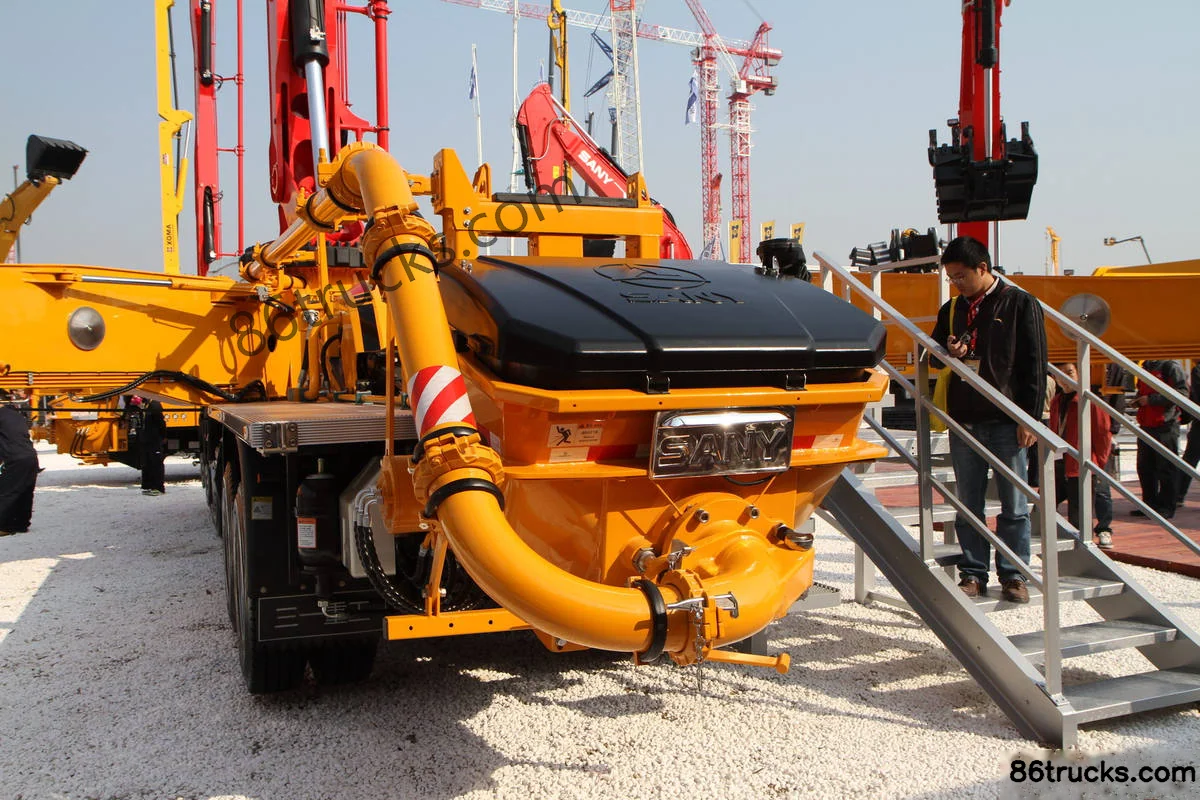

Pumping system
Pumping displacement (low/high): 120/170m³/h
Pumping pressure (low/high): 8.3
Pumping strokes (low/high): 12/17Times/min
Delivery cylinder: bore × stroke: 260×2200mm
Oil pressure: 32Mpa
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 56m
Boom Horizontal Length: 51m
Boom Vertical Depth: 36.6m
Turntable Rotation Angle: 220°
Min unfolded length: 15.2m
Outrigger spread width: front/rear: 9300/11670mm
Boom Section 1 - Length: 11400mm
first arm section angle: 90°
Boom Section 2 - Length: 9230mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 8750mm
Boom Section 3 - Angle: 180°
4th arm section length: 11060mm
Boom Section 4 - Angle: 240°
Engine parameters
Engine Model: 6WF1D
fuel type: Diesel
Displacement: 14.256L
Emission standard: China III / Euro III
Max output power: 287kW
Max hp: 390Horsepower
Rated speed: 1800rpm

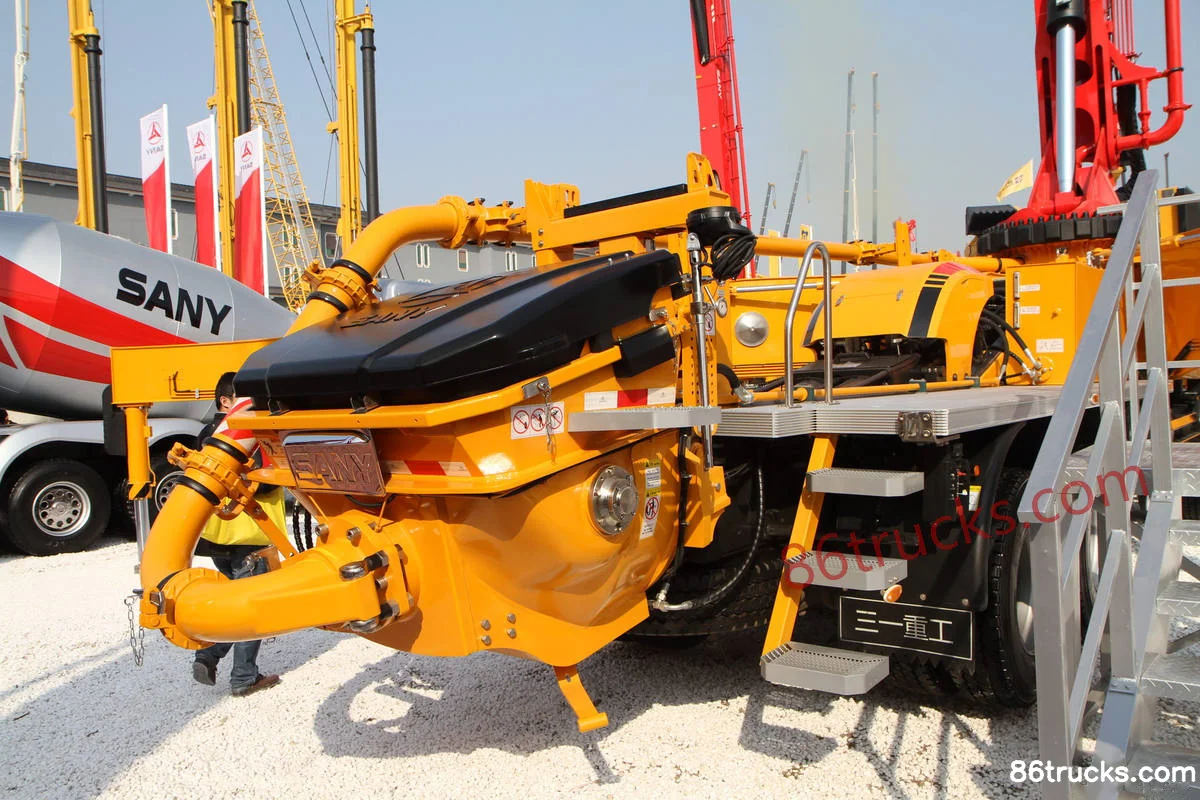

Photos

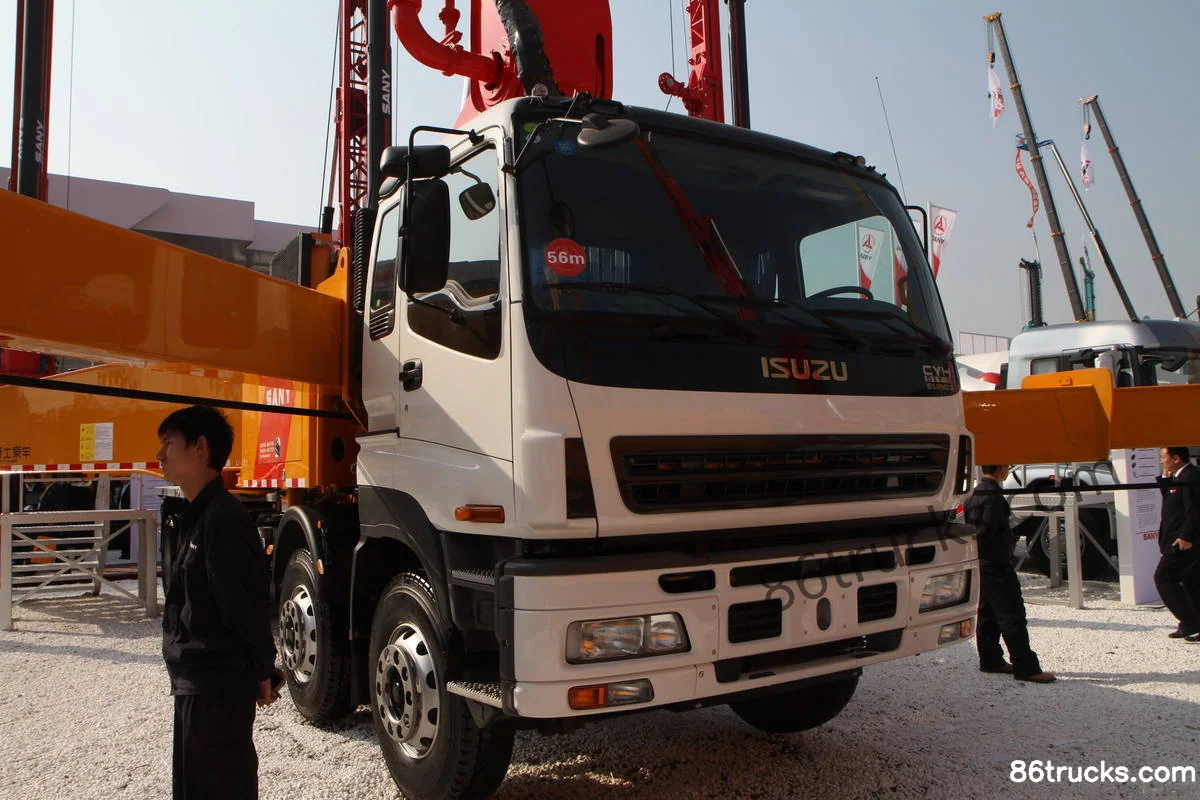

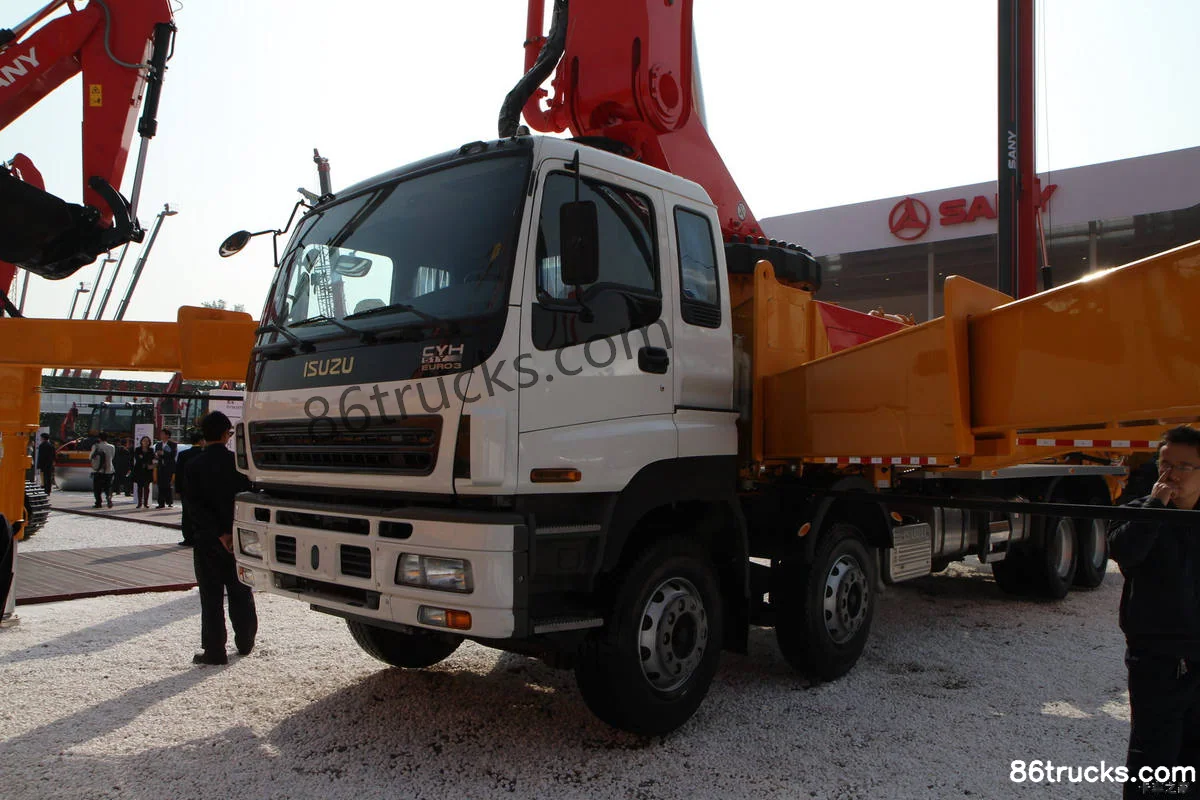

Exterior3

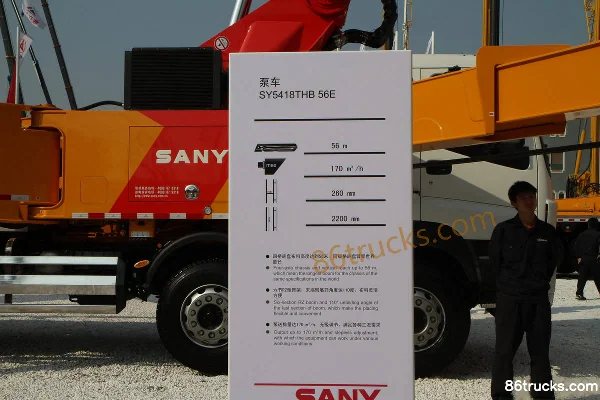

Cab3

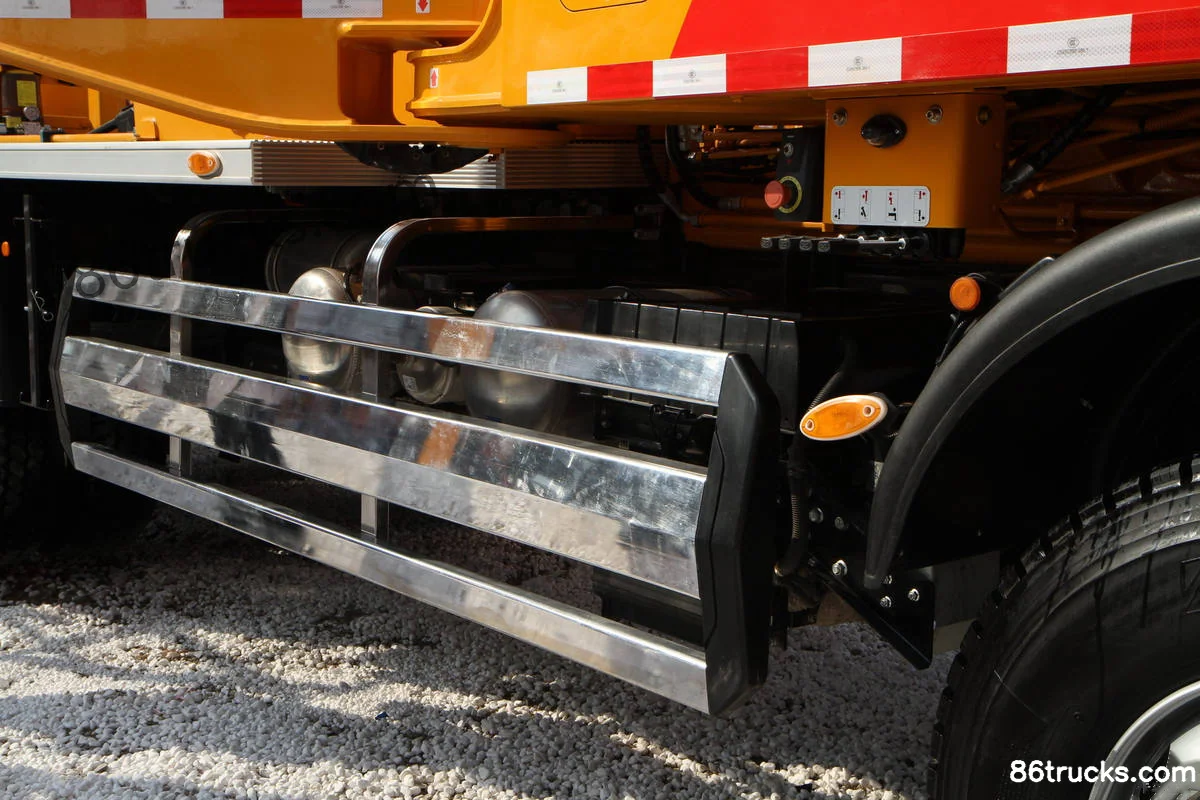

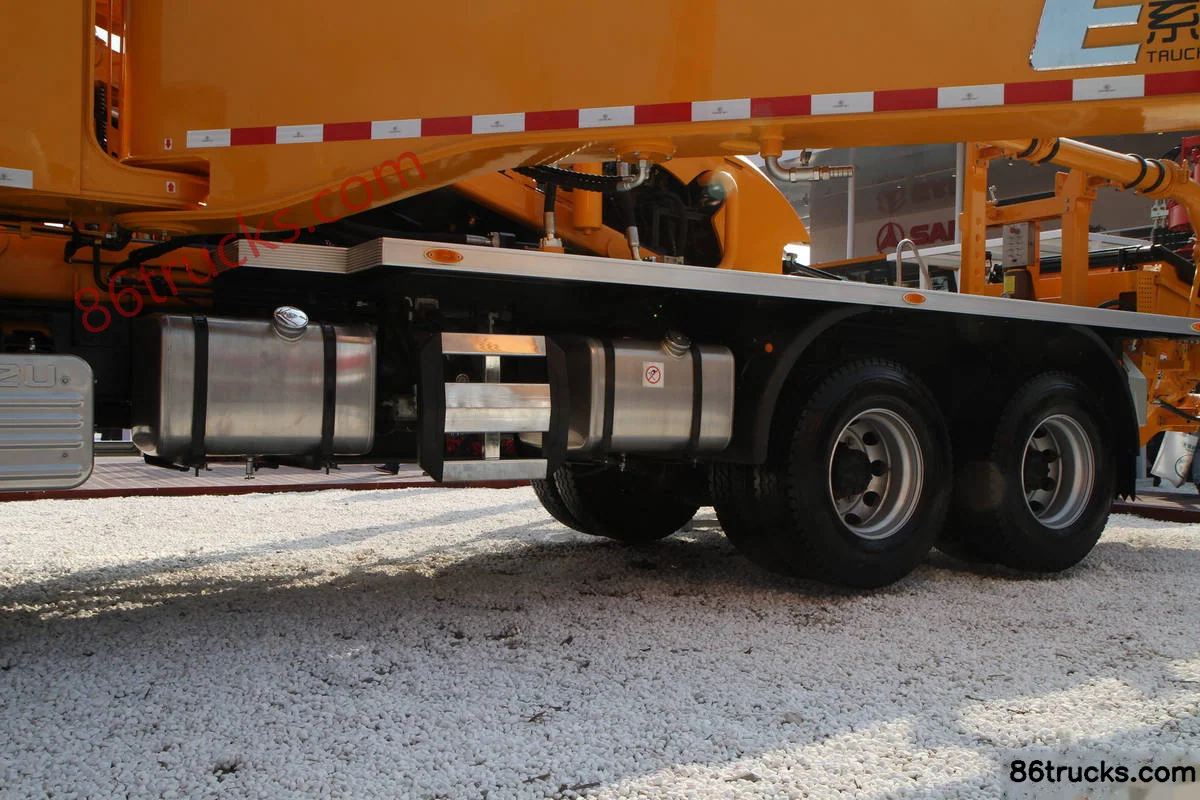

Body3

9 photos
