JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand)

Export reference
MSRP N/A
Wheelbase:: 2800mm
Cab dimensions:: 5.98x1.895x3m
Type:: moving truck
Front/rear track width:: Front: 1400mm; Rear: 1425
GVWR:: 4.495ton
Front/rear suspension:: 1.11/1.8m
Drive 4X2 (6 wheels)
Horsepower 129
Curb Weight: 4.365ton
Emission China VI

Overview

The Gaoliya Special Vehicle JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) is a aerial work truck featuring 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 129 hp and China VI emissions.

China VI 129 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.98x1.895x3m
Type: moving truck
Drive type: 4X2
Wheelbase: 2800mm
Front/rear track width: Front: 1400mm; Rear: 1425
Curb Weight: 4.365ton
GVWR: 4.495ton
Front/rear suspension: 1.11/1.8m
Body Parameters
Max working height: 36m
Other special notes: 8-section synchronized telescopic boom
Swing Angle: 180° each side
Vehicle certification code: VGL5041TBAJ6
Body Brand: Goryeo brand
Engine parameters
Engine Model: JMCJX493ZLQ6F
Displacement: 2.499L
Emission standard: China VI
Max output power: 95kW
Max hp: 129Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Mini Truck
Chassis Model: JX1041TCF26
Leaf spring count: 7/6+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed gearbox
Tire
Tire Size: 6.50R15LT 10PR
Number of tires: 6pcs

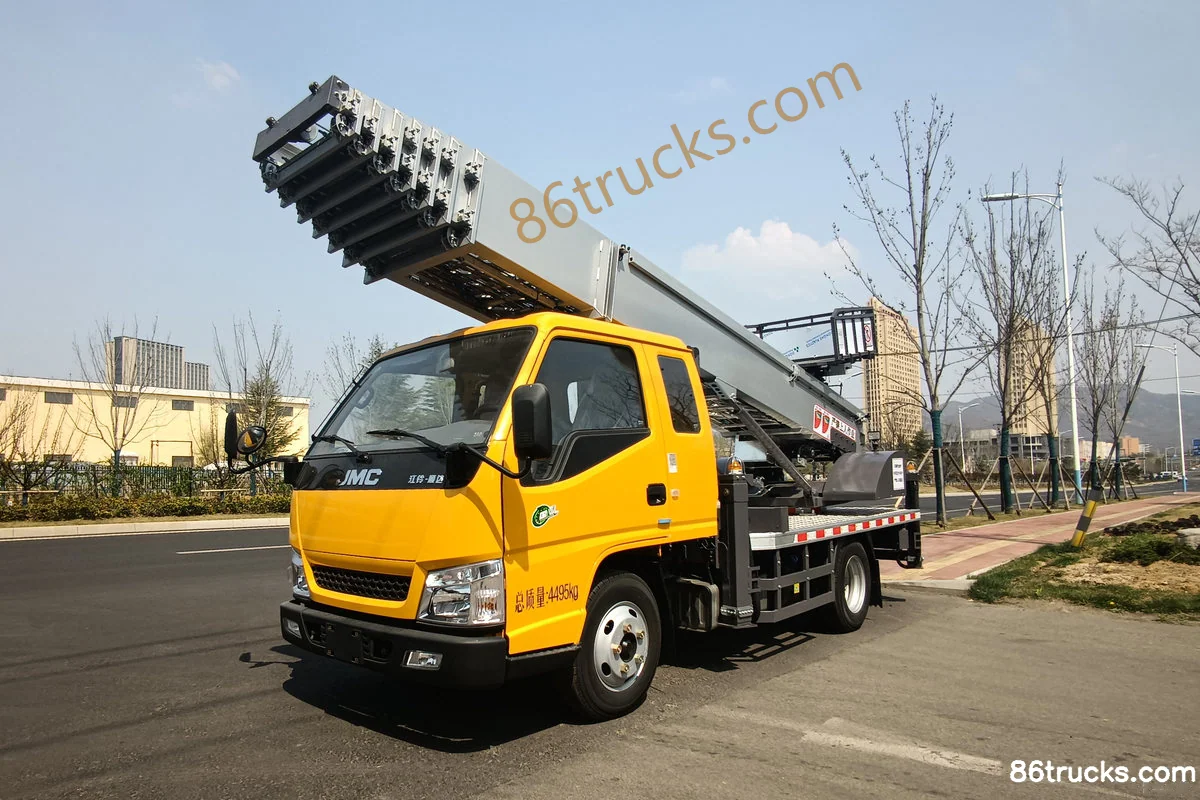

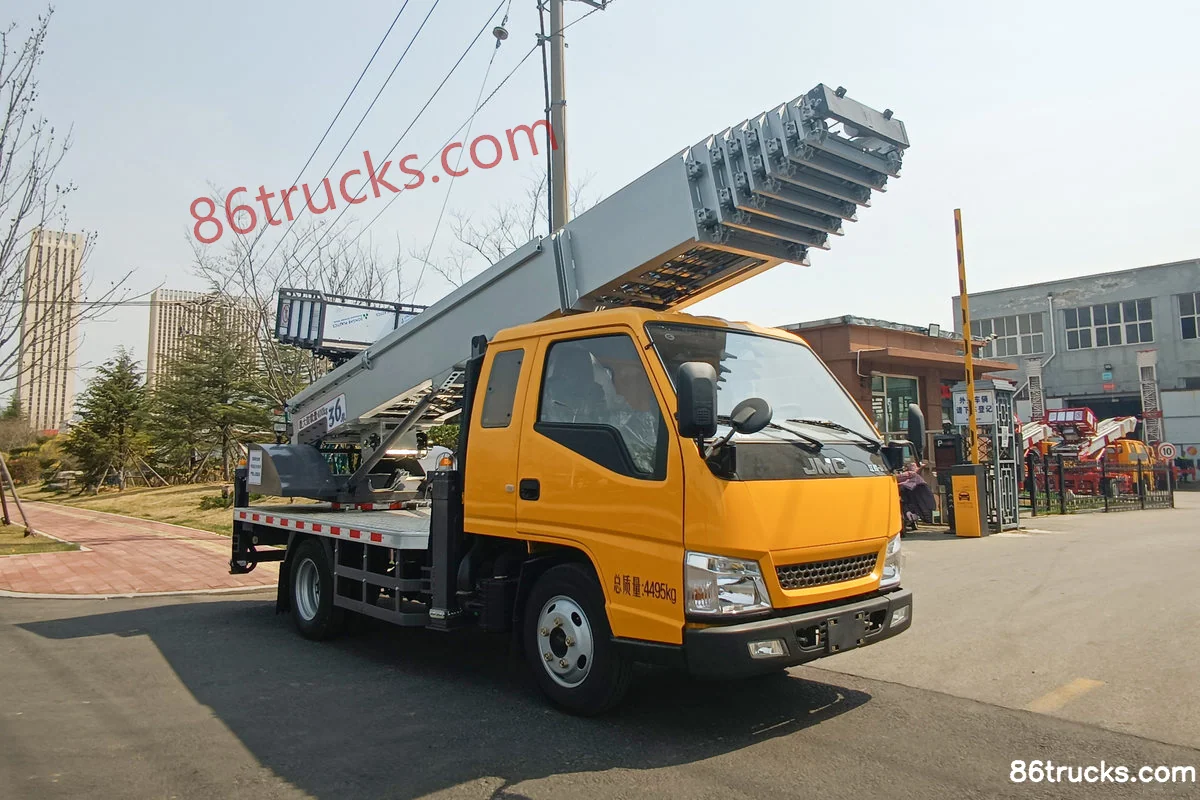

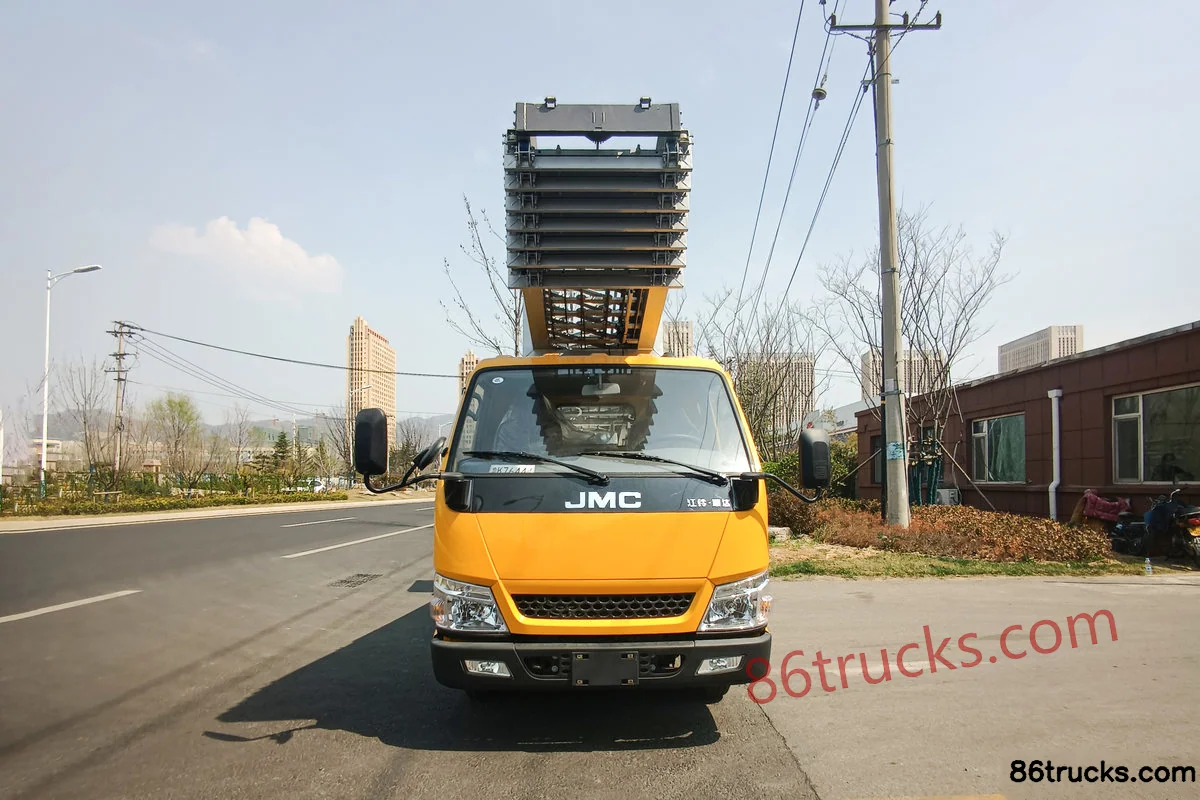

Photos

Exterior3

3 photos

FAQ

What emission standard does JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand)?

Key specs of JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand): Drive: 4x2; Horsepower: 129 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) suited for?

JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) is a aerial work truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) differ from other variants in the same series?

JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) belongs to Gaoliya Special Vehicle JMC Chassis (aerial work truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
