JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand)
EXW
Export quote
Gaoliya Special Vehicle JMC Chassis aerial work
Main model photos
9 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Xiaoka 129hp 4X2(6 wheels) 36m single-row relocation truck (Gaoliya brand) | 4x2 / 129hp / China VI | ||
| JMC New Shunda 116hp 4X2(6 wheels) 32m Double Row Moving Truck (Gaoliya Brand) | 4x2 / 116hp / China VI | ||
| JMC New Shunda 122hp 4X2(6 wheels) 32m Single Row Moving Truck (Gaoliya Brand) | 4x2 / 122hp / China VI |

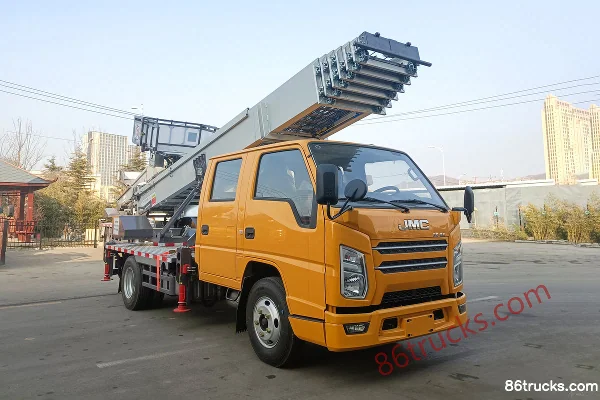

JMC New Shunda 116hp 4X2(6 wheels) 32m Double Row Moving Truck (Gaoliya Brand)
EXW
Export quote

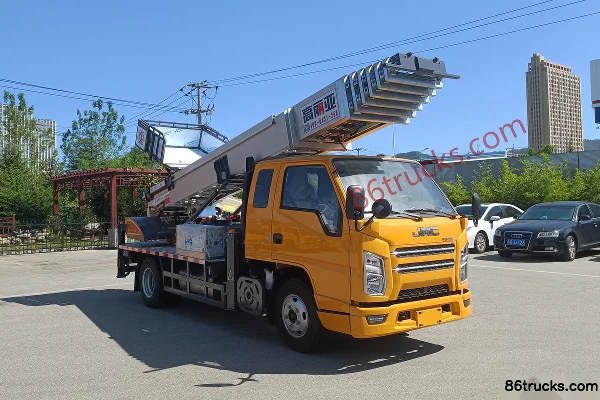

JMC New Shunda 122hp 4X2(6 wheels) 32m Single Row Moving Truck (Gaoliya Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.98x1.895x3 / 5.995x1.9x2.95 / 5.95x1.895x2.98m
Type: moving truck
Drive type: 4X2
Front/rear track width: Front: 1400mm; Rear: 1425 / Front: 1385mm; Rear: 1425
Wheelbase: 2800 / 3360mm
Curb Weight: 4.365 / 4.17ton
GVWR: 4.495ton
Front/rear suspension: 1.11/1.8 / 1.075/1.56 / 1.075/1.8m
Body Parameters
Other special notes: 8-section synchronized telescopic boom / 7-section synchronized telescopic boom, dual lift cylinders
max working radius: 12m
Max working height: 36 / 32m
Swing Angle: 180° each side / 90° each side
Vehicle certification code: VGL5041TBAJ6 / VGL5040JGKJX / VGL5041TBA01
Body Brand: Goryeo brand
Engine parameters
Engine Model: JMCJX493ZLQ6F / JMCJX4D30B6H / JMCJX493ZLQ6A
Displacement: 2.499 / 2.892 / 2.771L
Emission standard: China VI
Max output power: 95 / 85 / 90kW
Max hp: 129 / 116 / 122Horsepower
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Mini Truck / New Shunda
Chassis Model: JX1041TCF26 / JX1041TSG26 / JX1041TCD26
Leaf spring count: 7/6+5 / 7/4+6 / 1/1+1
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed gearbox
Tire
Tire Size: 6.50R15LT 10PR / 7.00R16LT 10PR
Number of tires: 6pcs
FAQ
What kind of truck is Gaoliya Special Vehicle Gaoliya Special Vehicle JMC Chassis aerial work truck?
Gaoliya Special Vehicle Gaoliya Special Vehicle JMC Chassis is an export-oriented aerial work truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Gaoliya Special Vehicle JMC Chassis aerial work cover?
Gaoliya Special Vehicle JMC Chassis aerial work mainly covers: Drive: 4x2; Horsepower: 116 hp / 122 hp / 129 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Gaoliya Special Vehicle JMC Chassis aerial work?
For Gaoliya Special Vehicle JMC Chassis aerial work: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is aerial work truck typically used for?
aerial work truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Gaoliya Special Vehicle JMC Chassis aerial work include?
Gaoliya Special Vehicle JMC Chassis aerial work currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Gaoliya Special Vehicle JMC Chassis aerial work?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
