Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI)

Export reference
From $53,056
MSRP ¥38.2M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.5ton
Wheelbase:: 1850+2600+1300mm
Tire Size:: 11.00R20-16
Rated payload: 19.305ton
Drive 8X2 (10 wheels)
Horsepower 270
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) is a Heavy truck featuring 19.305t payload, 31t GVW, Dump type cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP7.270E61 engine, 270 hp, China VI emissions and Fast Gear transmission.

China VI 270 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3317L14Y3A6
Drive type: 8X2
Wheelbase: 1850+2600+1300mm
engine: WeichaiWP7.270E61
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.92
Cab length: 9.39m
Cab width: 2.5m
Cab height: 3.2m
Front track width: 1940/1940mm
rear track: 1900/1860mm
Curb Weight: 11.5ton
Rated payload: 19.305ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 13°
Remarks: Front underrun guard, anti-splash mudguard, standard air filter, eco-friendly terminal
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7.270E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine Type: CR+EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: T280 Semi-High Roof Luxury
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 153 dual front + air lift axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280 (8+5) double-layermm
rear axle description: Mercedes-Benz single rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.92
Leaf spring count: 9/9/7+(10+8)
Tire
Tire Size: 11.00R20-16
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

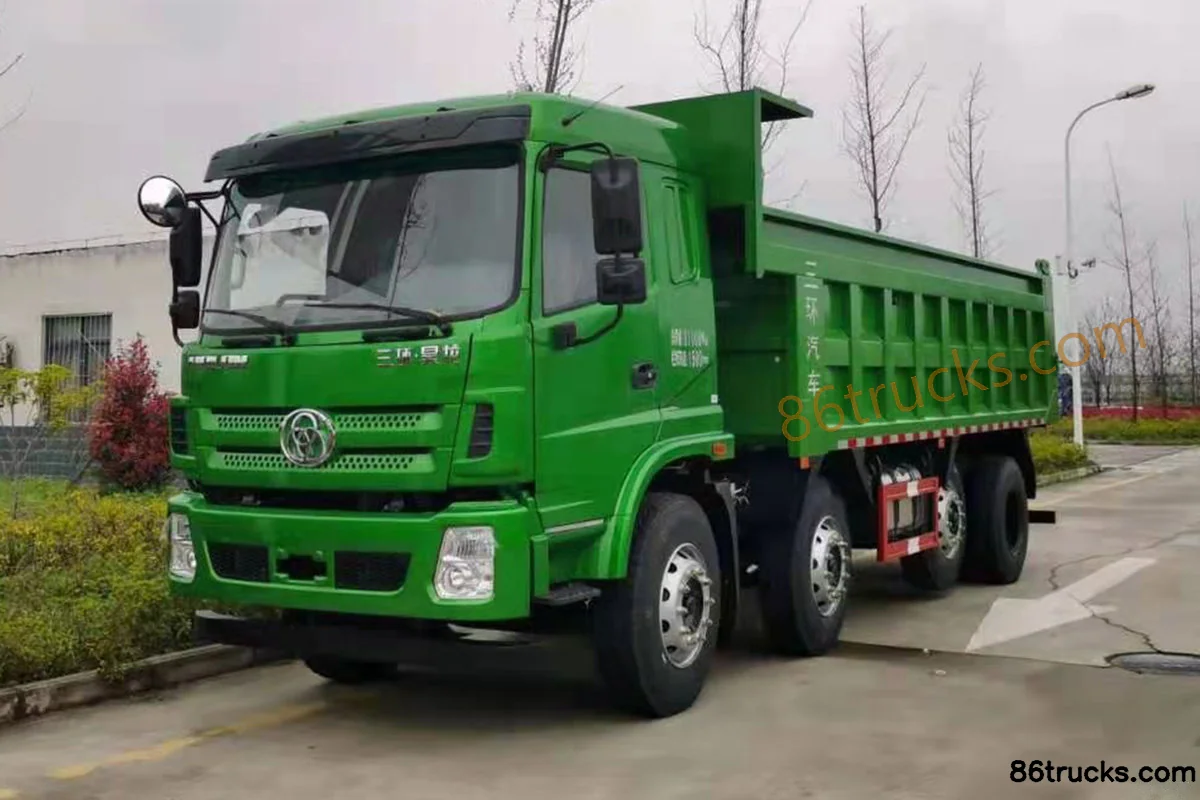

Exterior1

1 photos

FAQ

What is the export price of Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI), and what does it include?

Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) export reference is about From $53,056; MSRP is ¥38.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI)?

Key specs of Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI): Drive: 8x2; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) suited for?

Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) differ from other variants in the same series?

Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI) belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong Heavy Truck Luxury 270 hp 8X2(10 wheels) 6m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
