Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.7ton
Wheelbase:: 3400mm
Tire Size:: 8.25R16

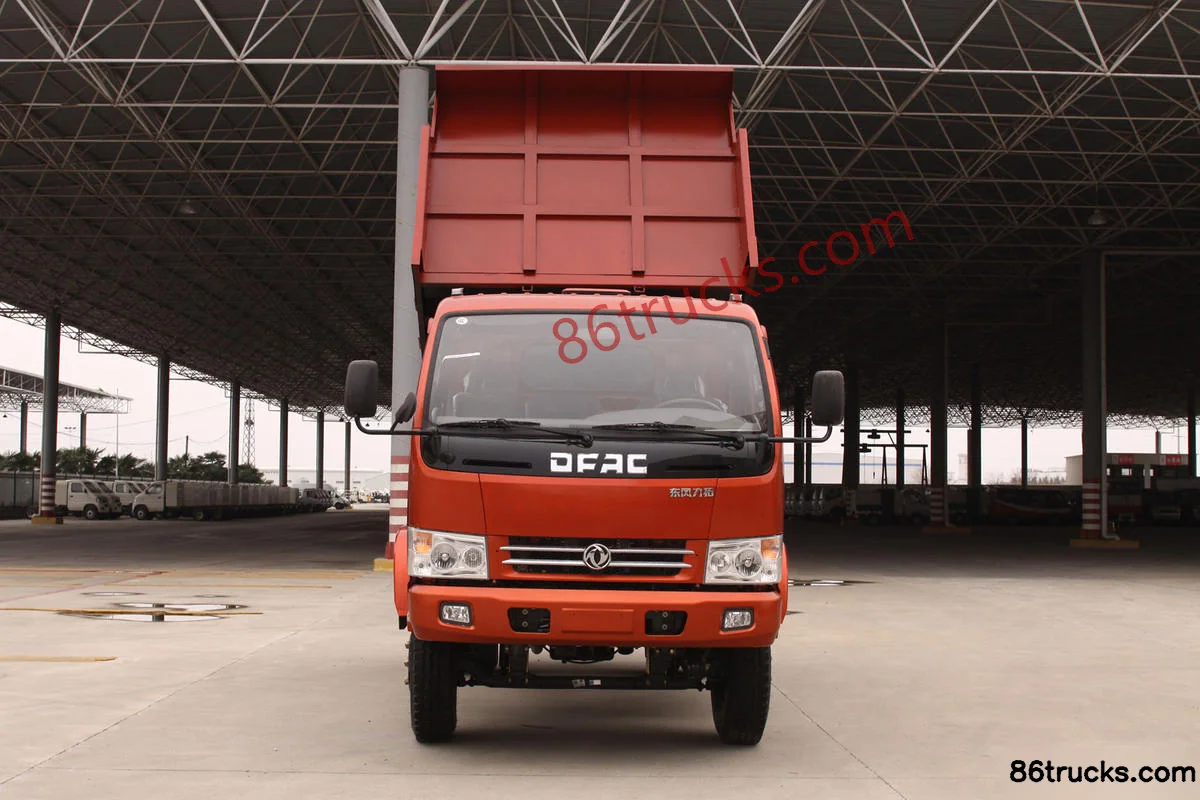

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck exterior
View more photos (12)
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Dump type

Overview

The Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck is a Light Truck featuring 1.6t payload, 4.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRD2 engine, 102 hp, China IV emissions and WLY transmission.

China IV 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): EQ3042GDAC
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYN33CRD2
transmission: WLYWLY5-speed
Rear Axle Ratio: 6.33
Cab length: 5.998m
Cab width: 2.25m
Cab height: 2.57m
Front track width: 1640mm
rear track: 1650mm
Curb Weight: 2.7ton
Rated payload: 1.6ton
GVWR: 4.495ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 31°
departure angle: 17°
Remarks: Transmission: 145H
Energy Type: Diesel

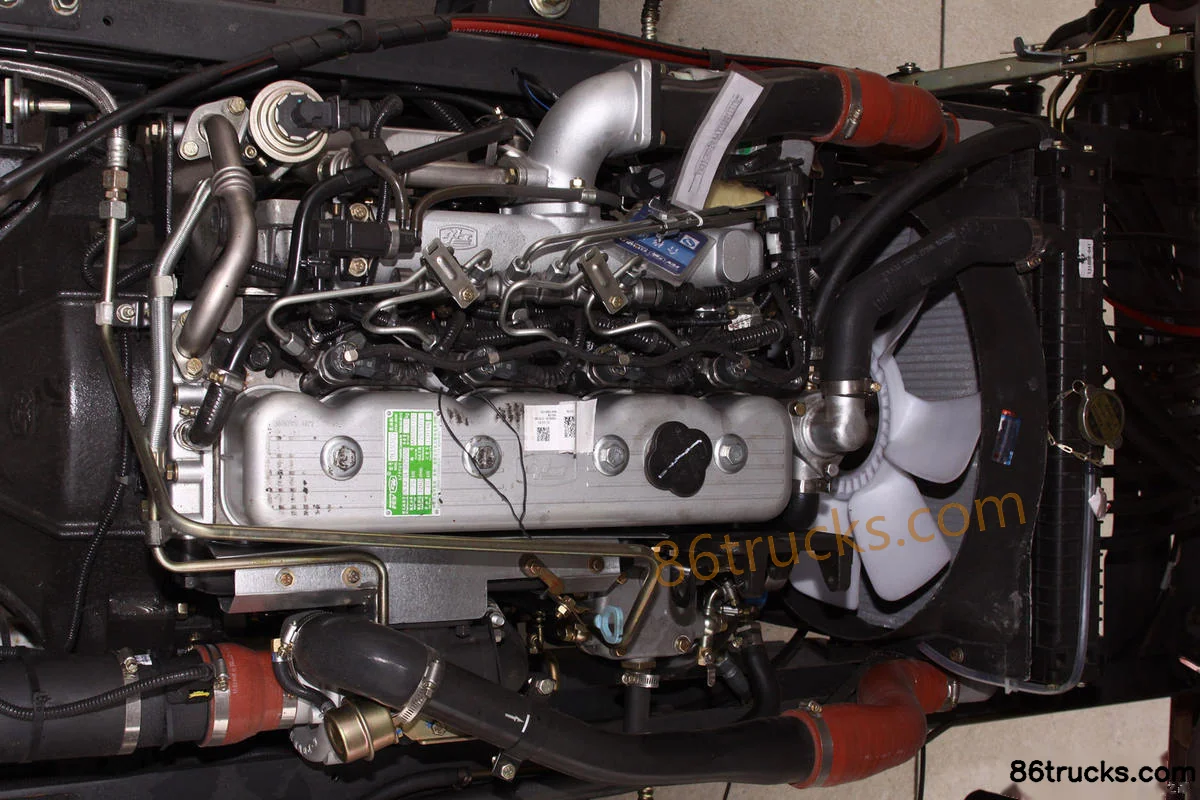

Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic high-pressure common rail diesel engine
Transmission Parameters
Transmission Model: WLYWLY5-speed
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.1m
Cargo box height: 0.8m
Chassis Specs
Frame Dimensions: 230×10×800mm
rear axle allowable load: 7500kg
Axle ratio: 6.33
Leaf spring count: 12/12+9
Tire
Tire Size: 8.25R16
Number of tires: 6pcs

Photos

Exterior3

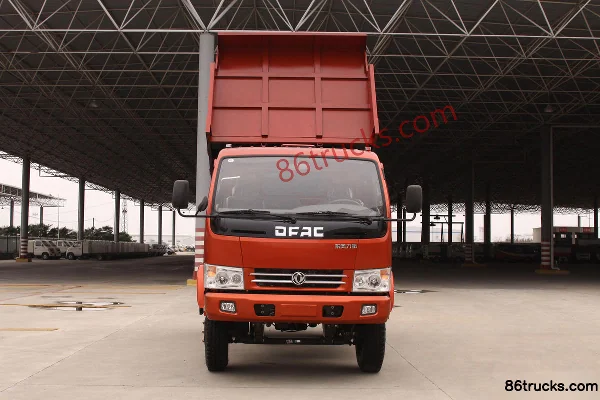

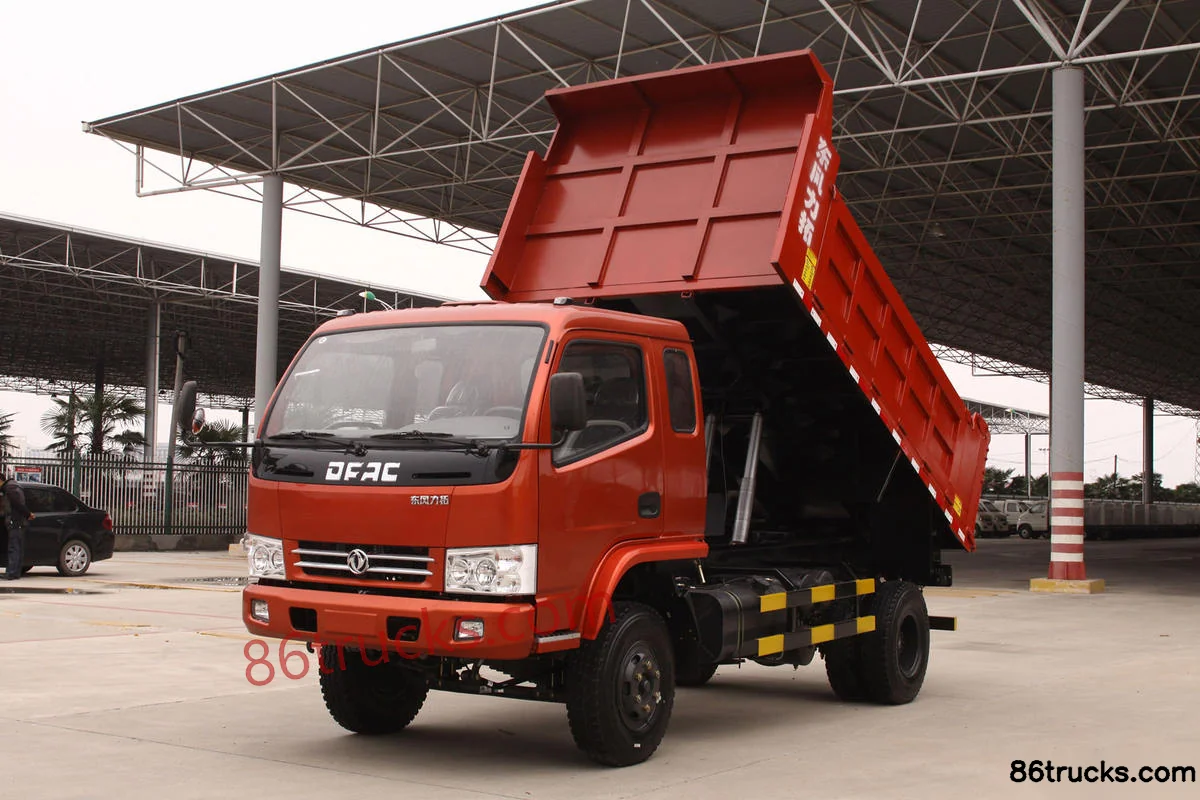

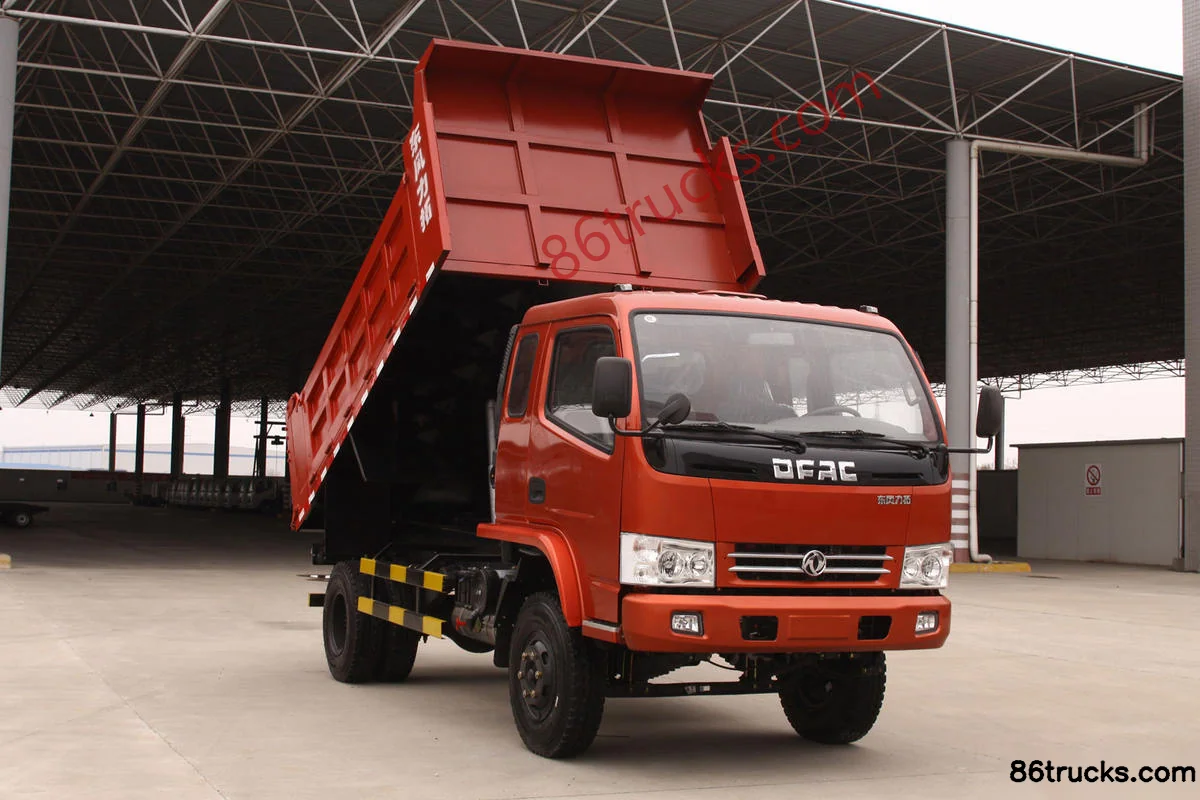

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Exterior (1) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Exterior (2) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Exterior (3) | 86Trucks

Cab3

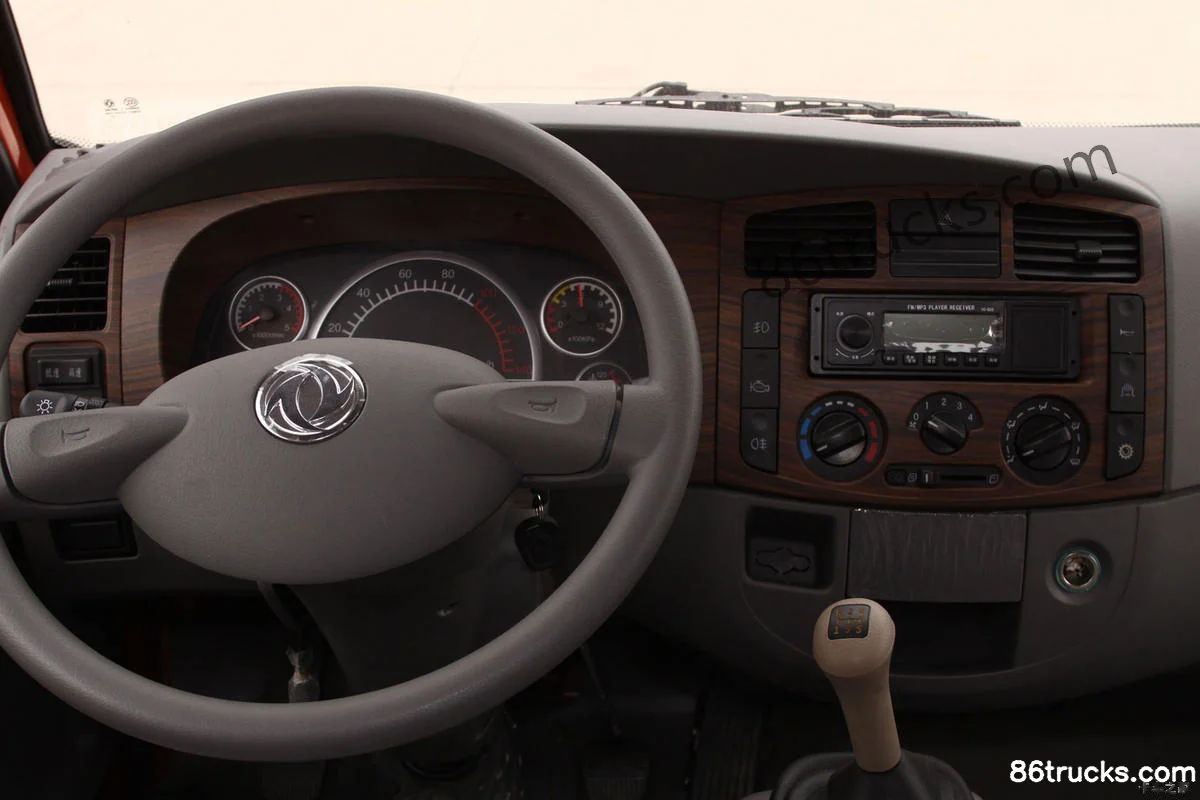

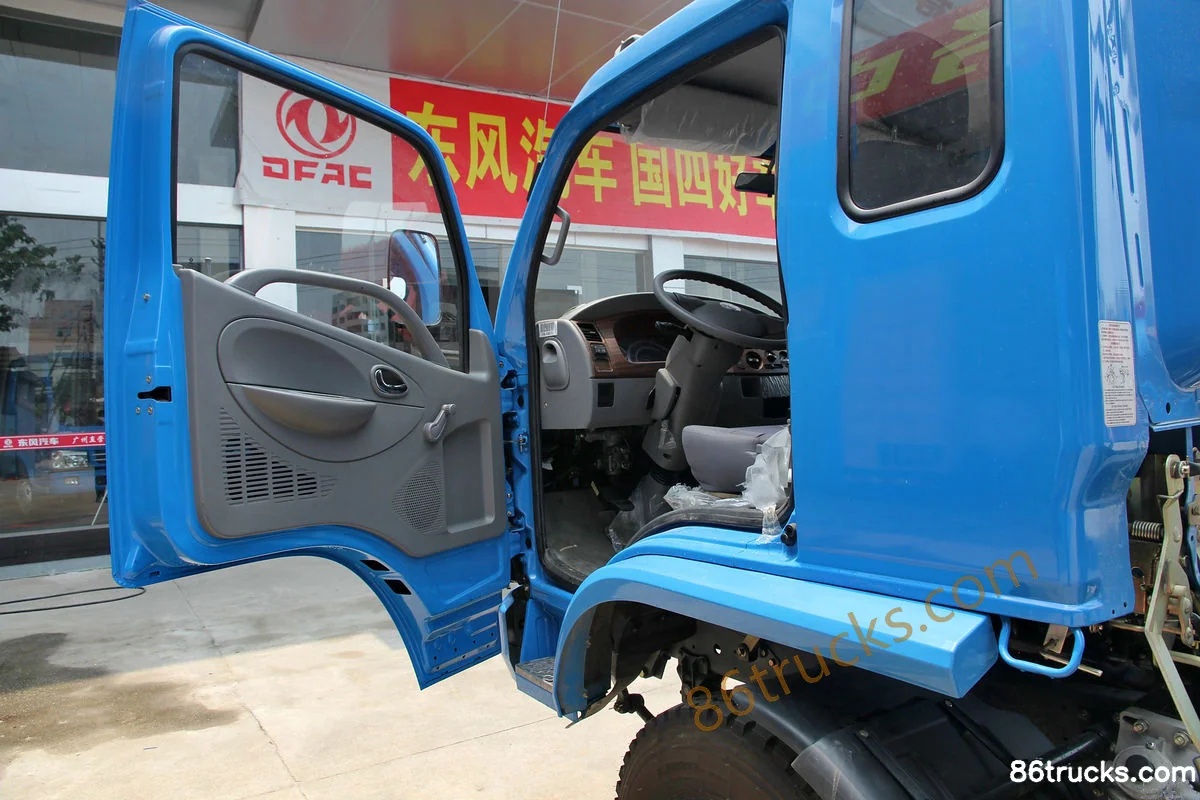

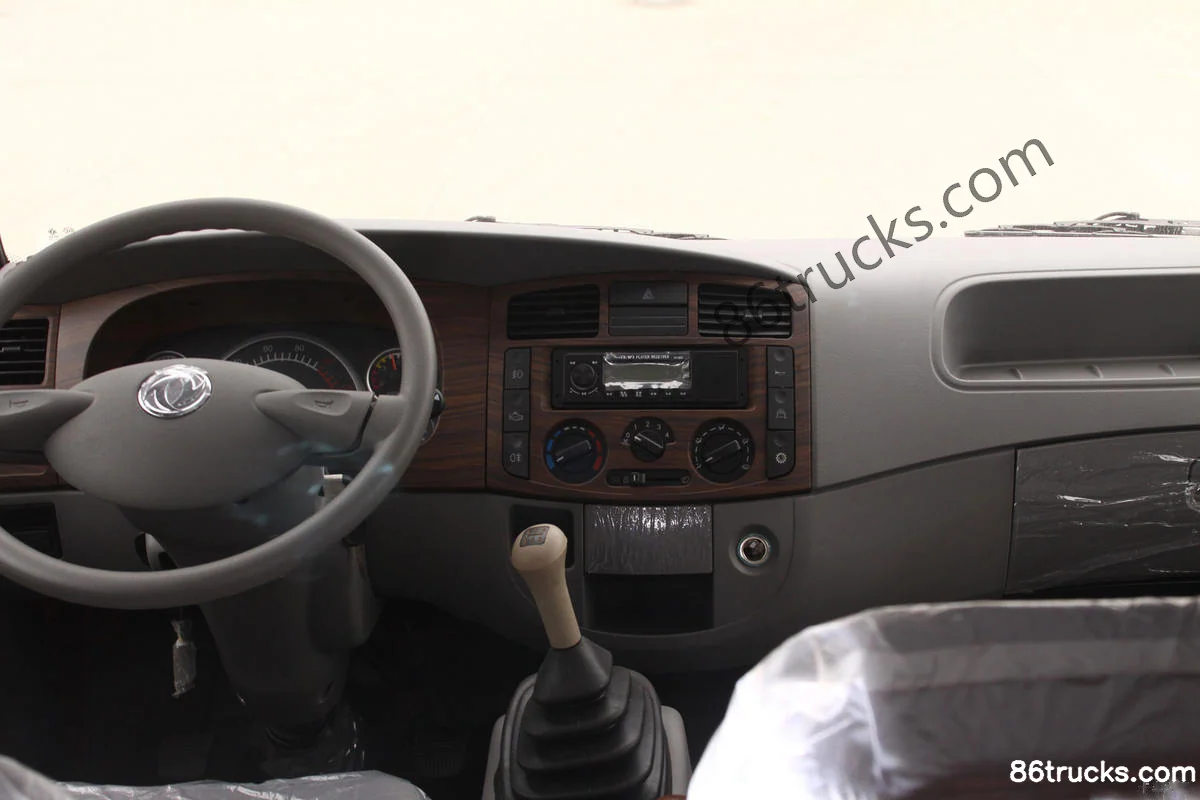

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Cab (1) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Cab (2) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Cab (3) | 86Trucks

Chassis3

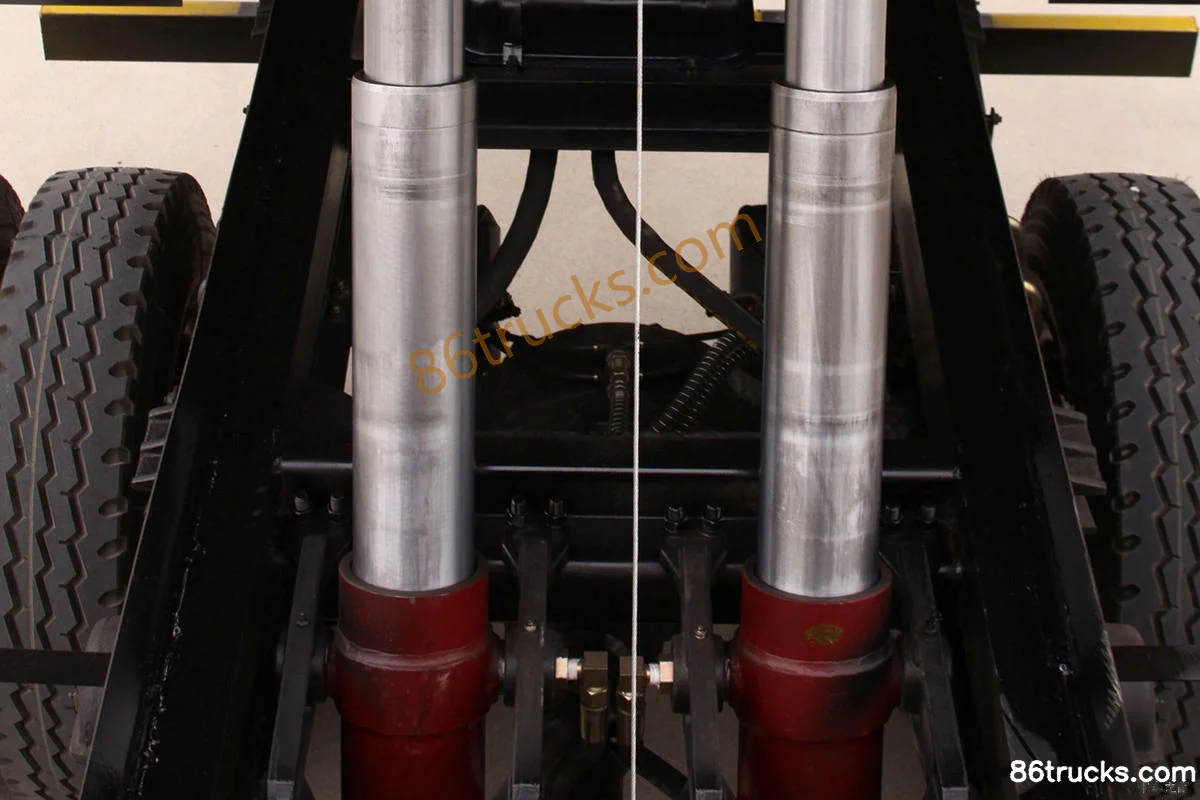

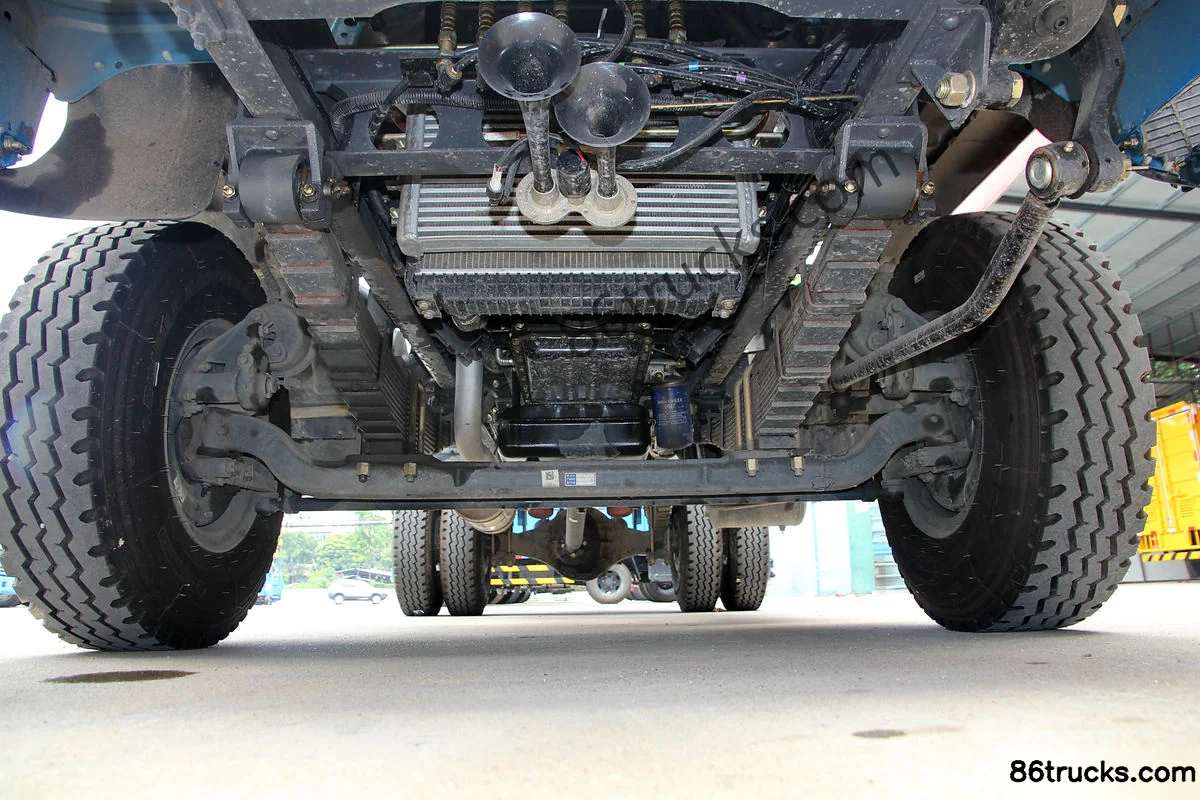

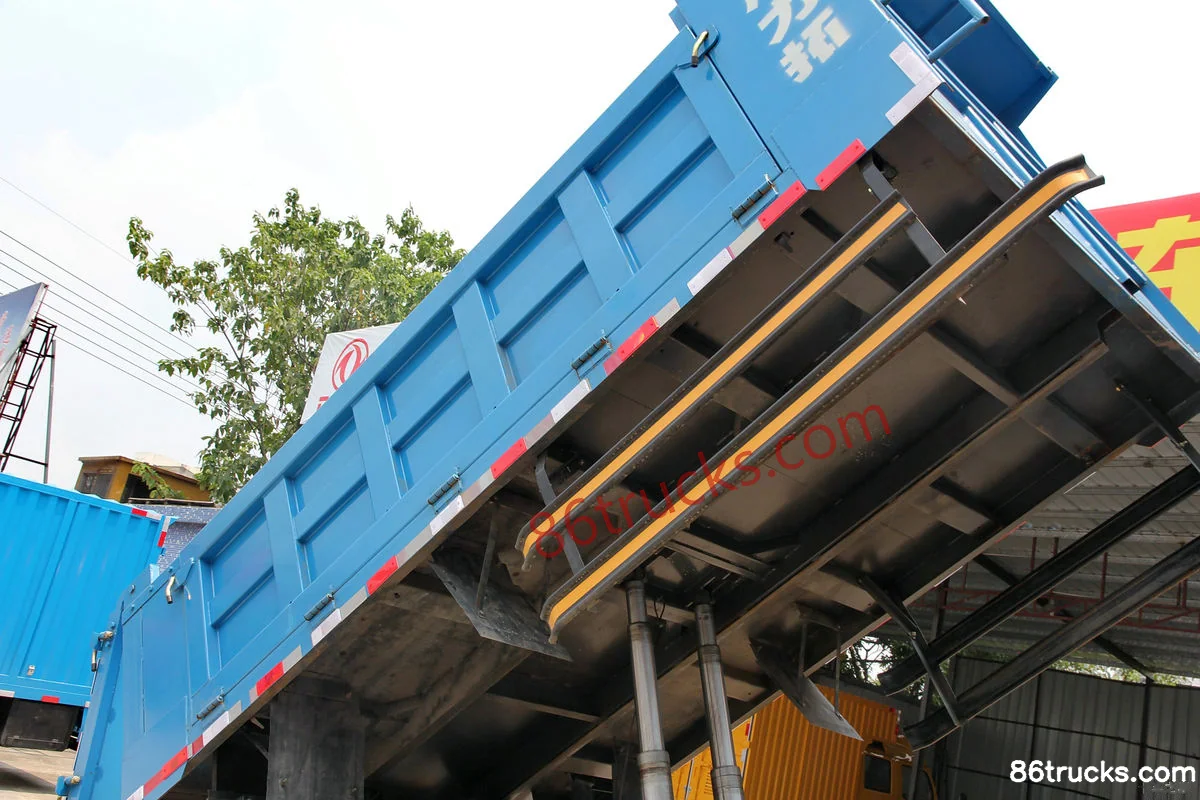

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Chassis (1) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Chassis (2) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Chassis (3) | 86Trucks

Body3

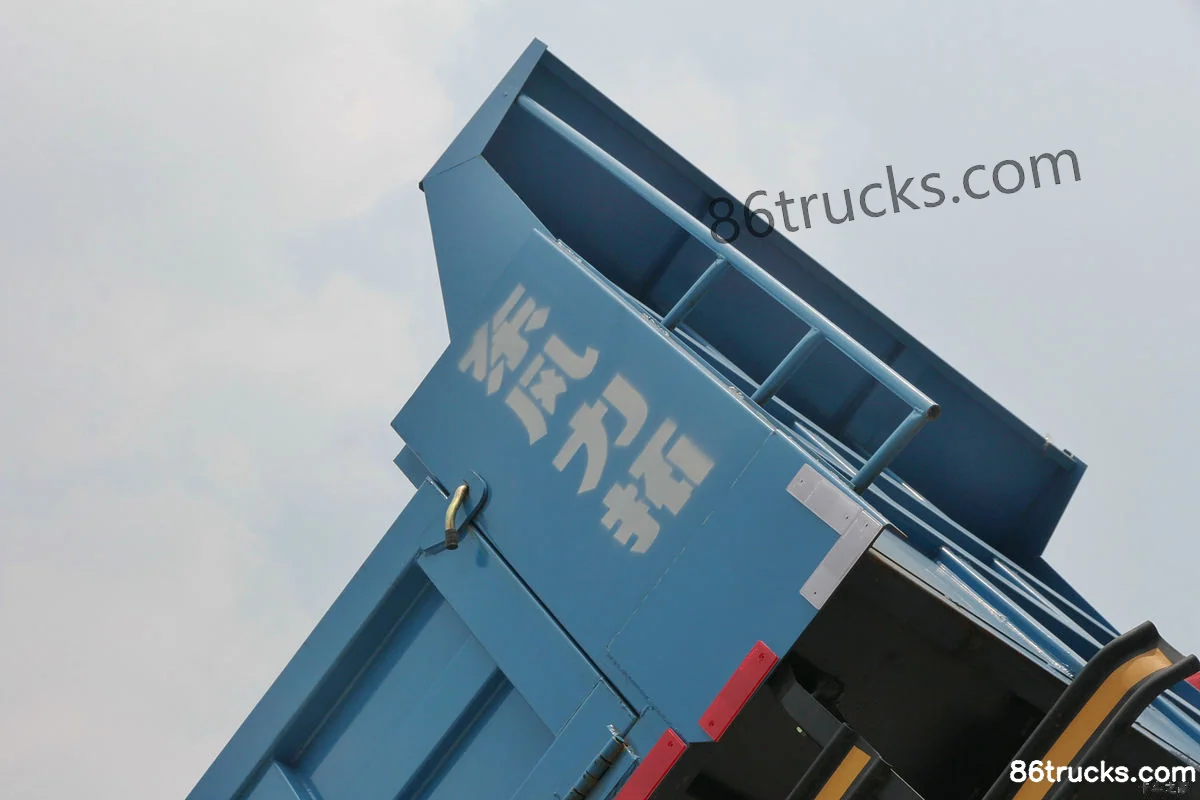

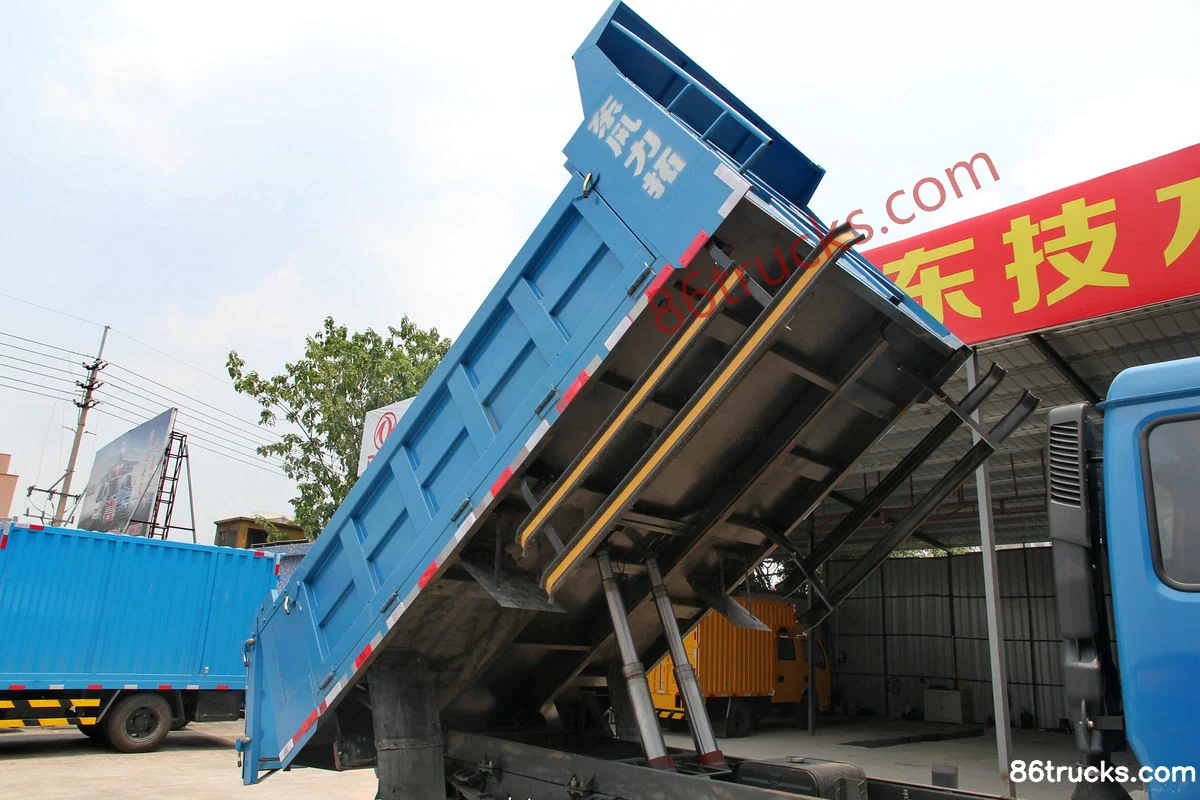

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Body (1) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Body (2) | 86Trucks Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 102 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck suited for?

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck belongs to Dongfeng 4100 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Lituo 4100 102 hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
