FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG)

Export reference
MSRP N/A
Wheelbase:: 4970mm
Cab dimensions:: 9x2.498x3.61m
Type:: truck-mounted crane
GVWR:: 14ton
Engine Model:: Xichai CA6DF3-18E3F18E3F
Displacement:: 7.12L
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 4.61ton
Emission China III / Euro III

Overview

The FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) is a truck-mounted crane featuring 14t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai CA6DF3-18E3F18E3F engine, 180 hp and China III / Euro III emissions.

China III / Euro III 180 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9x2.498x3.61m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4970mm
Rated mass: 4.61ton
GVWR: 14ton
Engine parameters
Engine Model: Xichai CA6DF3-18E3F18E3F
Displacement: 7.12L
Emission standard: China III / Euro III
Max output power: 136kW
Max hp: 180Horsepower
Body Parameters
Vehicle certification code: XZJ5144JSQ
Body Brand: XCMG brand
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J5K
Chassis Model: CA1140PK2L3EA80
Leaf spring count: 10/12+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAW CA6TBX075M
Tire
Tire Size: 10.00R20 16-ply
Number of tires: 6pcs

Photos

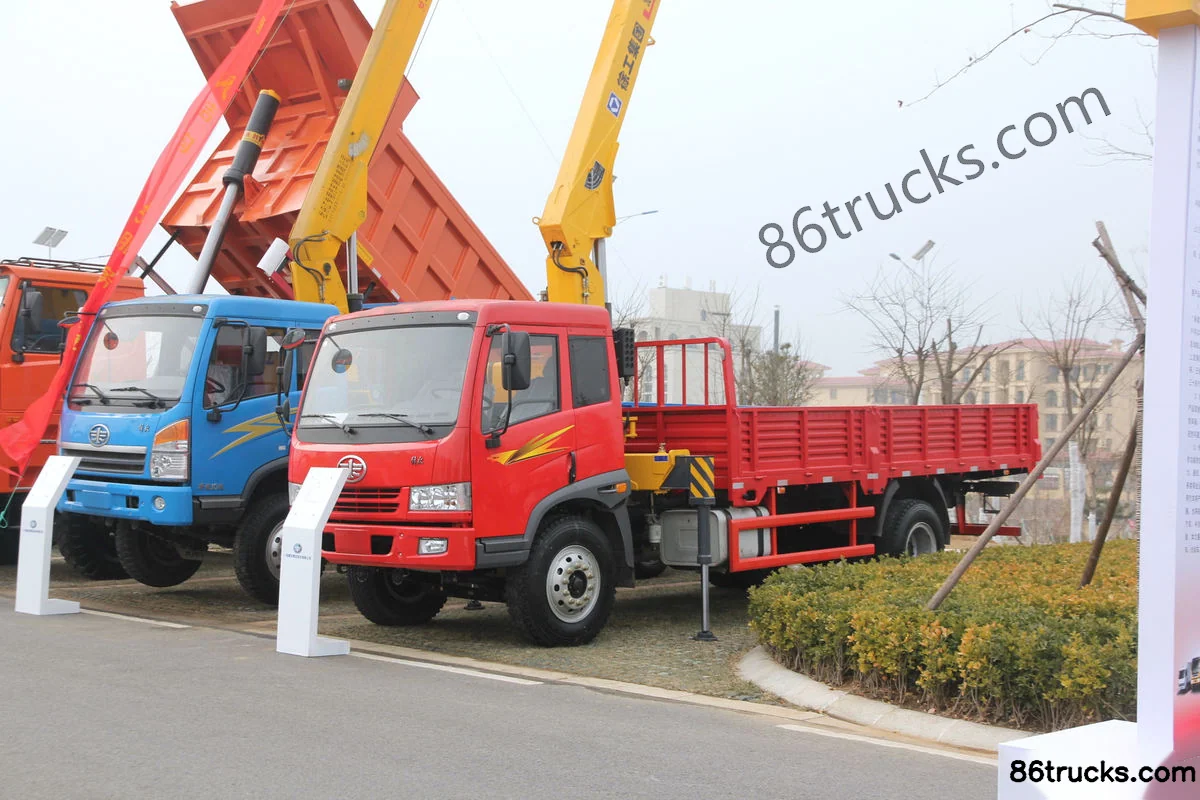

Exterior1

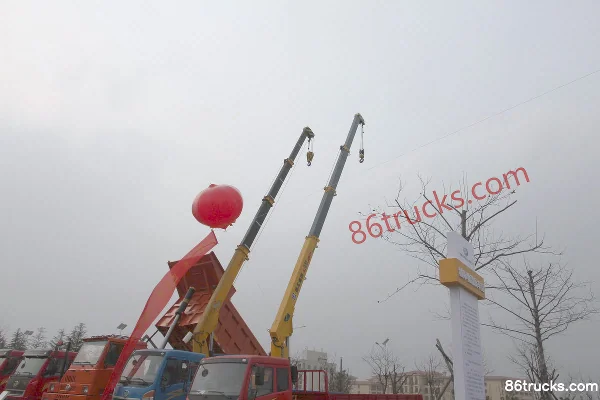

Cab3

4 photos

FAQ

What emission standard does FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG)?

Key specs of FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG): Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) suited for?

FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) differ from other variants in the same series?

FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG) belongs to XCMG FAW Jiefang chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J5K 180hp 4X2(6 wheels) Truck Mounted Crane (XCMG)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
