Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck

Export reference
From $25,014
MSRP ¥18.01M CNY
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.5ton
Wheelbase:: 3200mm
Tire Size:: 8.25R20 16PR
Model code (announced):: ZZ3128G17FB0
Rated payload: 7.28ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box length: 3.8m

Overview

The Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck is a Medium-duty truck featuring 7.28t payload, 11.975t GVW, 3.8m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, Fast Gear transmission and Diesel fuel.

170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3128G17FB0
Drive type: 4X2
Wheelbase: 3200mm
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.833
Cab length: 5.75m
Cab width: 2.28m
Cab height: 2.75m
Front track width: 1760mm
rear track: 1725mm
Curb Weight: 4.5ton
Rated payload: 7.28ton
GVWR: 11.975ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: D30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.8m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab width: 1880mm
seating capacity: 2Personnel
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 1090N(3T)
Front axle allowable load: 4850kg
Frame Dimensions: 230mm
rear axle description: 153AS(9T)
rear axle allowable load: 7125kg
Axle ratio: 6.833
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

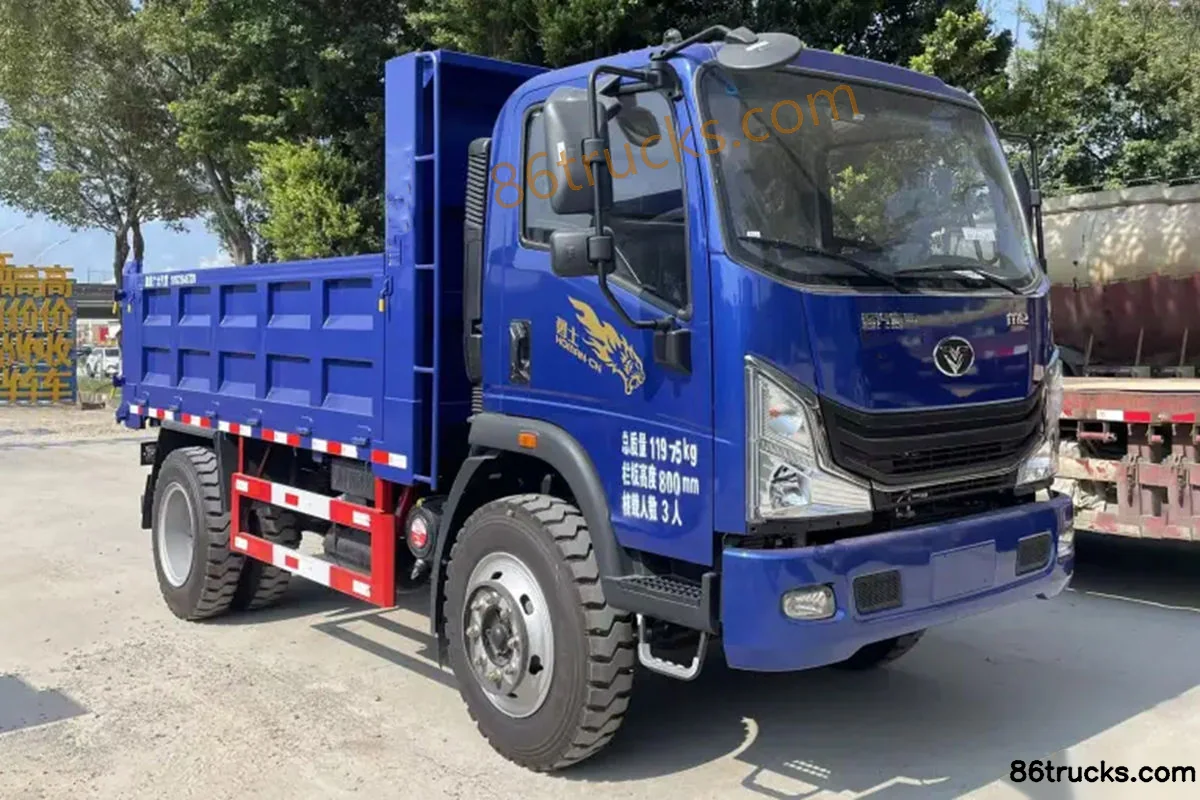

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck, and what does it include?

Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck export reference is about From $25,014; MSRP is ¥18.01M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck?

Key specs of Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck: Drive: 4x2; Horsepower: 170 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck suited for?

Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck differ from other variants in the same series?

Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck belongs to Bosch Light Electric Drive Axle (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Warrior M2 3L Diesel 170hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Single-Cab Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.
