Volvo EC250D Crawler Excavator

Export reference
MSRP N/A
Model:: EC250D
Engine Model:: crawler excavator
Tonnage:: 25ton
Bucket capacity:: 1.85cubic meter
Machine dimensions:: 10.26×2.99×3.02mm
Track shoe width:: 600mm
Volvo EC250D Crawler Excavator exterior
View more photos (3)
Operating weight: 28ton
Bucket type: backhoe
Fuel Tank Capacity: 470L
Product power: Conventional Power

Overview

The Volvo EC250D Crawler Excavator is a excavator featuring 28ton GVW, backhoe bucket capacity, 470L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: EC250D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 25ton
Operating weight: 28ton
Bucket capacity: 1.85cubic meter
Machine dimensions: 10.26×2.99×3.02mm
Track shoe width: 600mm
Track gauge: 2390mm
Counterweight ground clearance: 1080mm
Min ground clearance: 470cm
Rear Overhang Radius: 3070mm
hydraulic system
Max flow of main pump: 2 x 240L/min
travel hydraulic circuit: 36.3Mpa
Oil capacity
Fuel Tank Capacity: 470L
coolant: 41L
Engine Oil Capacity: 32L
Operating Range
Max digging radius: 10260mm
Max digging depth: 6980mm
Max digging height: 9690mm
Max unloading height: 6800mm
Engine parameters
Engine Model: D7E
Max output power: 138kW

Photos

Exterior3

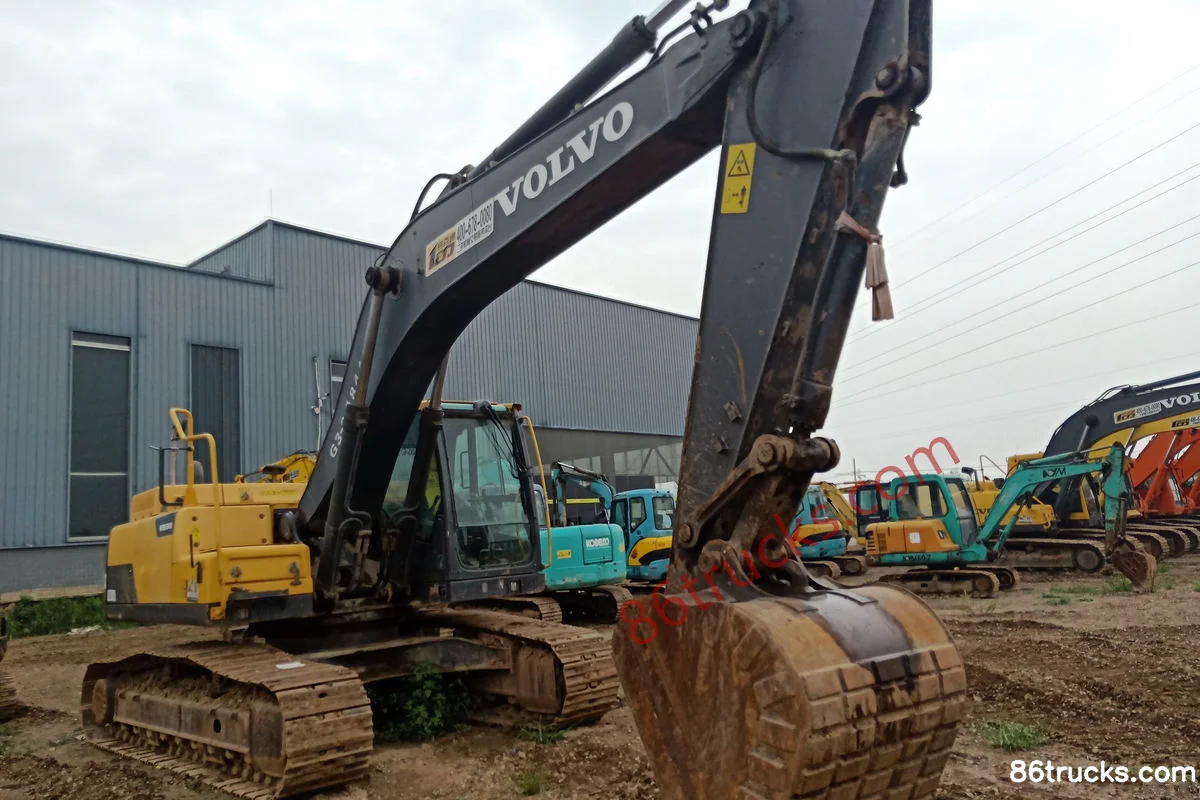

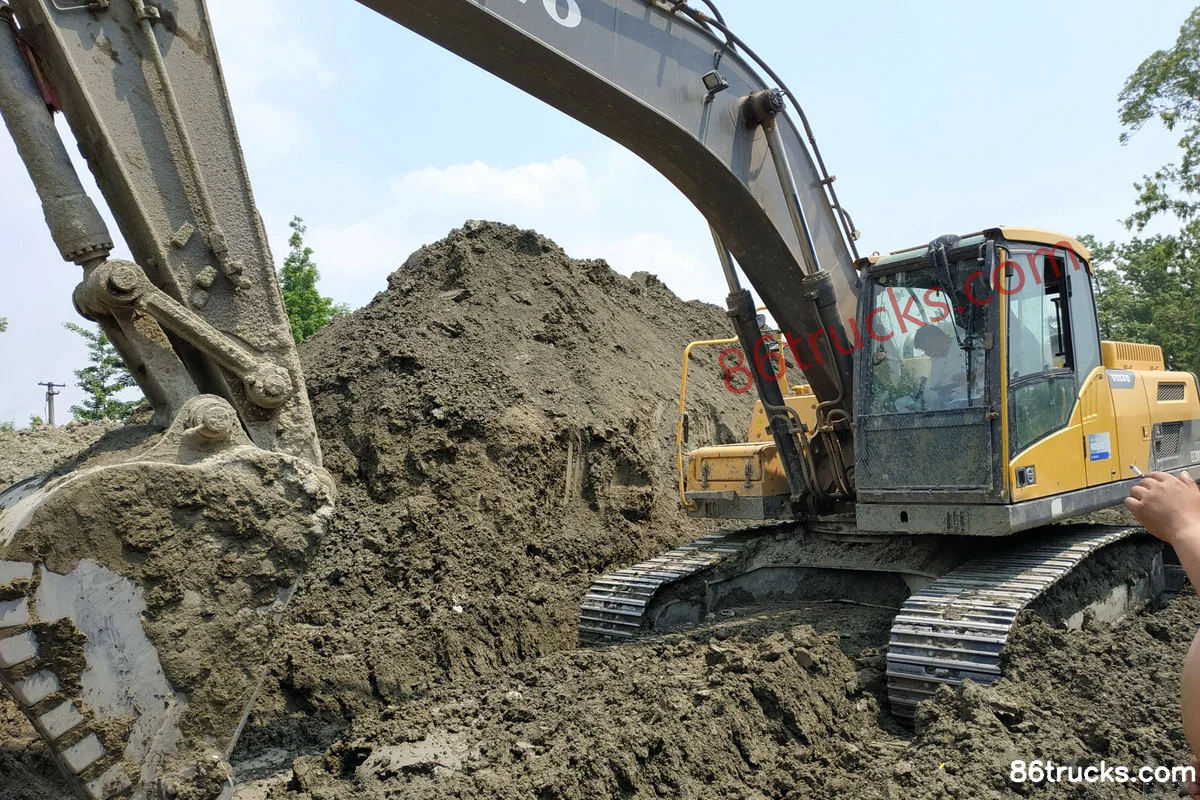

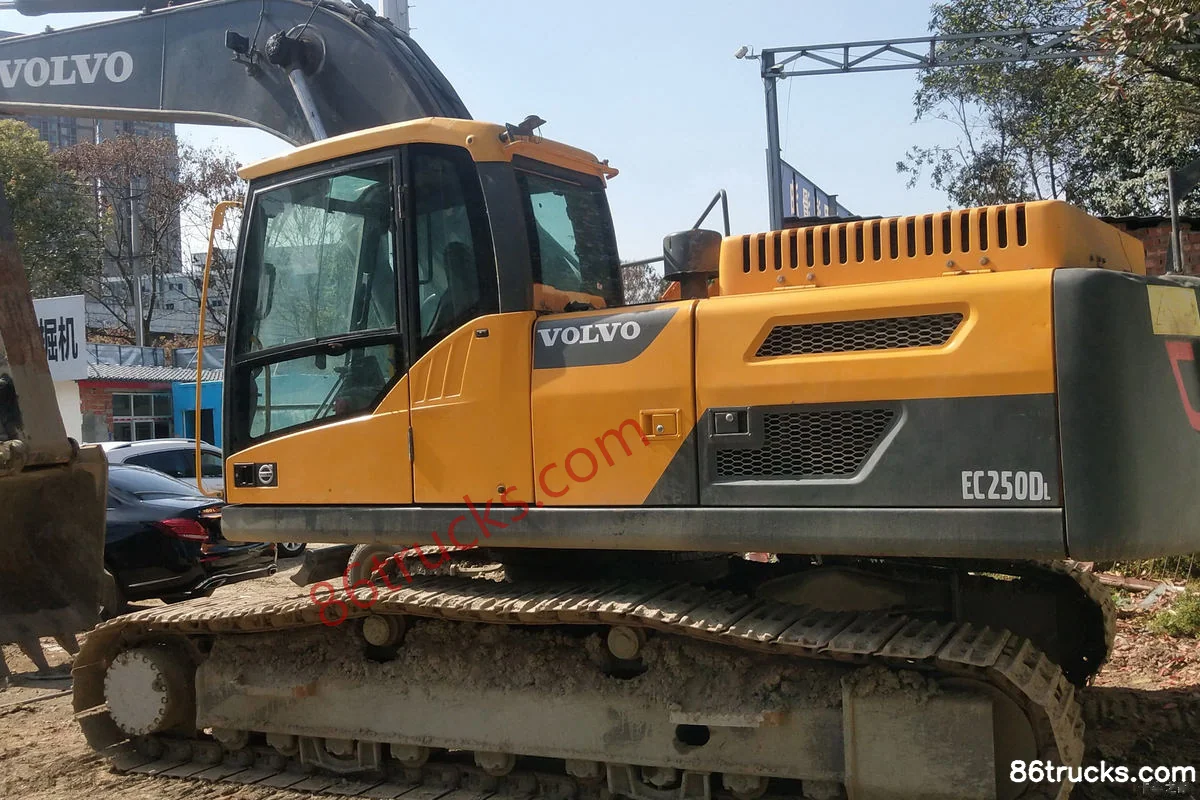

Volvo EC250D Crawler Excavator Exterior (1) | 86Trucks Volvo EC250D Crawler Excavator Exterior (2) | 86Trucks Volvo EC250D Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Volvo EC250D Crawler Excavator suited for?

Volvo EC250D Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Volvo EC250D Crawler Excavator differ from other variants in the same series?

Volvo EC250D Crawler Excavator belongs to Volvo crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo EC250D Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo EC250D Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
