FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck

Export reference
From $38,889
MSRP ¥28M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.765ton
Wheelbase:: 1900+3100+1350mm
Tire Size:: 10.00-20
Rated payload: 16.04ton
Drive 8X4 (12 wheels)
Horsepower 260
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck is a Heavy truck featuring 16.04t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a DachaiBF6M1013-26E3 engine, 260 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 260 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3313P7K1T4A1E
Drive type: 8X4
Wheelbase: 1900+3100+1350mm
engine: DachaiBF6M1013-26E3
transmission: Fast Gear9JS119
Rear Axle Ratio: 5.286
Cab length: 9.59m
Cab width: 2.49m
Cab height: 3.56m
Front track width: 1928/1928mm
rear track: 1847/1847mm
Curb Weight: 14.765ton
Rated payload: 16.04ton
GVWR: 31ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 25°
Remarks: Flat roof cab, Dachai Deutz 260PS engine, 9JS119 gearbox, rear axle 435, ratio 5.143, 11 nylon tires, Zhongji box 6.7*2.3*(1.25+0.25), D4B3, high-strength plate, lightweight cargo box, domestic front lift 180, anti-sway balance bracket, set beam, floor four longitudinal beams, wide tail flip seat, small five-opening door, rear door secondary lift
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M1013-26E3
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.146L
Emission standard: China III / Euro III
Max output power: 192kW
Max hp: 260Horsepower
Max torque: 950N·m
Max torque speed: 1100-1400rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic unit pump
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.7m
Cargo box width: 2.3m
Cargo box height: 1.25m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: 457
rear axle allowable load: 18000kg
Axle ratio: 5.286
Leaf spring count: 12/12/10
Tire
Tire Size: 10.00-20
Number of tires: 12pcs

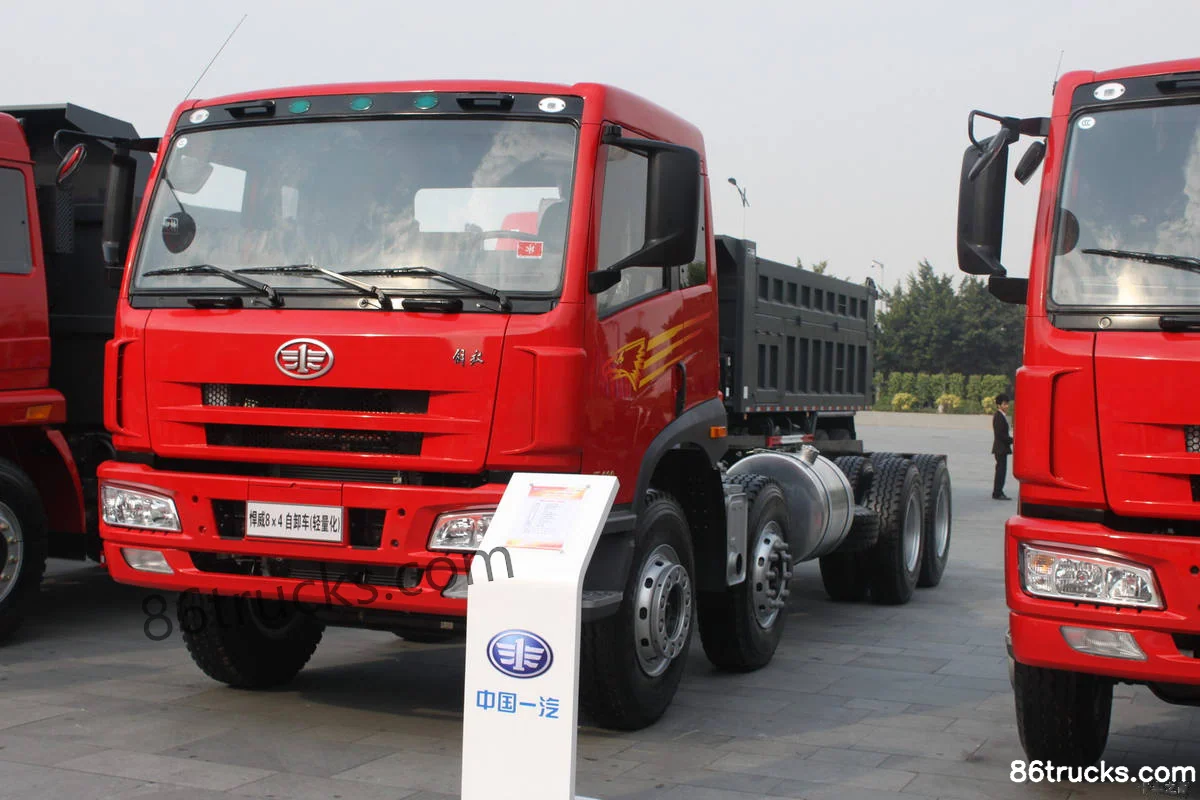

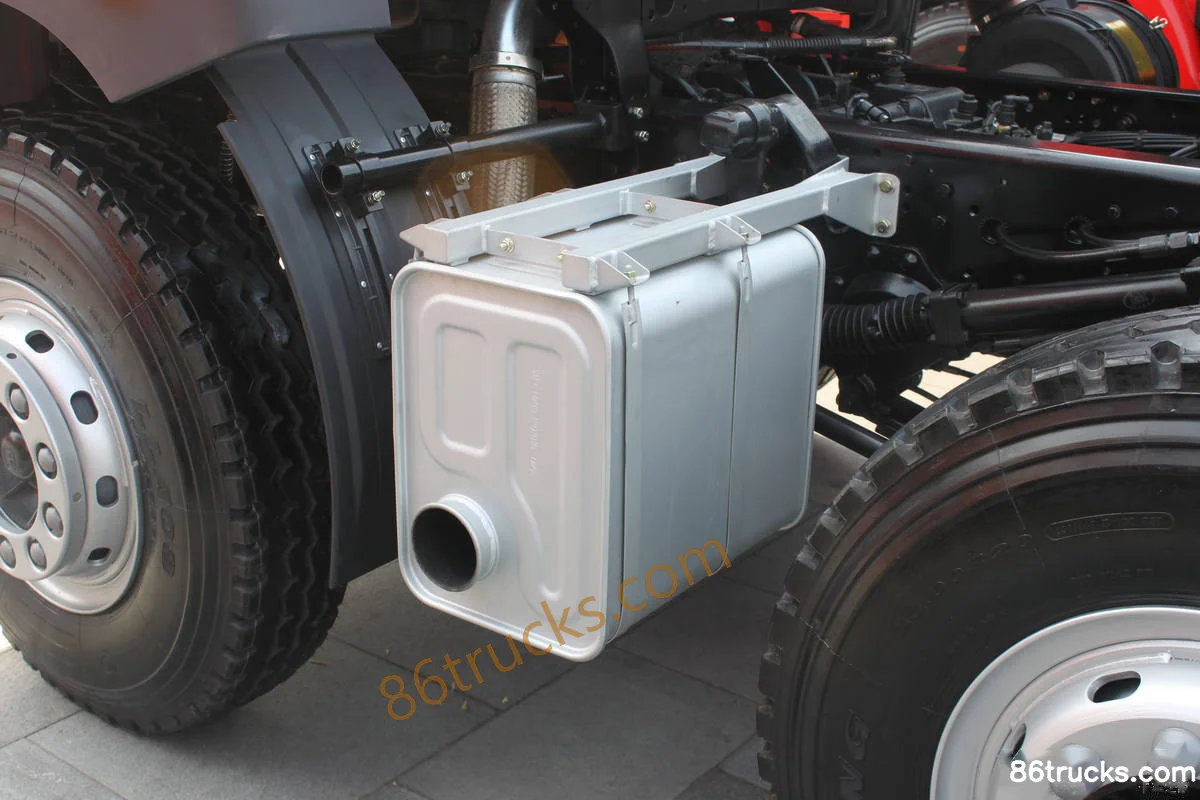

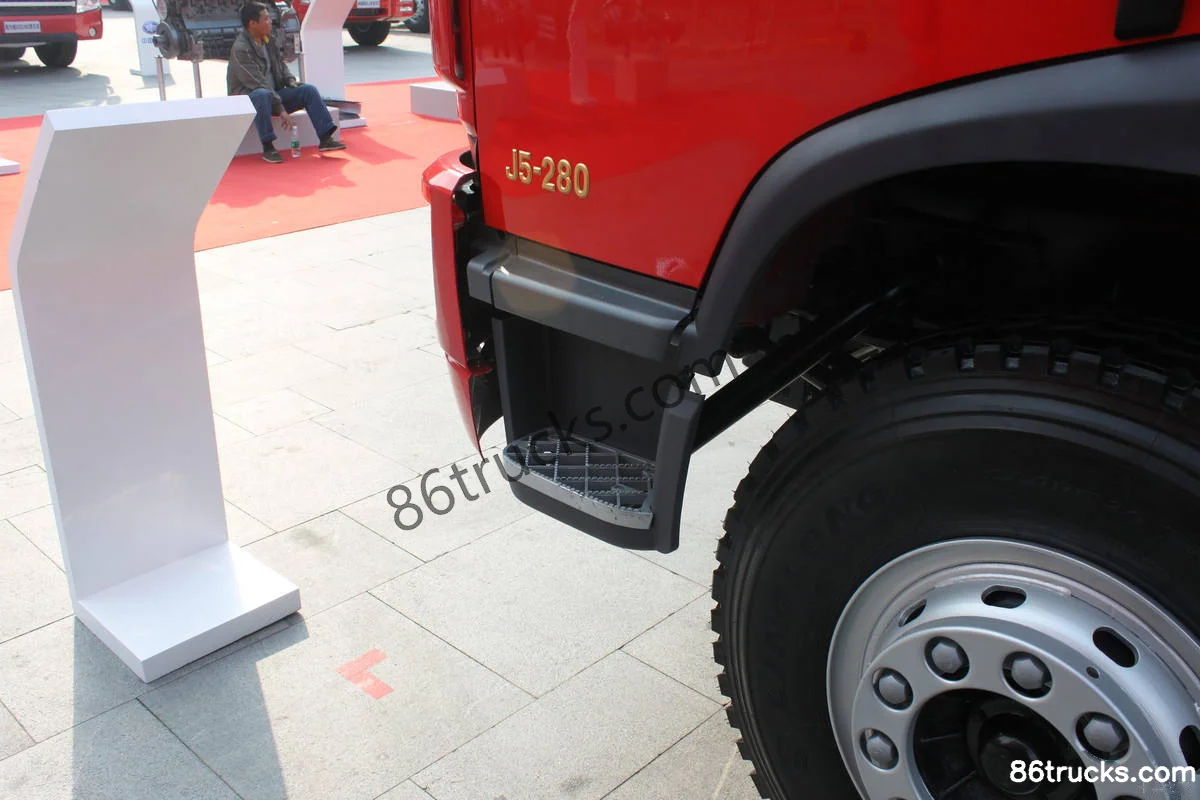

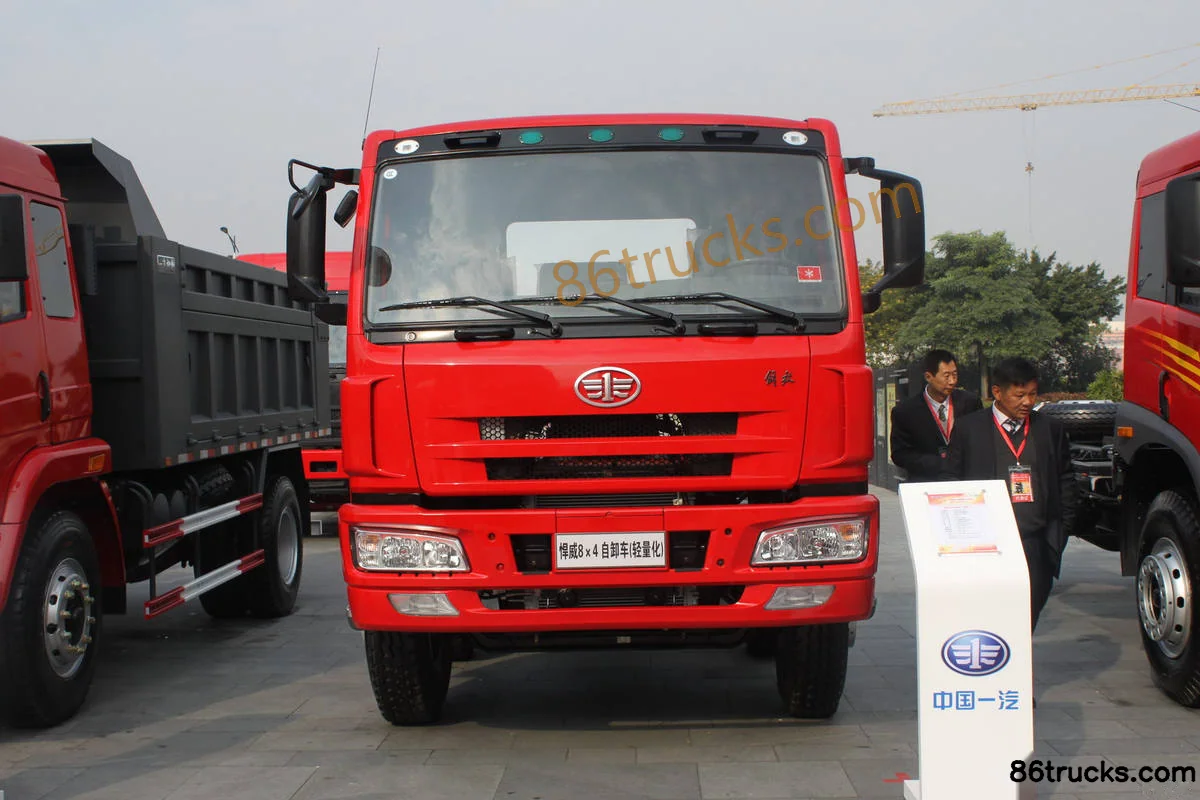

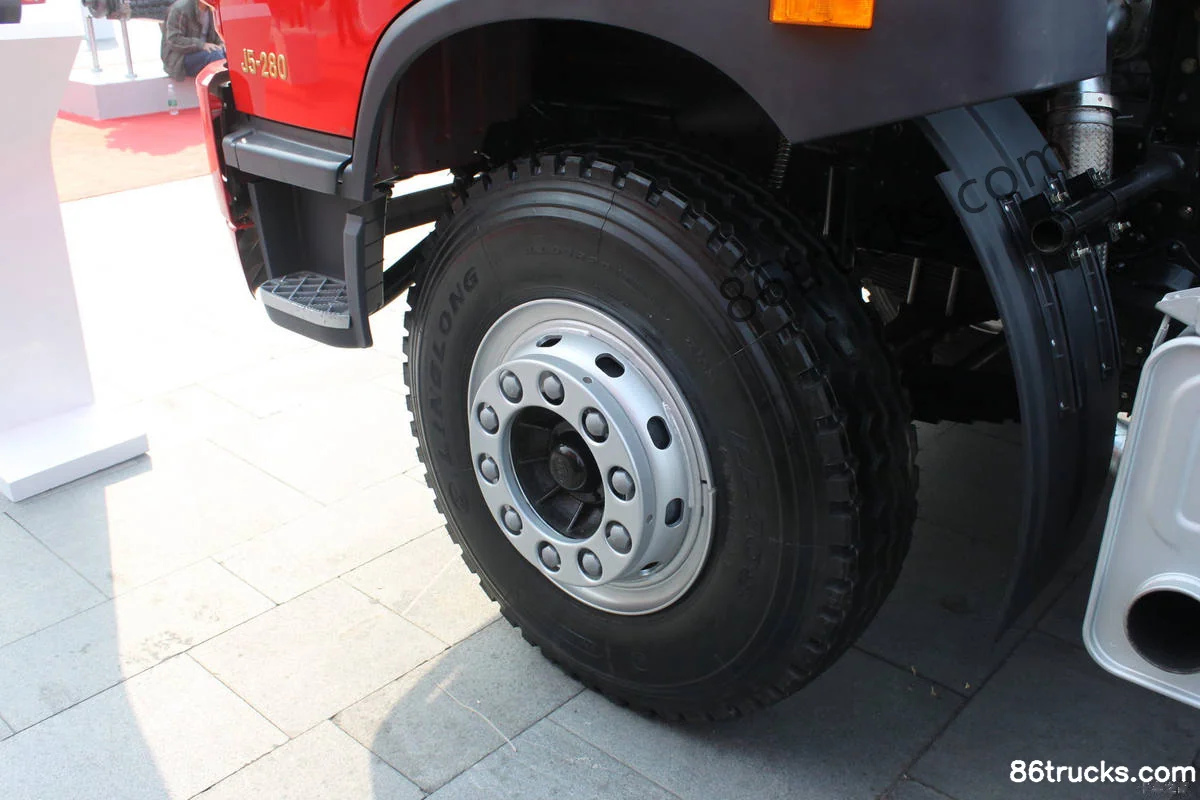

Photos

Exterior3

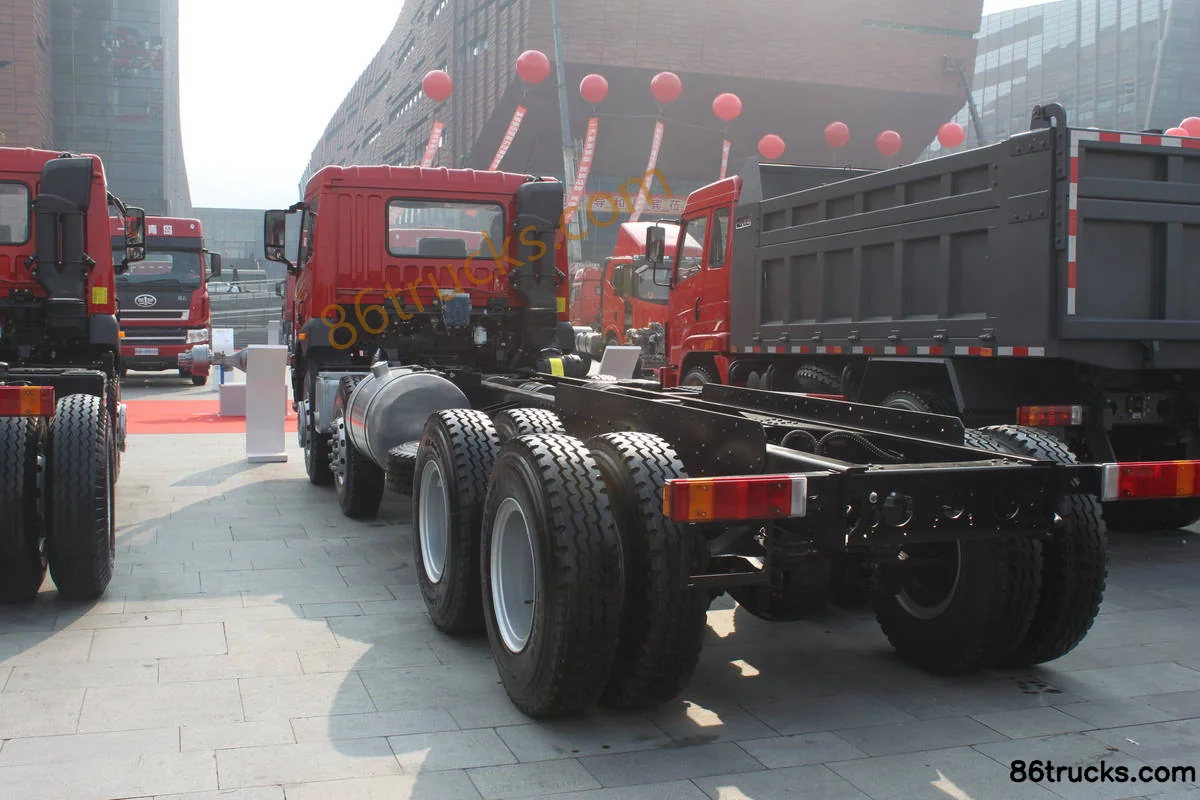

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck, and what does it include?

FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck export reference is about From $38,889; MSRP is ¥28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck?

Key specs of FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck: Drive: 8x4; Horsepower: 260 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck suited for?

FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck differ from other variants in the same series?

FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck belongs to FAW Jiefang Hanwei J5M Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei(J5M) Heavy Truck 260hp 8X4(12 wheels) 6.7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
