Dongfeng Special Chassis Series 160hp 4X2(6 wheels) 3.1m³ Concrete Mixer Truck

Export reference
From $27,500
MSRP ¥19.8M CNY
Fuel: Diesel
Curb Weight:: 8.3ton
Wheelbase:: 3800mm
Tire Size:: 9.00-20 16PR
Cab dimensions:: 7.52×2.5×3.66m
Truck Type:: concrete mixer truck
Rated payload: 7.305ton
Drive 4X2 (6 wheels)
Horsepower 160
Emission China V

Overview

The Dongfeng Special Chassis Series 160hp 4X2(6 wheels) 3.1m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.305t payload, 8.3ton GVW, 4X2 (6 wheels) drive and D912 cab. On the powertrain side, it comes with 160 hp, China V emissions and Diesel fuel.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.52×2.5×3.66m
Truck Type: concrete mixer truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Front/rear track width: Front track: 1815mm; Rear track: 1860mm
Wheelbase: 3800mm
Curb Weight: 8.3ton
Rated payload: 7.305ton
Max. speed: 90km/h
Front/rear suspension: 1.32/2.4m
Body Parameters
Mixing drum capacity: 3.1m³
Vehicle certification code: DFZ5160GJBSZ5D1
Body Brand: Dongfeng
Engine parameters
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Dongfeng Special Chassis
Chassis Model: EQ1160GSZ5DJ1
rear axle description: 10T
Leaf spring count: 8/10+7,8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: D912
Tire
Tire Size: 9.00-20 16PR
Number of tires: 6pcs

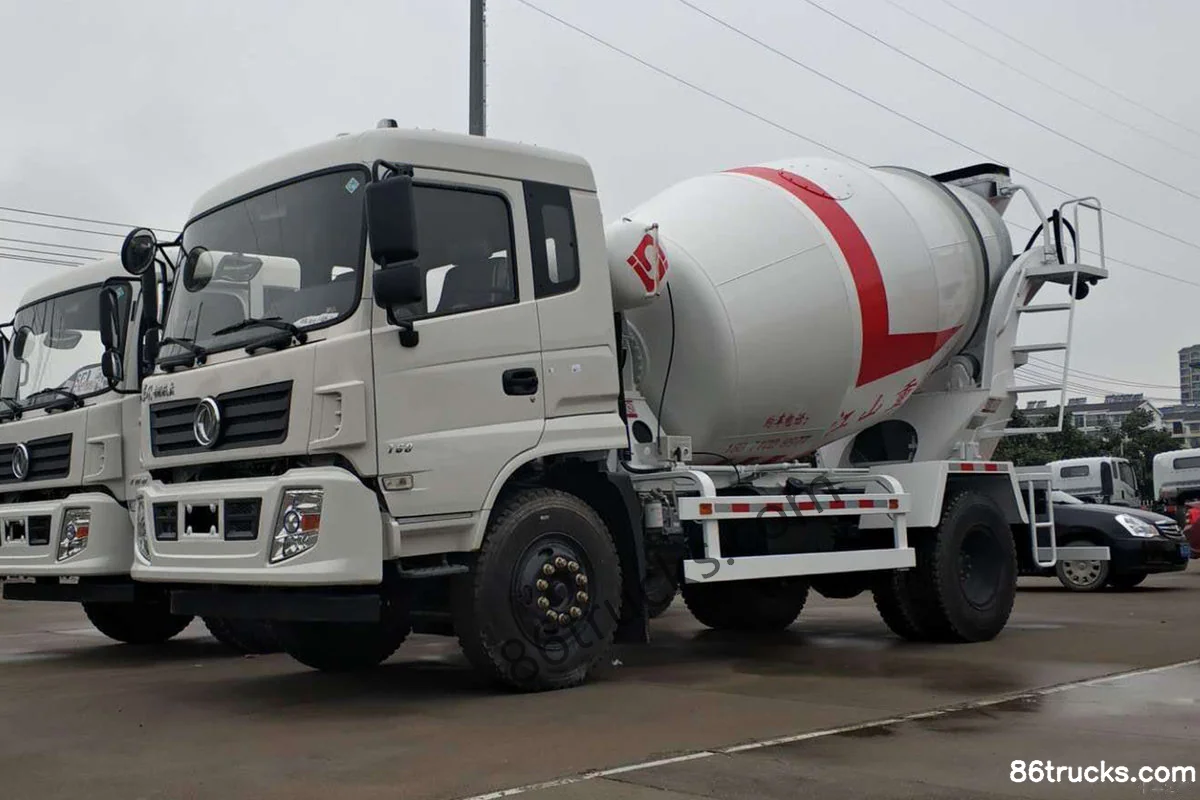

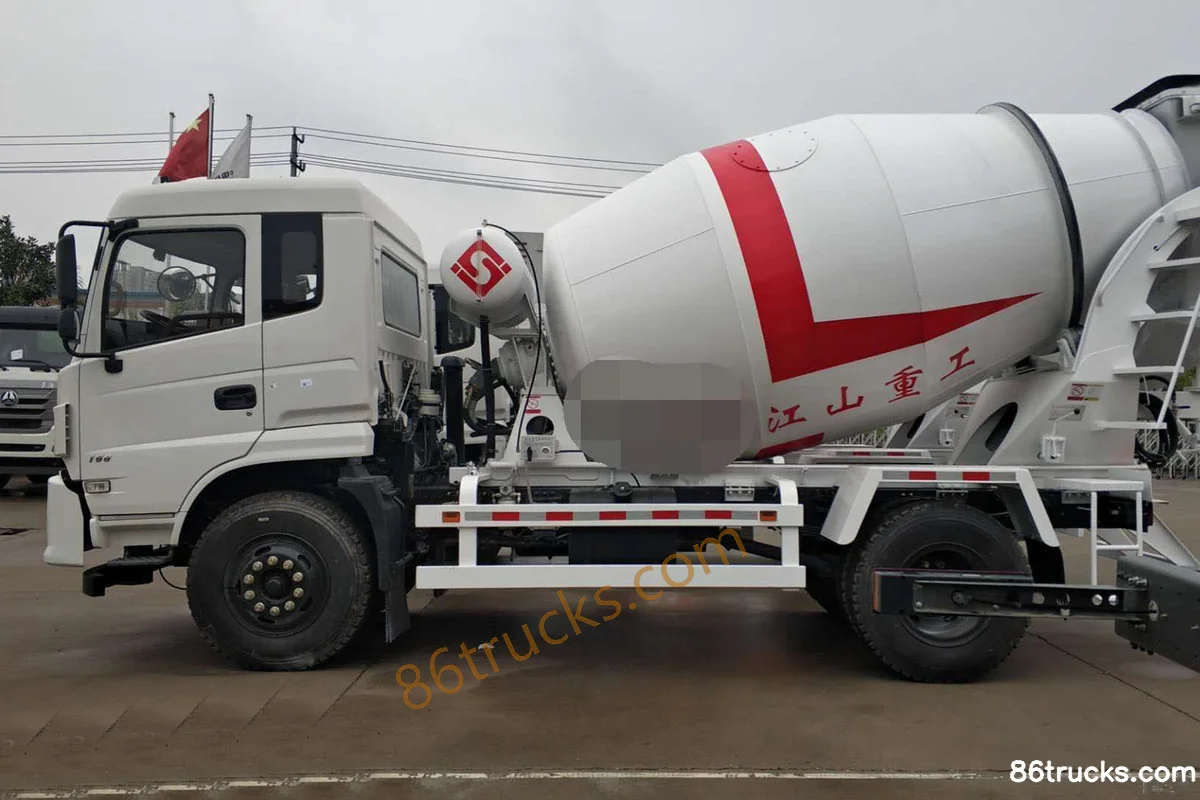

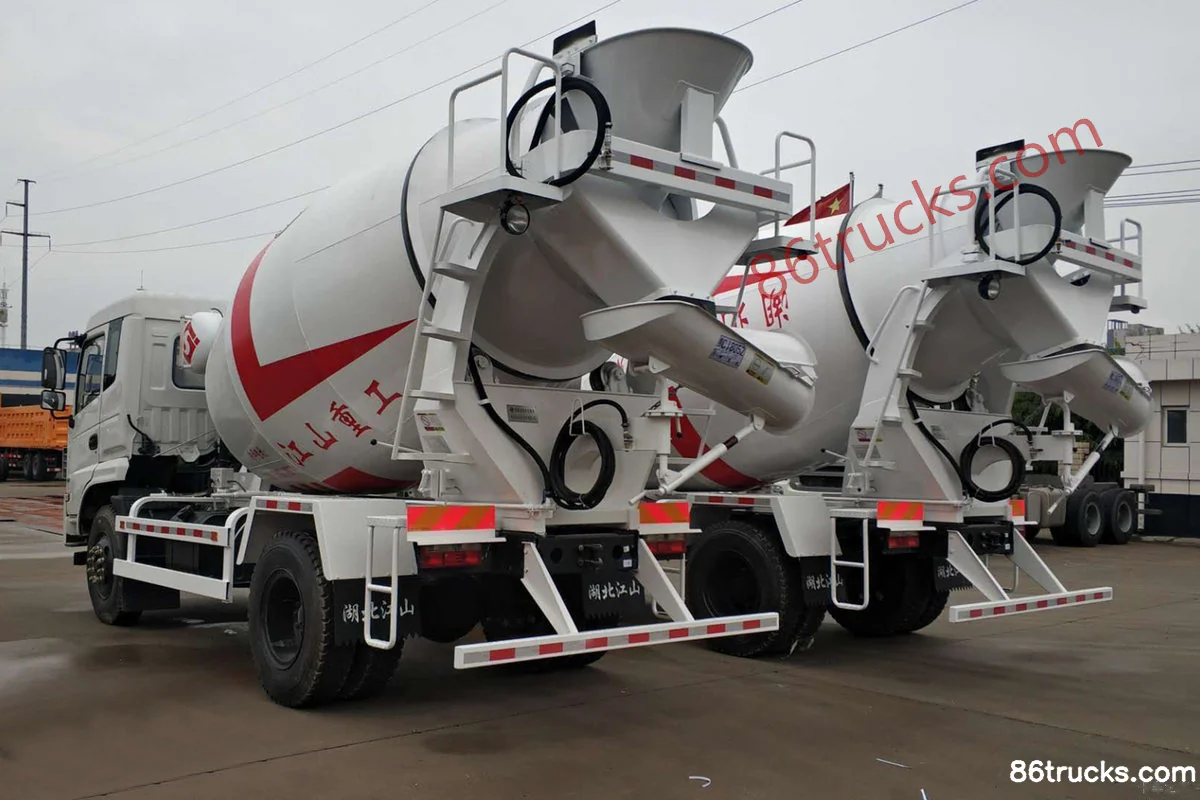

Photos
