Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels)

Export reference
From $28,472
MSRP ¥20.5M CNY
Rated payload:: 1.005ton
Wheelbase:: 3360mm
Cargo box volume:: 18.4m³
Model code (announced):: ZZ5048XXYG17ZBEVB
Type:: enclosed cargo truck
Box length class:: 4.2m
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: Fujian Haixi
Curb Weight: 3.36ton

Overview

The Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) is a Light Truck featuring 280km battery/range, Fujian Haixi motor, 4X2 (6 wheels) drive and 1.005t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5048XXYG17ZBEVB
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
CLTC range: 280km
Curb Weight: 3.36ton
Rated payload: 1.005ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fujian Haixi
Motor 1 Model: TZ230XSZZHX001
Motor Type: Permanent magnet synchronous motor
total rated power: 90kW
Peak power: 160kW
Electronic Control
ECU Brand: 依思普林
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
Cargo box parameters
Cargo box volume: 18.4m³
Cargo box type: Van body
Cargo box length: 4.18m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab: Wide-body Cab
Cab width: 2080mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1785kg
rear axle description: 4.5T Hande electric drive axle
rear axle allowable load: 2710kg
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

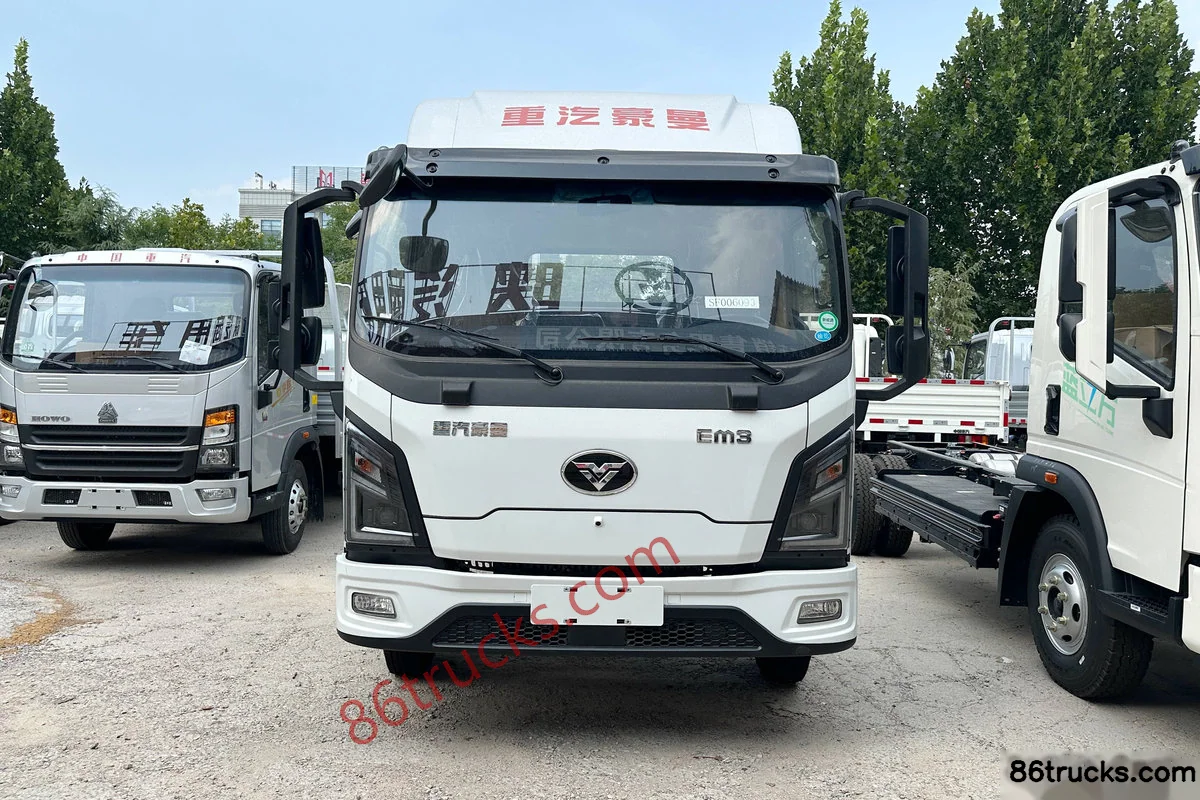

Exterior3

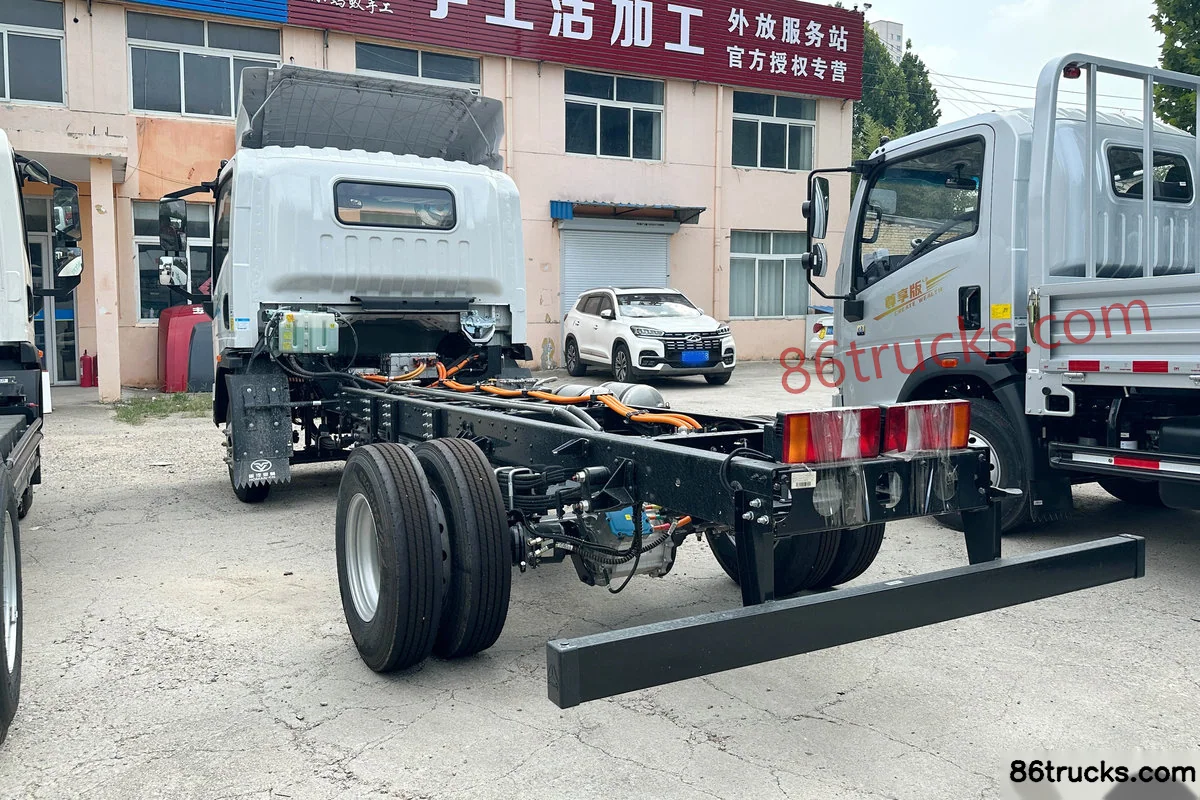

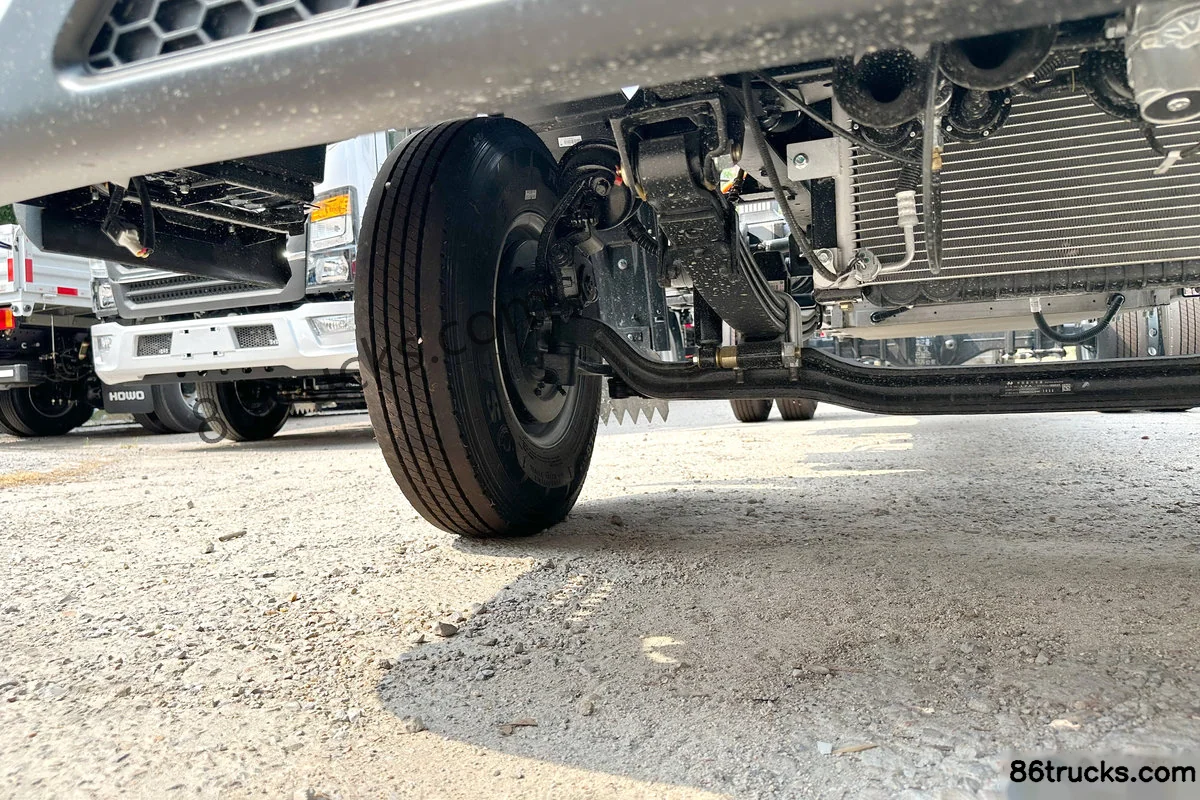

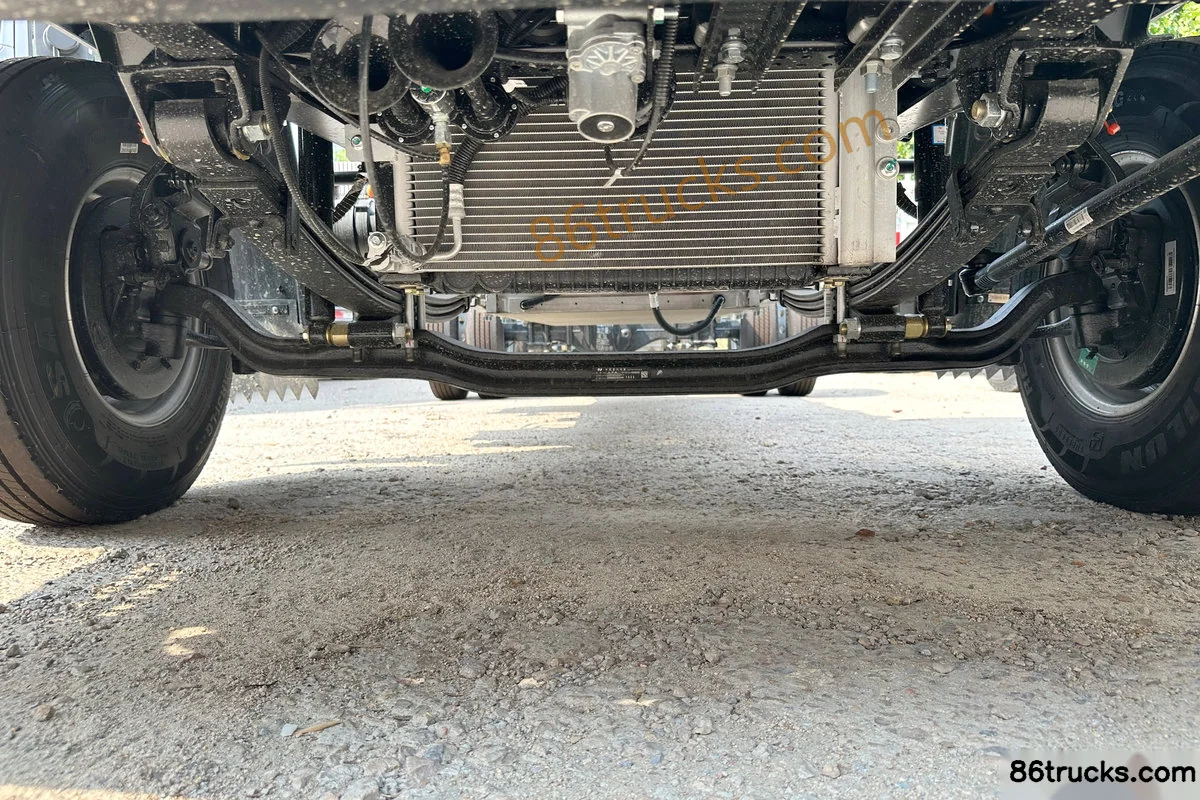

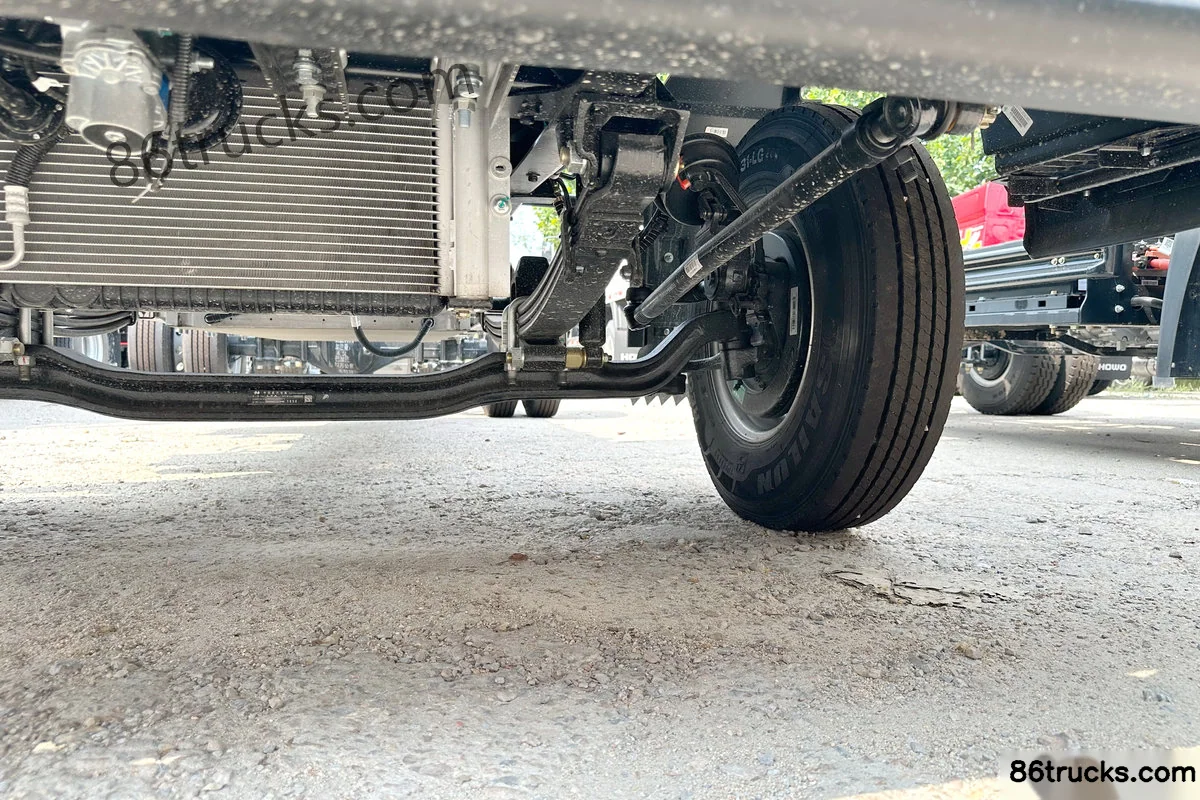

Chassis3

6 photos

FAQ

What is the export price of Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels), and what does it include?

Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) export reference is about From $28,472; MSRP is ¥20.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels)?

Key specs of Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) suited for?

Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) differ from other variants in the same series?

Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels) belongs to Sinotruk Star Blue Max (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Max 4.18m Single Row Pure Electric Van Light Truck CATL 100.46Wh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
