Hitachi ZX70-5G Crawler Excavator

Export reference
MSRP N/A
Model:: ZX70-5G
Engine Model:: crawler excavator
Tonnage:: 7ton
Bucket capacity:: 0.33cubic meter
Machine dimensions:: 7.7×2.55×2.815mm
Track shoe width:: 450mm
Hitachi ZX70-5G Crawler Excavator exterior
View more photos (3)
Operating weight: 6.7ton
Bucket type: backhoe
Fuel Tank Capacity: 135L
Product power: Conventional Power

Overview

The Hitachi ZX70-5G Crawler Excavator is a excavator featuring 6.7ton GVW, backhoe bucket capacity, 135L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: ZX70-5G
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 7ton
Bucket capacity: 0.33cubic meter
Operating weight: 6.7ton
Machine dimensions: 7.7×2.55×2.815mm
Track shoe width: 450mm
Track gauge: 1750mm
Counterweight ground clearance: 760mm
Rear Overhang Radius: 1750mm
Min ground clearance: 360cm
hydraulic system
Max flow of main pump: 2×63+1×52.5L/min
Working hydraulic circuit: 26
travel hydraulic circuit: 31.4Mpa
Swing Hydraulic Circuit: 22.6Mpa
Oil capacity
Fuel Tank Capacity: 135L
coolant: 8L
hydraulic oil tank: 60L
Engine Oil Capacity: 12.3L
performance specs
Travel speed: 5.0/3.4km/h
Bucket digging force: 55kN
Max tractive force: 47.8kN
Arm Digging Force: 40kN
Operating Range
Max digging radius: 6320mm
Max digging depth: 4170mm
Max digging height: 7150mm
Max unloading height: 5060mm
Max vertical digging depth: 3730mm
Engine parameters
Engine Model: YANMARYanmar 4TNV98-AVHBW
Max output power: 42.4kW

Photos

Exterior3

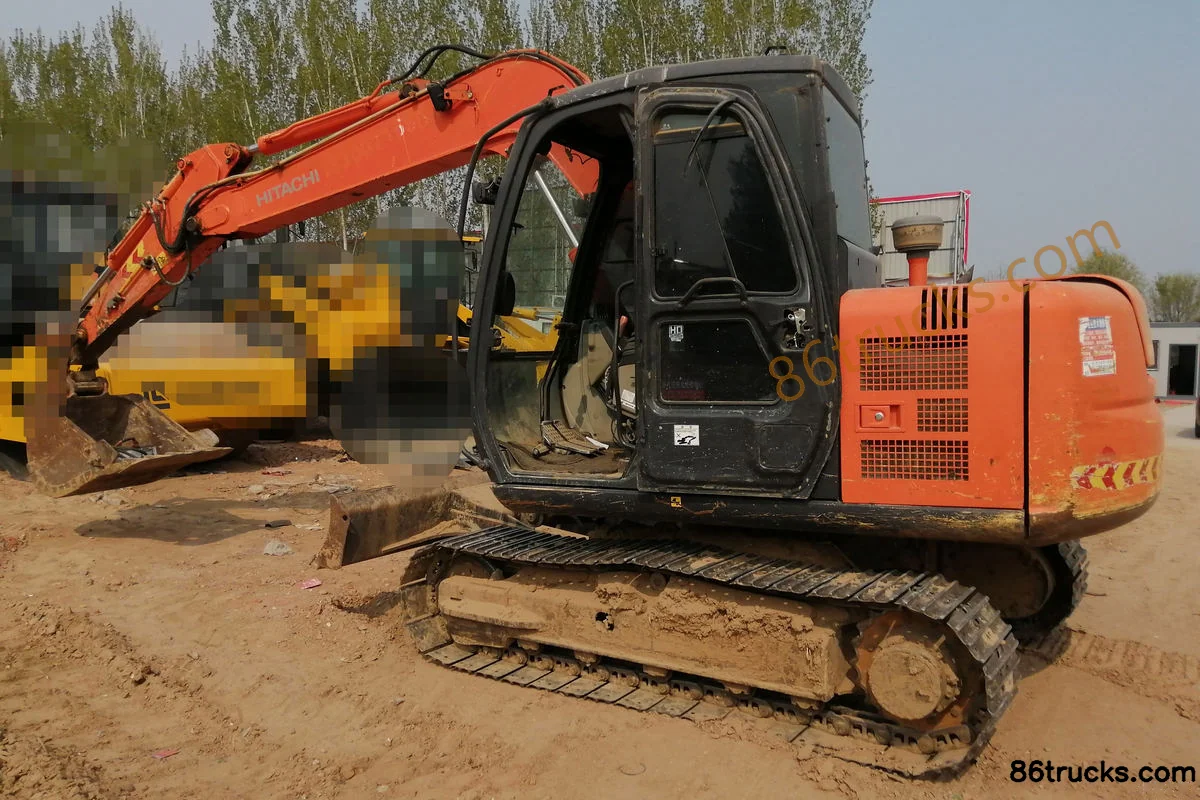

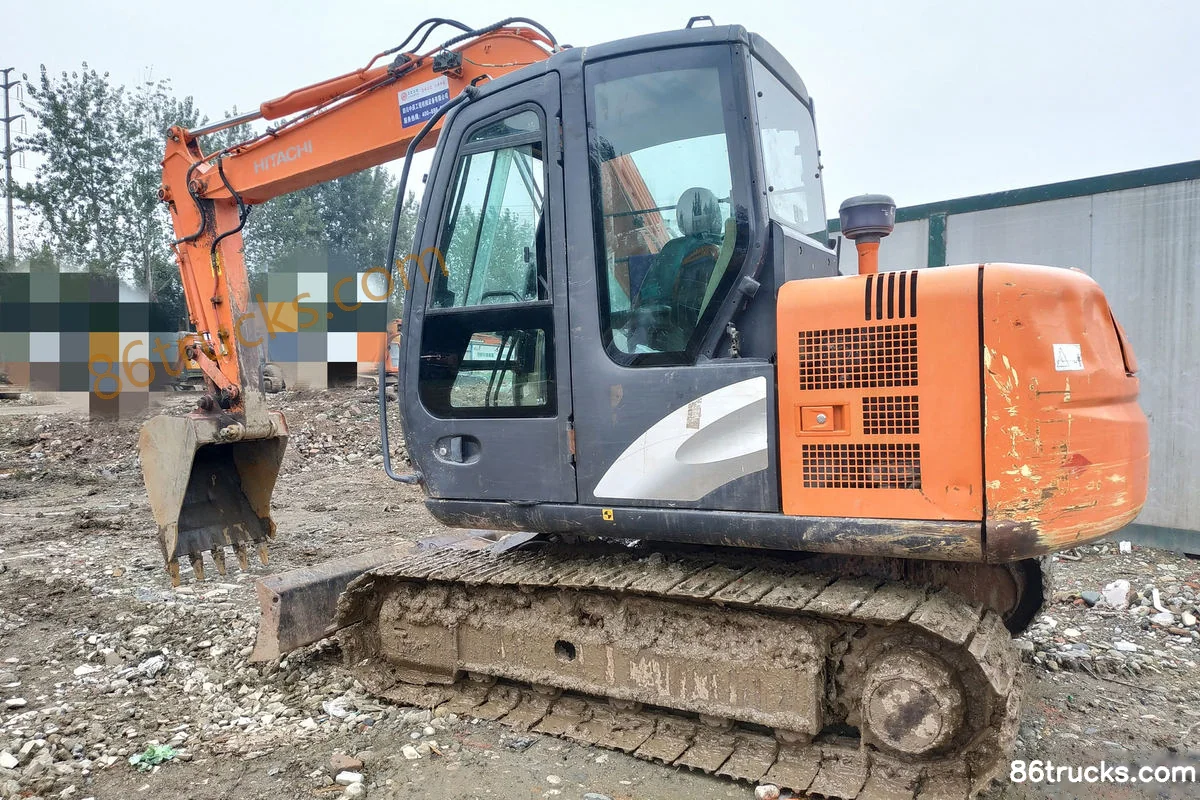

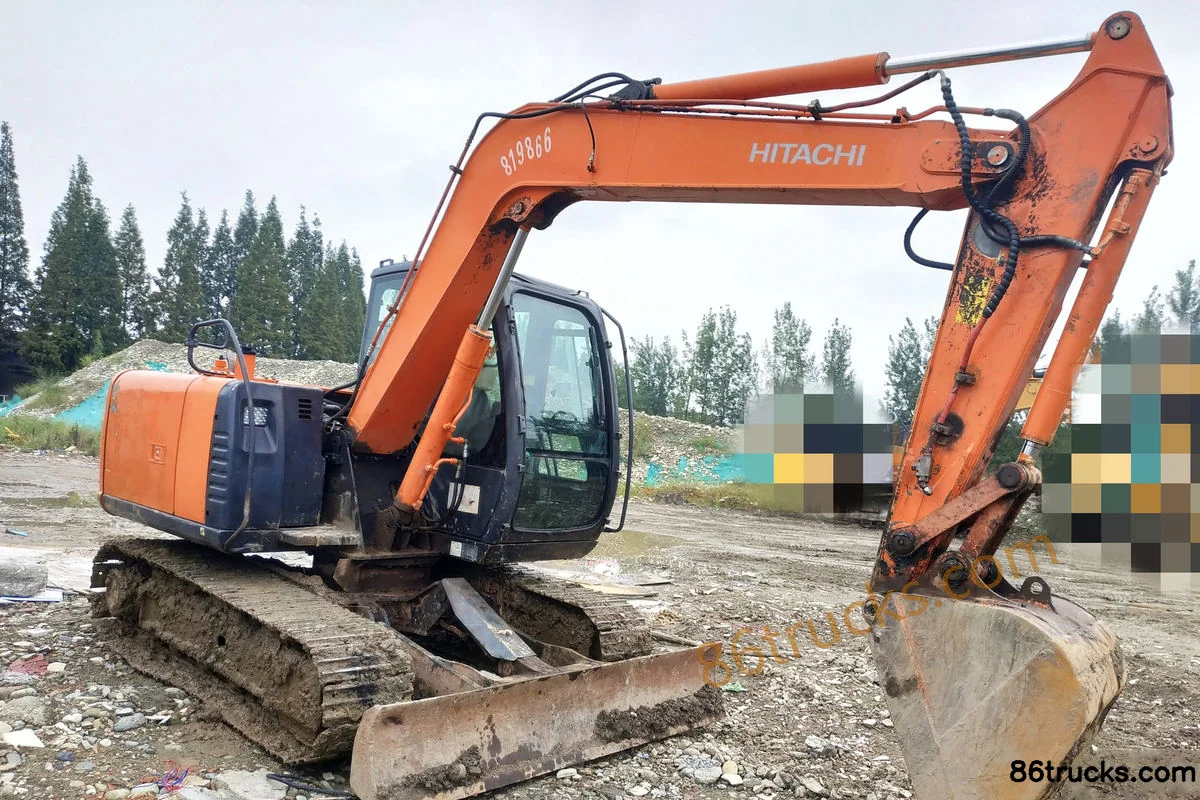

Hitachi ZX70-5G Crawler Excavator Exterior (1) | 86Trucks Hitachi ZX70-5G Crawler Excavator Exterior (2) | 86Trucks Hitachi ZX70-5G Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Hitachi ZX70-5G Crawler Excavator suited for?

Hitachi ZX70-5G Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hitachi ZX70-5G Crawler Excavator differ from other variants in the same series?

Hitachi ZX70-5G Crawler Excavator belongs to Hitachi Hitachi Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hitachi ZX70-5G Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hitachi ZX70-5G Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
