Meritor MR13166 Disc Brake Drive Axle

Export reference
MSRP N/A
Front/rear track width:: 1776/1832mm
Brake:: Disc
Transmission Ratio:: 3.07~7.17
Axle Model: MR13166
Brake size: ADB, 22.5 inch
Axle Type: Drive axle

Overview

The Meritor MR13166 Disc Brake Drive Axle is a parts product with spec MR13166 and ADB, 22.5 inch size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: MR13166
Axle Type: Drive axle
Front/rear track width: 1776/1832mm
Rated axle load: 13000ton
Brake: Disc
Transmission Ratio: 3.07~7.17
Brake size: ADB, 22.5 inch
curb weight: 690kg
Rim Used: 8.25×22.5 in, 9.00×22.5inch
Wheel Bolts: 20×M22×1.5mm
Remarks: Disc; Spring Seat Center Distance: 960/1040mm; Section Size: 150×135×14mm

Photos

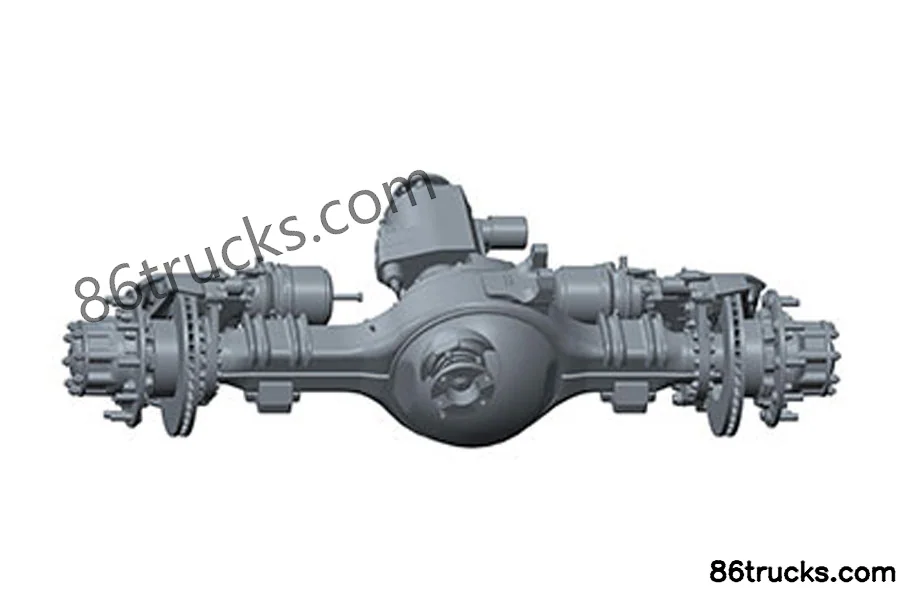

Exterior1

1 photos

FAQ

What transport jobs is Meritor MR13166 Disc Brake Drive Axle suited for?

Match Meritor MR13166 Disc Brake Drive Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Meritor MR13166 Disc Brake Drive Axle differ from other variants in the same series?

Meritor MR13166 Disc Brake Drive Axle belongs to Meritor drive axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Meritor MR13166 Disc Brake Drive Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Meritor MR13166 Disc Brake Drive Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
