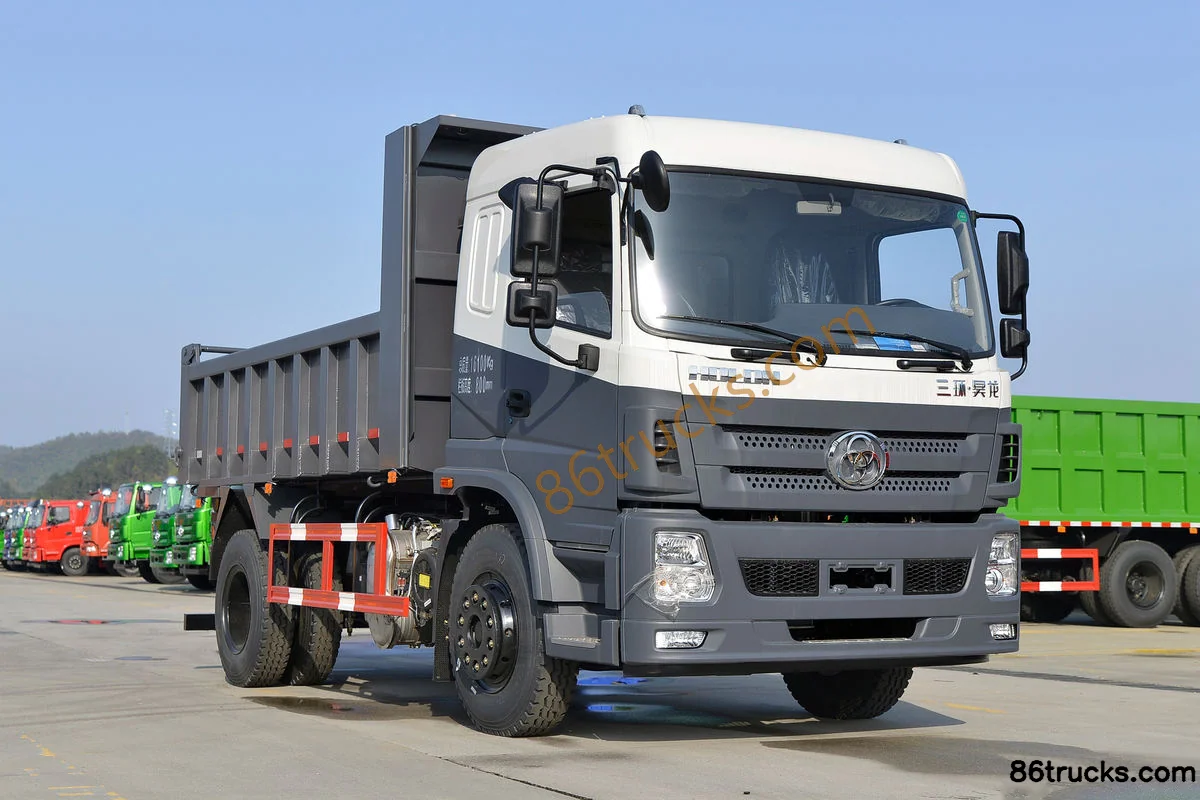

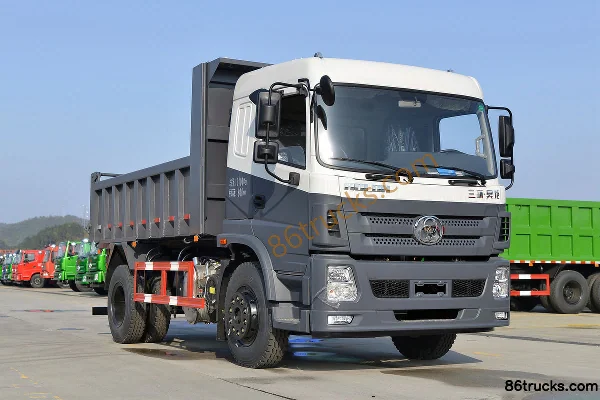

Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.98ton
Wheelbase:: 3800mm
Tire Size:: 10.00R20
Rated payload: 7.925ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) is a Medium-duty truck featuring 7.925t payload, 16.1t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06200-60 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3166L04Y4N6
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYCS06200-60
transmission: Fast Gear 8-speed
Rear Axle Ratio: 5.143
Cab length: 6.69m
Cab width: 2.5m
Cab height: 3.2m
Front track width: 1940mm
rear track: 1860mm
Curb Weight: 7.98ton
Rated payload: 7.925ton
GVWR: 16.1ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06200-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 750N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs

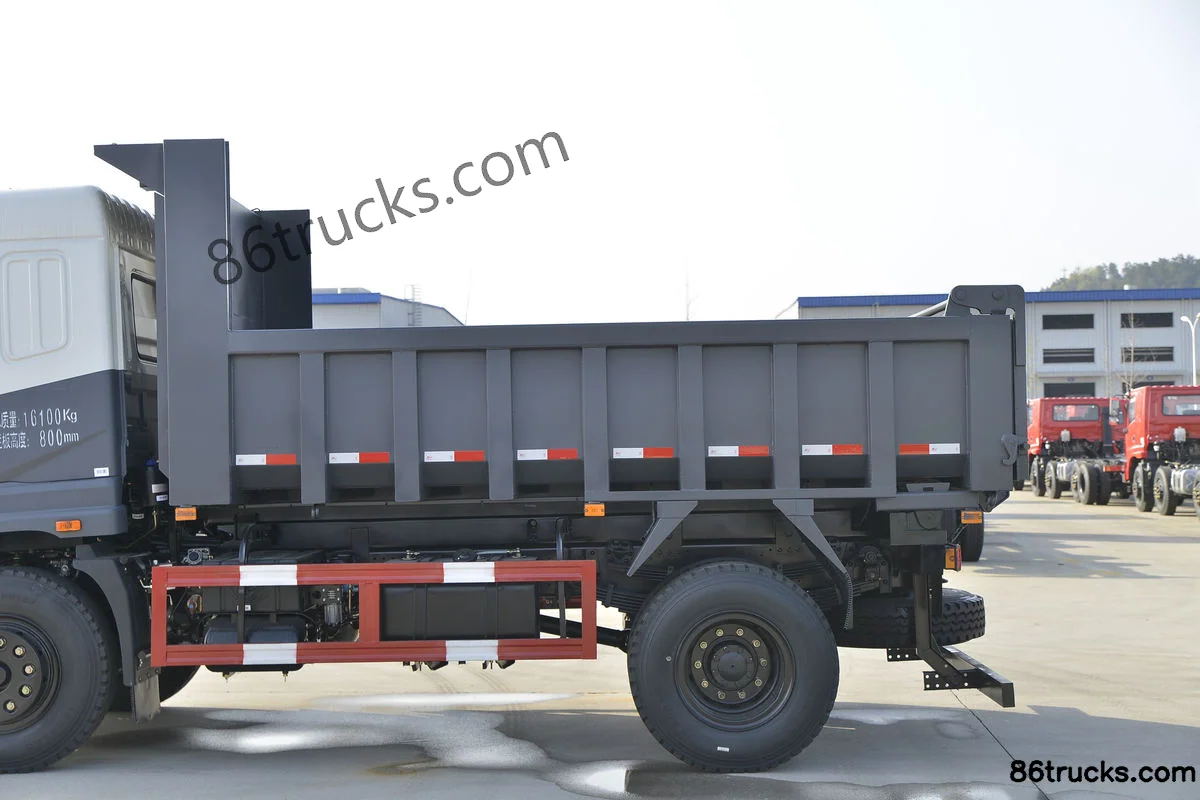

Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.6m
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10500kg
Axle ratio: 5.143
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

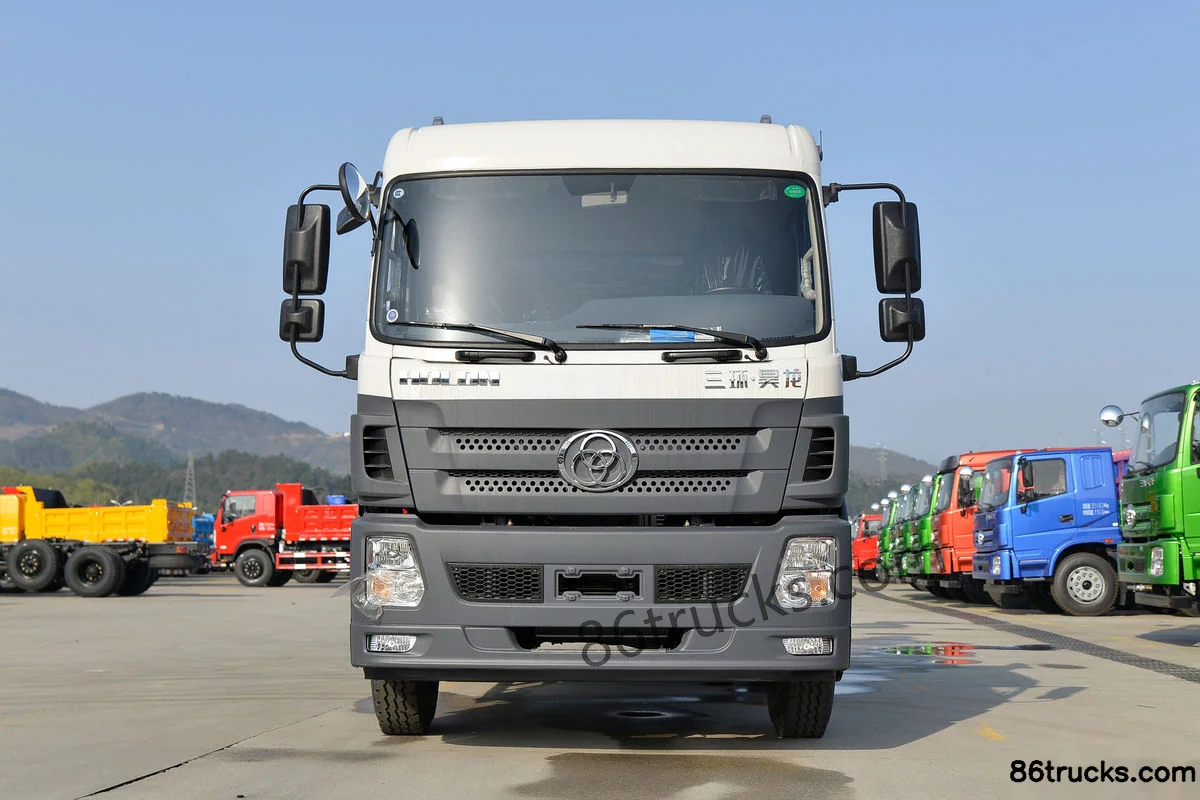

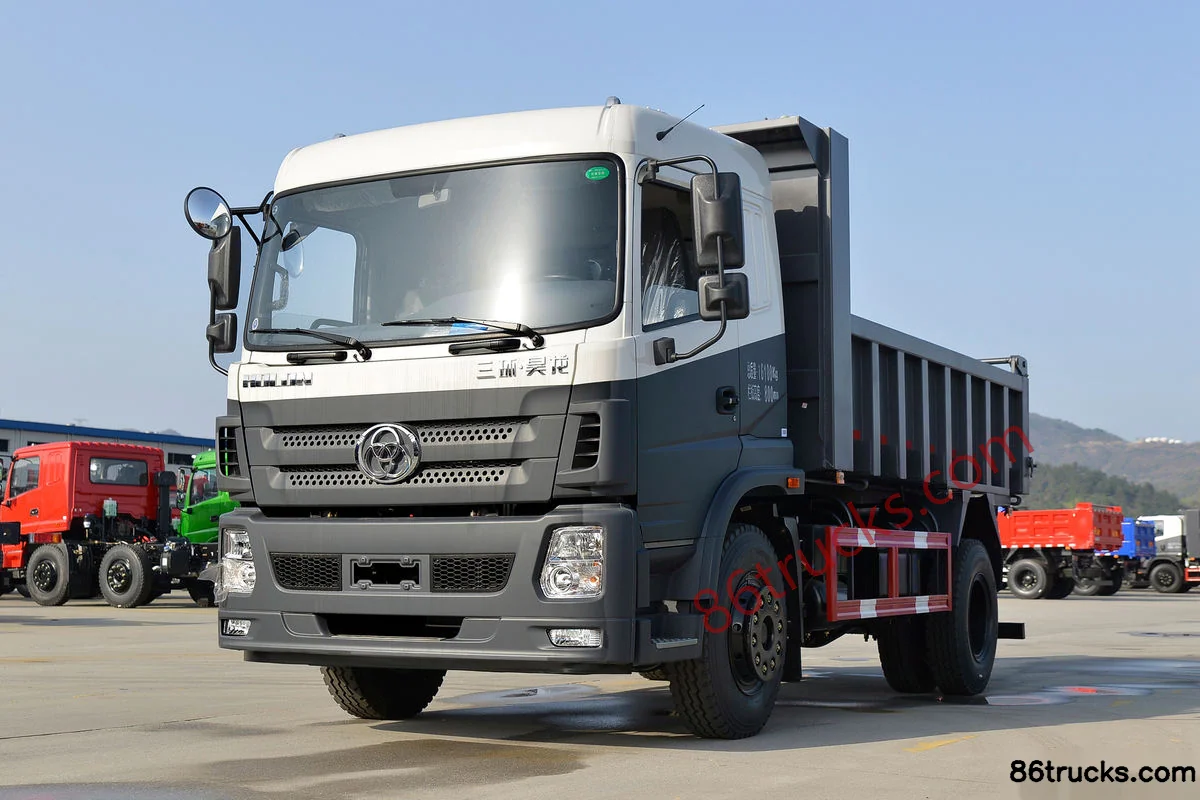

Exterior3

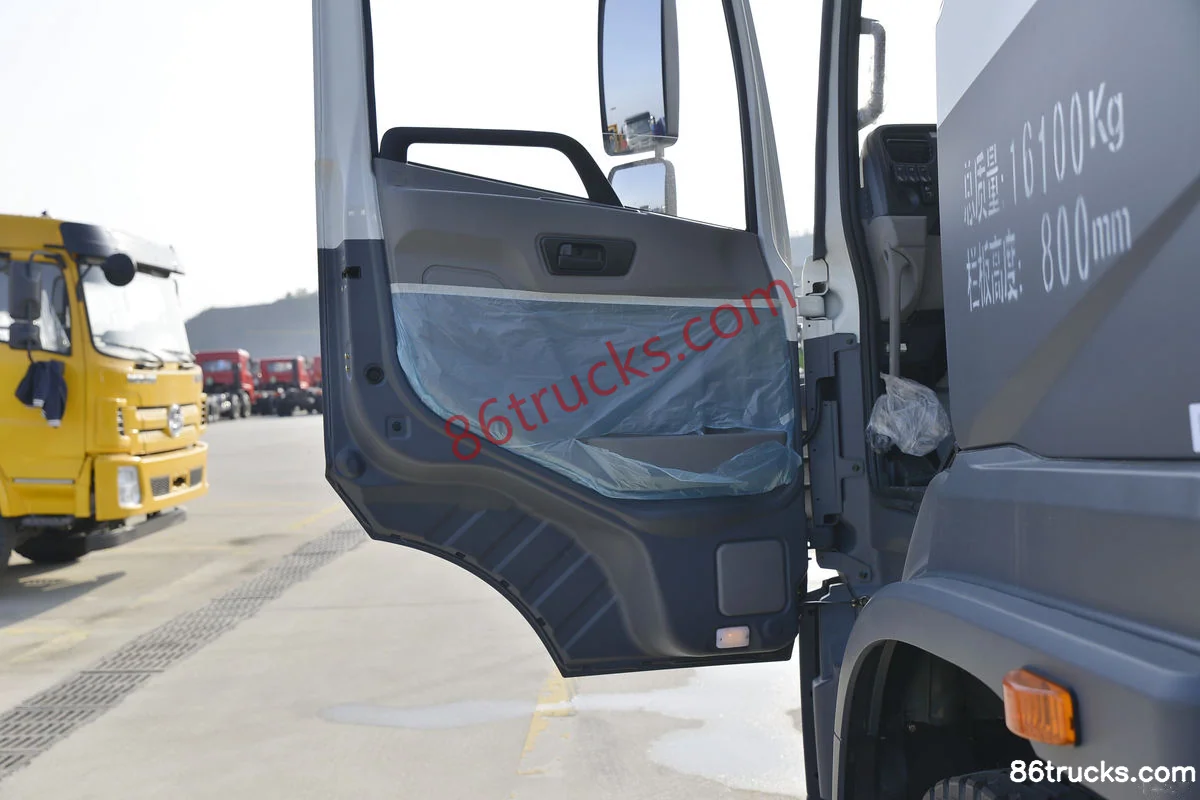

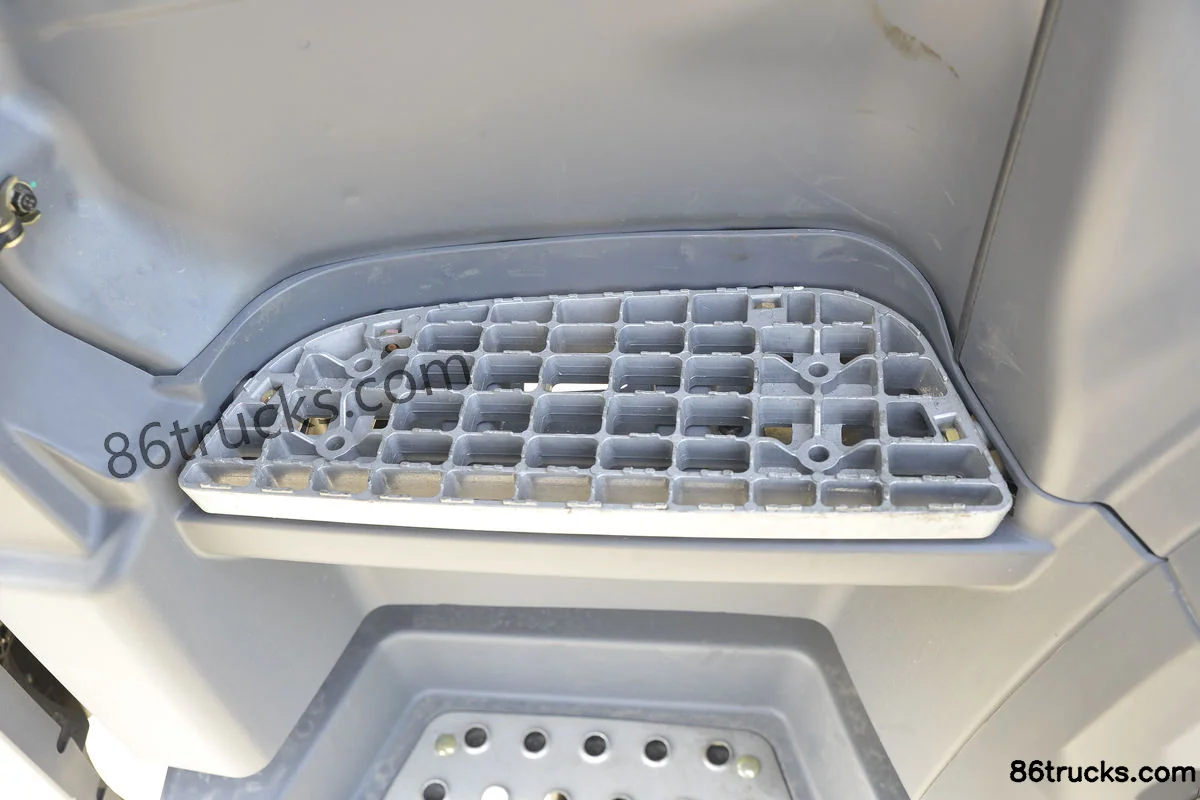

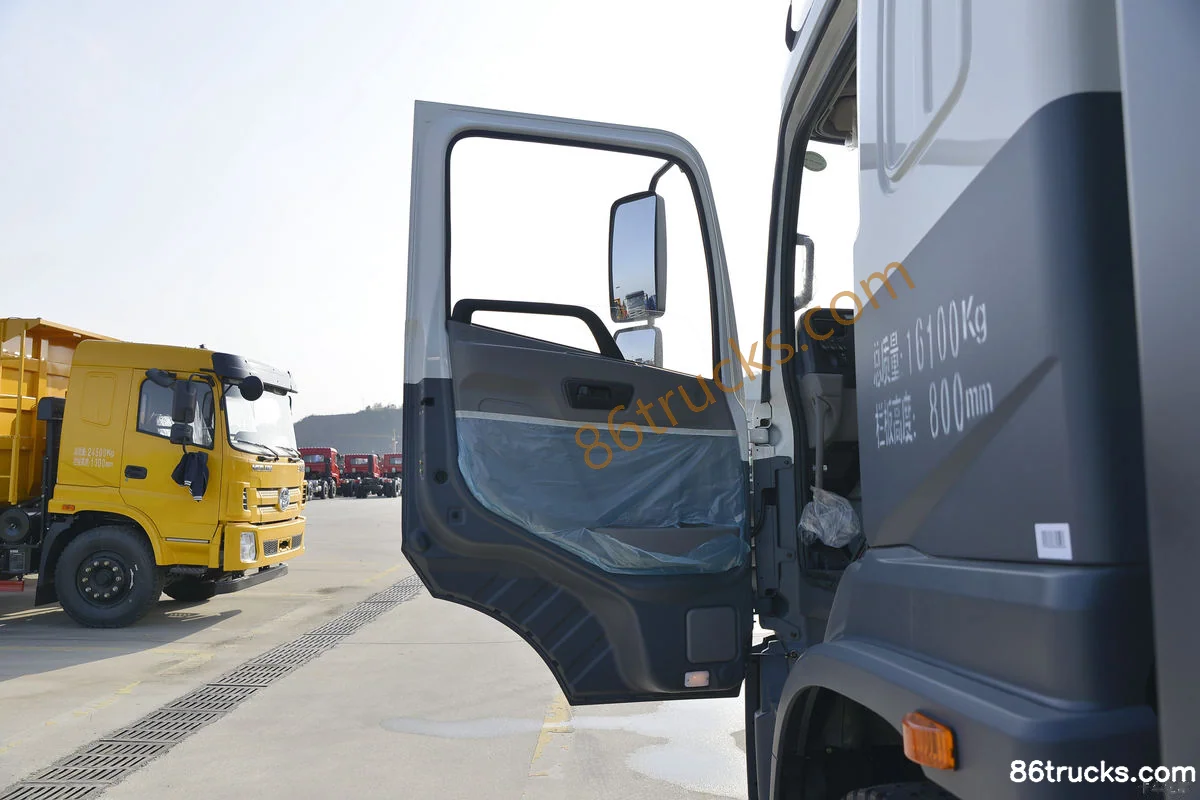

Cab3

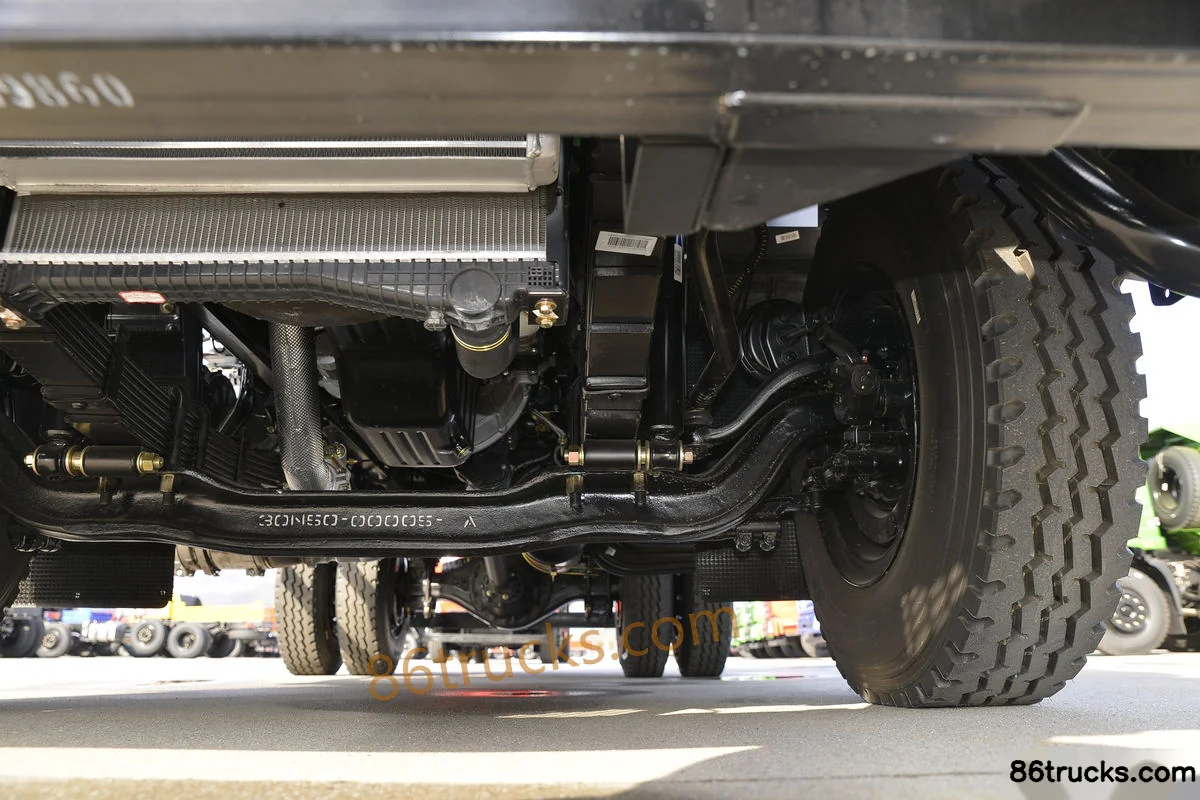

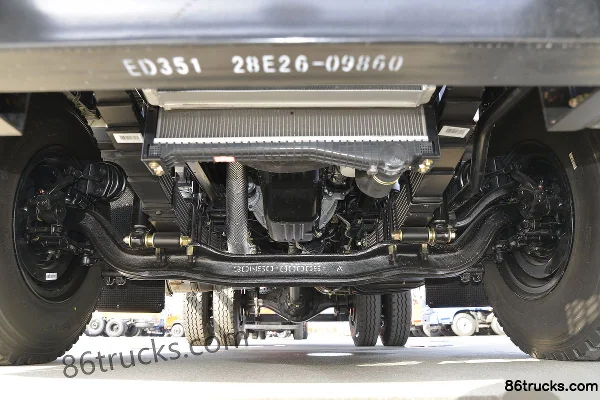

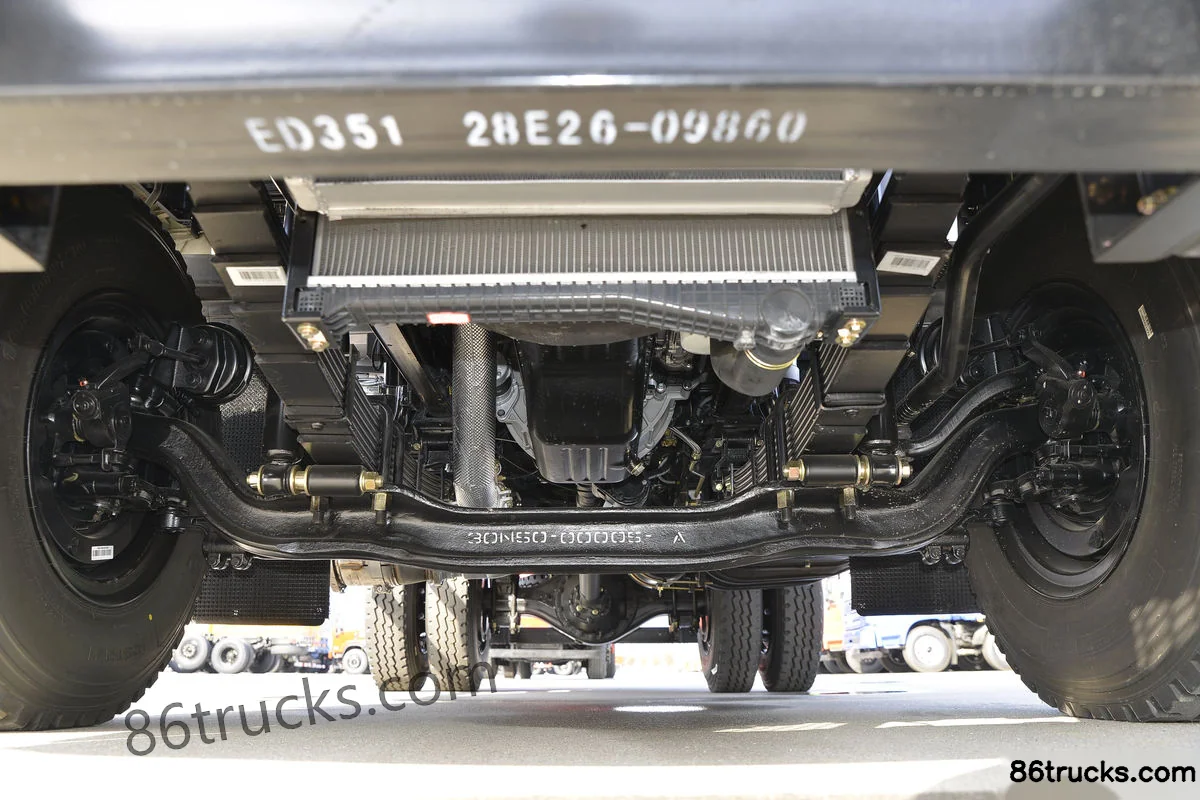

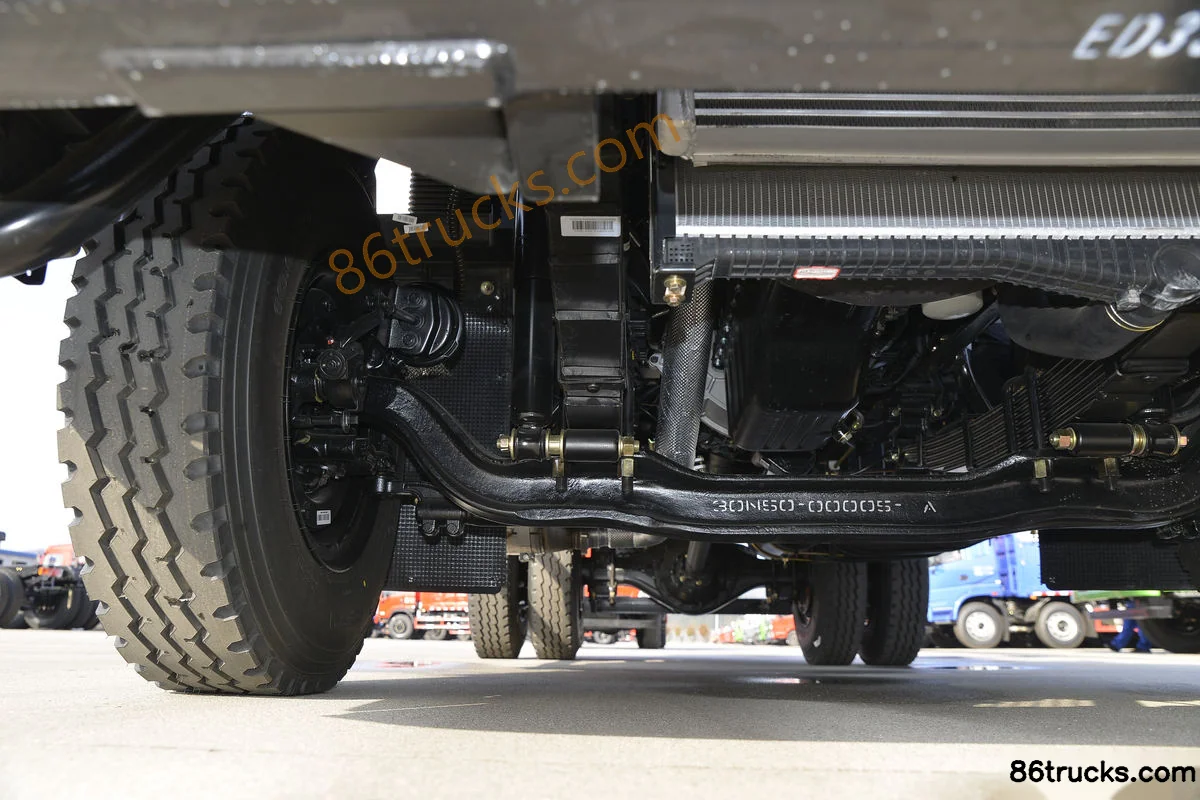

Chassis3

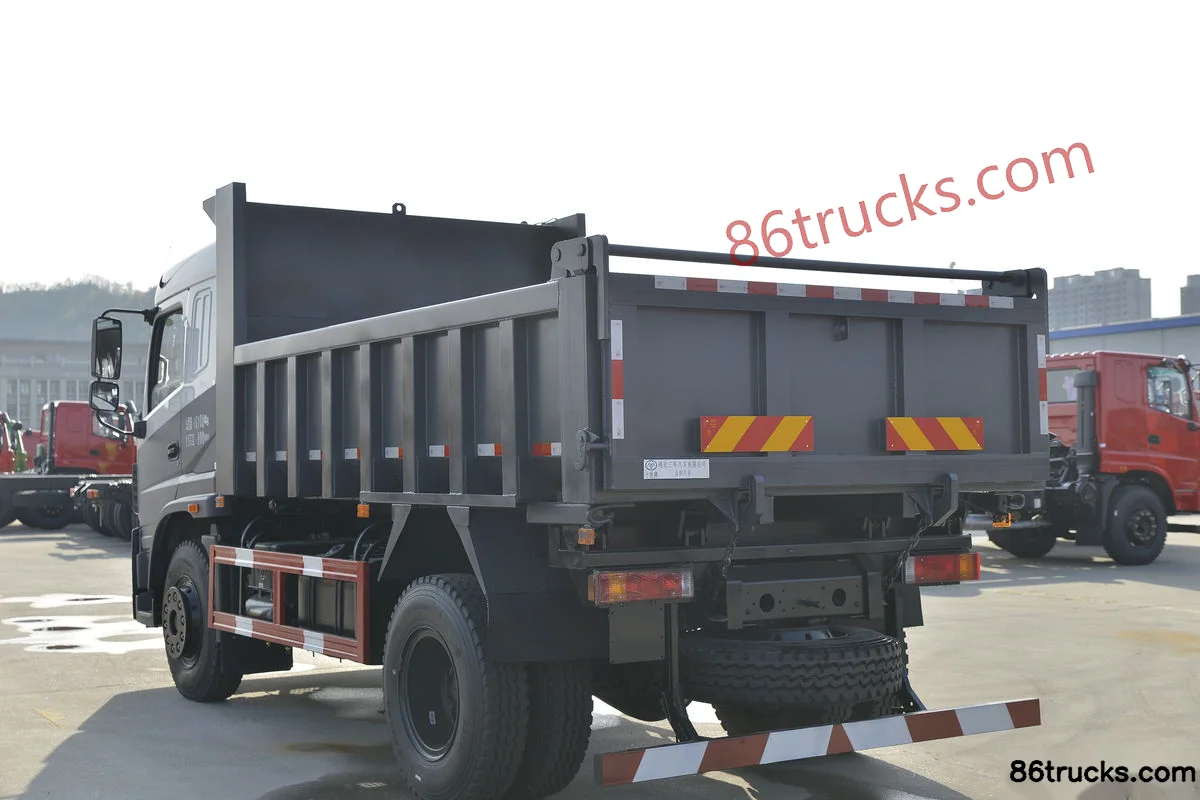

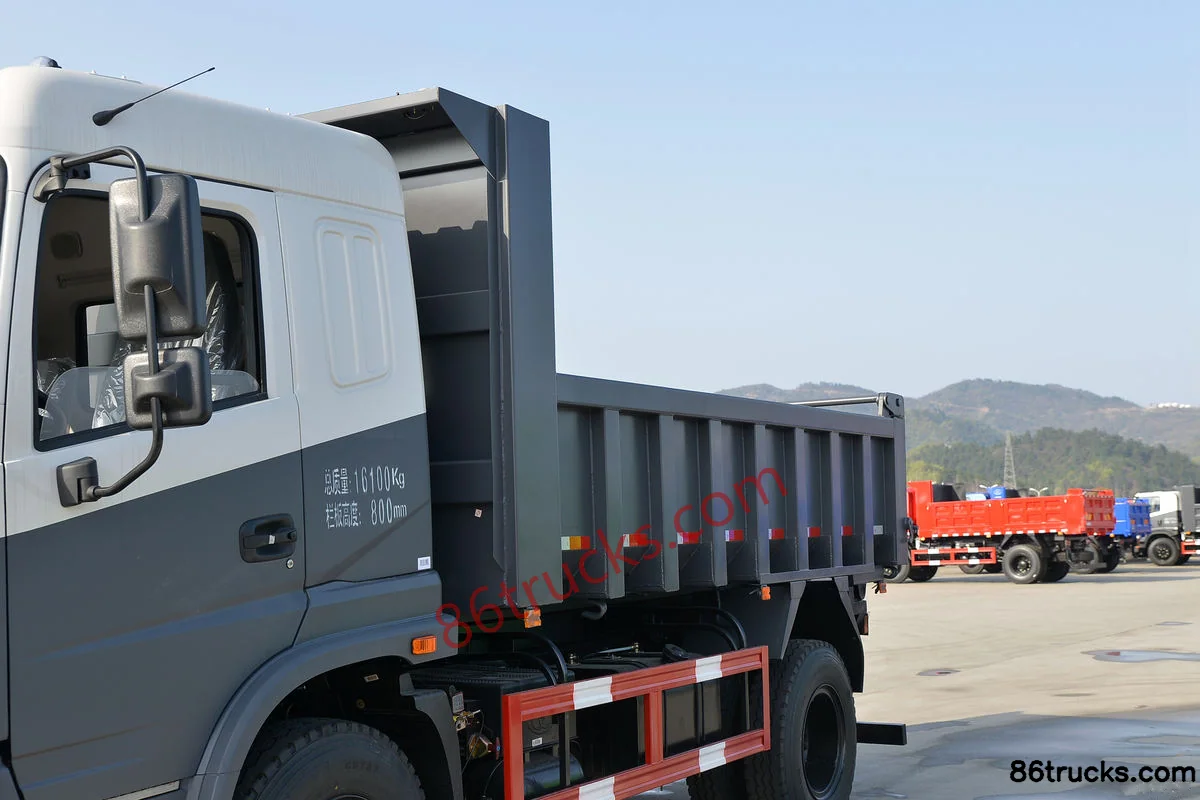

Body3

12 photos

FAQ

What emission standard does Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI)?

Key specs of Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) suited for?

Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) differ from other variants in the same series?

Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI) belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong Medium Truck 200hp 4X2(6 wheels) 4.2m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
