Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck

Export reference
From $29,500
MSRP ¥21.24M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.9ton
Wheelbase:: 1700+3000mm
Tire Size:: 10.00R20 18PR
Rated payload: 16.005ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.

Overview

The Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck is a Medium-duty truck featuring 16.005t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3253P67K5-1
Drive type: 6X2
Wheelbase: 1700+3000mm
engine: WeichaiWP4.6NQ220E50
transmission: Fast Gear8JS75TE-C
Rear Axle Ratio: 11500
Cab length: 7.8m
Cab width: 2.3m
Cab height: 3.05m
Front track width: 1835/1835mm
rear track: 1750mm
Curb Weight: 8.9ton
Rated payload: 16.005ton
GVWR: 24.5ton
Origin: Rizhao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.6L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75TE-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Unloading Type: Dump type
Cargo box thickness: side1 bottom1, side2 bottom3, side3 bottom5, etc.
Cargo box type: Dump type
Cargo box length: 5.2m
Cargo box width: 2.18m
Cargo box height: 1.2m
Cargo box material: Q235A, CR780/980MS, etc.
Cab parameters
Cab: Aochi T6 Flat Roof
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 5.833
rear axle allowable load: 457 spring brake weldedkg
Axle ratio: 11500
Leaf spring count: 10/10/12+9
Aluminum wheels:
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

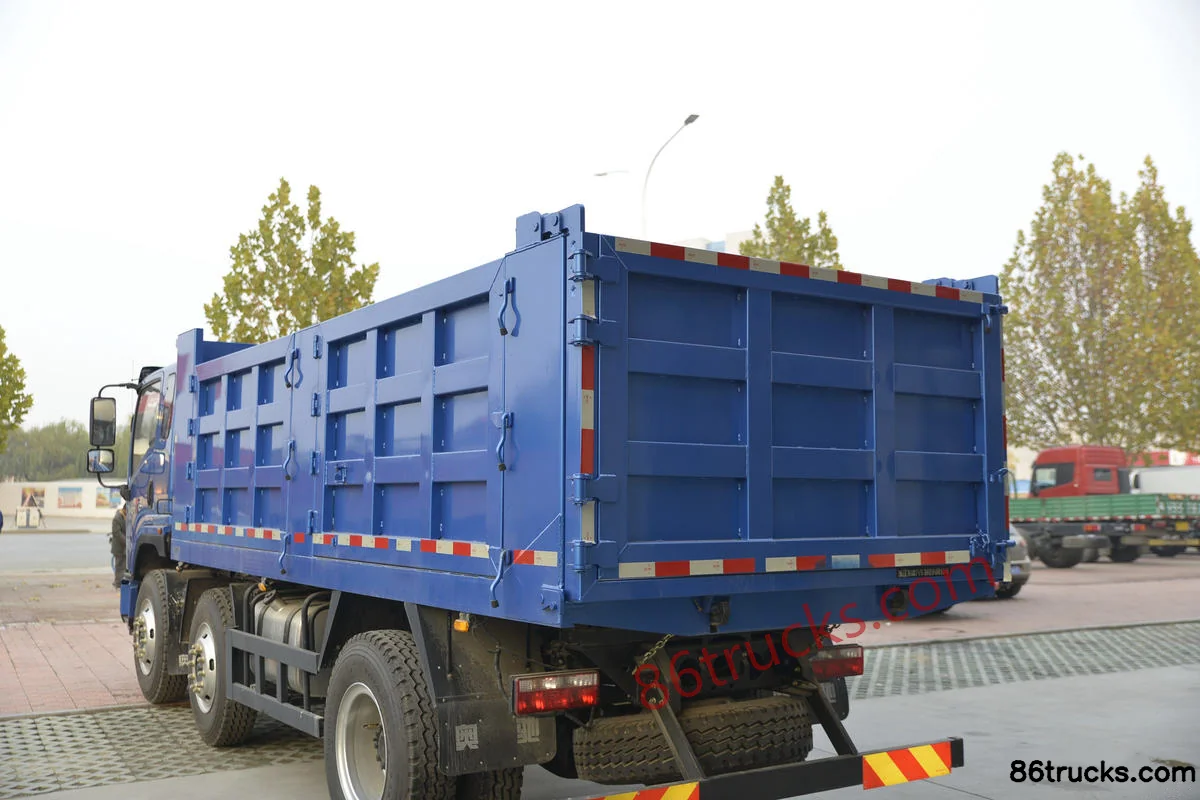

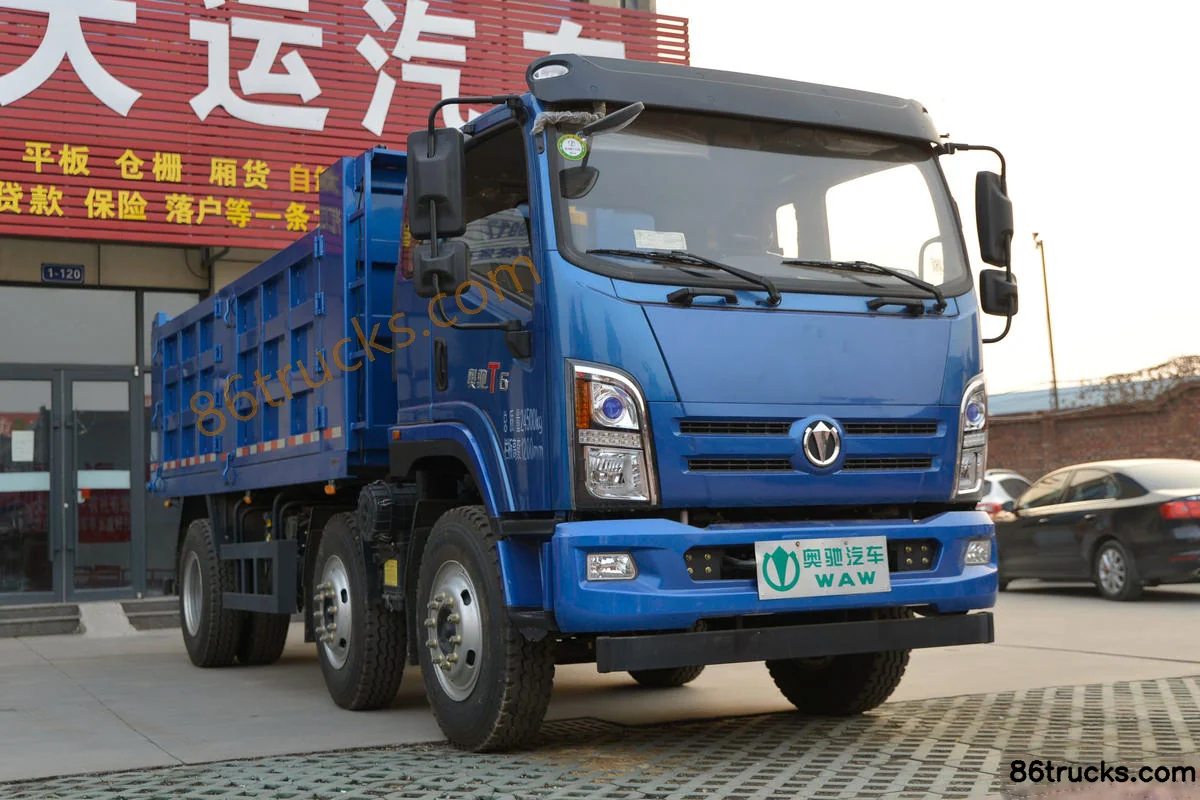

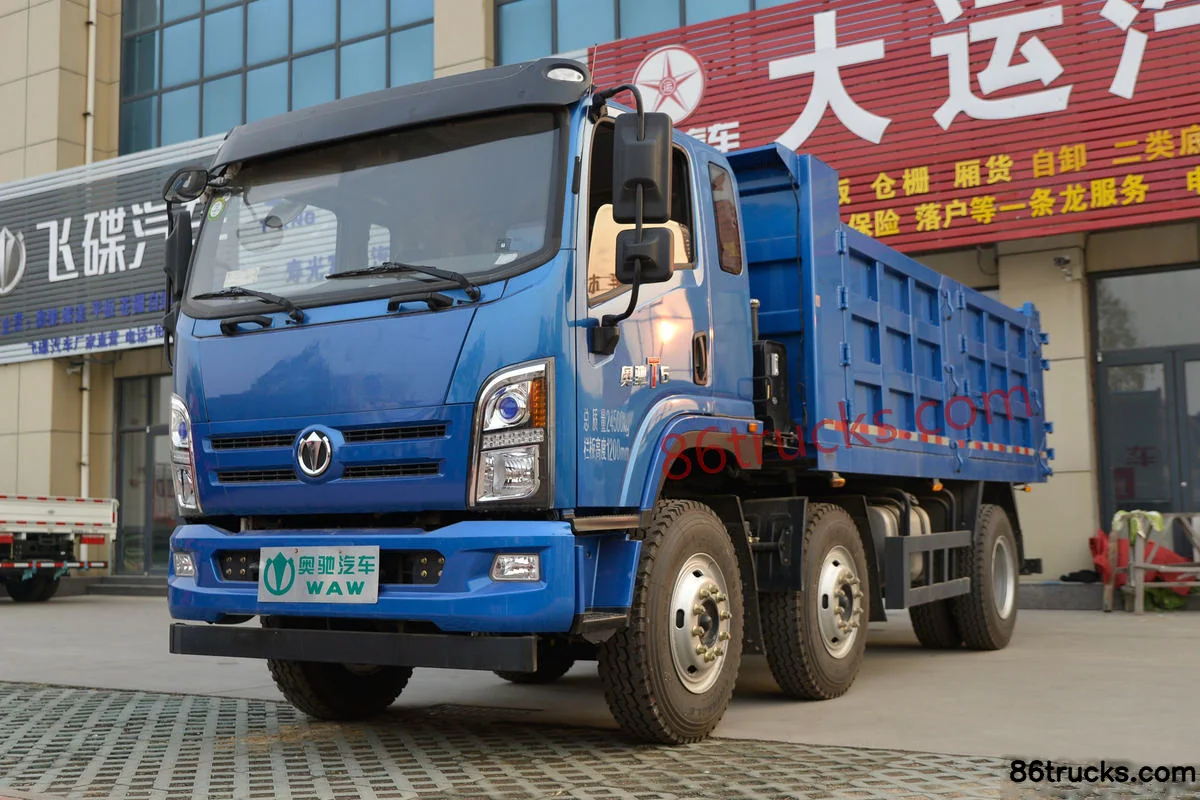

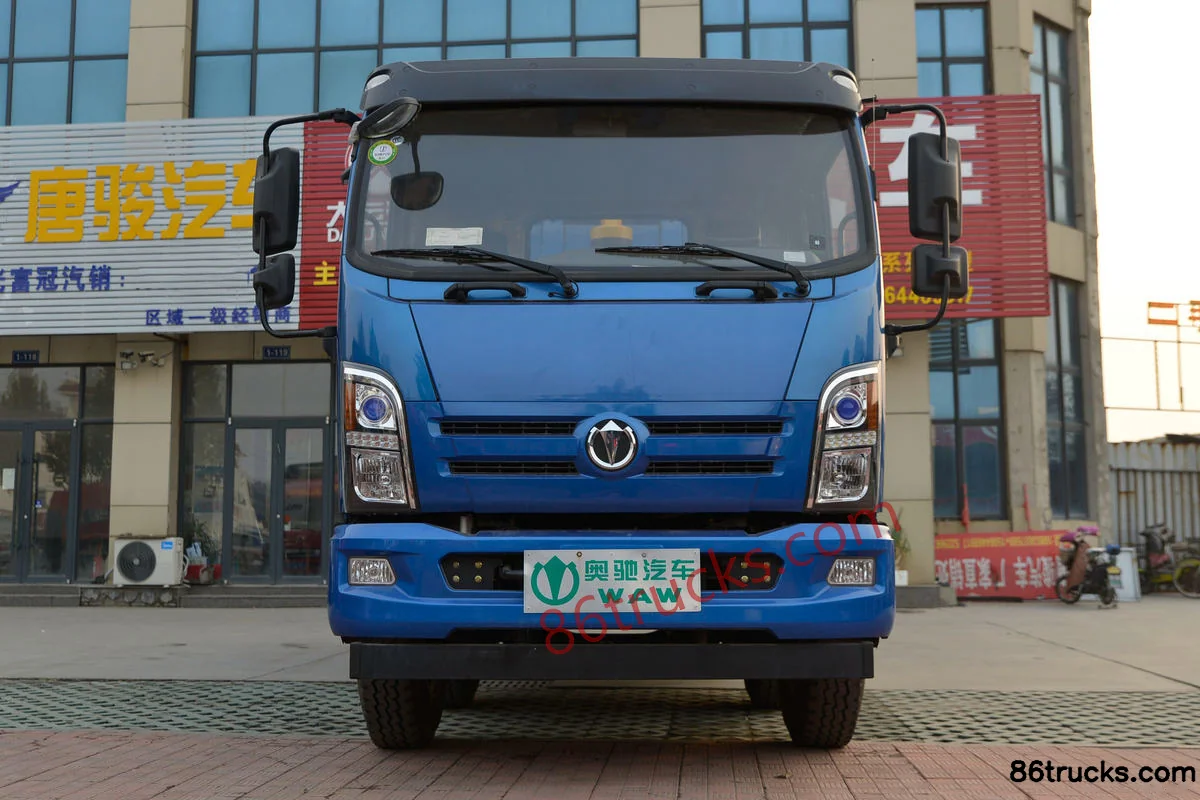

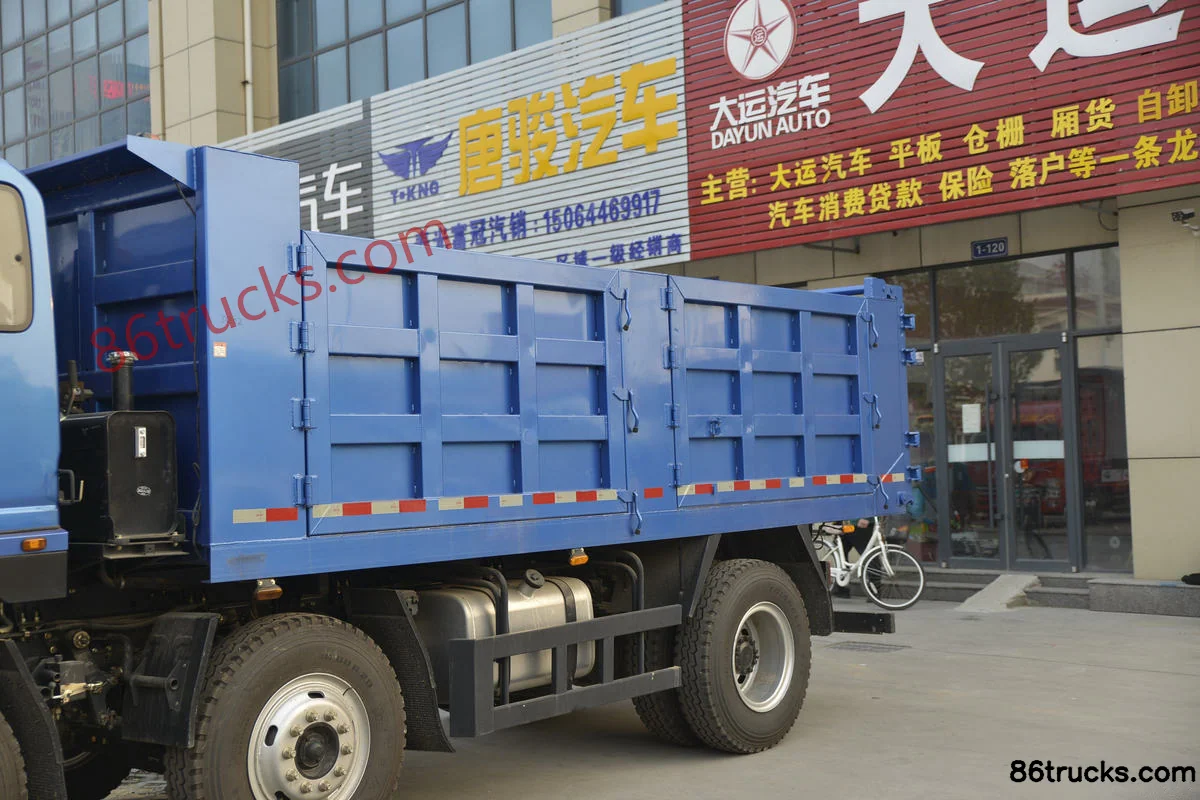

Exterior3

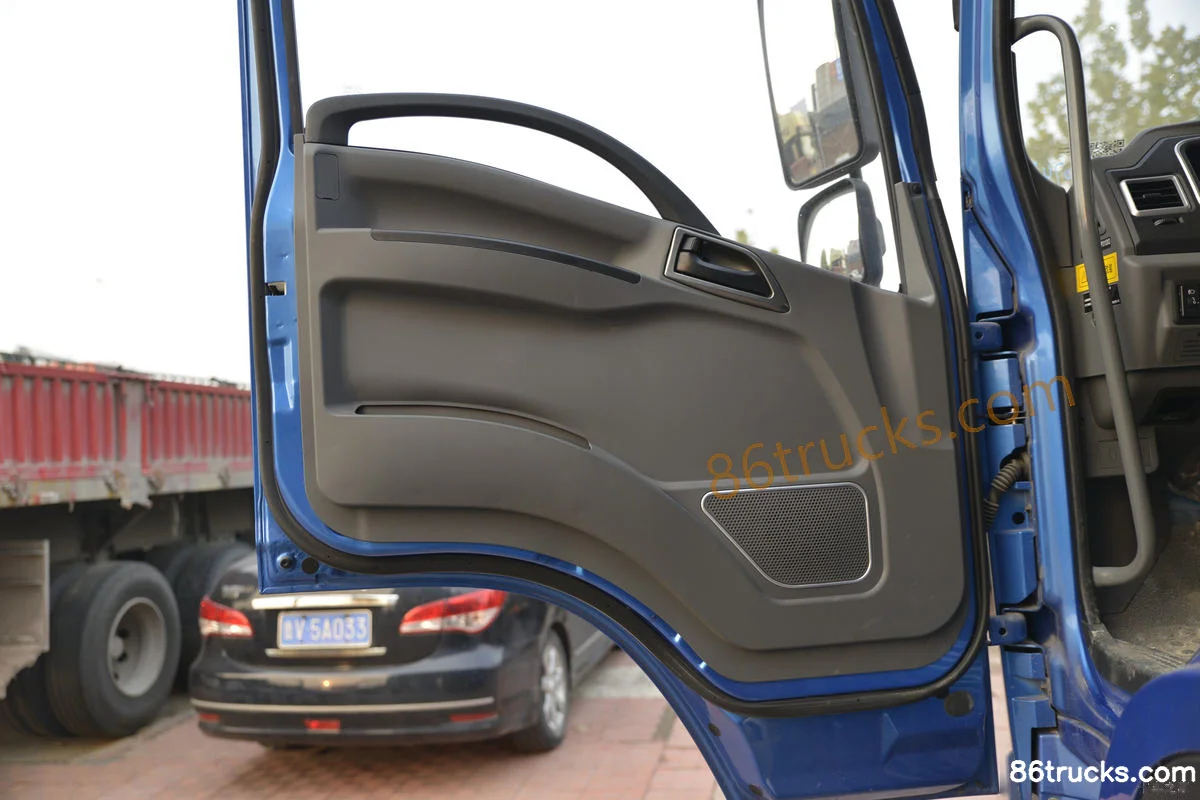

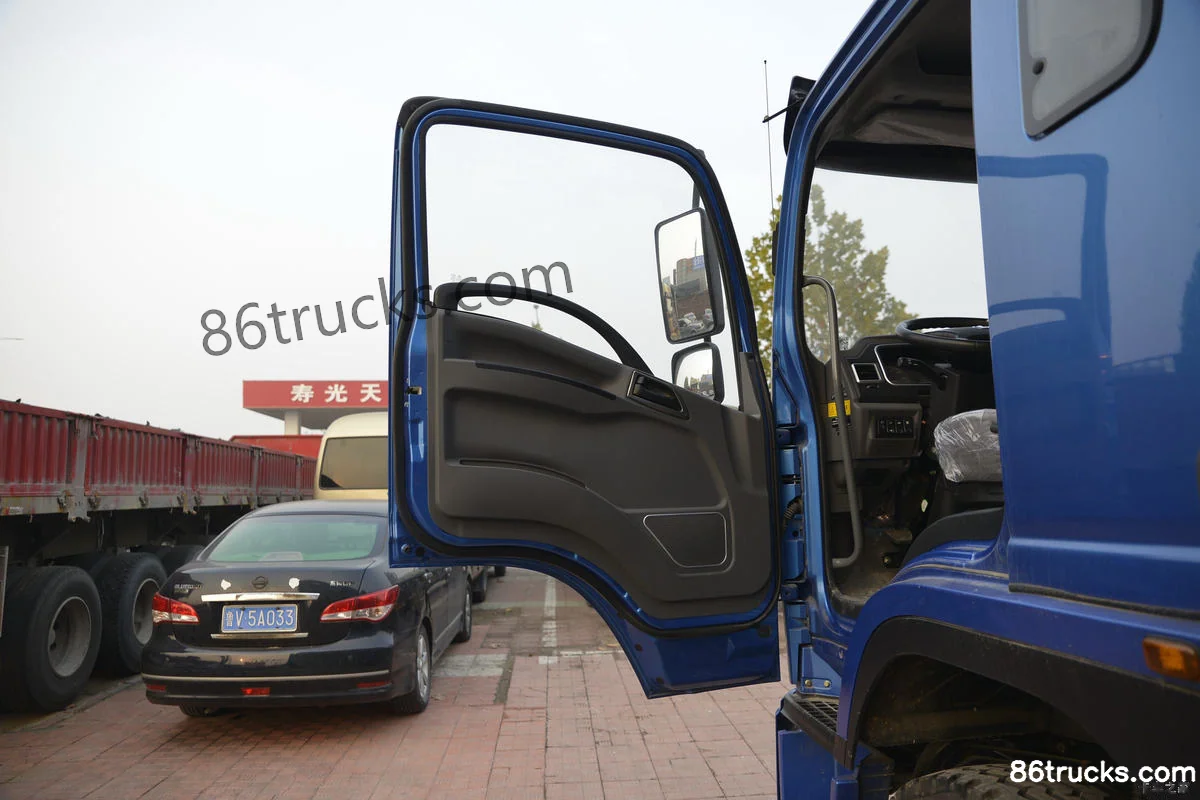

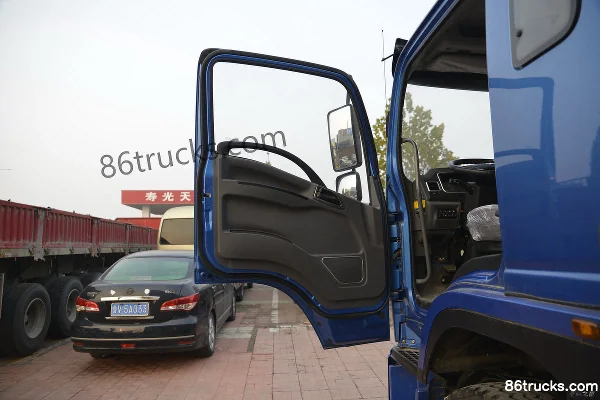

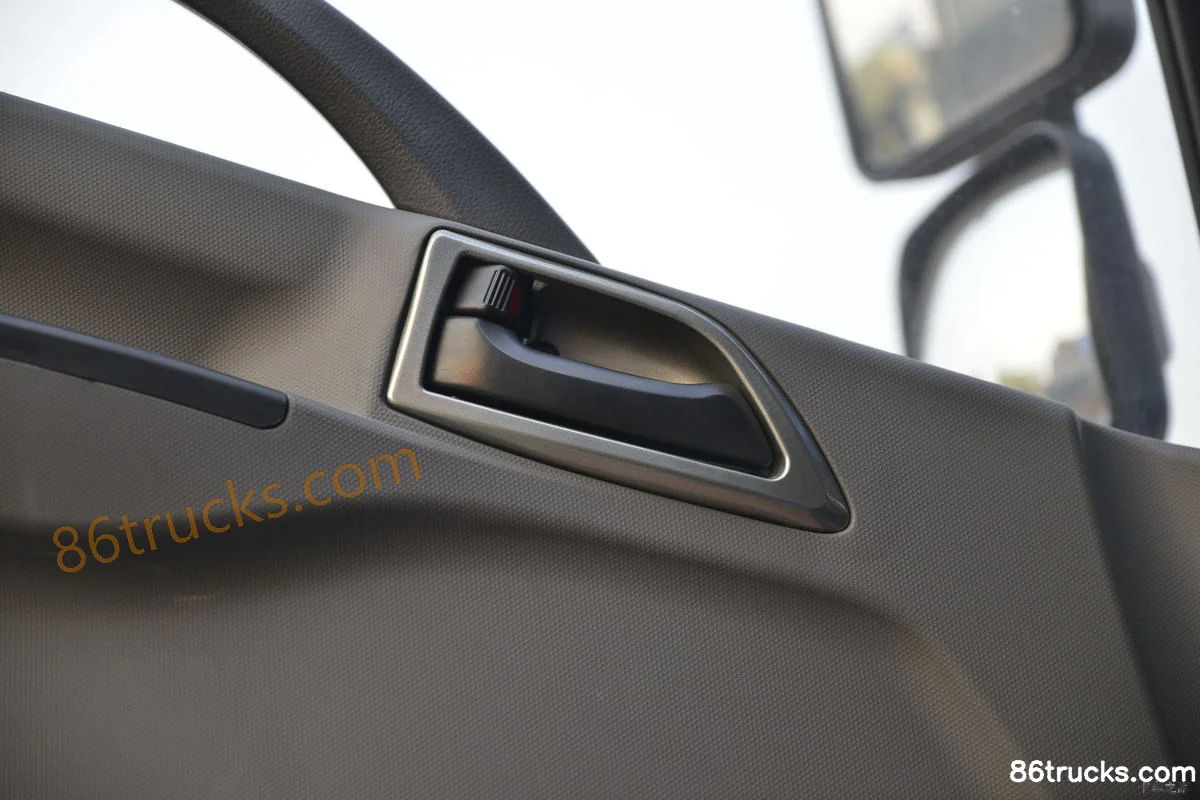

Cab3

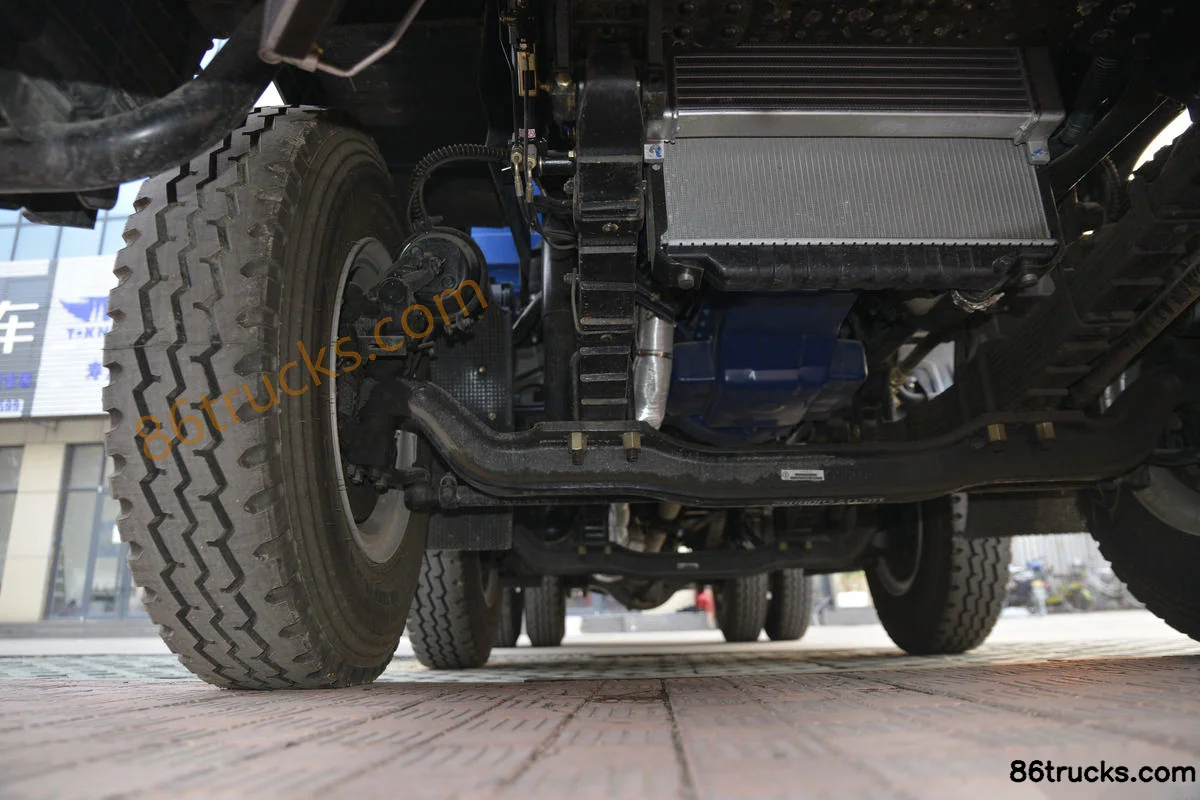

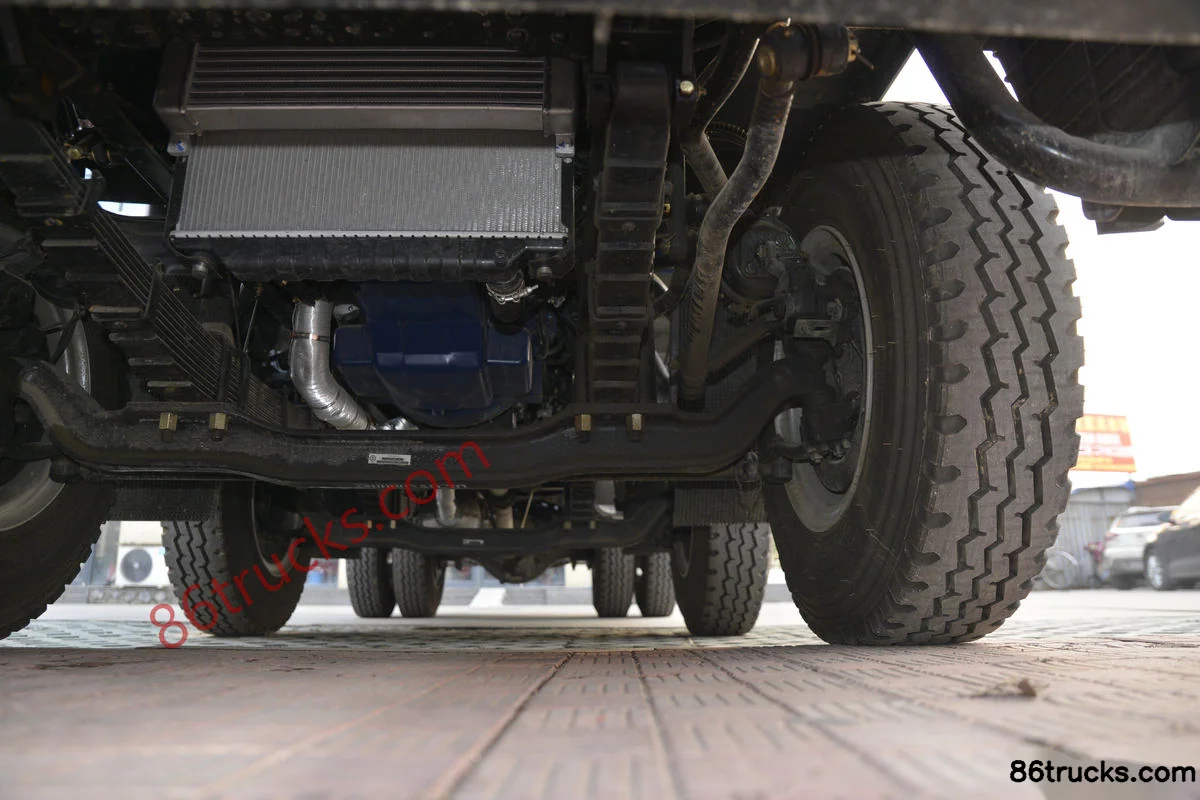

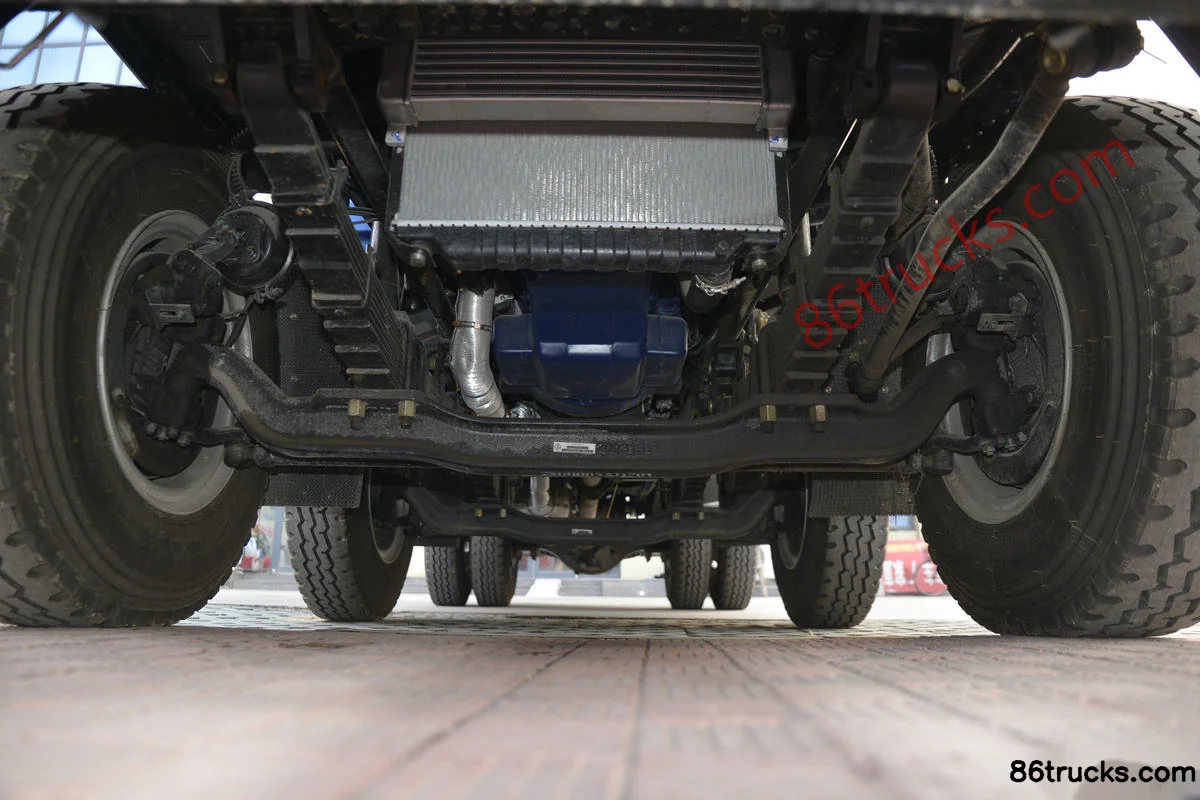

Chassis3

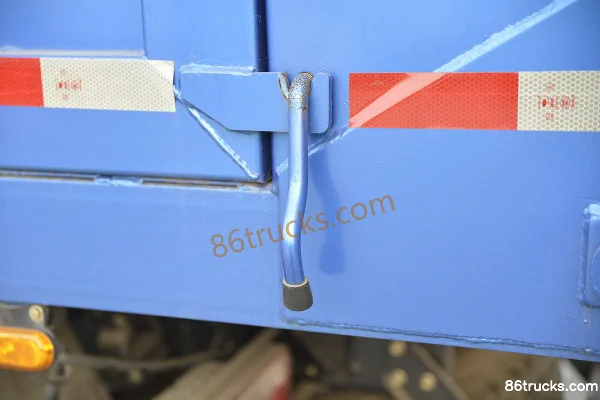

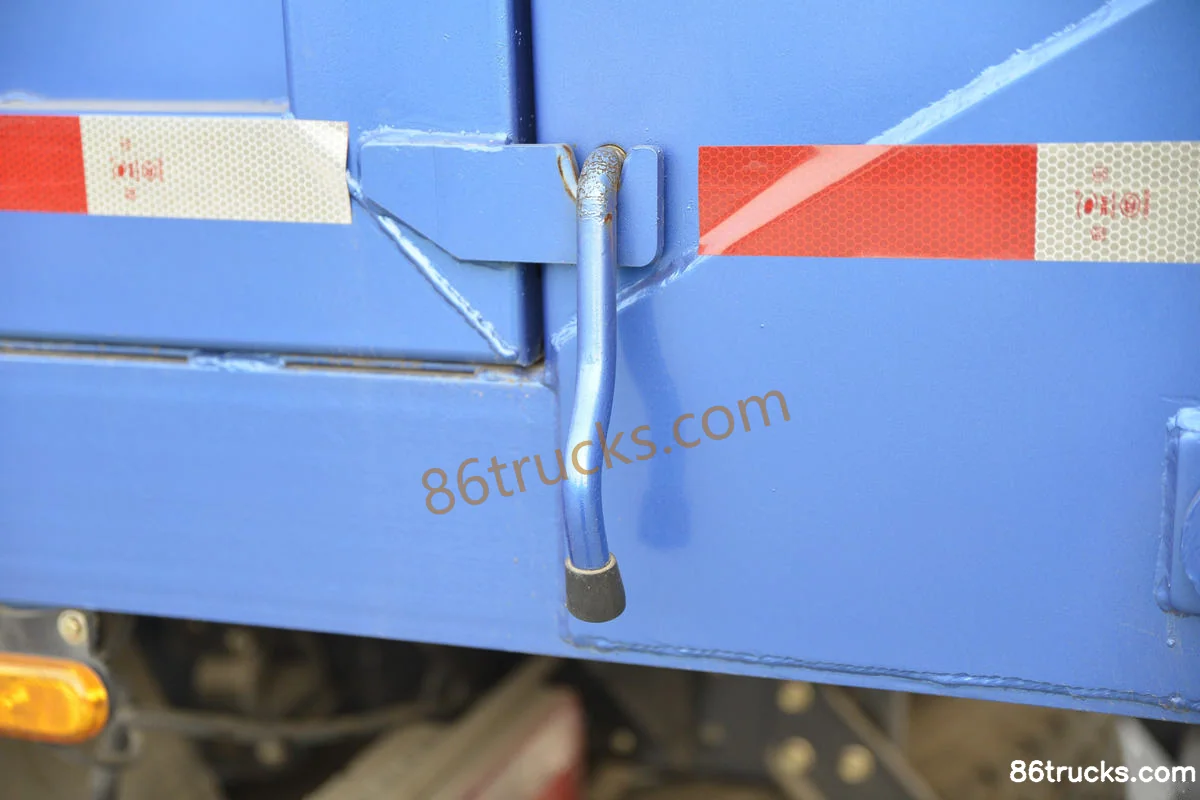

Body3

12 photos

FAQ

What is the export price of Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck, and what does it include?

Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck export reference is about From $29,500; MSRP is ¥21.24M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck?

Key specs of Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck suited for?

Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck differ from other variants in the same series?

Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck belongs to Aochi T Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi T6 Series 220hp 6X2(8 wheels) 5.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
