Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Transmission: WLY
Wheelbase:: 2650mm
Tire Size:: 7.00R16
engine:: WeichaiWP2.3NQ130E61
Rear Axle Ratio:: 4.875
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Rear-dump body
Emission China VI

Overview

The Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) is a Light Truck featuring Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP2.3NQ130E61 engine, 130 hp, China VI emissions and WLY transmission.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 4X2
Wheelbase: 2650mm
engine: WeichaiWP2.3NQ130E61
transmission: WLYWLY7TS60
Rear Axle Ratio: 4.875
tonnage class: Light Truck
Remarks: air dryer
Version: Xiaojingang
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.29L
Emission standard: China VI
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: WLYWLY7TS60
Transmission Brand: WLY
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3m
Cargo box width: 1.9m
Cargo box height: 0.65m
Chassis Specs
Frame Dimensions: 200*55*5-800mm
Axle ratio: 4.875
Tire

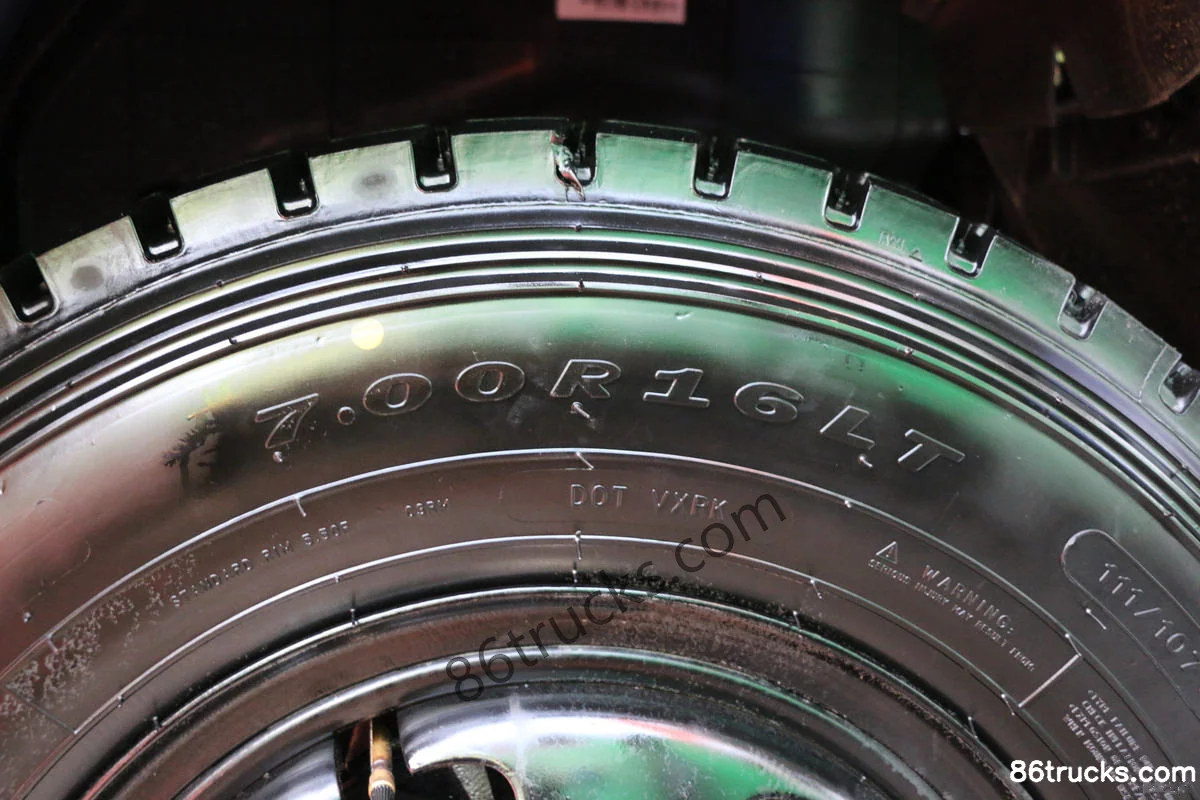

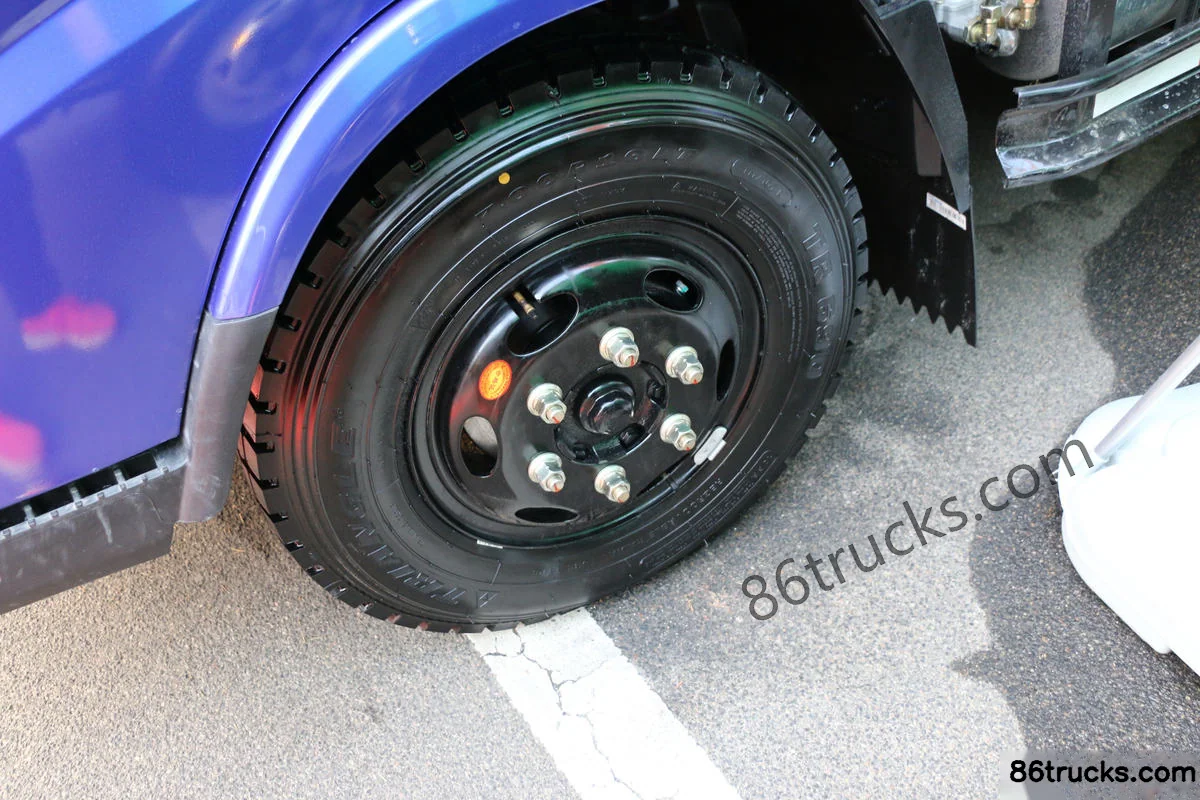

Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Exterior features
Aluminum air tank:
Service brake
Parking brake: Spring brake

Photos

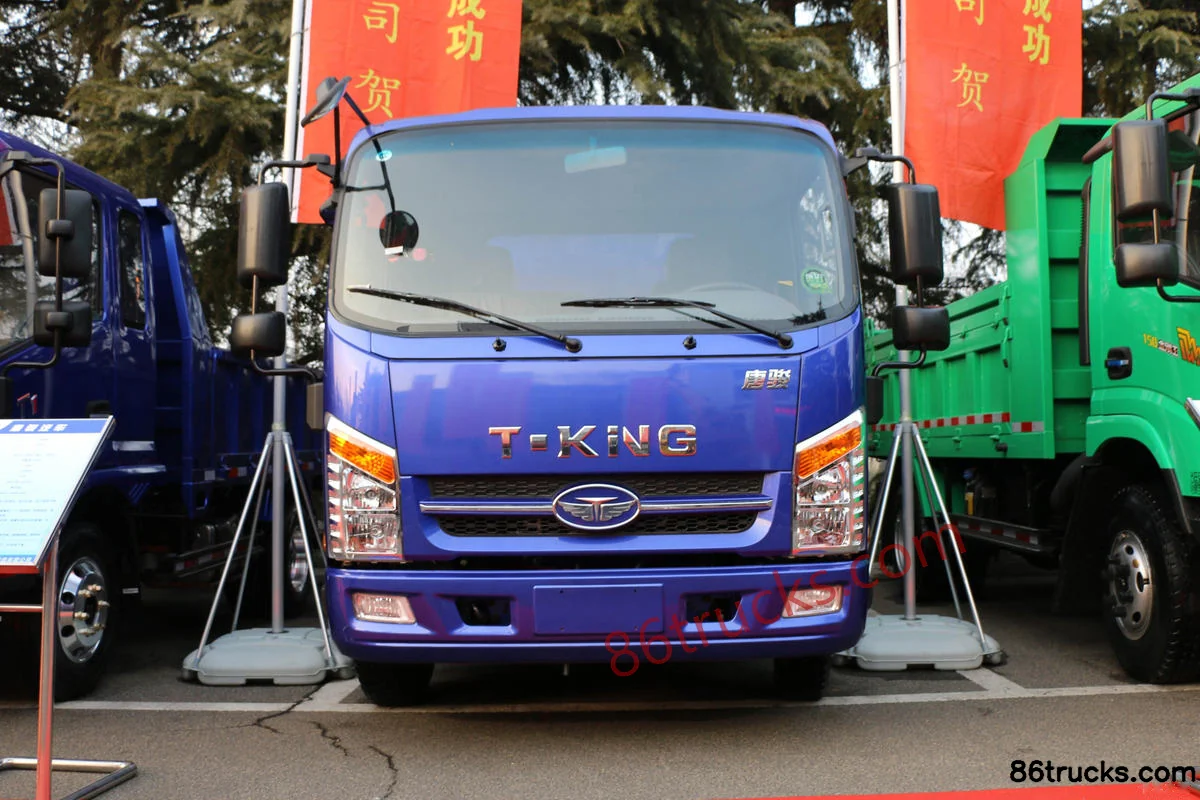

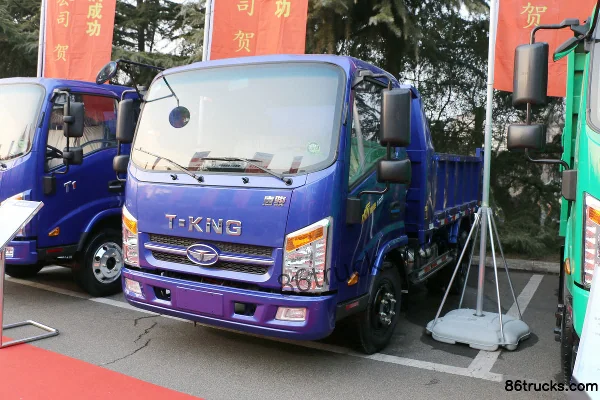

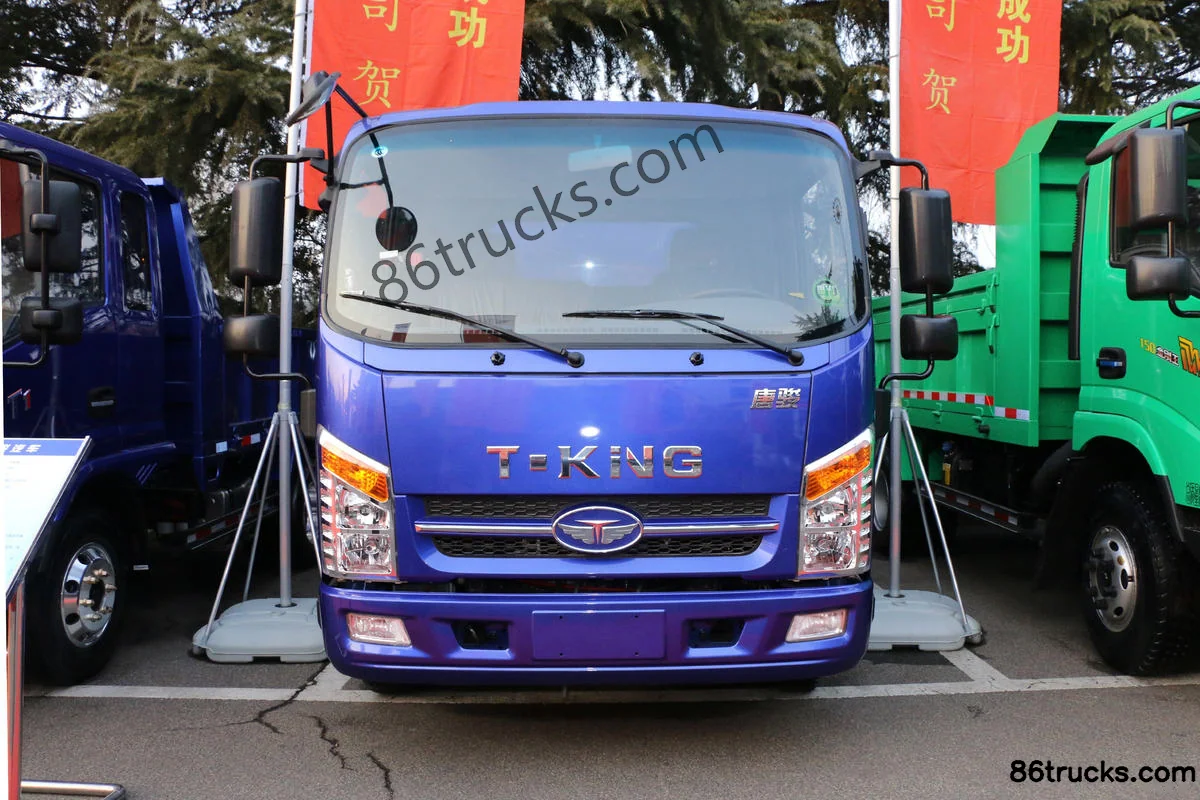

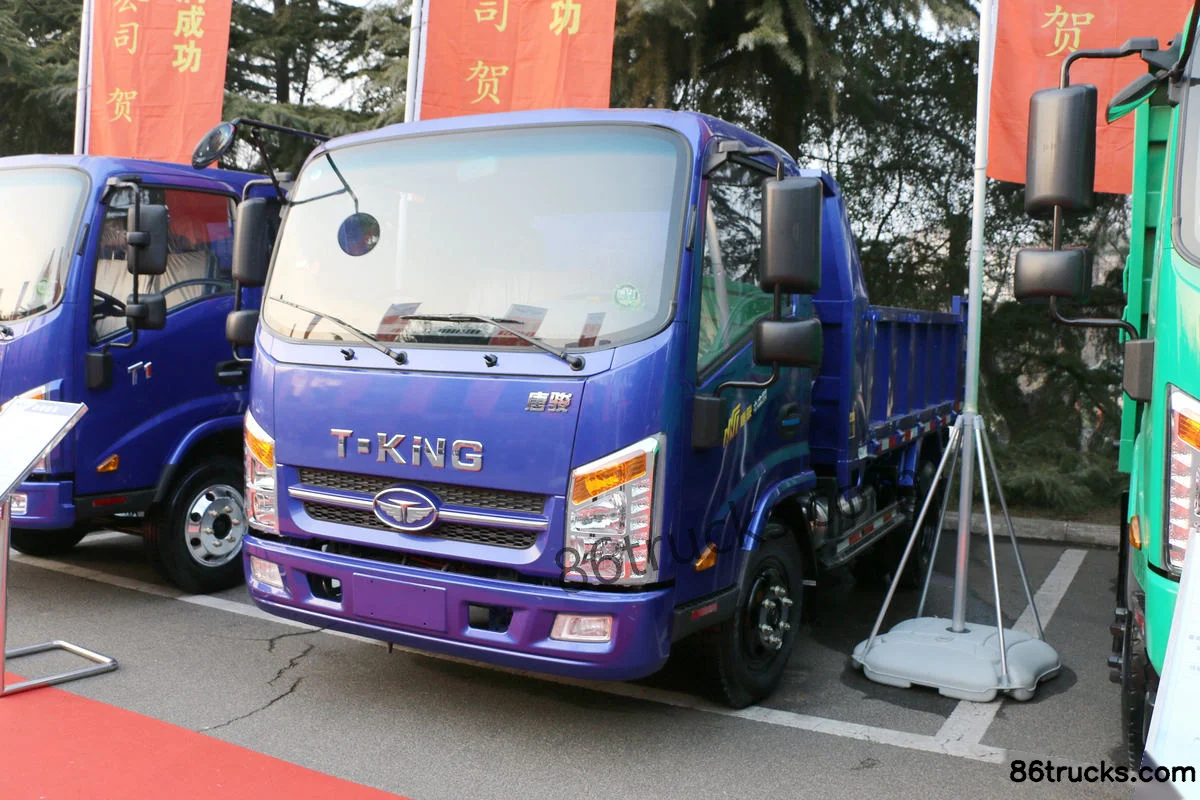

Exterior3

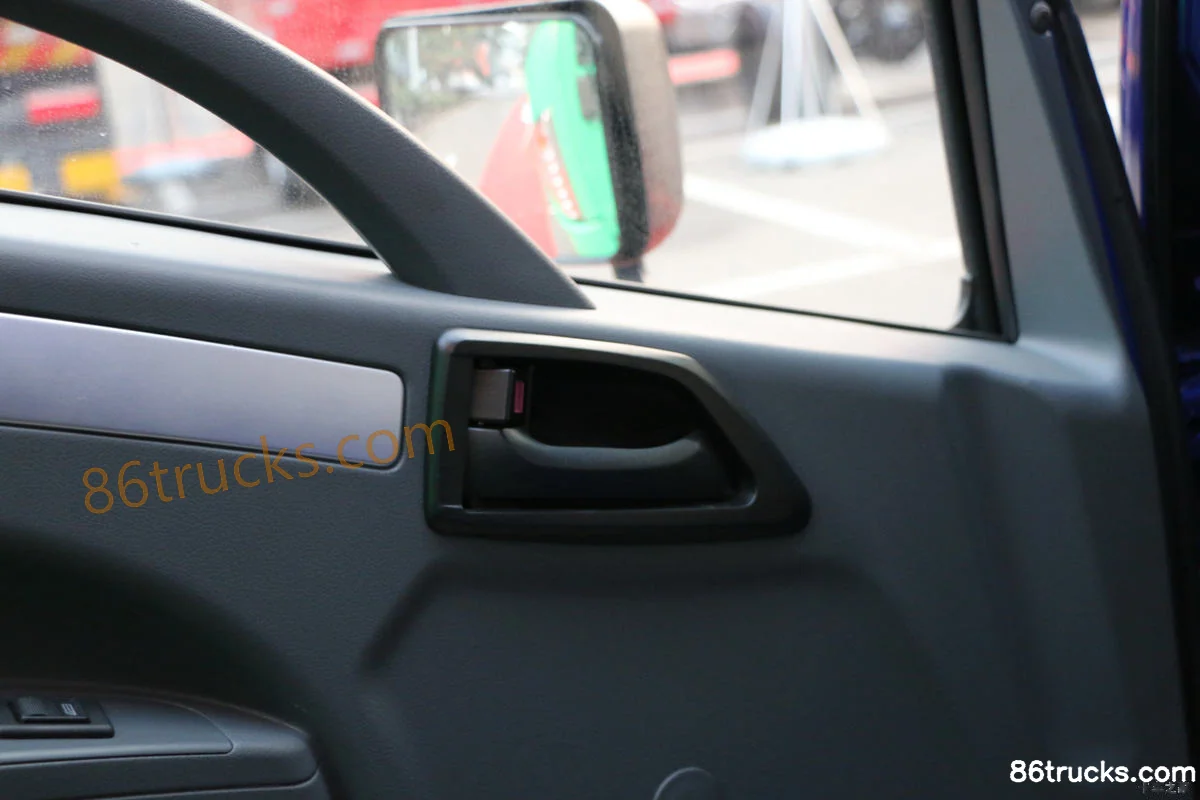

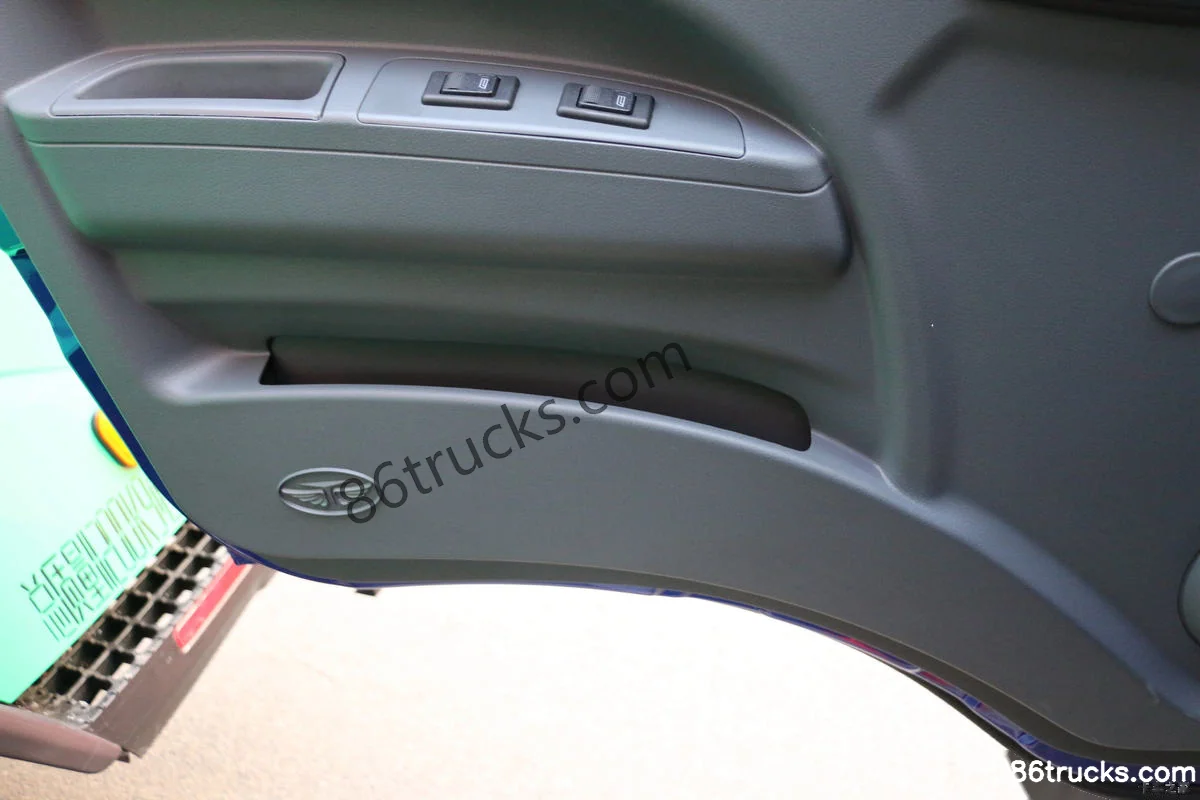

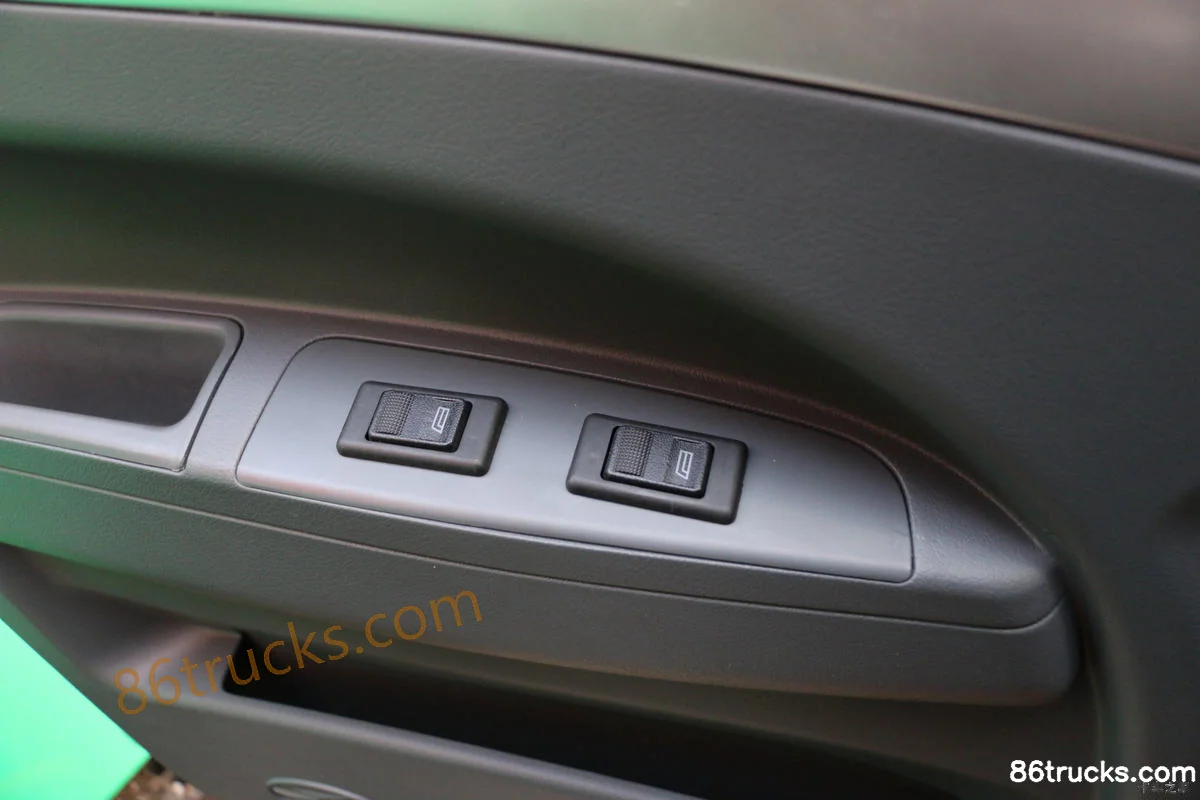

Cab3

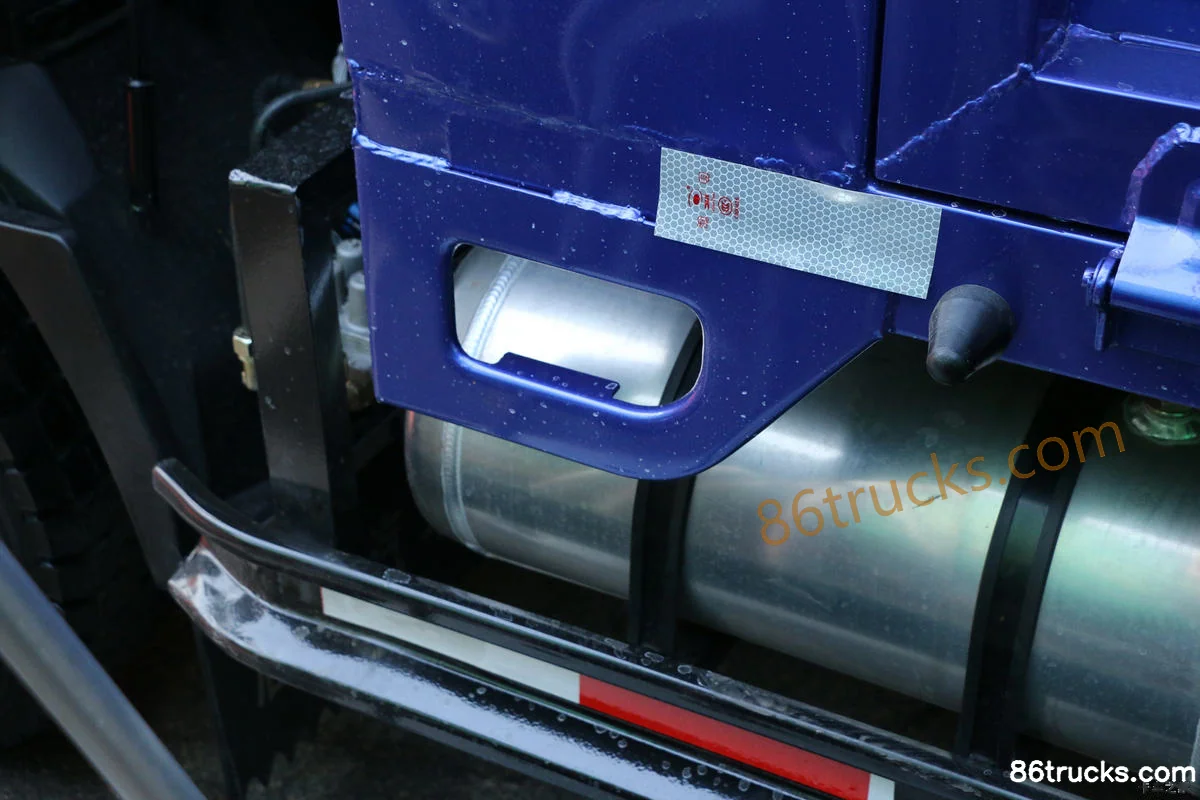

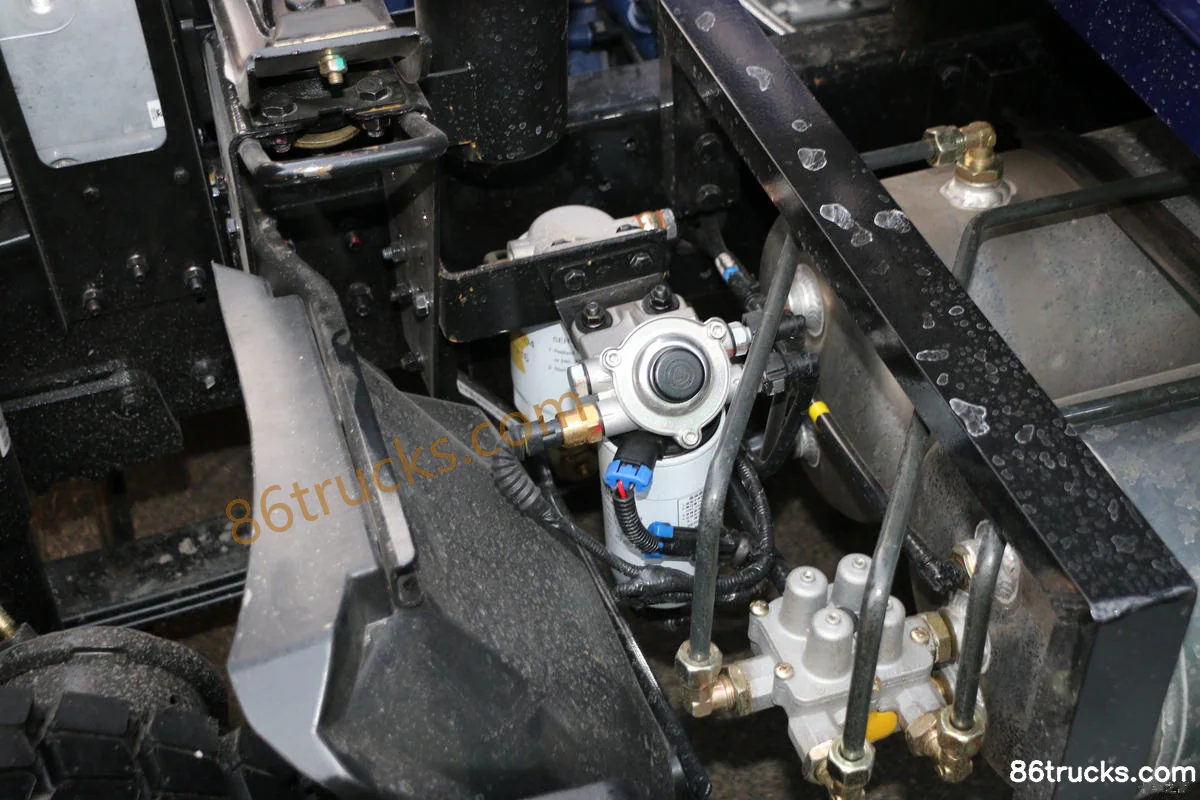

Chassis3

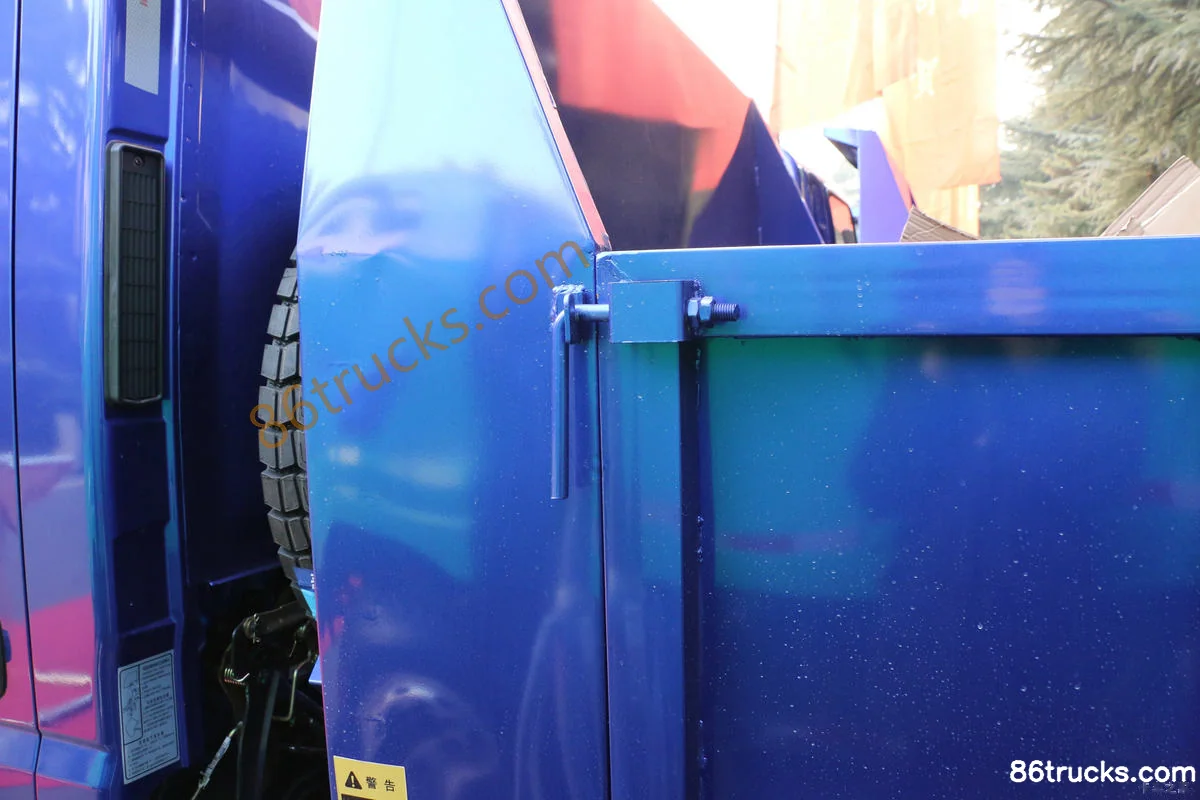

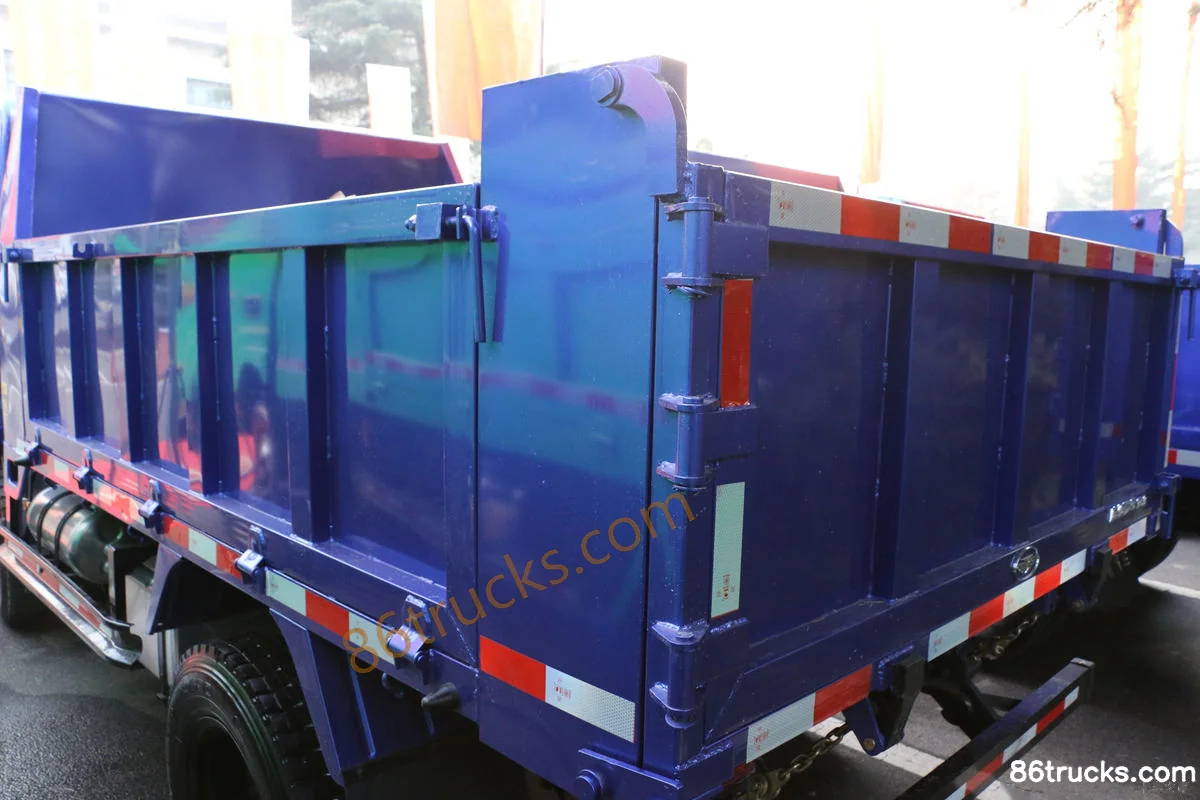

Body3

12 photos

FAQ

What emission standard does Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI)?

Key specs of Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI): Drive: 4x2; Horsepower: 130 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) suited for?

Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) differ from other variants in the same series?

Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI) belongs to T3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series Xiaojingang 130 hp 4X2(6 wheels) 3m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
