SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI)

Export reference
MSRP N/A
Horsepower: 400
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 13.65ton
SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 17.22ton
Drive 8X4 (12 wheels)
Cargo box type: Wing Van

Overview

The SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Wing Van cargo body, 3Personnel volume and 17.22t payload. Its segment focus covers Agricultural product transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 400 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 400 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX5319XYKMC456F2
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1800+4575+1400mm
Box length class: 9.5m
engine: WeichaiWP10H400E62
transmission: Fast Gear 12-speed
Rear Axle Ratio: 3.7
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 13.65ton
Rated payload: 17.22ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Agricultural product transport, LTL transport
Remarks: Extended high-roof cab without deflector, widened bunk, air-suspension driver seat, fiberglass bumper, Tianxingjian Zhixing Edition, 180Ah maintenance-free battery, dry-type air filter
Front/rear suspension: 1.525/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10H400E62
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.5L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1200-1300rpm
Rated speed: 1900rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR
Transmission Parameters
Transmission Model: Fast Gear 12-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 9.5m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 700L
Chassis Specs
Front axle description: MAN 5.5T front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 850×300 (single 8)mm
rear axle description: 11.5T MAN single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 14/14/12
Suspension (front/rear): Front and rear leaf springs (few)
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

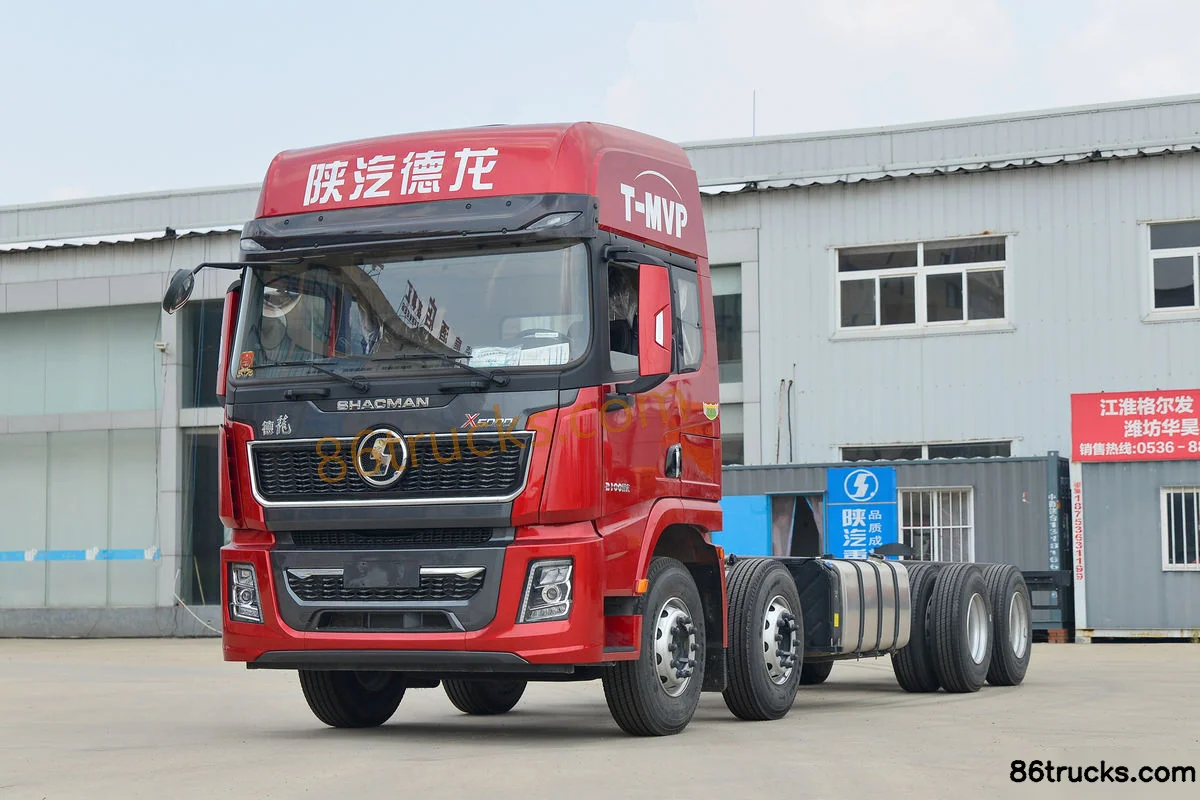

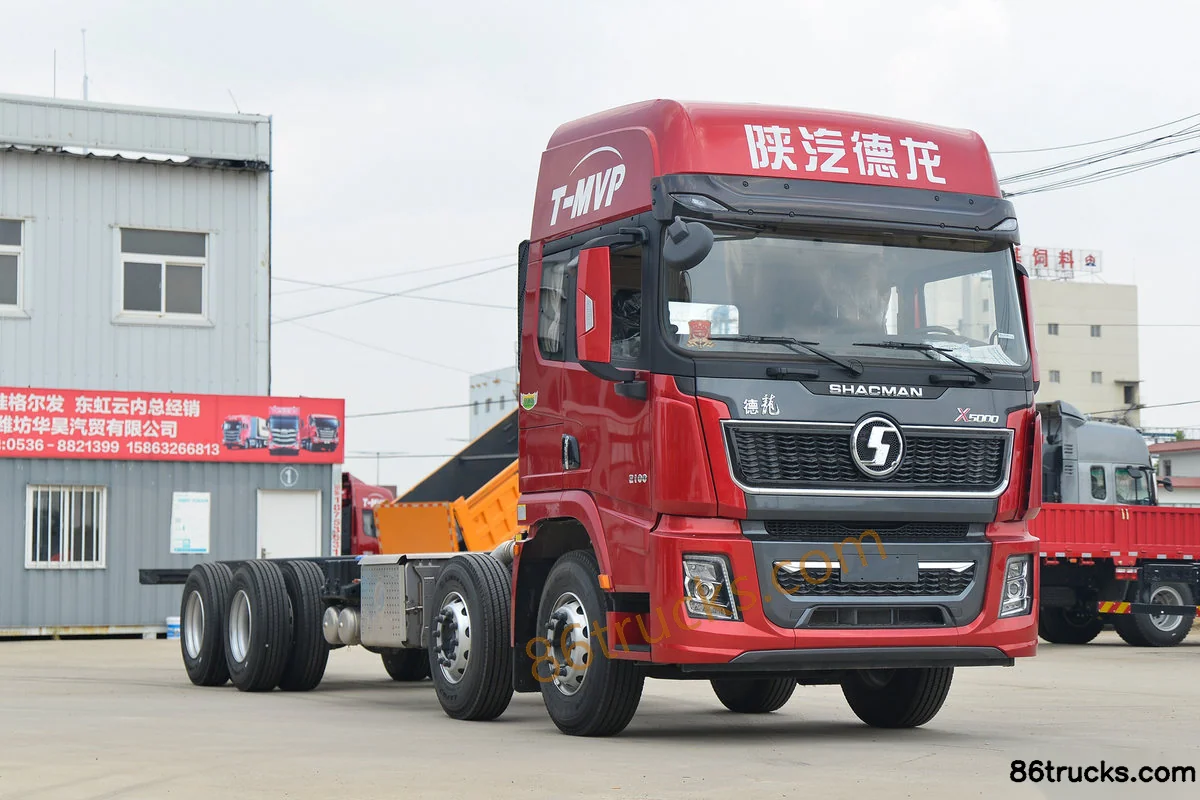

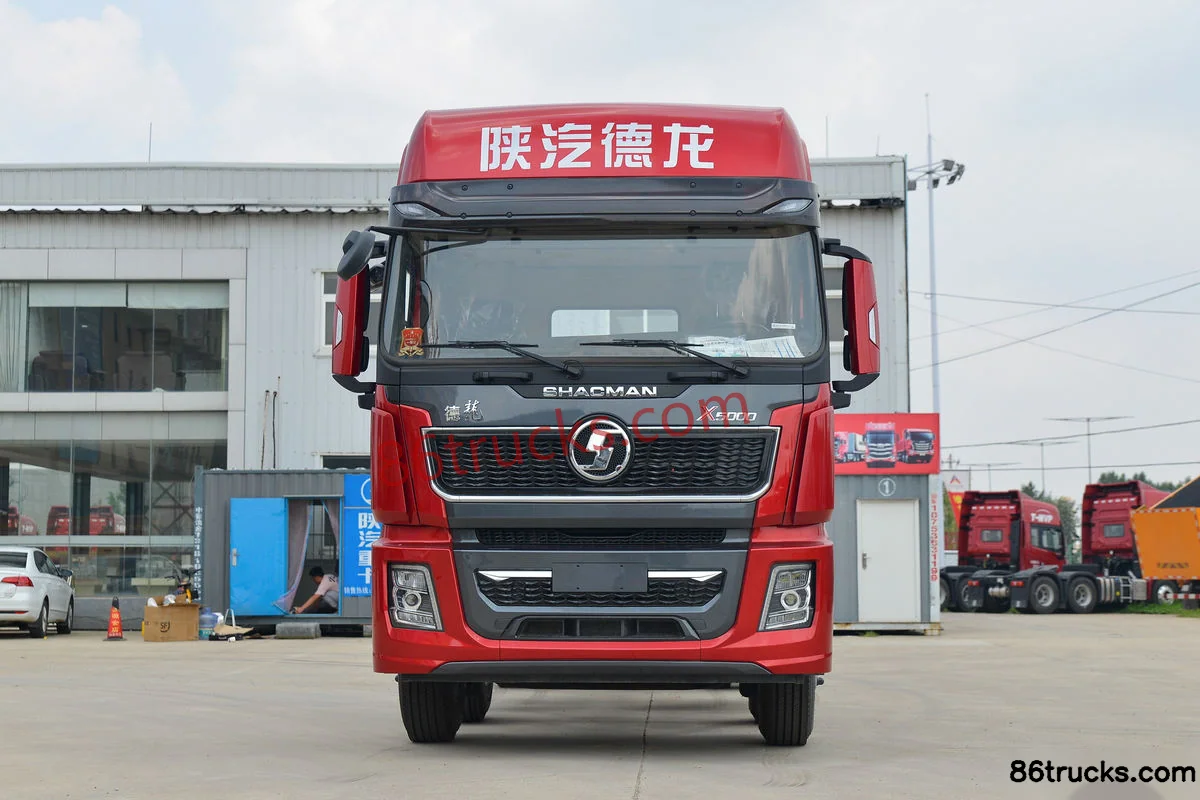

Exterior3

SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Exterior (1) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Exterior (2) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Exterior (3) | 86Trucks

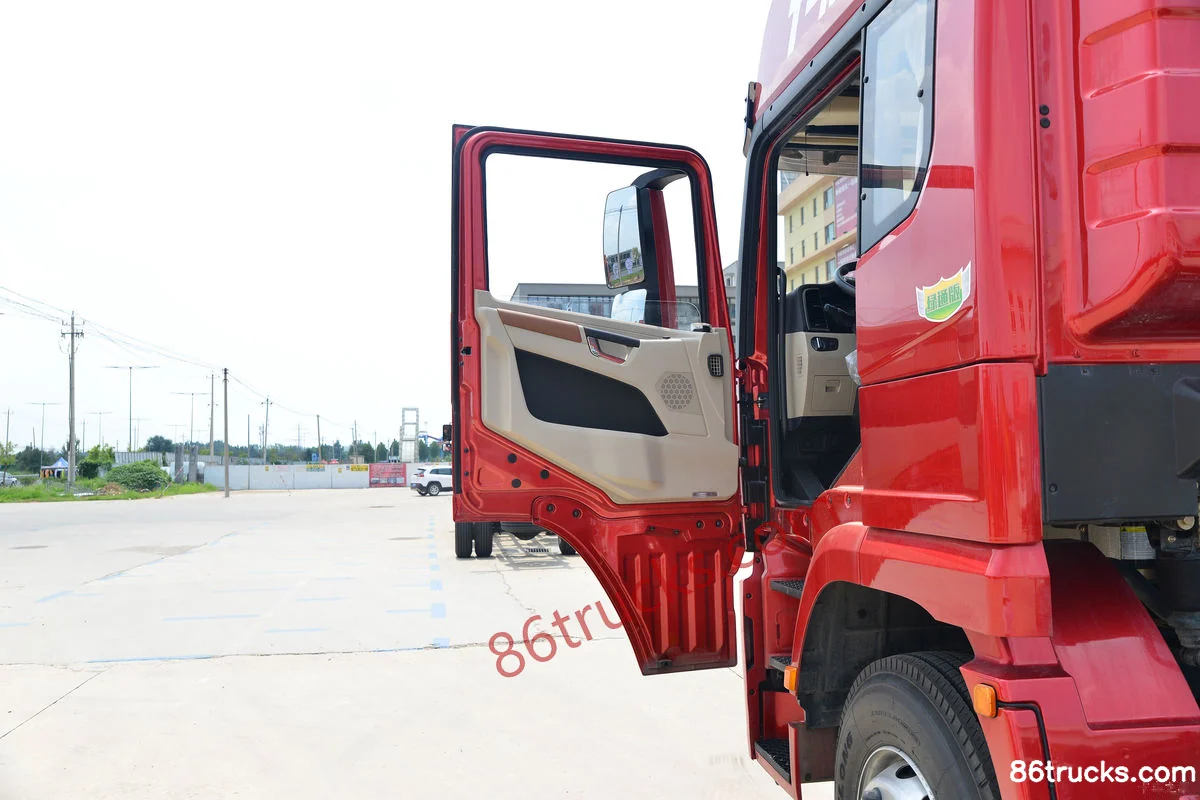

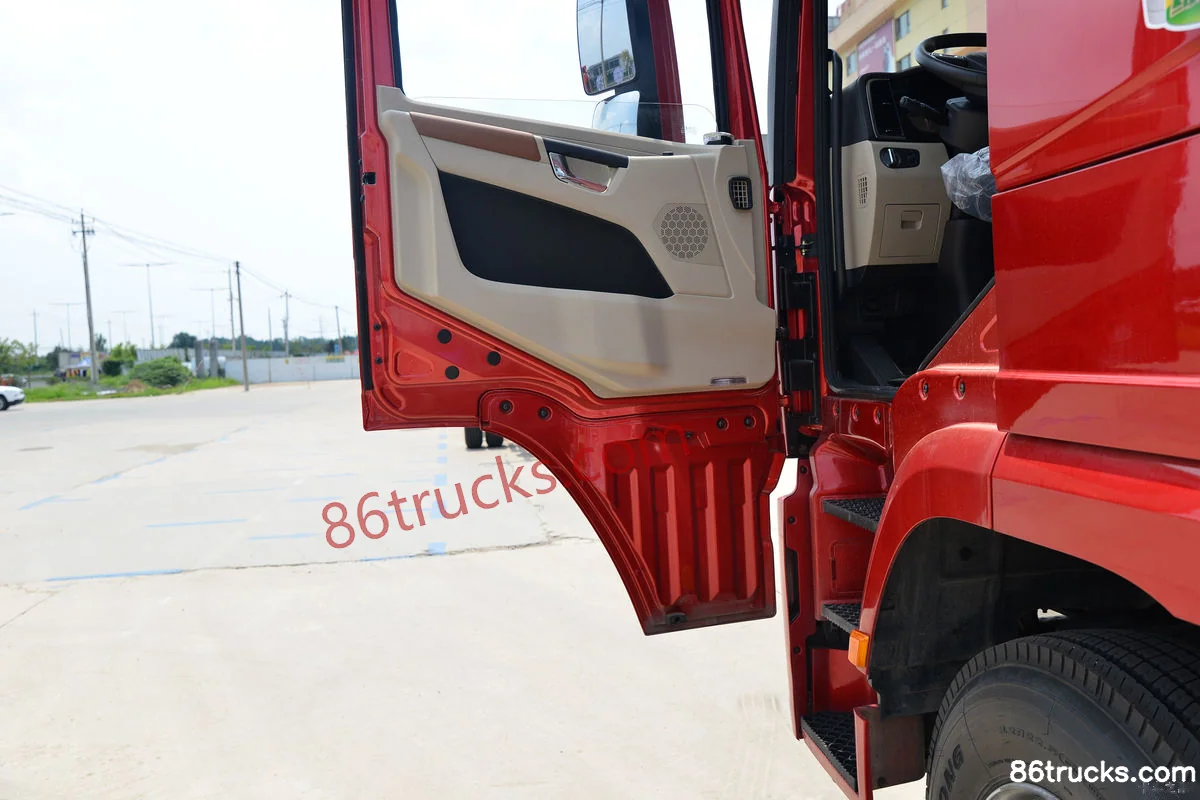

Cab3

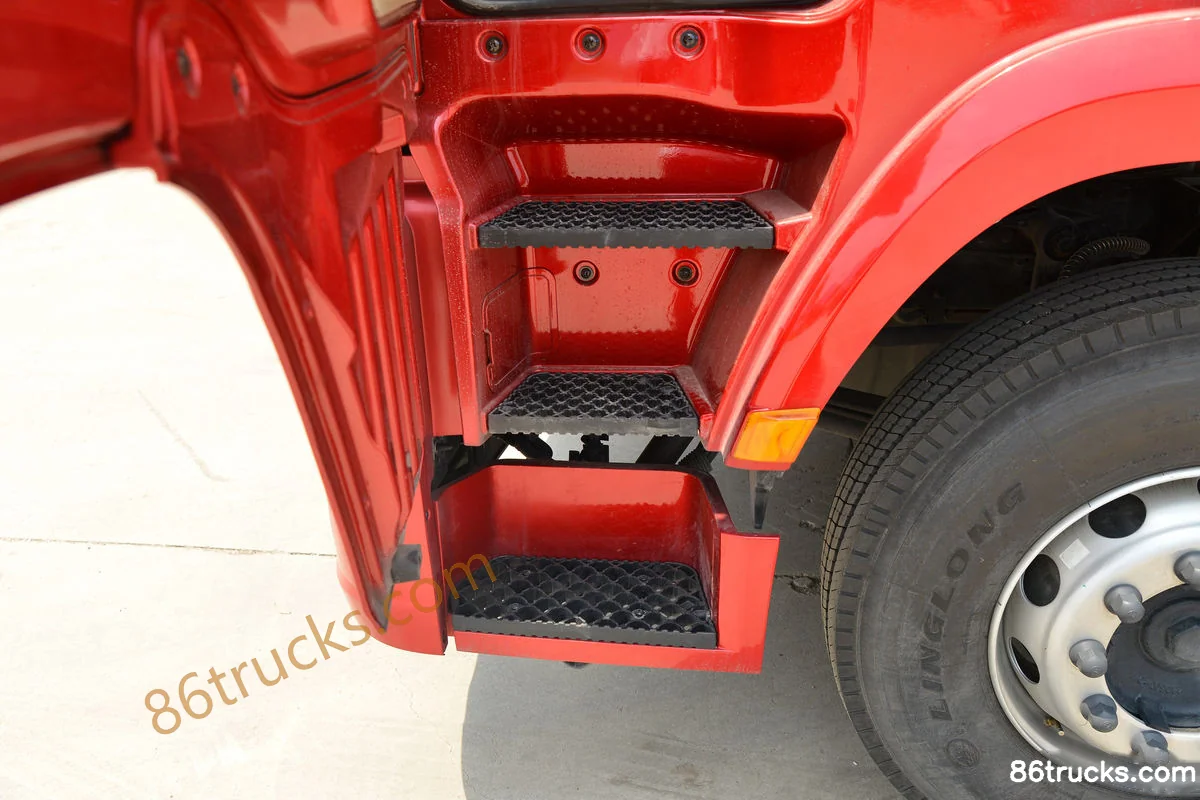

SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Cab (1) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Cab (2) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Cab (3) | 86Trucks

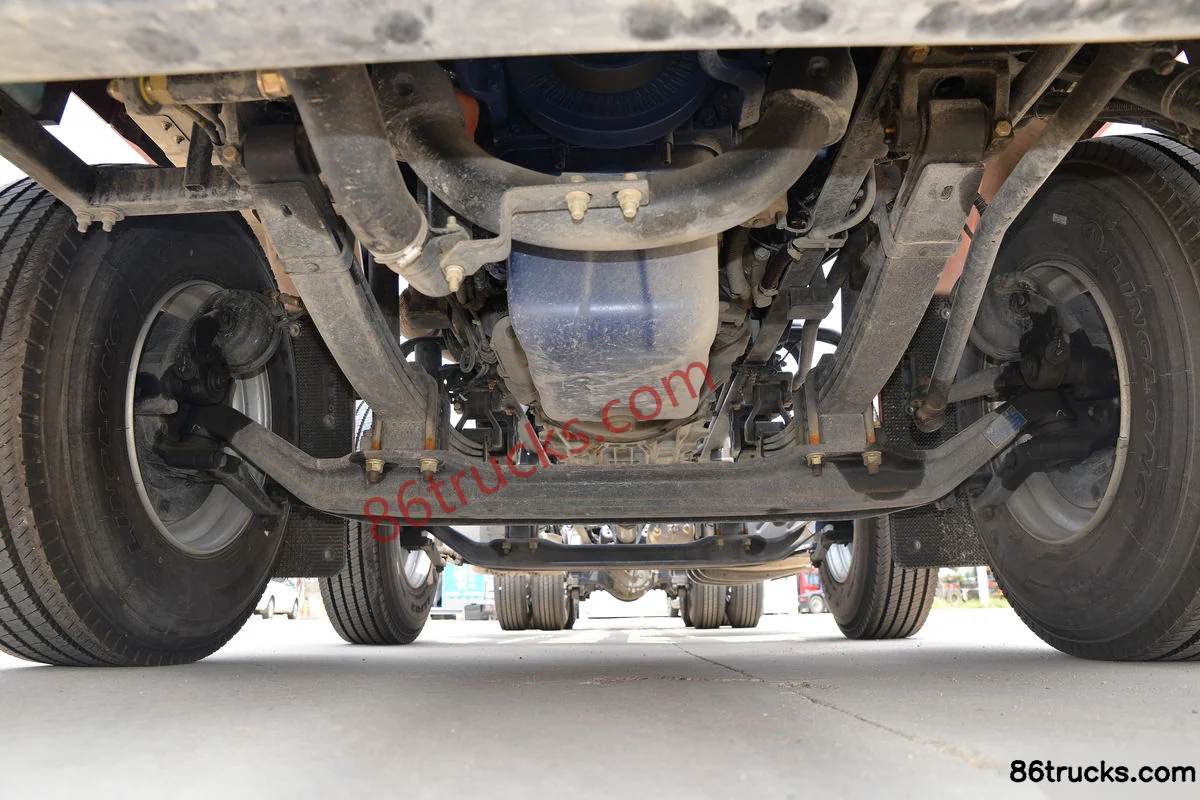

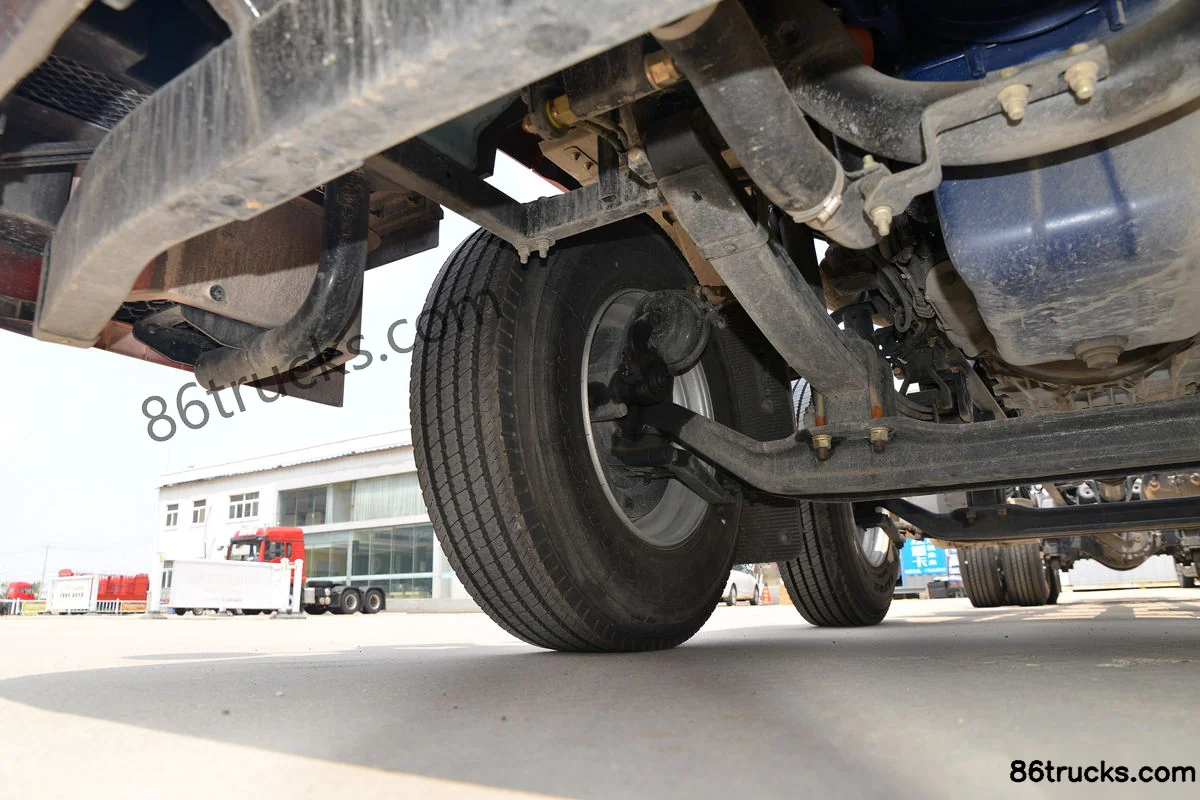

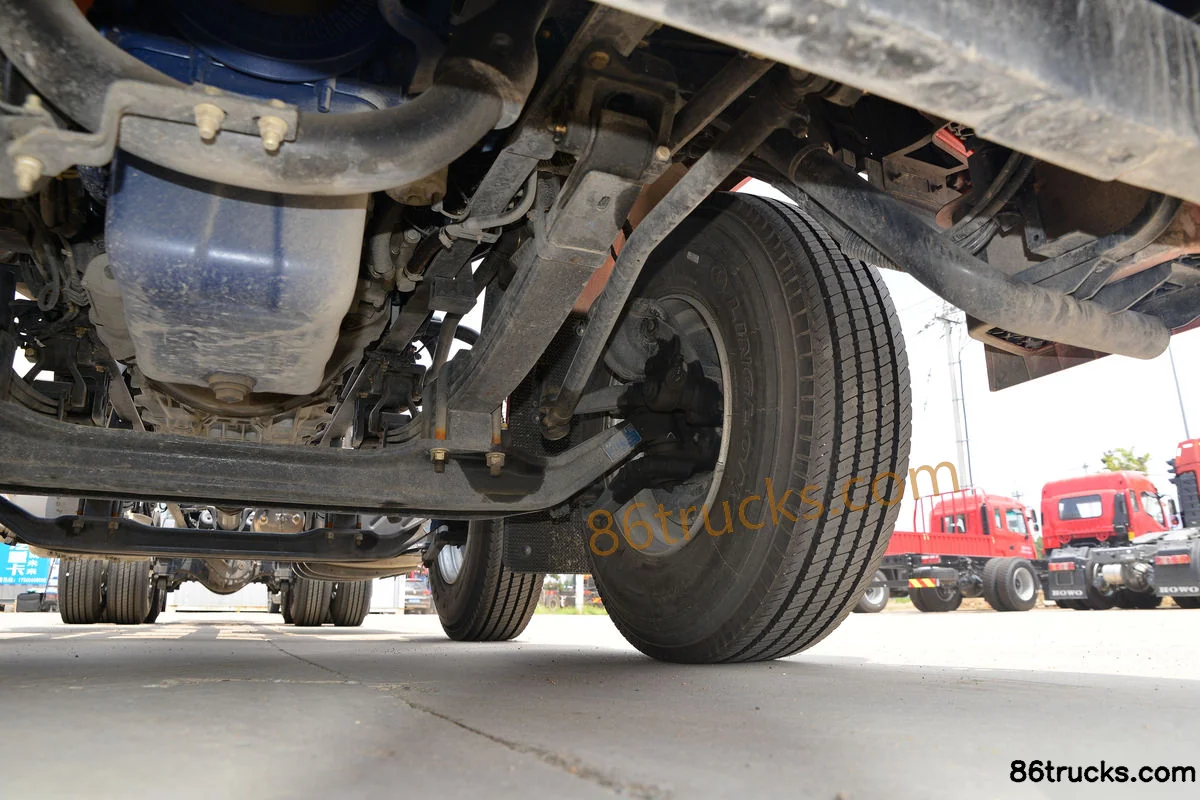

Chassis3

SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Chassis (1) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Chassis (2) | 86Trucks SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI)?

Key specs of SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI): Drive: 8x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) suited for?

SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) differ from other variants in the same series?

SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI) belongs to SHACMAN Delong X5000 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000S 400hp 8X4(12 wheels) 9.5m Wing Opening Box Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
