Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck

Export reference
From $40,278
MSRP ¥29M CNY
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.765ton
Wheelbase:: 1850+3200+1300mm
Tire Size:: 11.00R20-16
Rated payload: 16.04ton
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck is a Heavy truck featuring 16.04t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6L290-42 engine, 290 hp, China IV emissions and Fast Gear transmission.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3314L16Y4B14
Drive type: 8X4
Wheelbase: 1850+3200+1300mm
engine: YuchaiYC6L290-42
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.143
Cab length: 9.66m
Cab width: 2.49m
Cab height: 3.32m
Front track width: 1986/1986mm
rear track: 1860/1860mm
Curb Weight: 14.765ton
Rated payload: 16.04ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6L290-42
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.235m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: 153 dual rear axle
rear axle allowable load: 17990kg
Axle ratio: 5.143
Leaf spring count: 9/9/10
Tire
Tire Size: 11.00R20-16
Number of tires: 12pcs

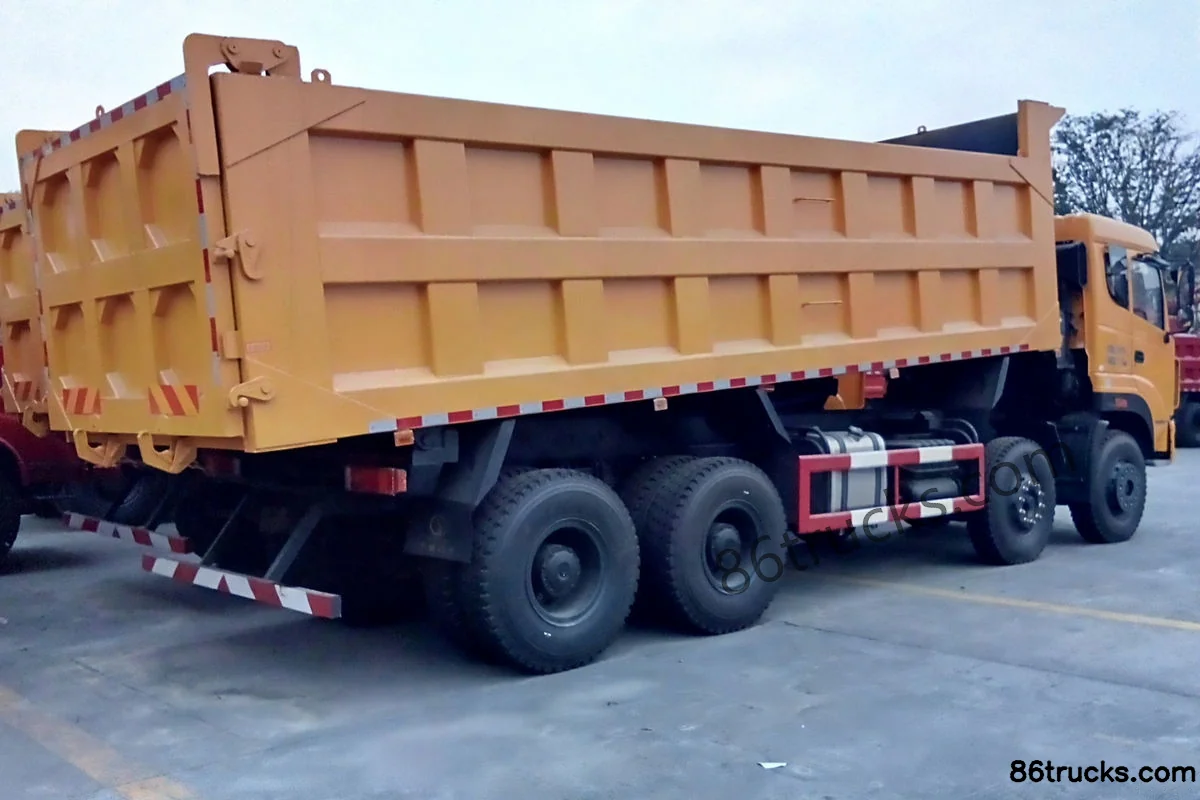

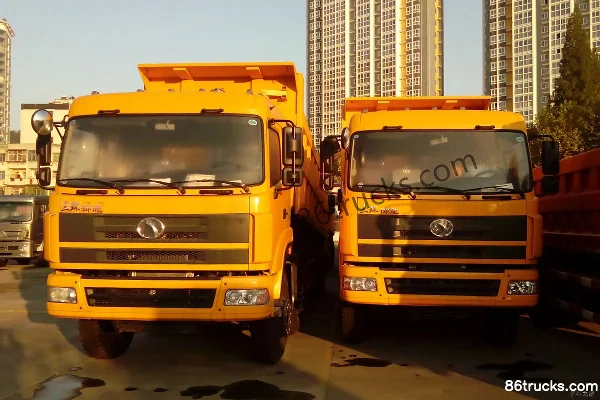

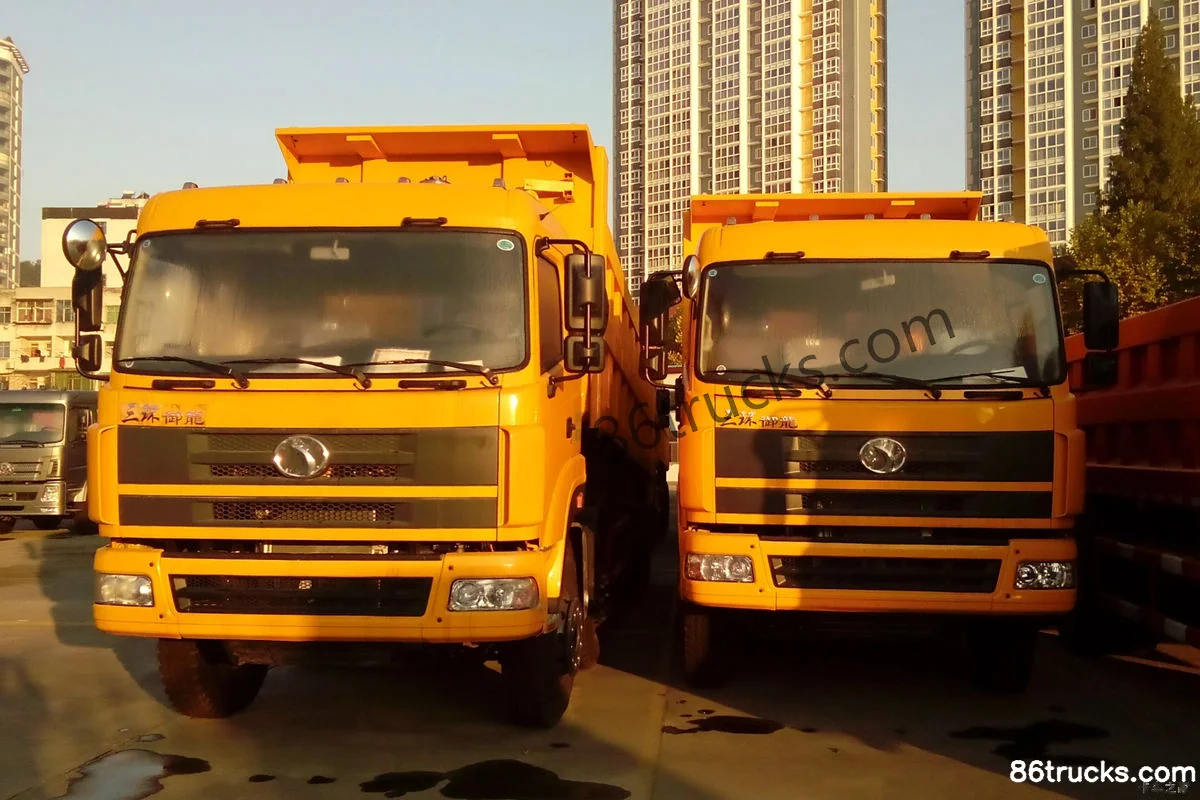

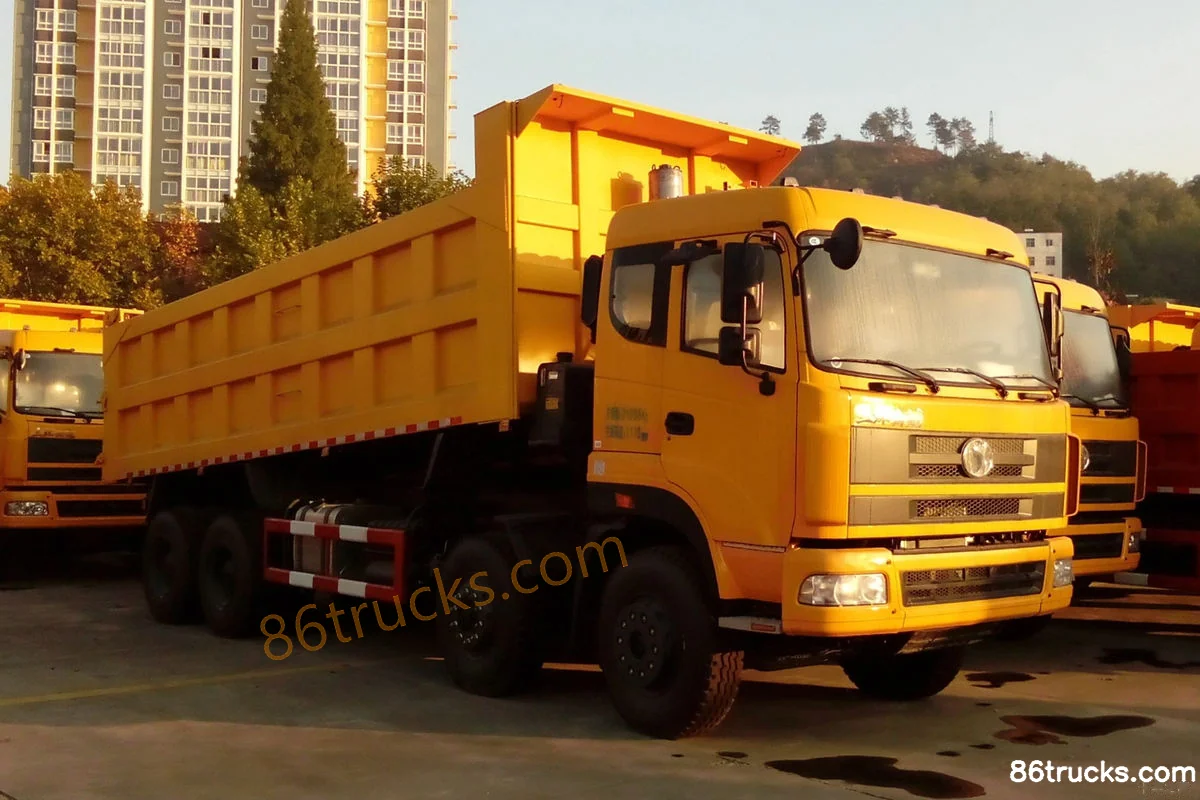

Photos

Exterior3

3 photos

FAQ

What is the export price of Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck, and what does it include?

Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck export reference is about From $40,278; MSRP is ¥29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck?

Key specs of Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck suited for?

Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck belongs to Sanhuan Shitong Yulong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Yulong Heavy Truck 290 hp 8X4(12 wheels) 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
