Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck

Export reference
MSRP N/A
Horsepower: 87
Emission: China V (Beijing)
Fuel: Gasoline-CNG Dual Fuel
Engine: Wuling Liuji1.2L
Transmission: Qingshan
Curb Weight:: 1.245ton
seating capacity: 2Personnel
Rated payload: 1.15ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck is a mini truck featuring 2.8m cargo length, stake body cargo body, 2Personnel volume and 1.15t payload. On the powertrain side, it comes with a Wuling Liuji1.2L engine, 87 hp, 4X2 (6 wheels) drive and China V (Beijing) emissions.

China V (Beijing) 87 Gasoline-CNG Dual Fuel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1036V4JL6-T5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3070mm
Box length class: 2.8m
engine: Wuling LiujiLJ469Q-1AE9
transmission: QingshanMR513B
Rear Axle Ratio: 5.286
Cab length: 4.88m
Cab width: 1.7m
Cab height: 1.925m
Front track width: 1338mm
rear track: 1375mm
Curb Weight: 1.245ton
Rated payload: 1.15ton
GVWR: 2.545ton
Max. speed: 115km/h
Origin: Beijing
tonnage class: mini truck
Approach angle: 39°
departure angle: 23°
Front/rear suspension: 0.605/1.205m
Version: 2012 model
Energy Type: Gasoline-CNG Dual Fuel
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ469Q-1AE9
Engine info: Wuling Liuji1.2L
Number of cylinders: 4cylinder
fuel type: Gasoline-CNG Dual Fuel
Cylinder arrangement: Inline
Displacement: 1.249L
Emission standard: China V (Beijing)
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 118N·m
Max torque speed: 6000rpm
Rated speed: 4000rpm
Transmission Parameters
Transmission Model: QingshanMR513B
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters

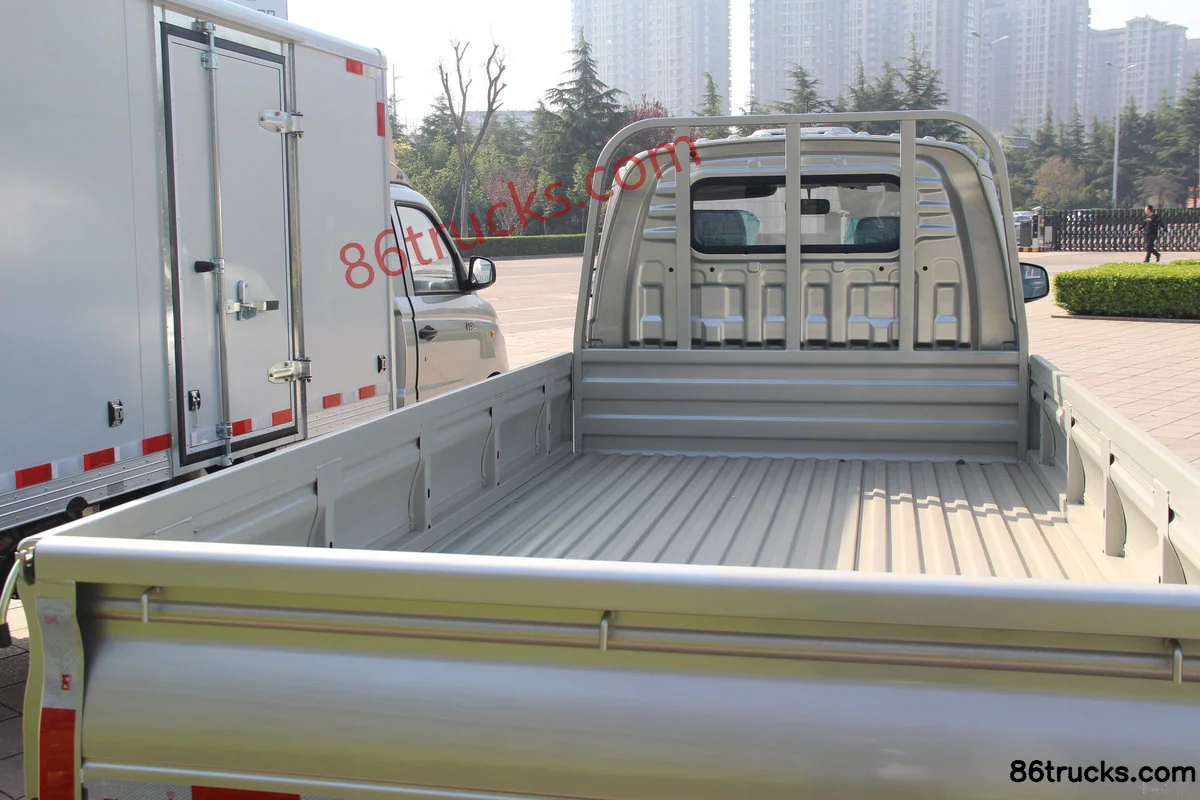

Cargo box type: stake body
Cargo box length: 2.8m
Cargo box width: 1.56m
Cargo box height: 0.36m
*Cargo box interior width: 1.56
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Sunroof: Manual sunroof
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 700kg
rear axle description: 102 rear axle
rear axle allowable load: 1845kg
Axle ratio: 5.286
Leaf spring count: -/5
Suspension (front/rear): Front MacPherson independent suspension / rear leaf spring non-independent suspension
Tire

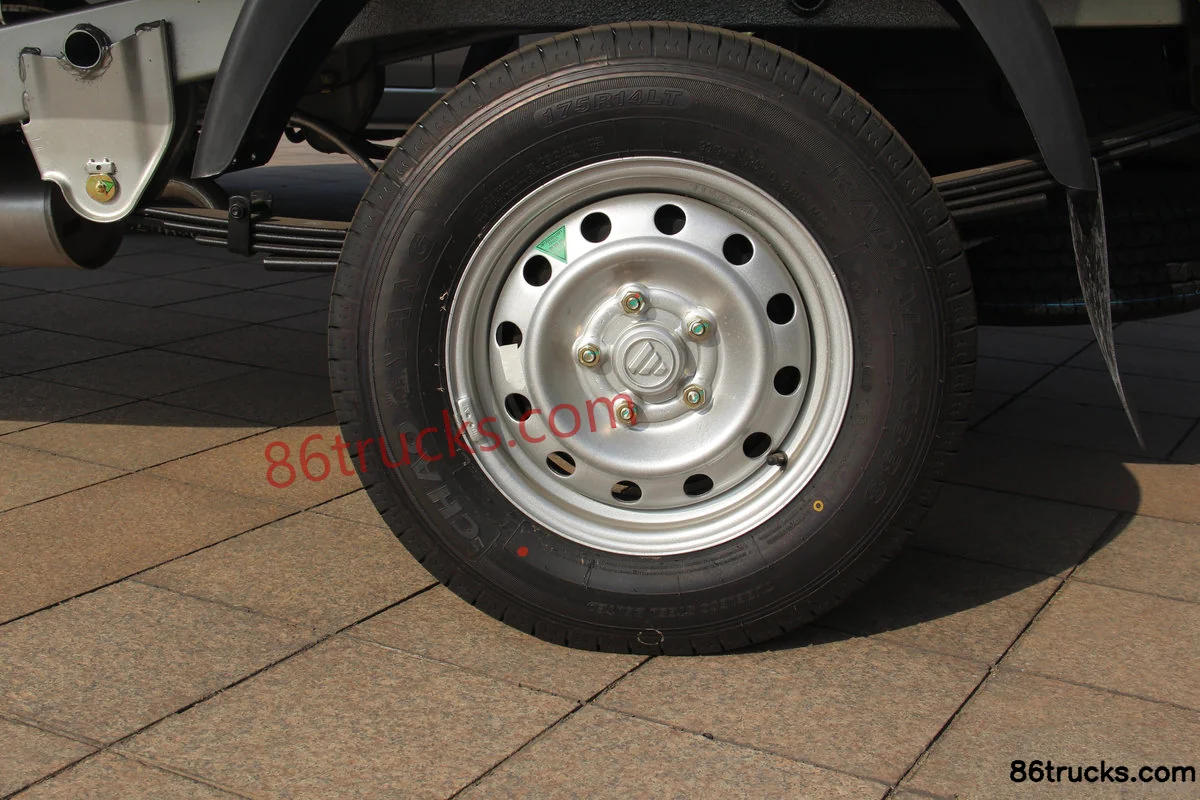

Tire Size: 175R14LT 8PR
Number of tires: 4pcs
interior configuration
AC control type: Optional manual.
Power Windows:
Electronic Central Lock:

Photos

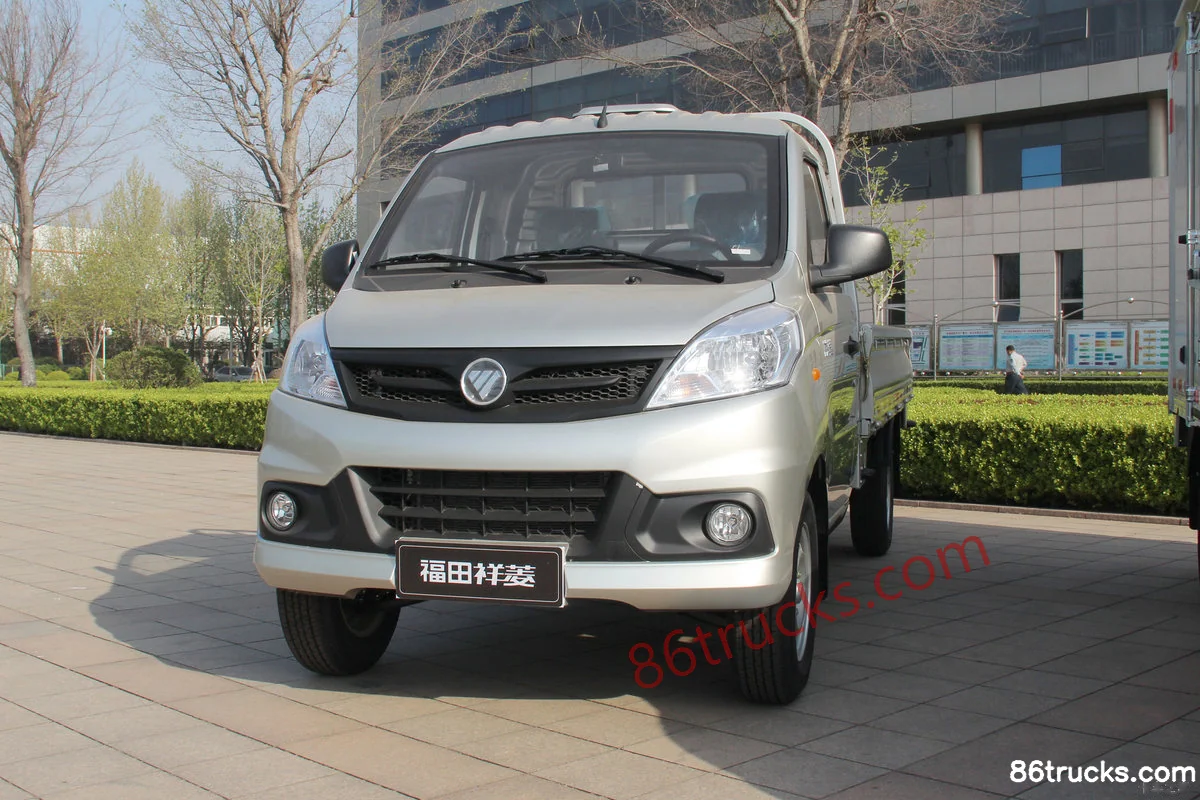

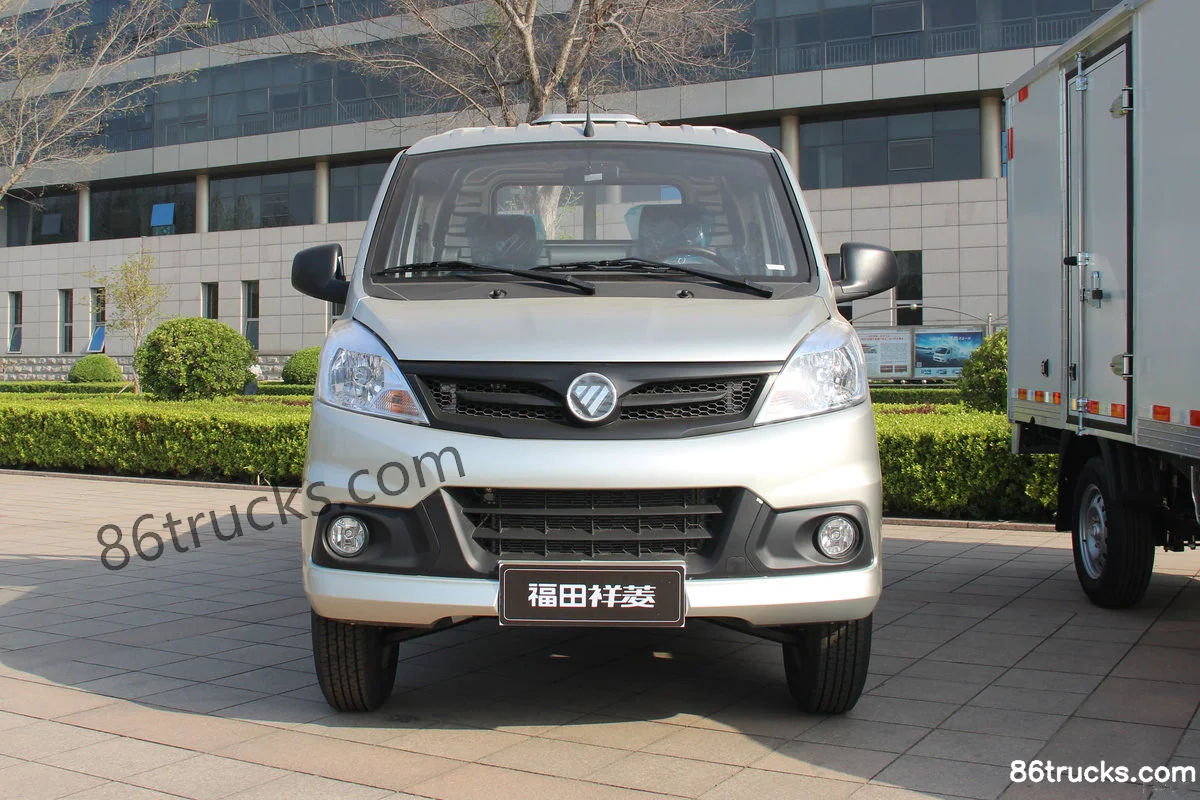

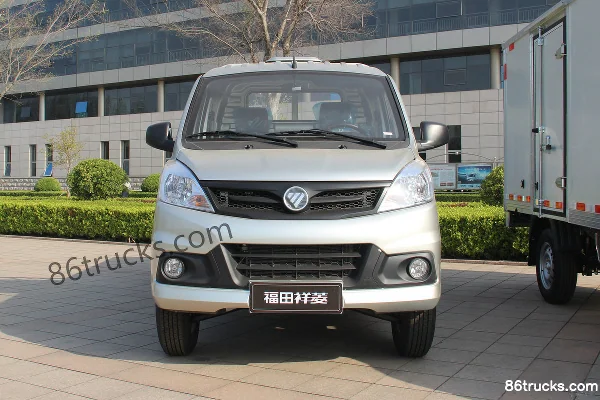

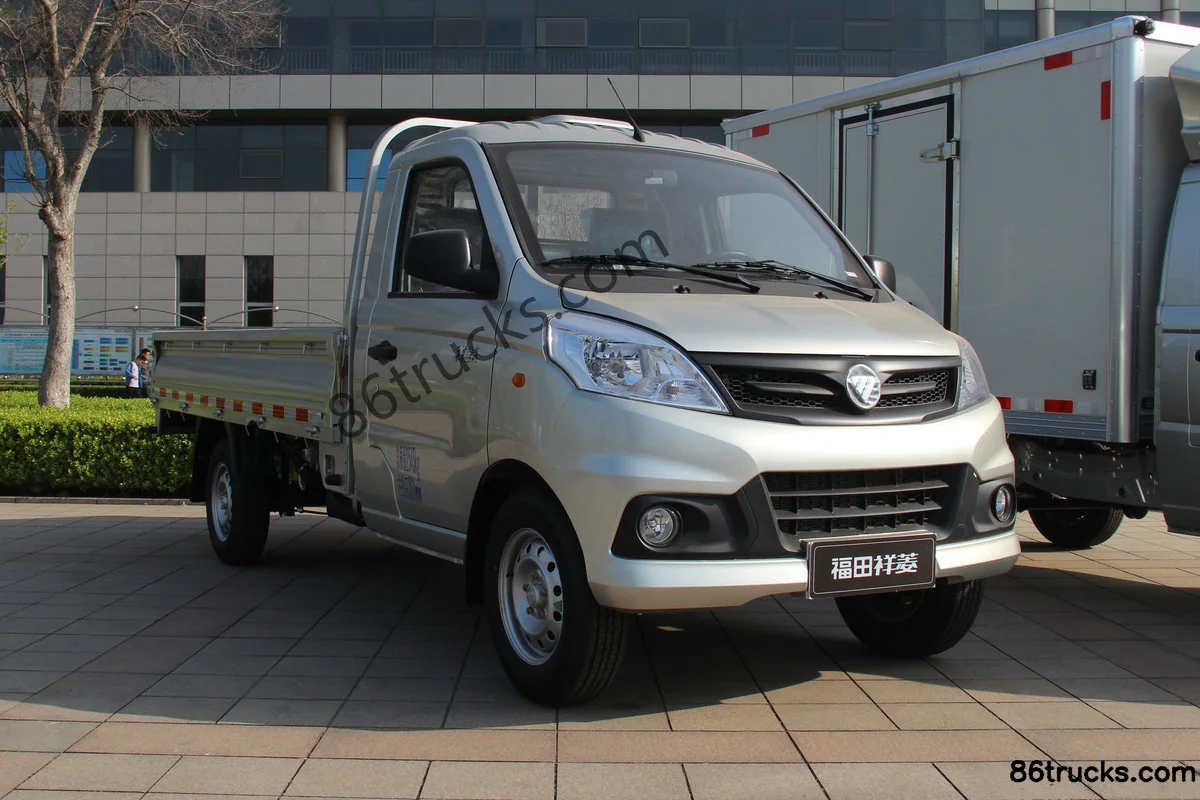

Exterior3

Cab3

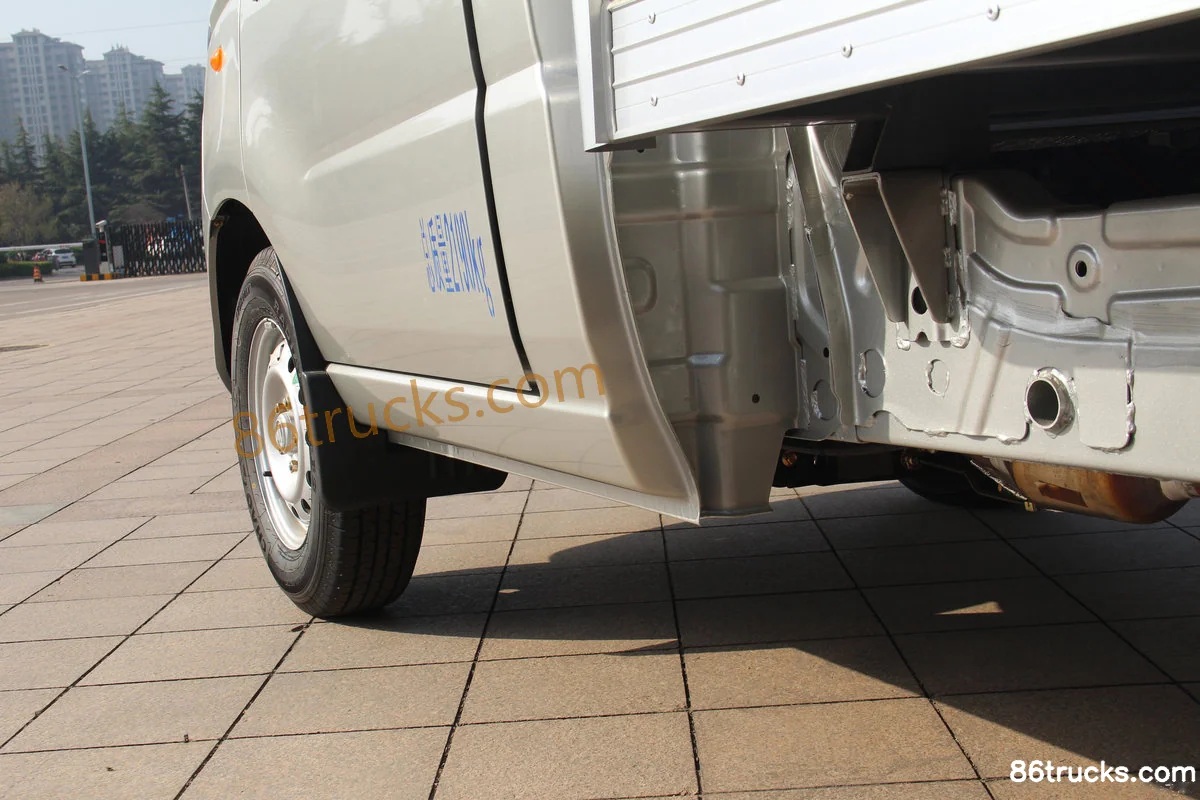

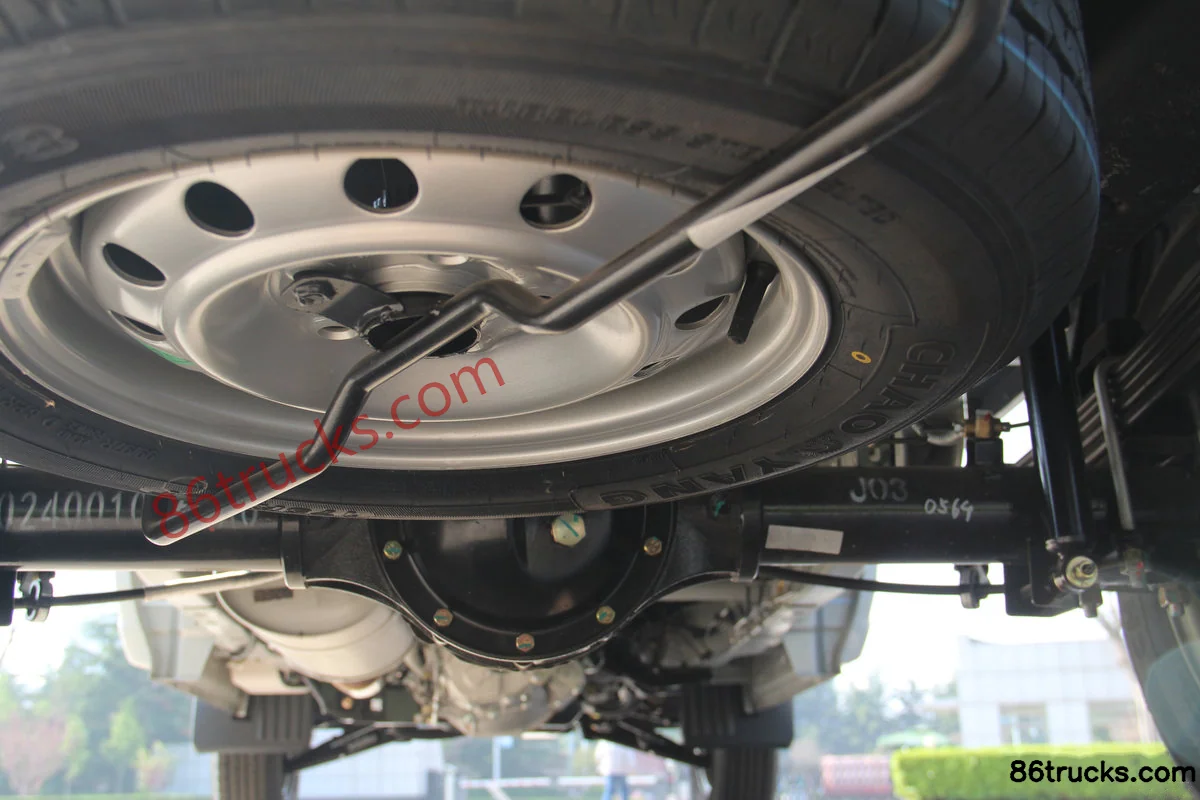

Chassis1

7 photos

FAQ

What emission standard does Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck use, and can it enter my country?

This model is listed as China V (Beijing). Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck?

Key specs of Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck: Drive: 4x2; Horsepower: 87 hp; Emission: China V (Beijing); Fuel: Gasoline-CNG Dual Fuel; Engine: Wuling Liuji1.2L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck suited for?

Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck differ from other variants in the same series?

Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck belongs to Foton V1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling V1 1.3L 87 hp 4X2(6 wheels) Gasoline/CNG 2.8m single-row flatbed micro truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
