Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.55×2.49×3.55m
Type:: truck-mounted crane
GVWR:: 13.57ton
Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) exterior
View more photos (12)
Lifting capacity: 7ton
Drive 4X2 (6 wheels)
Horsepower 129
Rated mass: 5.175ton

Overview

The Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) is a truck-mounted crane featuring 7ton tank capacity, 13.57t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 129 hp, China V emissions and Diesel fuel.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 7.55×2.49×3.55m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900mm
Rated mass: 5.175ton
GVWR: 13.57ton
Remarks: Optional ratio 5.286
Front/rear suspension: 1.26/2.39m
Energy Type: Diesel
Body Parameters

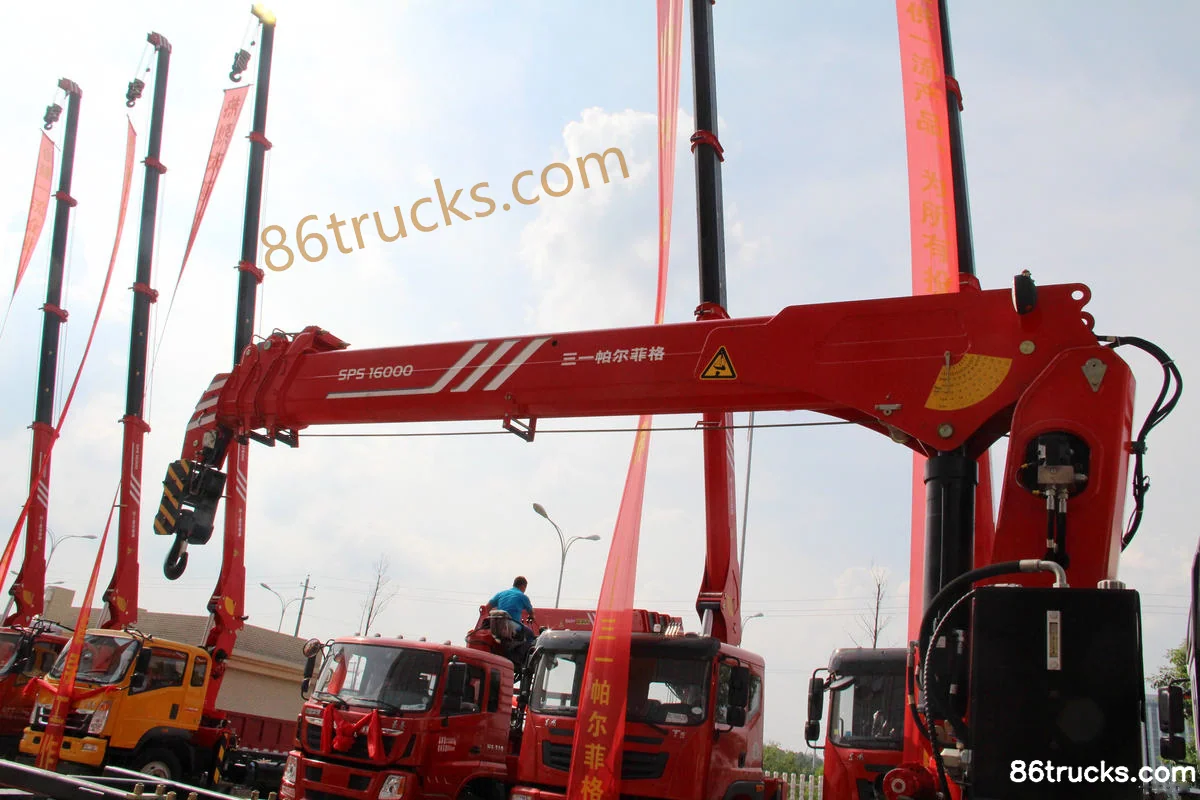

Crane model: SPS16000BF
Lifting capacity: 7ton
Vehicle certification code: ZZ5148JSQF17EB0
Body Brand: Sinotruk
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: HOWO MAN H3
Chassis Model: ZZ1148F17EB1
Frame Dimensions: 250/6+5/800mm
rear axle description: 1094D rear axle
Axle ratio: 5.833
Leaf spring count: 9/11+8
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY10H46
Cab parameters
Cab: Sleeper cab 2080
Tire
Tire Size: 8.250R20
Number of tires: 6pcs

Photos

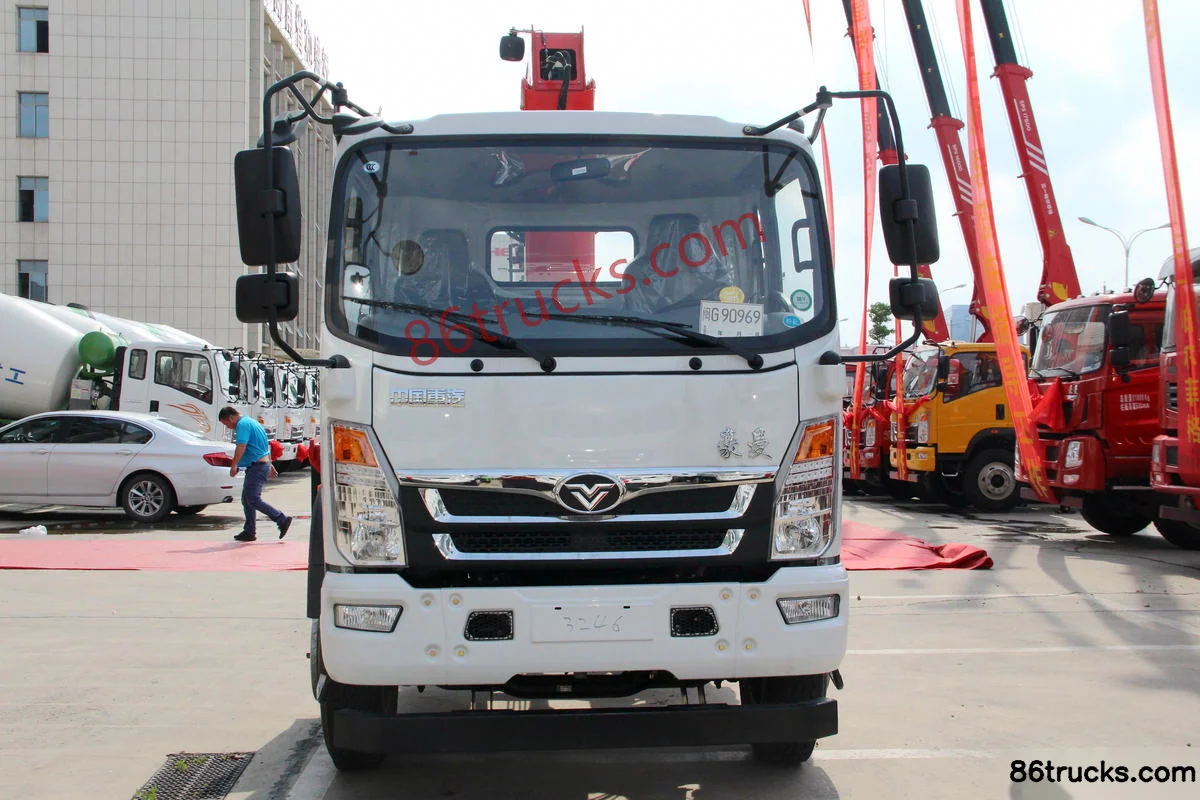

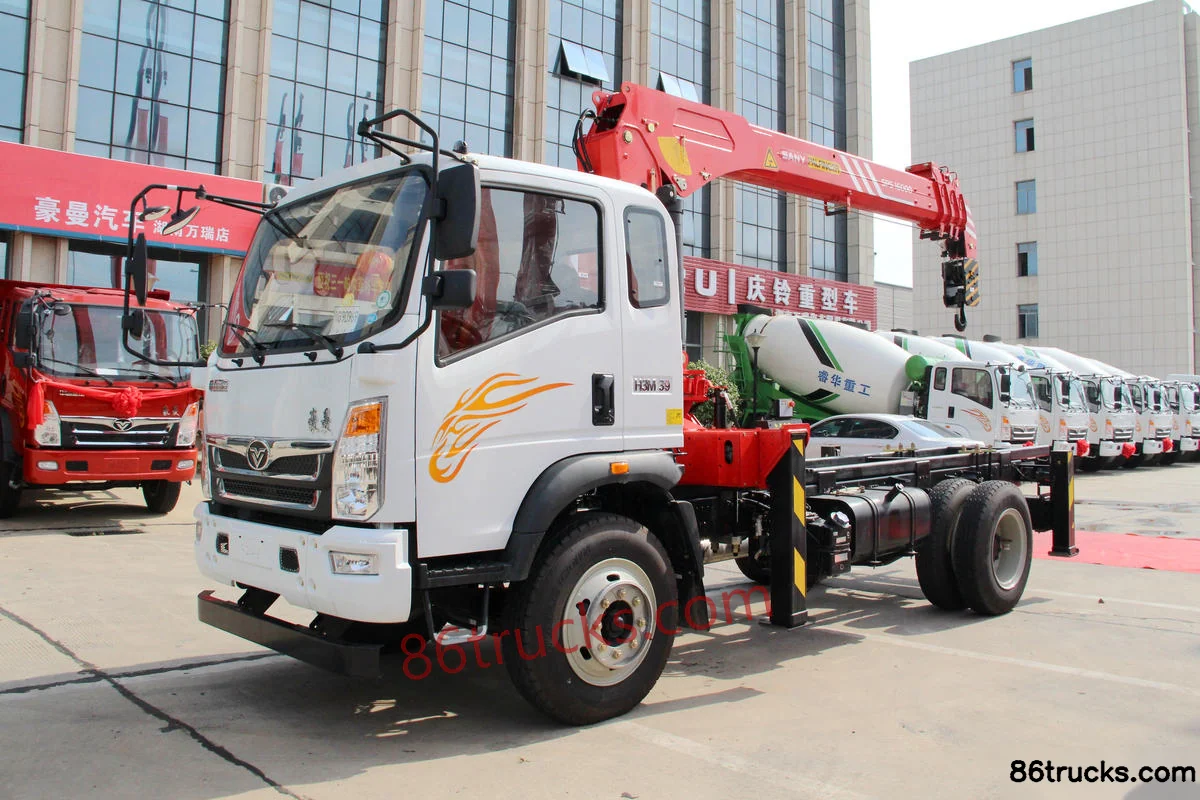

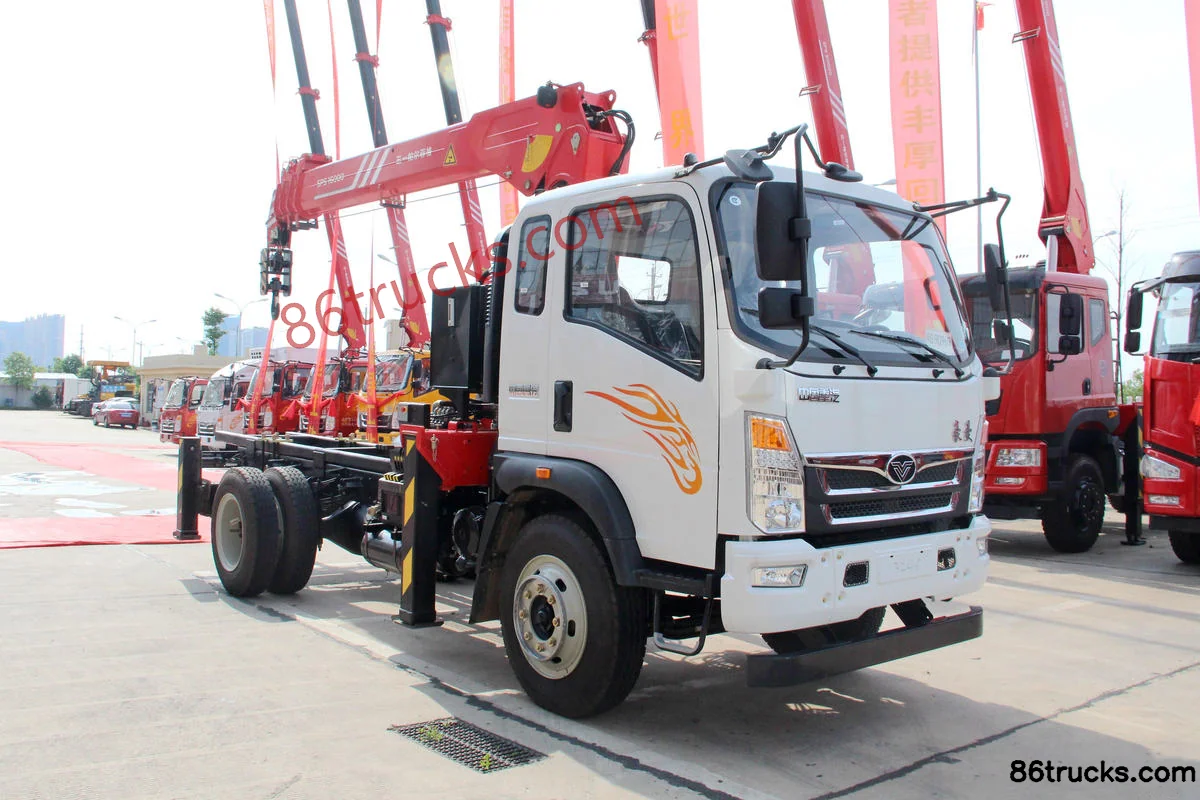

Exterior3

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Exterior (1) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Exterior (2) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Exterior (3) | 86Trucks

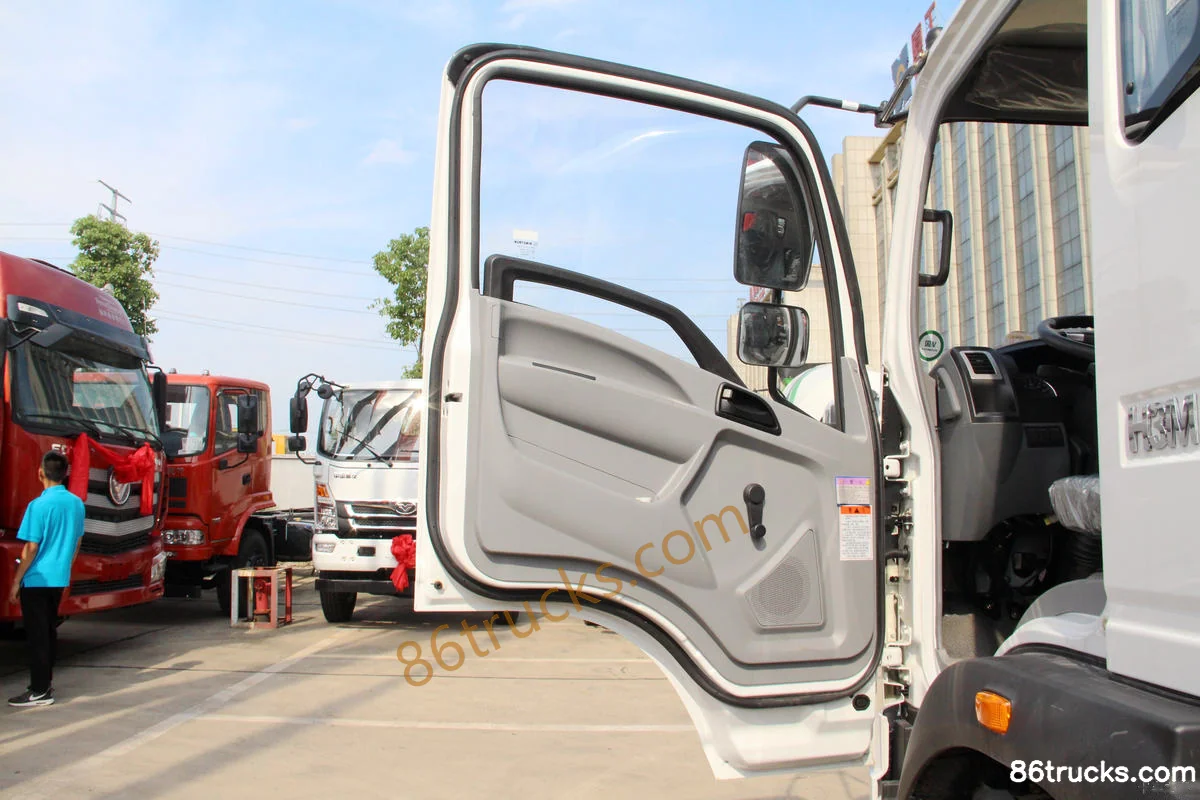

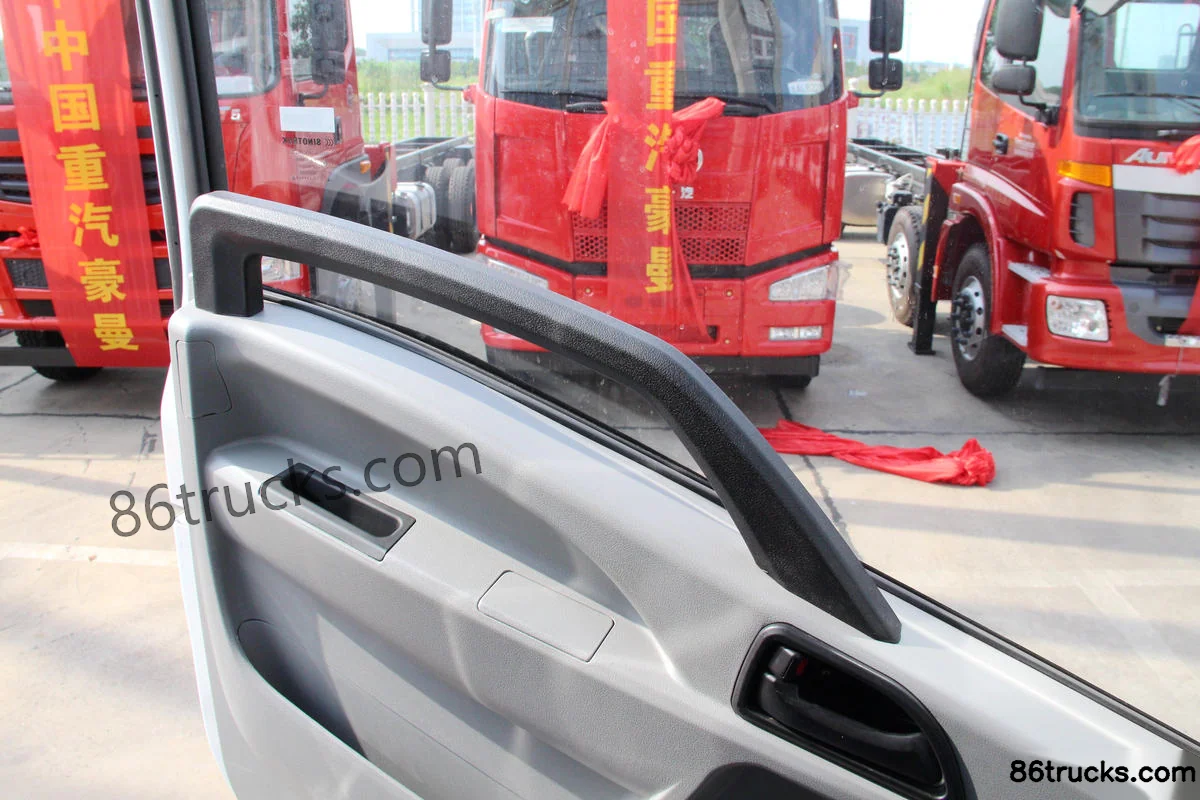

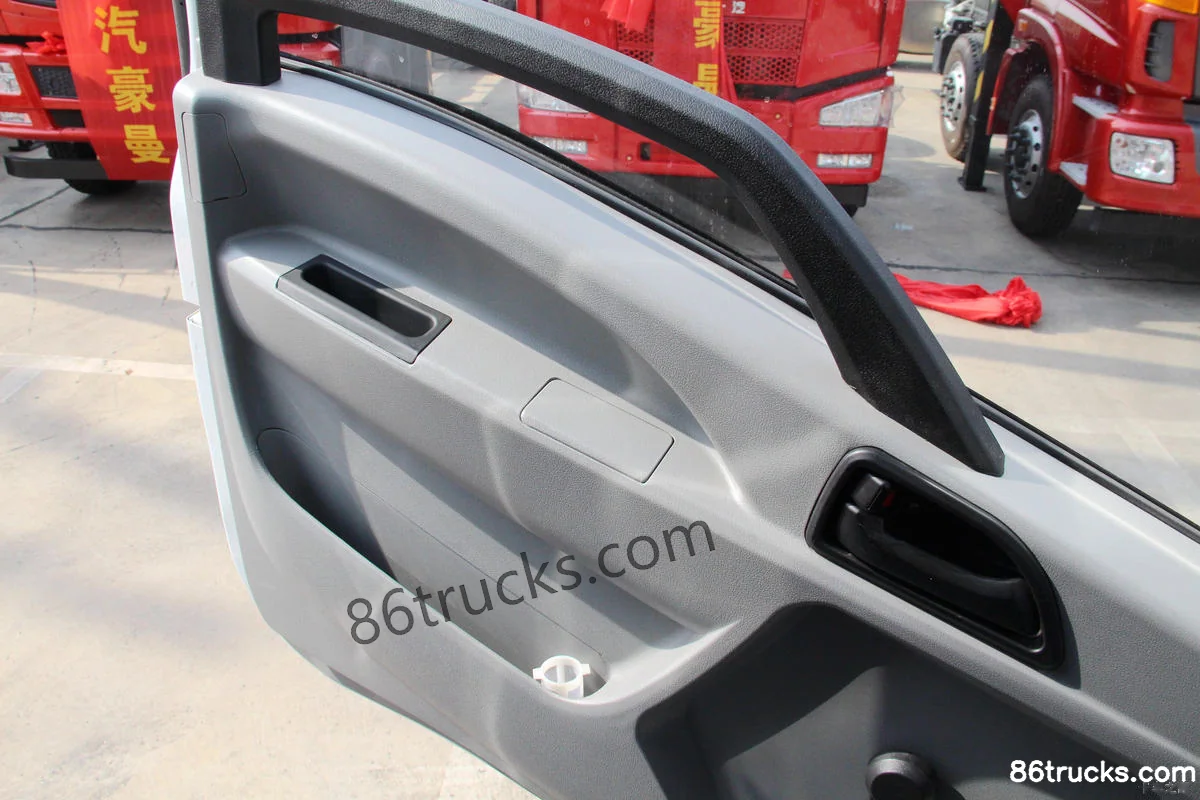

Cab3

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Cab (1) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Cab (2) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Cab (3) | 86Trucks

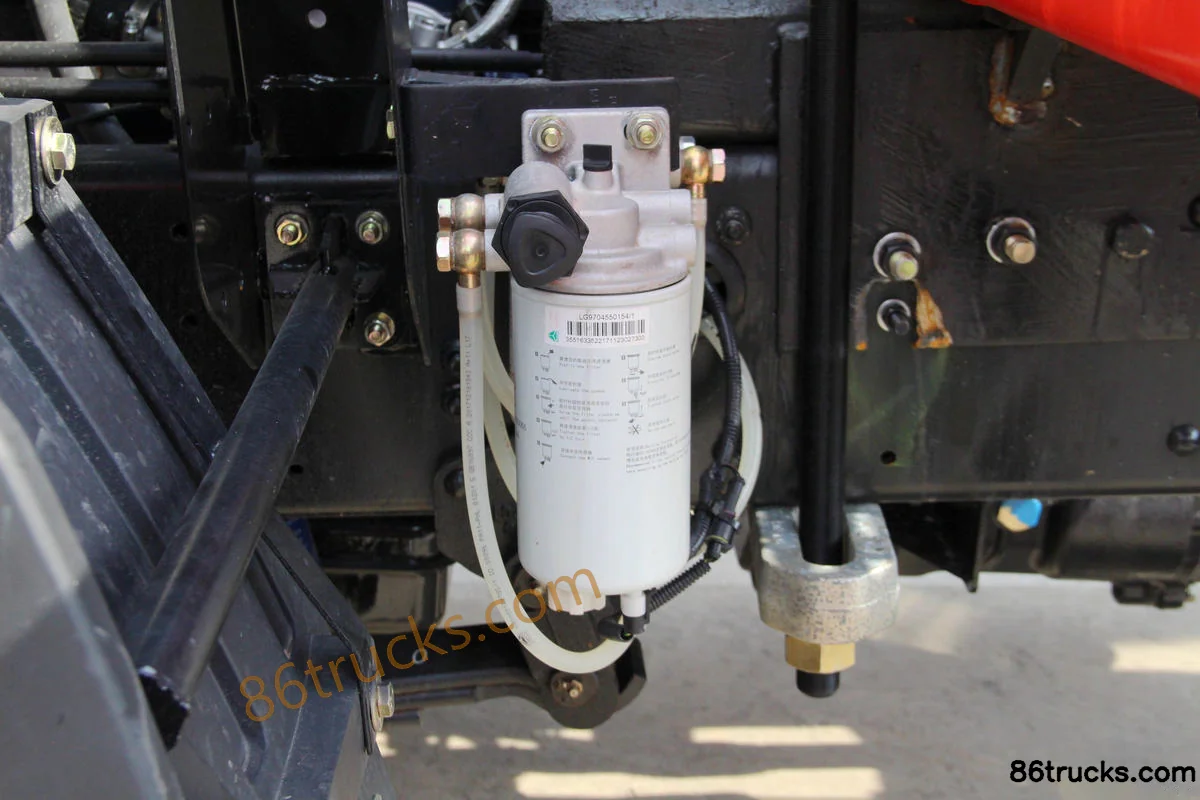

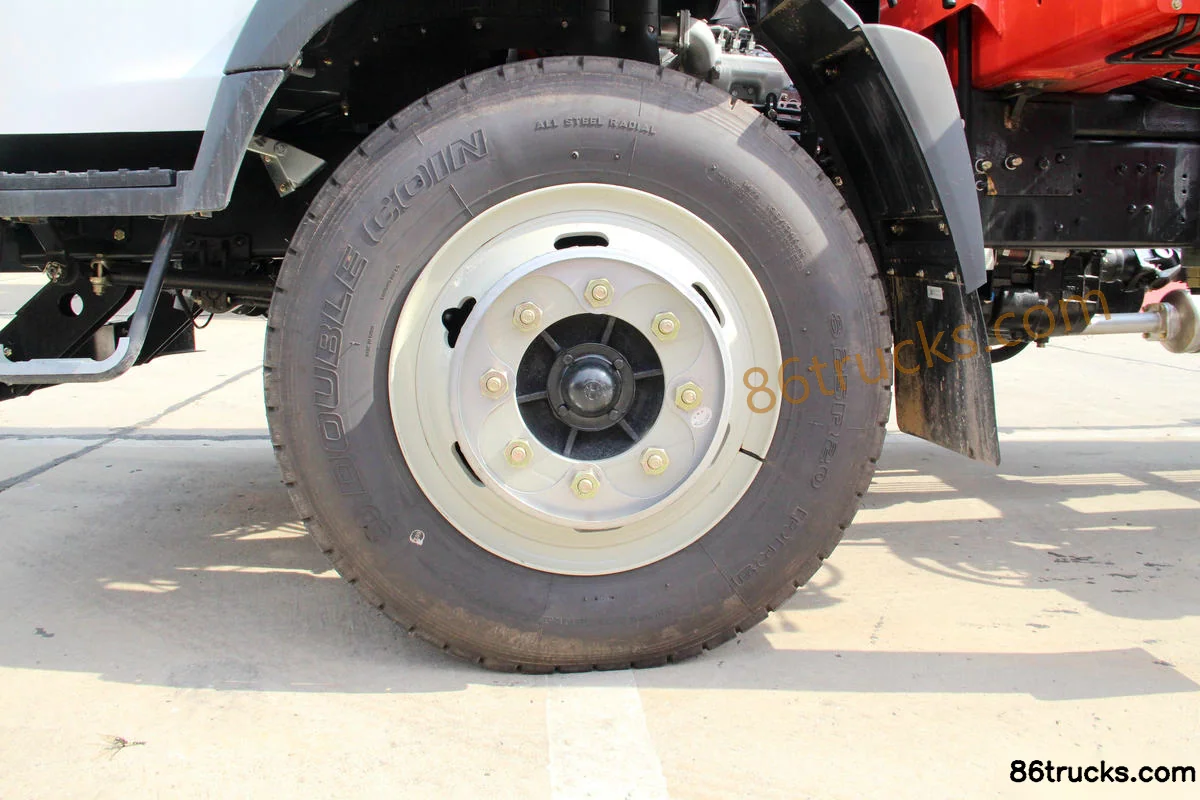

Chassis3

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Chassis (1) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Chassis (2) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) Chassis (3) | 86Trucks

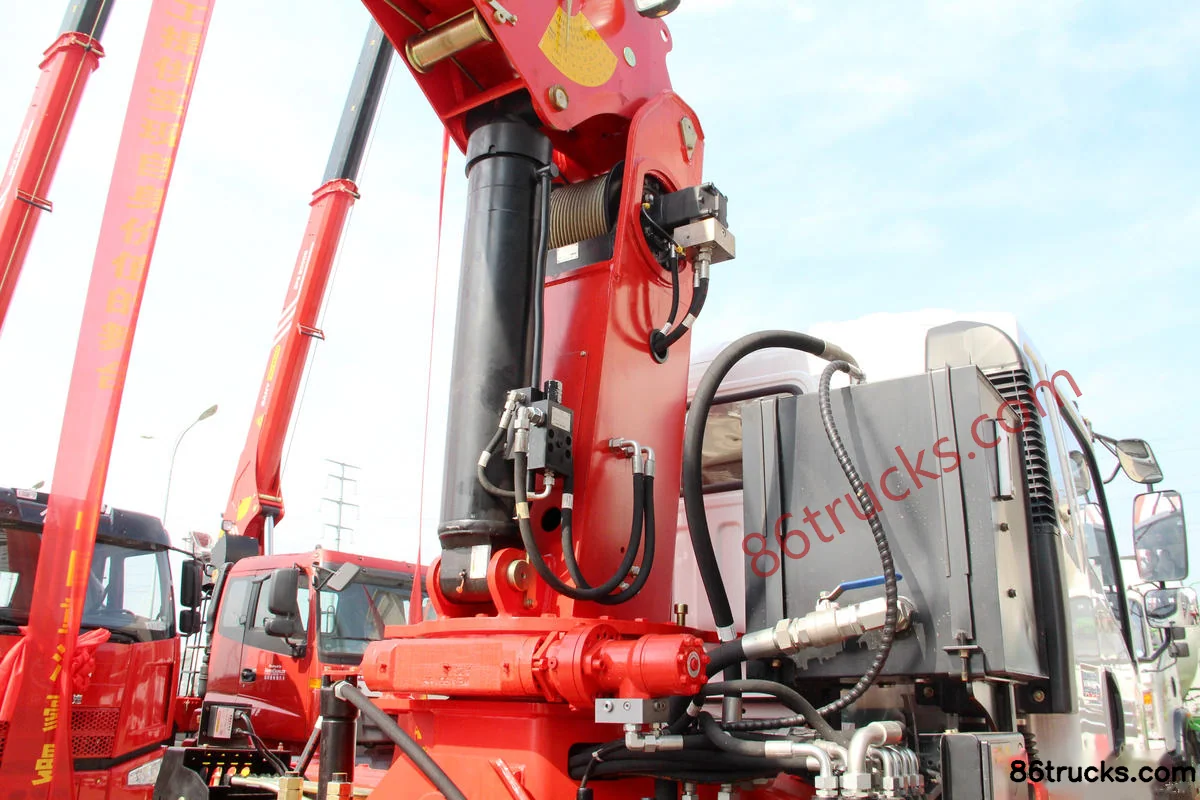

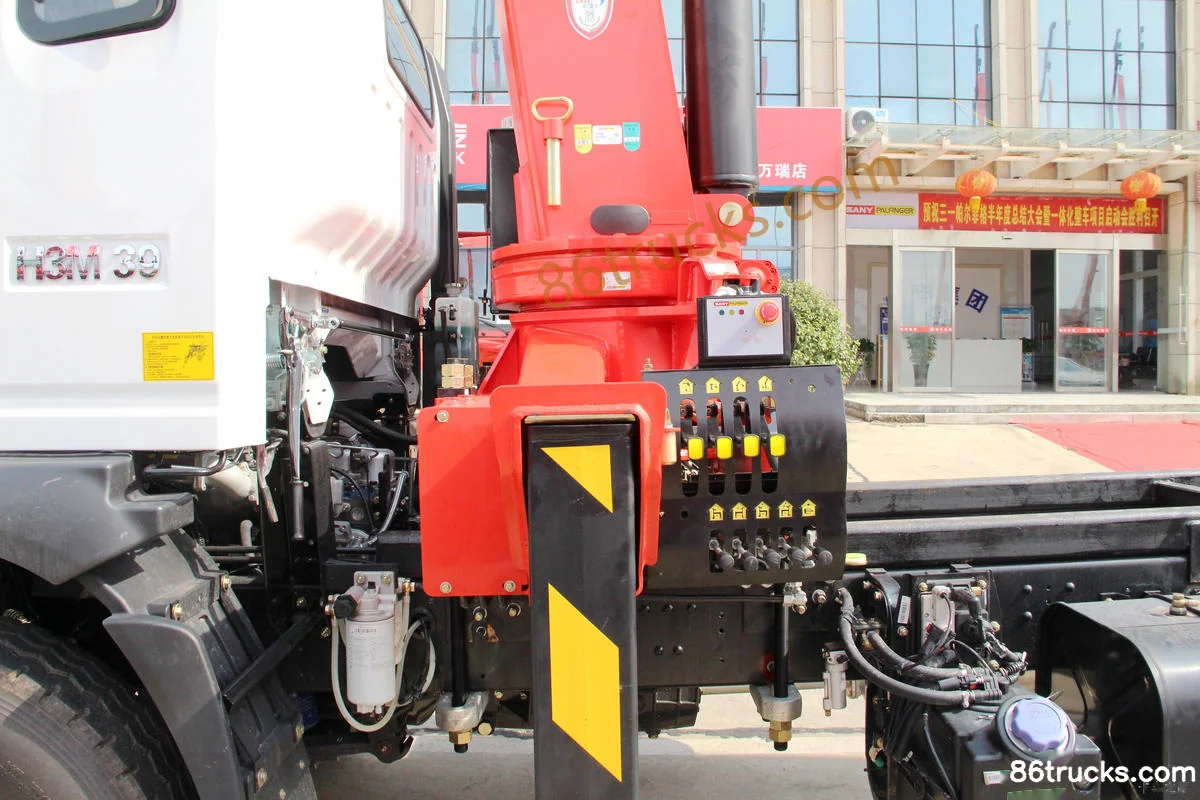

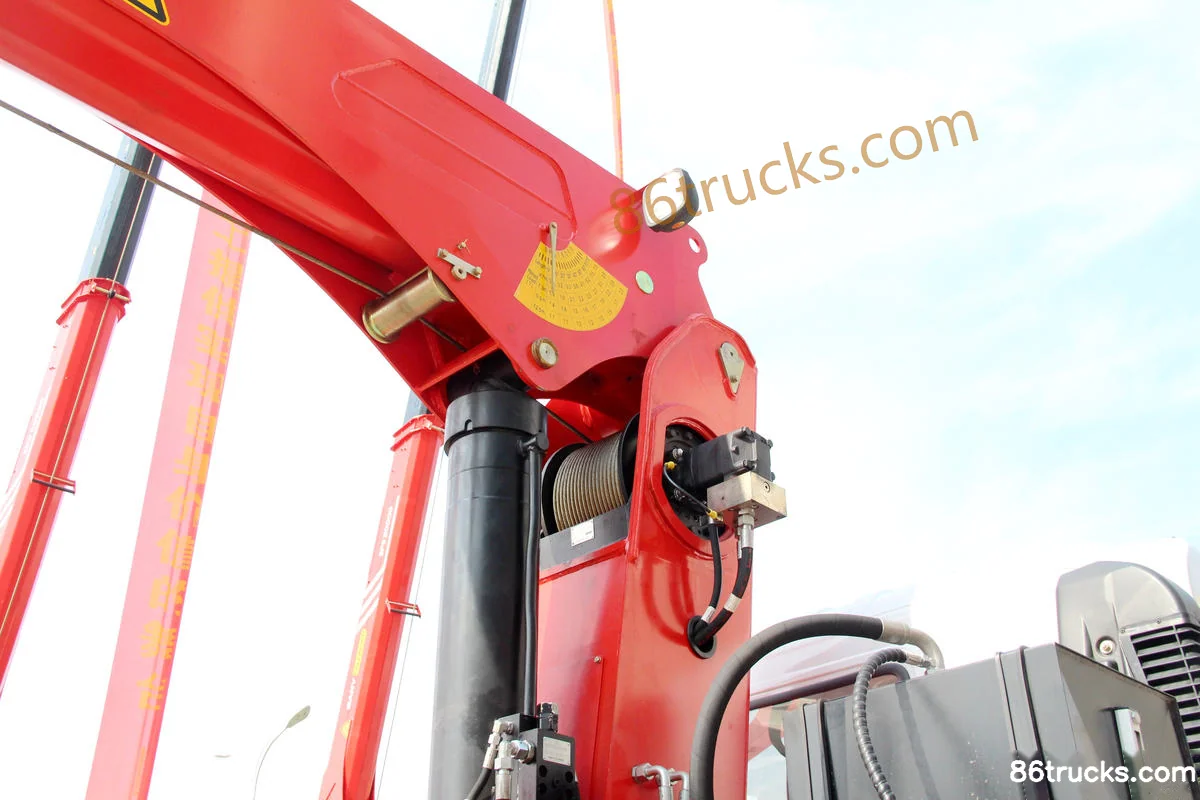

Body3

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) (1) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) (2) | 86Trucks Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) (3) | 86Trucks

12 photos

FAQ

What emission standard does Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body)?

Key specs of Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body): Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) suited for?

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) differ from other variants in the same series?

Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body) belongs to Sinotruk Pioneer Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 129 hp 4X2(6 wheels) Truck-Mounted Crane (Wide Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
