Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 2.25ton
Wheelbase:: 3308mm
Tire Size:: 7.00-16LT 6PR
Cab dimensions:: 5.995×2.03×2.329m
Truck Type:: Refrigerated Truck
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 125
Emission China V

Overview

The Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis is a Refrigerated Truck featuring 1.495t payload, Flat roof cab and 3308mm wheelbase. On the powertrain side, it comes with 125 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 125 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.03×2.329m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3308mm
Front track width: 1591mm
rear track: 1485mm
Curb Weight: 2.25ton
Rated payload: 1.495ton
Max. speed: 105km/h
Front/rear suspension: 1.118/1.569m
Energy Type: Diesel
Engine parameters
Engine Model: SDECSC28R125Q5A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.776L
Emission standard: China V
Max output power: 92kW
Max hp: 125Horsepower
Max torque: 340N·m
Rated speed: 3000rpm
Body Parameters
Body Brand: Yuejin
Chassis Specs
Chassis Brand: Yuejin
Chassis Series: Chaoyue C Series
Chassis Model: NJ1042ZFDCMZ1
Axle ratio: 4.43
Leaf spring count: 3/8+9
Transmission Parameters
Number of gears: 5Gear
Transmission Model: NAVECO2830.5
Cab parameters
Cab: Flat roof
Tire
Tire Size: 7.00-16LT 6PR
Number of tires: 6pcs

Photos

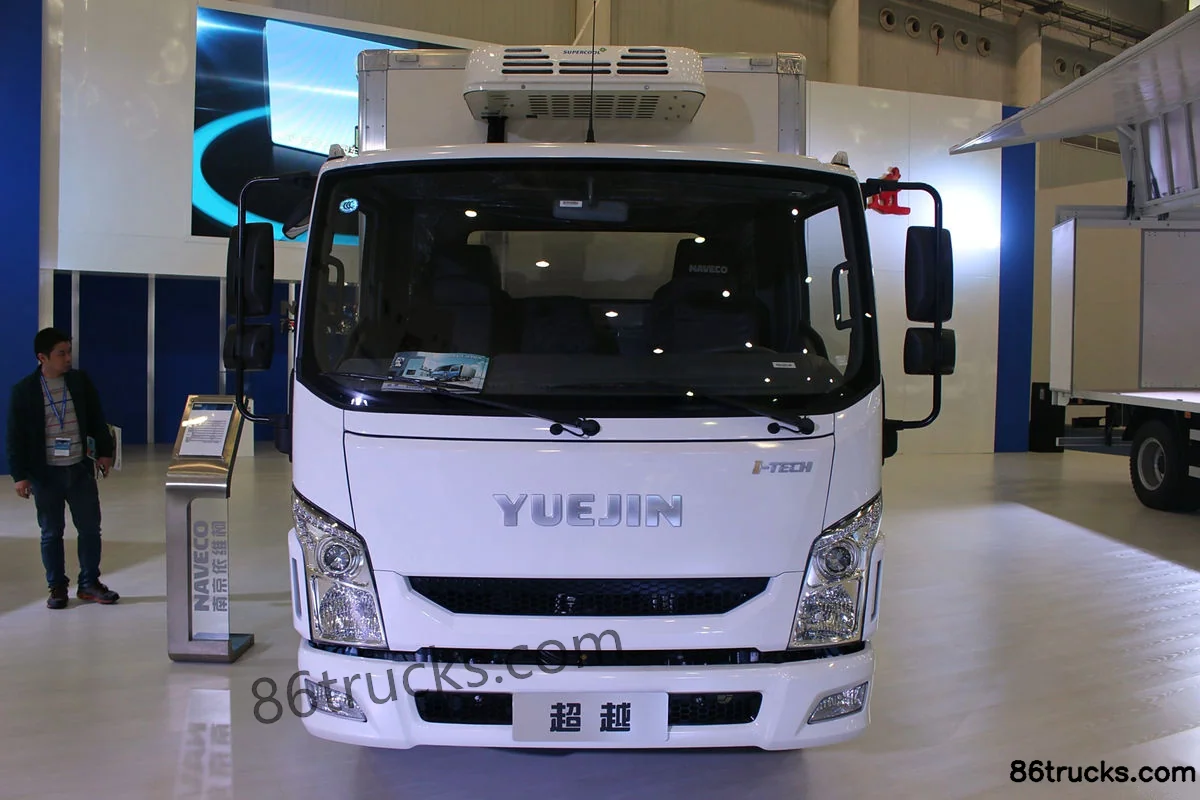

Exterior1

1 photos

FAQ

What emission standard does Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis?

Key specs of Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis: Drive: 4x2; Horsepower: 125 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis suited for?

Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis differ from other variants in the same series?

Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis belongs to Yuejin Chaoyue C Series Light-duty Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C300 125hp 4X2(6 wheels) 3308mm Wheelbase Refrigerated Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
