Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension)

Export reference
MSRP N/A
Horsepower: 510
Emission: China VI
Fuel: Diesel
Engine: Sinotruk13L
Transmission: Sinotruk
Curb Weight:: 12.5ton
seating capacity: 2Personnel
Rated payload: 19.37ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Van body cargo body, 2Personnel volume and 19.37t payload. Its segment focus covers General dry cargo and green channel, matching those duty cycles. On the powertrain side, it comes with a Sinotruk13L engine, 510 hp, 8X4 (12 wheels) drive and China VI emissions.

China VI 510 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5327XXYV466HF1K
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1950+4600+1400mm
Box length class: 9.5m
engine: SinotrukMC13H.51-61
transmission: SinotrukHW16C-WY
Rear Axle Ratio: 3.36
Cab length: 11.985m
Cab width: 2.55m
Cab height: 4m
Front track width: 2022/2022mm
rear track: 1848/1848mm
Curb Weight: 12.5ton
Rated payload: 19.37ton
GVWR: 32ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 15°
departure angle: 15°
market segment: General dry cargo, green channel
Remarks: Optional: maintenance-free front axle, four-way camera
Front/rear suspension: 1.54/2.495m
Version: Ben Ying edition
Energy Type: Diesel

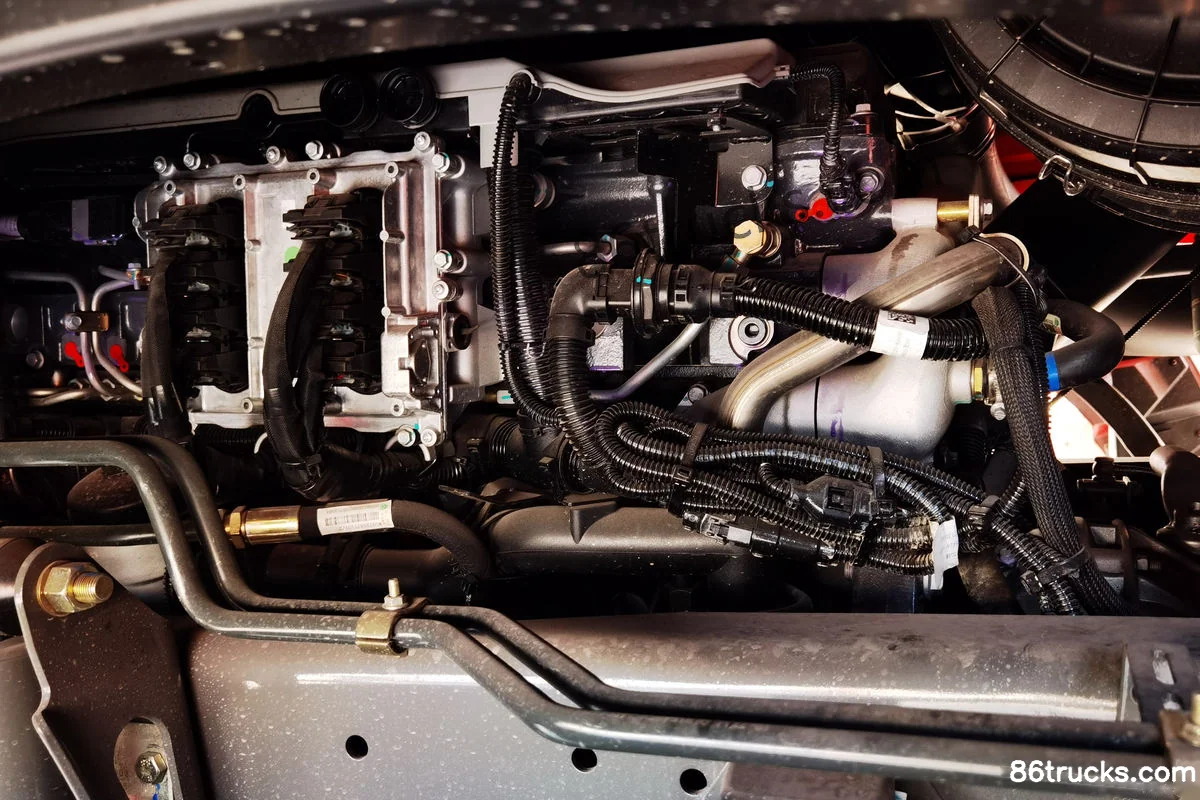

Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC13H.51-61
Engine info: Sinotruk13L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.02L
Emission standard: China VI
Max output power: 378kW
Max hp: 510Horsepower
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW16C-WY
Transmission Brand: Sinotruk
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.45m
Cargo box height: 2.5m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: TH-E
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/7000kg
Frame Dimensions: 8/300mm
rear axle description: MCJ11BGY
rear axle allowable load: 18500 (two-axle group)kg
Axle ratio: 3.36
Leaf spring count: 4/4/-/-
Tire

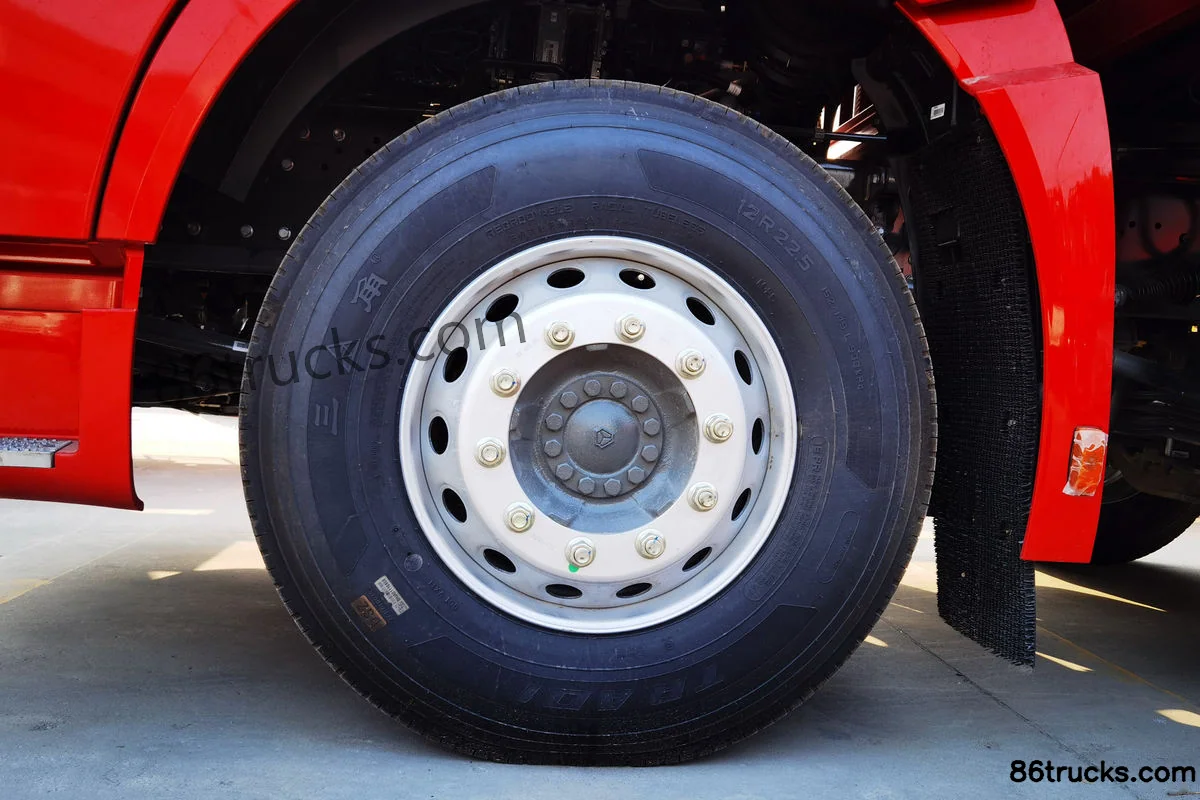

Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

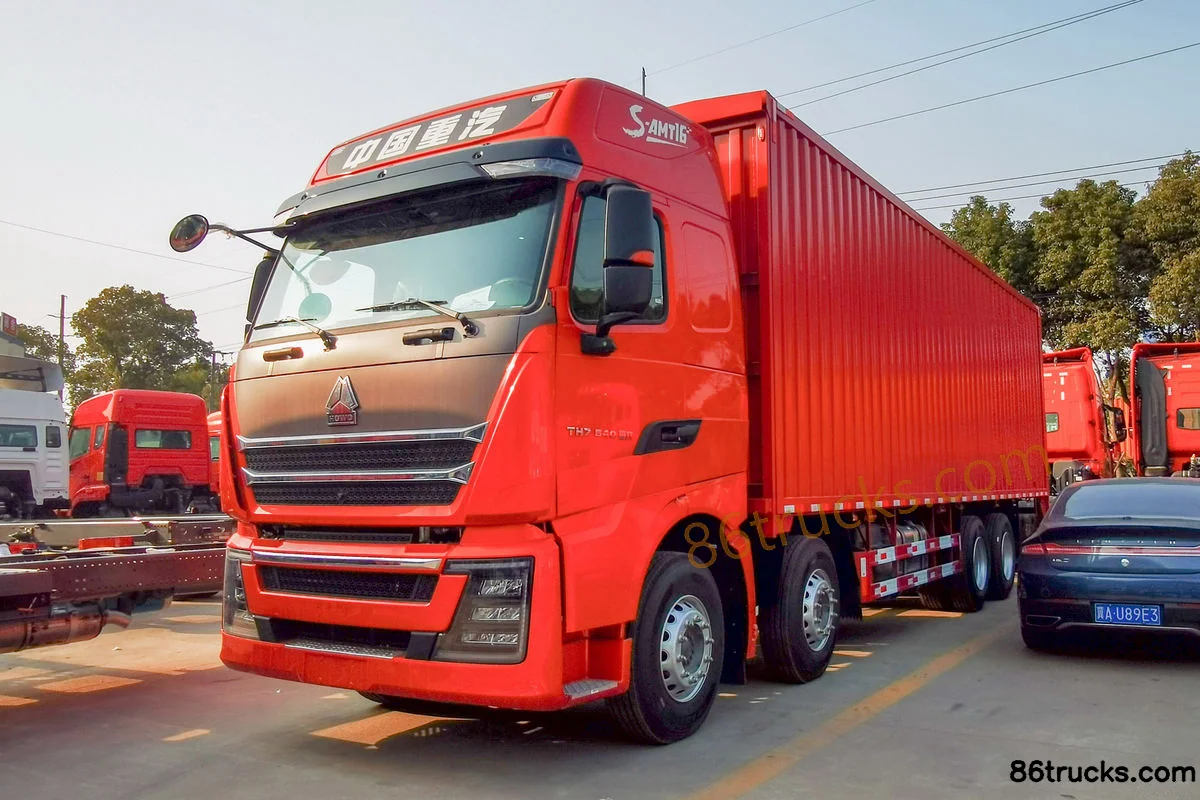

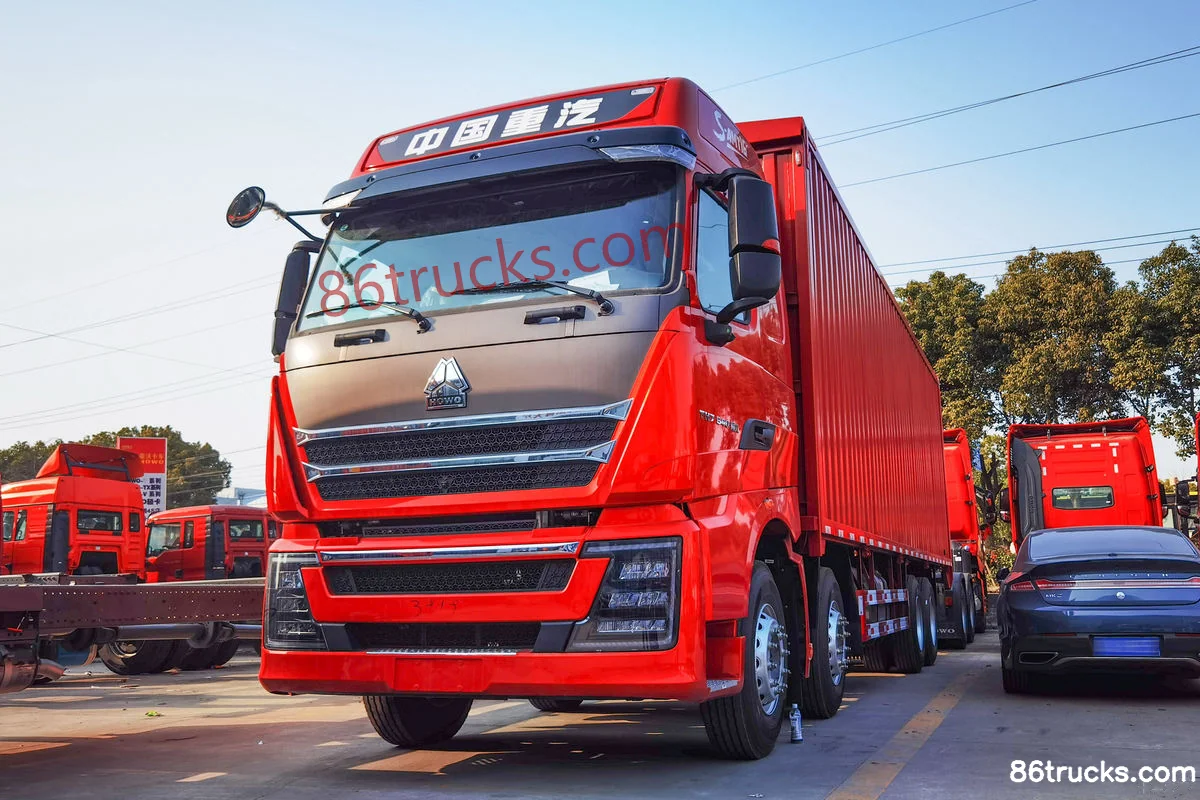

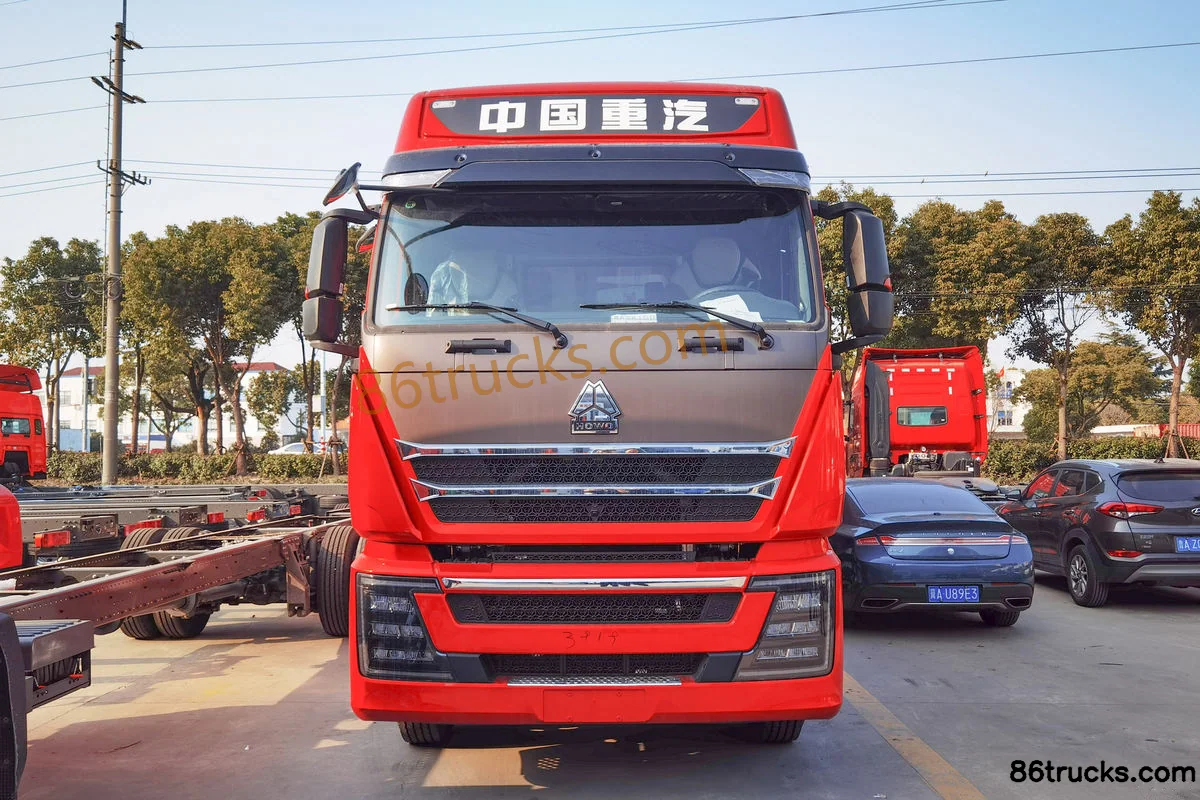

Exterior3

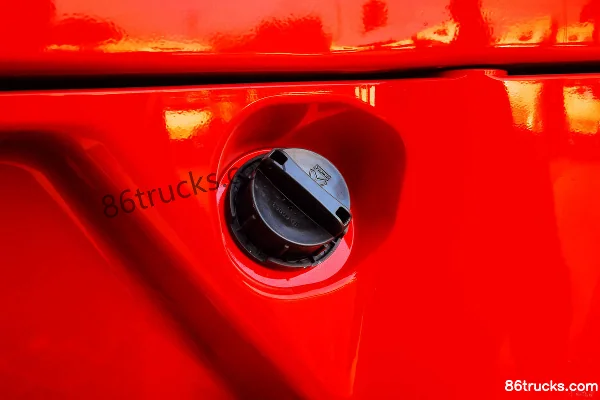

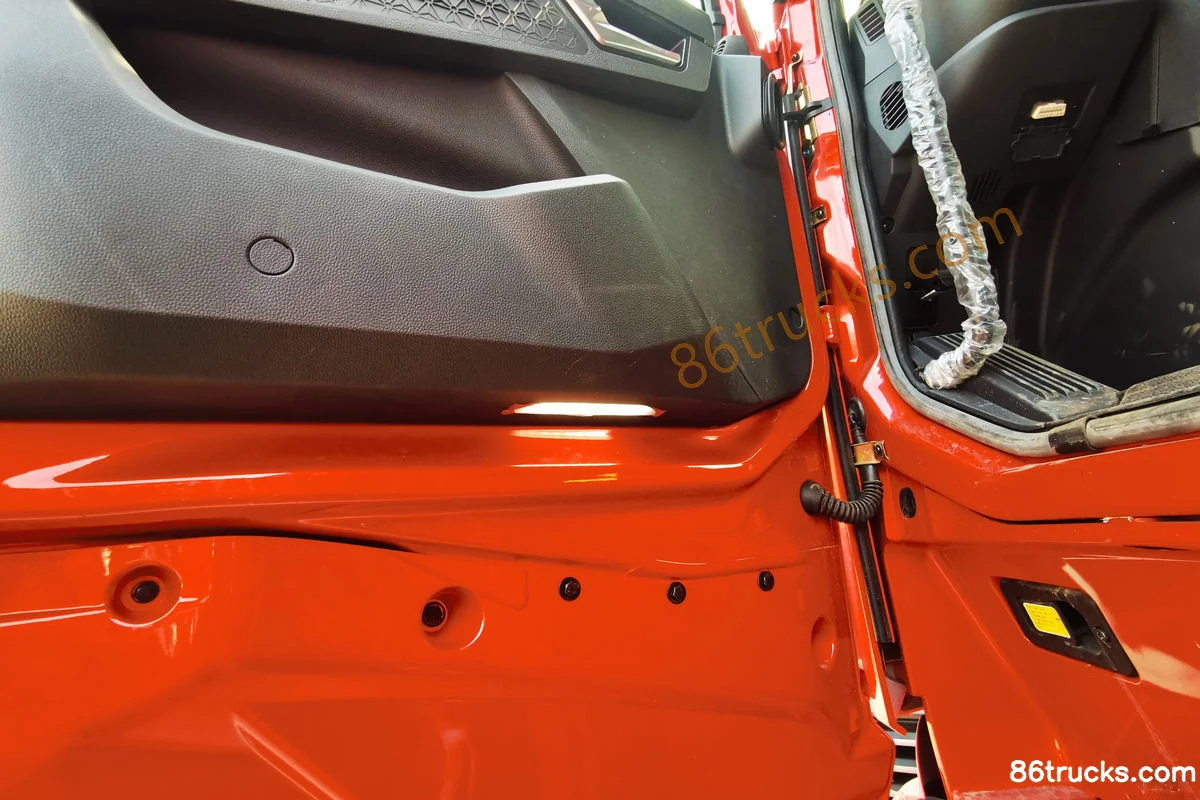

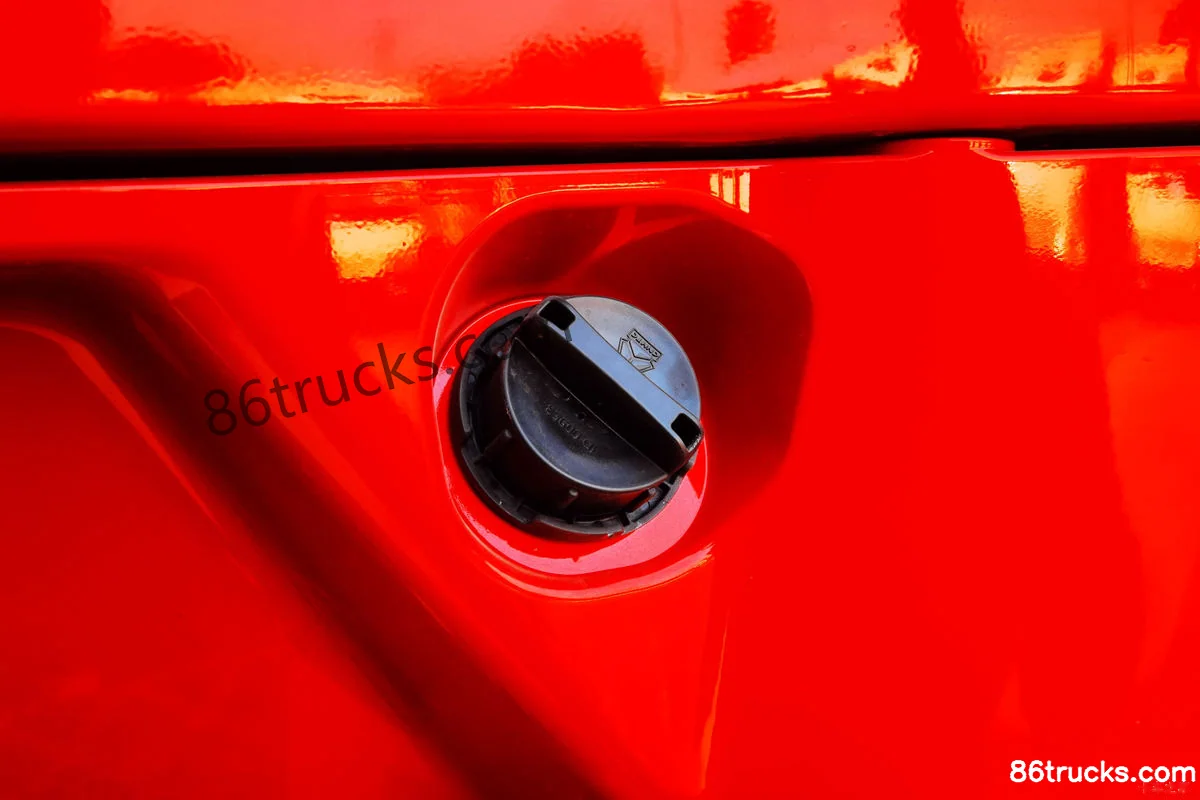

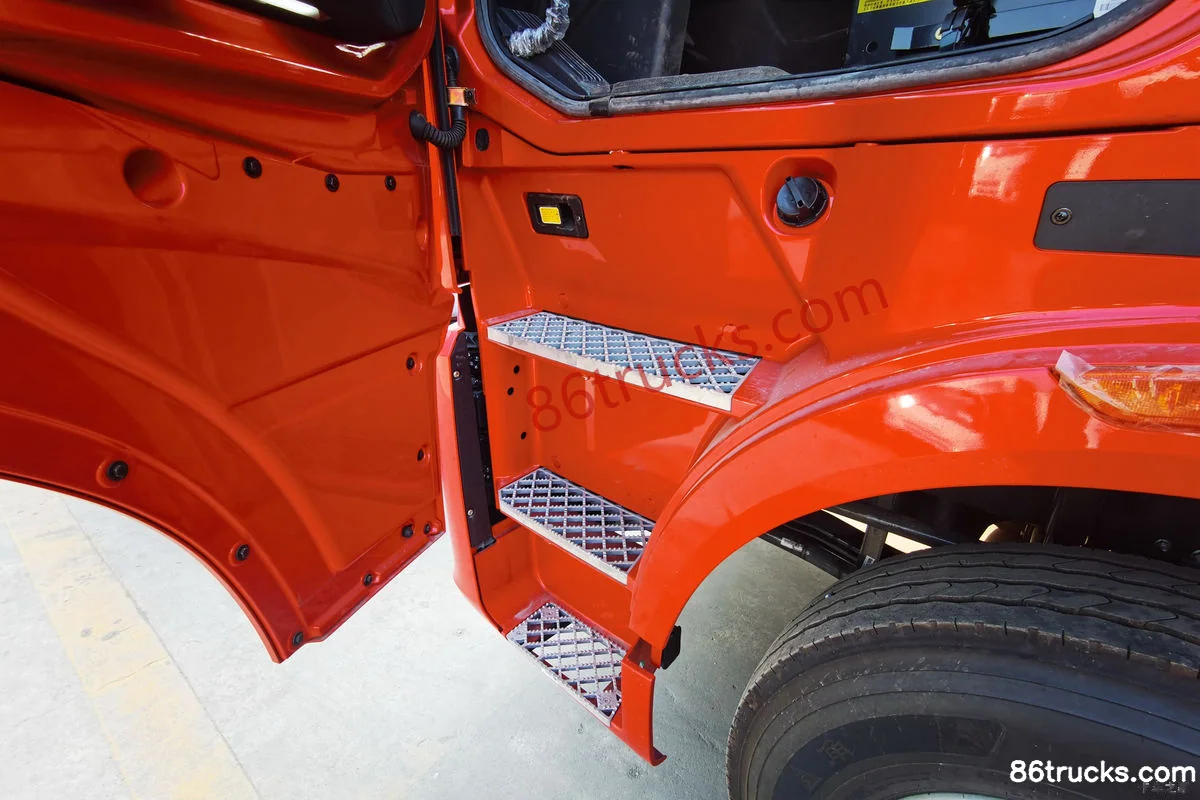

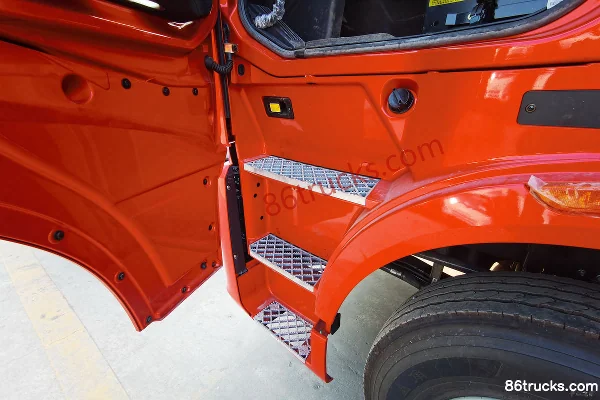

Cab3

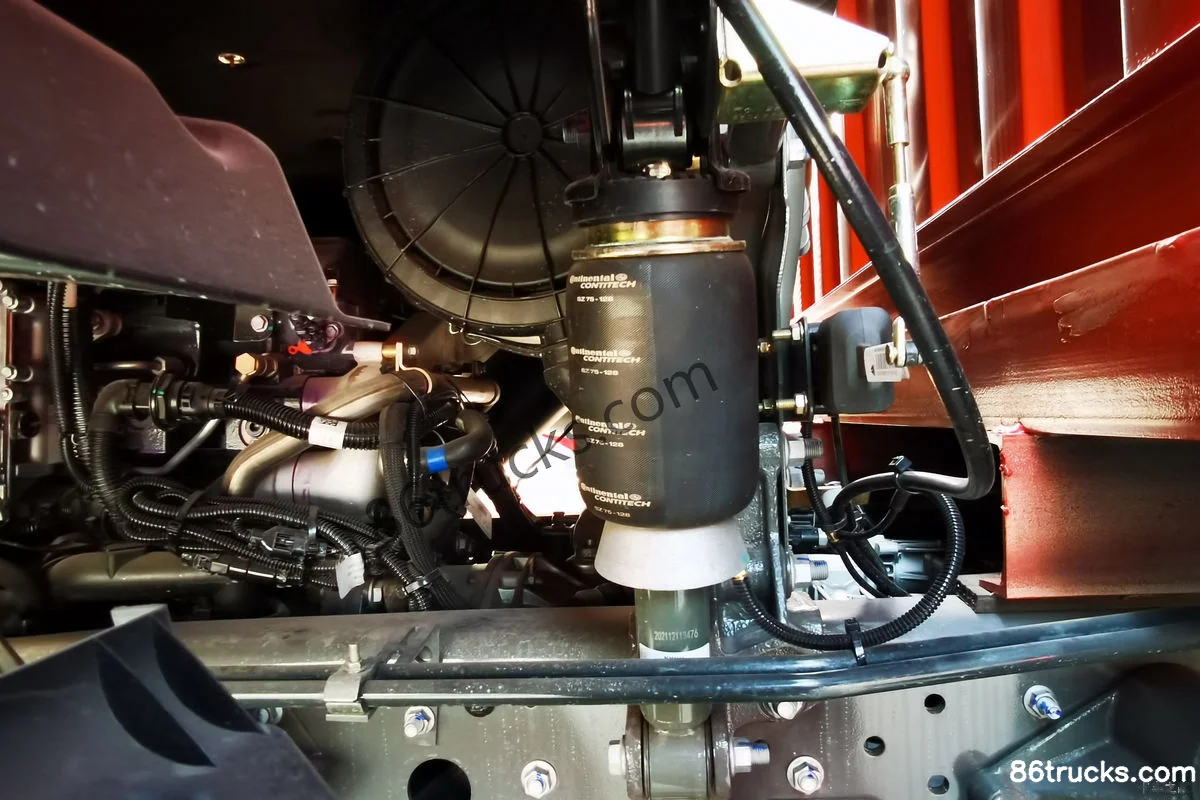

Chassis3

9 photos

FAQ

What emission standard does Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension)?

Key specs of Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension): Drive: 8x4; Horsepower: 510 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk13L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) suited for?

Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) differ from other variants in the same series?

Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension) belongs to Sinotruk HOWO TH7 heavy-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TH7 510hp 8X4(12 wheels) 9.5m AMT automatic box truck (air suspension)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
