FAW Jiefang R13D457 stamped welded drive axle

Export reference
MSRP N/A
Application Scope:: 11m bus, cargo truck, lightweight tractor truck, wide range of applications
Front/rear track width:: 1878mm
Transmission Ratio:: 2.688～5.571
FAW Jiefang R13D457 stamped welded drive axle exterior
View more photos (2)
Axle Model: R13D457 stamped-welded axle
Brake size: Φ400×200/Φ410×220
Axle Type: Drive axle

Overview

The FAW Jiefang R13D457 stamped welded drive axle is a parts product with spec R13D457 stamped-welded axle and Φ400×200/Φ410×220 size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: R13D457 stamped-welded axle
Axle Type: Drive axle
Application Scope: 11m bus, cargo truck, lightweight tractor truck, wide range of applications
Front/rear track width: 1878mm
Rated axle load: 13000ton
Transmission Ratio: 2.688～5.571
Brake size: Φ400×200/Φ410×220
Max output torque: 38000N·m
Wheel Bolts: Φ335/Φ285.75mm
Remarks: FAW self-developed 13-ton lightweight drive axle. This axle features high transmission efficiency, low weight, wide ratio range, large market share, and easy maintenance. Suitable for China V and China VI models with 200–550 hp. Optional grease lubrication, oil lubrication, long oil change, maintenance-free, disc brakes, and wedge brakes to meet different user and operating needs.

Photos

Exterior2

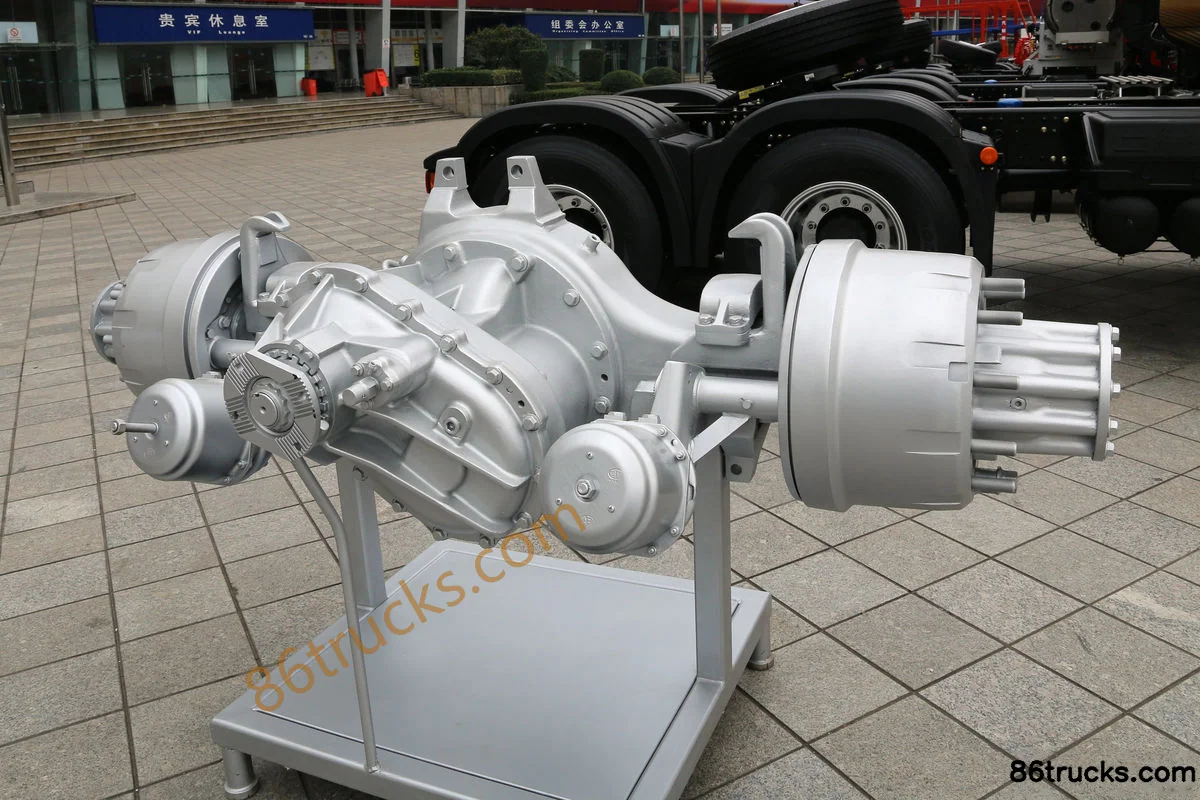

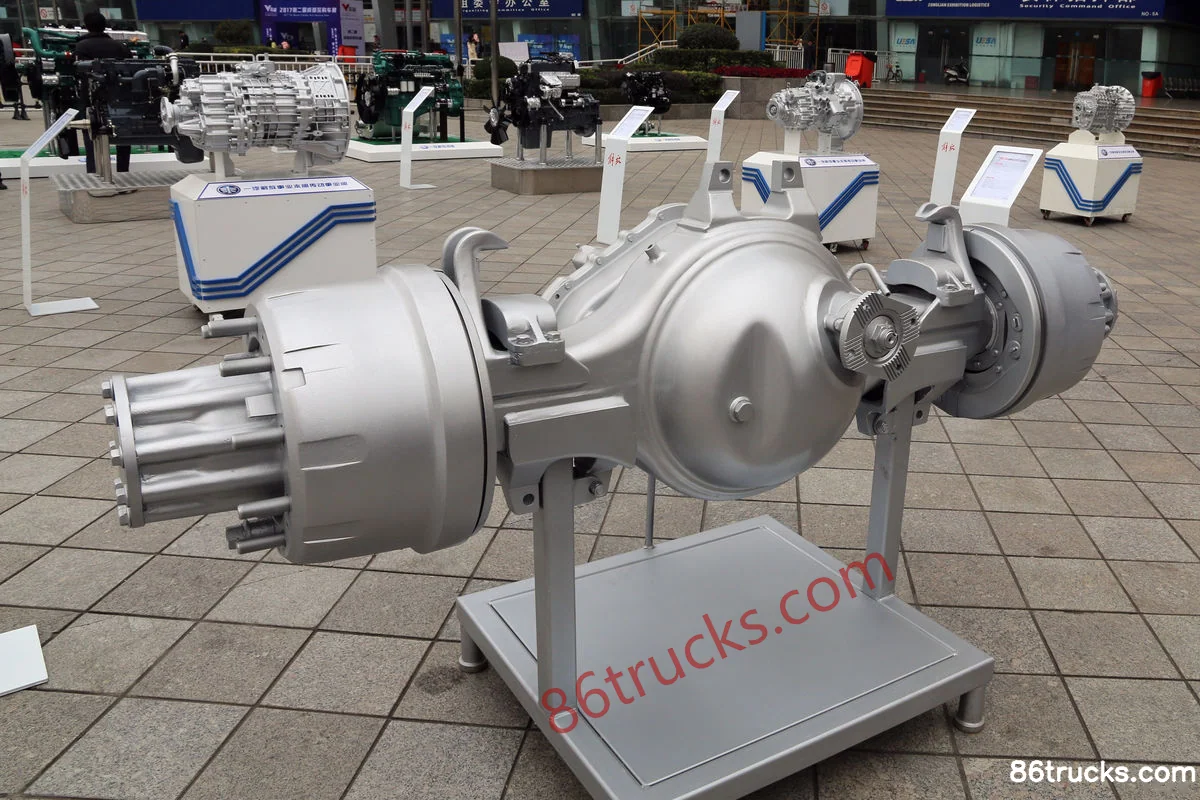

FAW Jiefang R13D457 stamped welded drive axle Exterior (1) | 86Trucks FAW Jiefang R13D457 stamped welded drive axle Exterior (2) | 86Trucks

2 photos

FAQ

What transport jobs is FAW Jiefang R13D457 stamped welded drive axle suited for?

Match FAW Jiefang R13D457 stamped welded drive axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang R13D457 stamped welded drive axle differ from other variants in the same series?

FAW Jiefang R13D457 stamped welded drive axle belongs to FAW Jiefang Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang R13D457 stamped welded drive axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang R13D457 stamped welded drive axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
