NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.28ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 16PR
NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck exterior
View more photos (9)
Rated payload: 3.02ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box thickness: floor 3mm side 1.5mm

Overview

The NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck is a Light Truck featuring 3.02t payload, 7.495t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E1 engine, 170 hp, China V emissions and Fast Gear transmission.

China V 170 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJA3070PPB38V
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYNF40E1
transmission: Fast Gear8-85CY6KQ
Rear Axle Ratio: 4.333
Cab length: 6.5m
Cab width: 2.1m
Cab height: 2.65m
Front track width: 1630mm
rear track: 1860mm
Curb Weight: 4.28ton
Rated payload: 3.02ton
GVWR: 7.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Remarks: Automatic slack adjuster, hydraulic power steering, pull-cable slide valve, T-type amplification mechanism, Ruijie new exterior, new interior
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear8-85CY6KQ
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG
Unloading Type: Dump type
Cargo box thickness: floor 3mm side 1.5mm
Cargo box type: Dump type
Cargo box length: 4.1m
Cargo box width: 2.3m
Cargo box height: 0.6m
Cab parameters
Cab: PDF
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle description: 1080
Front axle allowable load: 2510kg
rear axle description: 1080
rear axle allowable load: 4985kg
Axle ratio: 4.333
Leaf spring count: 9/10+8,9/11+8
Tire
Tire Size: 8.25R16LT 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Service brake
Parking brake: Spring brake

Photos

Exterior3

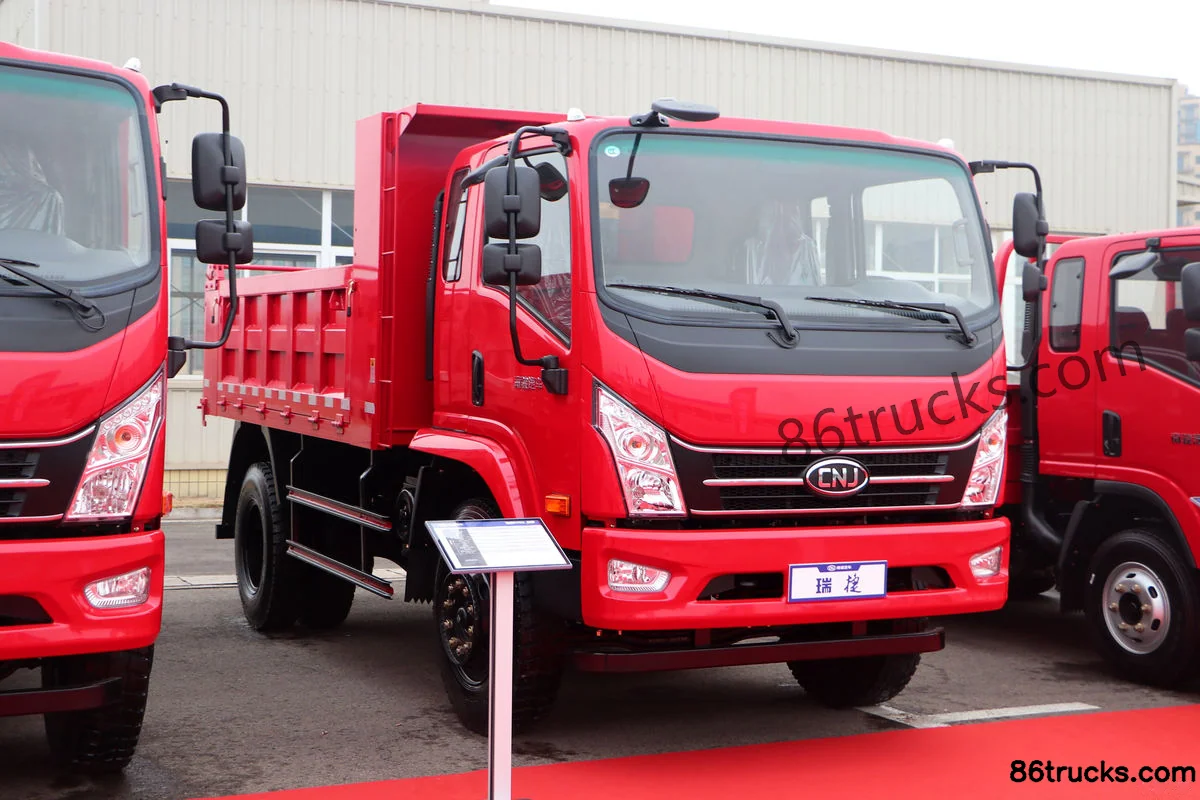

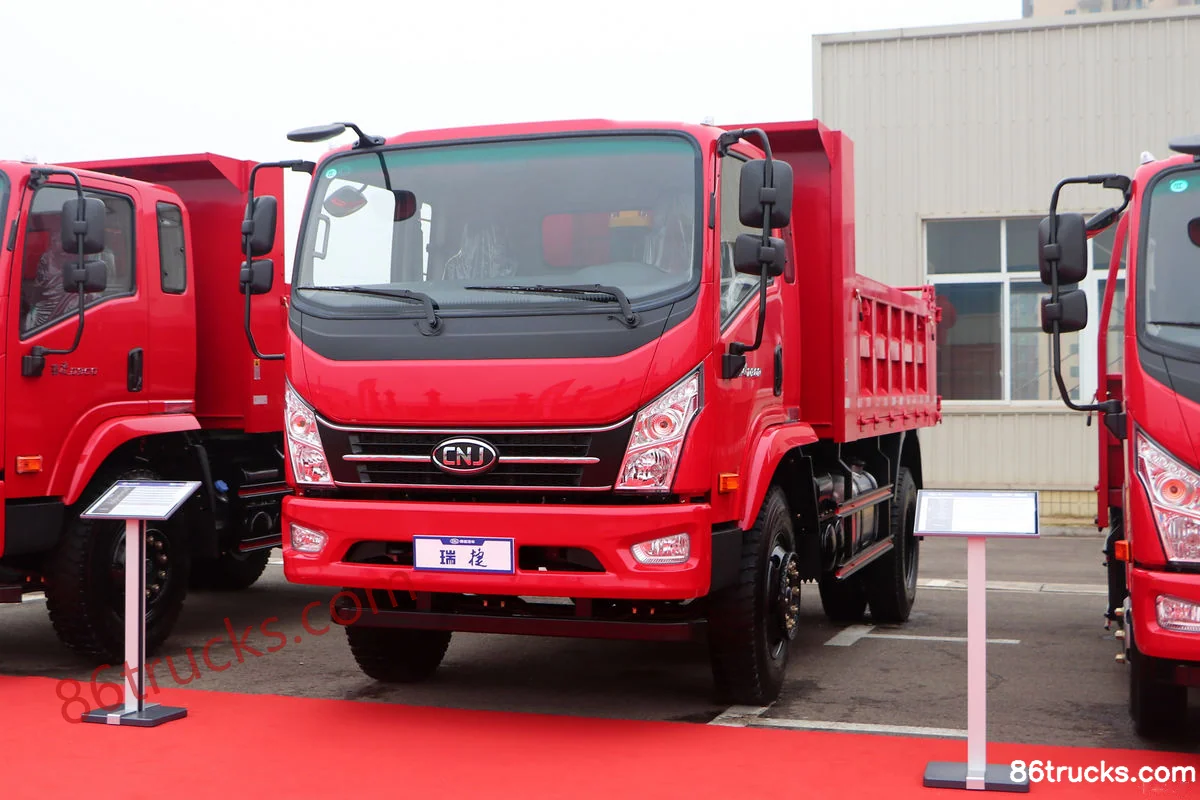

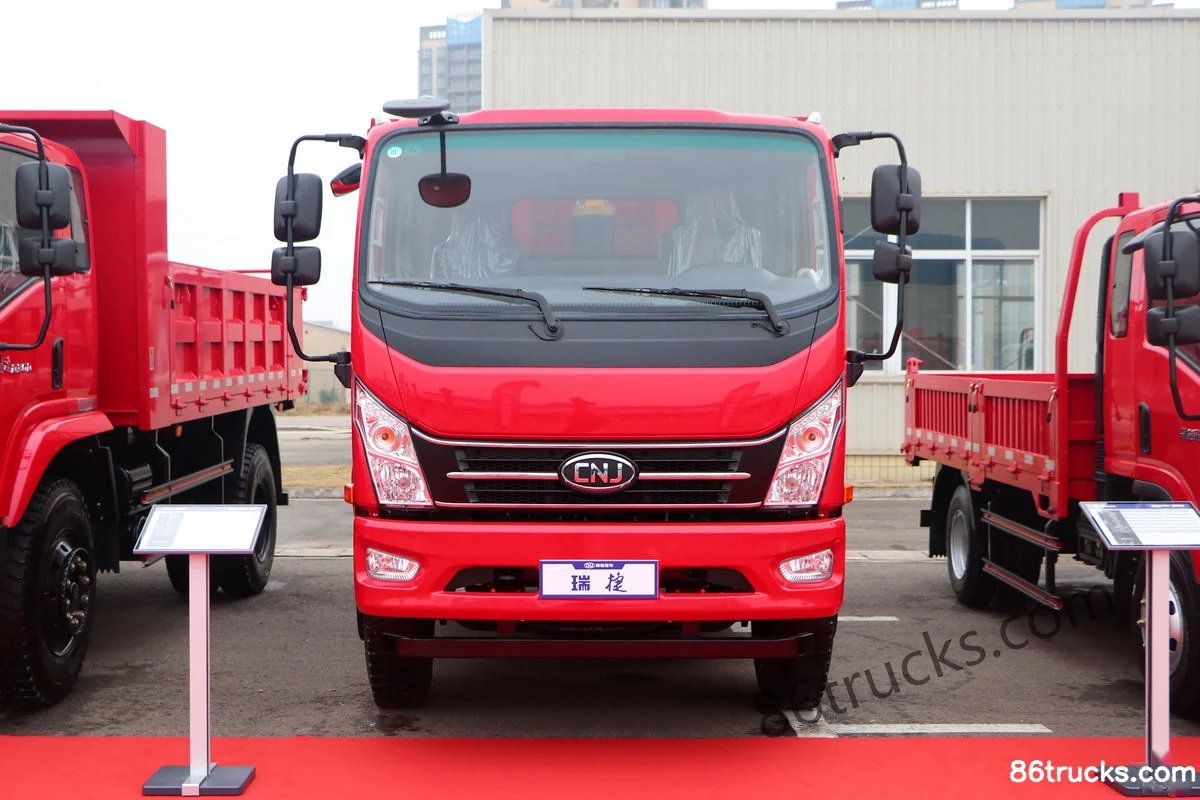

NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Exterior (1) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Exterior (2) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Exterior (3) | 86Trucks

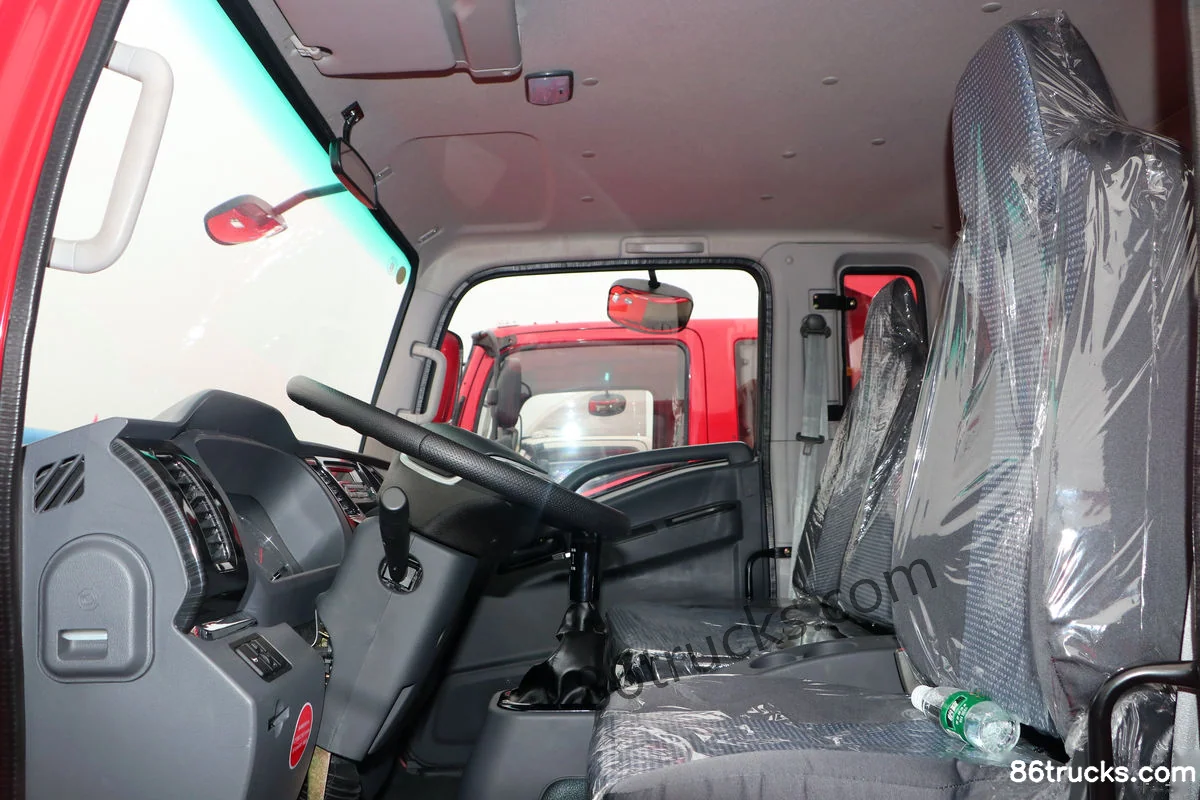

Cab3

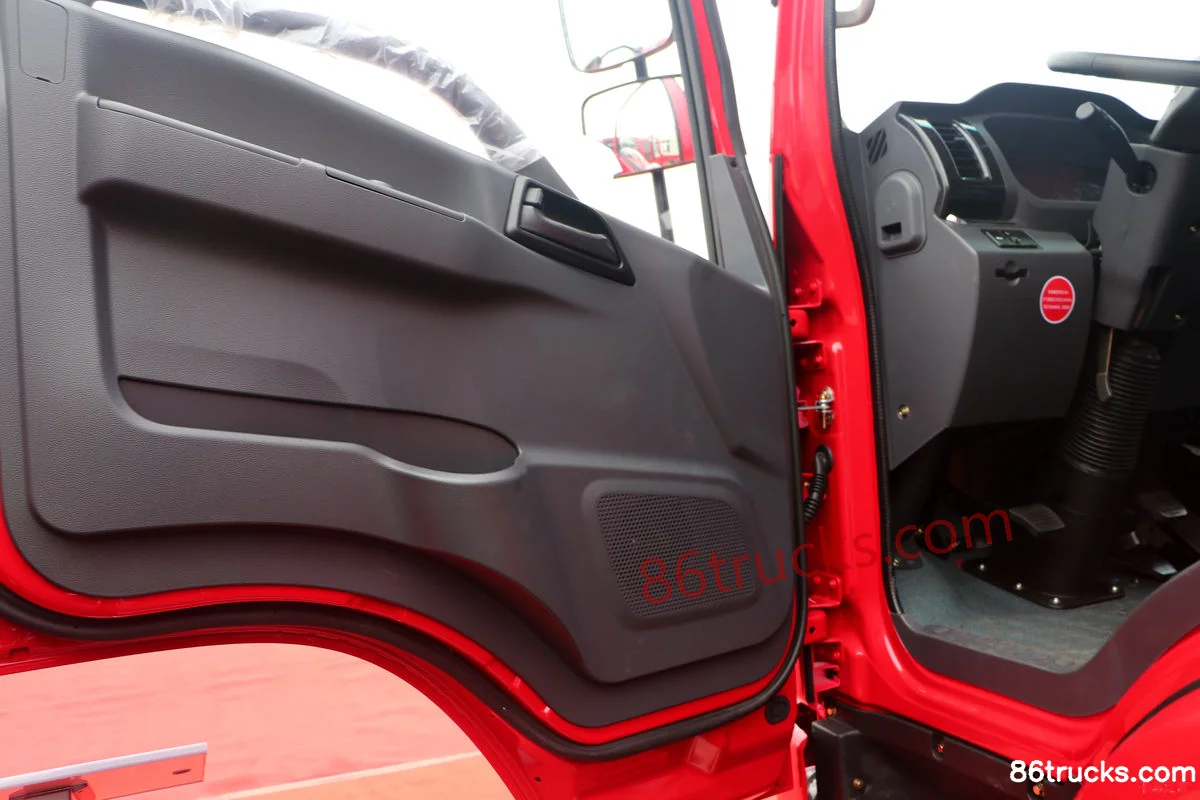

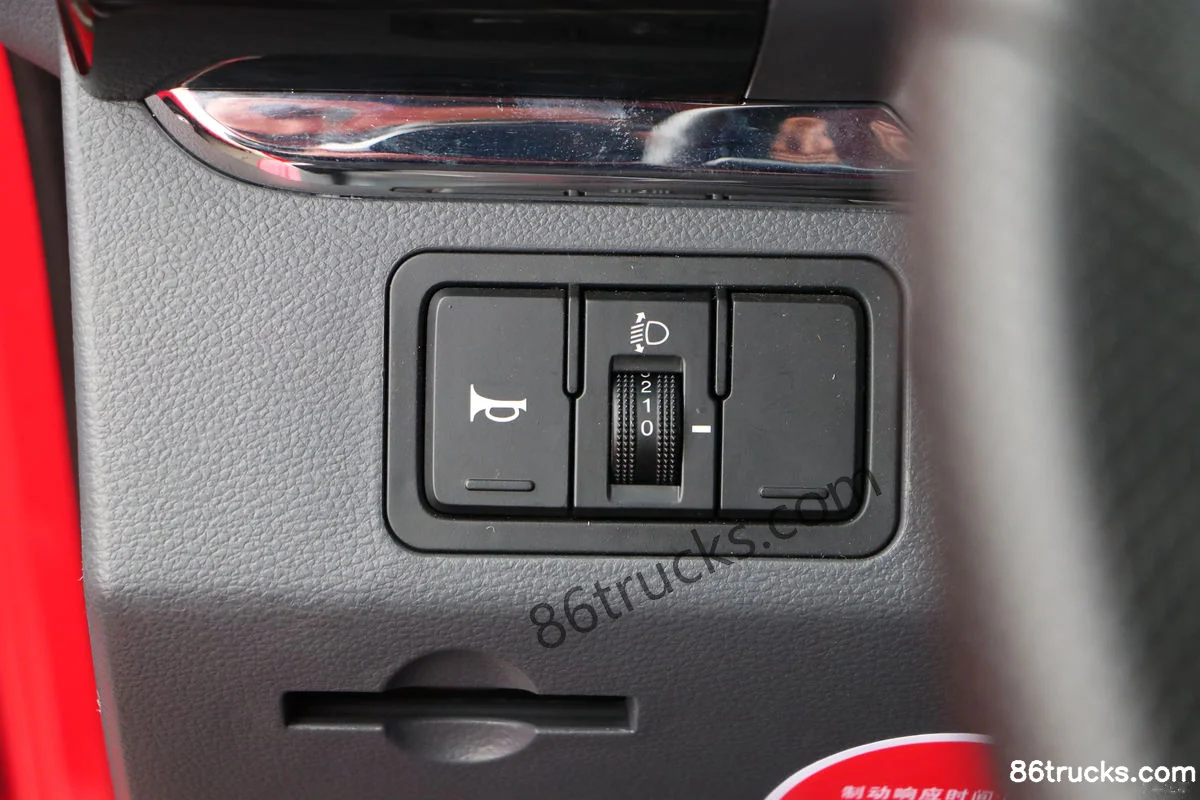

NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Cab (1) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Cab (2) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Cab (3) | 86Trucks

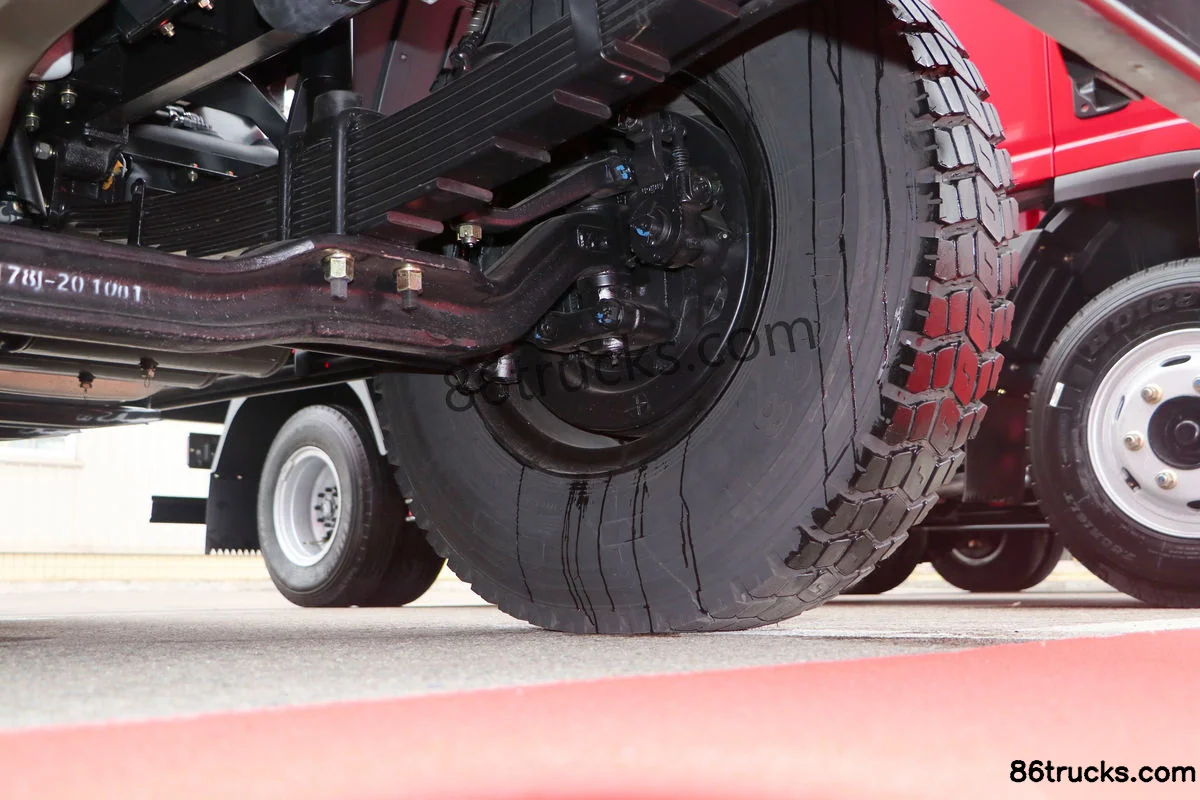

Chassis3

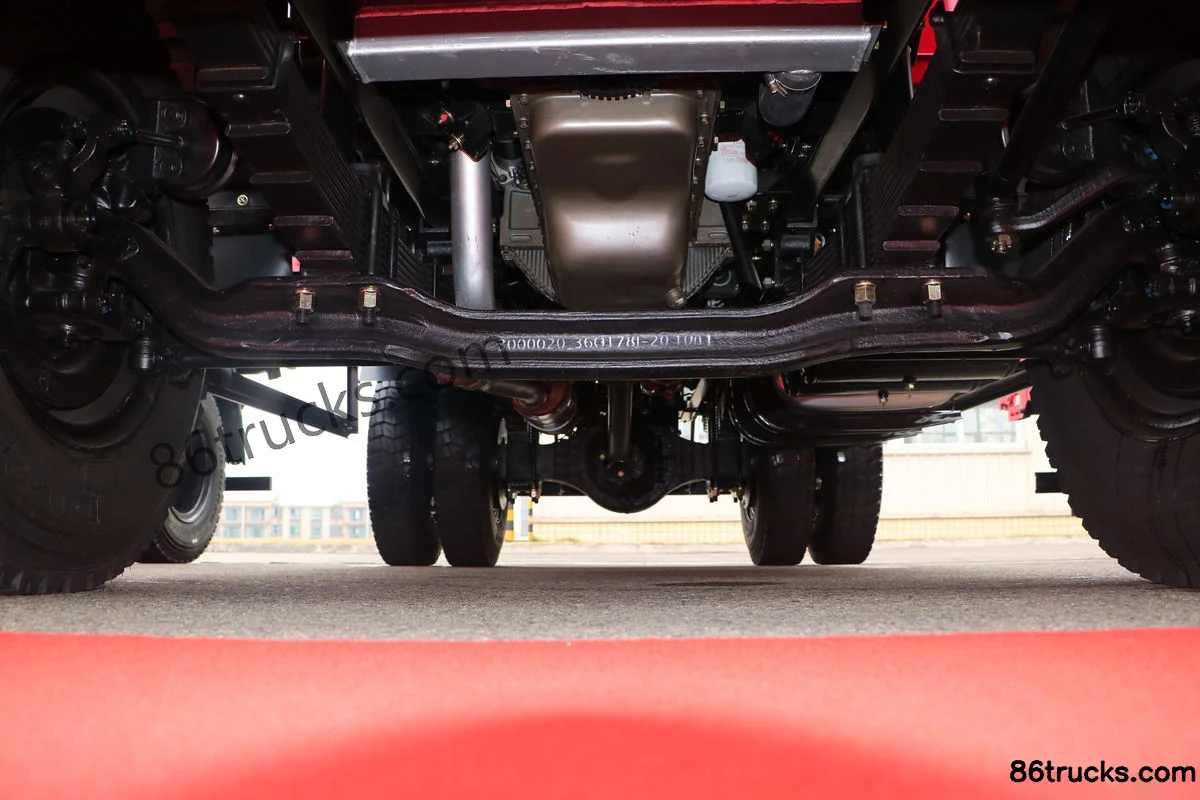

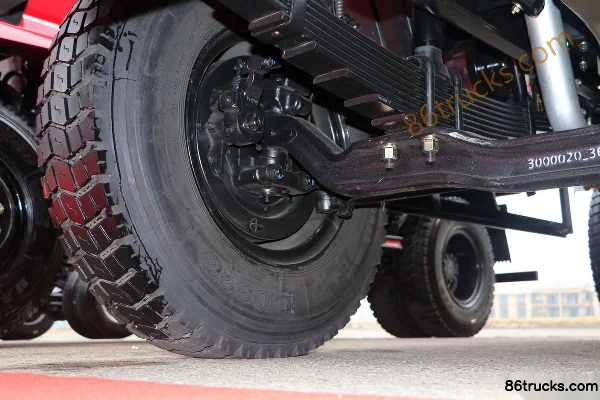

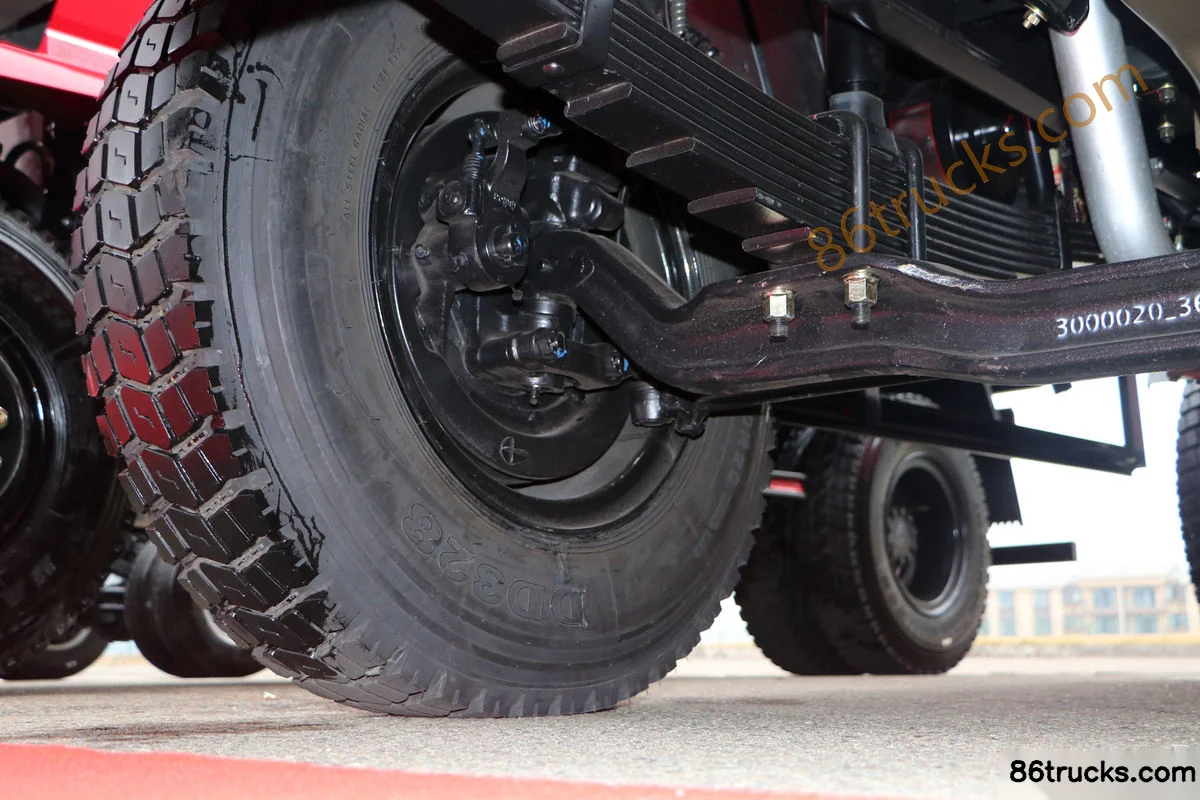

NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Chassis (1) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Chassis (2) | 86Trucks NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck?

Key specs of NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck suited for?

NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck differ from other variants in the same series?

NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck belongs to NanJun Ruijie D30 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruijie D30D 170 hp 4X2(6 wheels) 4.1m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
