Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 2.5ton
Wheelbase:: 2650mm
Tire Size:: 6.50R16LT 8PR
Model code (announced):: ZB3040JDC2L
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 115
Cargo box type: Dump type

Overview

The Tangjun Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) is a Light Truck featuring 1.495t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiQ23-115E60 engine, 115 hp, China VI emissions and 5-speed transmission transmission.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040JDC2L
Drive type: 4X2
Wheelbase: 2650mm
engine: QuanchaiQ23-115E60
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.455m
Cab width: 2m
Cab height: 2.26m
Front track width: 1650mm
rear track: 2475mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Zichuan, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: 5-speed gearbox
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.2m
Cargo box width: 1.82m
Cargo box height: 0.45m
Chassis Specs
Front axle allowable load: 1650kg
rear axle allowable load: 2475kg
Axle ratio: 4.875
Leaf spring count: 1/5+5
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs

Photos

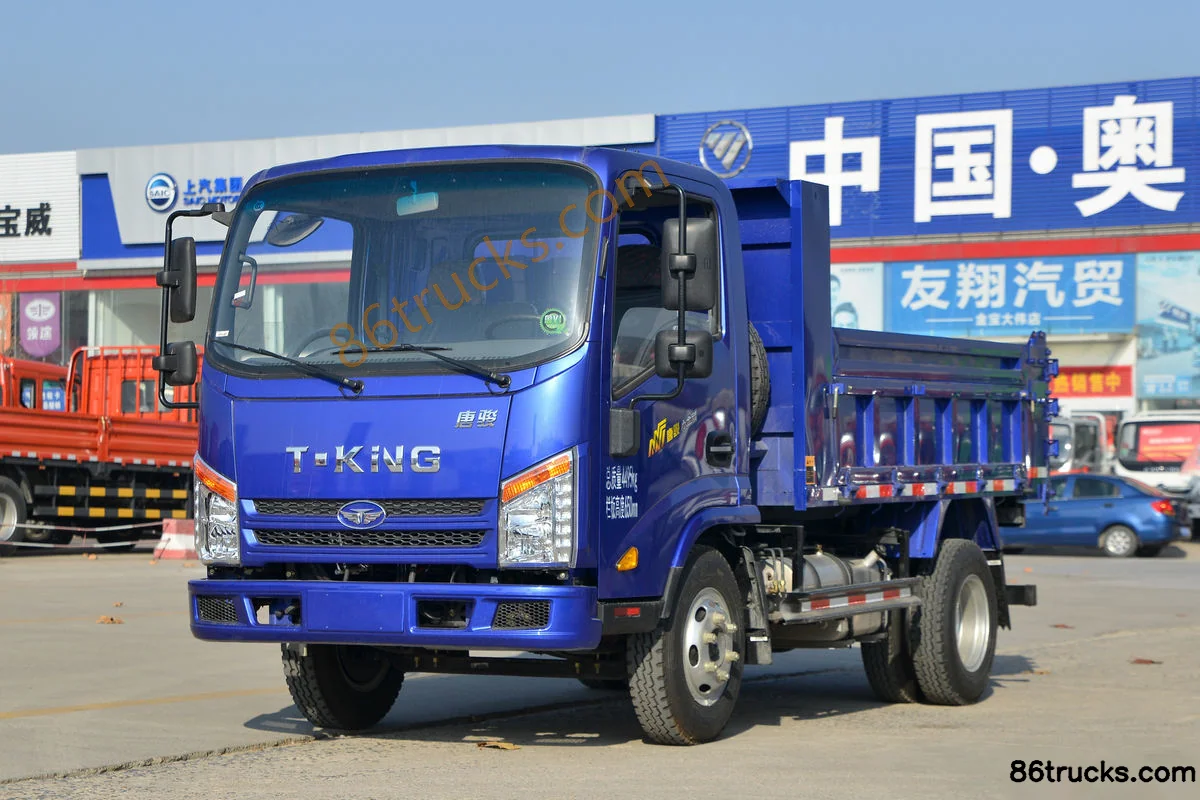

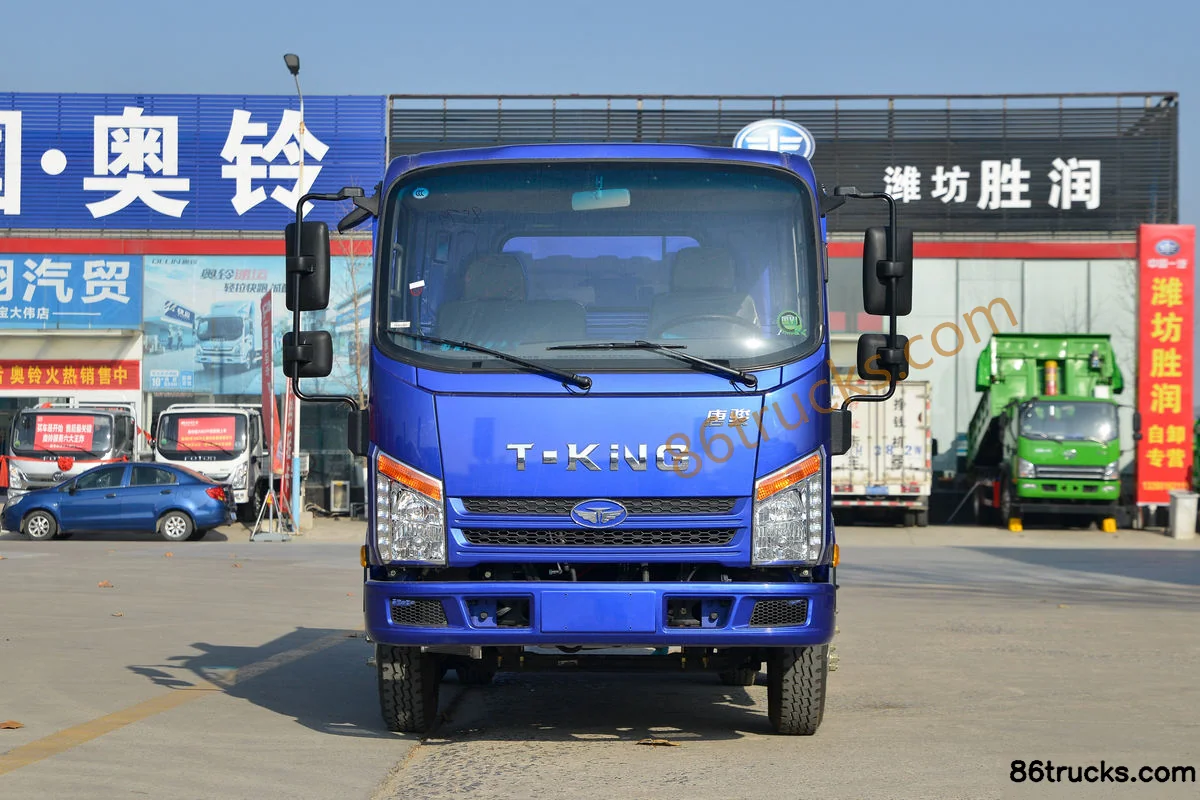

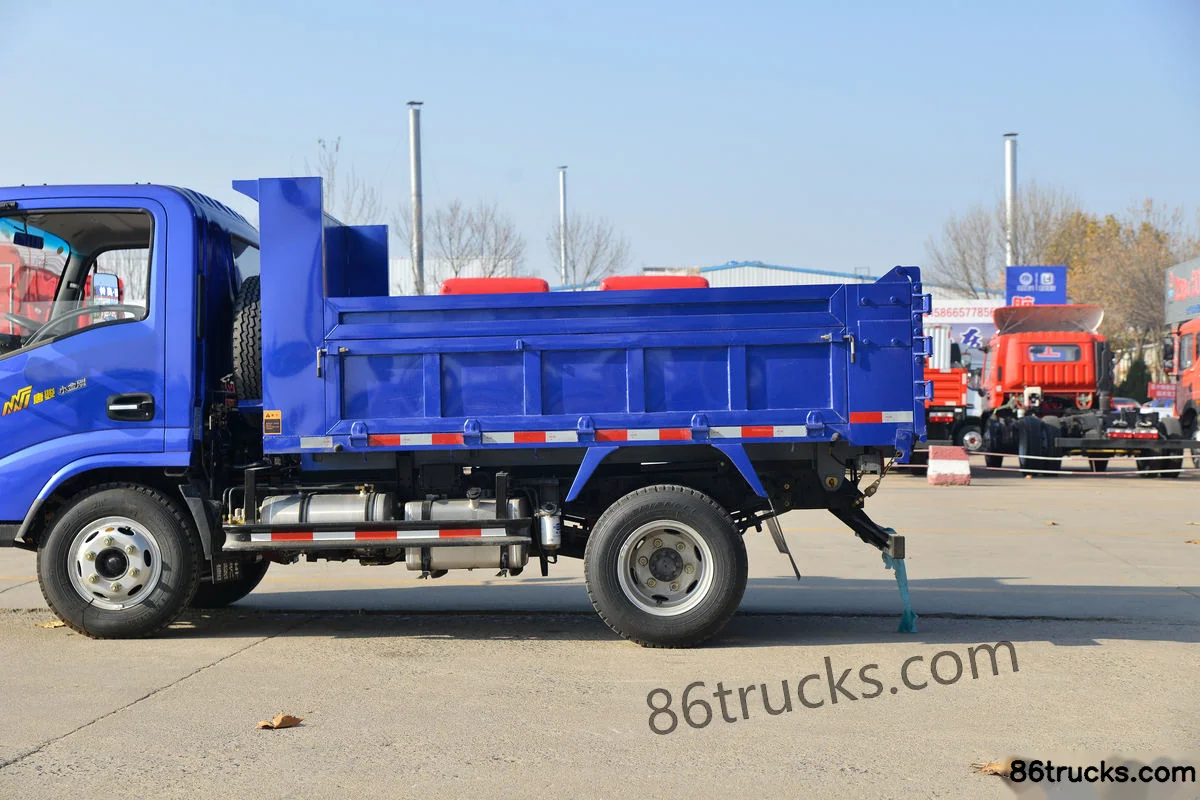

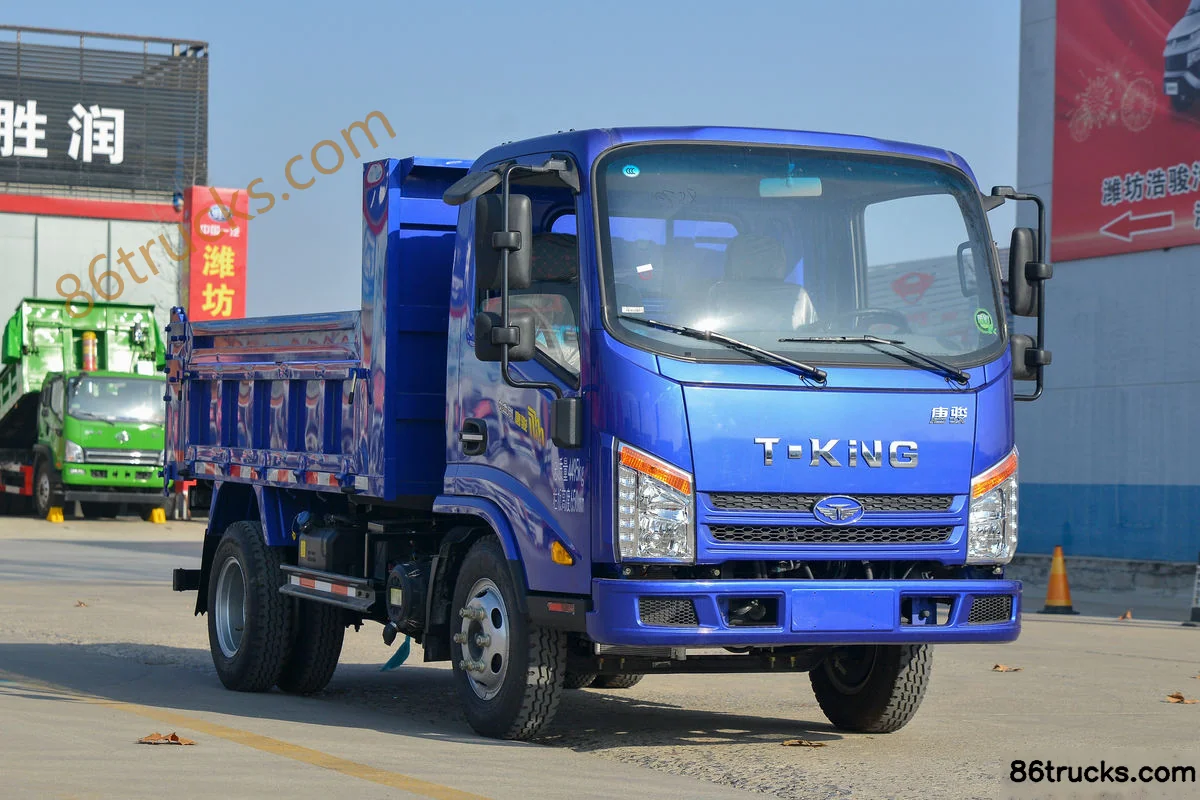

Exterior3

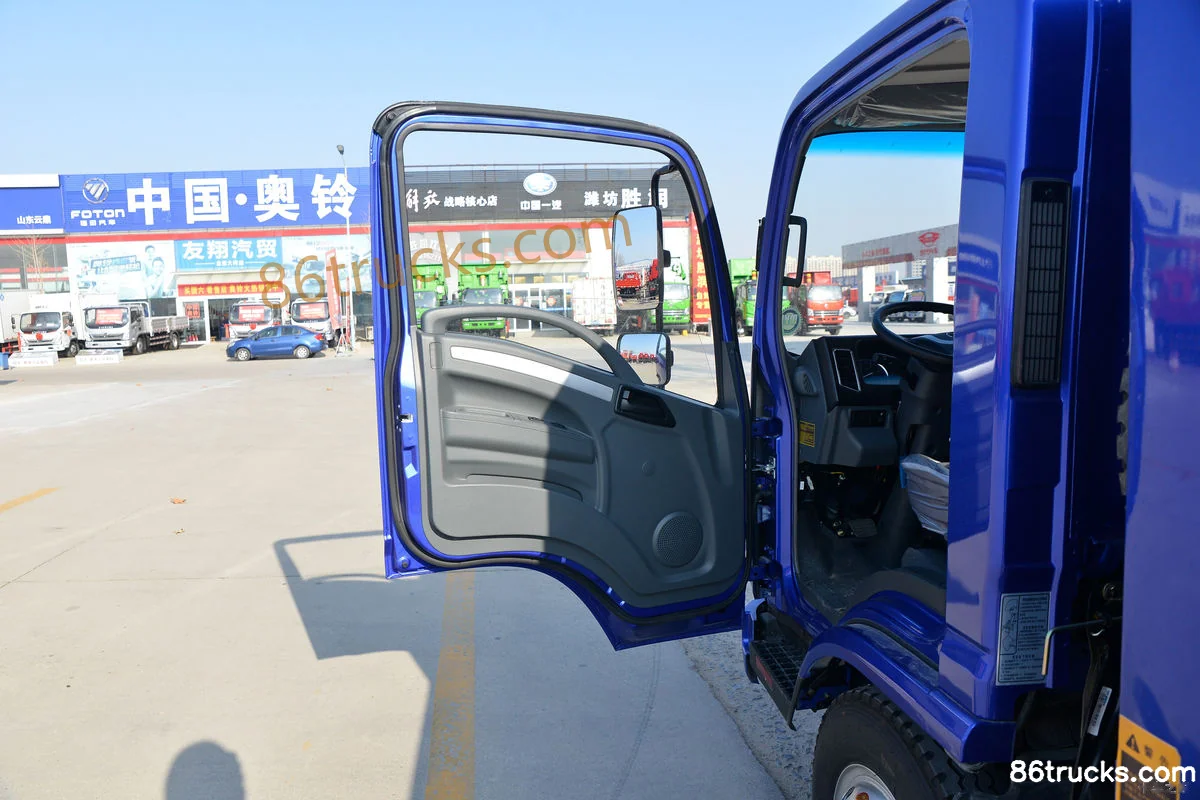

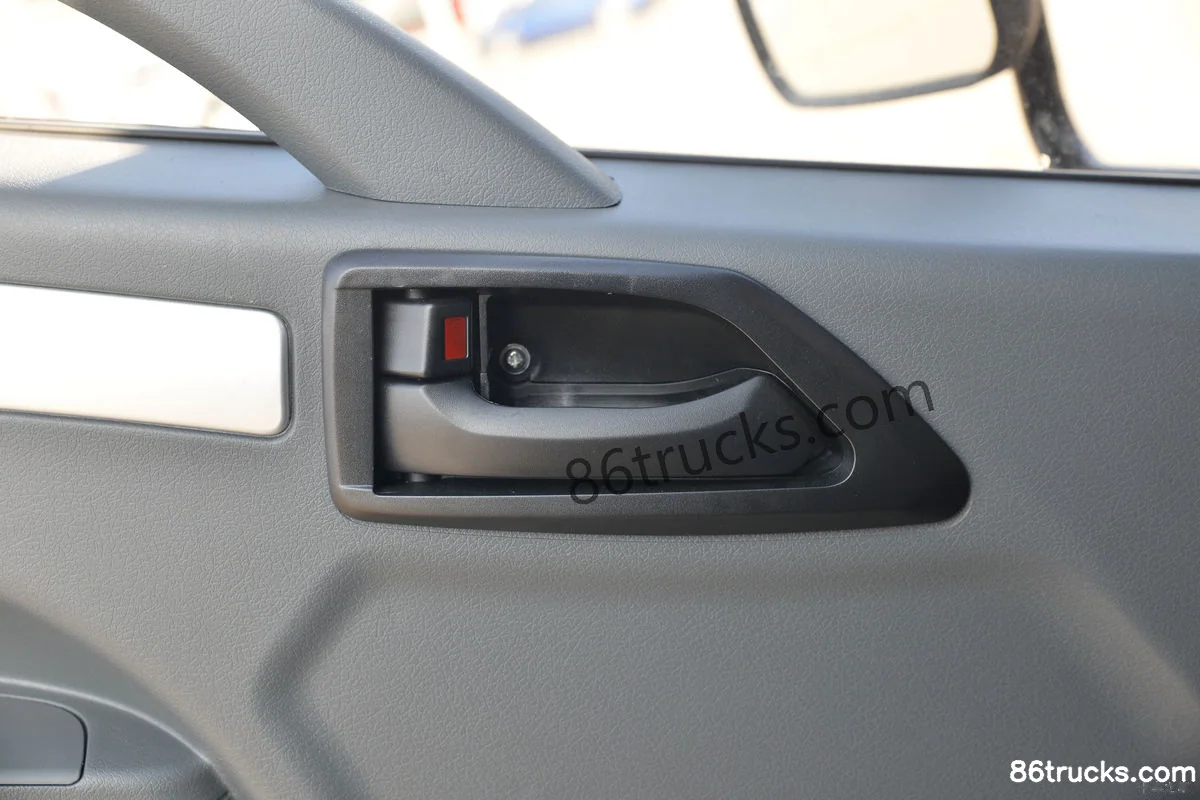

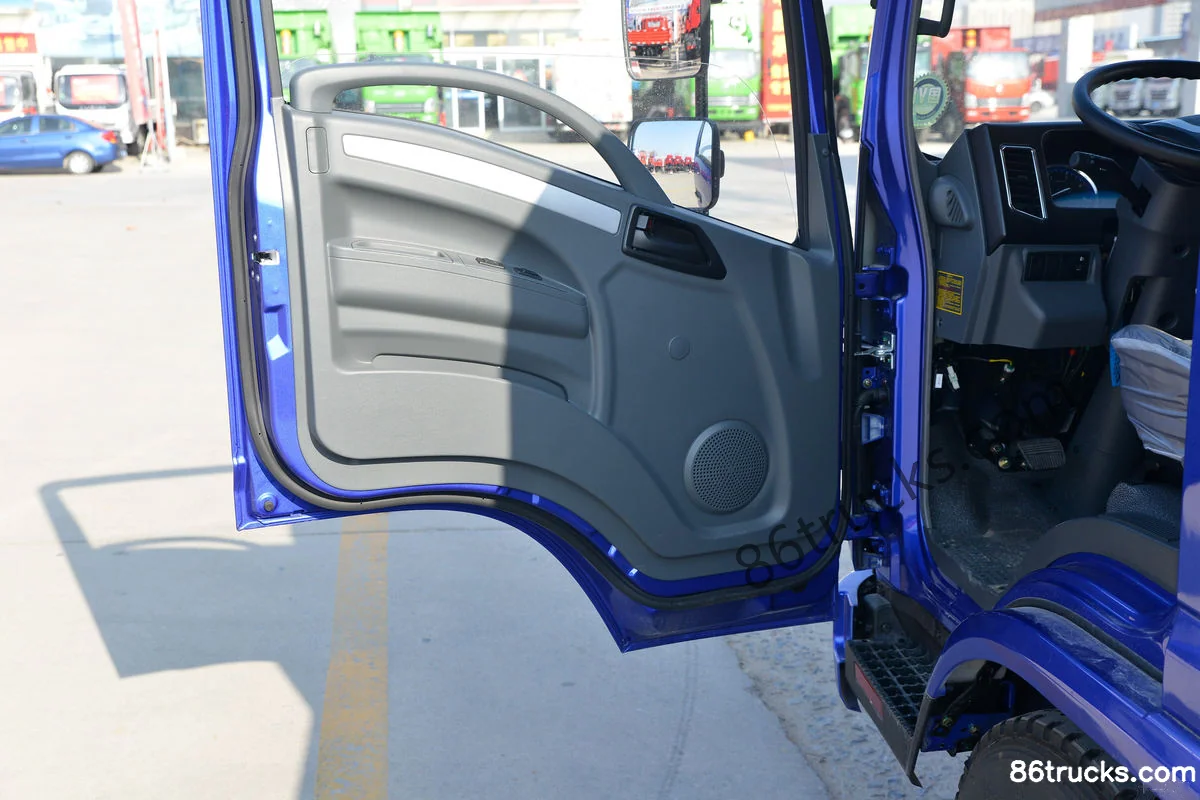

Cab3

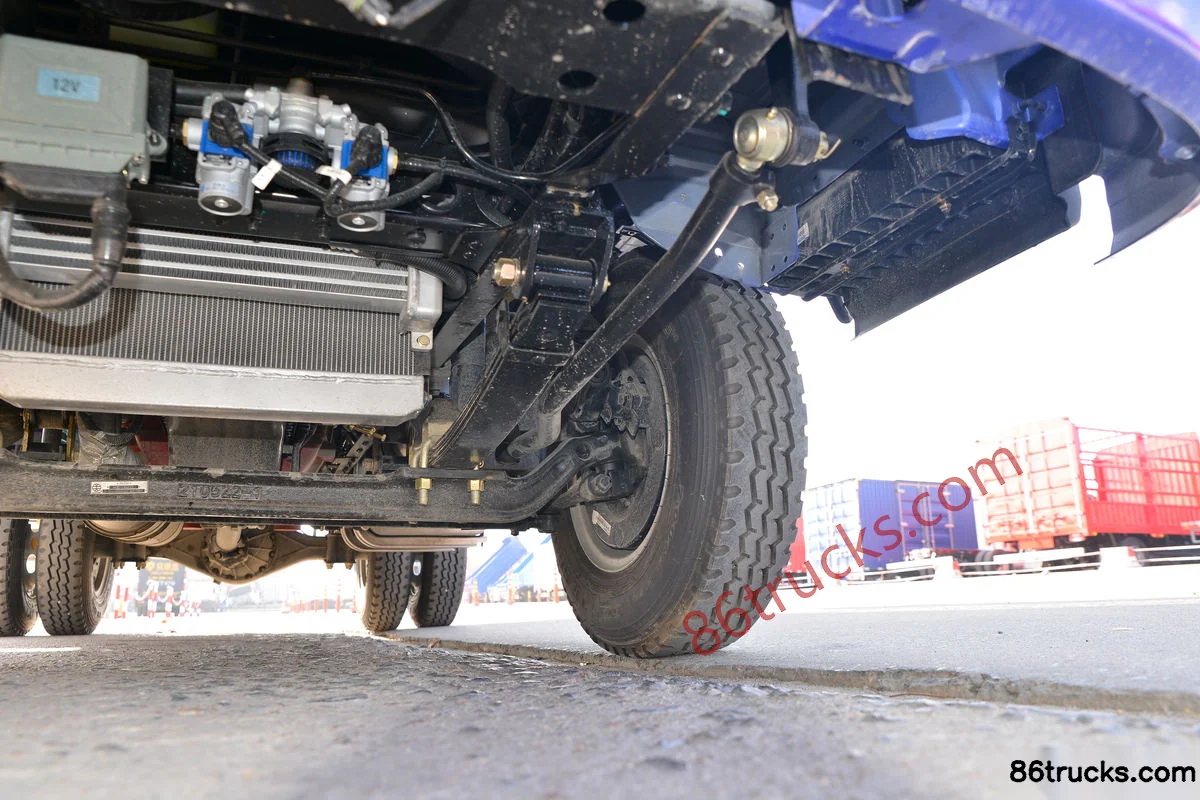

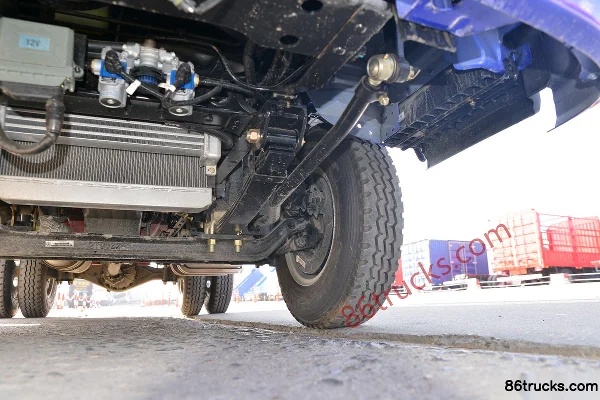

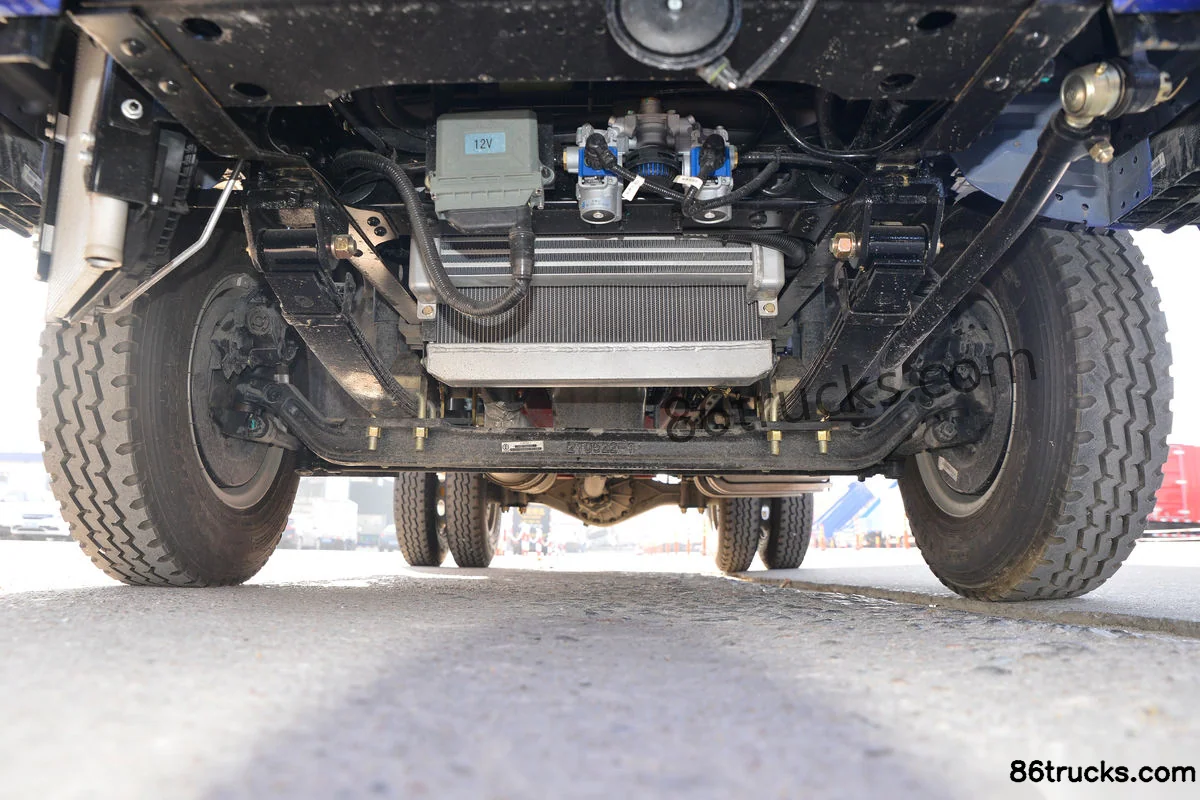

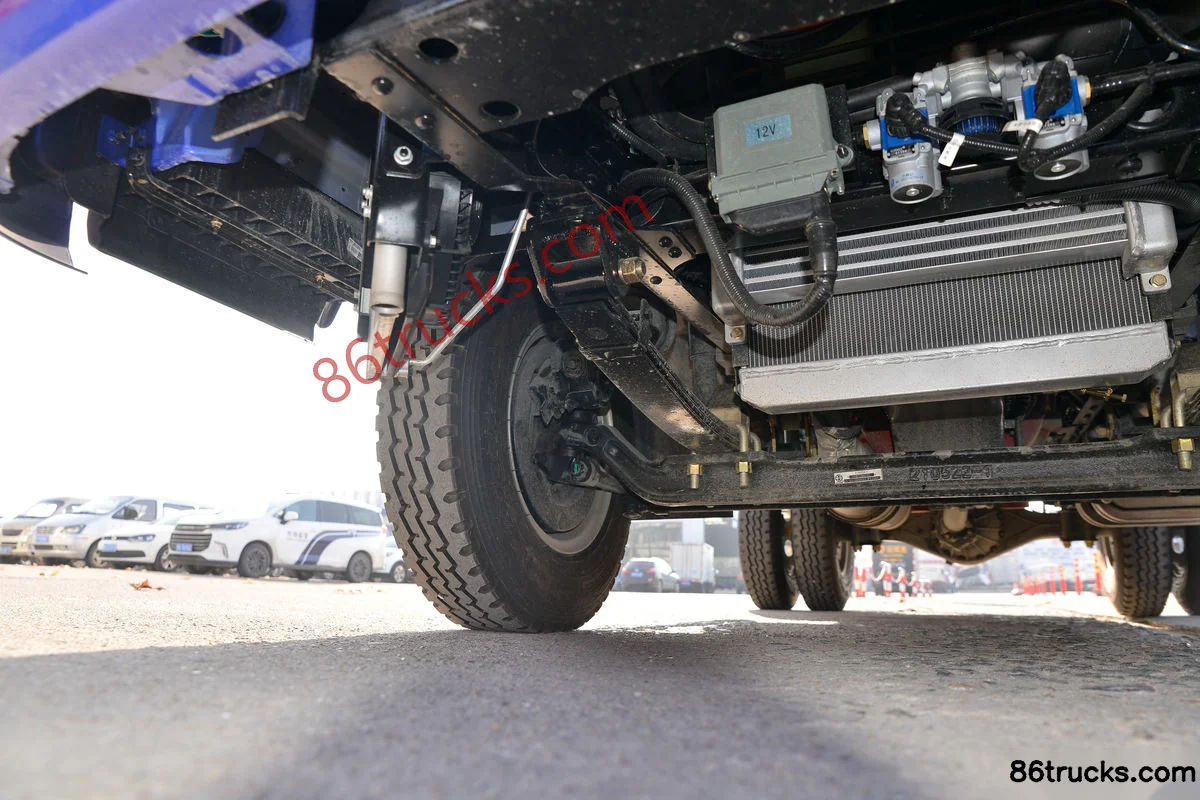

Chassis3

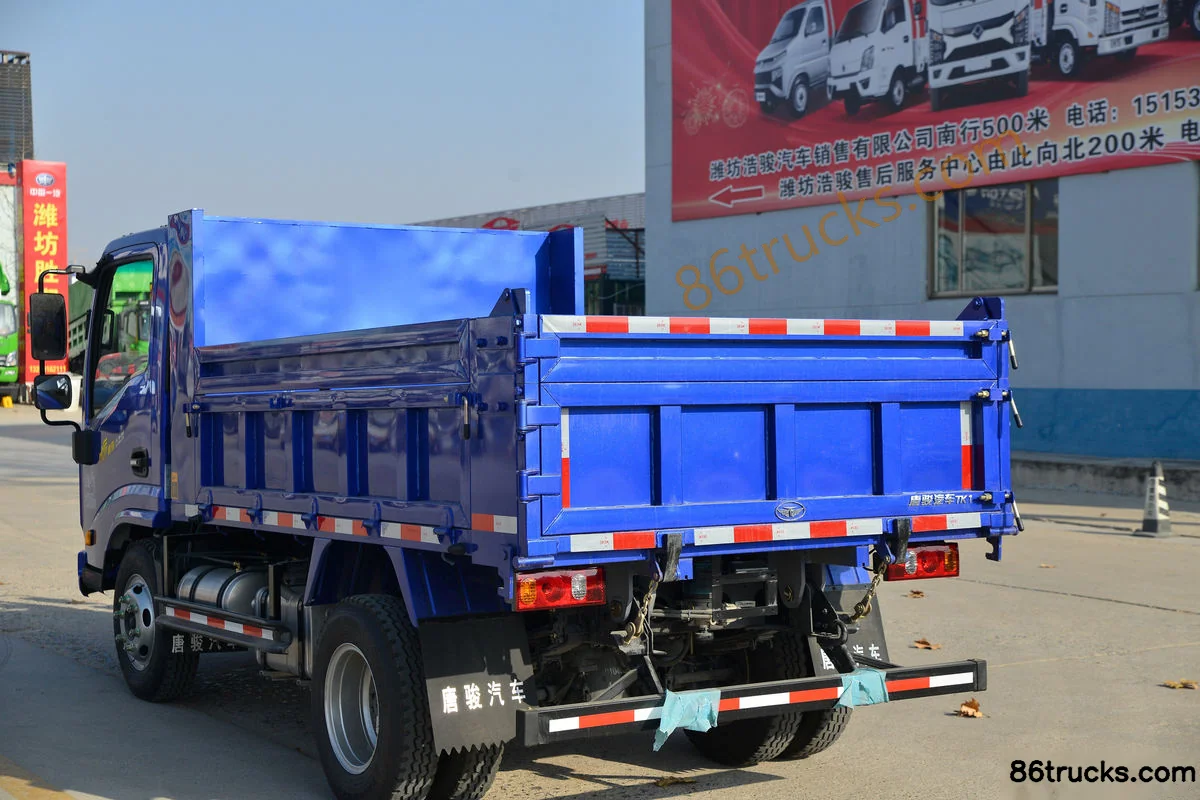

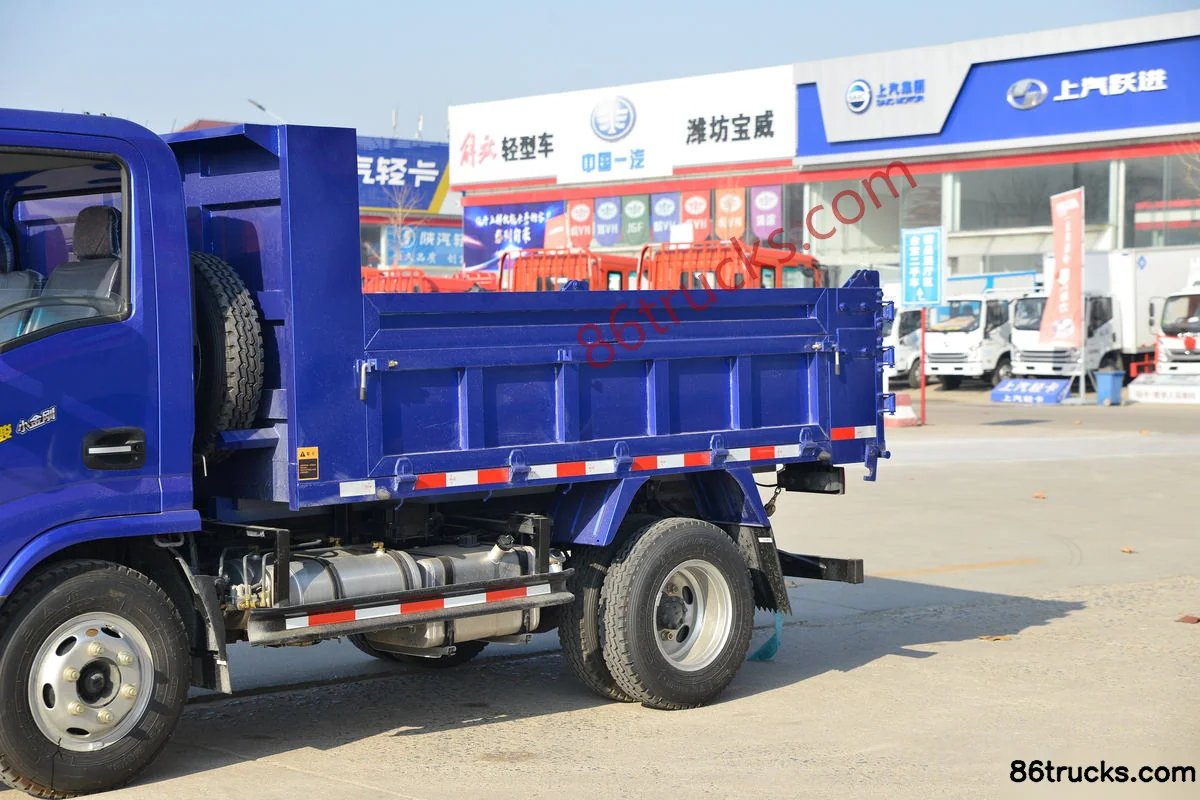

Body3

12 photos

FAQ

What emission standard does Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Key specs of Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) suited for?

Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) differ from other variants in the same series?

Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI) belongs to Tangjun New Little King Kong Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouling Xiaojingang 115hp 4X2(6 wheels) 3.2m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
