FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.805ton
Wheelbase:: 1950+2850+1350mm
Tire Size:: 11.00R20

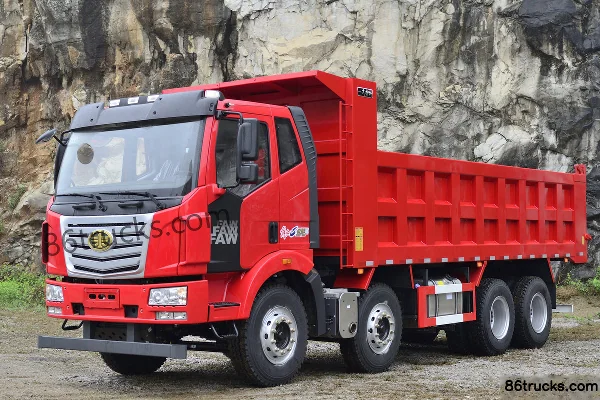

FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck exterior
Rated payload: 16.065ton
Drive 8X4 (12 wheels)
Horsepower 320
Cargo box type: Dump type

Overview

The FAW Jiefang Qingdao FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck is a Medium-duty truck featuring 16.065t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a XichaiCA6DL1-32E5 engine, 320 hp, China V emissions and Fast Gear transmission.

China V 320 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZT3313P3K2E5T4A91
Drive type: 8X4
Wheelbase: 1950+2850+1350mm
engine: XichaiCA6DL1-32E5
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.143
Cab length: 9.62m
Cab width: 2.5m
Cab height: 3.37m
Front track width: 1930/1930mm
rear track: 1860/1860mm
Curb Weight: 14.805ton
Rated payload: 16.065ton
GVWR: 31ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 19°
Remarks: Standard: sun visor, manual hydraulic tilt, electric horn + air horn, battery disconnect switch, front underrun protection, radiator guard. Optional: 153 dual front axle / 457 dual rear axle, ratio 5.286, full-floating cab.
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.3m
Cargo box height: 1.23m
Body Parameters
Lifting type: Mid-roof lift
Cab parameters
Cab: Jinlu semi-floating flat roof small half-row cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 8N dual front axle
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300×80×(8+5)mm
rear axle description: 435 dual rear axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.143
Leaf spring count: 11/11/11
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

Photos

0 photos

FAQ

What emission standard does FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck?

Key specs of FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck: Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck suited for?

FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck differ from other variants in the same series?

FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck belongs to FAW Jiefang Qingdao Jinlu Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Jinlu (L6L) Medium Truck 320 hp 8X4(12 wheels) 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
