CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.58ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20-16
CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck exterior
View more photos (9)
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 140
Cargo box type: Dump type

Overview

The CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck is a Medium-duty truck featuring 1.495t payload, 4.27t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E140-42 engine, 140 hp, China IV emissions and WLY transmission.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CJ3040D4UA
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC4E140-42
transmission: WLY 6-speed
Rear Axle Ratio: 6.83
Cab length: 5.965m
Cab width: 2.35m
Cab height: 2.45m
Front track width: 1770mm
rear track: 1640mm
Curb Weight: 2.58ton
Rated payload: 1.495ton
GVWR: 4.27ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 30°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-42
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China IV
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 430N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: WLY 6-speed
Transmission Brand: WLY
Forward gears: 6Gear
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.85m
Cargo box width: 2.25m
Cargo box height: 0.8m
Cab parameters
Cab: Fangding D913-3
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1710kg
rear axle description: 10T shortened/153
rear axle allowable load: 2560kg
Axle ratio: 6.83
Leaf spring count: 8/11+8
Tire
Tire Size: 10.00R20-16
Tire Type: Steel-belted tire
Number of tires: 6pcs

Photos

Exterior3

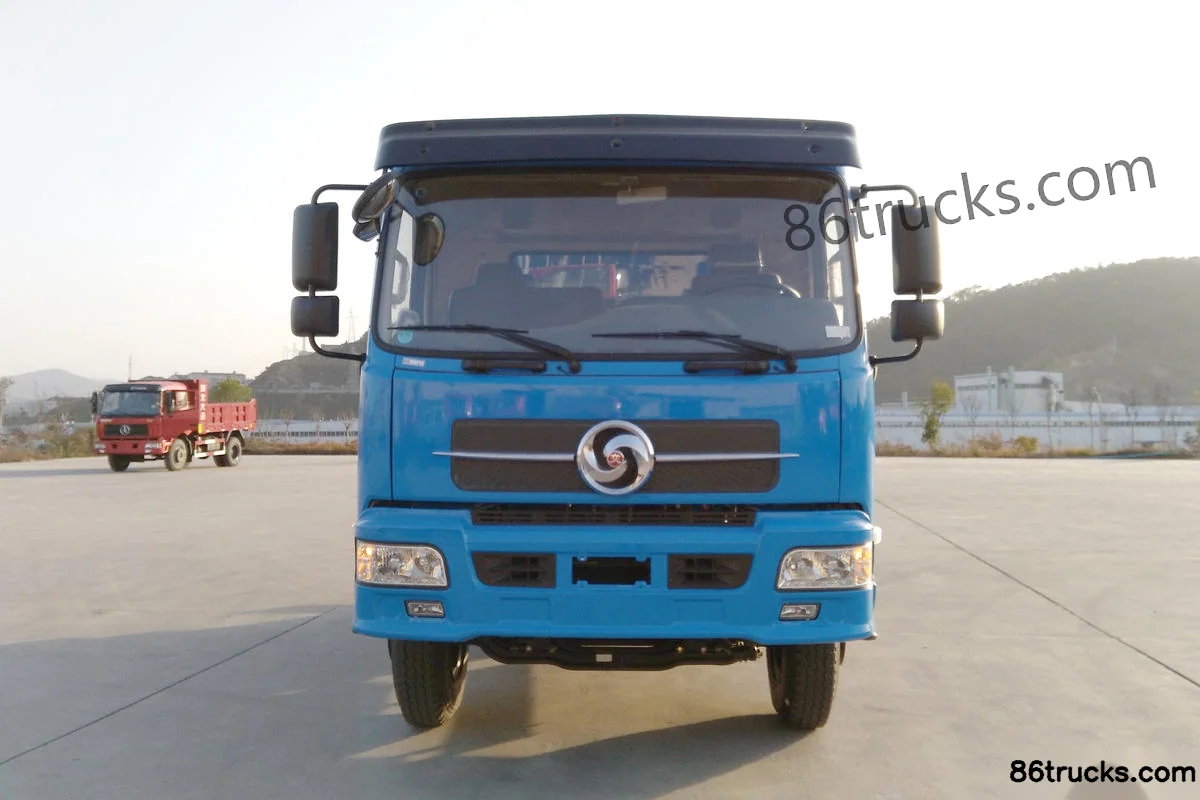

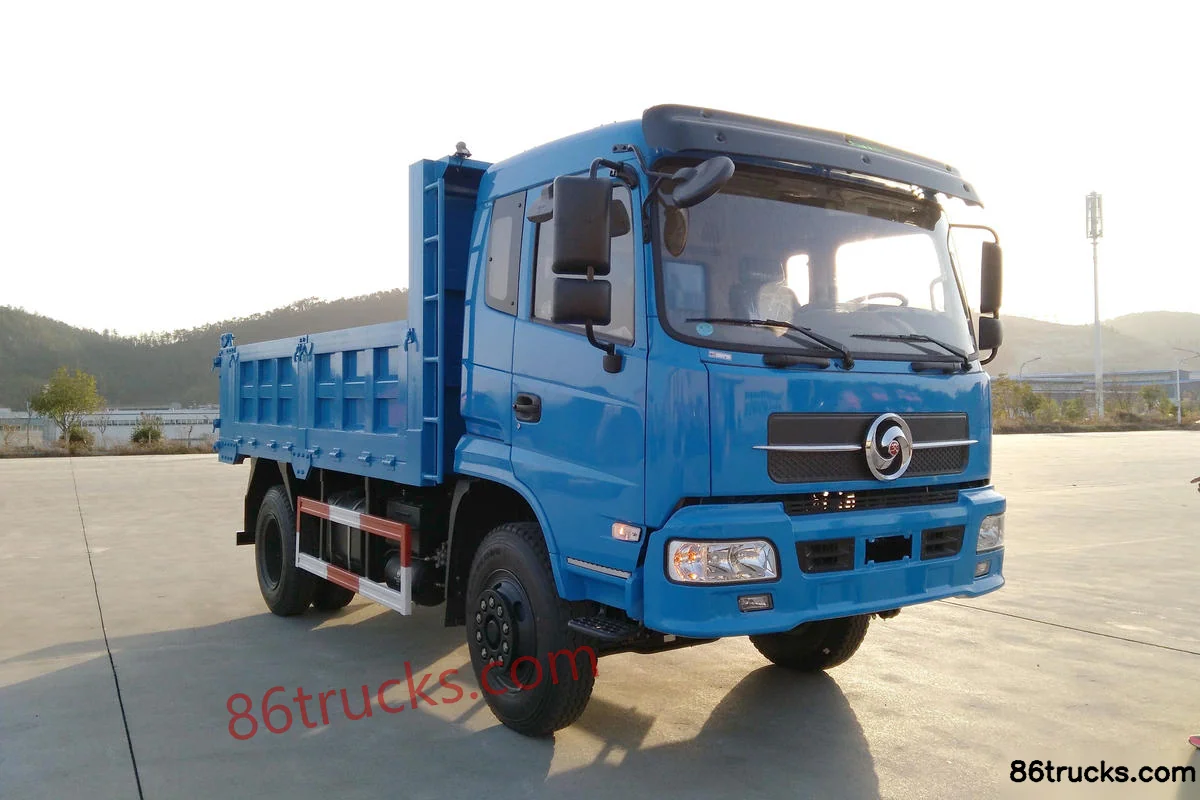

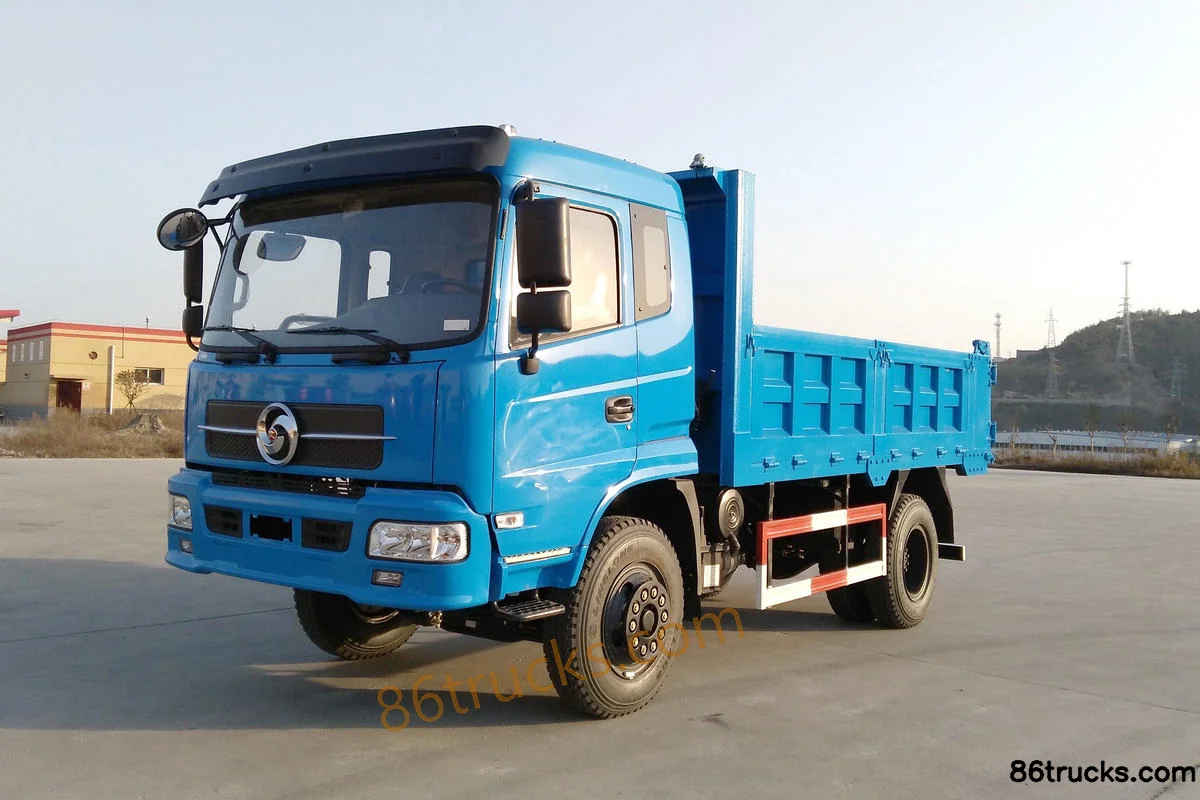

CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Exterior (1) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Exterior (2) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Exterior (3) | 86Trucks

Cab3

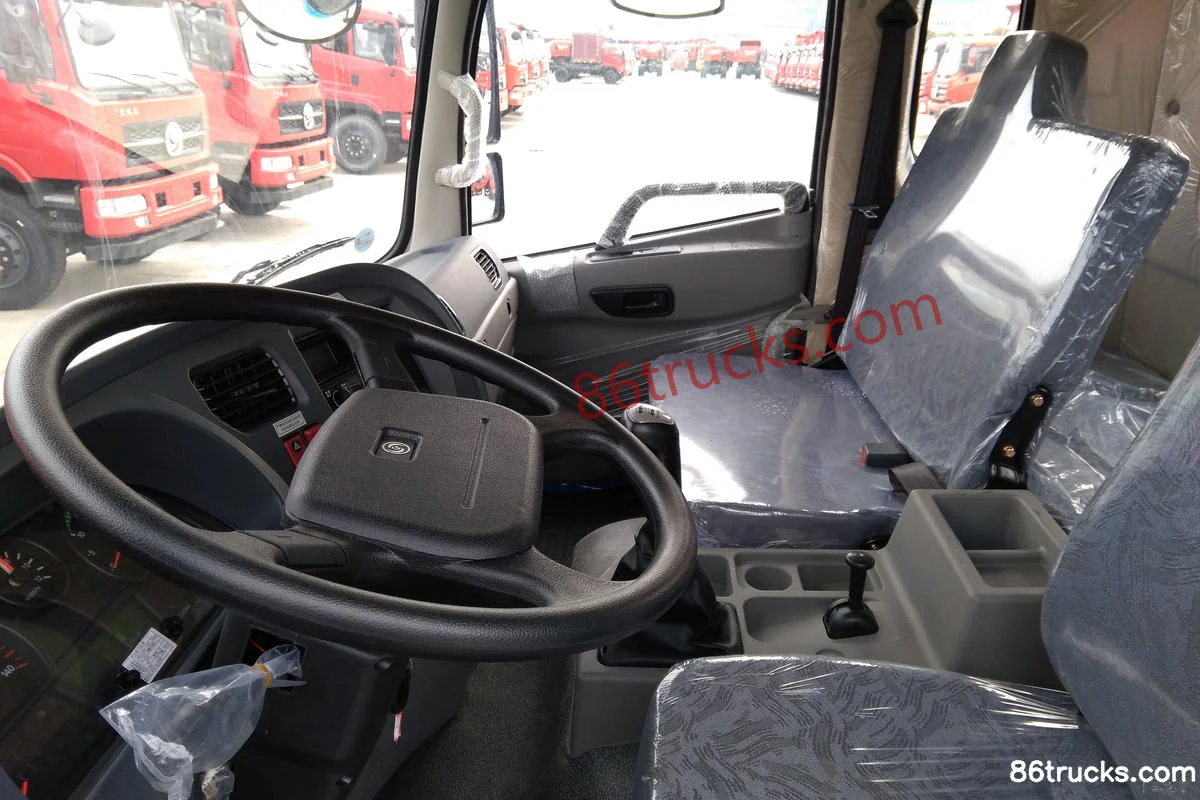

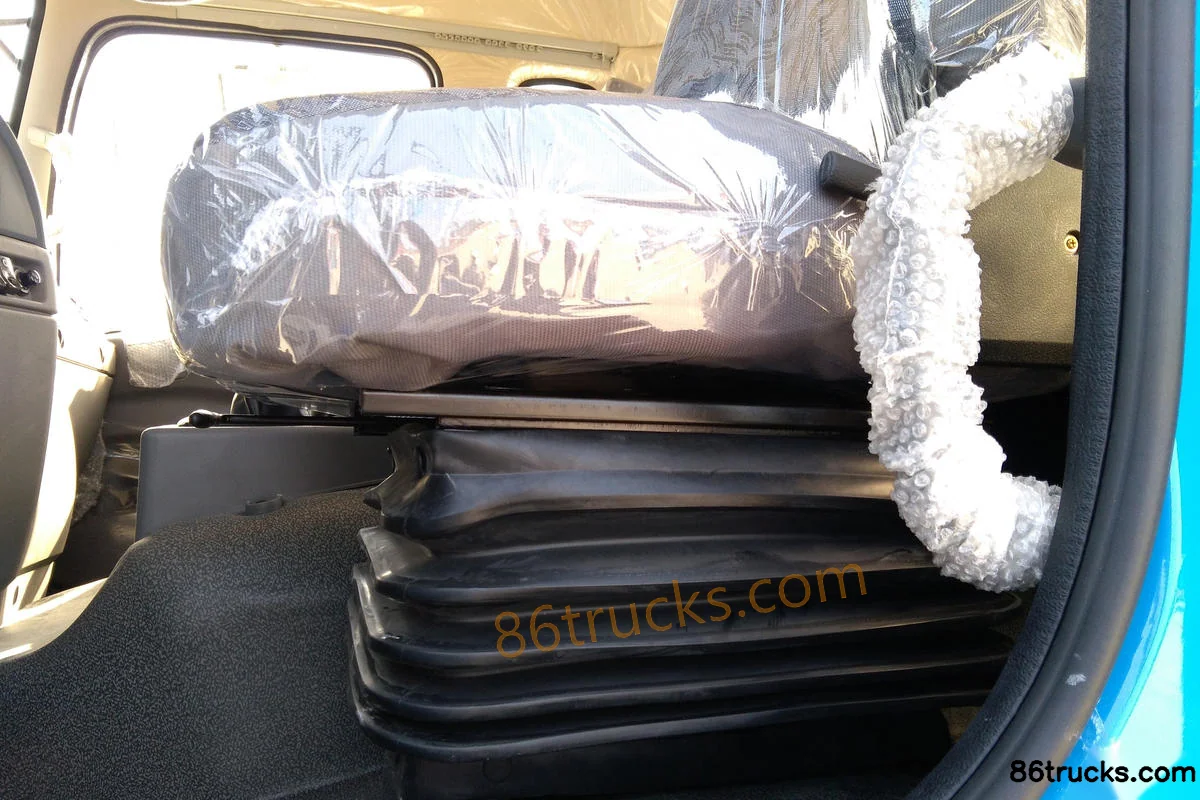

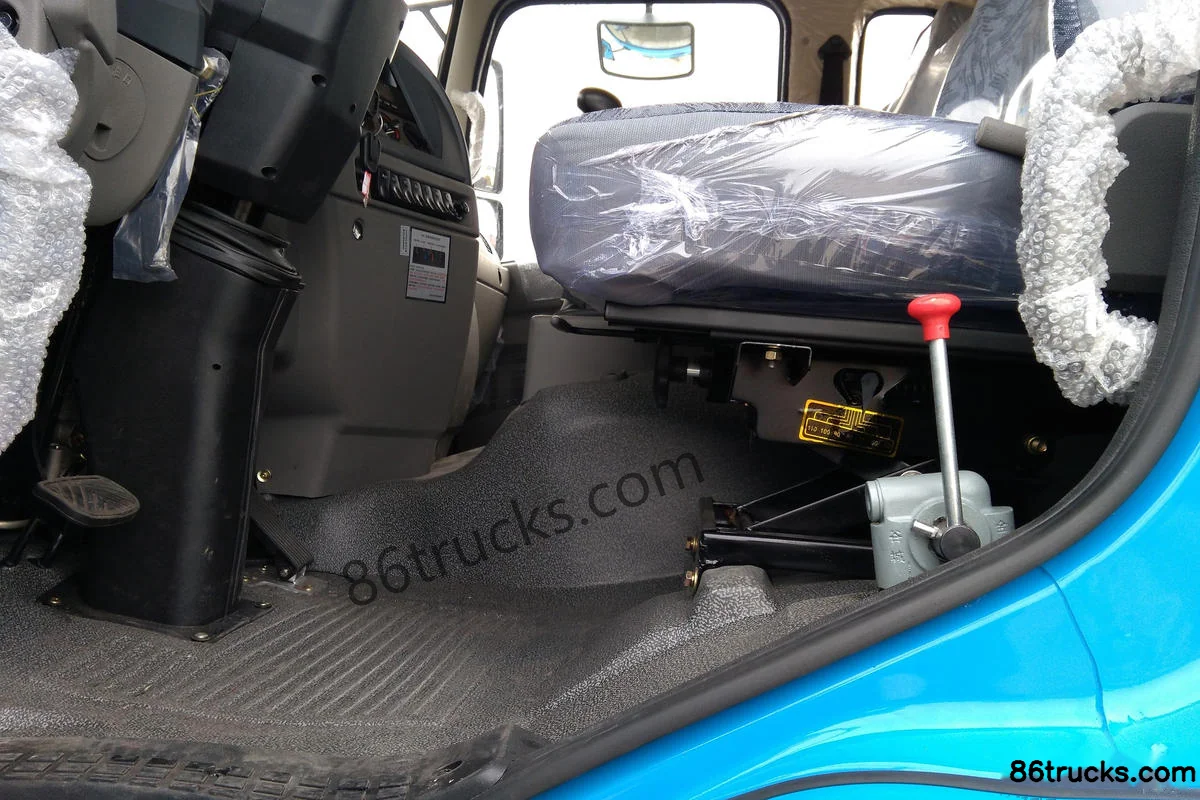

CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Cab (1) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Cab (2) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Cab (3) | 86Trucks

Chassis3

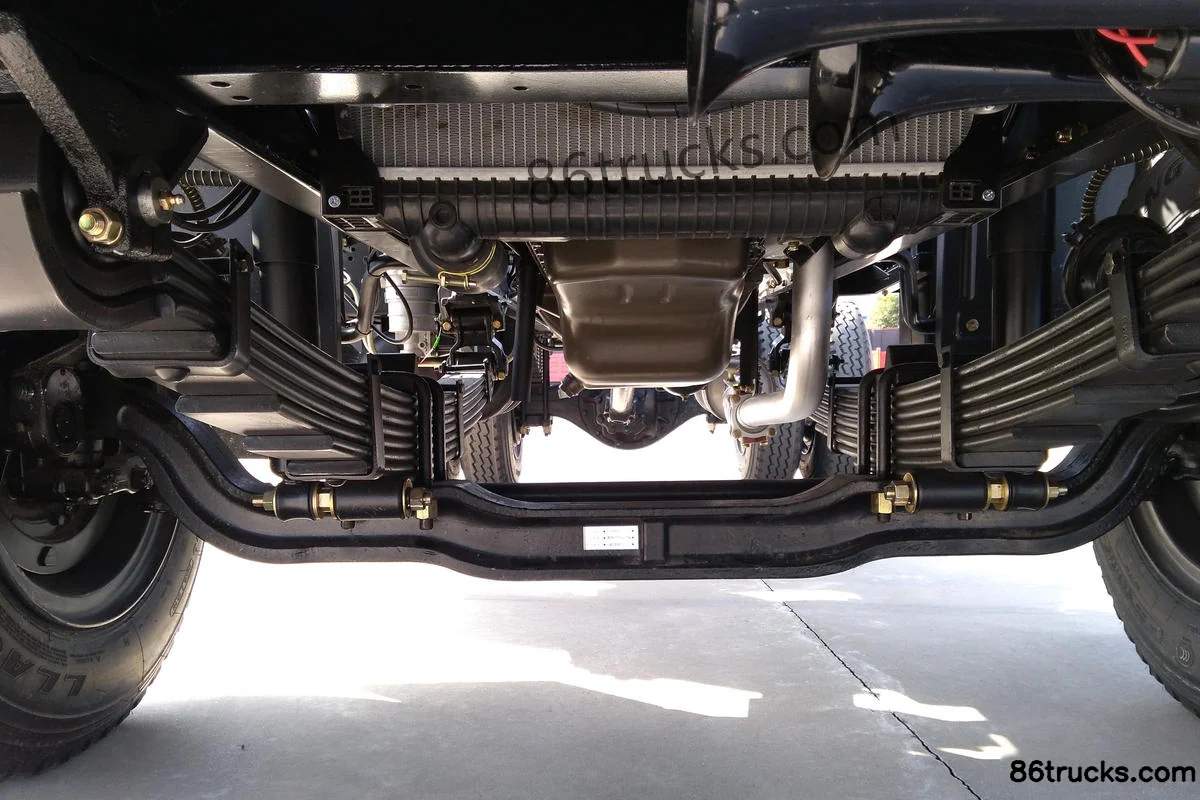

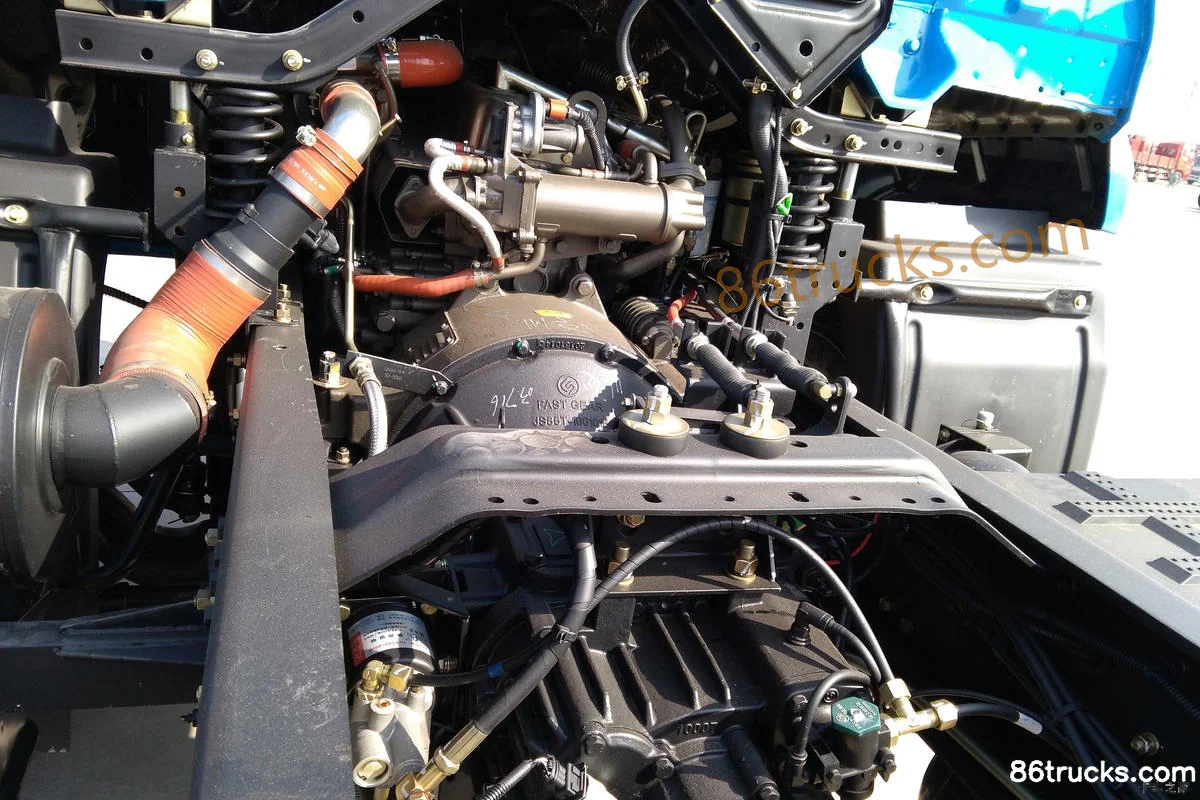

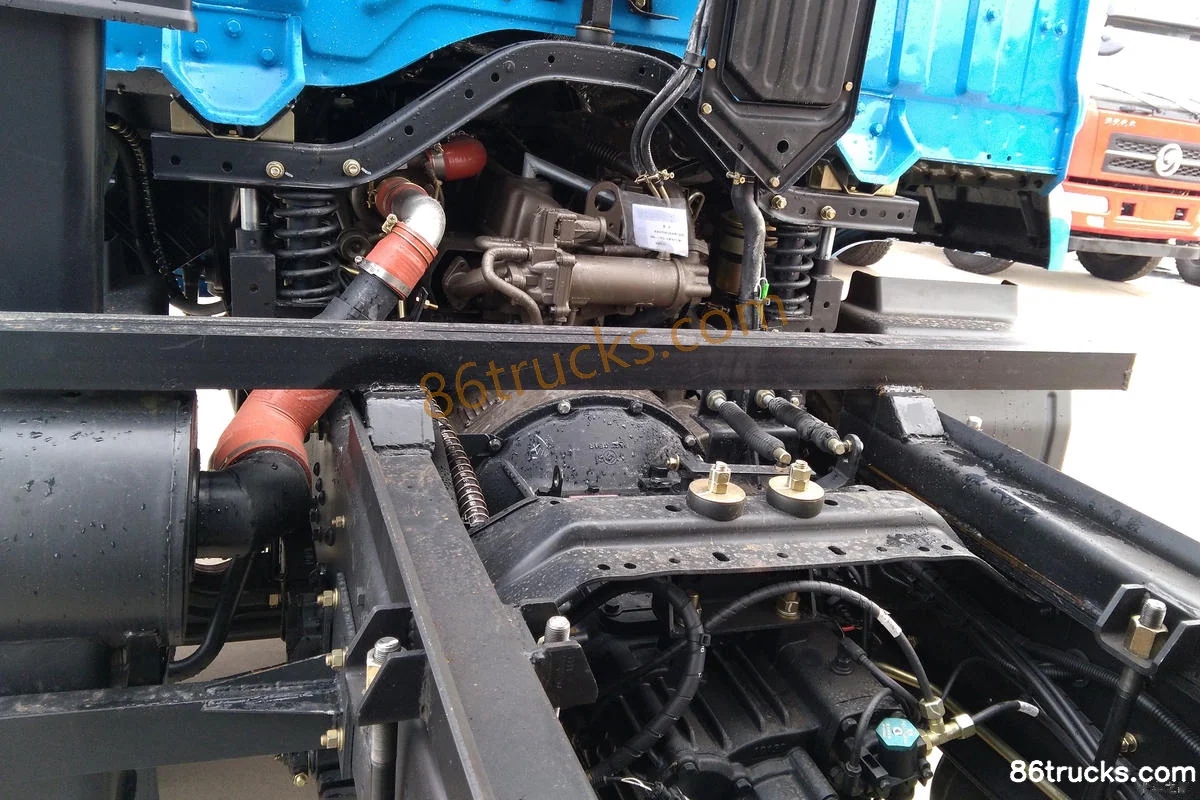

CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Chassis (1) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Chassis (2) | 86Trucks CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck?

Key specs of CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck suited for?

CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck differ from other variants in the same series?

CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck belongs to CHUANJIAO medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export CHUANJIAO 140hp 4X2(6 wheels) 3.85m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
