Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh

Export reference
From $56,111
MSRP ¥40.4M CNY
Rated payload:: 13.27ton
Wheelbase:: 1995+3300mm
Cargo box type:: Rear dump type
Model code (announced):: DFH3250EEV
Cab length:: 8.77m
GVWR:: 25ton
Drive 6X2 (8 wheels)
Battery Brand: CATL
Motor 1 Brand: Lv Kong
Curb Weight: 11.6ton

Overview

The Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh is a Heavy truck featuring CATL battery/range, Lv Kong motor, 6X2 (8 wheels) drive and 13.27t payload.

6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3250EEV
Drive type: 6X2
Wheelbase: 1995+3300mm
Cab length: 8.77m
Cab width: 2.55m
Cab height: 3.12m
Curb Weight: 11.6ton
Rated payload: 13.27ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ460XS-LKM3101
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 450kW
total peak torque: 3100N·m
total rated torque: 1450N·m
Motor 1 Peak Power: 450kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 242kWh
Transmission Parameters
Transmission Model: J4S240 DD
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 4.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: DF485
rear axle allowable load: 11500kg
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

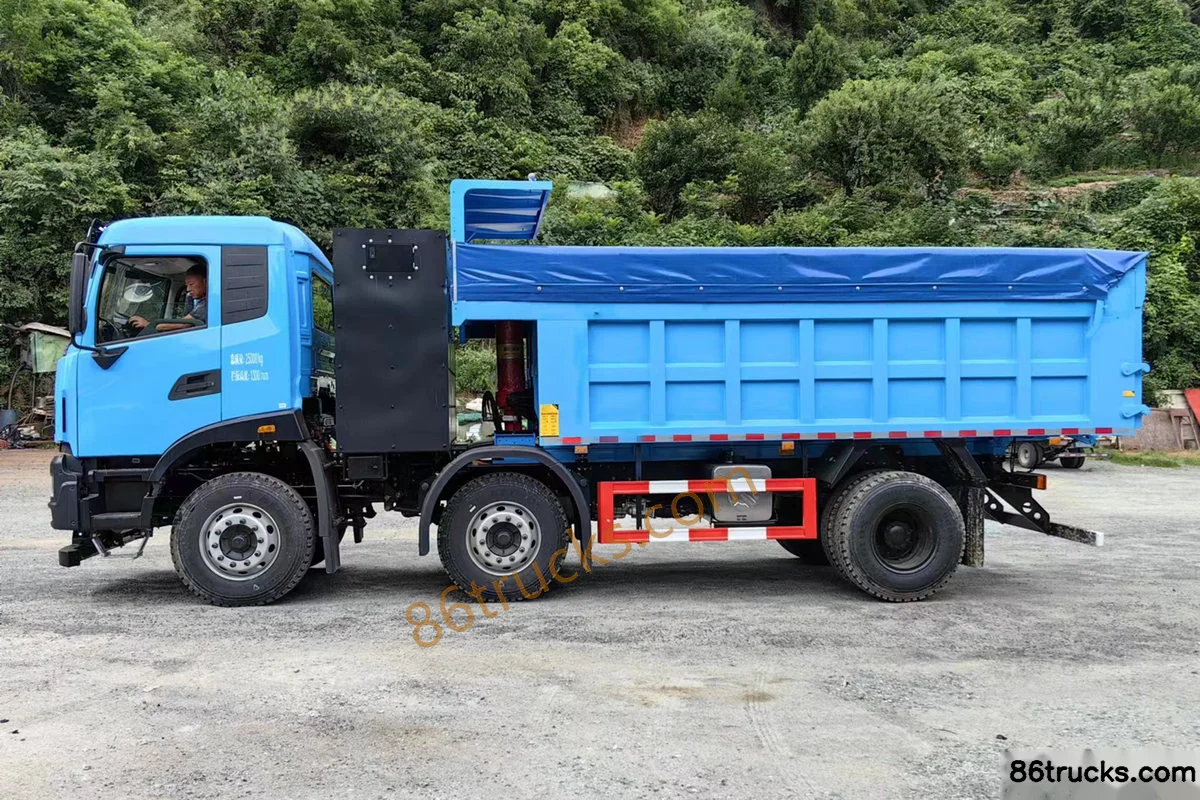

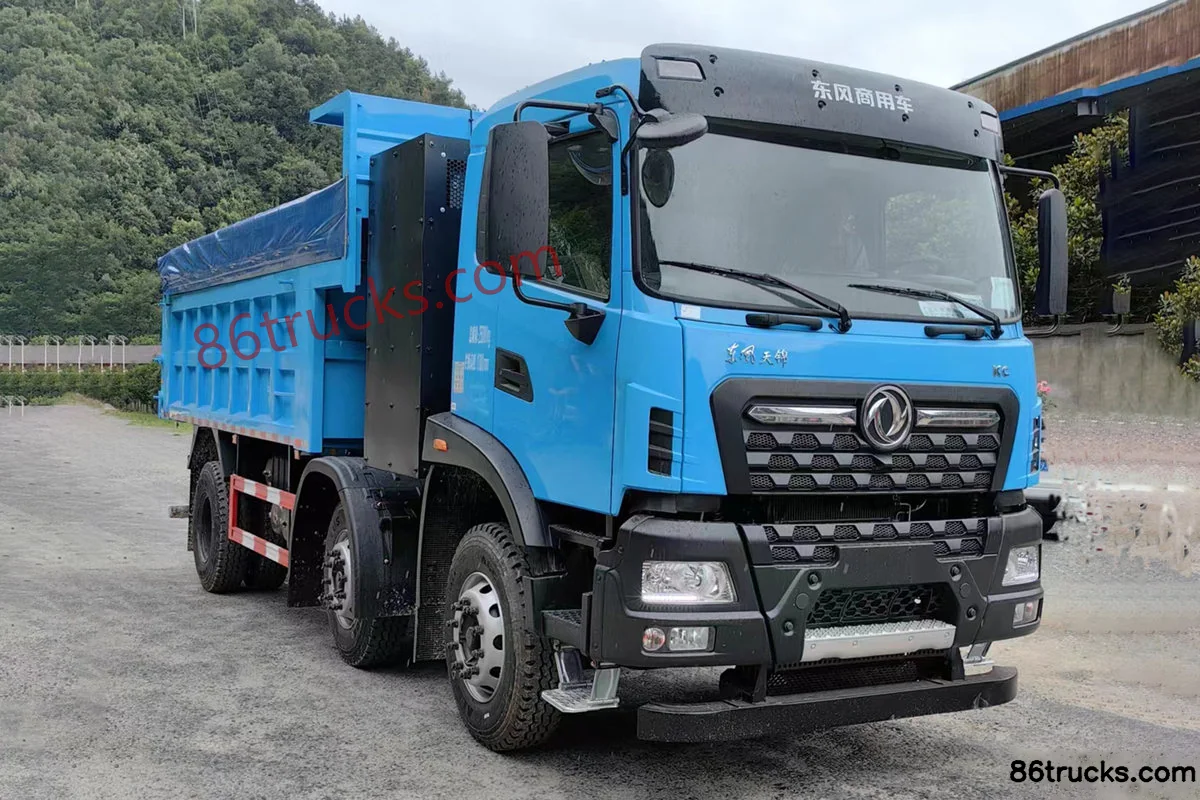

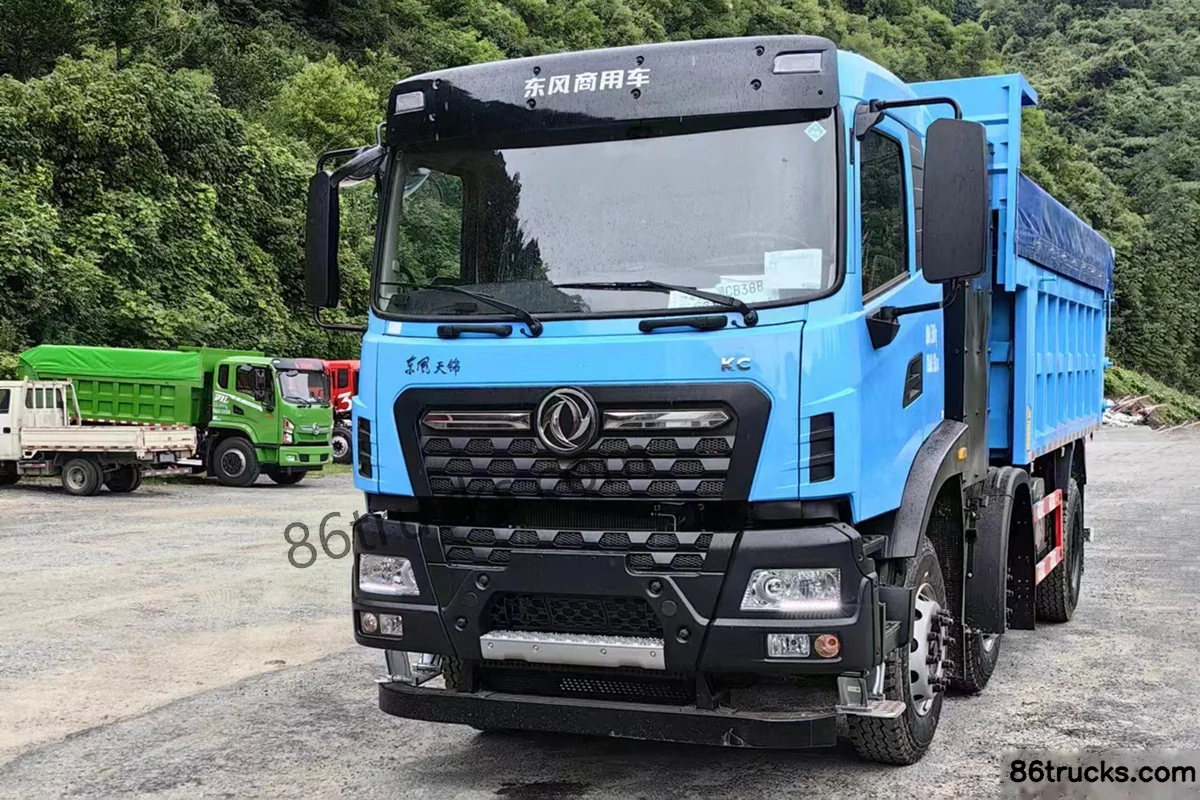

Exterior3

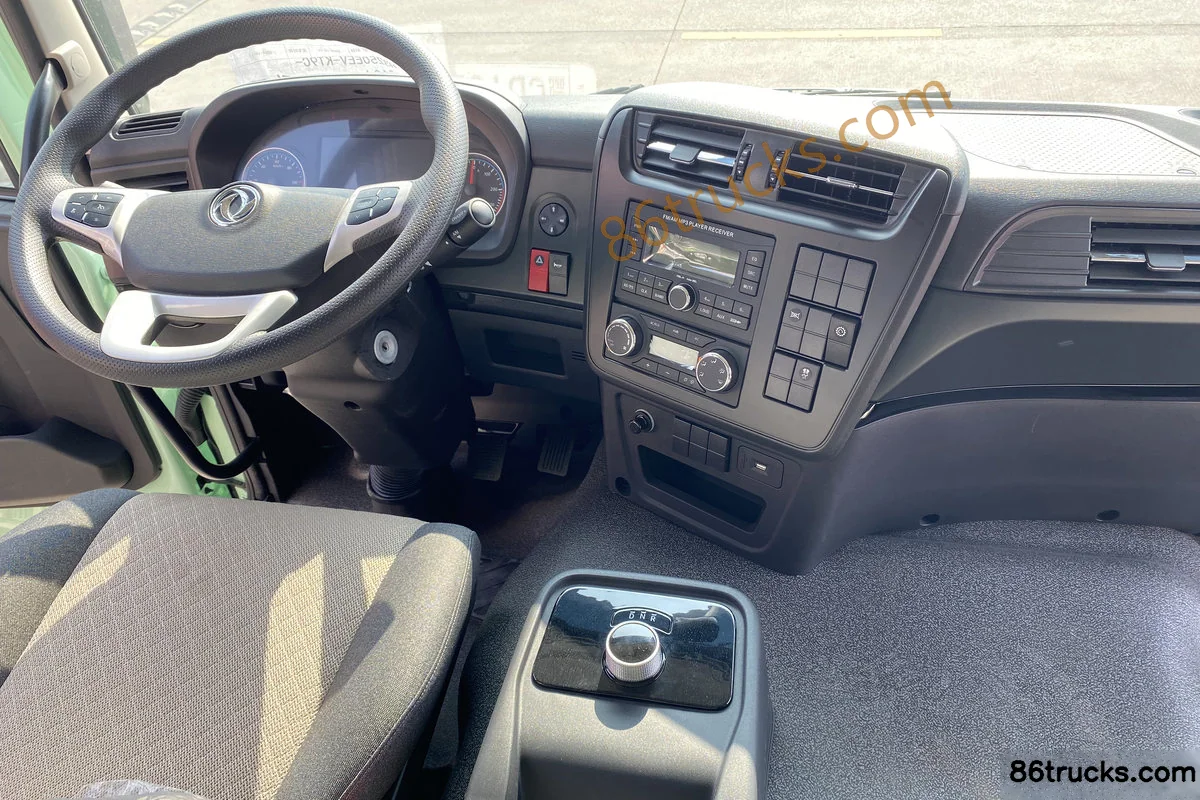

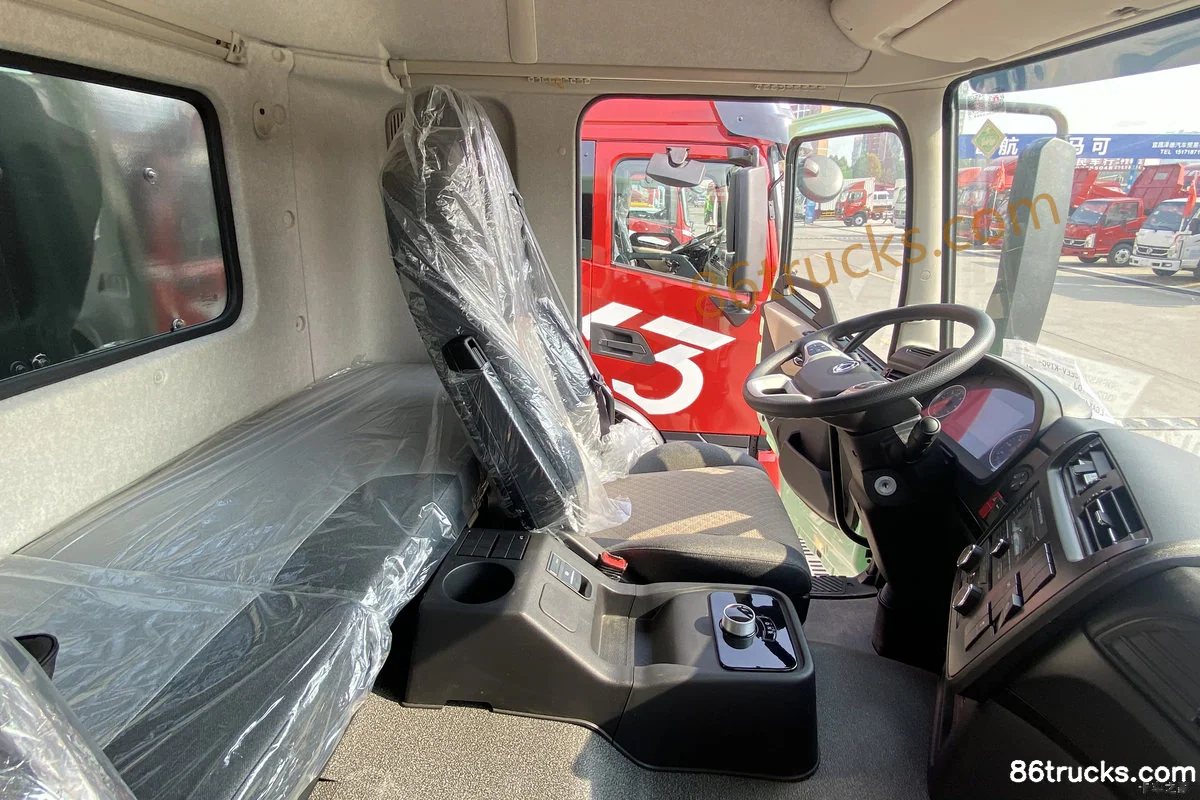

Cab2

5 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh, and what does it include?

Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh export reference is about From $56,111; MSRP is ¥40.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh?

Key specs of Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh: Drive: 6x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh suited for?

Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh belongs to Dongfeng Tianjin KC heavy-duty truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin KC 6X2(8 wheels) 4.8m Electric Dump Truck CATL 242kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
