Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.805ton
Wheelbase:: 3350mm
Tire Size:: 9.00R20
Model code (announced):: CDW3122A1R6
Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck exterior
View more photos (9)
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck is a Light Truck featuring 4.995t payload, 11.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-66 engine, 200 hp, Fast Gear transmission and Diesel fuel.

200 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CDW3122A1R6
Drive type: 4X2
Wheelbase: 3350mm
engine: YuchaiYCS04200-66
transmission: Fast Gear 8-speed
Cab length: 6.135m
Cab width: 2.36m
Cab height: 2.7m
Front track width: 1790mm
rear track: 1725mm
Curb Weight: 6.805ton
Rated payload: 4.995ton
GVWR: 11.995ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04200-66
fuel type: Diesel
Displacement: 4.295L
Max output power: 147kW
Max hp: 200Horsepower
Transmission Parameters
Transmission Model: 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.94m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: 757 cab
seating capacity: 3Personnel
Chassis Specs
Front axle description: 145 front axle
Front axle allowable load: 4800kg
rear axle description: 153 rear axle
rear axle allowable load: 7195kg
Leaf spring count: 11/11+9
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

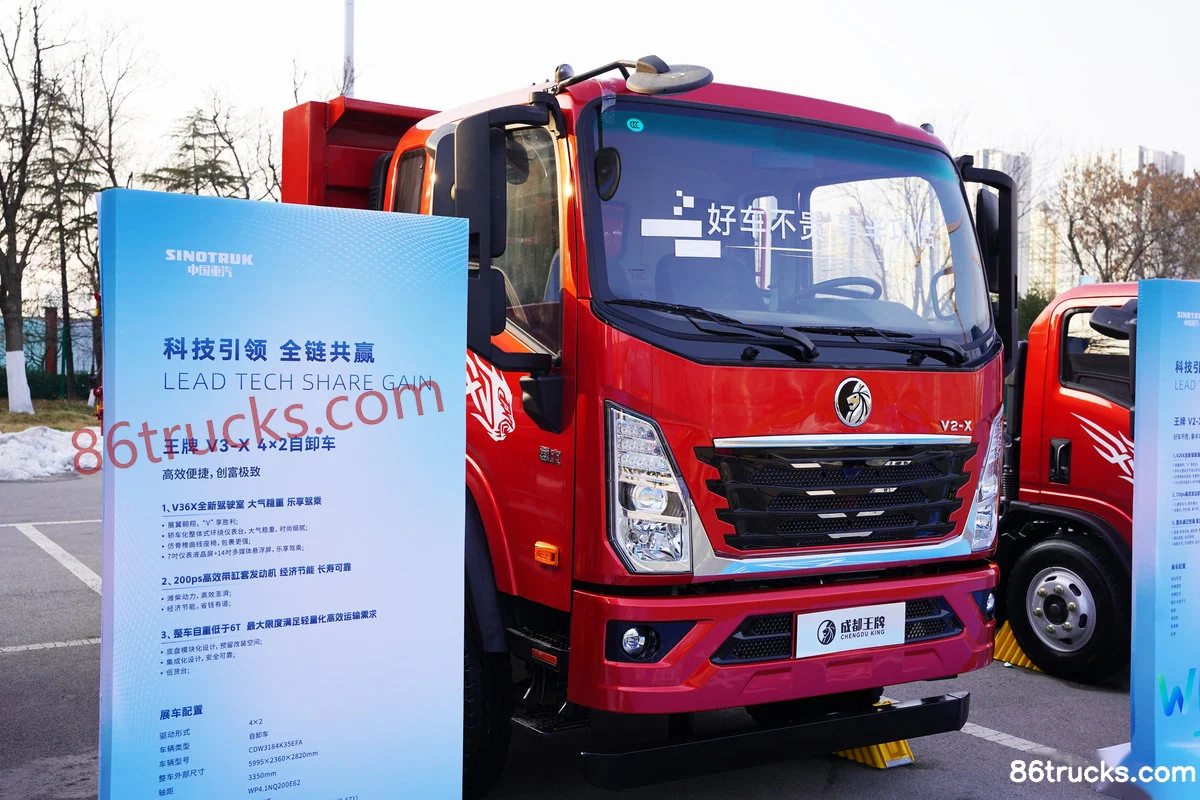

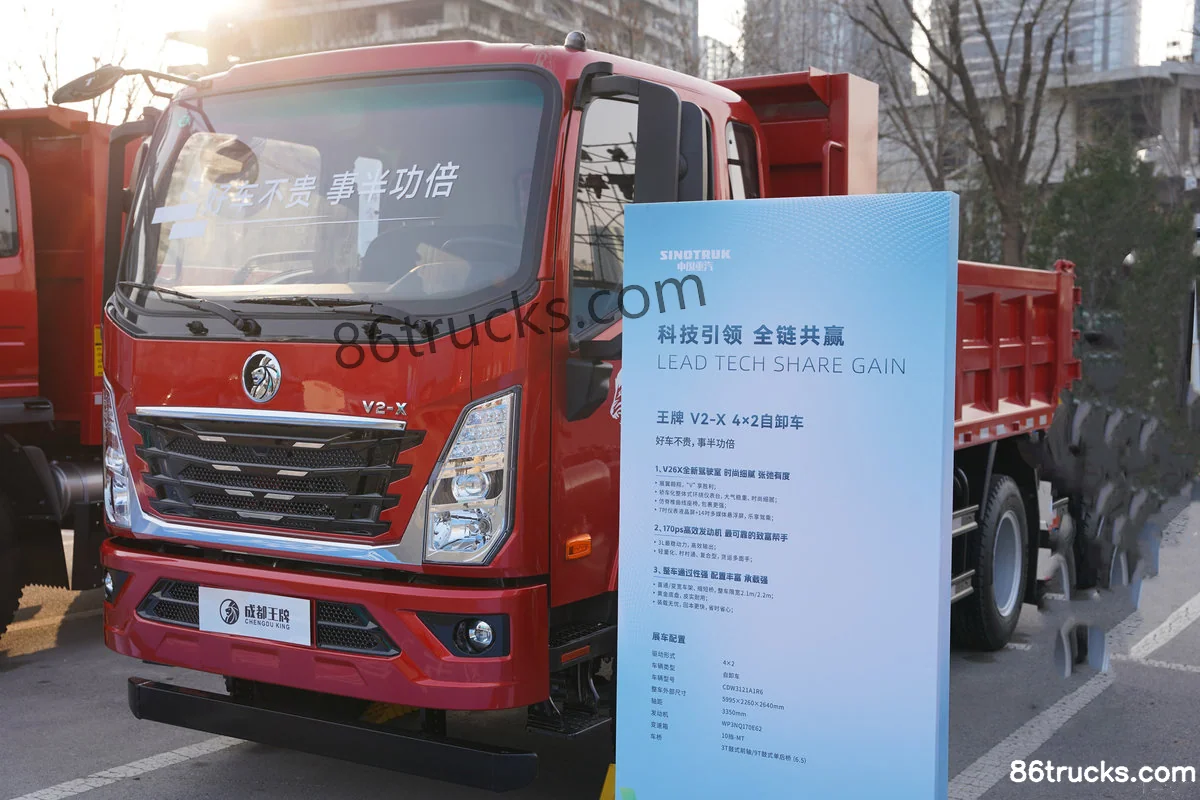

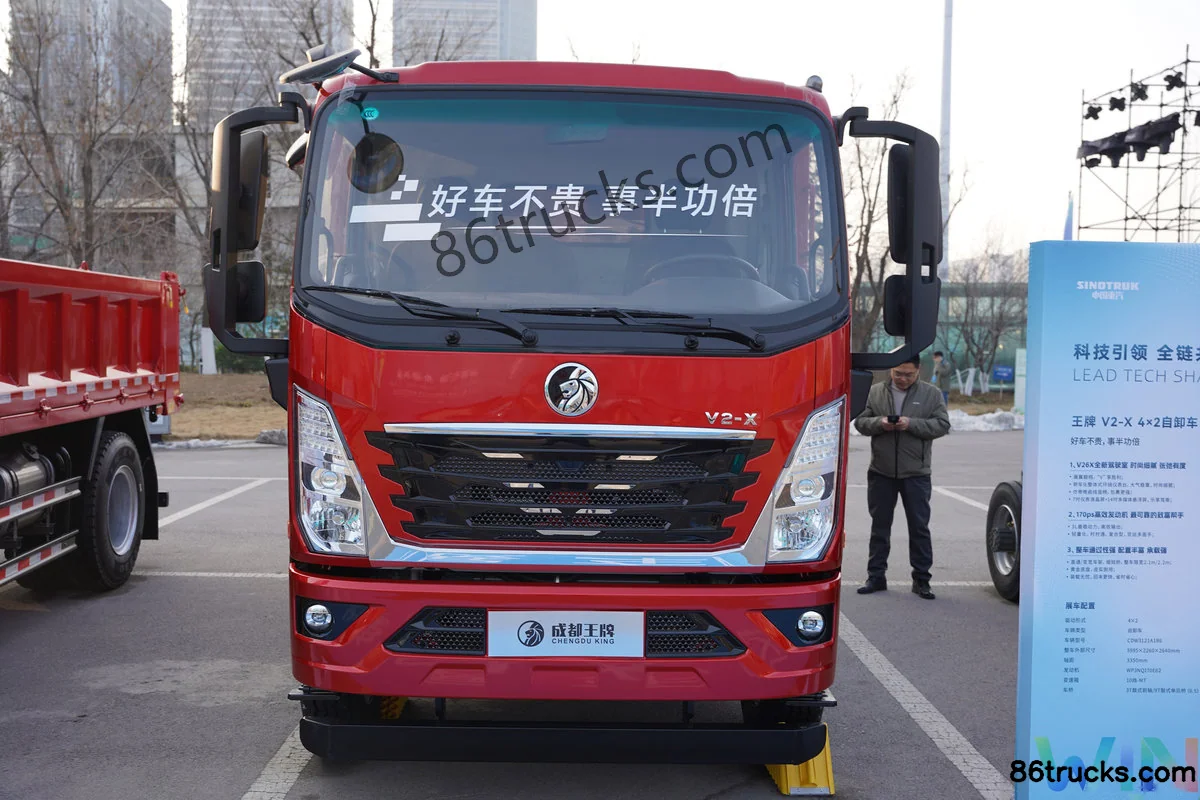

Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Exterior (1) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Exterior (2) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Exterior (3) | 86Trucks

Cab3

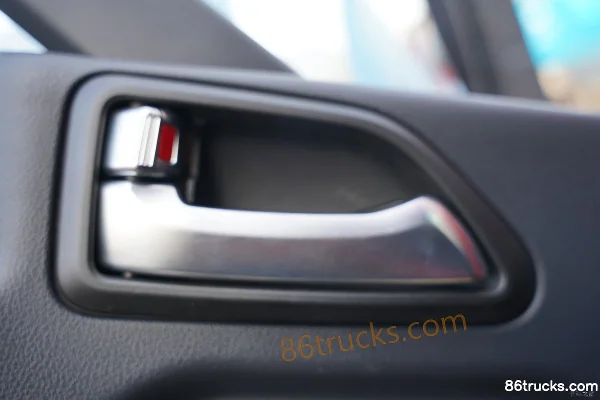

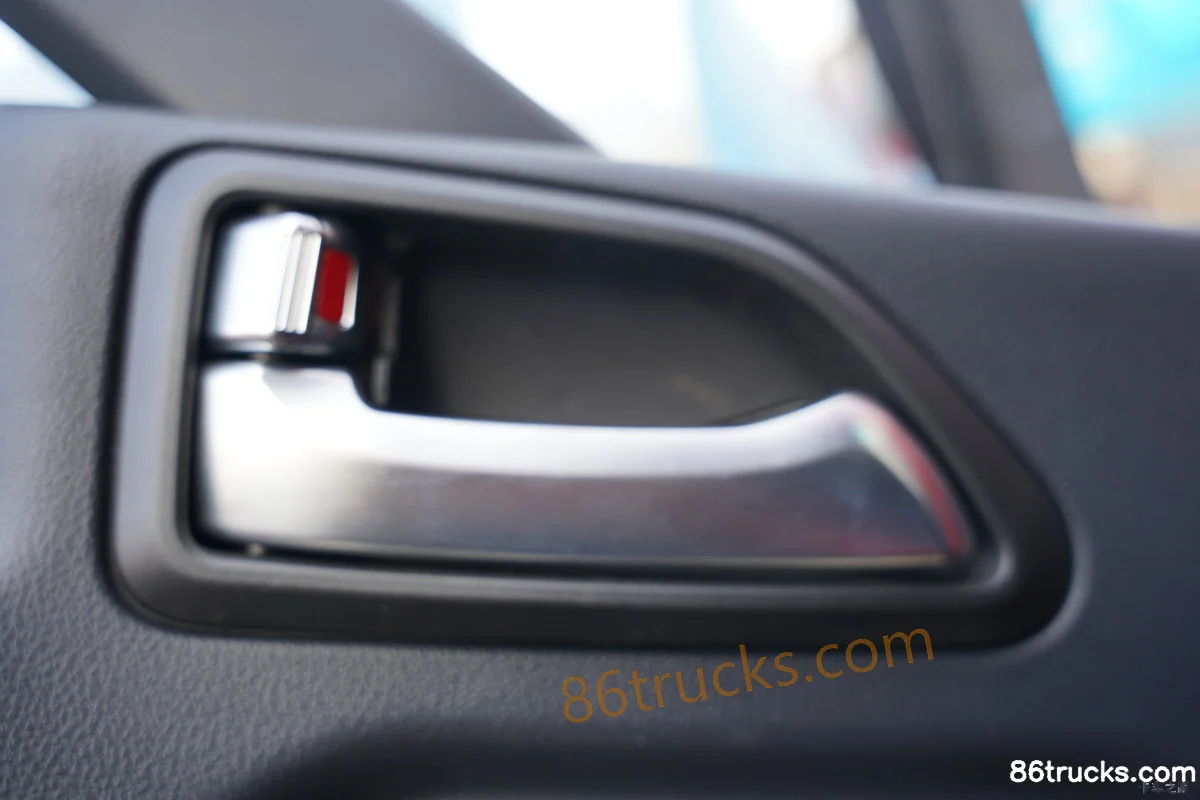

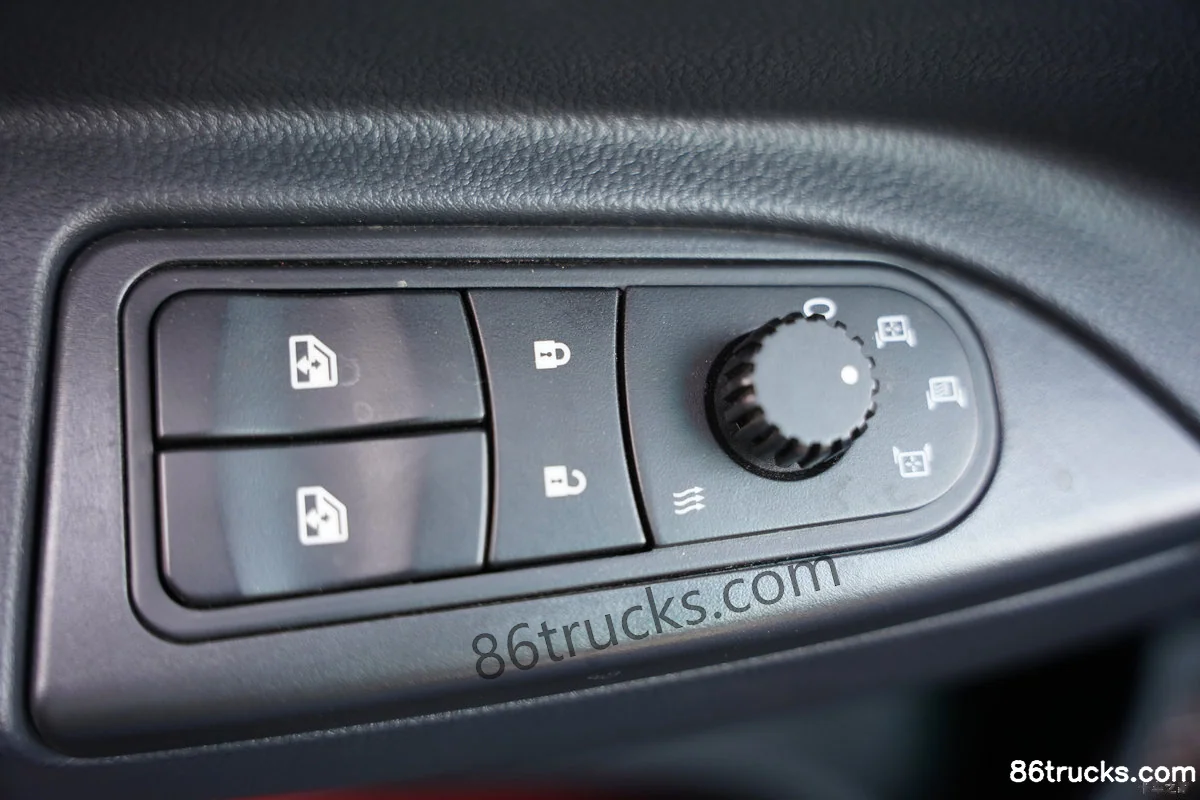

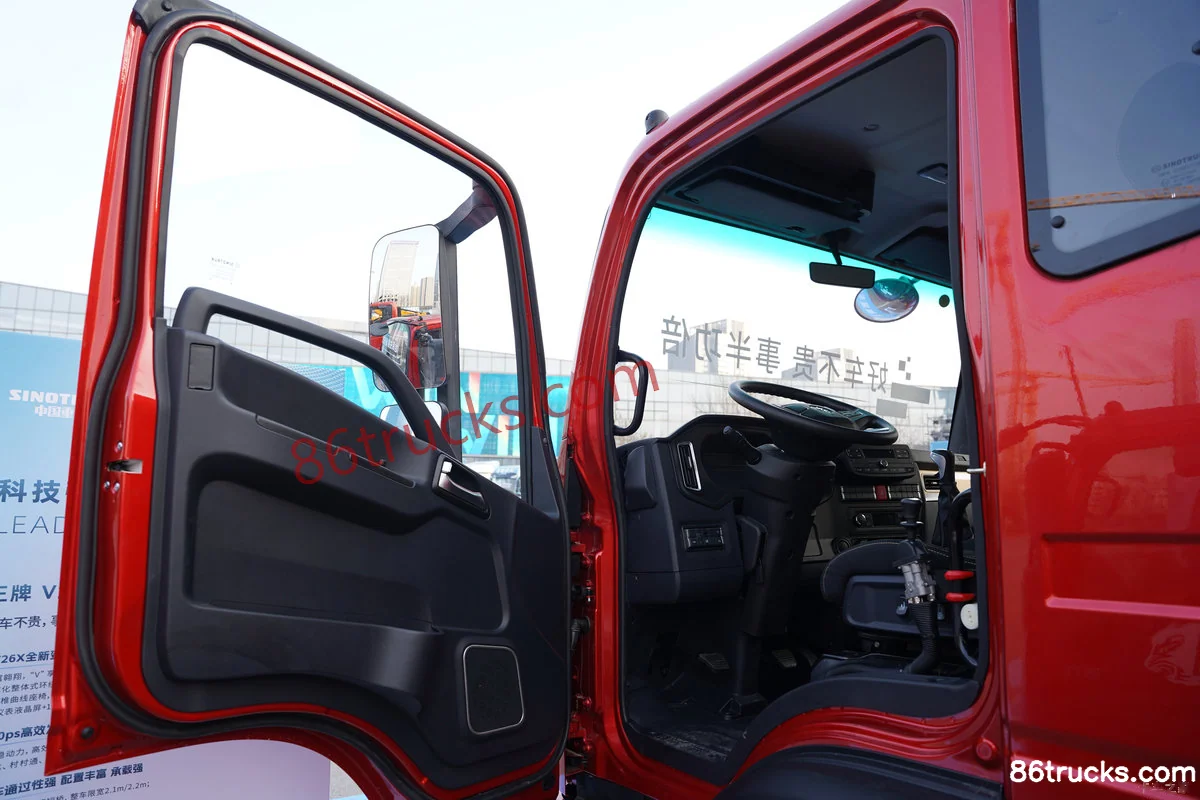

Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck (1) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck (2) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck (3) | 86Trucks

Chassis3

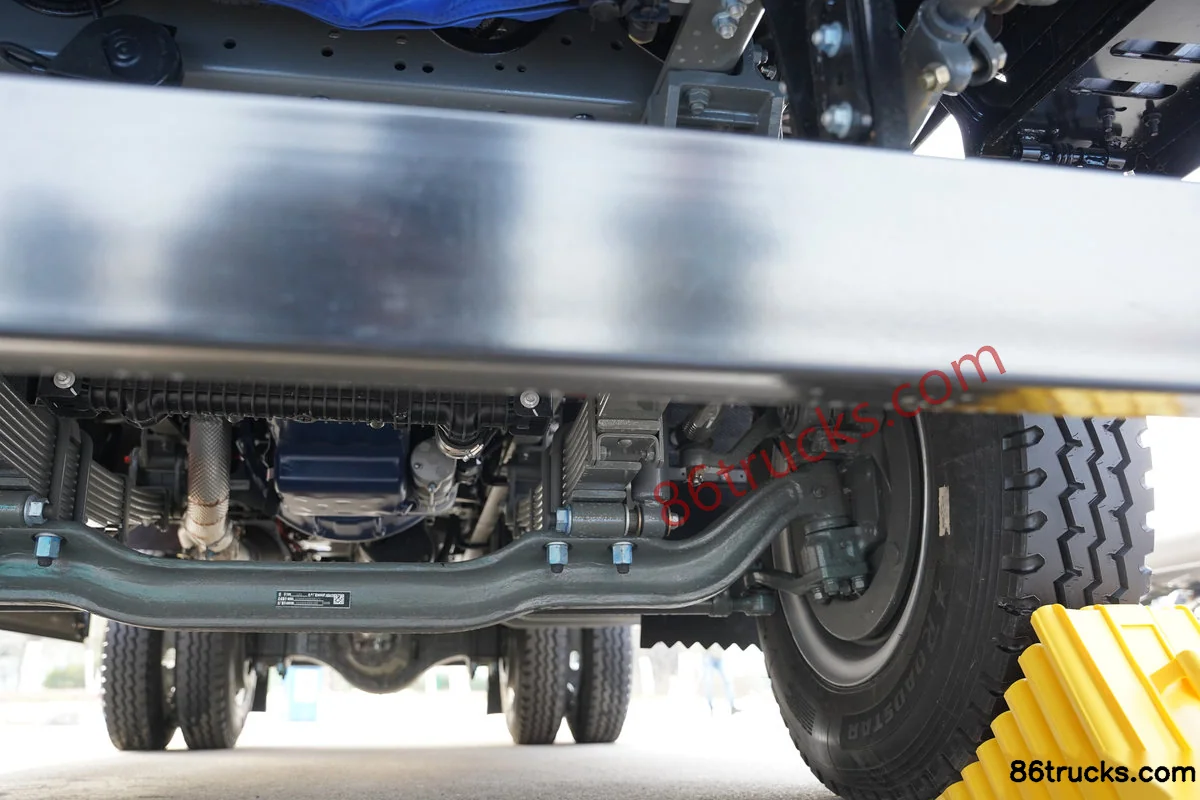

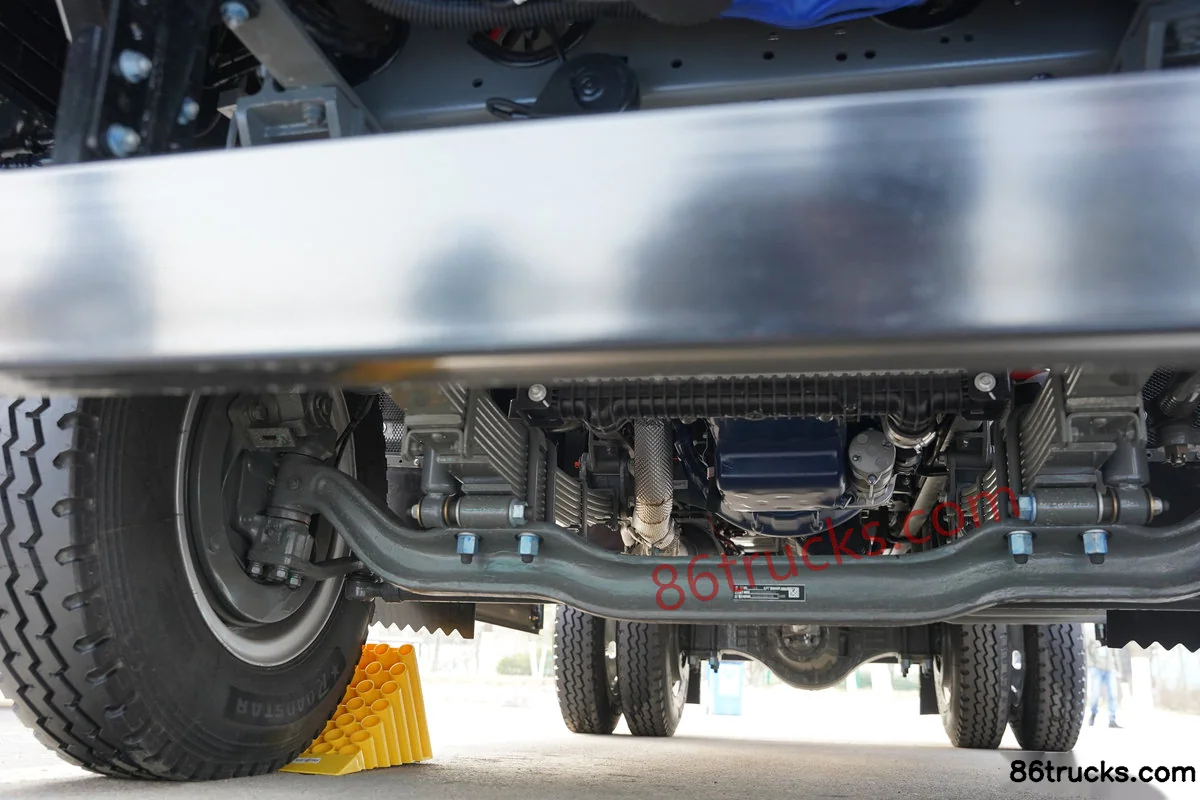

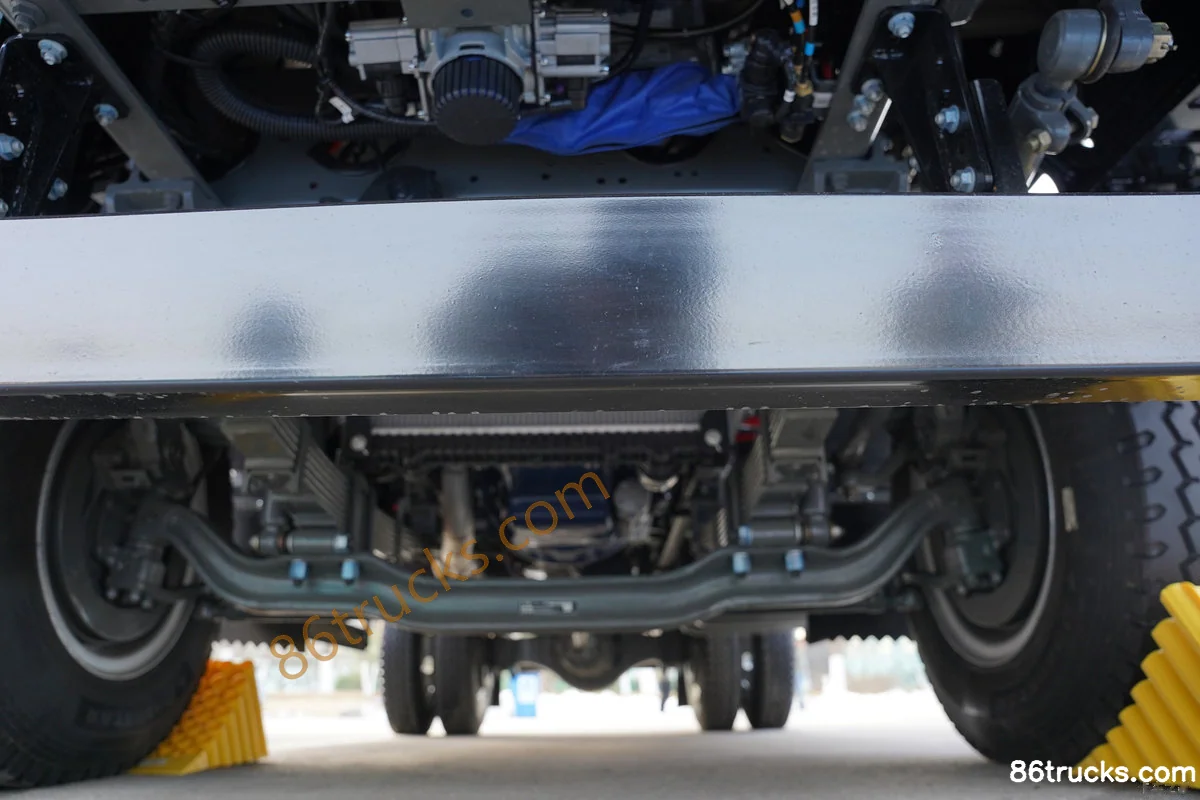

Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Chassis (1) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Chassis (2) | 86Trucks Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck?

Key specs of Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck: Drive: 4x2; Horsepower: 200 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck suited for?

Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck differ from other variants in the same series?

Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck belongs to Sinotruk V2-X Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V2-X 4.3L Diesel 200hp 4X2(6 wheels) Fast Gear 8-Speed 3.94m Short Cab Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
