JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.72ton
Wheelbase:: 1800+2550+1350mm
Tire Size:: 11.00R20 18PR
Model code (announced):: HFC3311P1PHEV
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box length: 5.6m
Emission China VI

Overview

The JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck is a Heavy truck featuring 31t GVW, 5.6m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP8.350E61 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3311P1PHEV
Drive type: 8X4
Wheelbase: 1800+2550+1350mm
engine: WeichaiWP8.350E61
transmission: Fast GearJ12S240
Rear Axle Ratio: 4.76
Cab length: 8.995m
Cab width: 2.55m
Cab height: 3.55m
Curb Weight: 15.72ton
GVWR: 31ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Transmission Parameters
Transmission Model: Fast GearJ12S240
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.1m
Chassis Specs
Front axle description: I-beam section
rear axle description: Dual-stage reduction
Axle ratio: 4.76
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

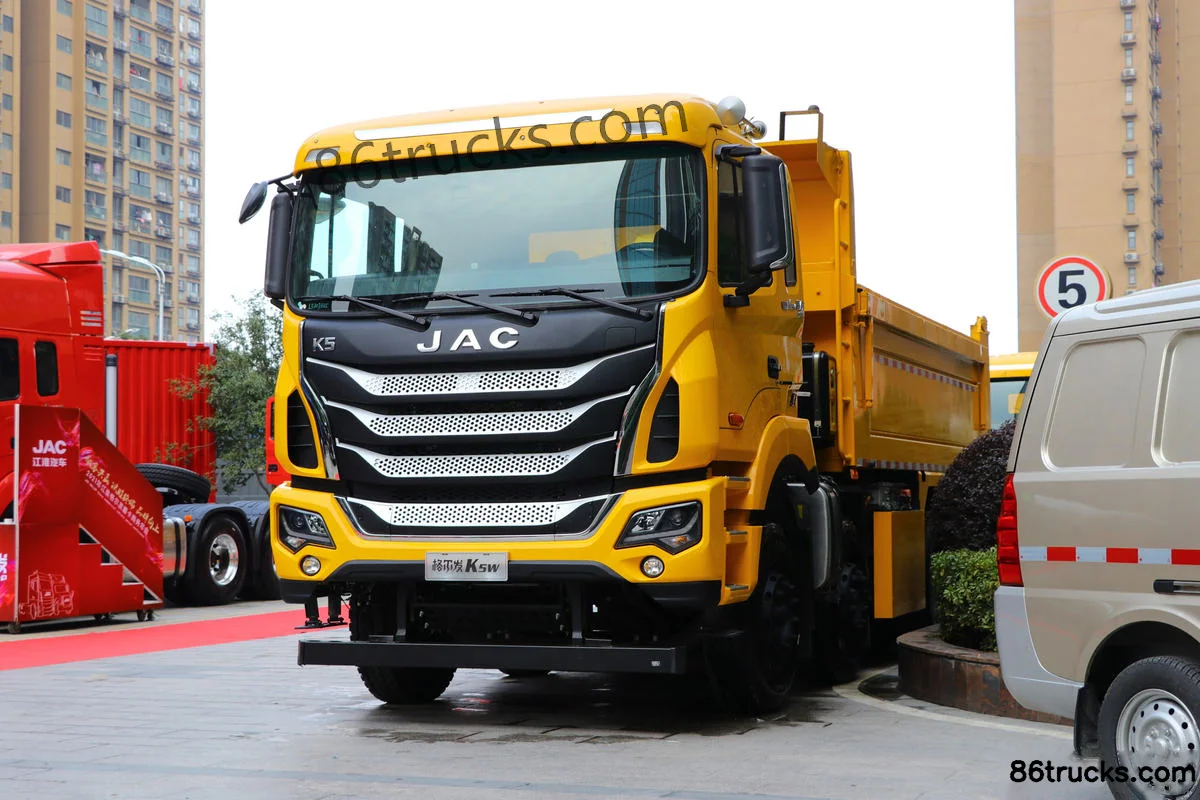

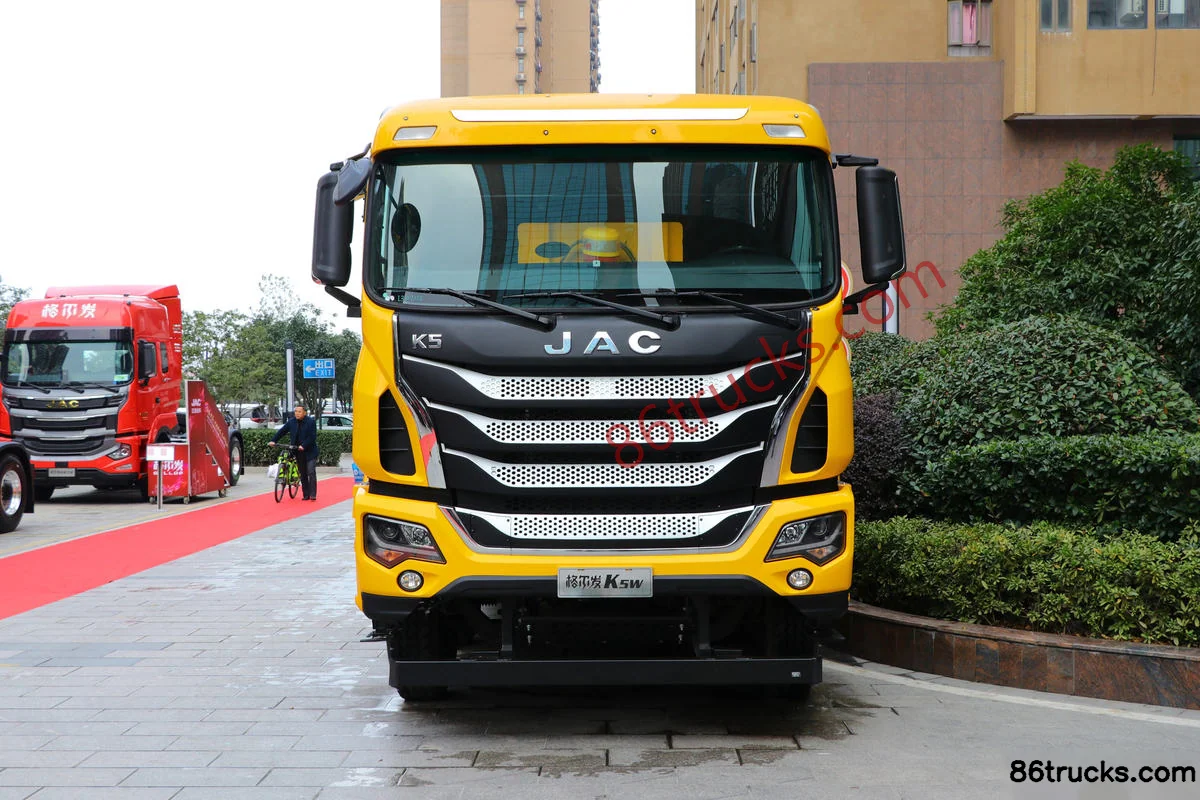

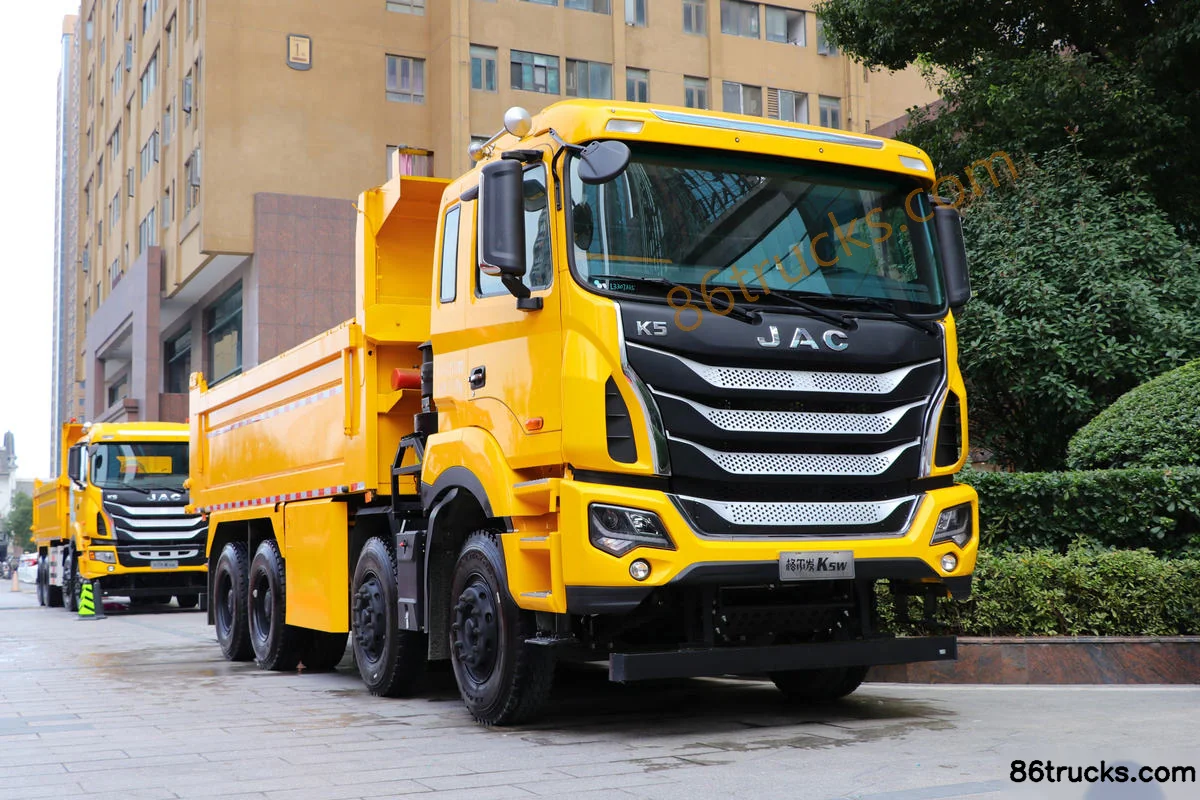

Exterior3

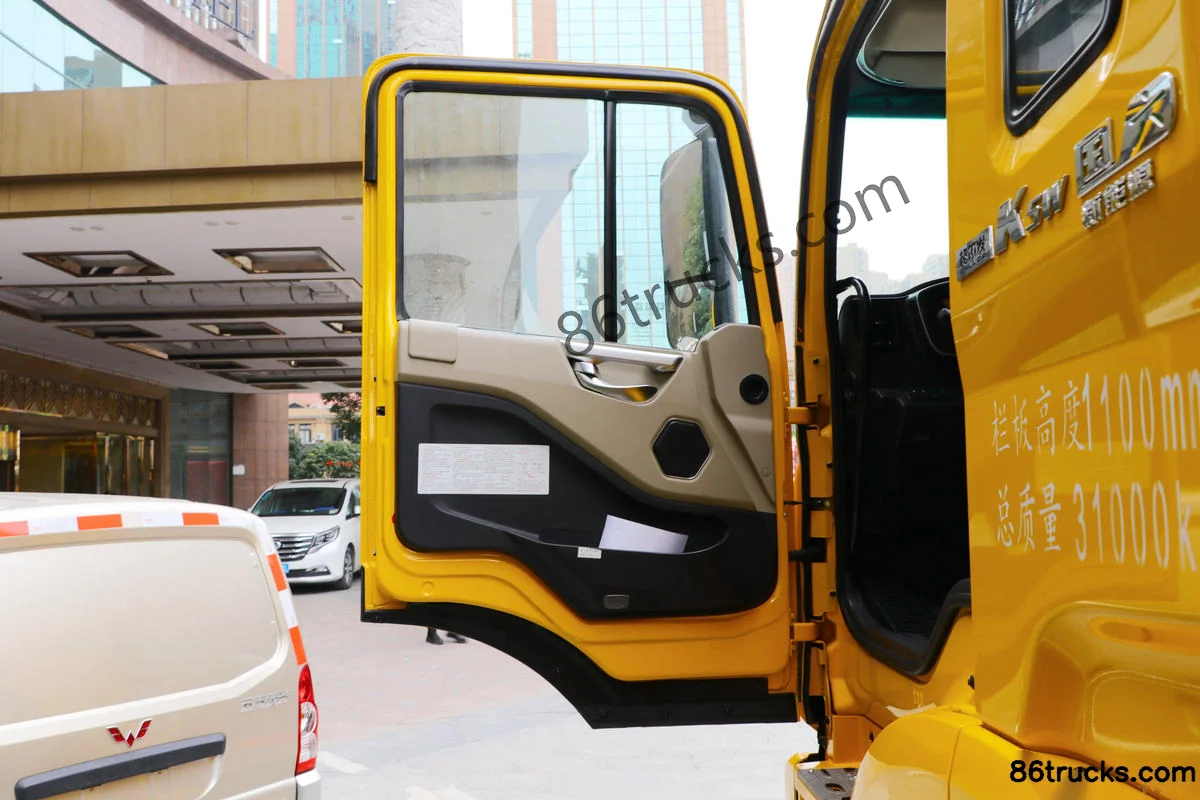

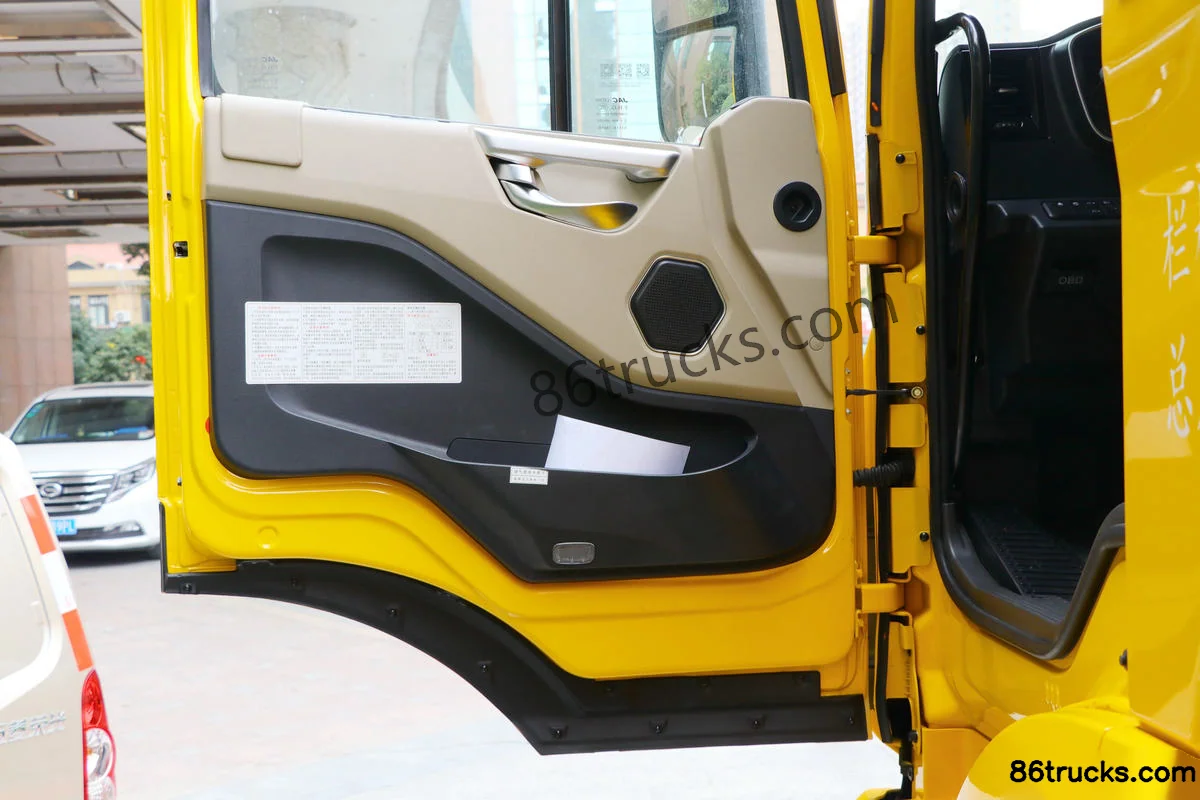

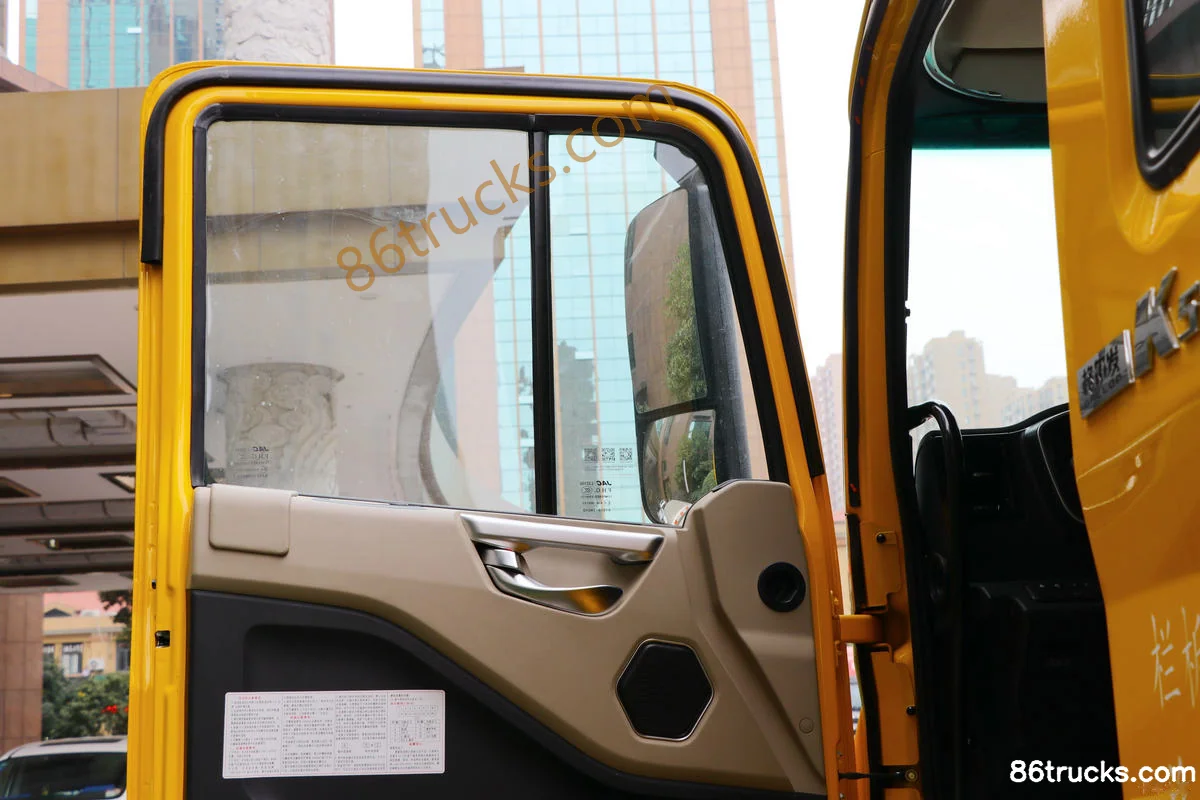

Cab3

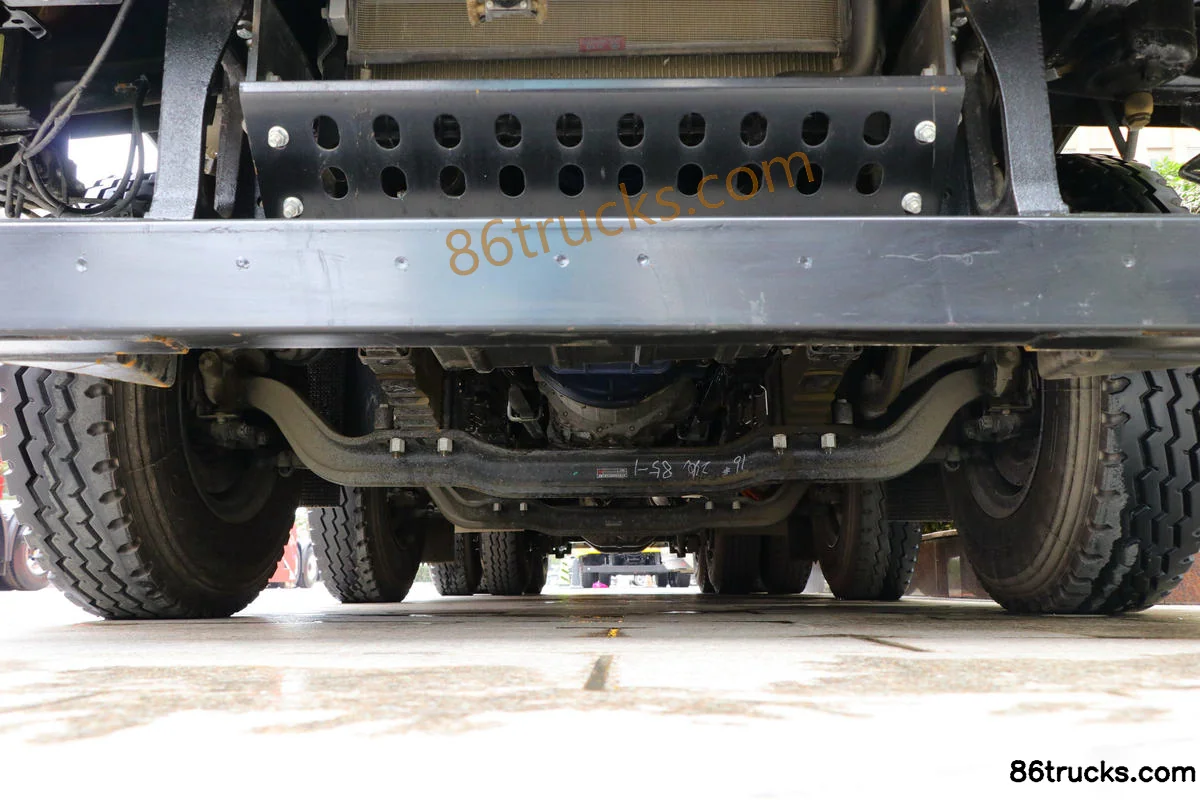

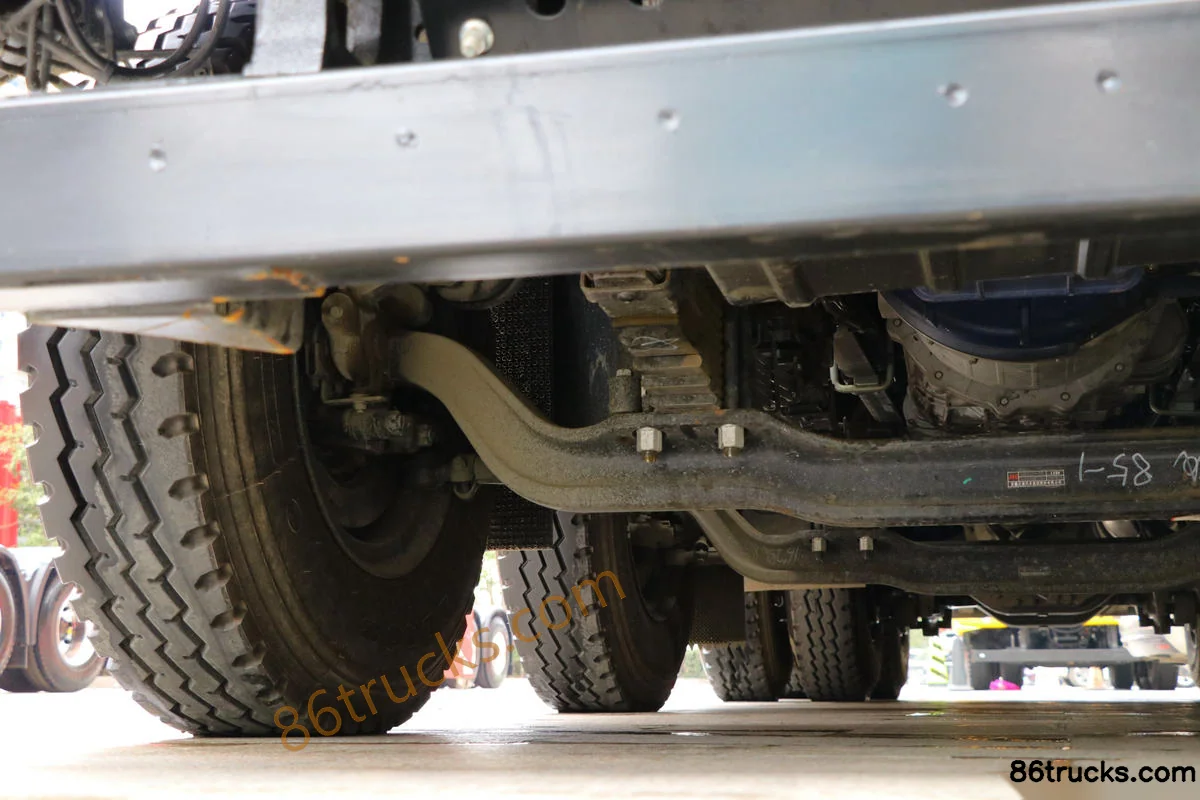

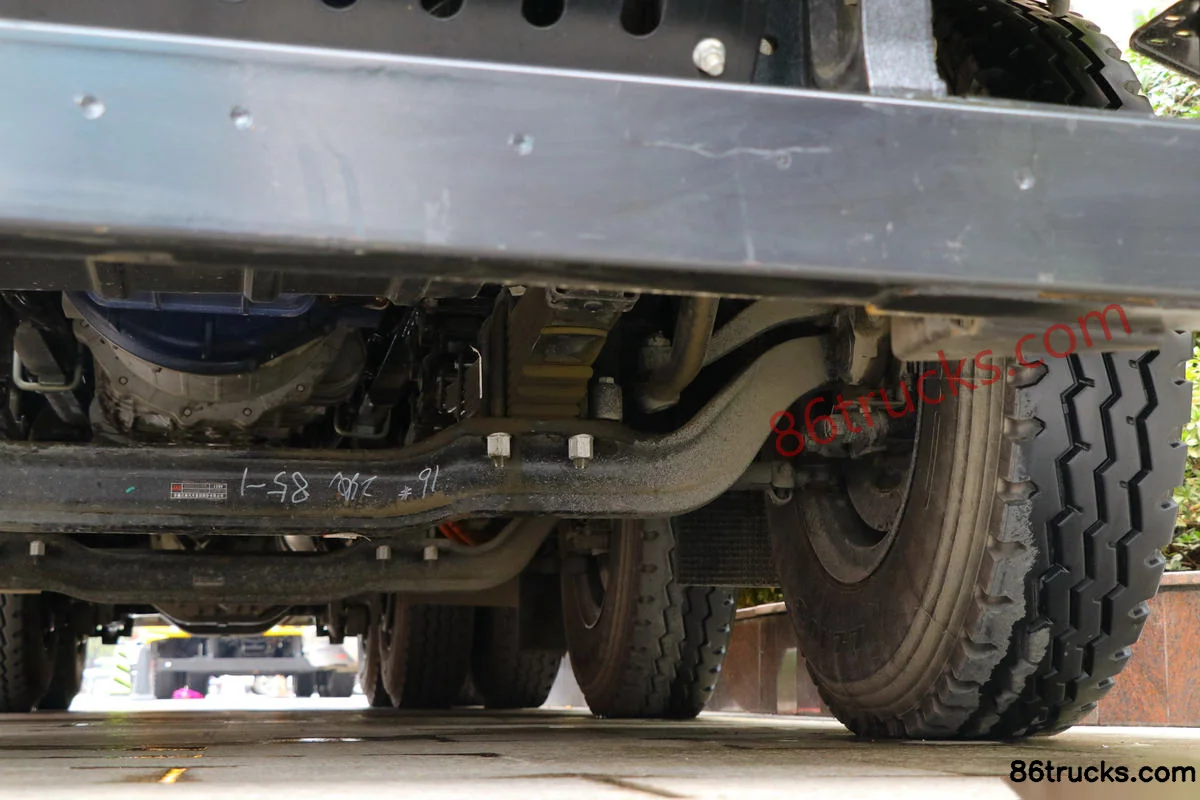

Chassis3

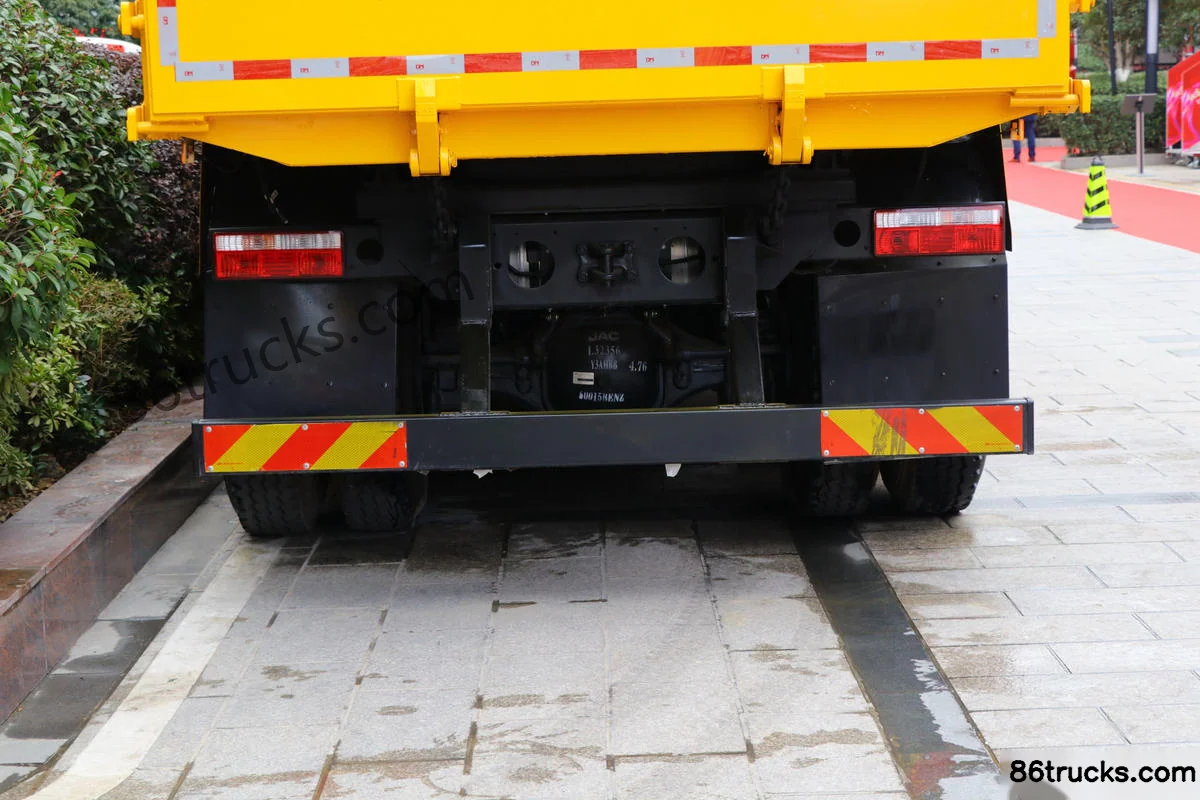

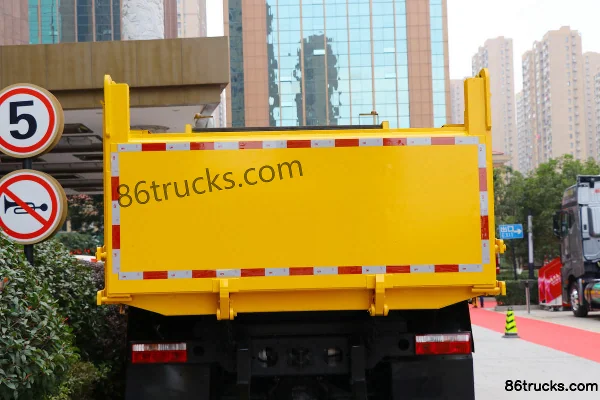

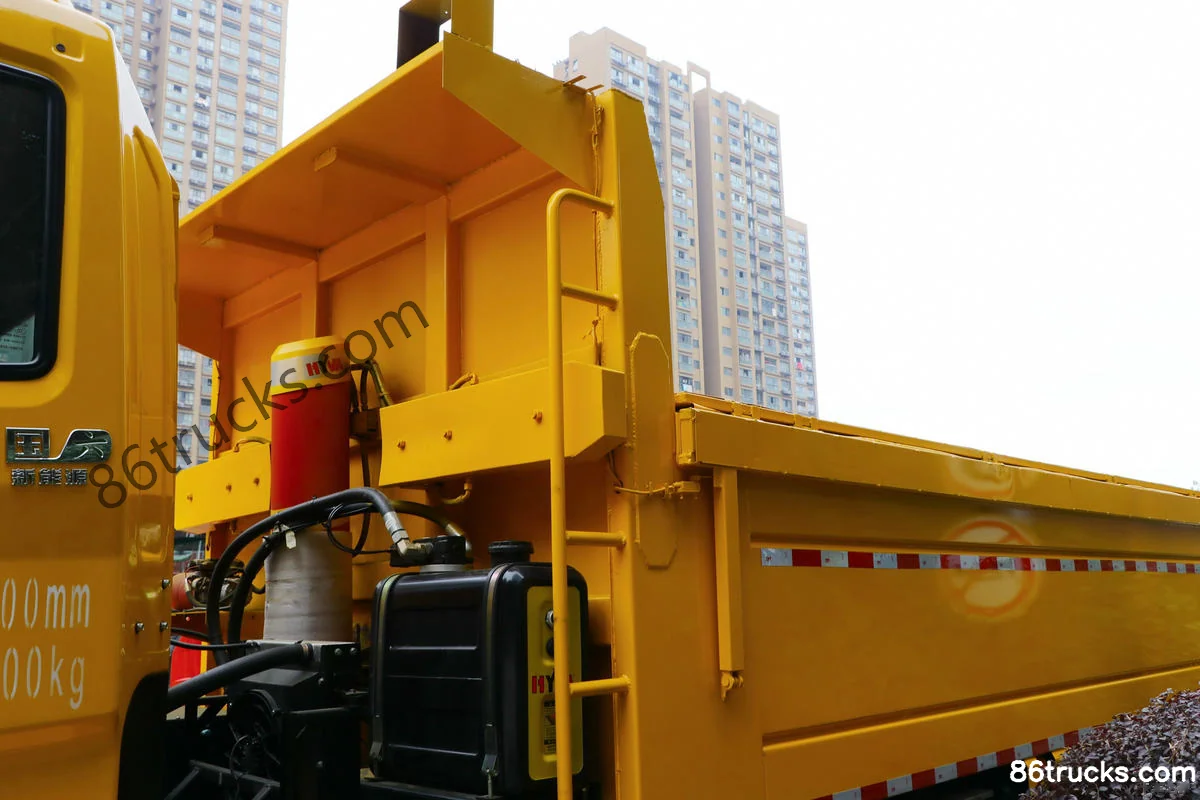

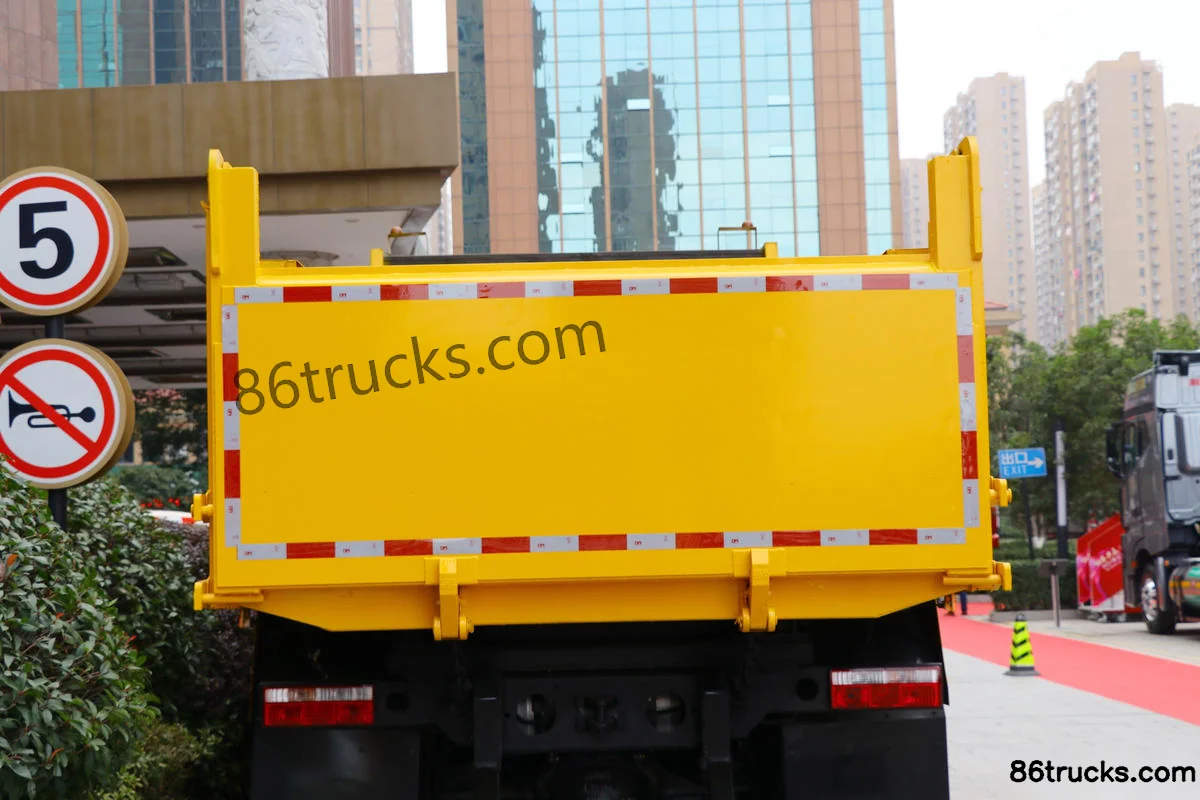

Body3

12 photos

FAQ

What emission standard does JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck?

Key specs of JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck suited for?

JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck differ from other variants in the same series?

JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck belongs to JAC Gallop K5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W Heavy Truck 350 hp 8X4(12 wheels) 5.6 m AMT Automatic Hybrid Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
