Qingte QT205 Double Reduction All-Wheel Drive Axle

Export reference
MSRP N/A
Application Scope:: Suitable for medium and heavy-duty cargo trucks in hilly and mountainous areas
Transmission Ratio:: 5.805、6.578
Max output torque:: 16500 (front) / 22500 (rear)N·m

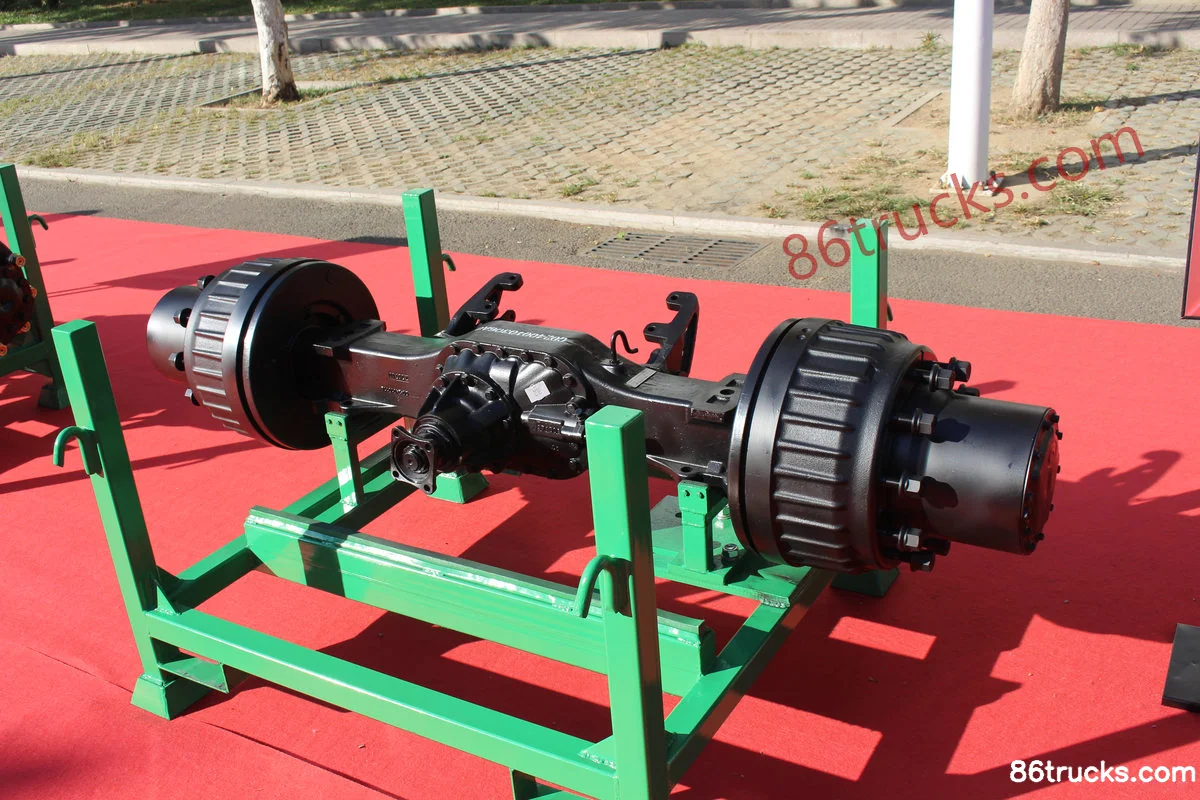

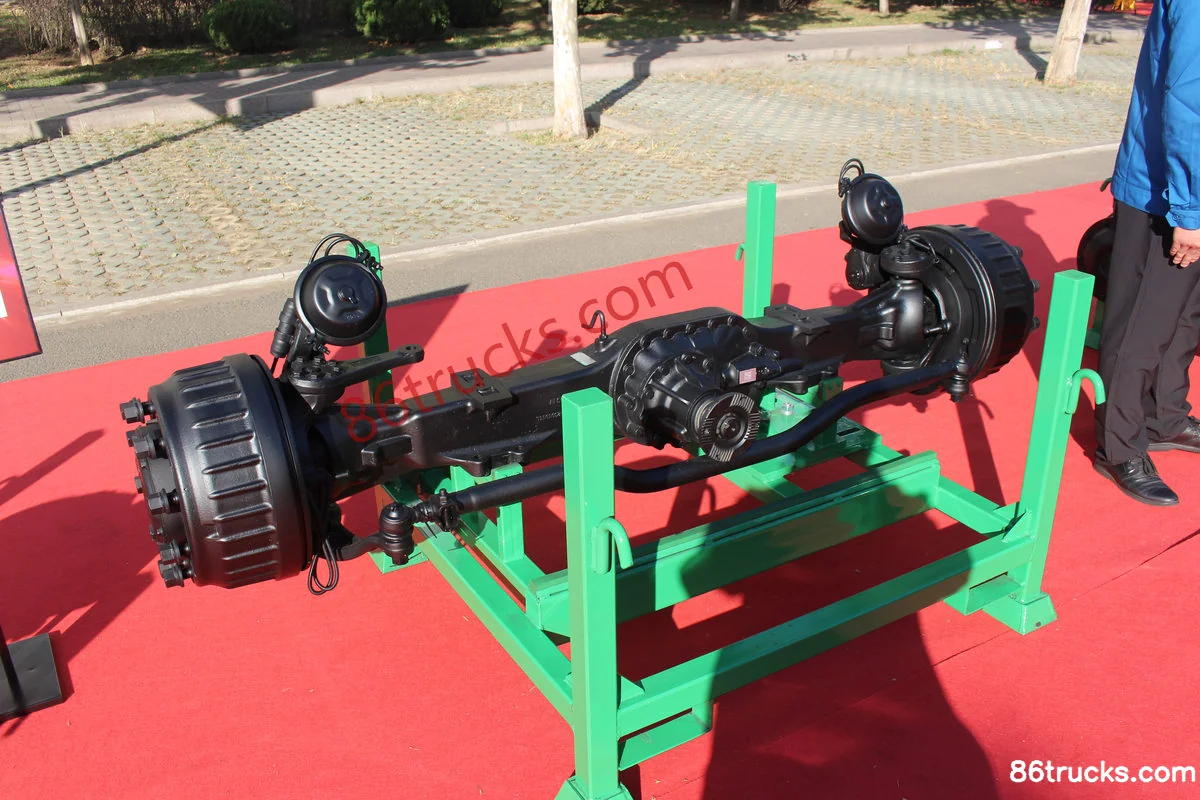

Qingte QT205 Double Reduction All-Wheel Drive Axle exterior
View more photos (3)
Axle Model: Qingte QT205
Brake size: Φ400×130 (front)/Φ400×155 (rear)
Axle Type: Drive axle

Overview

The Qingte Group Qingte QT205 Double Reduction All-Wheel Drive Axle is a parts product with spec Qingte QT205 and Φ400×130 (front)/Φ400×155 (rear) size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: Qingte QT205
Axle Type: Drive axle
Application Scope: Suitable for medium and heavy-duty cargo trucks in hilly and mountainous areas
Rated axle load: 4200 (front) / 8000 (rear)ton
Transmission Ratio: 5.805、6.578
Brake size: Φ400×130 (front)/Φ400×155 (rear)
Max output torque: 16500 (front) / 22500 (rear)N·m
Remarks: variable-section axle housing, pinion cone diameter (mm): Φ205

Photos

Exterior3

Qingte QT205 Double Reduction All-Wheel Drive Axle Exterior (1) | 86Trucks Qingte QT205 Double Reduction All-Wheel Drive Axle Exterior (2) | 86Trucks Qingte QT205 Double Reduction All-Wheel Drive Axle Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Qingte QT205 Double Reduction All-Wheel Drive Axle suited for?

Match Qingte QT205 Double Reduction All-Wheel Drive Axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Qingte QT205 Double Reduction All-Wheel Drive Axle differ from other variants in the same series?

Qingte QT205 Double Reduction All-Wheel Drive Axle belongs to Qingte Group Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingte QT205 Double Reduction All-Wheel Drive Axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingte QT205 Double Reduction All-Wheel Drive Axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
