SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh

Export reference
MSRP N/A
Wheelbase:: 1800+3000+1400mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.35×2.55×3.9m
Truck Type:: Concrete mixer truck
Front/rear track width:: Front: 2020/2020; Rear: 1858/1858mm
Vehicle origin:: Wuhu
SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh exterior
View more photos (11)
Rated payload: 14.57ton
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 16.3ton

Overview

The SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh is a concrete mixer truck featuring 14.57t payload, 16.3ton GVW, 8X4 (12 wheels) drive and 2.3m, flat roof, short cab cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 10.35×2.55×3.9m
Truck Type: Concrete mixer truck
Drive type: 8X4
Wheelbase: 1800+3000+1400mm
Front/rear track width: Front: 2020/2020; Rear: 1858/1858mm
Vehicle origin: Wuhu
Curb Weight: 16.3ton
Rated payload: 14.57ton
Max. speed: 85km/h
Front/rear suspension: 1.46/2.69m
electric motor
Motor 1 Model: TZ400XS035
total rated power: 250kW
Peak power: 360kW
total peak torque: 2500N·m
total rated torque: 1600N·m
Body Parameters
Vehicle certification code: WL5310GJBCQAZBEV
Engine parameters
fuel type: Electric
Transmission Parameters
Transmission Model: Fast GearFast Gear 6E240
Cab parameters
Cab: 2.3m, flat roof, short cab
Chassis Specs
Frame Dimensions: 280×80×8+4mm
rear axle description: 457 axle
Axle ratio: 6.333
Leaf spring count: 8/8/12
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

Exterior3

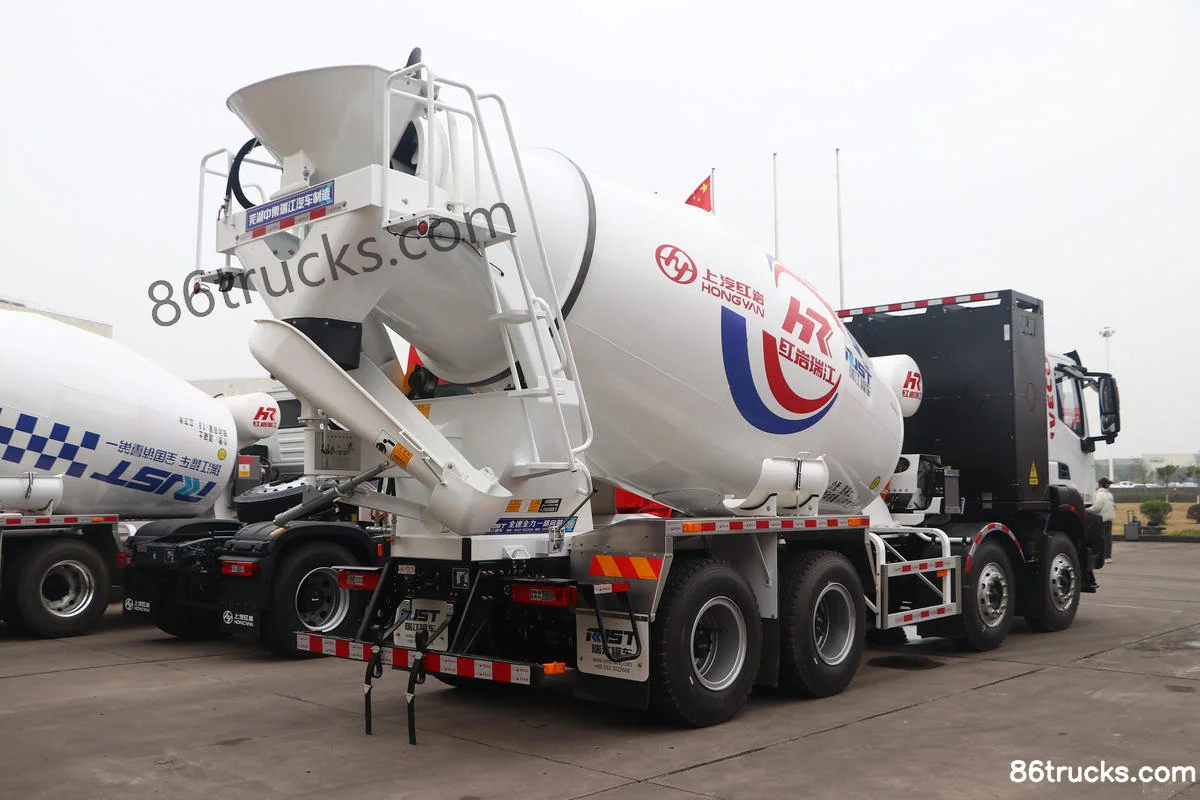

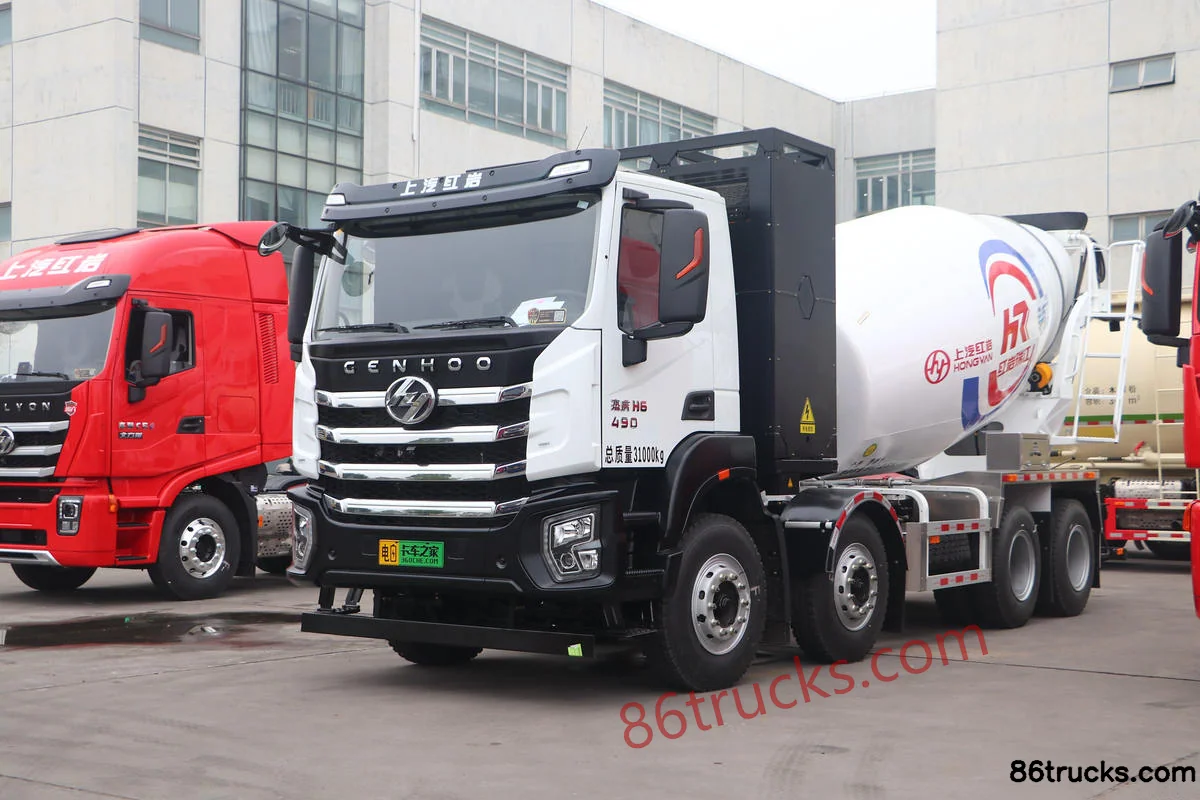

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Exterior (1) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Exterior (2) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Exterior (3) | 86Trucks

Cab3

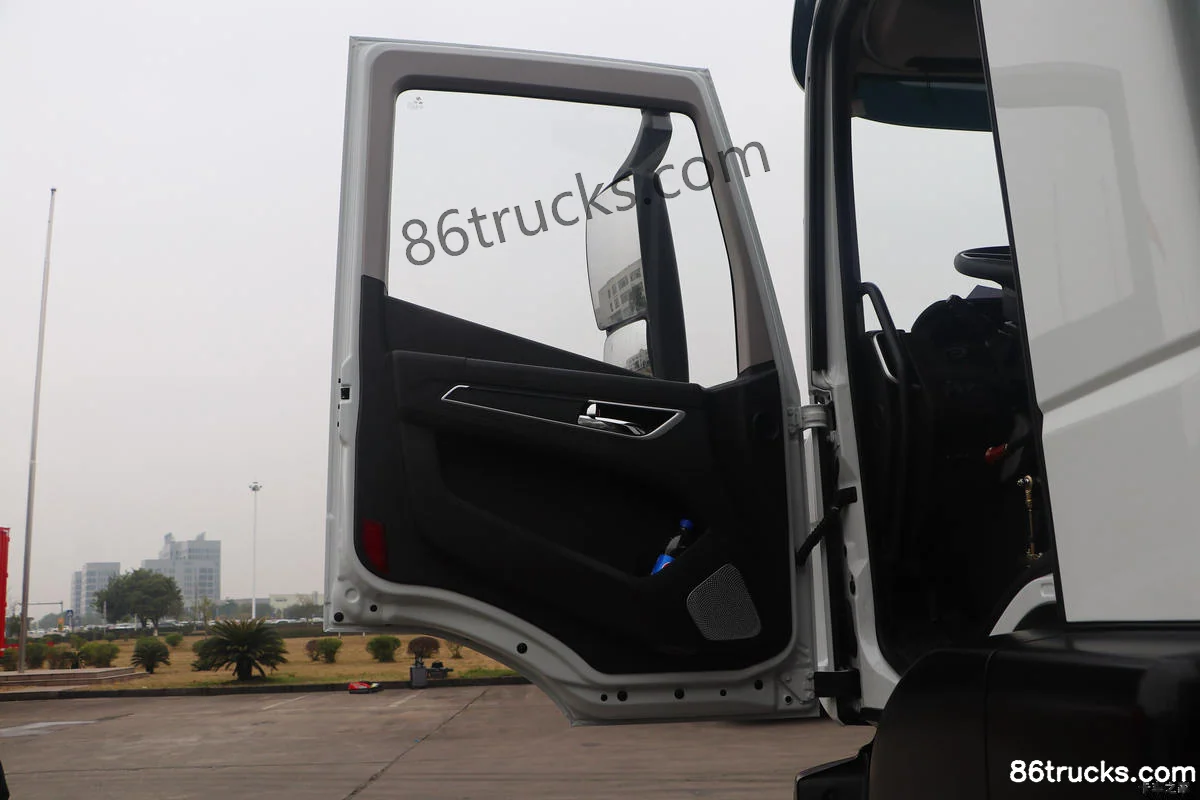

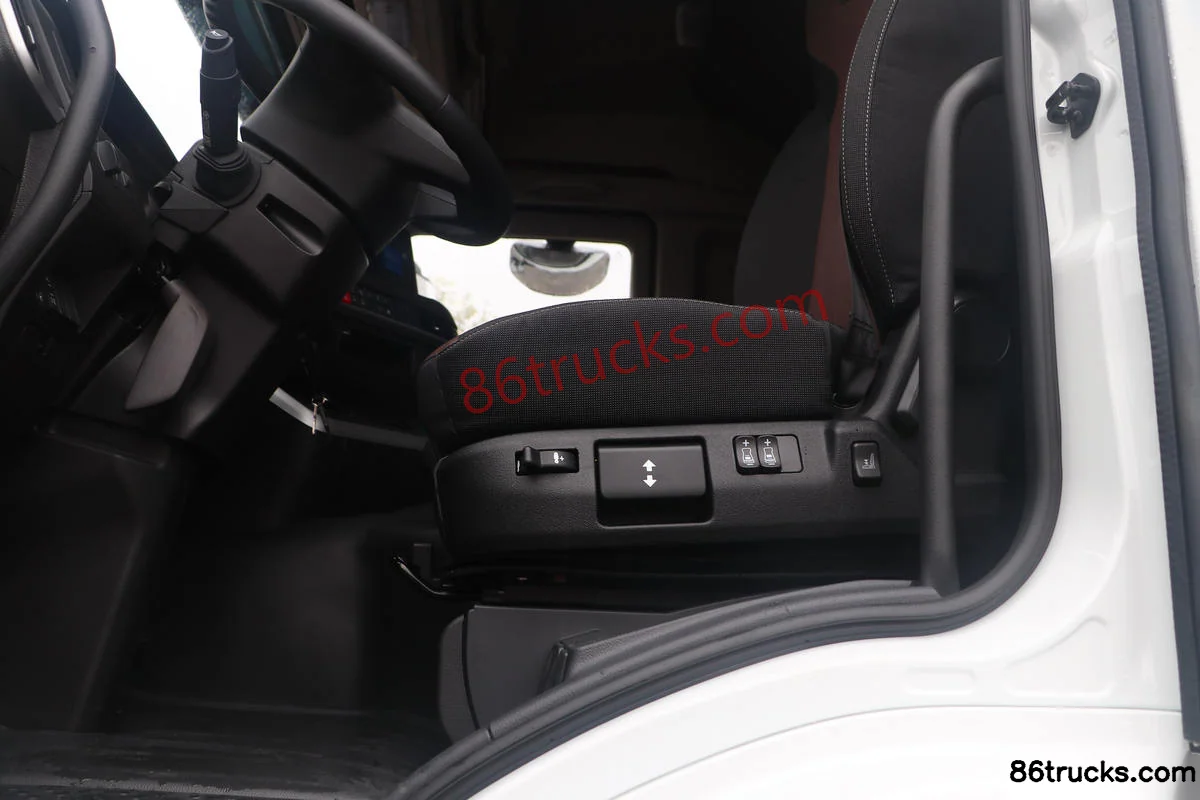

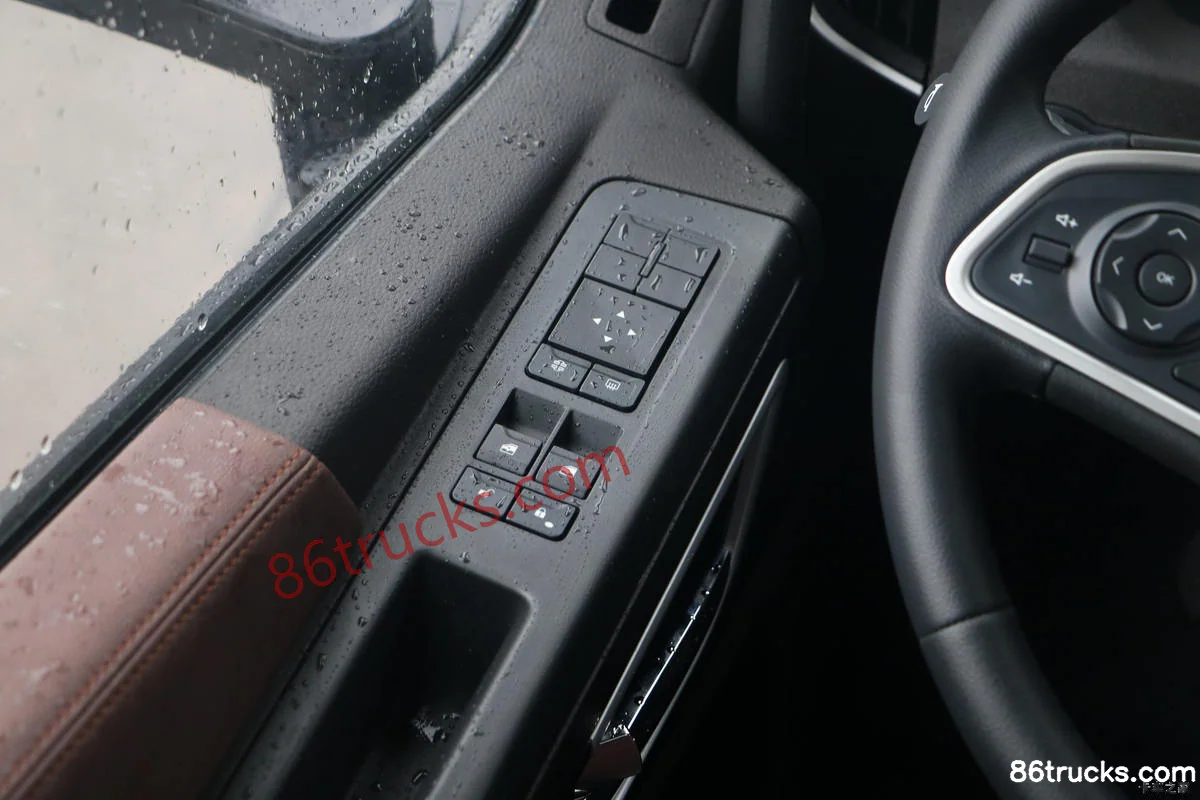

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Cab (1) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Cab (2) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Cab (3) | 86Trucks

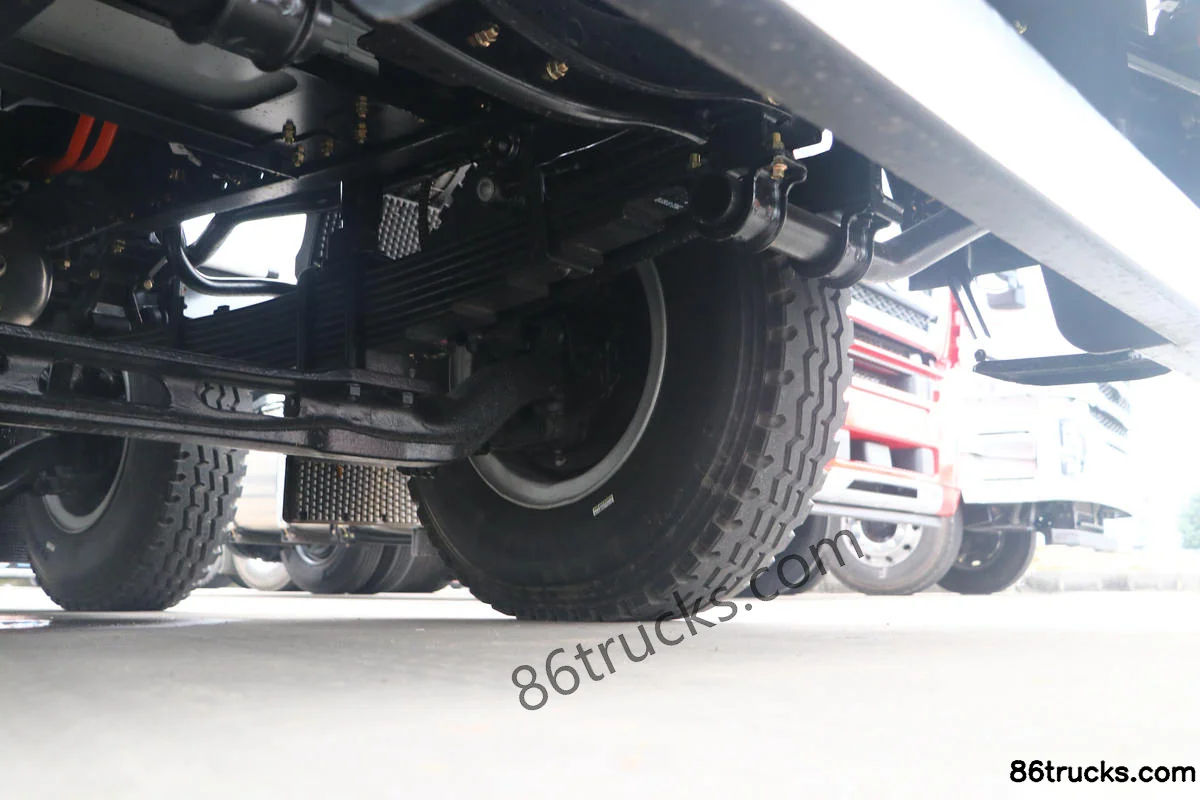

Chassis3

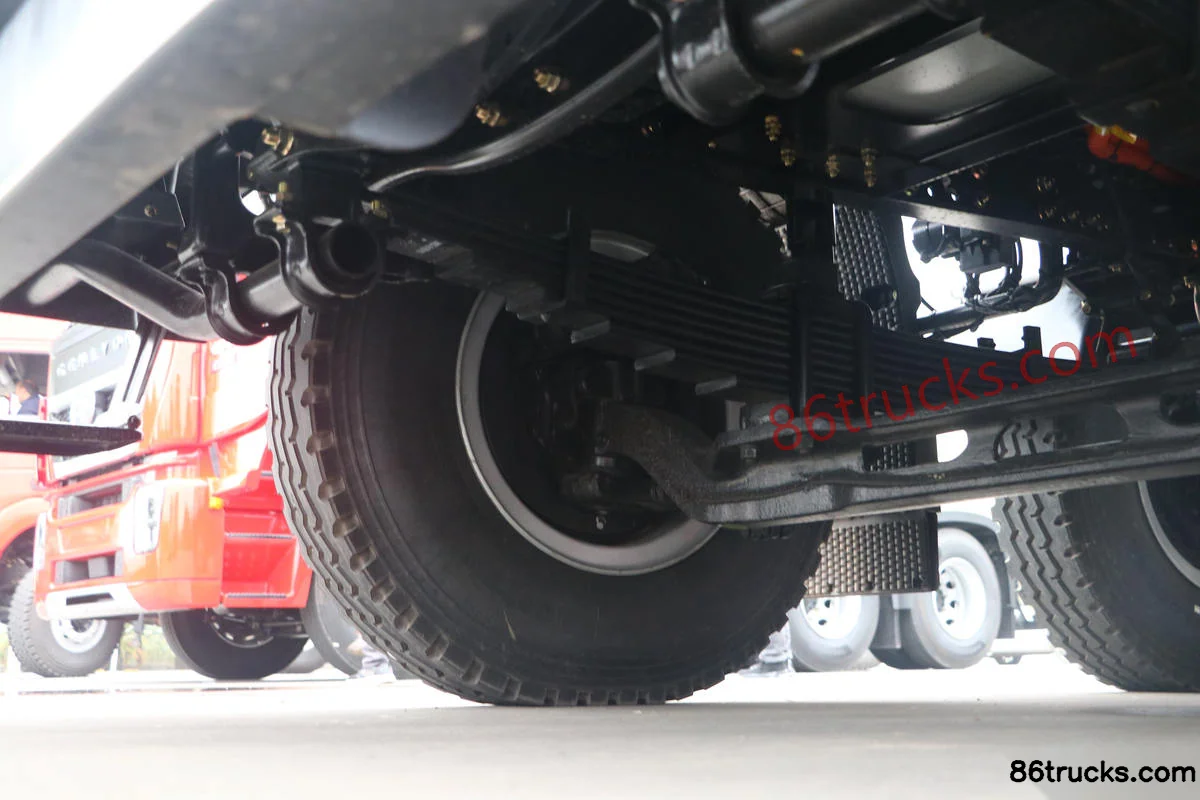

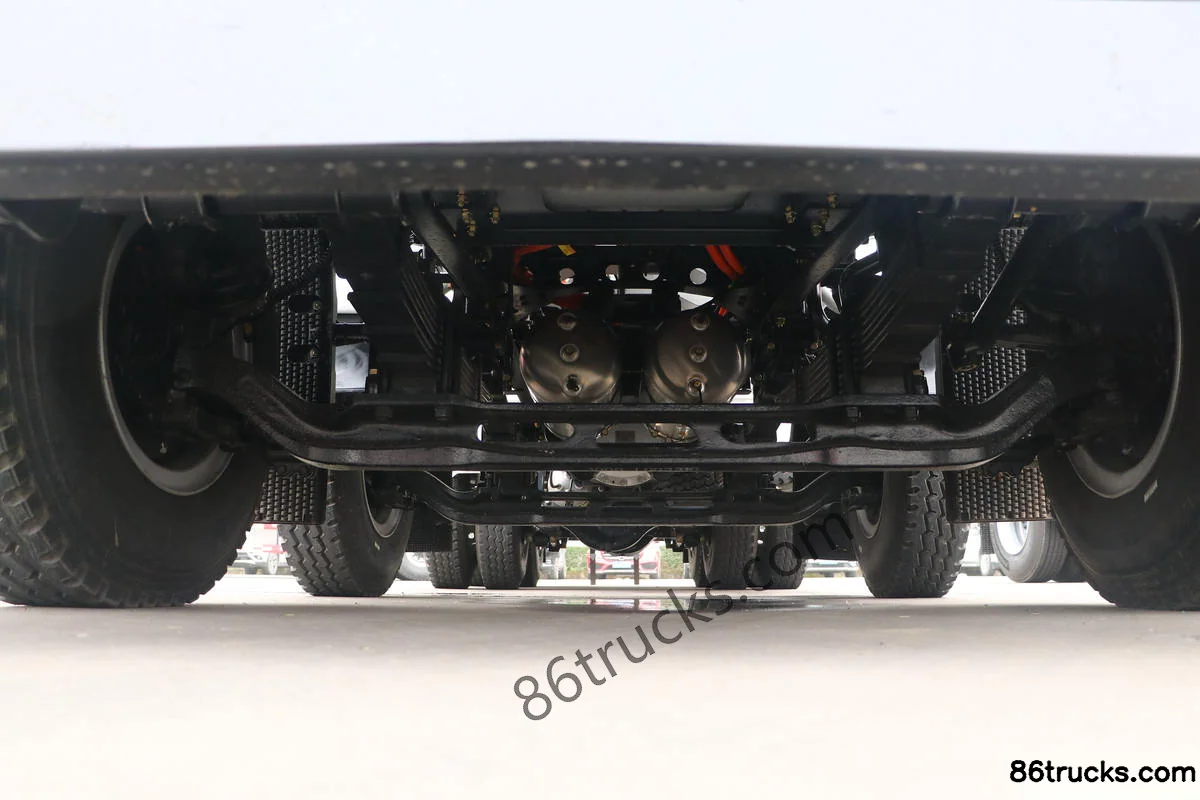

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Chassis (1) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Chassis (2) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Chassis (3) | 86Trucks

Body2

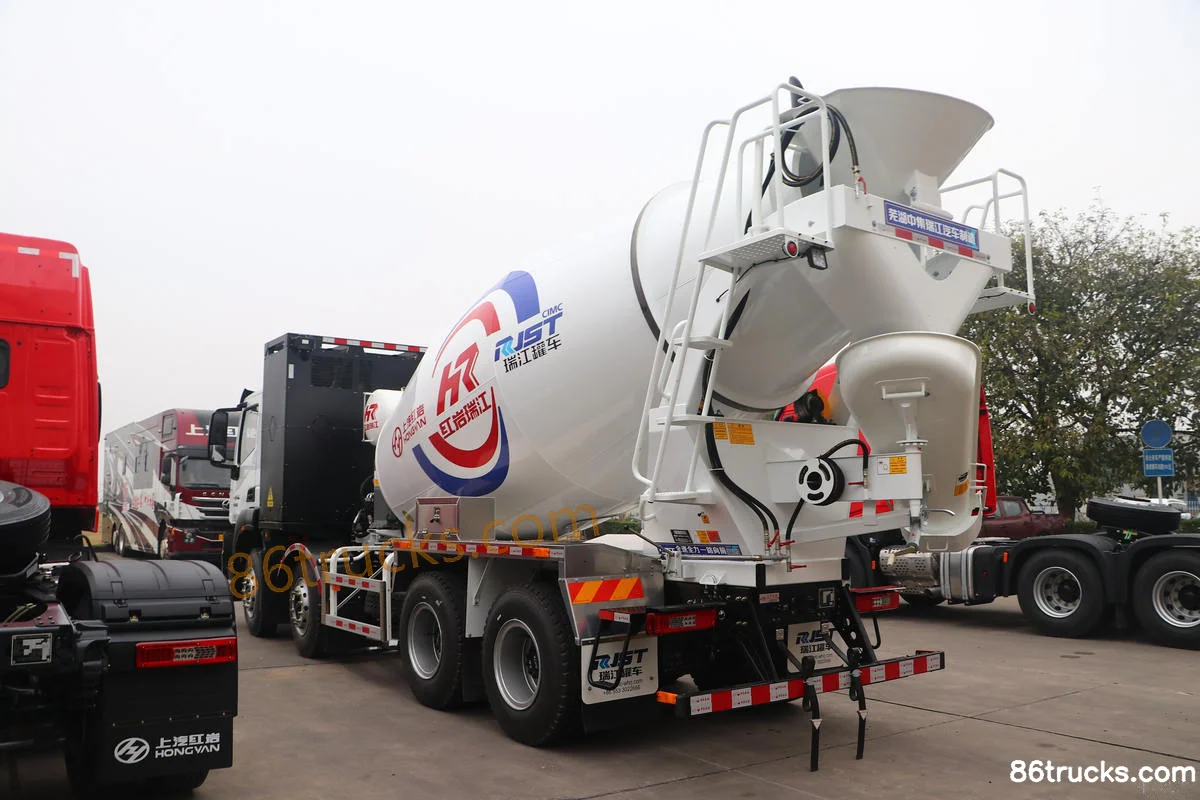

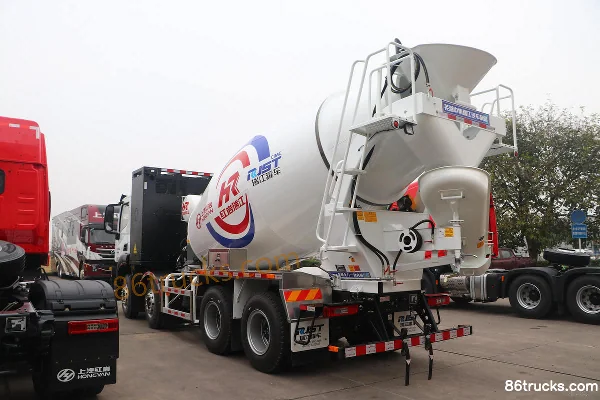

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Body (1) | 86Trucks SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh Body (2) | 86Trucks

11 photos

FAQ

What are the key specs of SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh?

Key specs of SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh: Drive: 8x4; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh suited for?

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh differ from other variants in the same series?

SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh belongs to SAIC Hongyan Genho Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Jiehu H6 490hp 8X4(12 wheels) Battery Swap Electric Concrete Mixer Truck 282kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
