XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab

Export reference
From $20,556
MSRP ¥14.8M CNY
Horsepower: 185
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 3Personnel
Rated payload: 9.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 185 hp, 4X2 (6 wheels) drive and China V emissions.

China V 185 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NXG1180D5NA
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: YuchaiYC4EG185-50
transmission: Fast Gear8JS85E-C
Rear Axle Ratio: 4.444
Cab length: 9m
Cab width: 2.55m
Cab height: 3.565m
Front track width: 1980mm
rear track: 1842mm
Curb Weight: 7.88ton
Rated payload: 9.99ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Nanjing, Jiangsu
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 10°
market segment: Building materials, agricultural products
Remarks: Rear axle ratio optional 4.875, 5.286
Front/rear suspension: 1.4/2.3m
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG185-50
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.73L
Emission standard: China V
Max output power: 136kW
Max hp: 185Horsepower
Max torque: 700N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85E-C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 260L
Chassis Specs
Front axle description: 4.2t front axle
Front axle allowable load: 6500kg
Frame Dimensions: 250×75×7mm
rear axle description: Hande 10T rear axle
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 9/10+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:

Photos

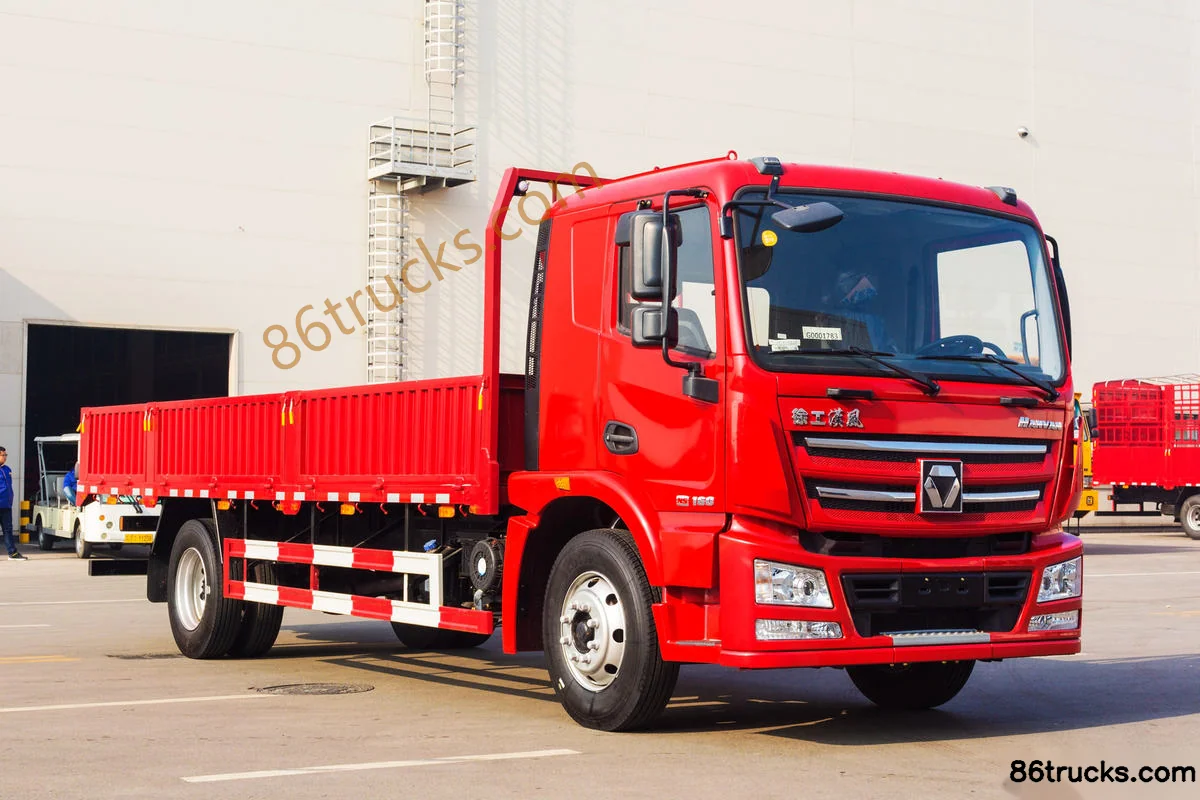

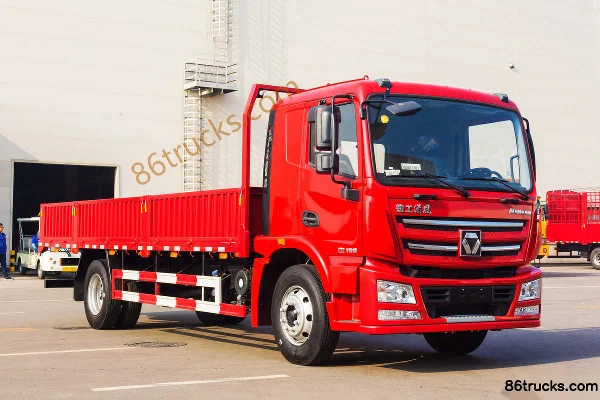

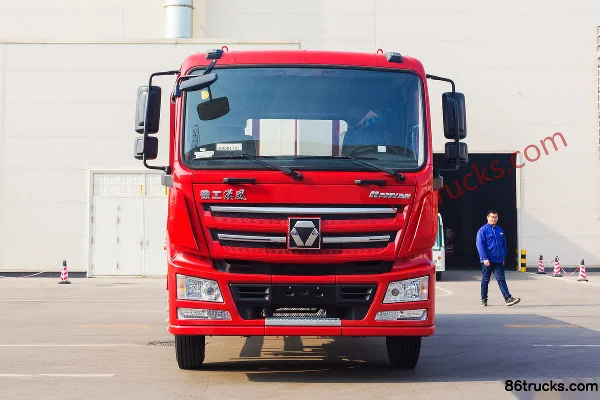

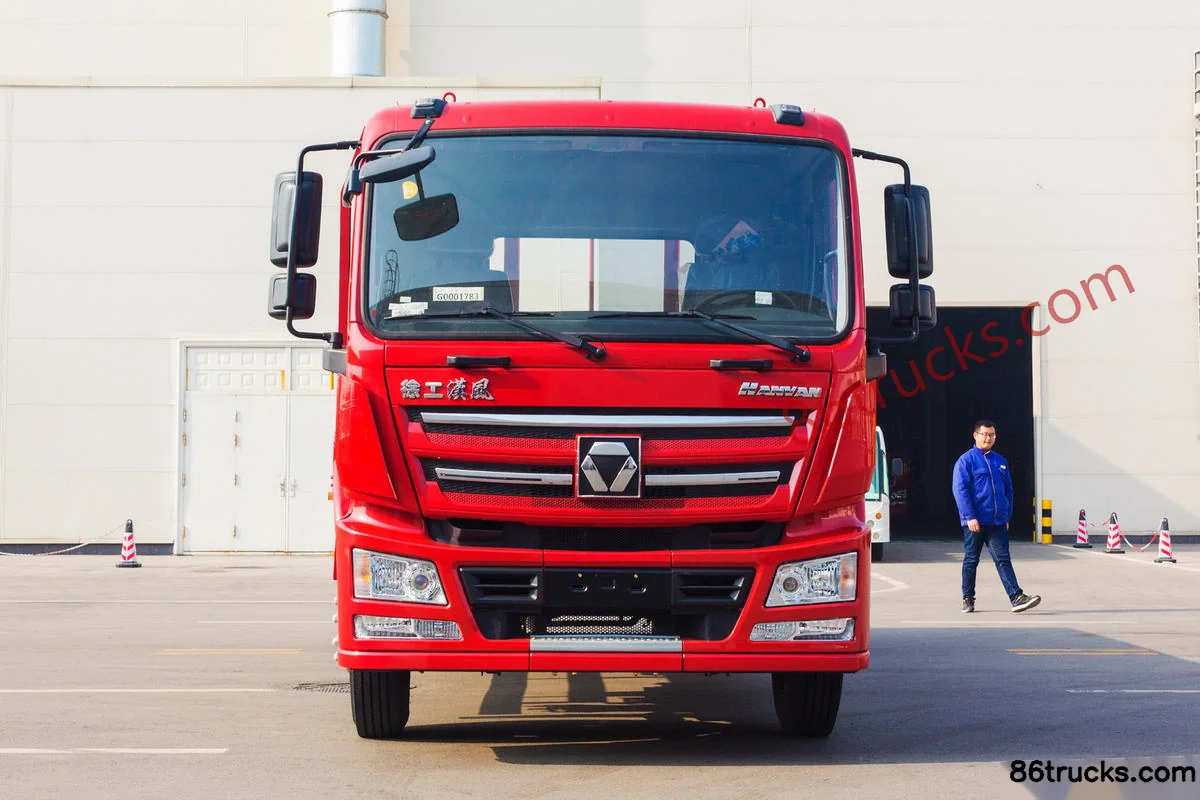

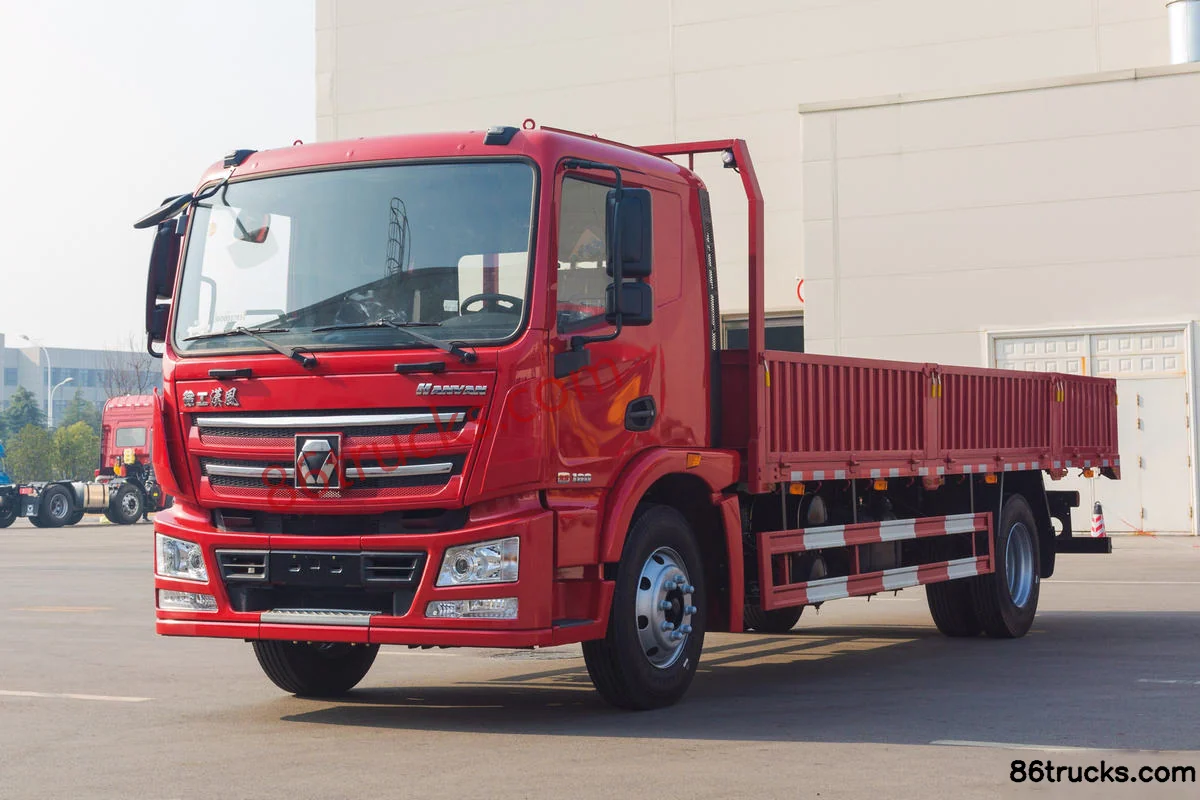

Exterior3

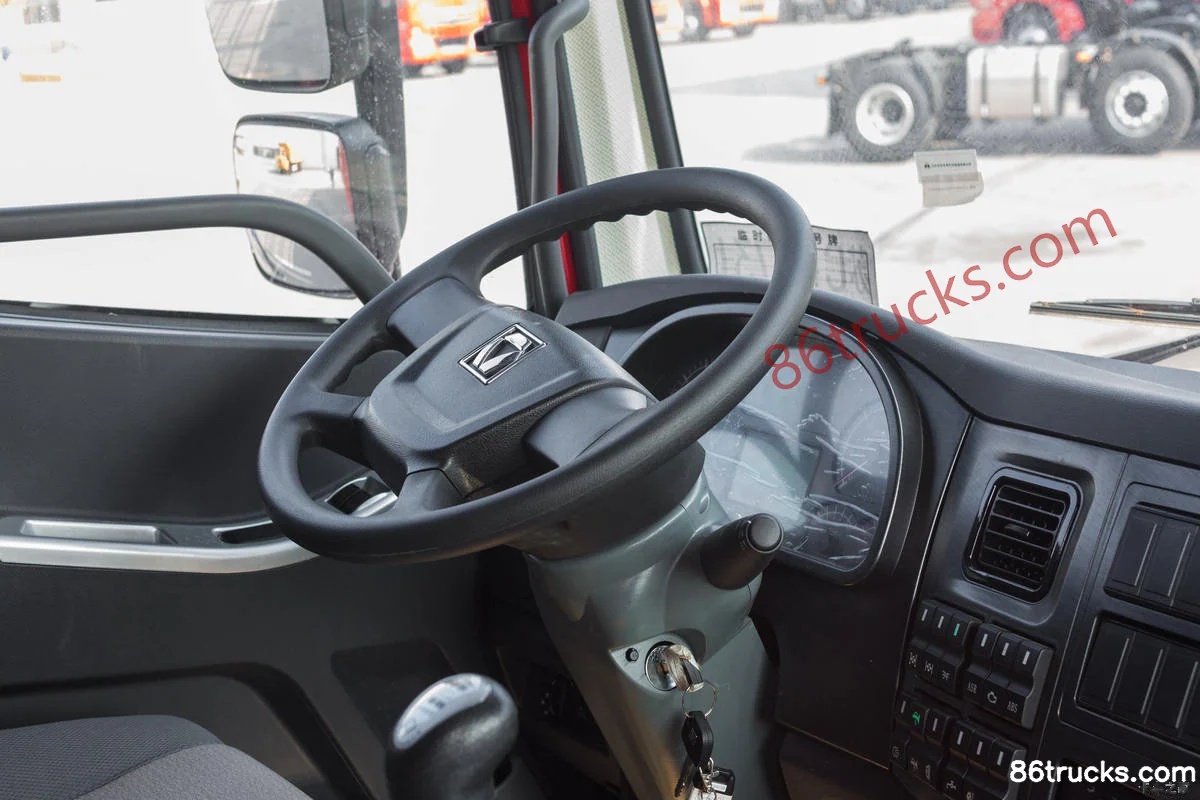

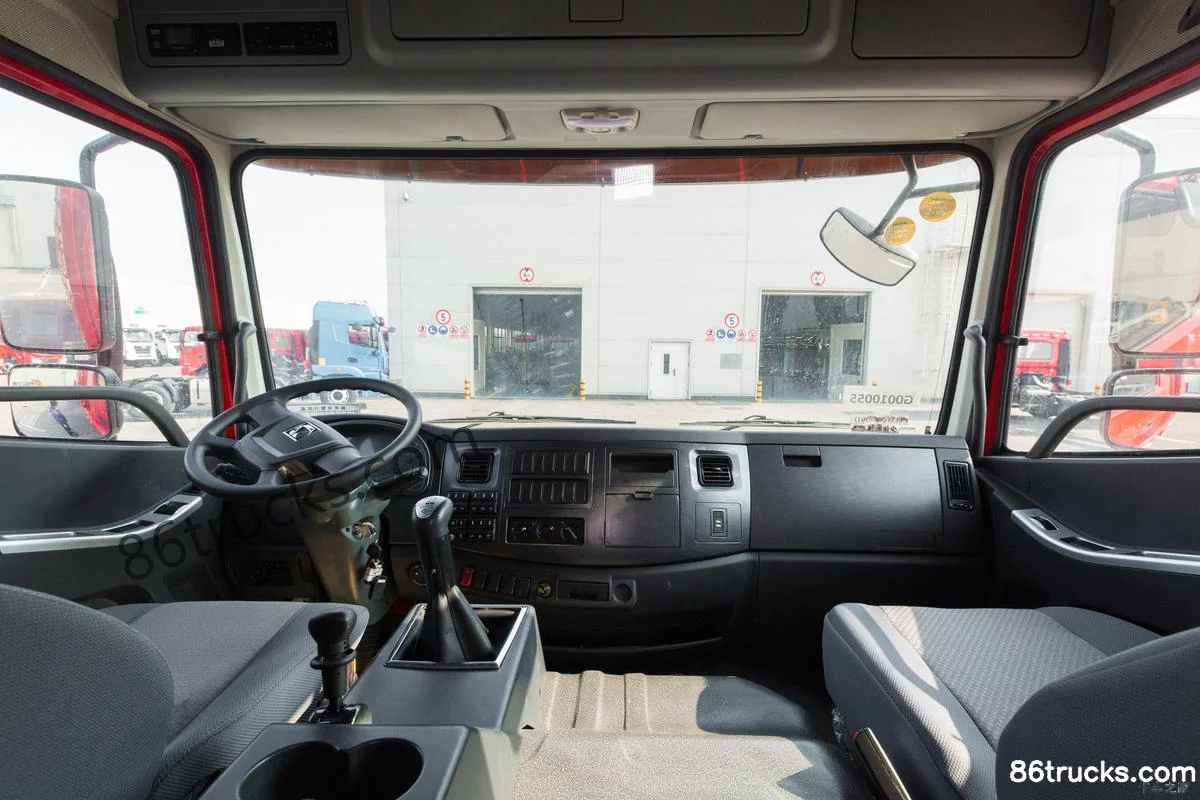

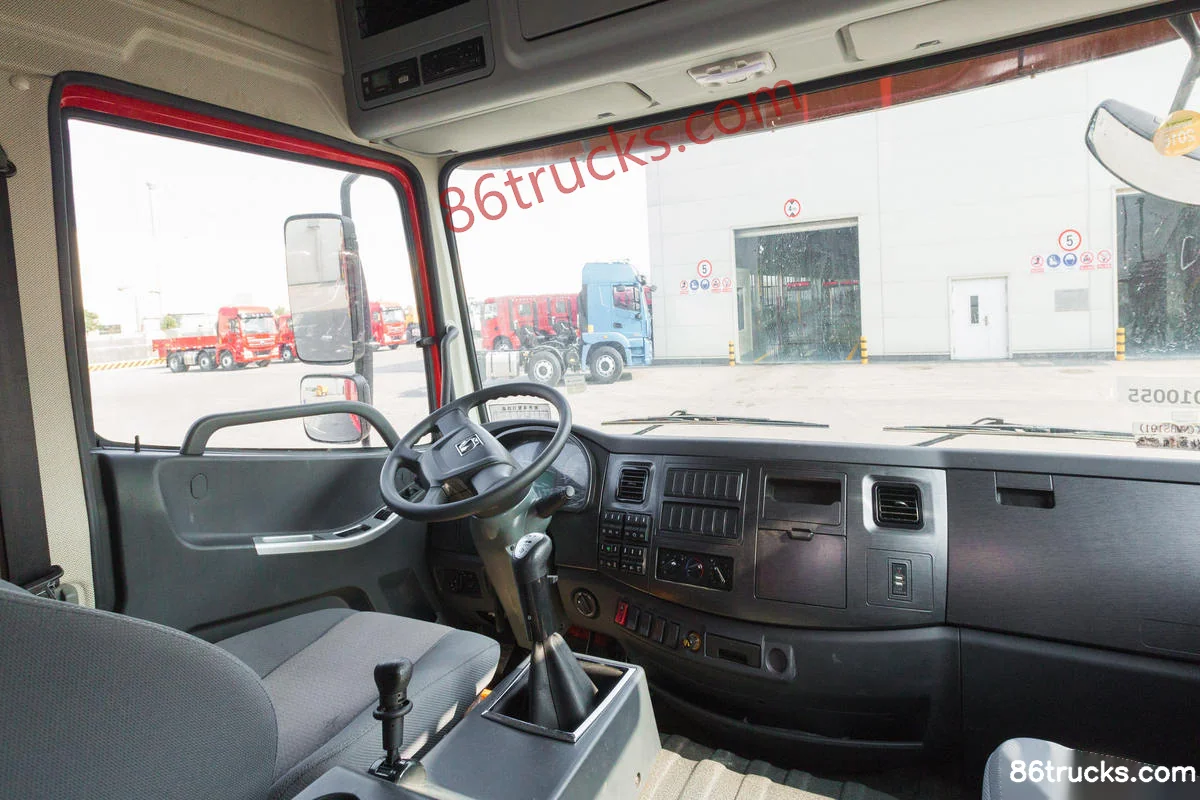

Cab3

6 photos

FAQ

What is the export price of XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab, and what does it include?

XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab export reference is about From $20,556; MSRP is ¥14.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab?

Key specs of XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab: Drive: 4x2; Horsepower: 185 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab suited for?

XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab differ from other variants in the same series?

XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab belongs to XCMG Truck Hanfeng XG1M (formerly Hanfeng G5) Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Hanfeng G5 standard load version 185hp 4X2(6 wheels) 6.8m flatbed cargo truck with half cab?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
