Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.6ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCD4P4S-130 engine, 130 hp, China V emissions and Fast Gear transmission.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3048G17EB1
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYCD4P4S-130
transmission: Fast Gear 8-speed
Cab length: 5.995m
Cab width: 2.48m
Cab height: 2.74m
Front track width: 1750mm
rear track: 1720mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCD4P4S-130
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China V
Max output power: 97kW
Max hp: 130Horsepower
Max torque: 440N·m
Max torque speed: 1400-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Chassis Specs
Front axle description: 2.5T
Front axle allowable load: 1660kg
rear axle description: 9T
rear axle allowable load: 2630kg
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

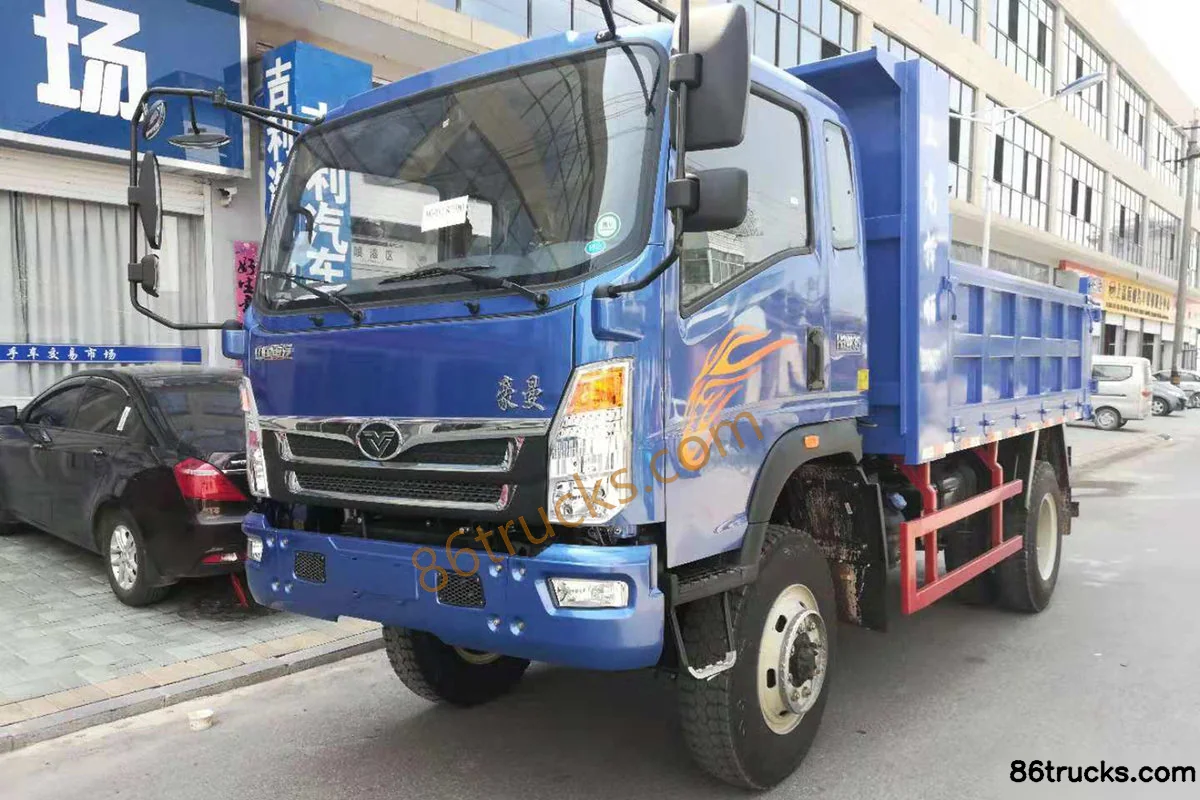

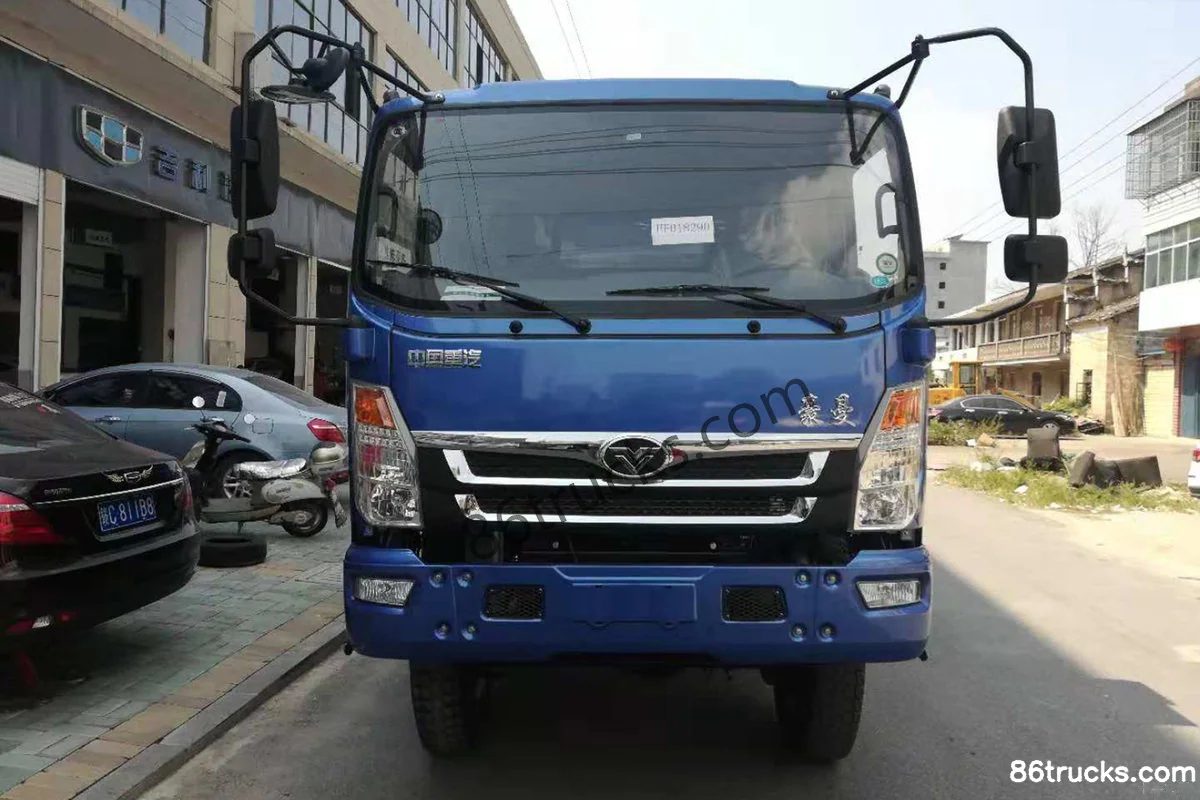

Photos

Exterior2

2 photos

FAQ

What emission standard does Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear)?

Key specs of Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear): Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) suited for?

Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) differ from other variants in the same series?

Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear) belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haoman H3 130 hp 4X2(6 wheels) 4m Dump Truck (Fast Gear)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
