Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top)

Export reference
From $43,056
MSRP ¥31M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.185ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20
Rated payload: 12.815ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Rear-dump body

Overview

The Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) is a Heavy truck featuring 12.815t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310E32 engine, 310 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYX3251PA38WPD3D
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.310E32
transmission: Fast Gear9JS135
Rear Axle Ratio: 5.73
Cab length: 8.435m
Cab width: 2.496m
Cab height: 3.49m
Front track width: 2040mm
rear track: 1860/1860mm
Curb Weight: 12.185ton
Rated payload: 12.815ton
GVWR: 25ton
Origin: Shanxi Yuncheng
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 27°
Remarks: air front/rear drum brake with spring energy-storage parking brake
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS135
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.5m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: 9/12
Tire

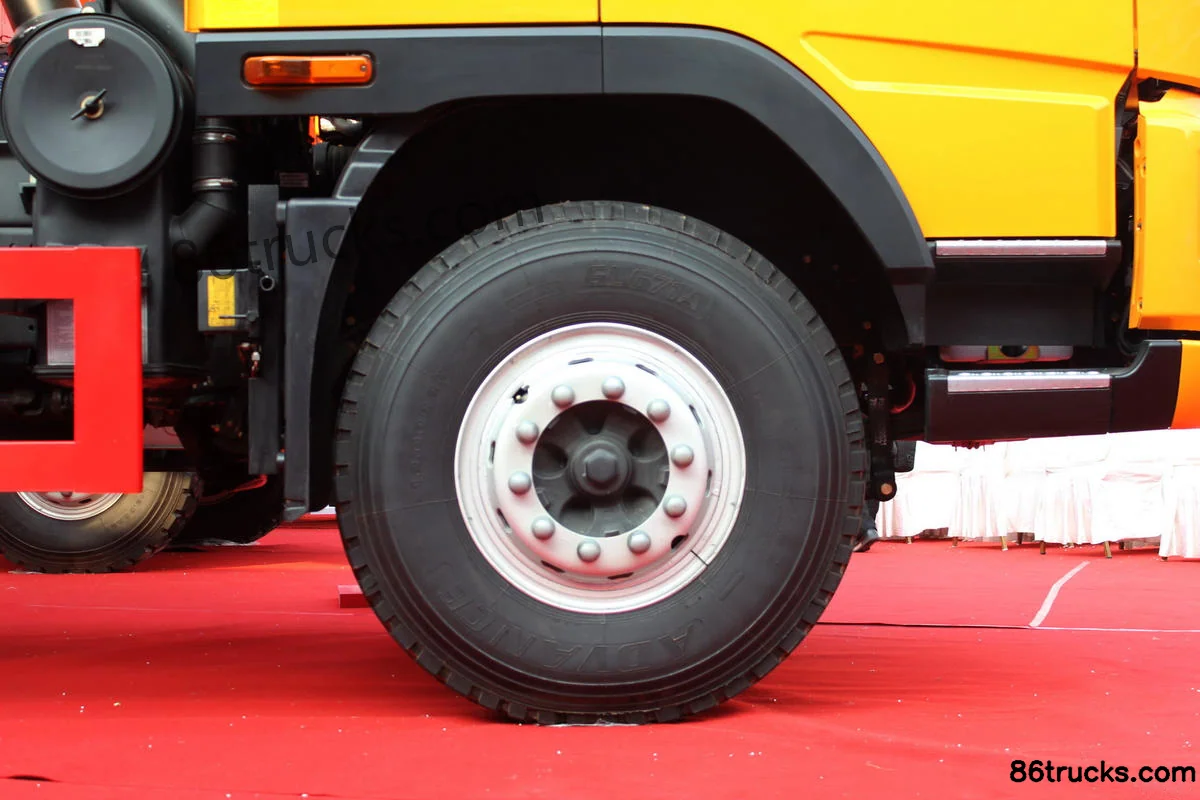

Tire Size: 11.00R20
Number of tires: 10pcs

Photos

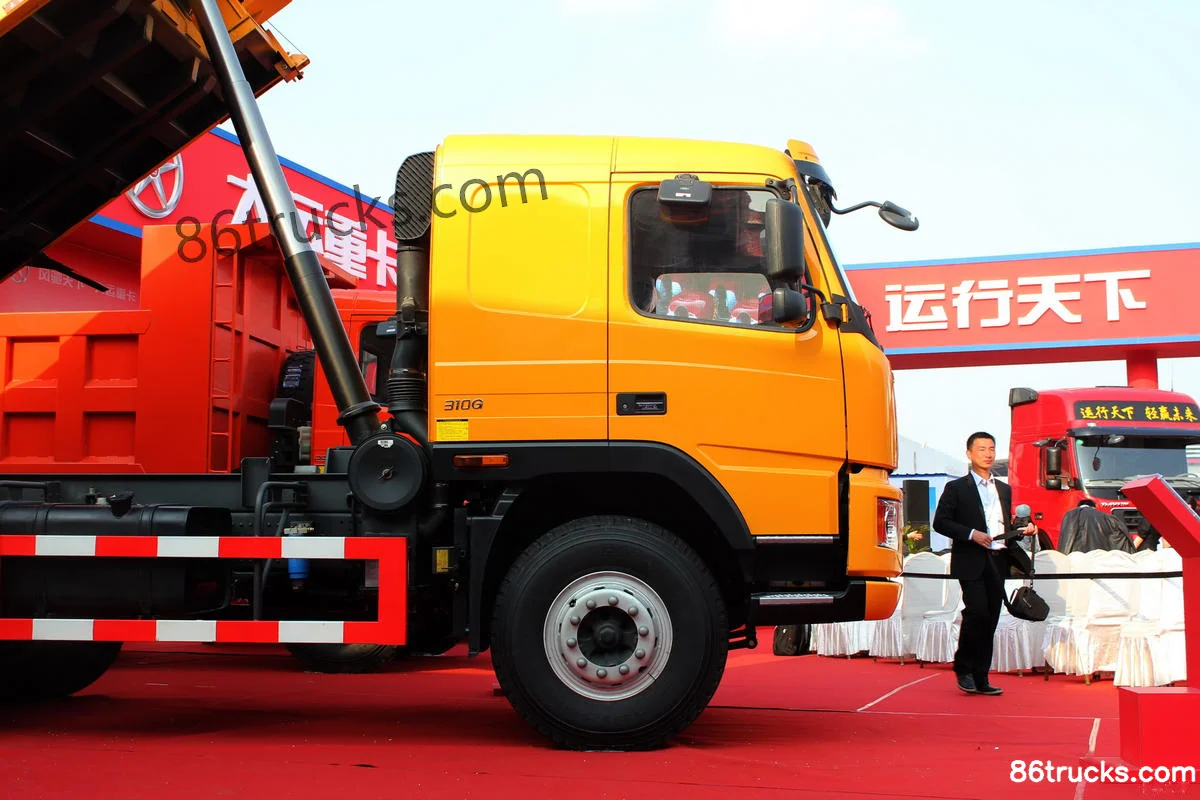

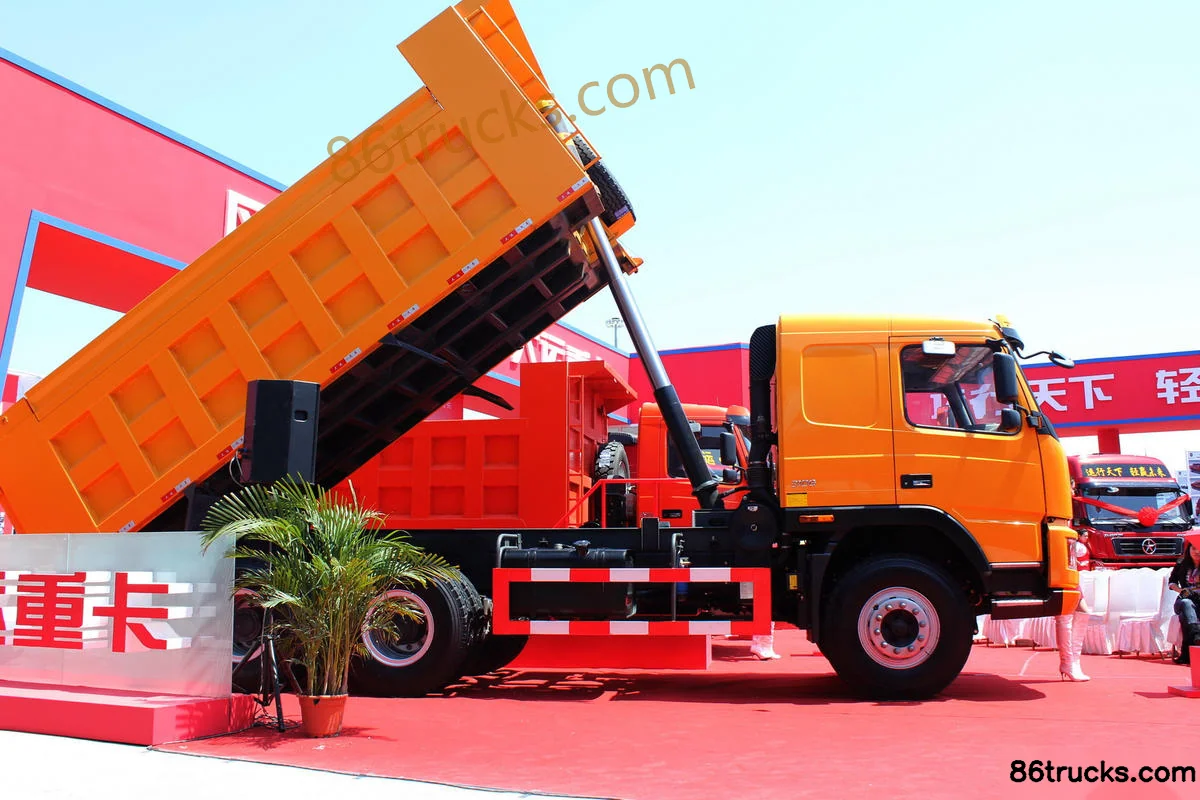

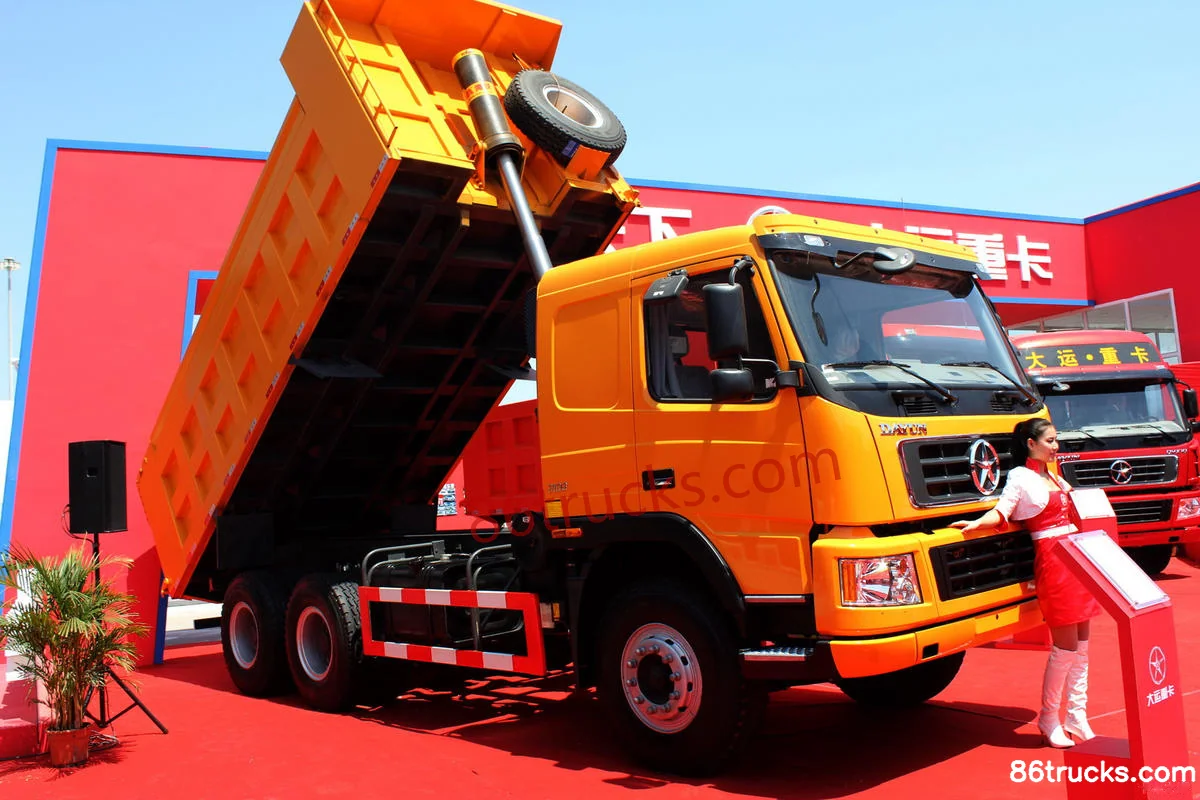

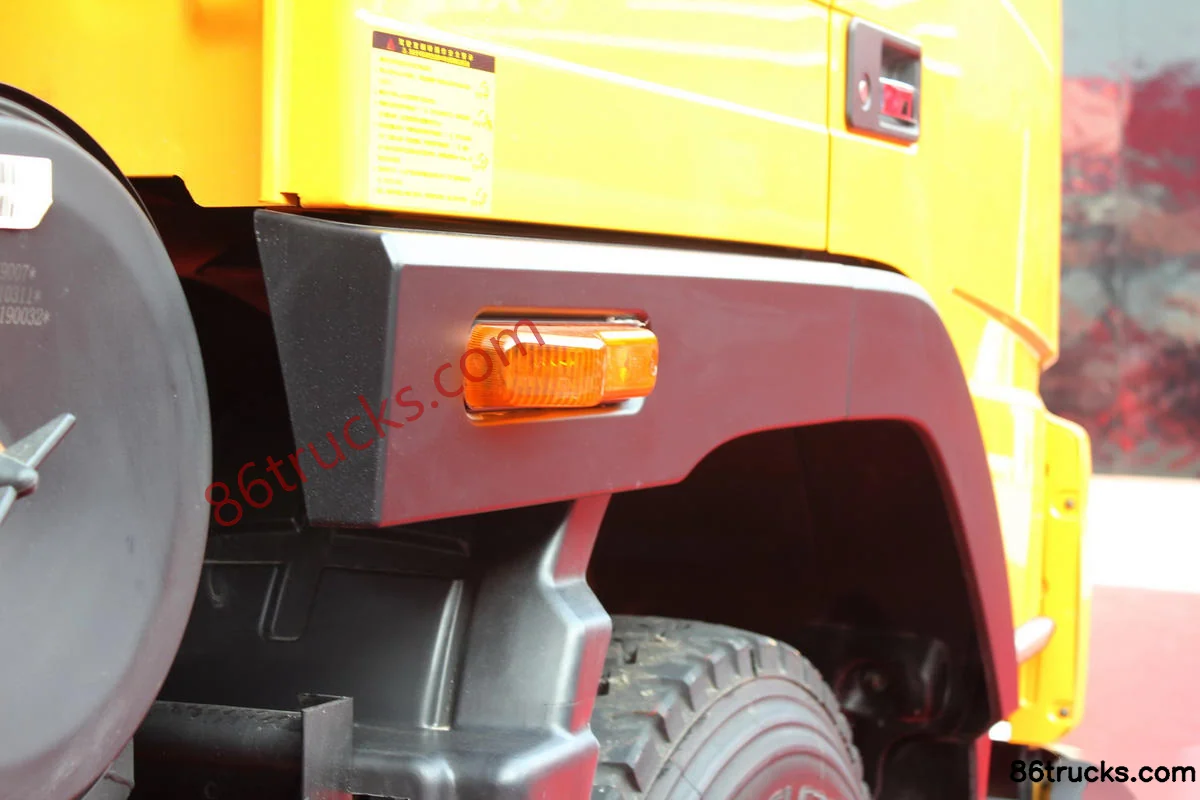

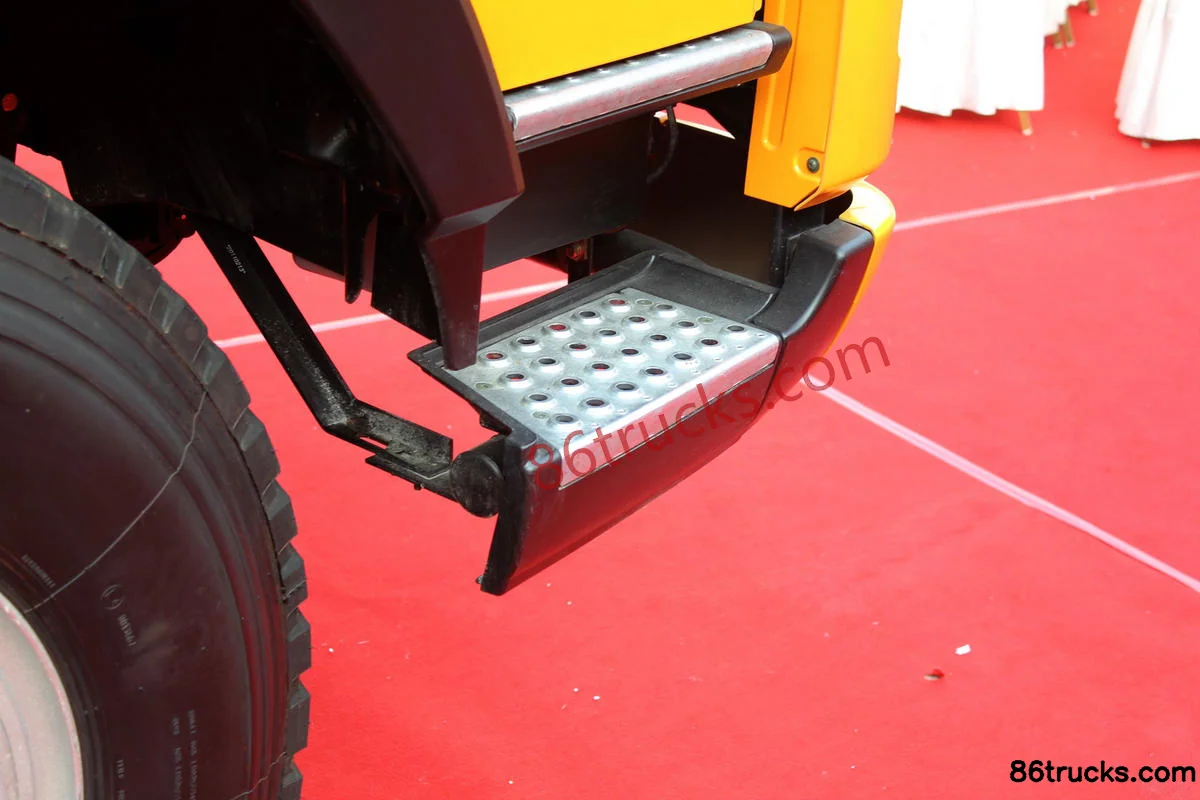

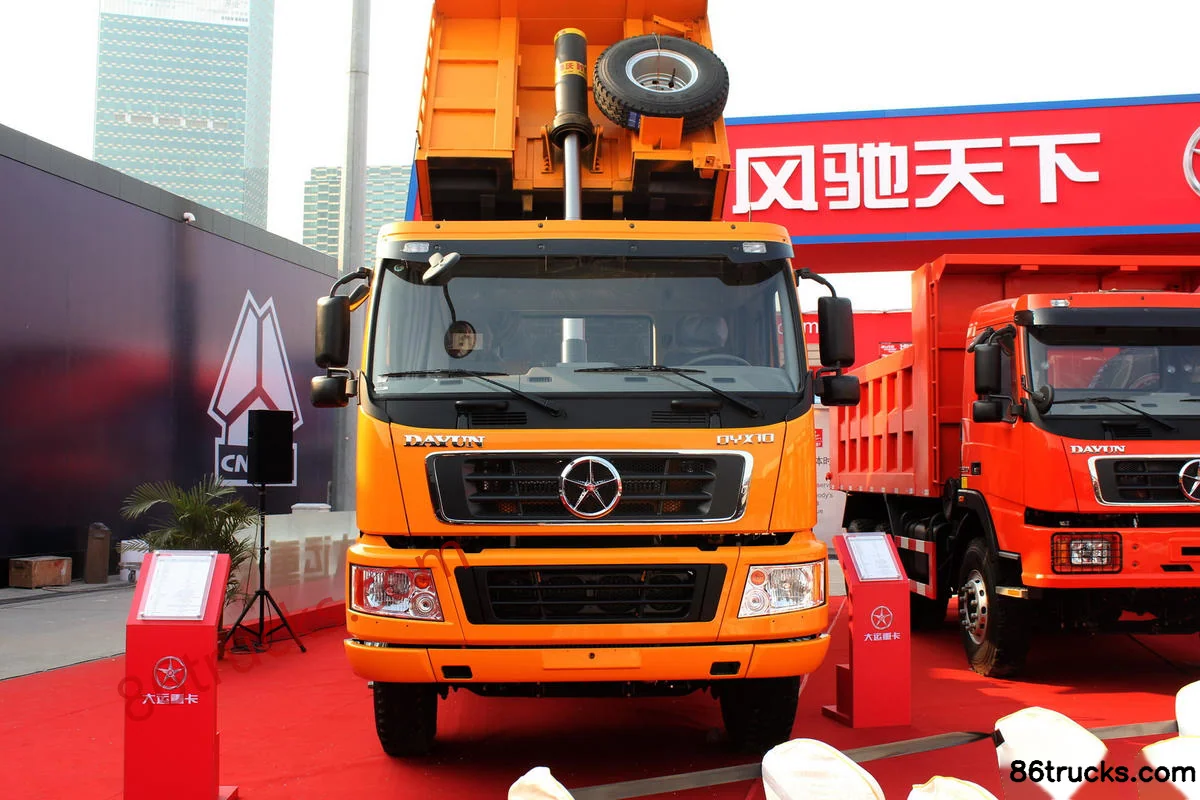

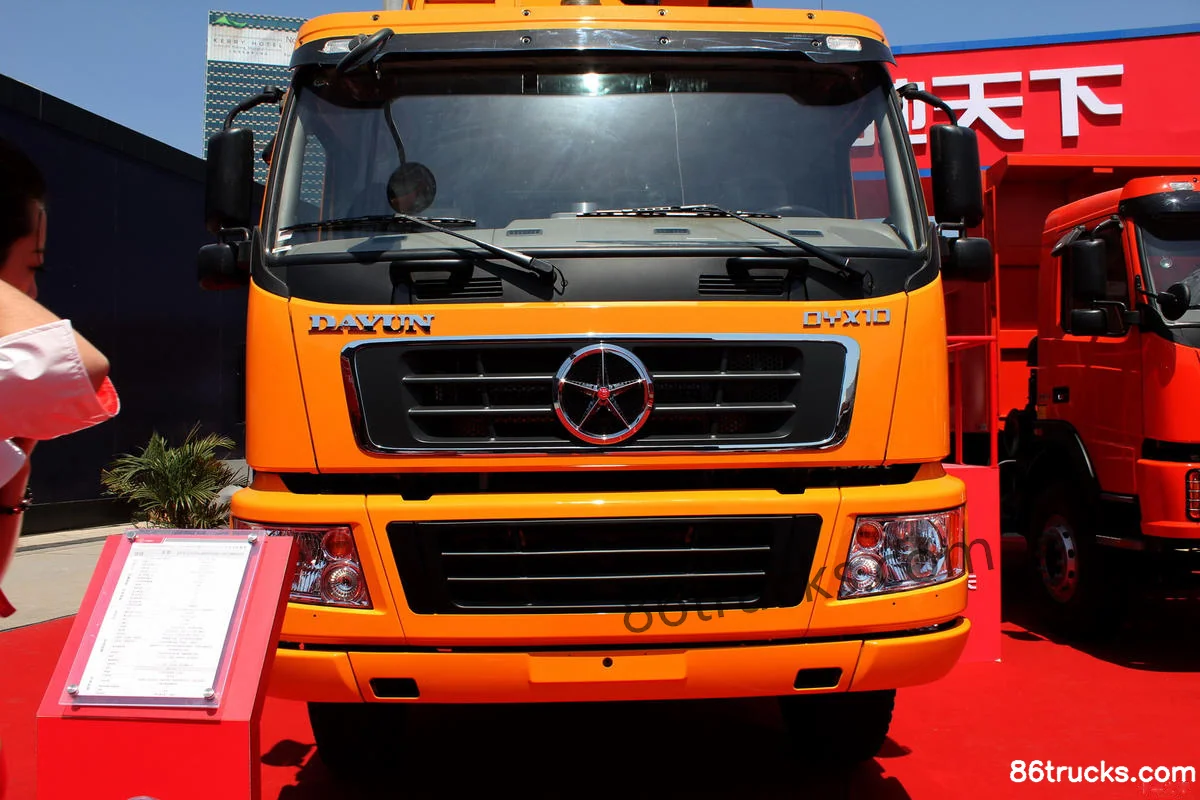

Exterior3

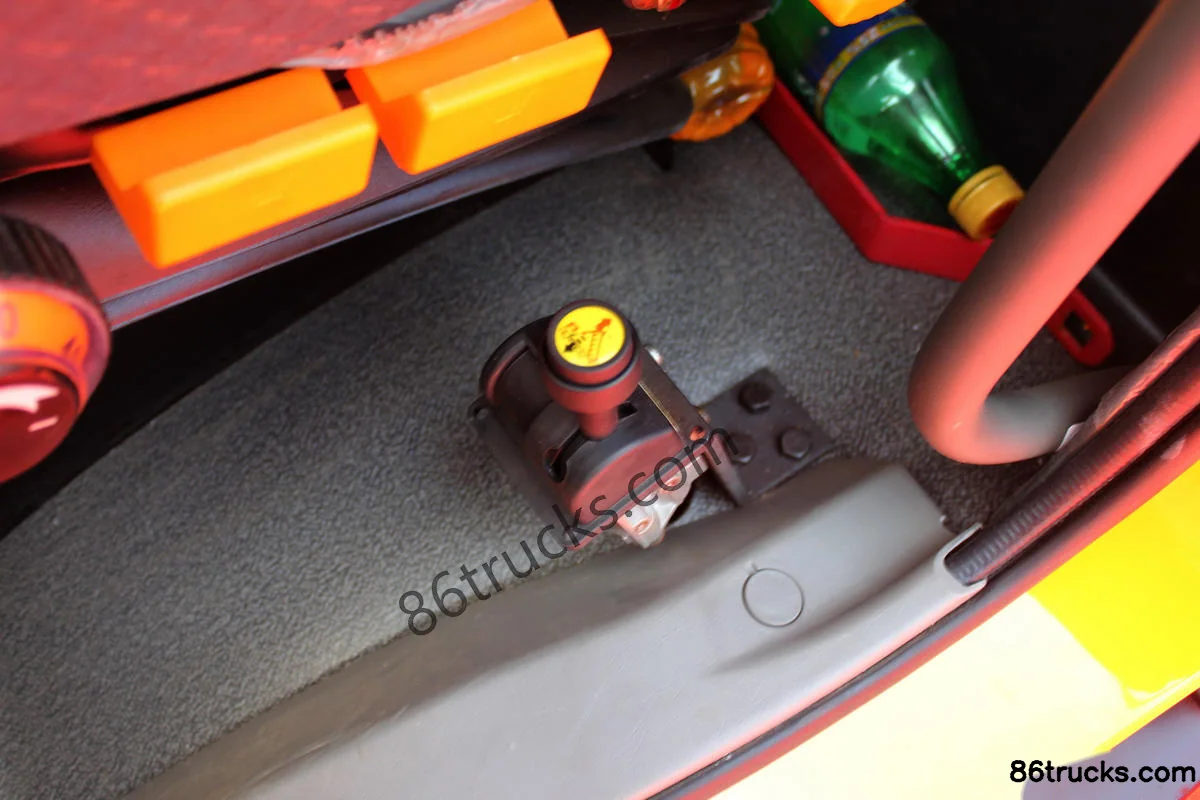

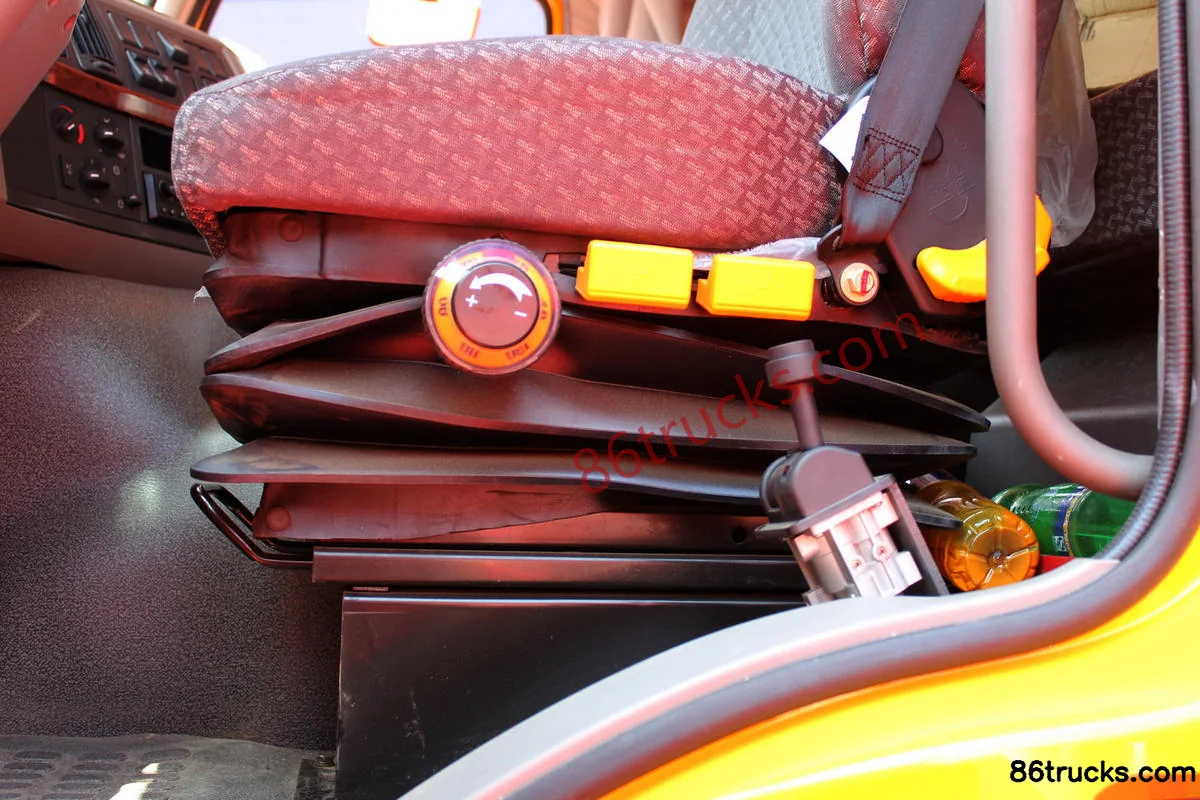

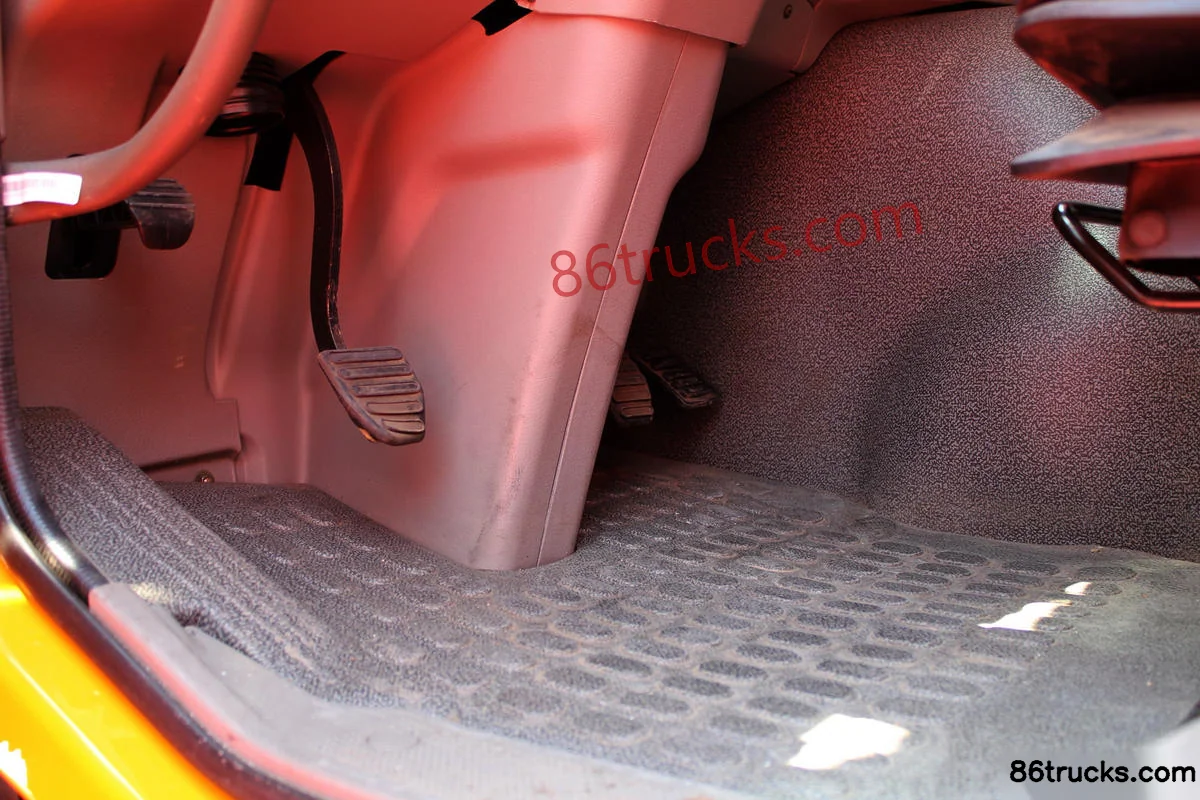

Cab3

Chassis3

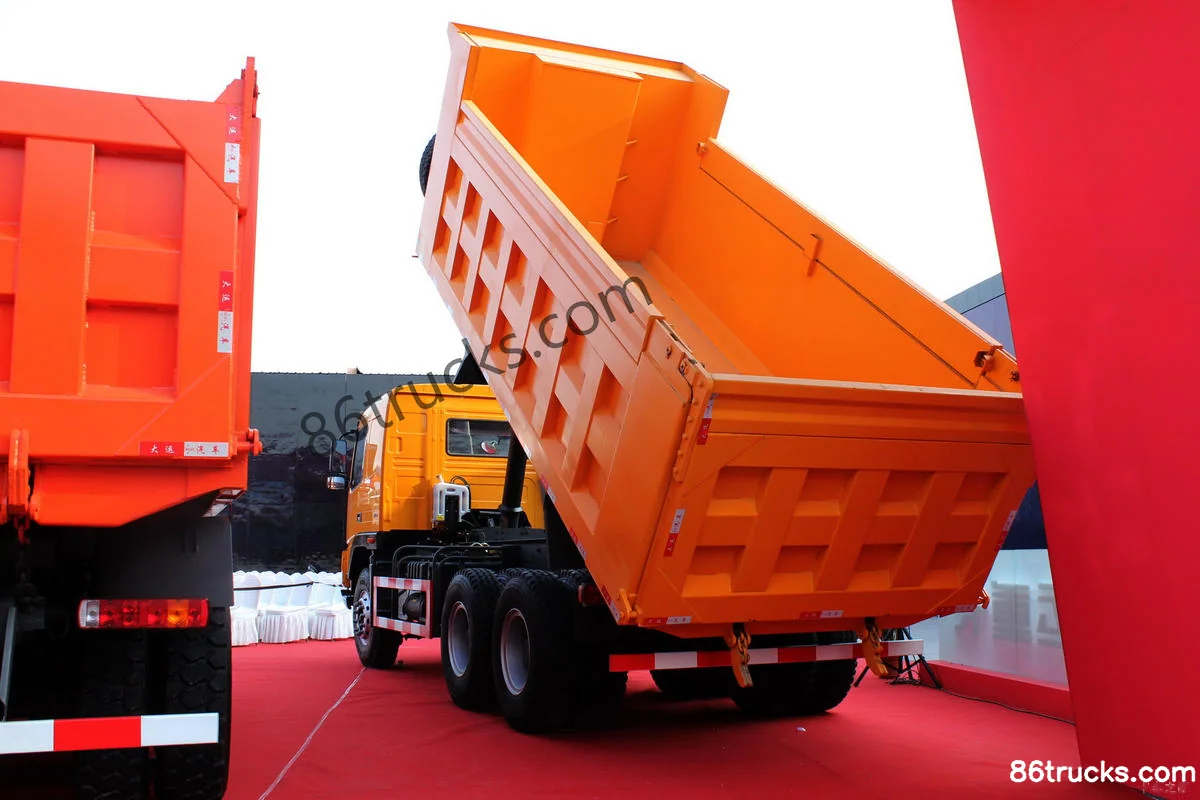

Body3

12 photos

FAQ

What is the export price of Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top), and what does it include?

Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) export reference is about From $43,056; MSRP is ¥31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top)?

Key specs of Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top): Drive: 6x4; Horsepower: 310 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) suited for?

Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) differ from other variants in the same series?

Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top) belongs to Dayun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun 310 hp 6X4(10 wheels) 5.6m Dump Truck (Flat Top)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
