JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck

Export reference
MSRP N/A
Horsepower: 102
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.07ton
JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck is a Light Truck featuring 2.11m cargo length, Van body cargo body, 5Personnel volume and 0.995t payload. On the powertrain side, it comes with a JMC493 engine, 102 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 102 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5034XXYXSA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2490mm
Box length class: 2.1m
engine: Nanchang JMC JX493ZLQ4B
transmission: JMCJC528T8
Cab length: 4.88m
Cab width: 1.72m
Cab height: 2.57m
Front track width: 1395mm
rear track: 1375mm
Curb Weight: 2.07ton
Rated payload: 0.995ton
GVWR: 3.39ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 25°
departure angle: 17.6°
Front/rear suspension: 1.065/1.325m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ4B
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 220N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 2.11m
Cargo box width: 1.565m
Cargo box height: 1.63m
*Cargo box interior width: 1.5650000572205
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1260kg
rear axle description: 2130
rear axle allowable load: 2130kg
Leaf spring count: 5/5
Tire
Tire Size: 6.50-15LT
Number of tires: 4pcs
Control configuration
ABS:

Photos

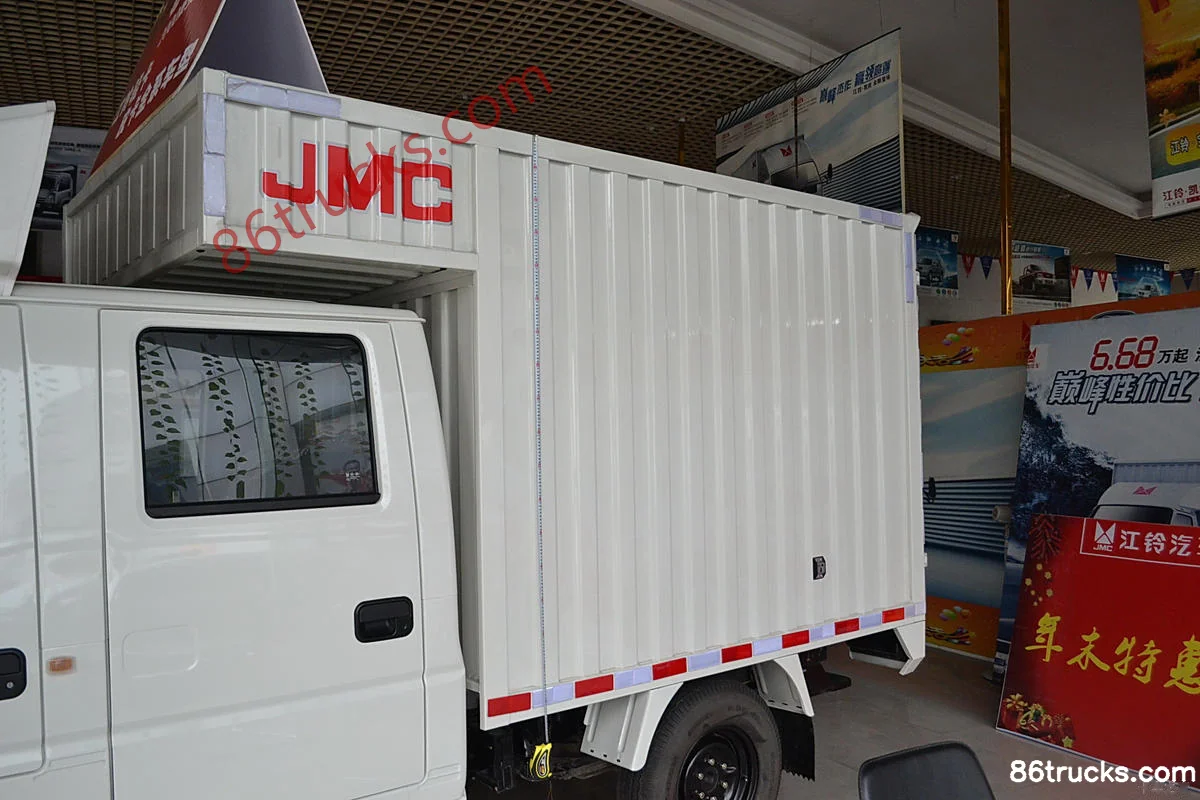

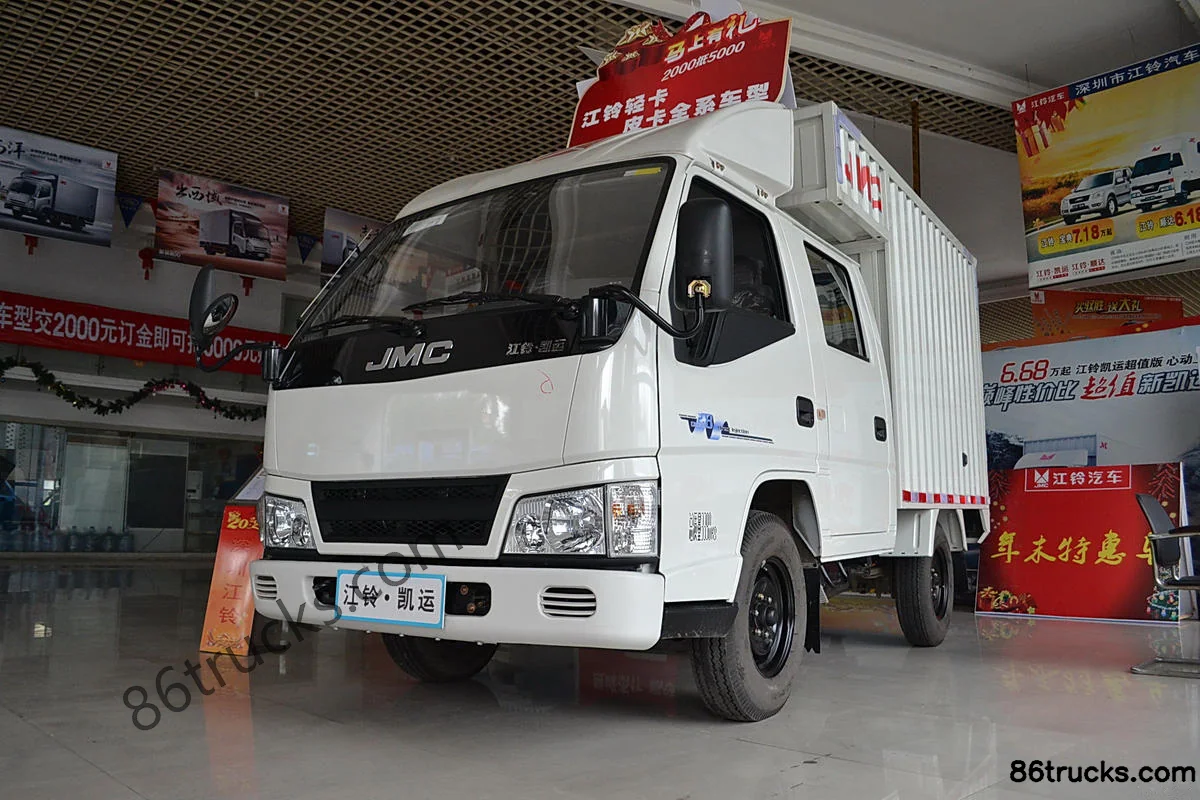

Exterior3

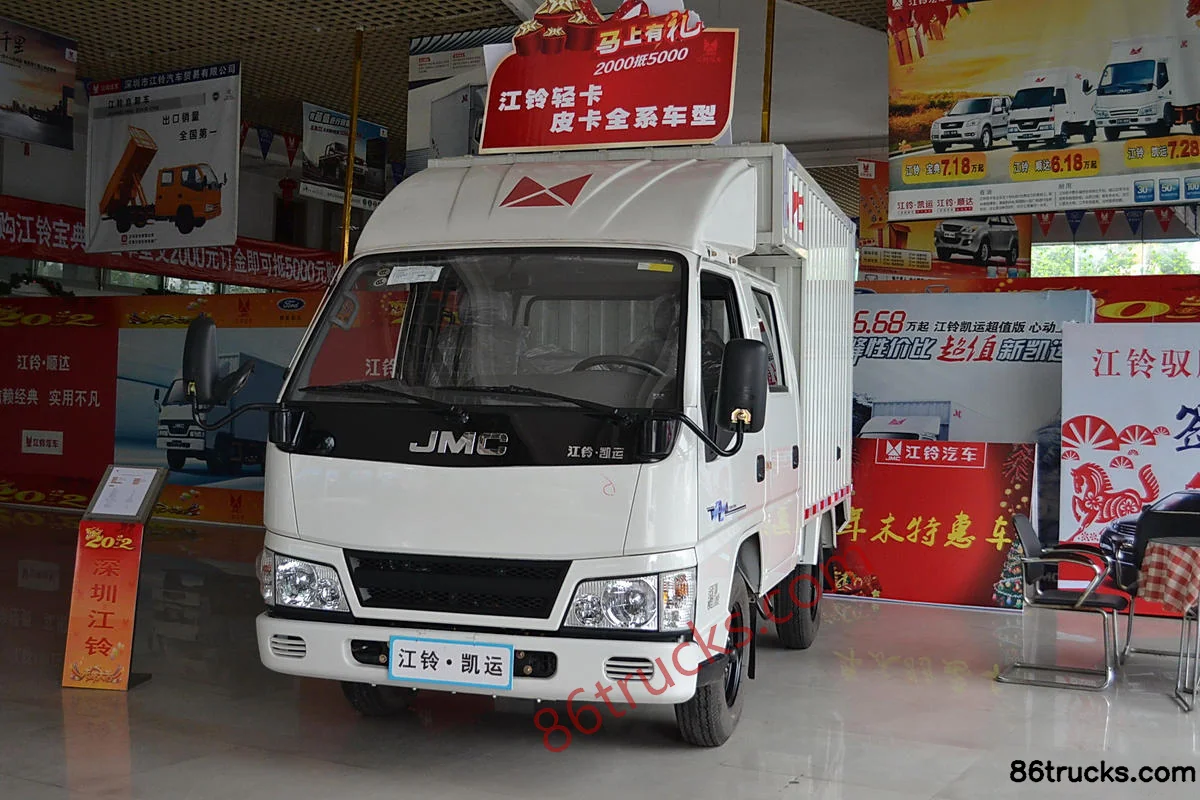

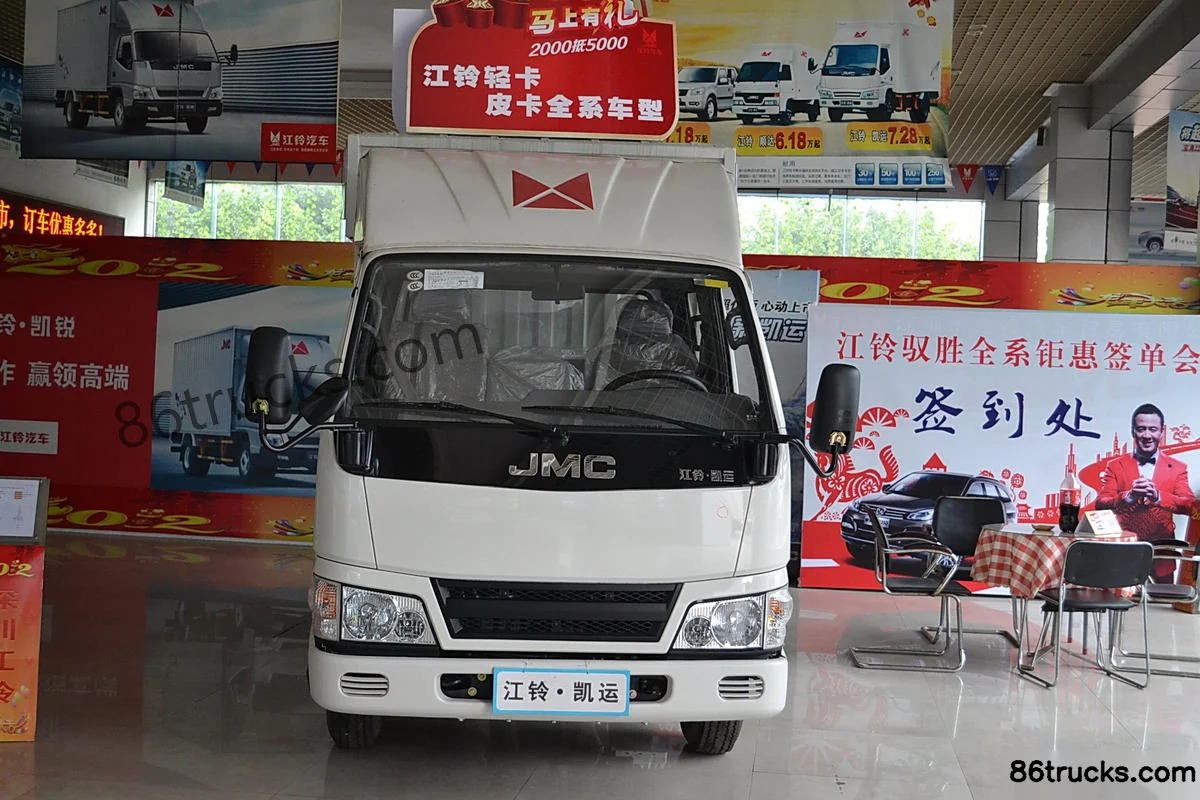

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Exterior (1) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Exterior (2) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Exterior (3) | 86Trucks

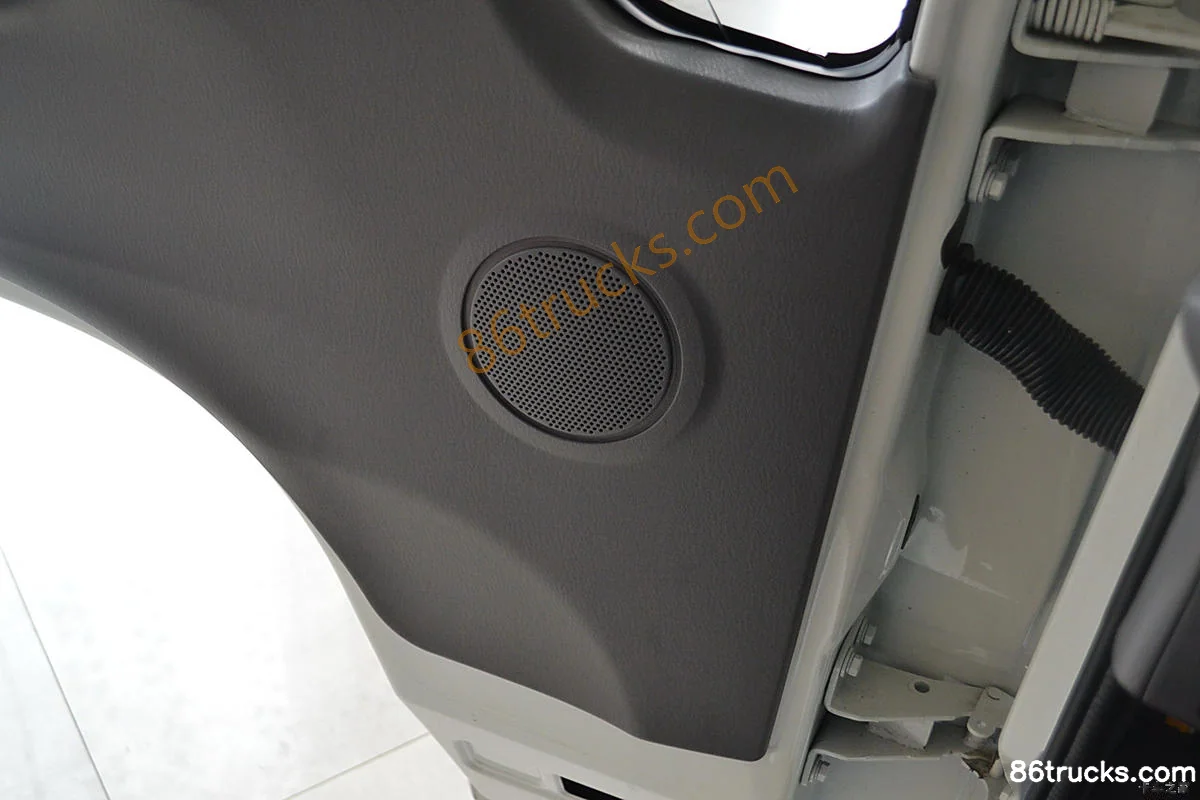

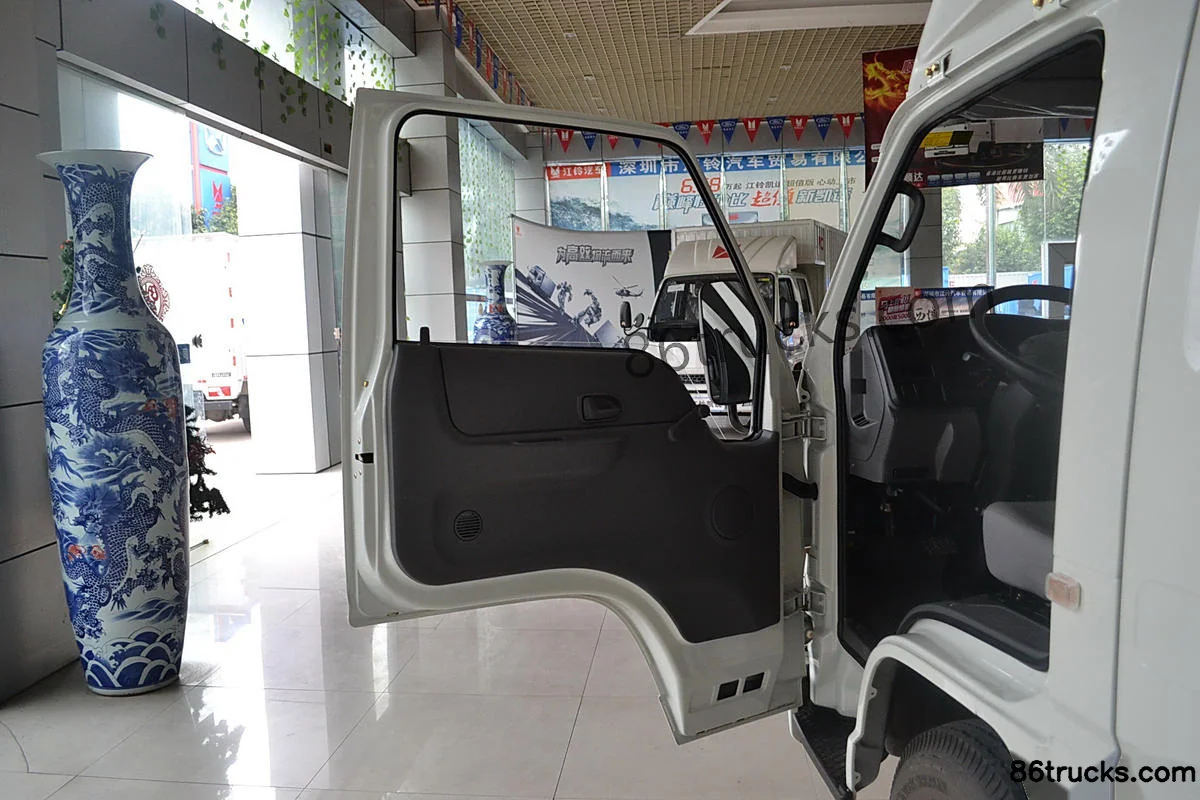

Cab3

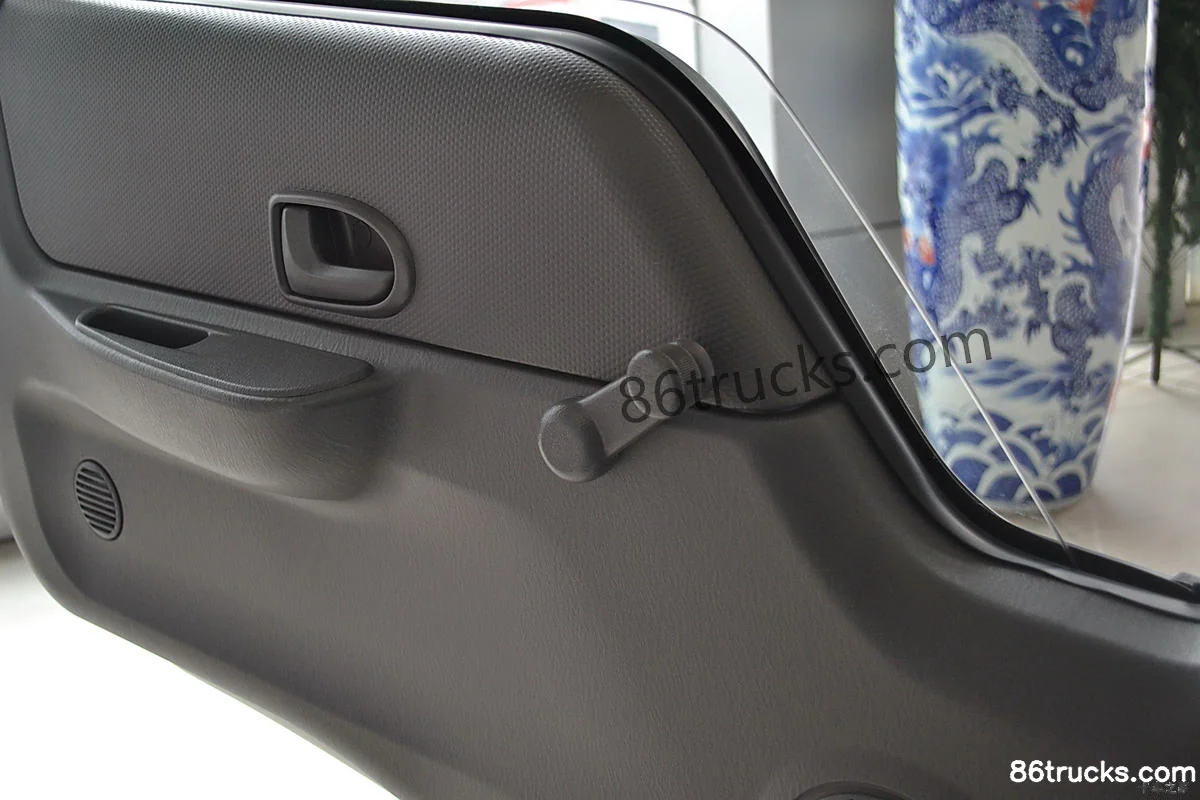

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Cab (1) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Cab (2) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Cab (3) | 86Trucks

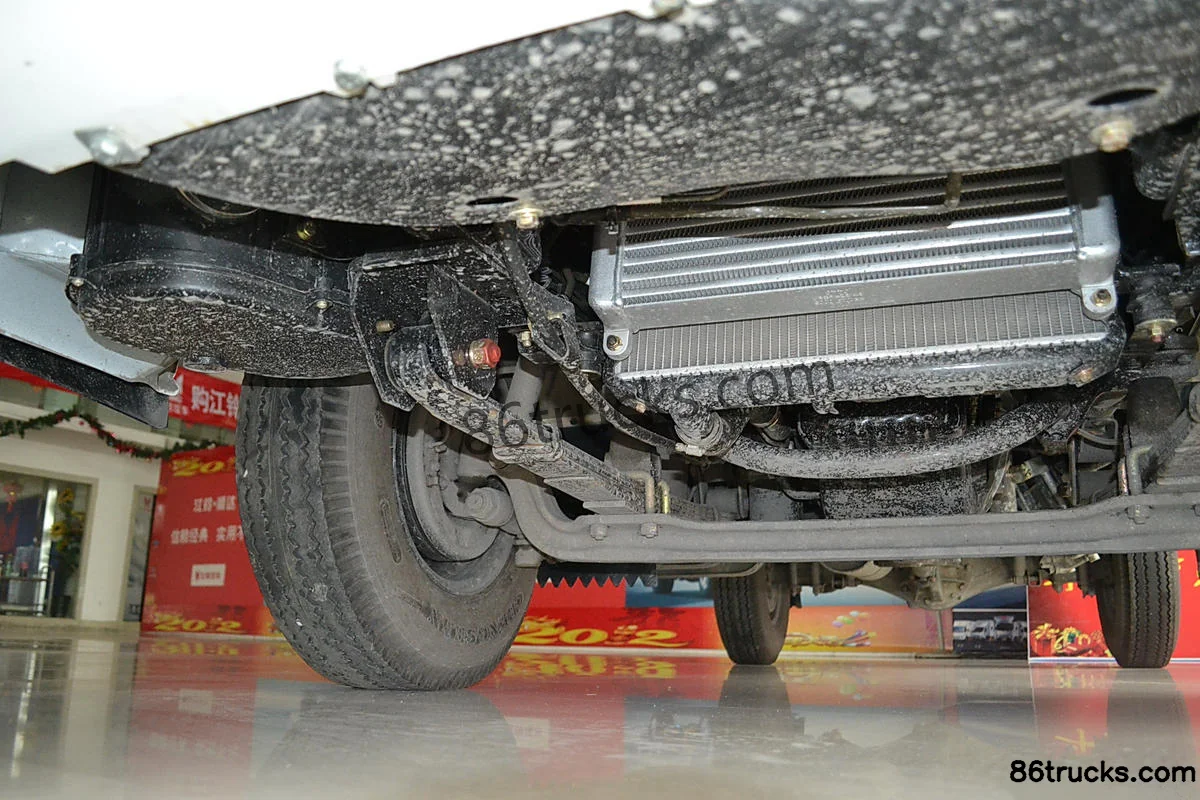

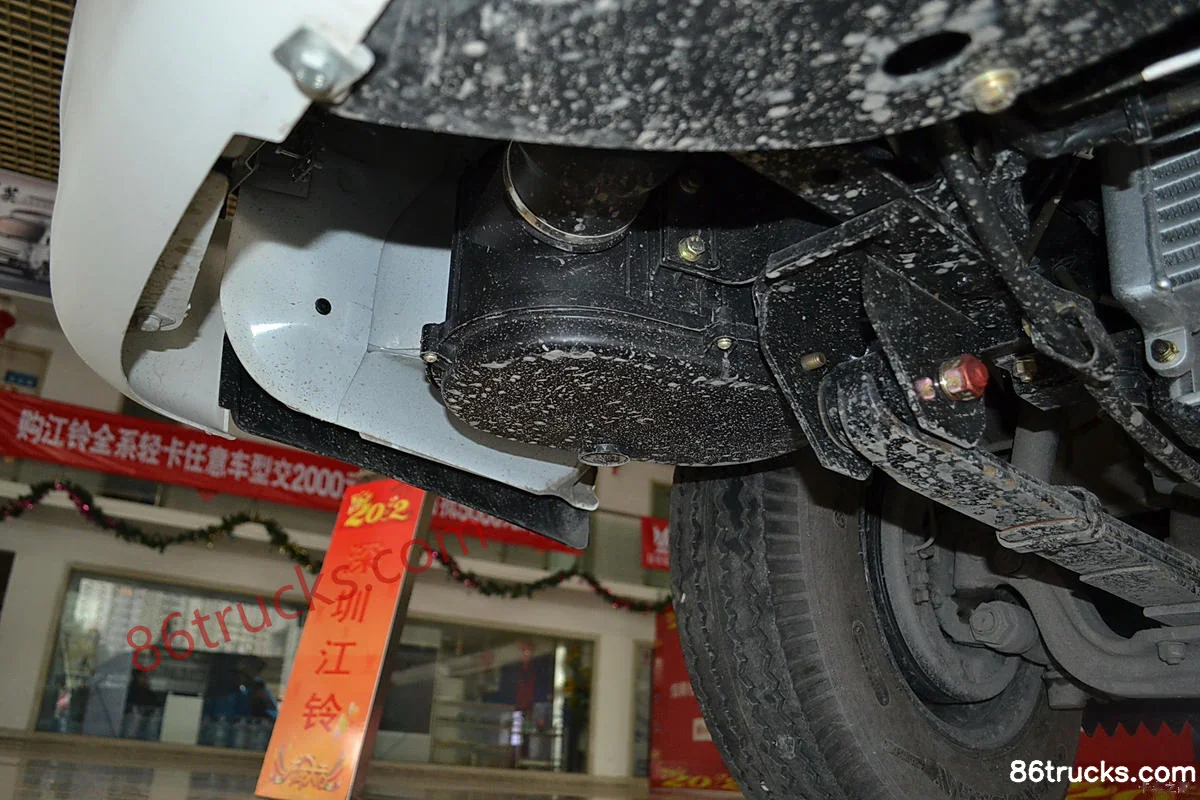

Chassis3

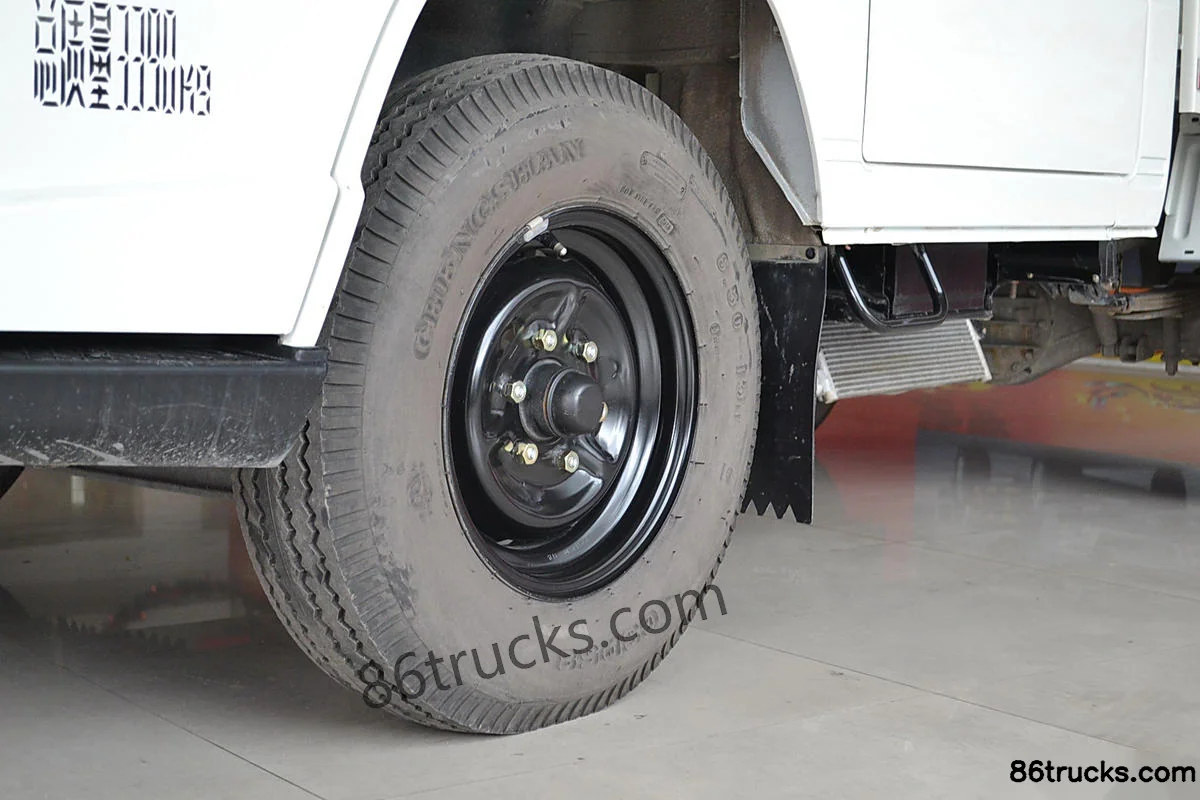

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Chassis (1) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Chassis (2) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Chassis (3) | 86Trucks

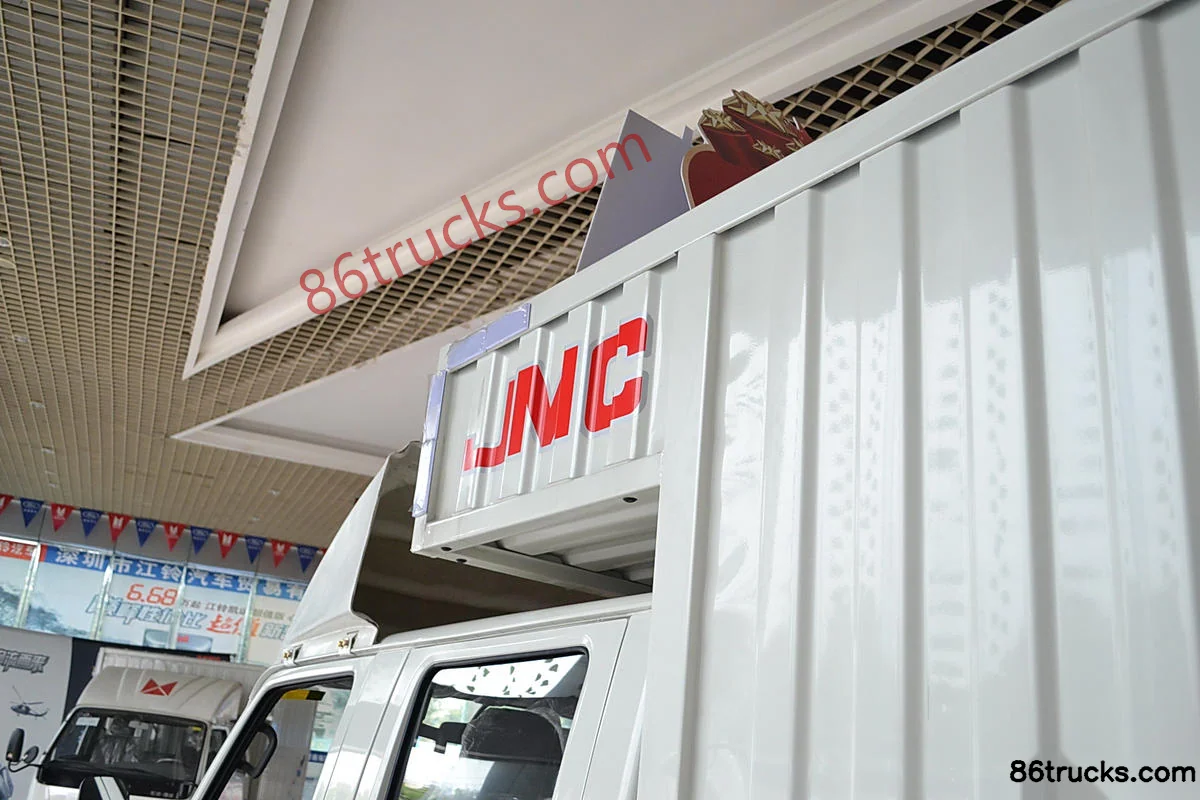

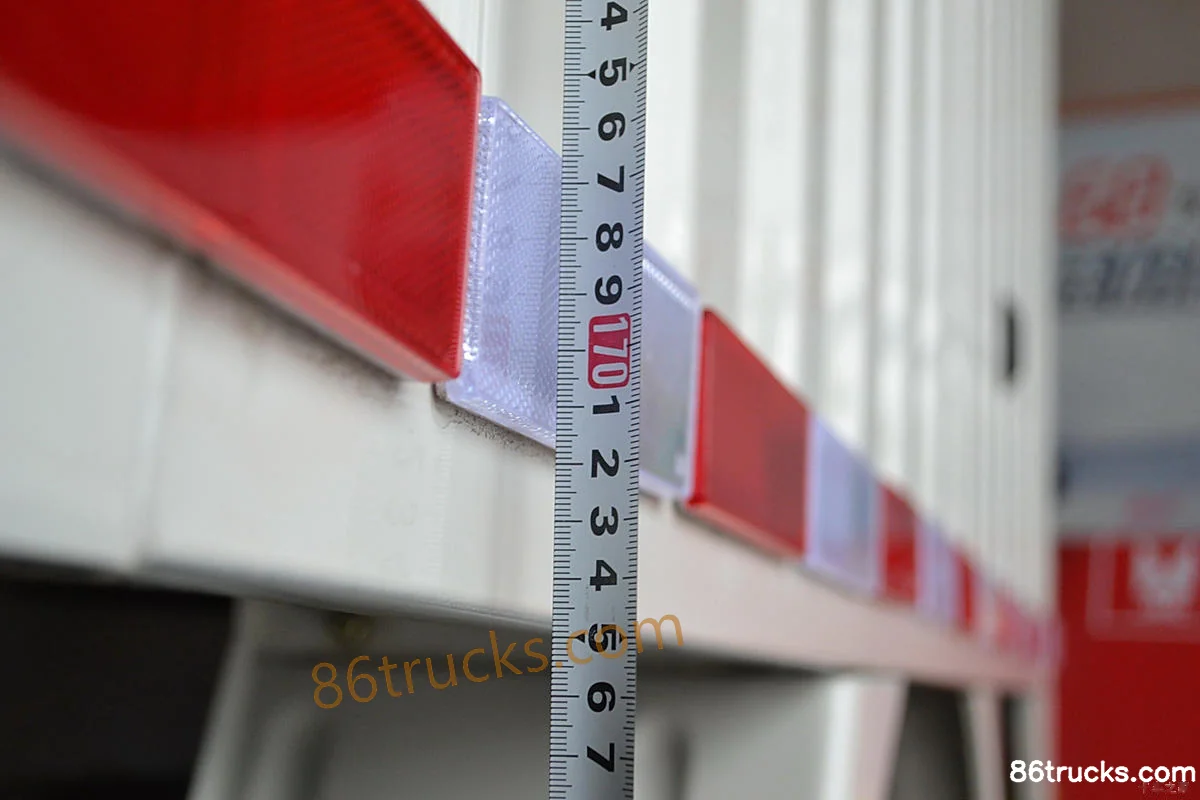

Body3

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Body (1) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Body (2) | 86Trucks JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck?

Key specs of JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck suited for?

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck differ from other variants in the same series?

JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck belongs to JMC Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun 102hp 4X2(6 wheels) 2.1m double-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
