Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear)

Export reference
From $34,236
MSRP ¥24.65M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 7.35×2.5×3.85m
Type:: Truck with crane
GVWR:: 16ton
Lifting capacity: 4.5ton
Drive 4X2 (6 wheels)
Horsepower 190
Rated mass: 4.225ton

Overview

The Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) is a truck-mounted crane featuring 4.5ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 190 hp, China V emissions and Diesel fuel.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.35×2.5×3.85m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 4500mm
Rated mass: 4.225ton
GVWR: 16ton
Front/rear suspension: 1.25/2.15m
Energy Type: Diesel
Body Parameters
Crane model: SPS15800,SQ114,QYS-6.3III,SQS-6.3III,URV630,nicoleV630
Lifting capacity: 4.5ton
crane self-weight: 2.102ton
Vehicle certification code: EQ5161JSQZMB
Body Brand: Dongfeng
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB190 50
fuel type: Diesel
Displacement: 5.9L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen T5
Chassis Model: EQ1250GLJ
rear axle description: 10T
Leaf spring count: 9/11+8,8/10+8,8/11+8,9/10+8,3/4+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Tire
Tire Size: 10.00R20 16PR
Number of tires: 6pcs

Photos

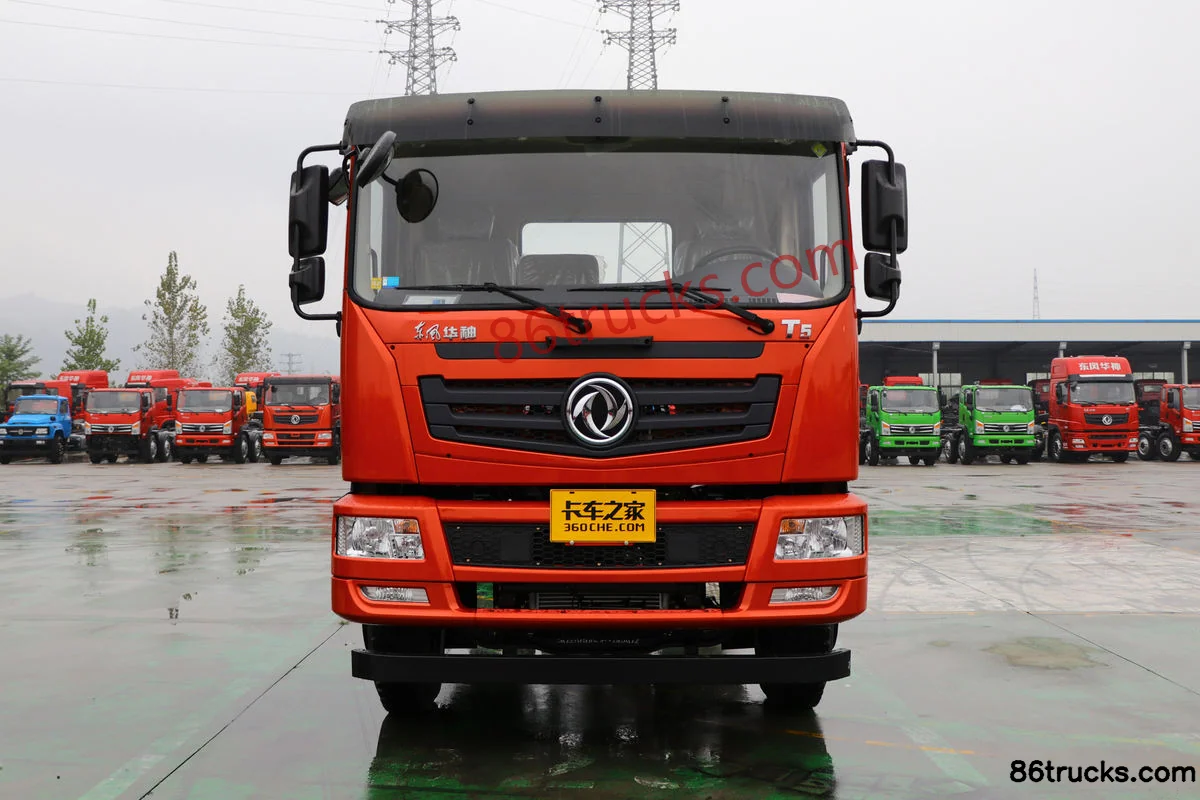

Exterior1

1 photos

FAQ

What is the export price of Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear), and what does it include?

Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) export reference is about From $34,236; MSRP is ¥24.65M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear)?

Key specs of Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear): Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) suited for?

Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) differ from other variants in the same series?

Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear) belongs to Dongfeng T5 medium truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T5 190hp 4X2(6 wheels) 5.6m truck-mounted crane (Fast Gear)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
