Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI)

Export reference
From $14,847
MSRP ¥10.69M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.01ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 14PR
Rated payload: 4.025ton
Drive 4X2 (6 wheels)
Horsepower 120
Cargo box type: Dump type

Overview

The Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) is a Light Truck featuring 4.025t payload, 7.36t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a QuanchaiH20-120E60 engine, 120 hp, China VI emissions and WLY transmission.

China VI 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3075DDABA-31
Drive type: 4X2
Wheelbase: 3360mm
engine: QuanchaiH20-120E60
transmission: WLY8G45
Rear Axle Ratio: 4.875
Cab length: 6.135m
Cab width: 2.035m
Cab height: 2.15m
Front track width: 1490mm
rear track: 1485mm
Curb Weight: 3.01ton
Rated payload: 4.025ton
GVWR: 7.36ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiH20-120E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 90kW
Max hp: 120Horsepower
Max torque: 325N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLY8G45
Transmission Brand: WLY
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.85m
Cargo box height: 0.4m
Body Parameters
Lifting type: Double Lift Cylinder
Cab parameters
Cab: Double cab
Cab width: 1730mm
seating capacity: 5Personnel
Chassis Specs
Front axle allowable load: 2640kg
Frame Dimensions: 160×50×5+3mm
rear axle description: NPR rear axle
rear axle allowable load: 4720kg
Axle ratio: 4.875
Leaf spring count: 3/4+3
Tire
Tire Size: 7.00R16LT 14PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
daytime running lights:
smart configuration
Cruise control (CCS):

Photos

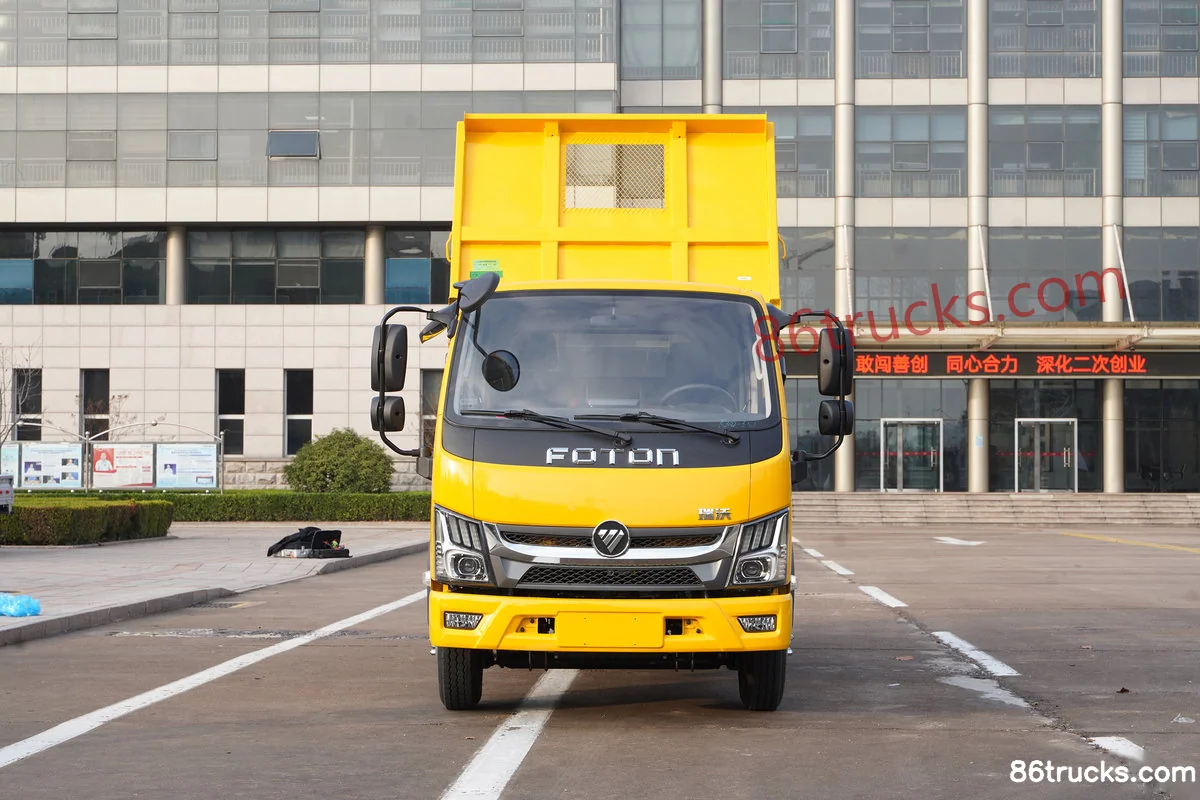

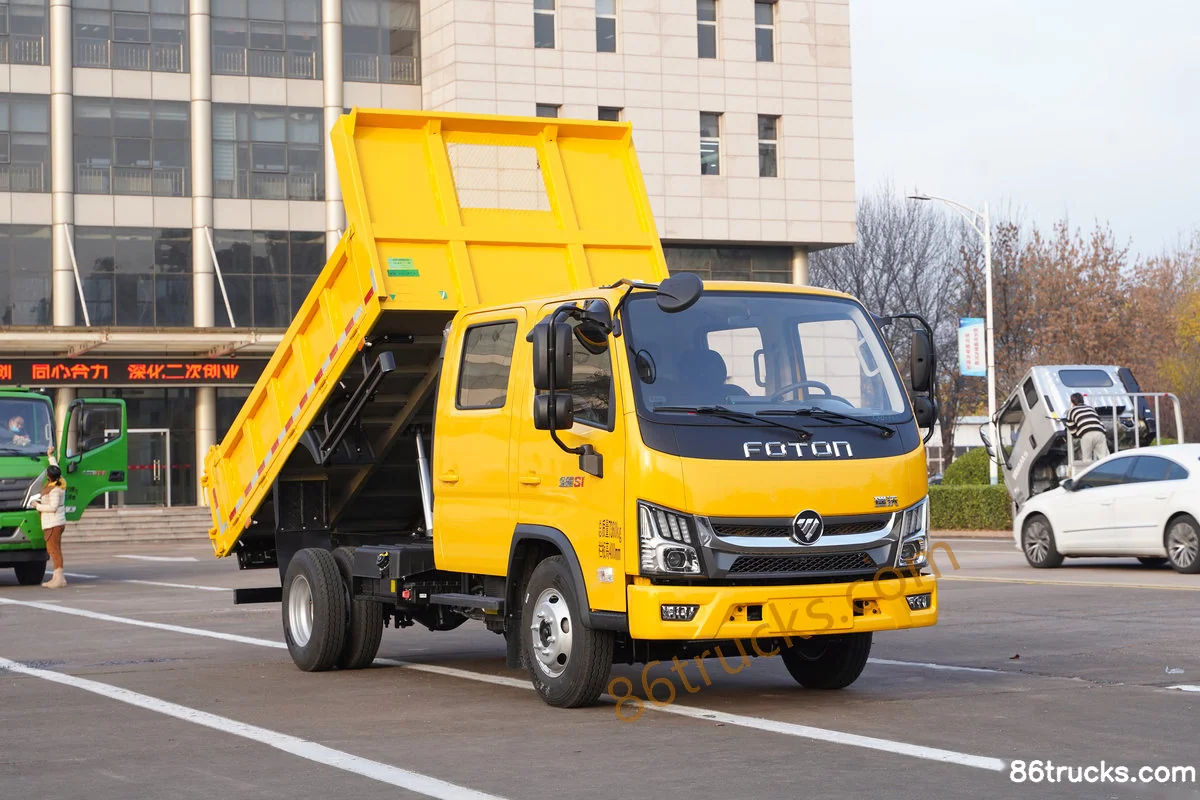

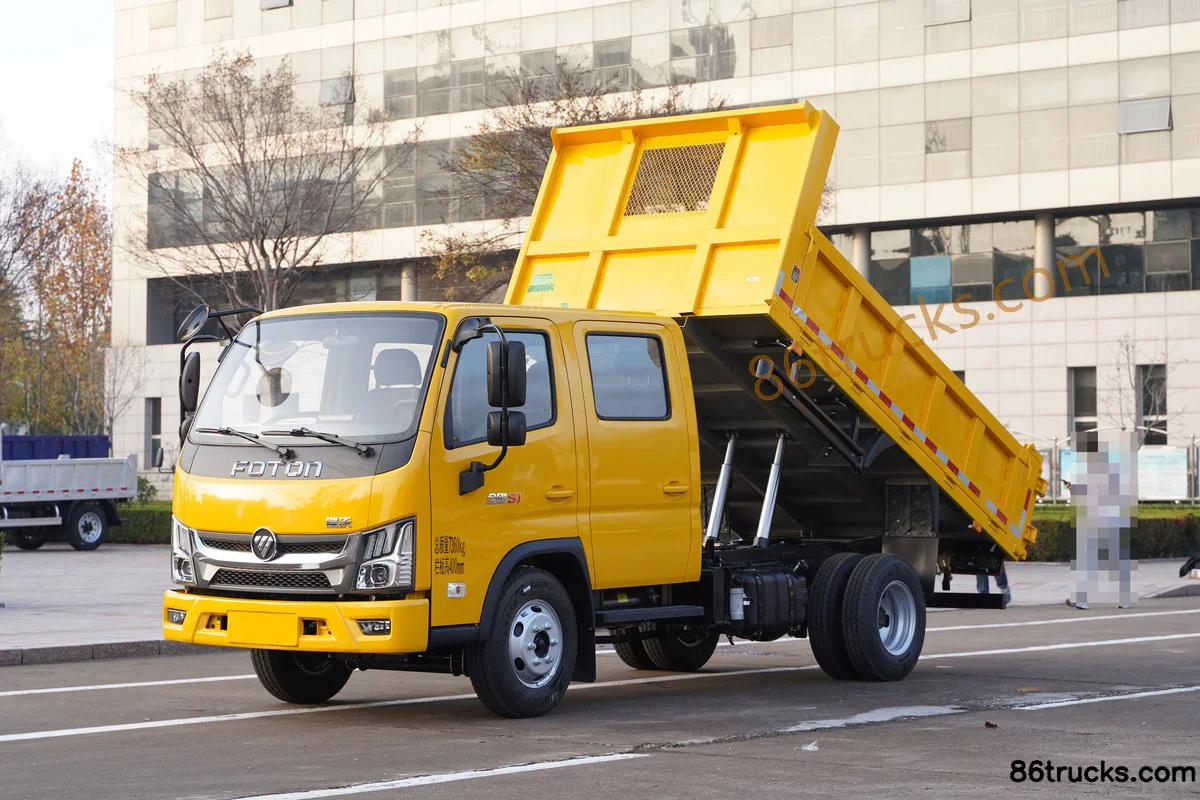

Exterior3

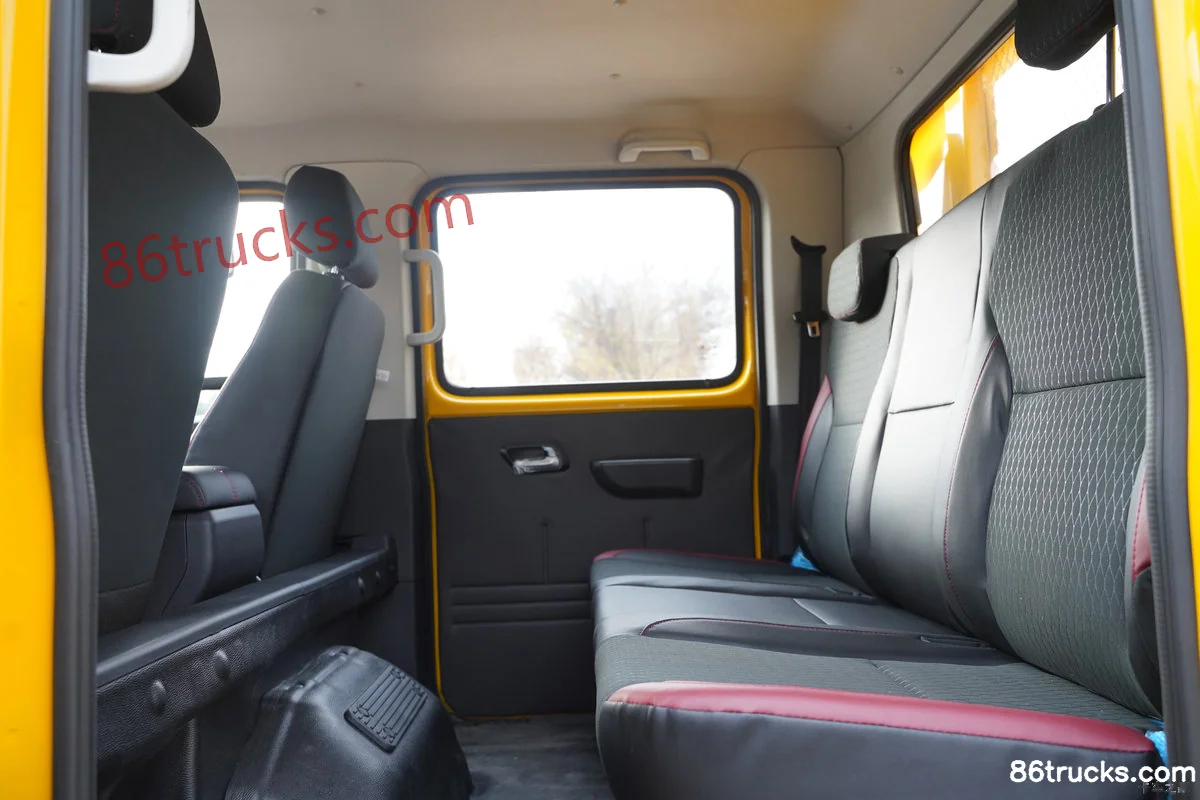

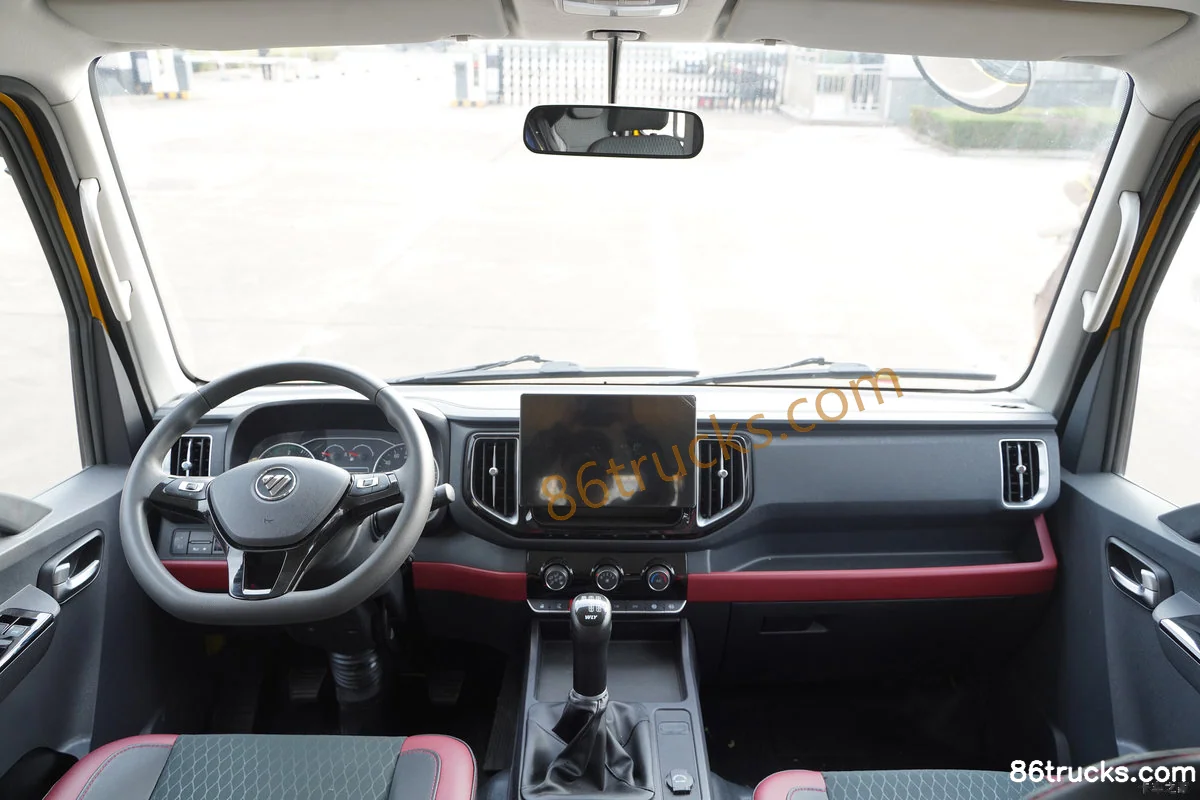

Cab2

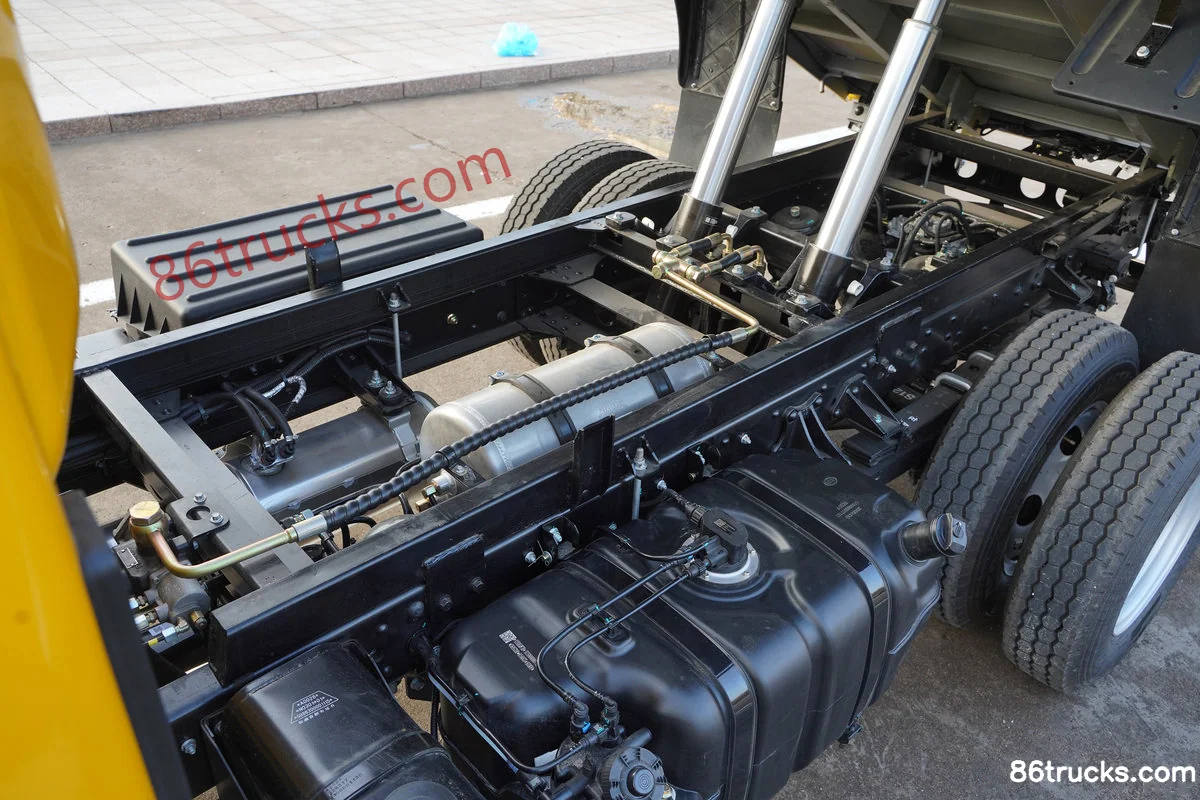

Chassis1

6 photos

FAQ

What is the export price of Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI), and what does it include?

Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) export reference is about From $14,847; MSRP is ¥10.69M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI)?

Key specs of Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI): Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) suited for?

Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) differ from other variants in the same series?

Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI) belongs to Foton King S1 PLUS Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton King Kong S1 PLUS 120hp 4X2(6 wheels) 3.3m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
