FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck

Export reference
From $21,514
MSRP ¥15.49M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.61ton
Wheelbase:: 3800mm
Tire Size:: 10.00R20 16PR
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck is a Medium-duty truck featuring 7.99t payload, 15.795t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CAL3160C1DF1E5
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90
Rear Axle Ratio: 6.33
Cab length: 6.91m
Cab width: 2.32m
Cab height: 2.97m
Front track width: 1825mm
rear track: 1750mm
Curb Weight: 7.61ton
Rated payload: 7.99ton
GVWR: 15.795ton
Origin: Lingyuan, Liaoning
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: TJG190 High Roof Double Sleeper Cab; Air Suspension Seat; Laminated Glass; Variable Section Frame 300*85*(8+6)mm (Front 940mm Wide, Rear 860mm Narrow)
Cab width: 2080mm
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5800kg
Frame Dimensions: 280*(8+6)mm
rear axle description: 457 13T shortened
rear axle allowable load: 9995kg
Axle ratio: 6.33
Leaf spring count: 9/9+7,9/10+8
Tire
Tire Size: 10.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
lighting configuration
Headlight height adjustment:

Photos

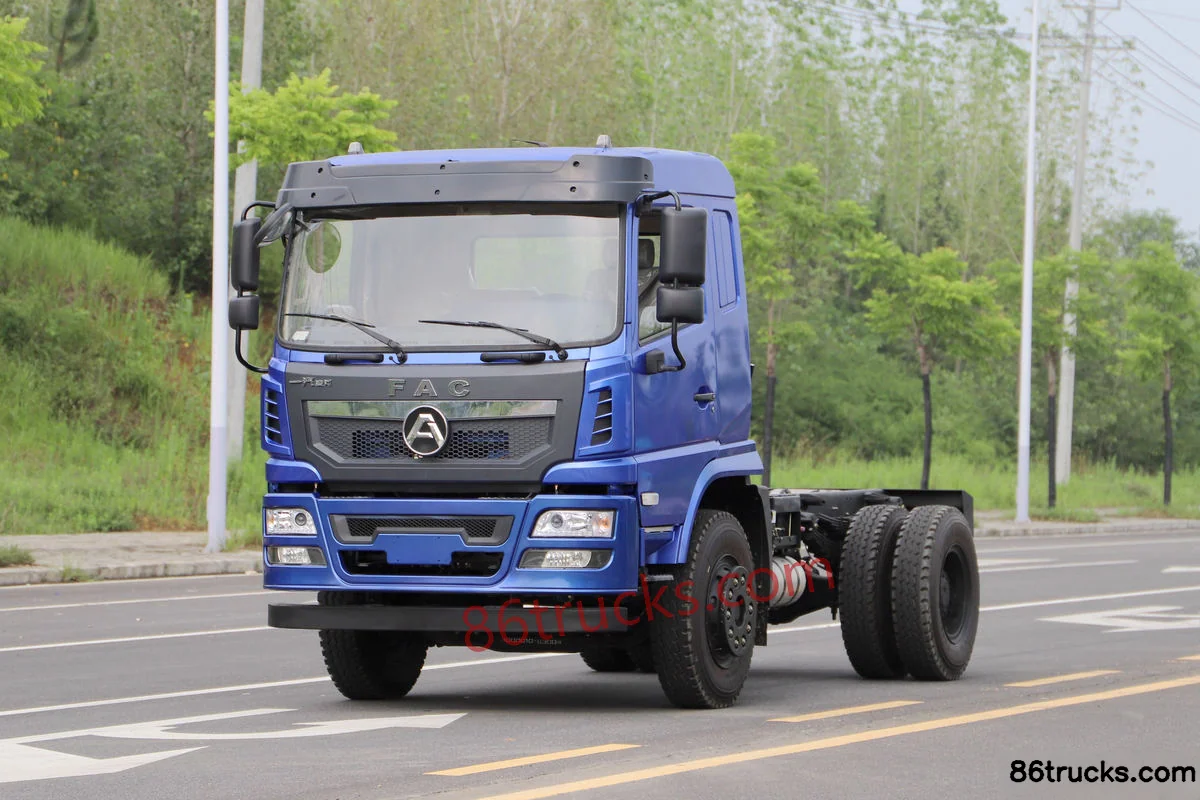

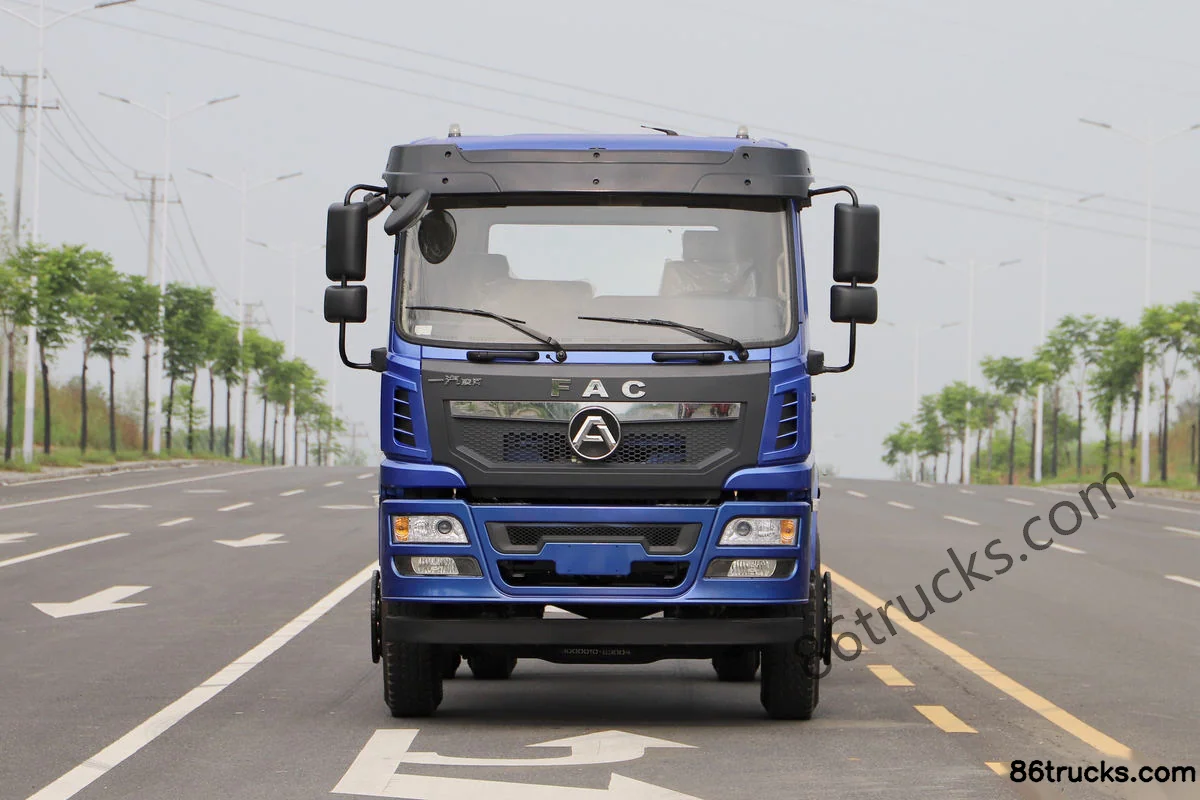

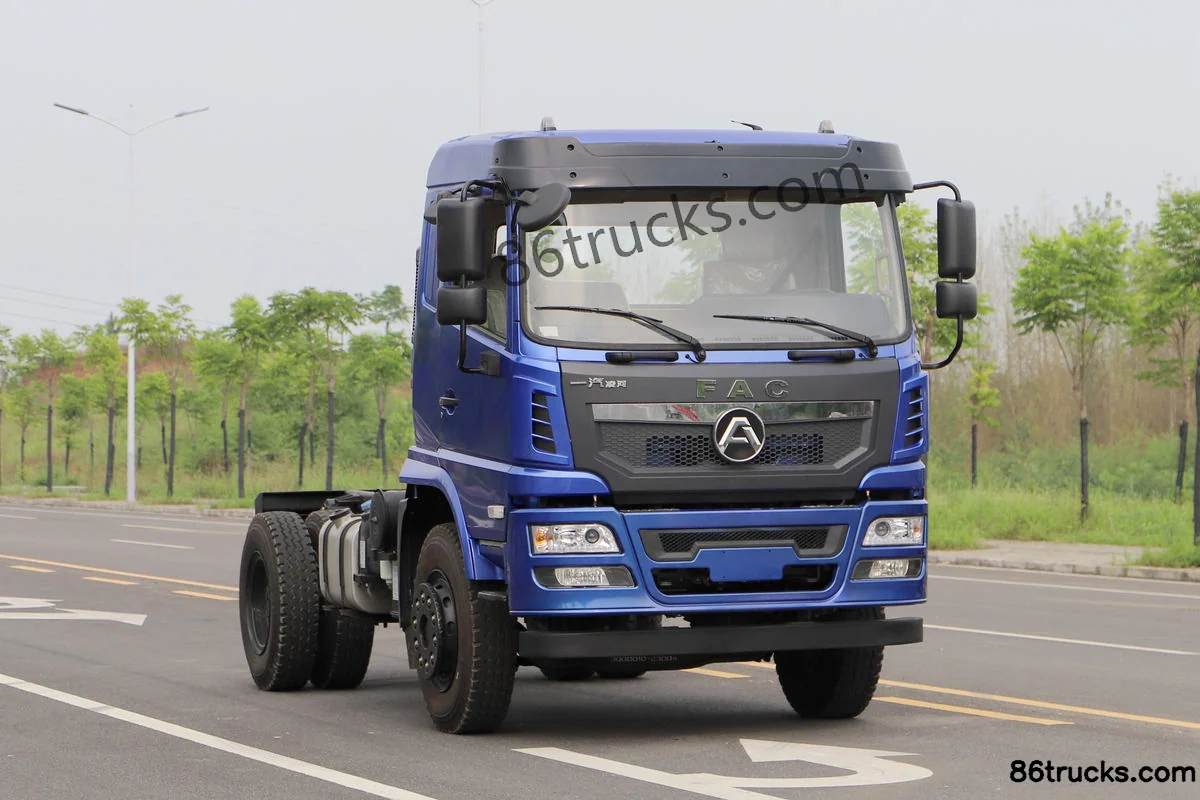

Exterior3

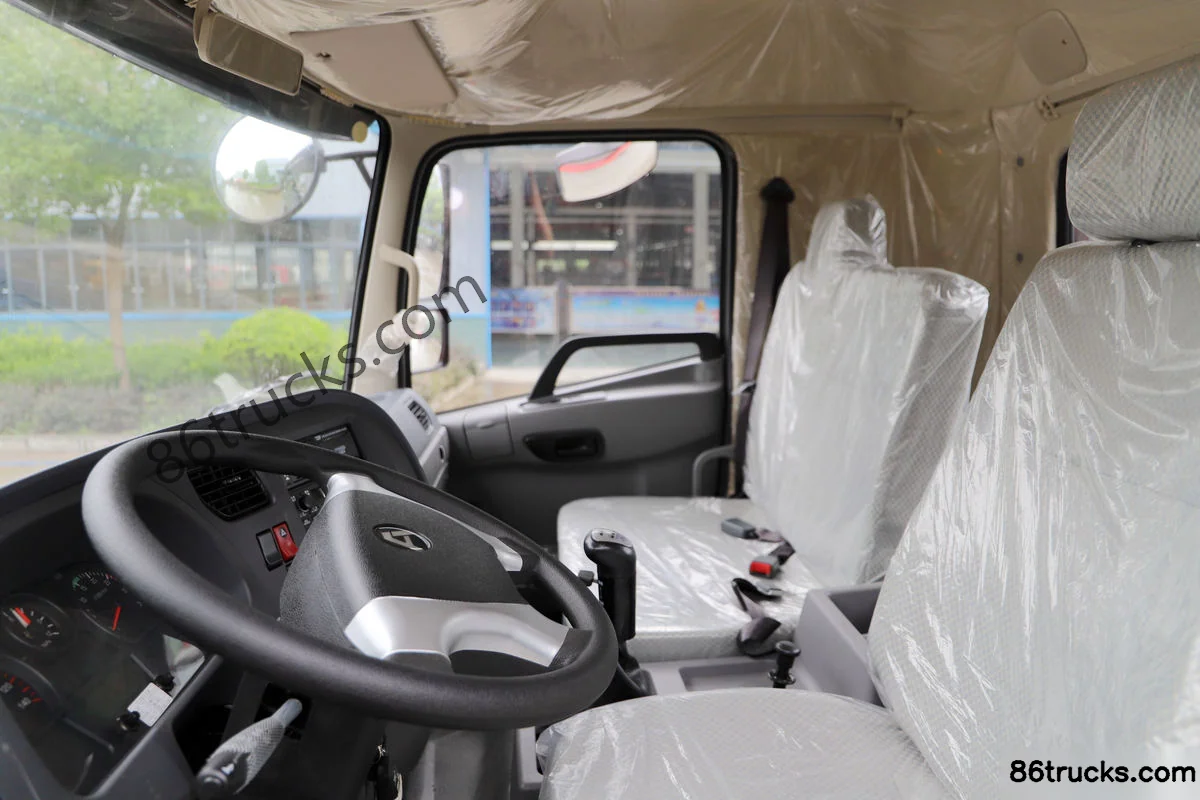

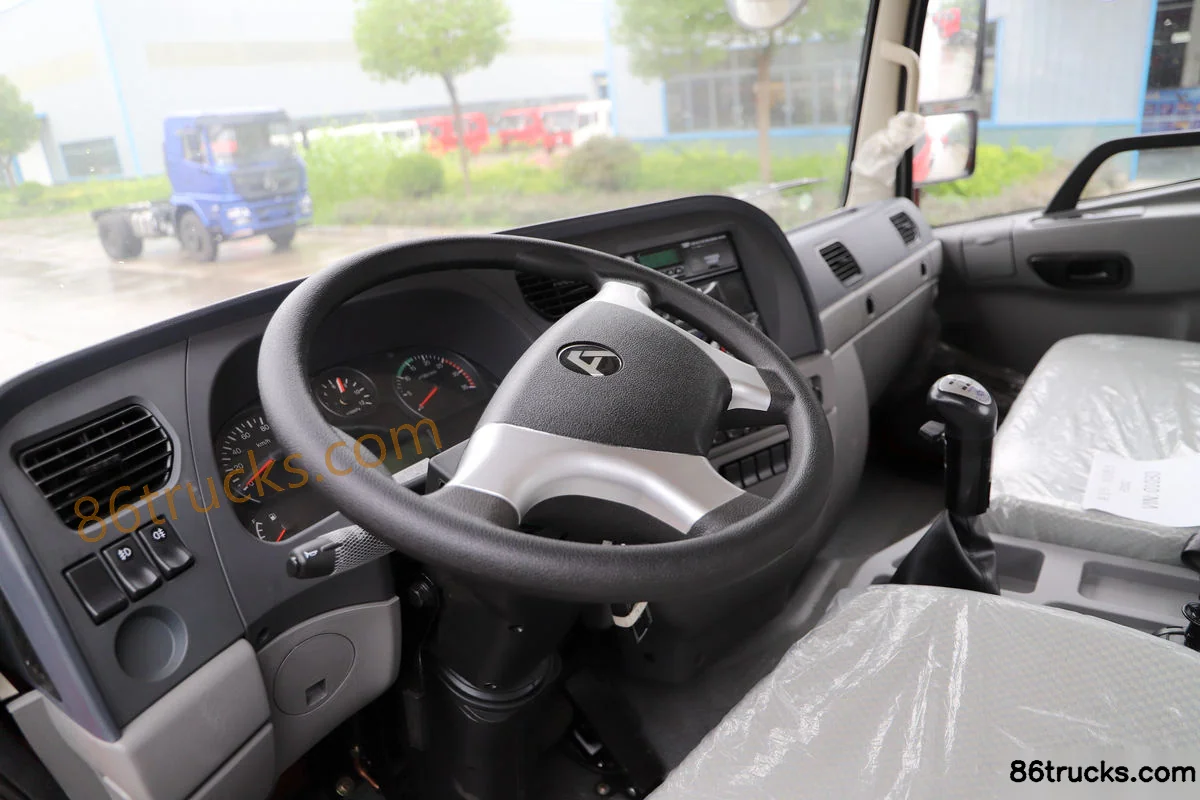

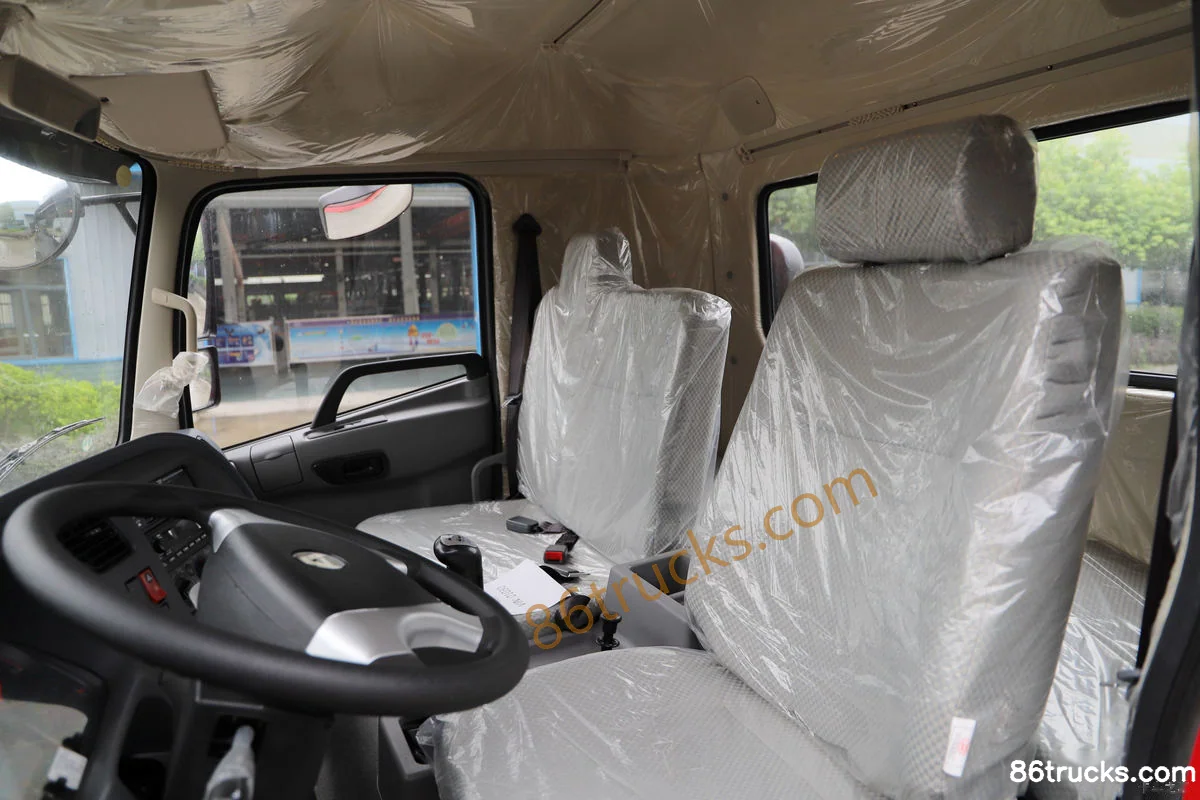

Cab3

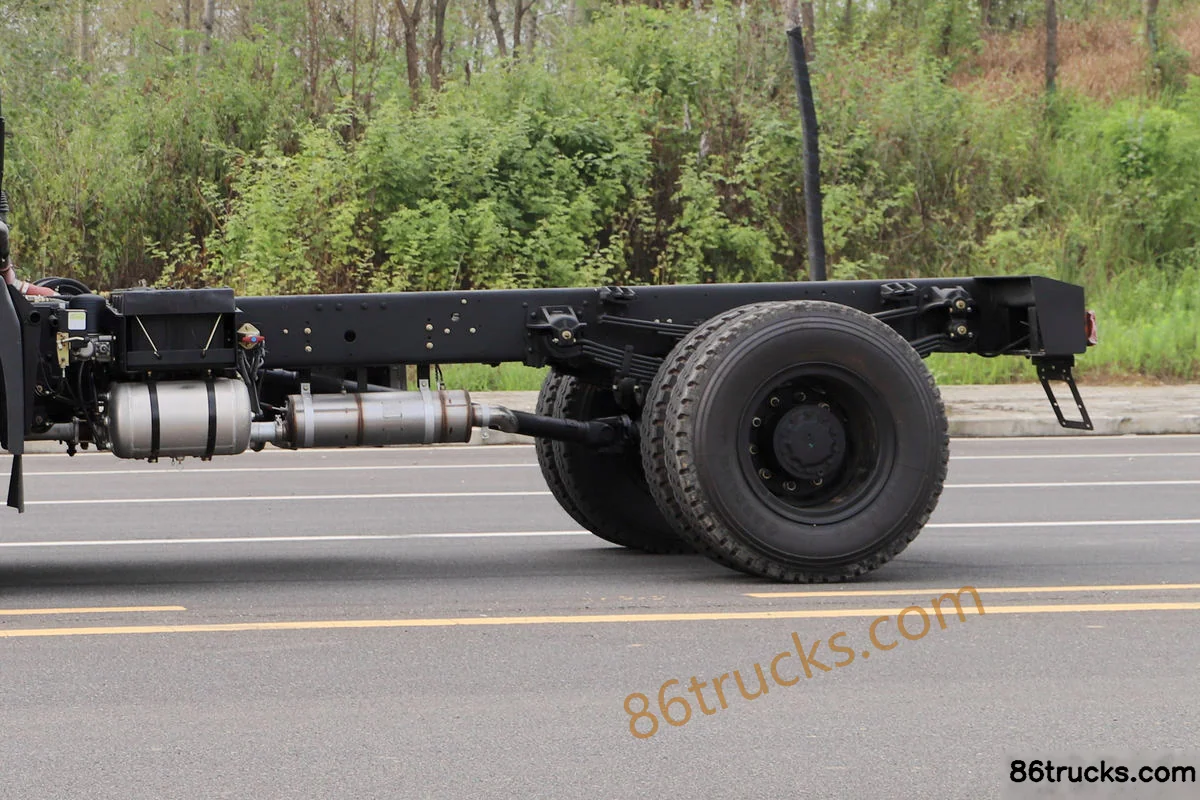

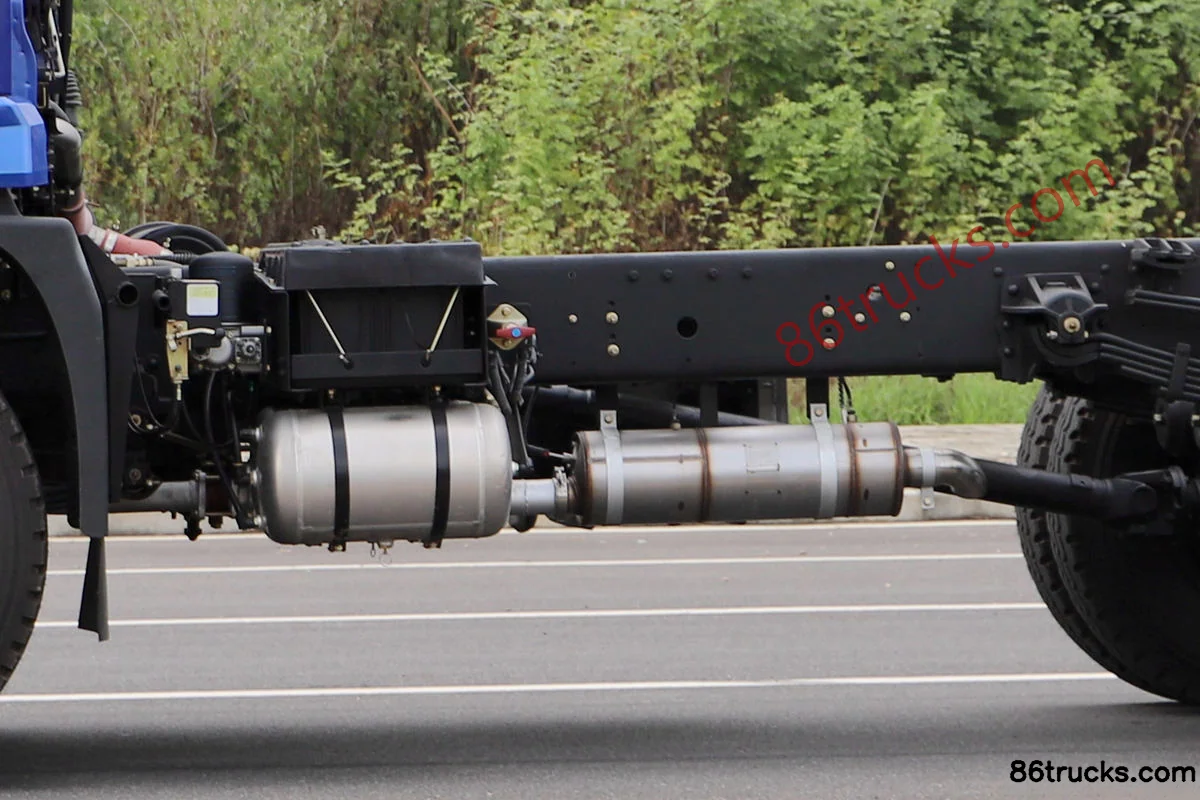

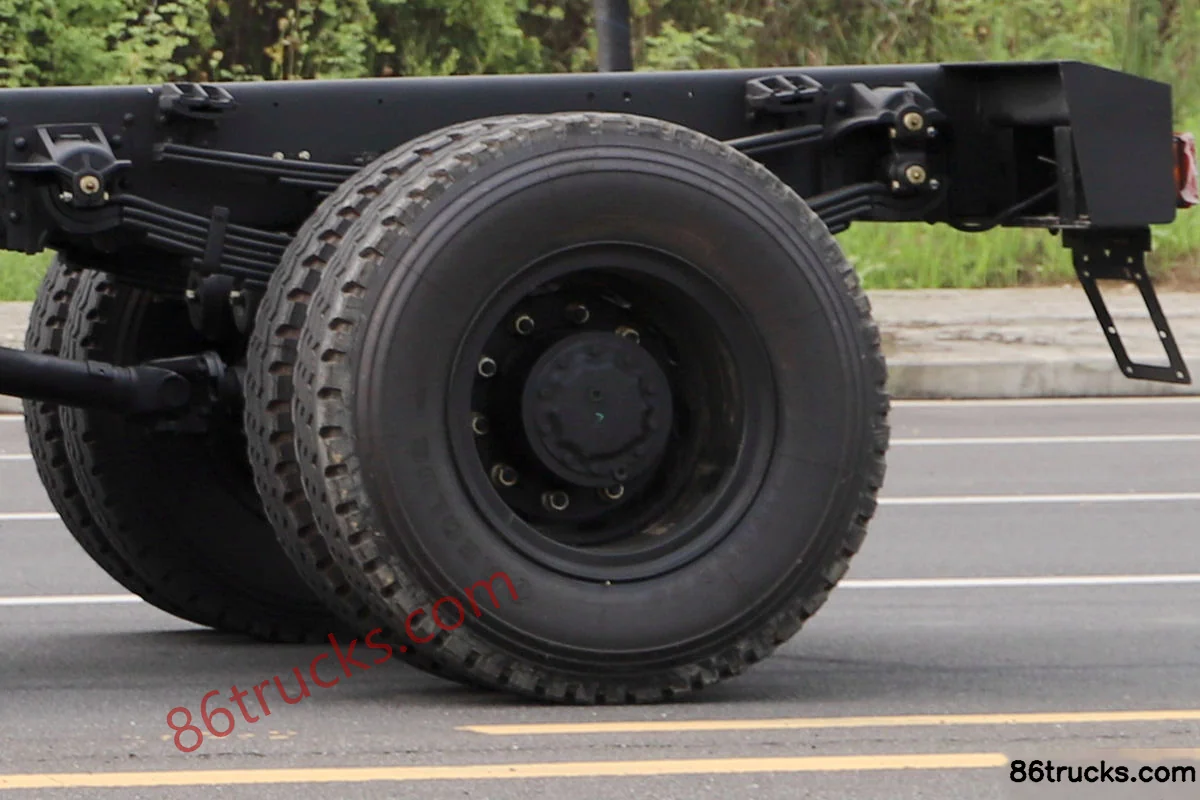

Chassis3

9 photos

FAQ

What is the export price of FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck, and what does it include?

FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck export reference is about From $21,514; MSRP is ¥15.49M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck?

Key specs of FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck suited for?

FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck differ from other variants in the same series?

FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck belongs to FAW Linghe Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Linghe 160hp 4X2(6 wheels) 4.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
