KOMATSU PC56-7 Crawler Excavator

Export reference
MSRP N/A
Model:: PC56-7
Engine Model:: crawler excavator
Tonnage:: 5ton
Bucket capacity:: 0.22cubic meter
Machine dimensions:: 5.935×1.96×2.55mm
Track shoe width:: 400mm
Operating weight: 5.3ton
Bucket type: backhoe
Fuel Tank Capacity: 120L
Product power: Conventional Power

Overview

The KOMATSU PC56-7 Crawler Excavator is a excavator featuring 5.3ton GVW, backhoe bucket capacity, 120L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: PC56-7
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 5ton
Bucket capacity: 0.22cubic meter
Operating weight: 5.3ton
Machine dimensions: 5.935×1.96×2.55mm
Track shoe width: 400mm
Track gauge: 1560mm
Rear Overhang Radius: 1650mm
Min ground clearance: 320cm
Oil capacity
Fuel Tank Capacity: 120L
coolant: 8L
hydraulic oil tank: 55L
Engine Oil Capacity: 9.7L
performance specs
Travel speed: 2.6/4.1km/h
Bucket digging force: 39kN
Arm Digging Force: 23.9kN
hydraulic system
Working hydraulic circuit: 26.5
travel hydraulic circuit: 26.5Mpa
Swing Hydraulic Circuit: 19.6Mpa
Operating Range
Max digging radius: 6120mm
Max digging depth: 3800mm
Max digging height: 5850mm
Max unloading height: 4160mm
Max vertical digging depth: 3020mm
Engine parameters
Engine Model: KOMATSU S4D87E-1
Max output power: 34.6kW

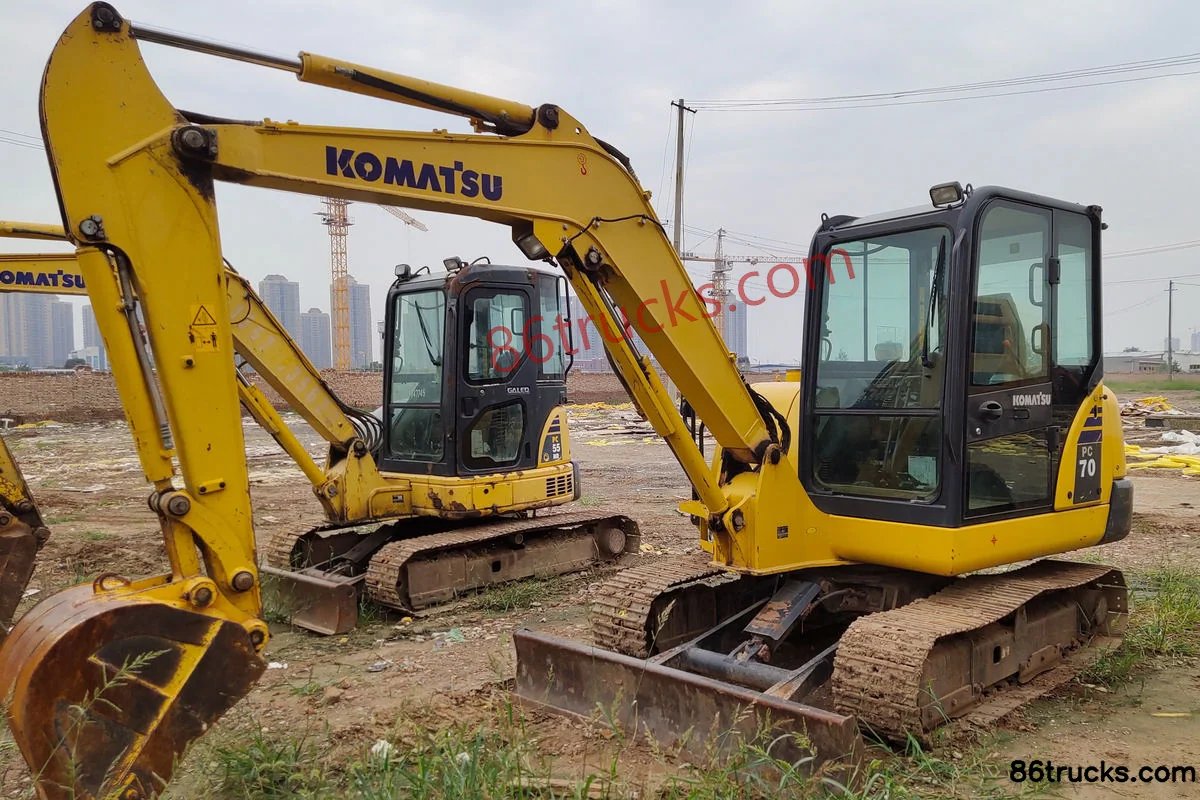

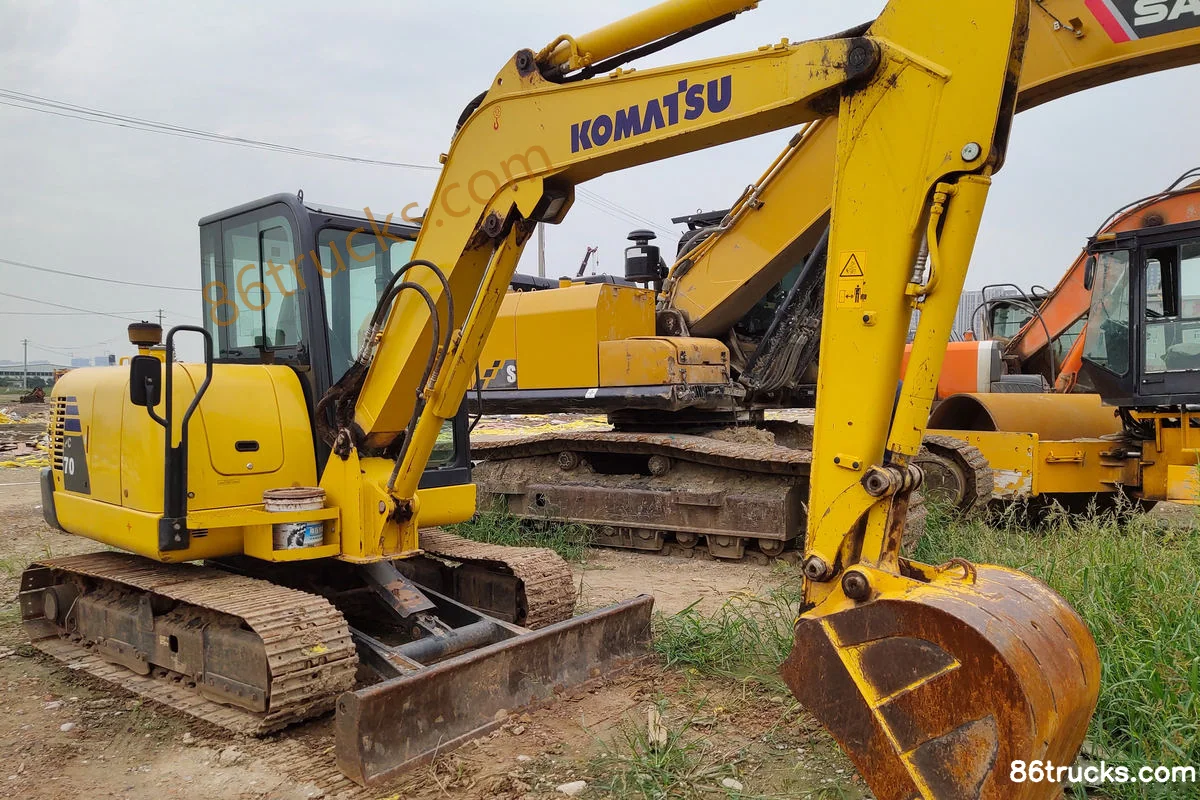

Photos
