FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh

Export reference
MSRP N/A
Rated payload:: 7.87ton
Wheelbase:: 4900+1350mm
Cargo box type:: Rectangular box
Model code (announced):: HN3251N22E1BEVY
Cab length:: 9.67m
GVWR:: 25ton
Drive 6X4 (10 wheels)
Battery Brand: Xuanwu
Motor 1 Brand: Kaibo
Curb Weight: 17ton

Overview

The FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh is a Heavy truck featuring Xuanwu battery/range, Kaibo motor, 6X4 (10 wheels) drive and 7.87t payload.

6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3251N22E1BEVY
Drive type: 6X4
Wheelbase: 4900+1350mm
Cab length: 9.67m
Cab width: 2.55m
Cab height: 3.65m
Curb Weight: 17ton
Rated payload: 7.87ton
GVWR: 25ton
Max. speed: 85km/h
Origin: Ma'anshan
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Kaibo
Motor 1 Model: EK140750PMS1/EK140750PMS1
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 440kW
Motor 1 Peak Power: 220kW
Motor 2 Peak Power: 220kW
Battery/Charging
Battery Brand: Xuanwu
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 282.62kWh
Transmission Parameters
Number of gears: 7Gear
shift type: Manual
Transmission Model: EK-7DMT-22000A(QL)+with PTO
Cargo box parameters
Cargo box type: Rectangular box
Cargo box length: 5.8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: Qingte 300S (6.733) cast steel middle & rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

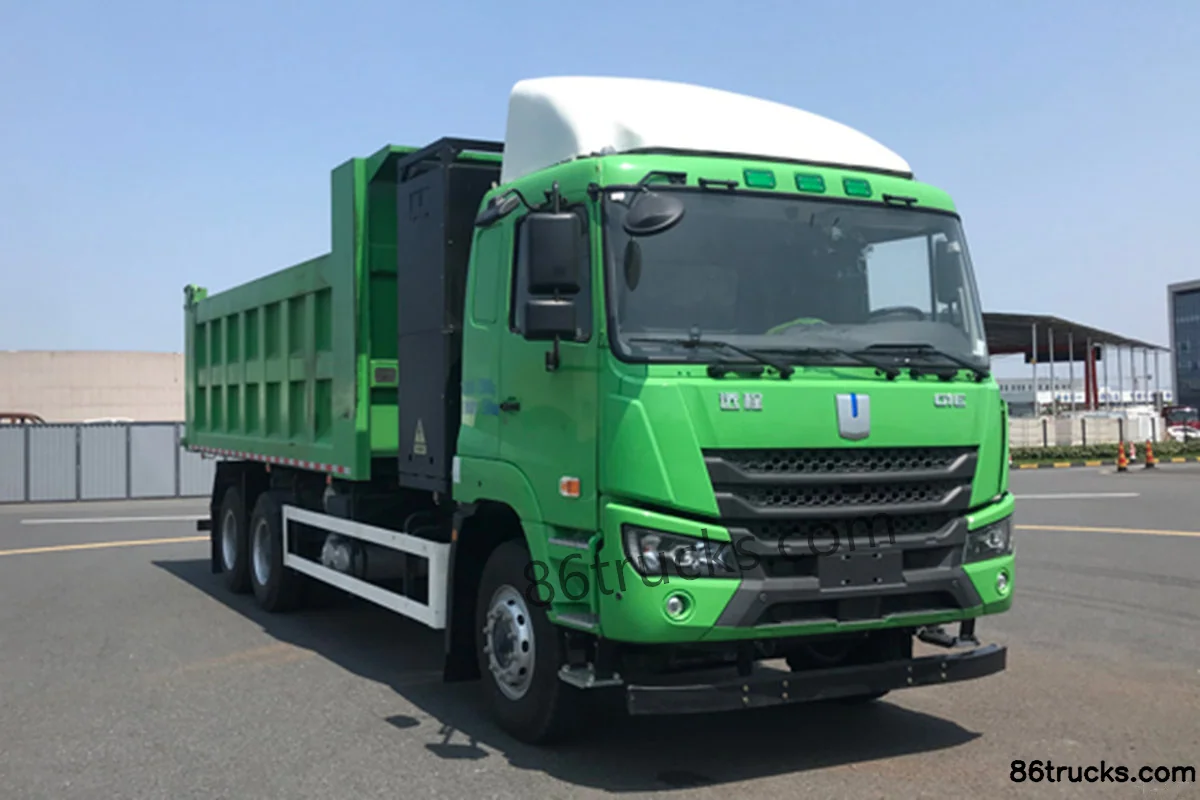

Exterior1

1 photos

FAQ

What are the key specs of FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh?

Key specs of FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh suited for?

FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh differ from other variants in the same series?

FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh belongs to FARIZONM7 (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON M7 25T 6X4(10 wheels) 5.8m Battery Swap Pure Electric Dump Truck 282.62kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
