Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.09ton
Wheelbase:: 3050mm
Tire Size:: 6.00-14 LT,6.00-15 LT
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 68
Cargo box type: Dump type

Overview

The Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) is a mini truck featuring 1.495t payload, 3.715t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Quanchai4A2-68C50 engine, 68 hp, China V emissions and Mengwo transmission.

China V 68 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB3040BDC3V
Drive type: 4X2
Wheelbase: 3050mm
engine: Quanchai4A2-68C50
transmission: MengwoMW525
Rear Axle Ratio: 5.125
Cab length: 5.19m
Cab width: 1.8m
Cab height: 2.12m
Front track width: 1300mm
rear track: 1265mm
Curb Weight: 2.09ton
Rated payload: 1.495ton
GVWR: 3.715ton
Origin: Zibo, Shandong
tonnage class: mini truck
Approach angle: 20°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-68C50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.27L
Emission standard: China V
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: MengwoMW525
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.41m
Cargo box width: 1.71m
Cargo box height: 0.36m
Chassis Specs
Front axle allowable load: 1450kg
rear axle allowable load: 2265kg
Axle ratio: 5.125
Leaf spring count: 6/5+3
Tire
Tire Size: 6.00-14 LT,6.00-15 LT
Number of tires: 6pcs
Control configuration
ABS:

Photos

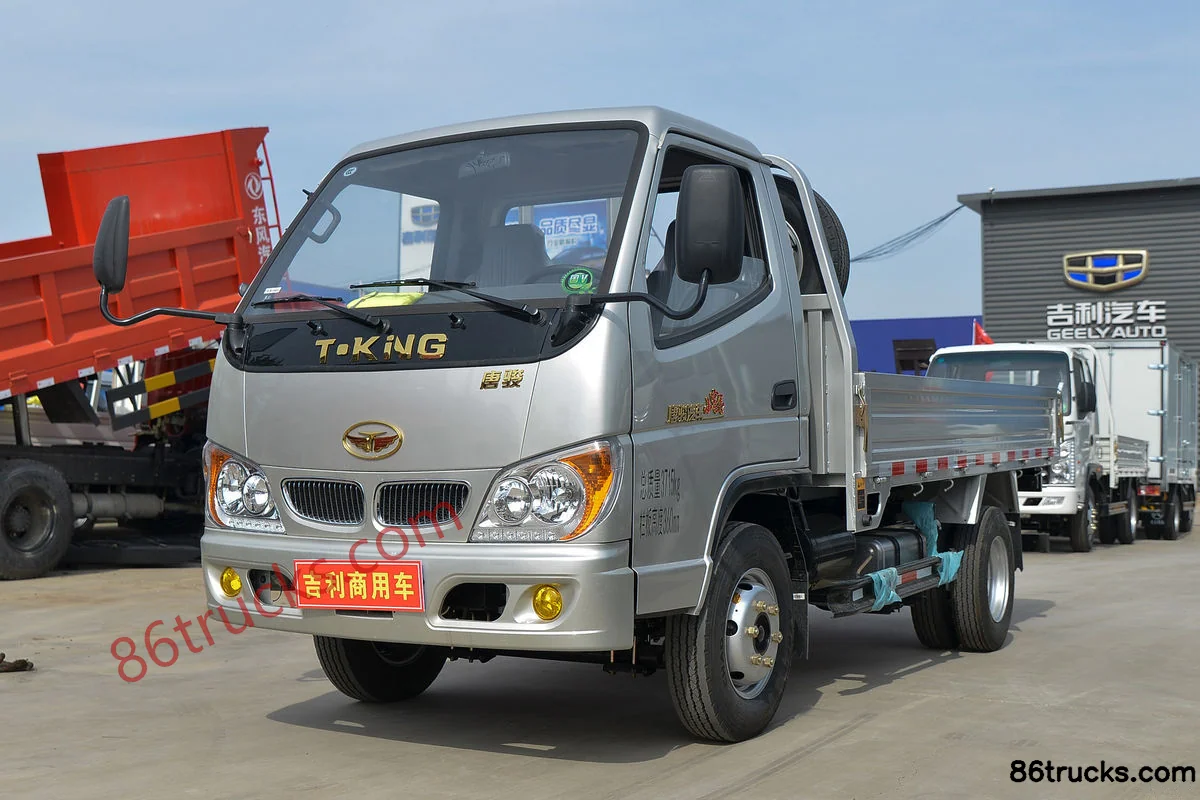

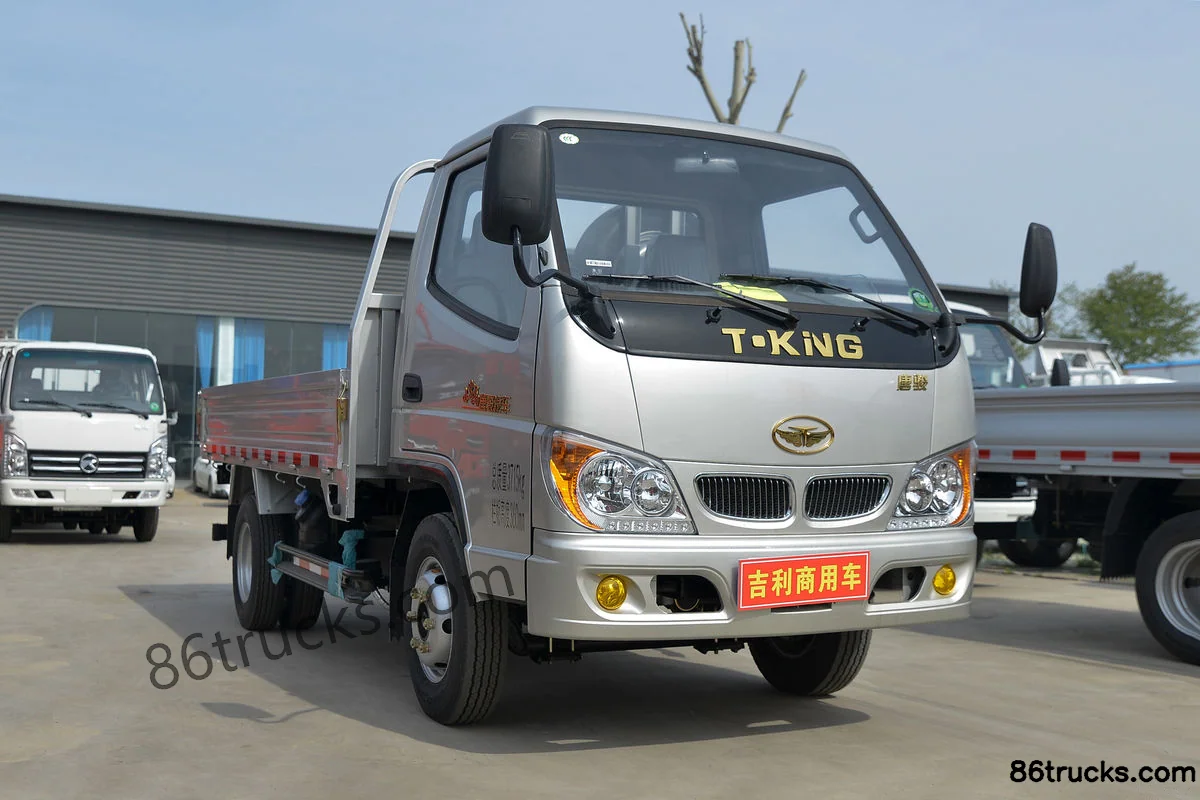

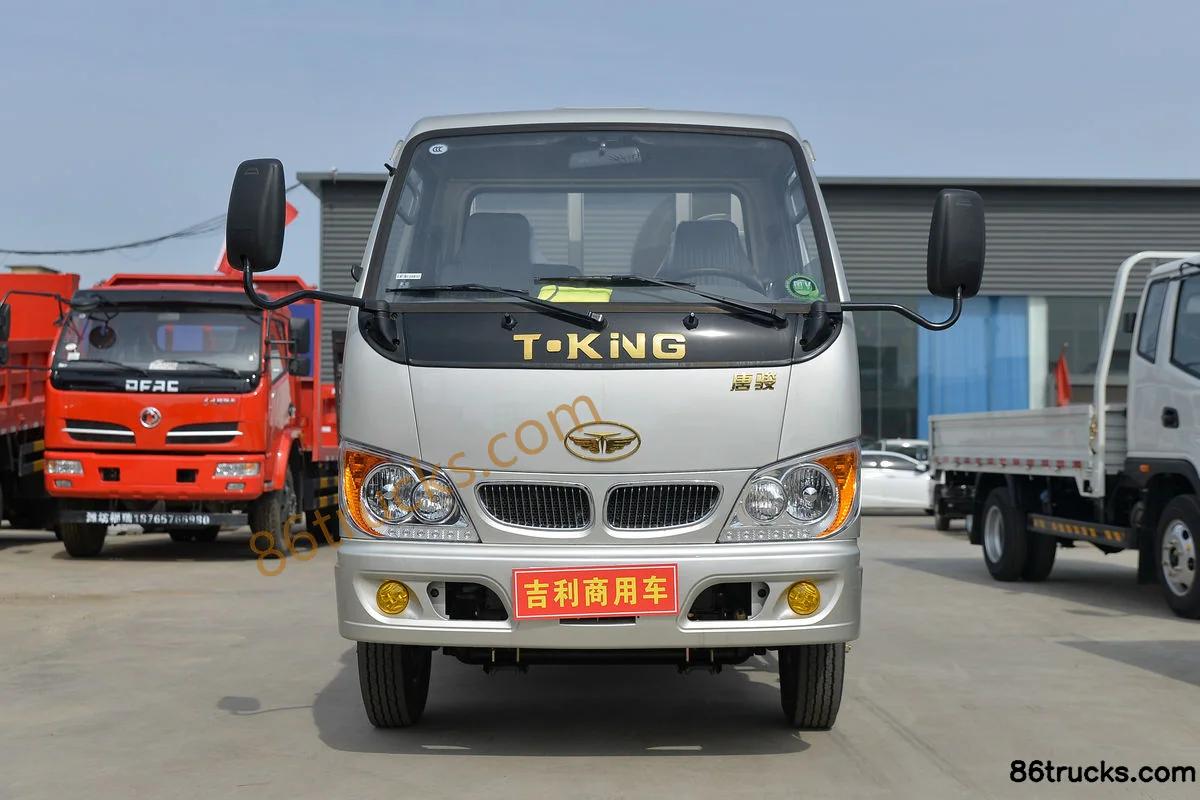

Exterior3

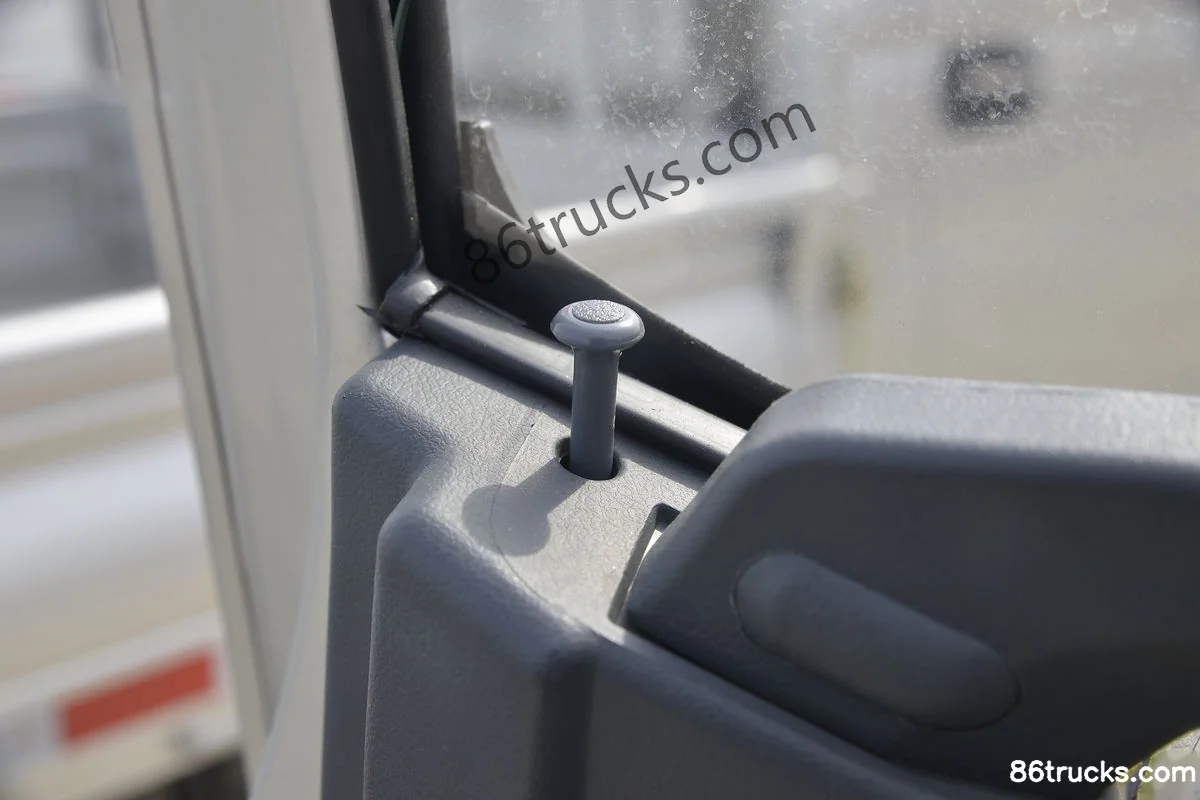

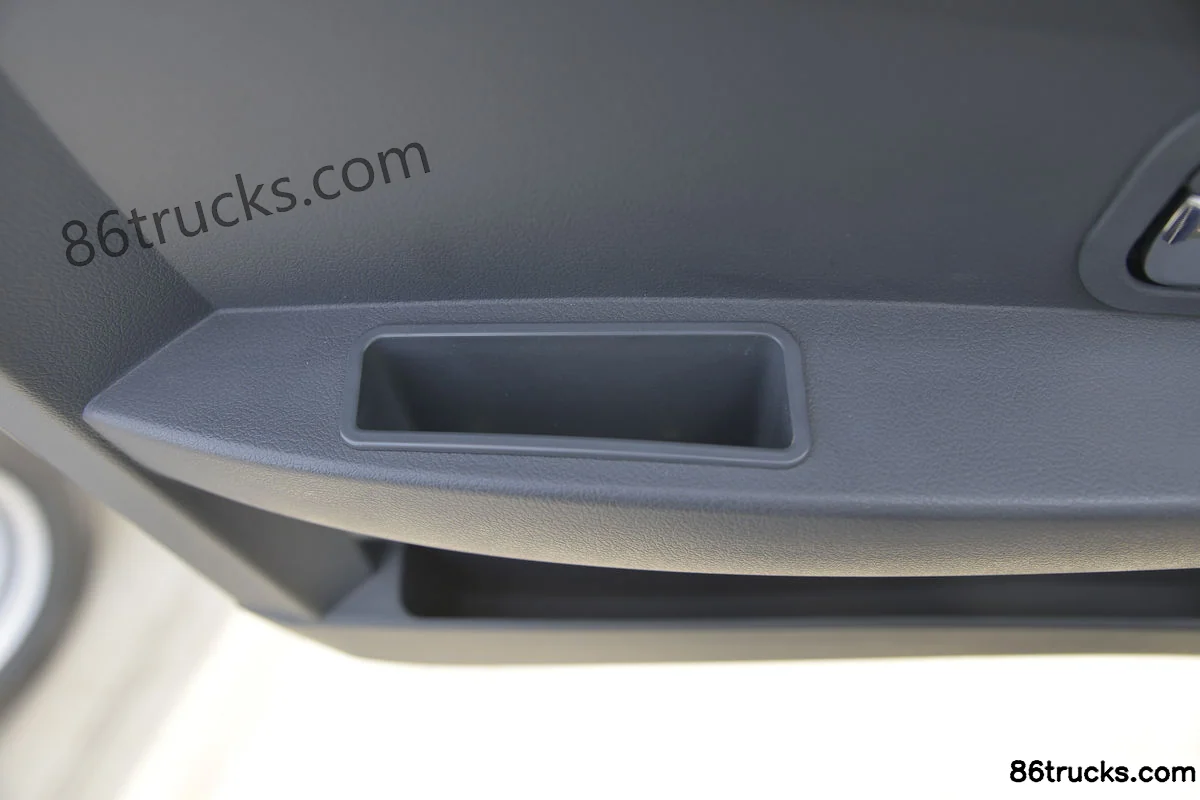

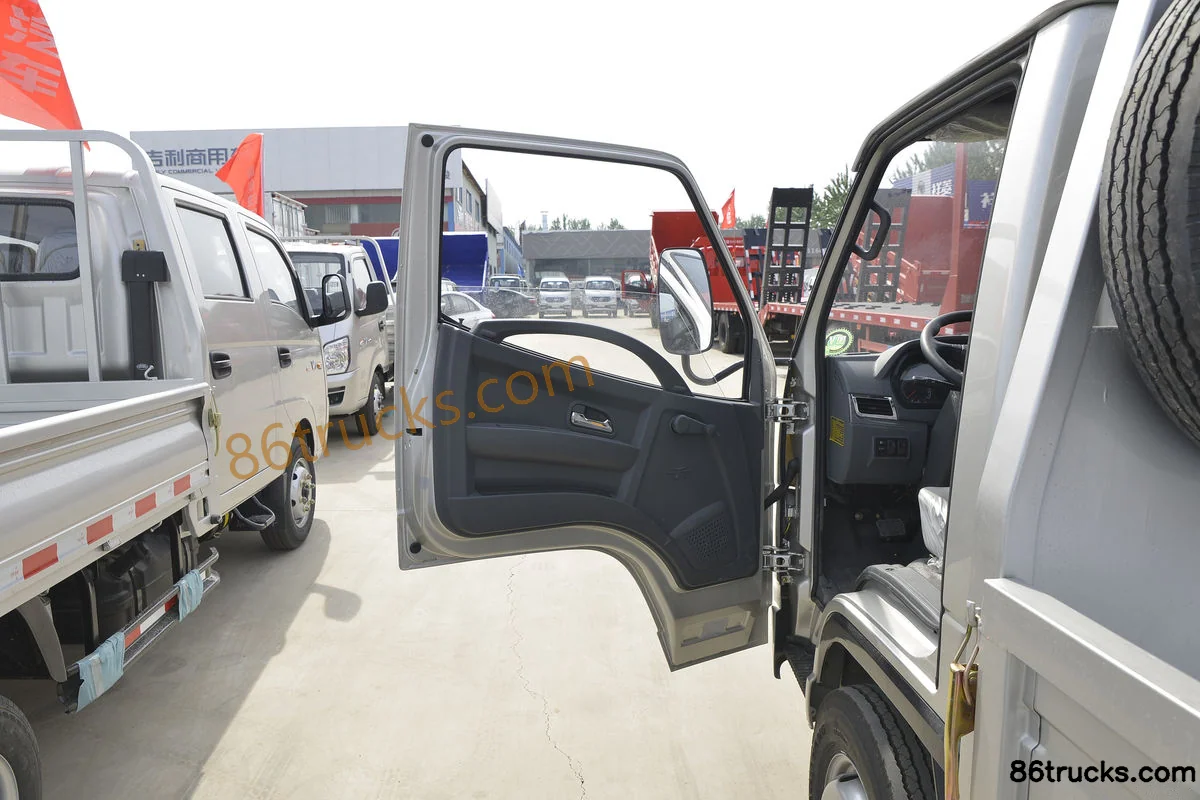

Cab3

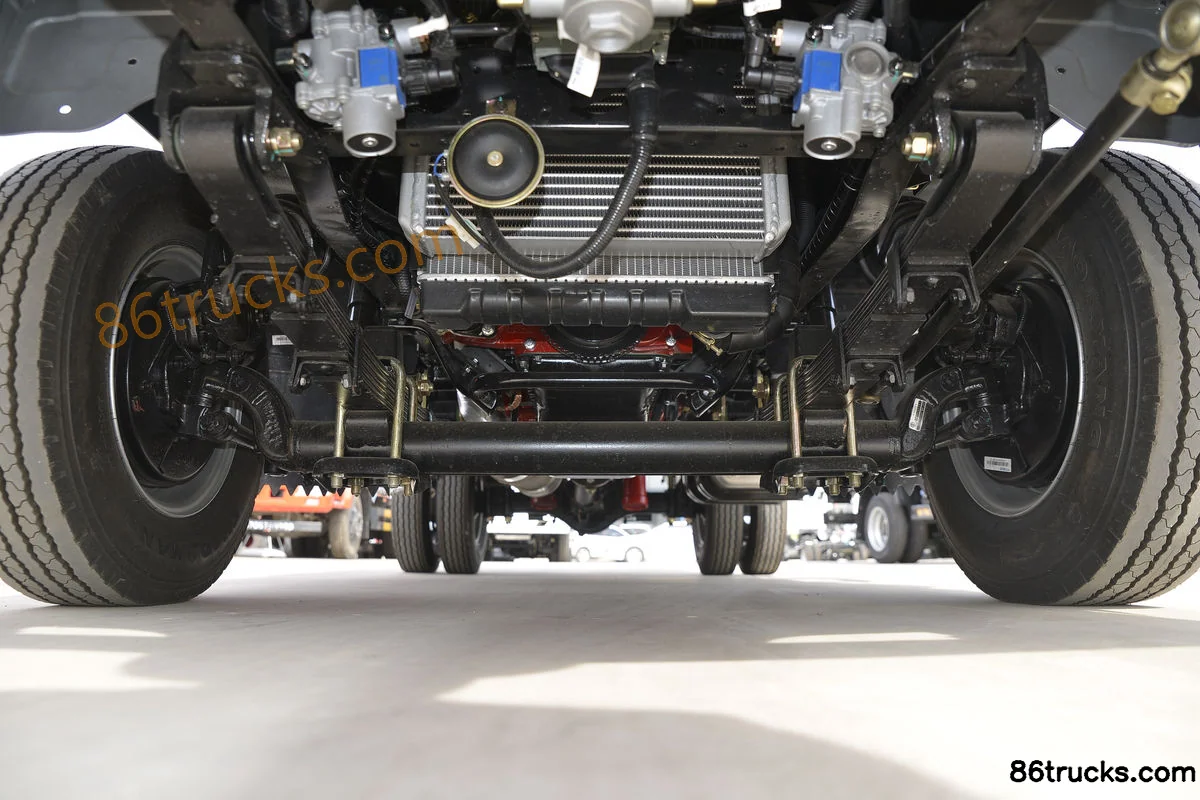

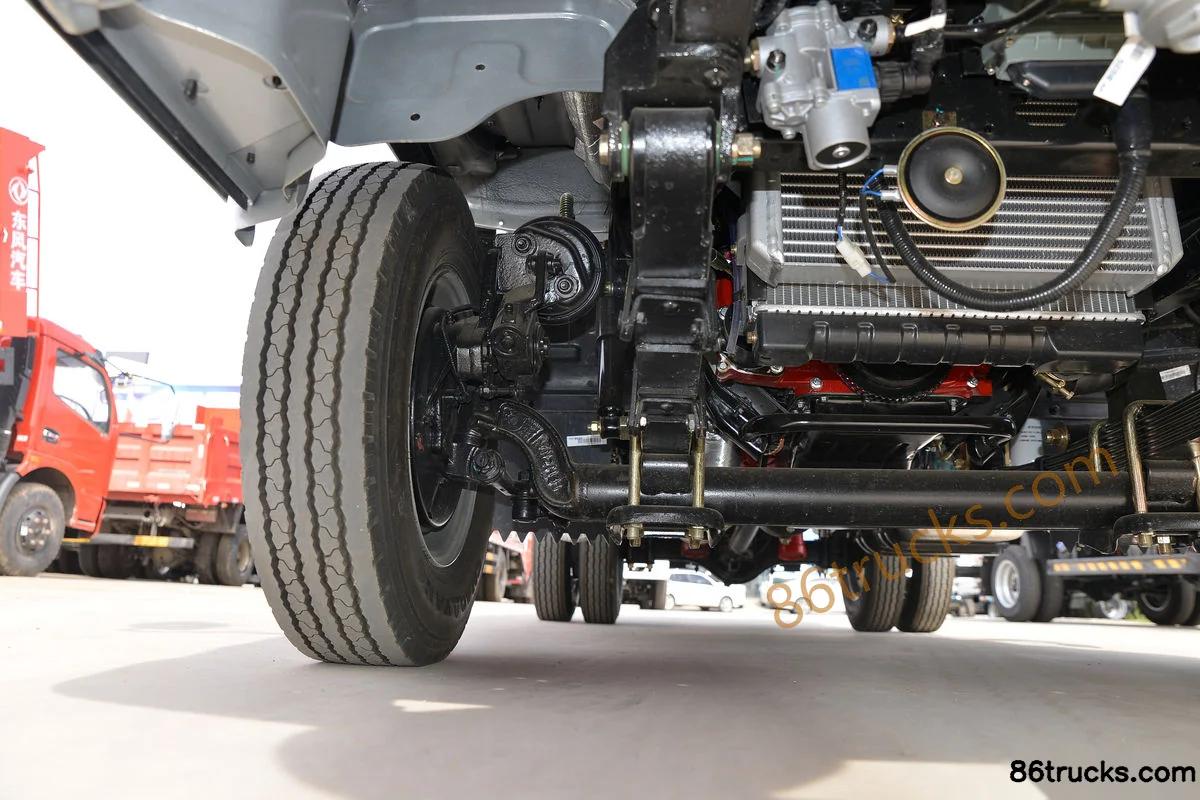

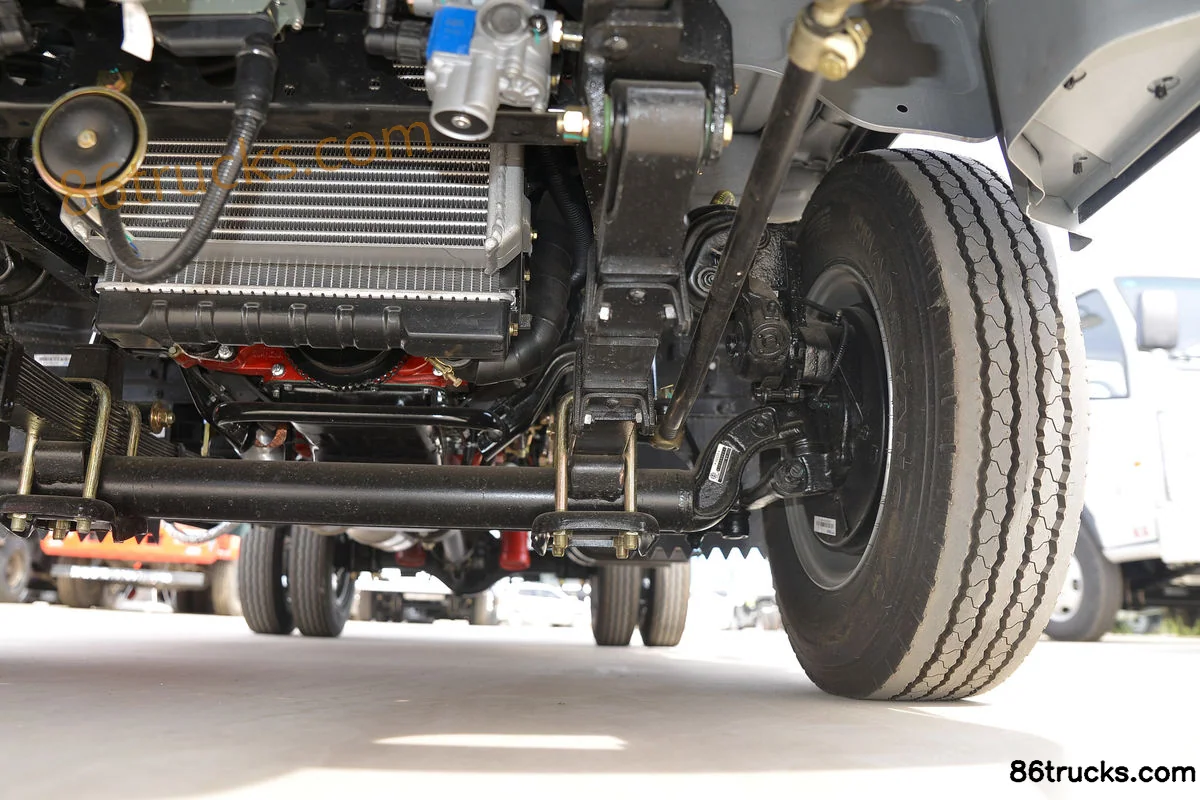

Chassis3

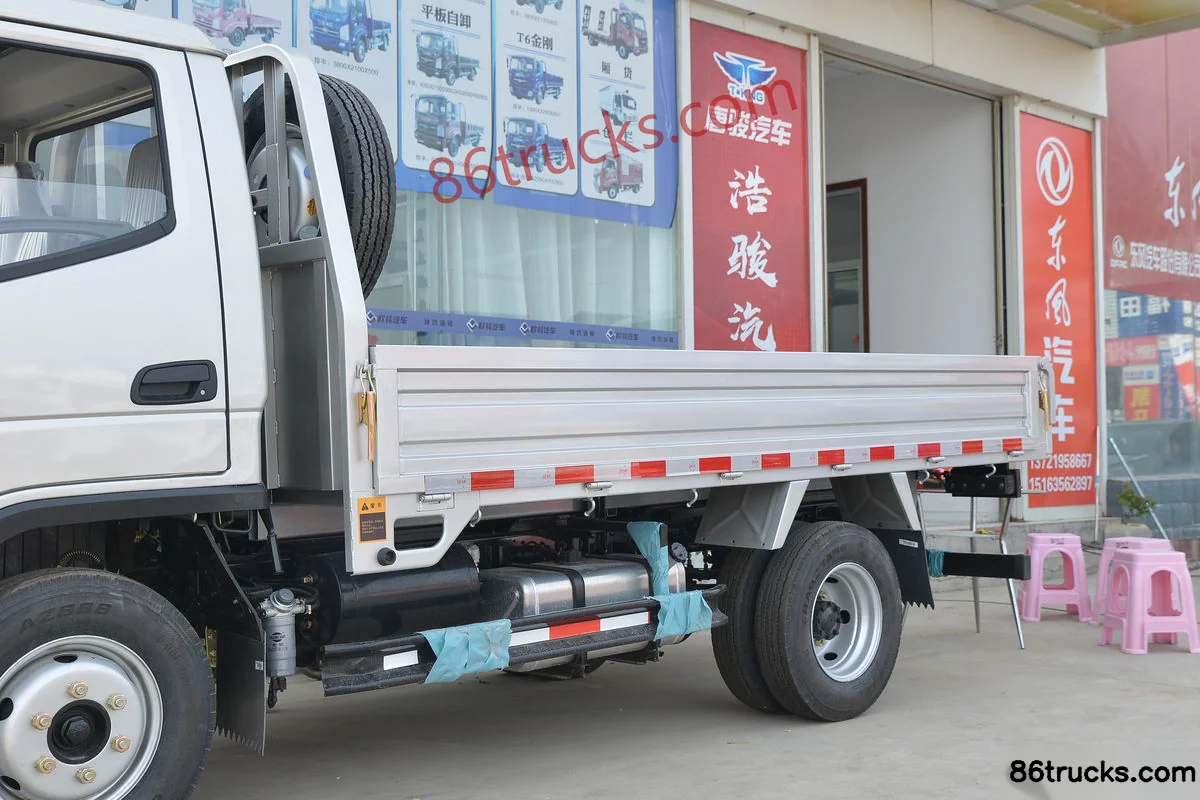

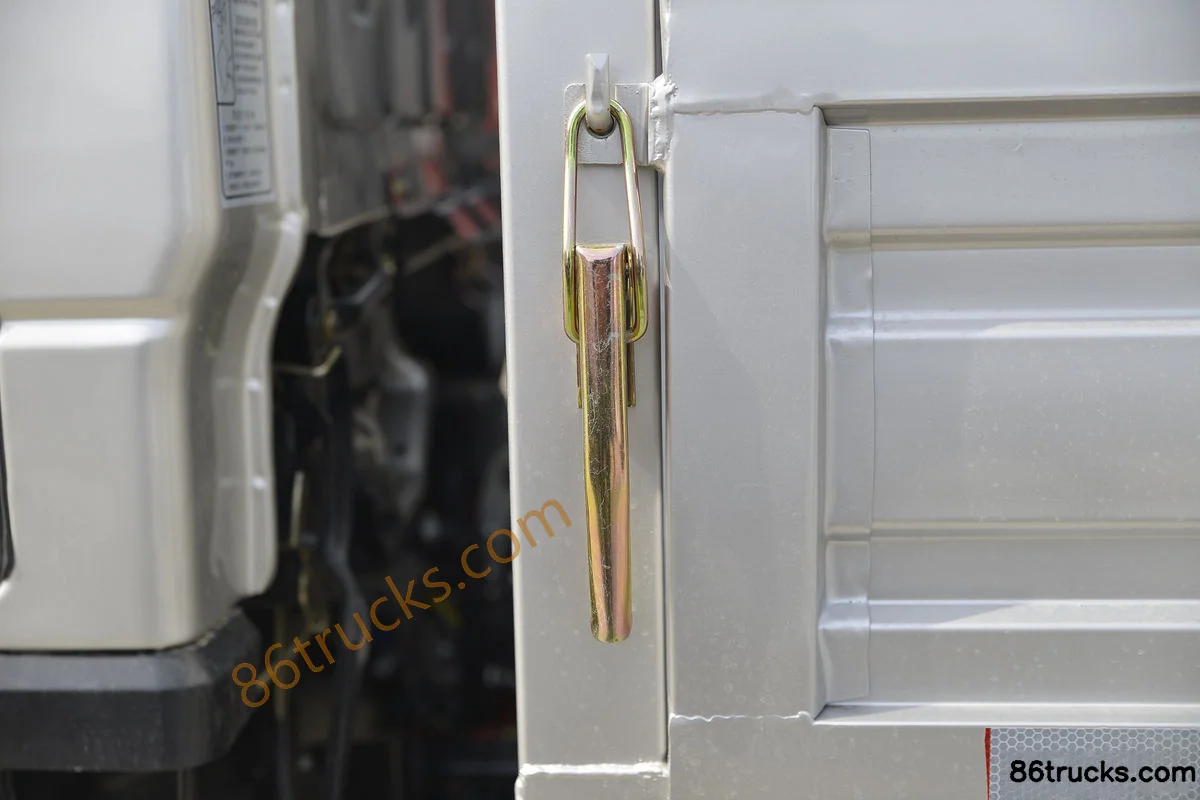

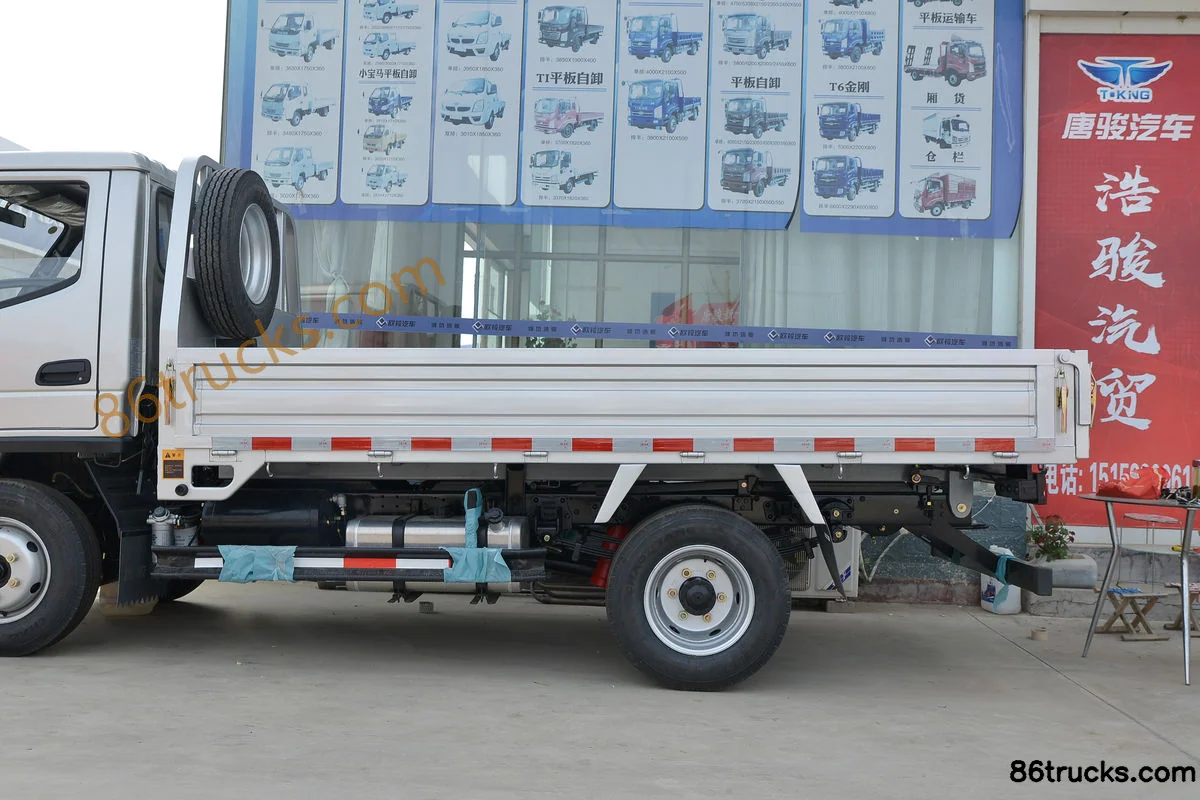

Body3

12 photos

FAQ

What emission standard does Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase)?

Key specs of Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase): Drive: 4x2; Horsepower: 68 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) suited for?

Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) differ from other variants in the same series?

Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase) belongs to Xiaobaoma Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Ouling Xiaobaoma 68hp 4X2(6 wheels) 3.41m Single Row Dump Truck (Long Wheelbase)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
